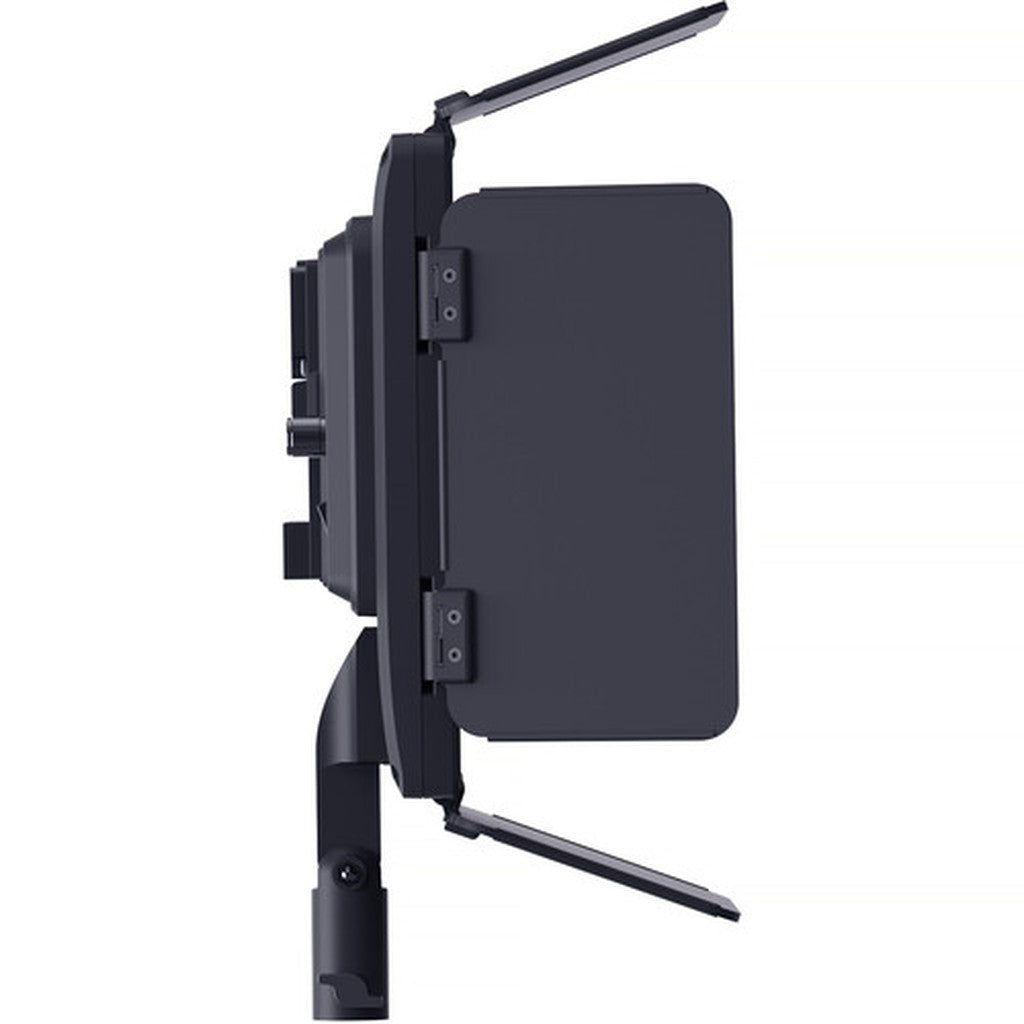

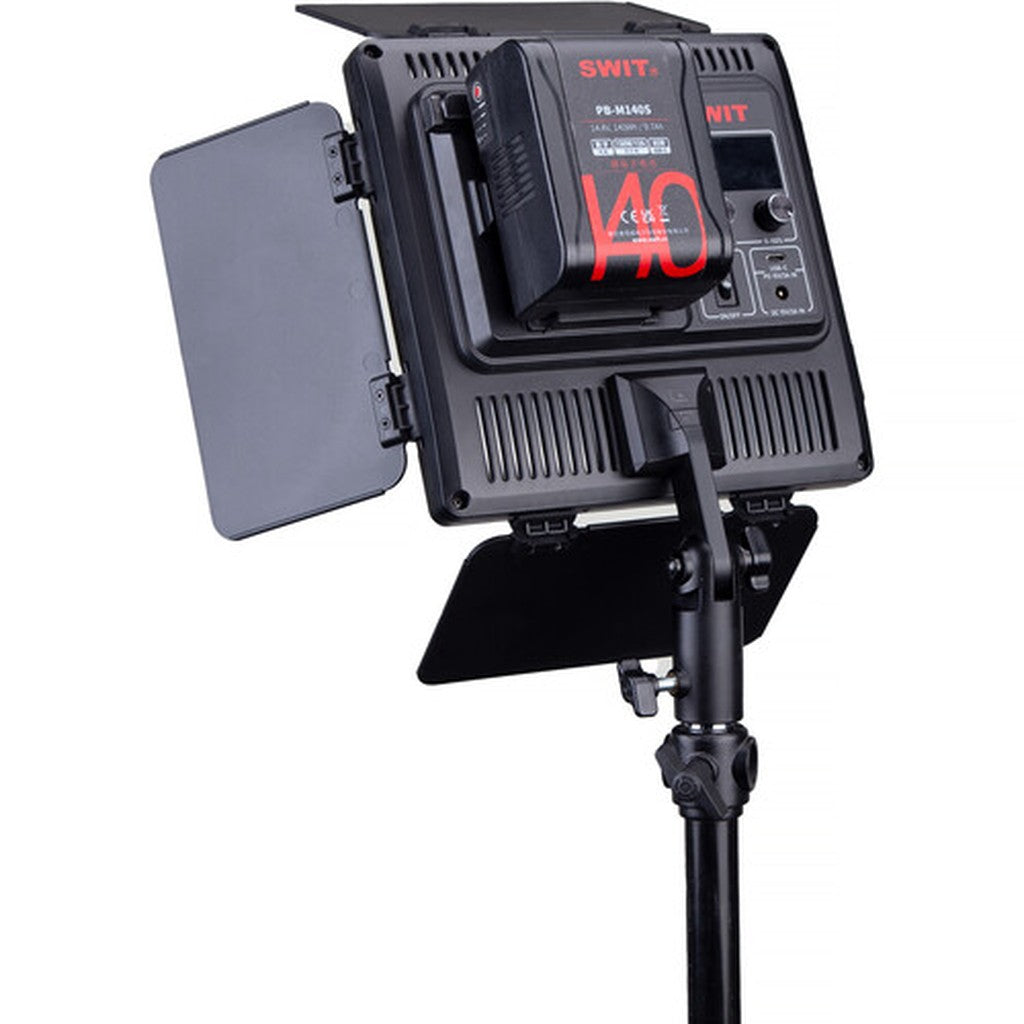

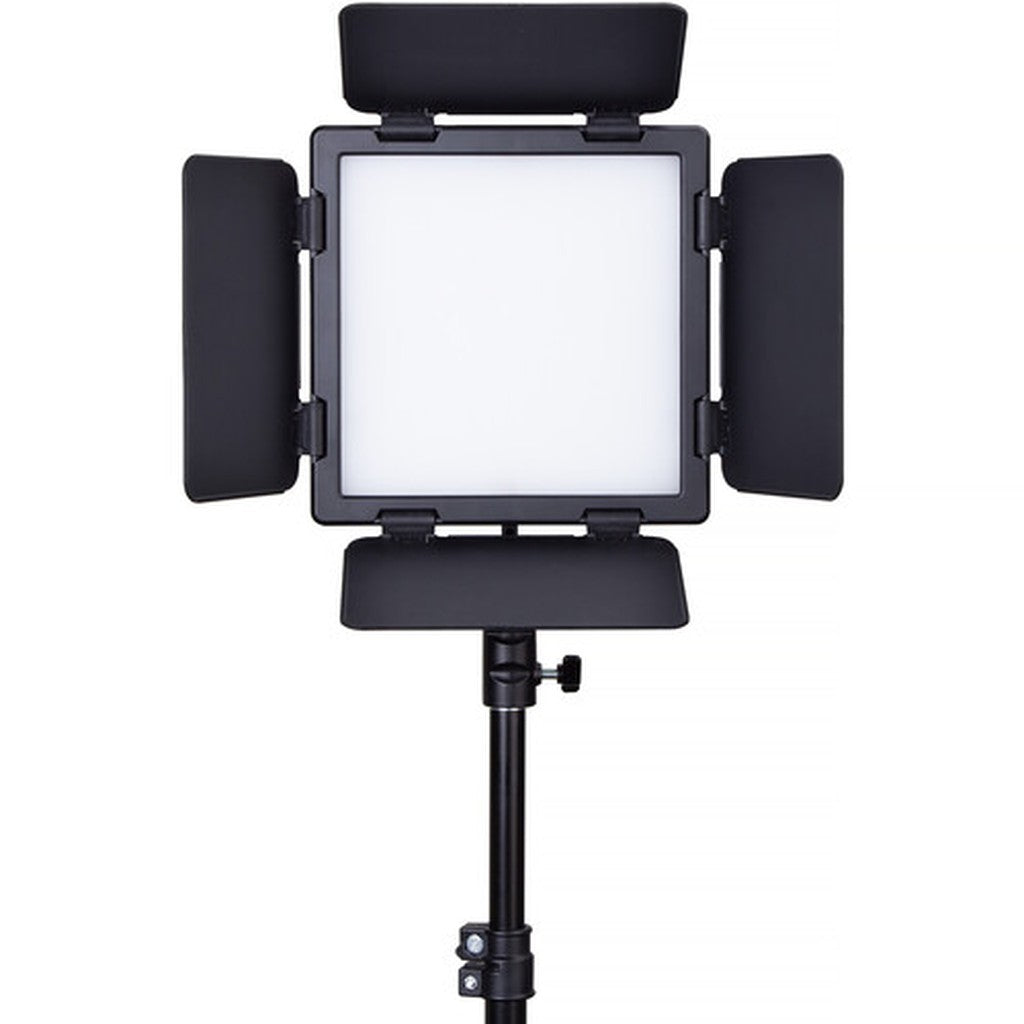

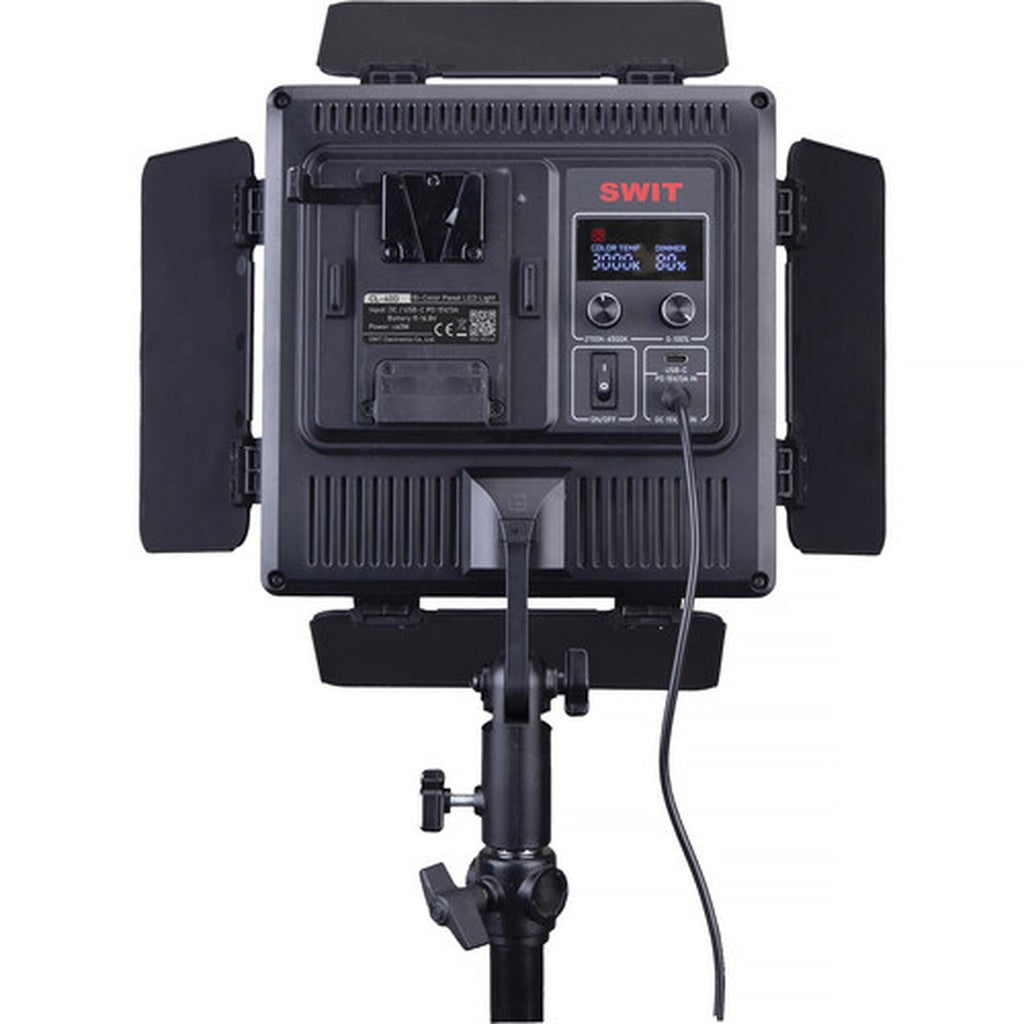

SWIT CL-40D 40W Portable Bi-Color LED Panel with V-Mount

SWIT CL-40D 40W Portable Bi-Color LED Panel with V-Mount

The SWIT CL-40D 40W portable bi-color LED panel delivers soft, color-accurate lighting in a compact 8-inch fixture. Its 288 SMD LEDs produce 1150 lux at 3.3 feet, while continuous 2700 to 6500K adjustment helps creators balance tungsten, daylight, and mixed-light environments.

Designed for interviews, livestreaming, green-screen production, and mobile video crews, the CL-40D provides full 40W output throughout its color-temperature range. Flicker-free PWM dimming supports slow-motion capture up to 480 fps, while the 64° half-peak beam creates broad, even coverage for key, fill, or background lighting.

Two onboard control knobs adjust brightness and color temperature, with an LCD showing exact settings and power information. The integrated V-Mount plate supports cordless field operation, while USB-C PD and 15V DC inputs expand power flexibility. A rotating bracket, four-leaf barndoors, AC adapter, and carrying bag support efficient location setups.

Key Features

• 40W Bi-Color Output: Maintains full output across the continuously adjustable 2700 to 6500K range.
• Compact LED Panel: The lightweight 8-inch design travels easily for location and mobile productions.
• High Color Accuracy: CRI 98, TLCI 99, and SSI D55 75 support dependable on-camera color reproduction.
• Flicker-Free Slow Motion: High-frequency LED driving supports recording at frame rates up to 480 fps.
• Flexible Power Inputs: Operates from AC power, a V-Mount battery, USB-C PD, or a 15V DC source.
• LCD Onboard Control: Displays brightness, color temperature, and active power-source information.
• Four-Leaf Barndoors: Shapes the broad beam and helps limit unwanted light spill.
• Rotating Stand Bracket: Provides up to 90° adjustment for flexible fixture positioning.

Technical Specifications

• Model: CL-40D
• Item Type: Bi-color LED light panel
• LED Type: Surface-mounted LEDs
• LED Quantity: 288
• LED Configuration: 144 x 2700K LEDs and 144 x 6500K LEDs
• Output Power: 40W
• Power Consumption: 40W
• Photometrics: 107 fc / 1150 lux at 3.3 feet
• Color Temperature: 2700 to 6500K
• Color Modes: Daylight and tungsten
• CRI: 98
• TLCI: 99
• SSI D55: 75
• Dimming: 0 to 100% PWM digital dimming
• Slow-Motion Performance: Flicker-free at up to 480 fps
• Beam Angle: 64° half-peak
• Onboard Controls: Two adjustment knobs and power switch
• Display: LCD with brightness, color-temperature, and power information
• Included Light Modifier: Four-leaf barndoors
• Front Accessory Mount: Proprietary
• Preprogrammed Effects: No
• Built-In Flash: No
• Umbrella Mount: No
• AC Power Source: Included AC-to-DC adapter
• Battery Plate: Integrated V-Mount
• Battery: Optional V-Mount rechargeable battery
• V-Mount Battery Input: 11 to 16.8V DC
• USB-C Input: USB-C PD, 15V at 2.66A
• DC Input: 5.5/2.1mm barrel connector, 15V at 3A
• Yoke Type: Manually operated rotating bracket
• Bracket Adjustment: Up to 90°
• Fixture Mount: 5/8" receiver through the mounting bracket
• Lighting Area: 6.77" x 6.77"
• Dimensions: 8.03" x 8.03" x 2.15"
• Weight: 1.81 lbs
• Packaged Weight: 3.24 lbs
• Included Storage Case: Carrying bag

What's In the Box

• SWIT CL-40D Bi-Color LED Light Panel
• AC-to-DC Power Adapter
• Carrying Bag
