SWIT CL-60D 60W 1:1 Bi-Color SMD LED Panel with DMX

SWIT CL-60D 60W 1:1 Bi-Color SMD LED Panel with DMX

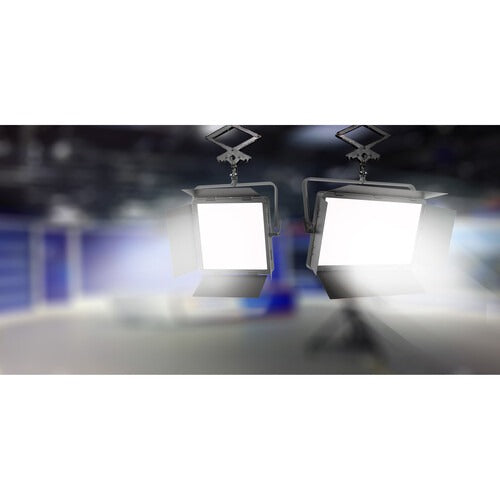

The SWIT CL-60D 60W 1:1 bi-color SMD LED panel provides soft, flicker-free illumination for broadcast studios, interviews, livestreams, and location production. Its 900 surface-mounted LEDs deliver 2000 lux at 3.3 feet, with continuously adjustable 2700 to 6500K output, 0 to 100% dimming, and DMX512 control.

This professional bi-color studio light suits green-screen production, corporate video, multi-camera interviews, and mobile broadcast kits. Its broad, evenly distributed beam helps crews create natural-looking key, fill, or background lighting. Fanless cooling also keeps the fixture quiet around microphones and other sensitive audio equipment.

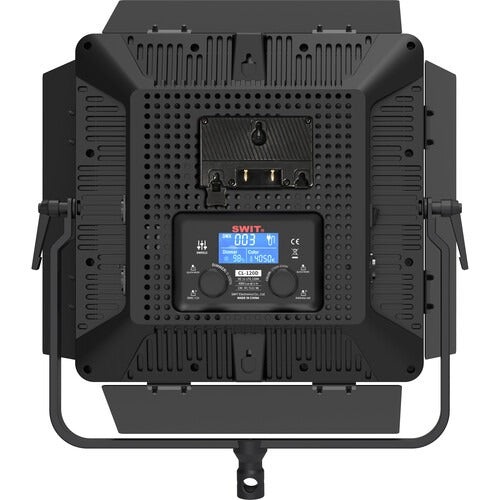

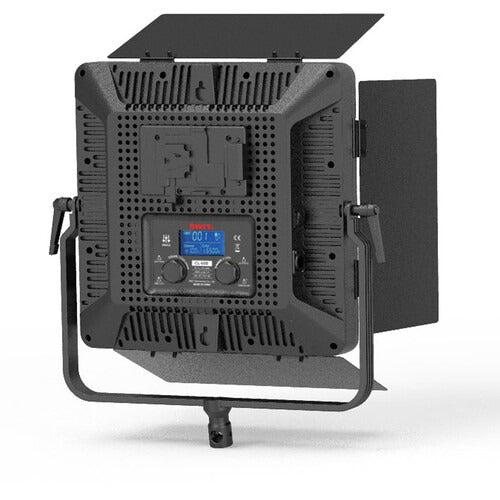

Operators can adjust brightness and color temperature locally or through a compatible DMX console. The rear LCD displays dimmer level, color temperature, DMX address, channel information, and battery status. An integrated V-Mount plate supports location use, while the included AC adapter provides dependable studio power. The fixture also carries an IP20 rating and IEC 62471:2008 Exempt photobiological safety classification.

Key Features

• 60W Bi-Color Output: Provides adjustable studio illumination across a wide 2700 to 6500K color-temperature range.
• 900 SMD LEDs: Produces soft, uniform light with consistent coverage from the center to the panel edges.
• High Color Accuracy: CRI 98 and TLCI 99 ratings support natural skin tones and dependable on-camera color.
• Flicker-Free Dimming: Adjusts smoothly from 0 to 100% through PWM digital dimming.
• DMX512 Control: Five-pin input and output connections support remote brightness and color-temperature adjustments.
• Fanless Operation: Passive cooling eliminates fan noise during interviews, livestreams, and dialogue recording.
• Flexible Power Options: Operates from the included AC adapter or a compatible V-Mount battery.

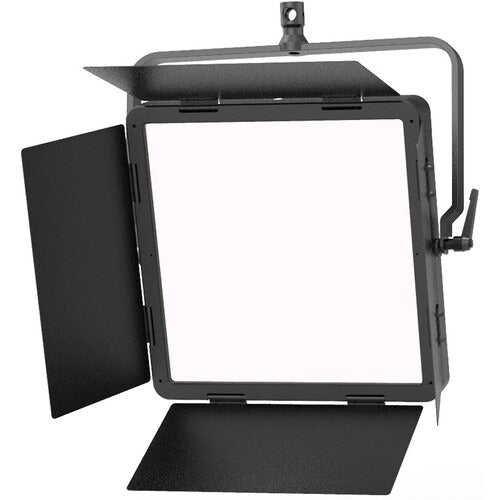

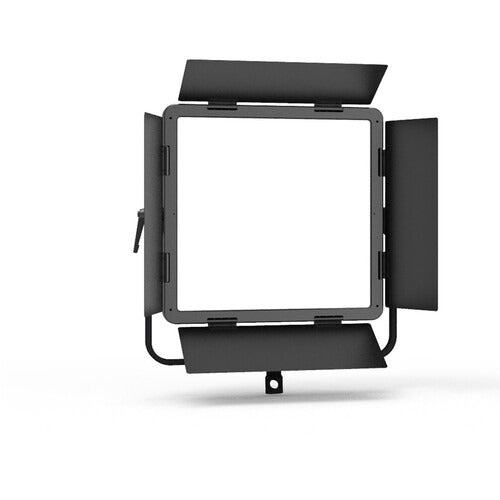

• Integrated Light Shaping: Four-way metal barndoors help control spill and direct the broad beam.

Technical Specifications

• Model: CL-60D
• Fixture Type: Bi-color SMD LED light panel
• Panel Format: 1:1
• LED Type: Surface-mounted LEDs
• LED Quantity: 900
• Output Power: 60W
• Power Consumption: 60W
• Illuminance: 2000 lux / 186 fc at 3.3 feet
• Color Temperature: 2700 to 6500K
• Color-Temperature Adjustment: Continuous in 50K increments
• Color Modes: Daylight and tungsten
• CRI: 98
• TLCI: 99
• Dimming: 0 to 100% PWM digital dimming
• Beam Angle: 120° full beam; 65° half-peak
• Cooling System: Passive and fanless
• Display: Rear LCD
• Included Light Modifier: Four-way metal barndoors
• Included Filter: Soft diffusion
• Optional Modifier: LA-G60 40° metal honeycomb grid
• Front Accessory Mount: Proprietary
• DMX Input: 1 x 5-pin XLR
• DMX Output: 1 x 5-pin XLR
• DMX Address Range: 001 to 512
• DMX Channels: Dimmer and color temperature
• Wireless Control: Wireless DMX with an optional compatible adapter
• Mobile App Compatibility: No
• USB Connection: 1 x USB-A 5V power output for a compatible wireless DMX adapter
• DC Power Input: 1 x 4-pin XLR
• DC Input Power: 11 to 17V DC
• AC Adapter Input: 100 to 240V AC, 50/60Hz
• Battery Plate: Integrated V-Mount plate
• Battery Included: No
• Power Pass-Through: No
• Inline Power Switch: No
• Yoke Type: Pole-operated yoke
• Fixture Mount: 5/8" receiver through the yoke
• Umbrella Mount: No
• Built-In Flash: No
• Housing Material: Metal
• Environmental Rating: IP20
• Photobiological Safety: IEC 62471:2008 Exempt classification
• Lighting Area: 12.20" x 12.20"
• Dimensions: 13.94" x 13.94" x 2.89"
• Weight: 7.1 lbs
• Packaged Weight: 13.89 lbs
• Package Dimensions: 22.6" x 22" x 7.2"

What's In the Box

• SWIT CL-60D 60W Bi-Color SMD LED Panel
• Four-way metal barndoors
• AC-to-DC power adapter
• AC power cable
• Carrying bag
