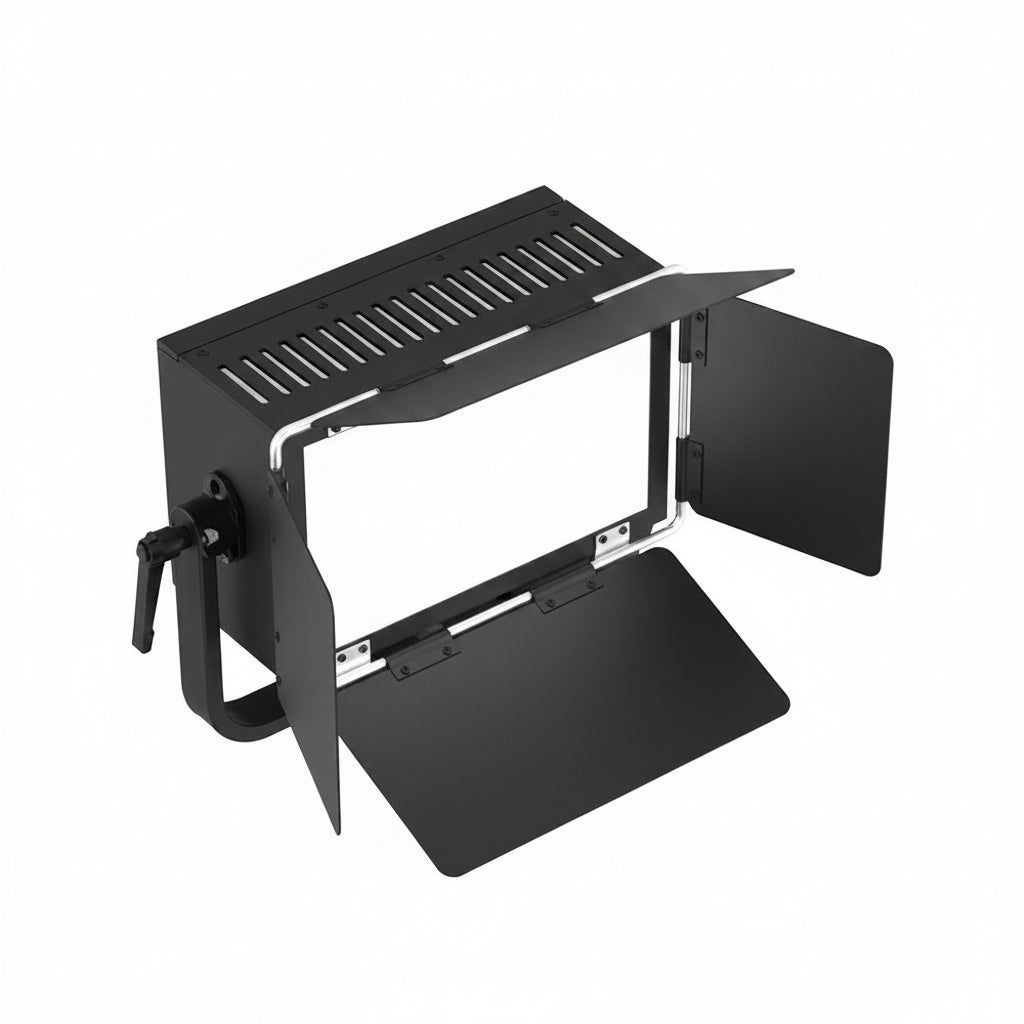

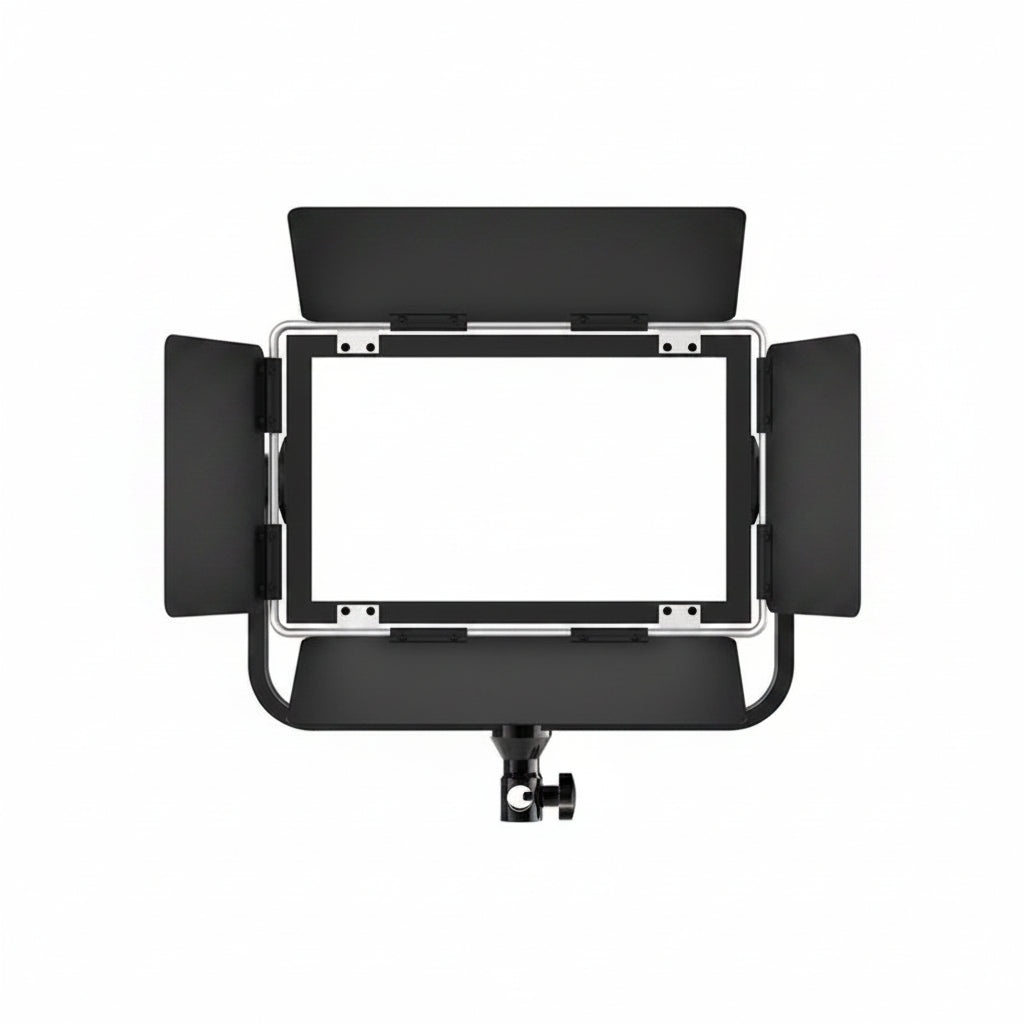

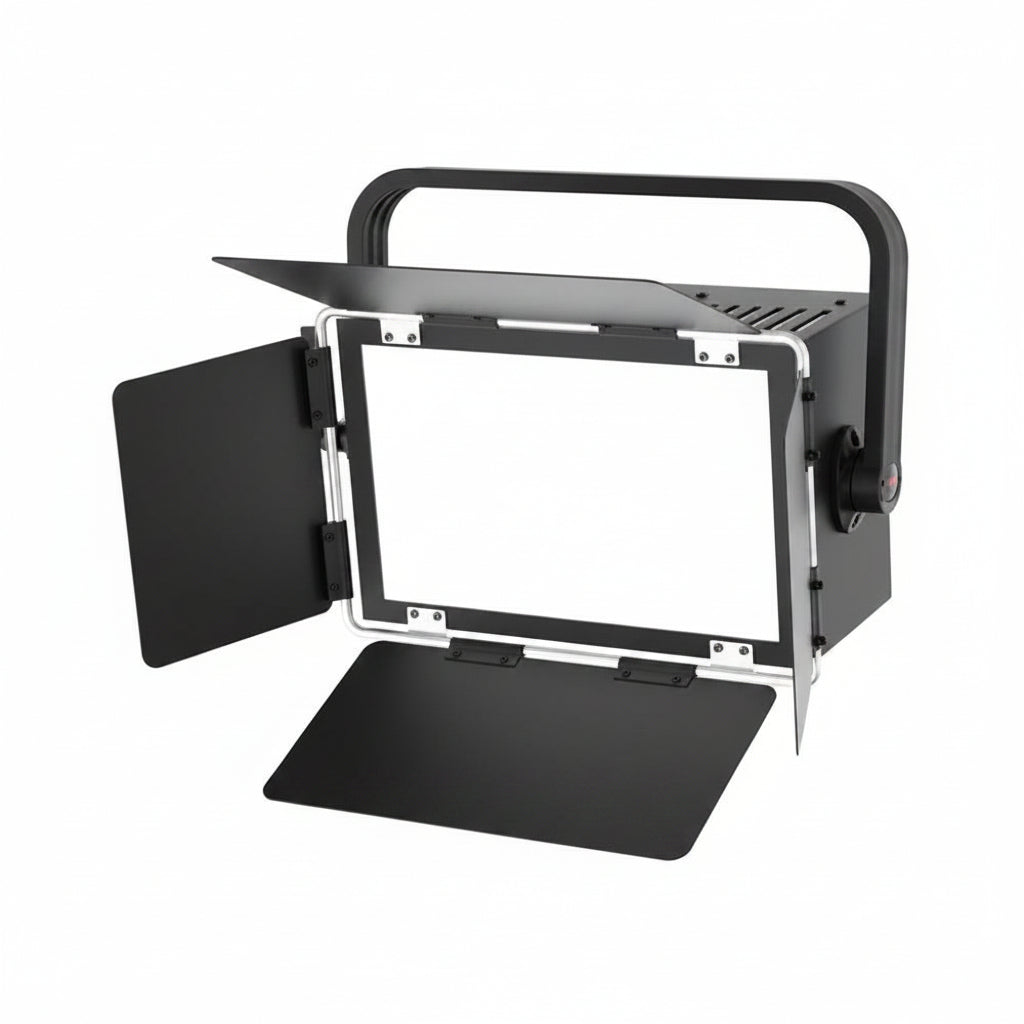

SWIT CL-M100D 100W Mini Bi-Color LED Studio Light Panel

SWIT CL-M100D 100W Mini Bi-Color LED Studio Light Panel

The SWIT CL-M100D 100W Mini Bi-Color LED Studio Light Panel is a compact, fanless fixture for broadcast, film, theater, and live production. Its 576 SMD LEDs produce 3400 lux at 3.3 feet, with continuously adjustable 2700 to 6500K output, flicker-free dimming, and high color accuracy.

This compact bi-color studio light works especially well in low-ceiling studios, green-screen spaces, livestreaming rooms, and interview sets. A 62° half-peak beam delivers broad, soft illumination, while the passive cooling system eliminates fan noise during dialogue recording. Normal and Fast adjustment modes help operators refine or rapidly change brightness and color temperature.

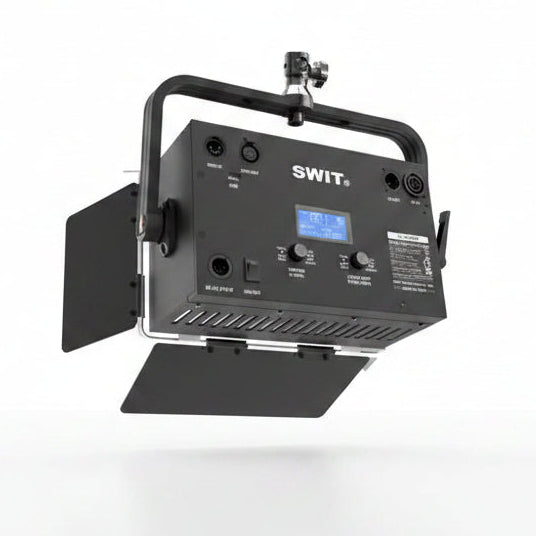

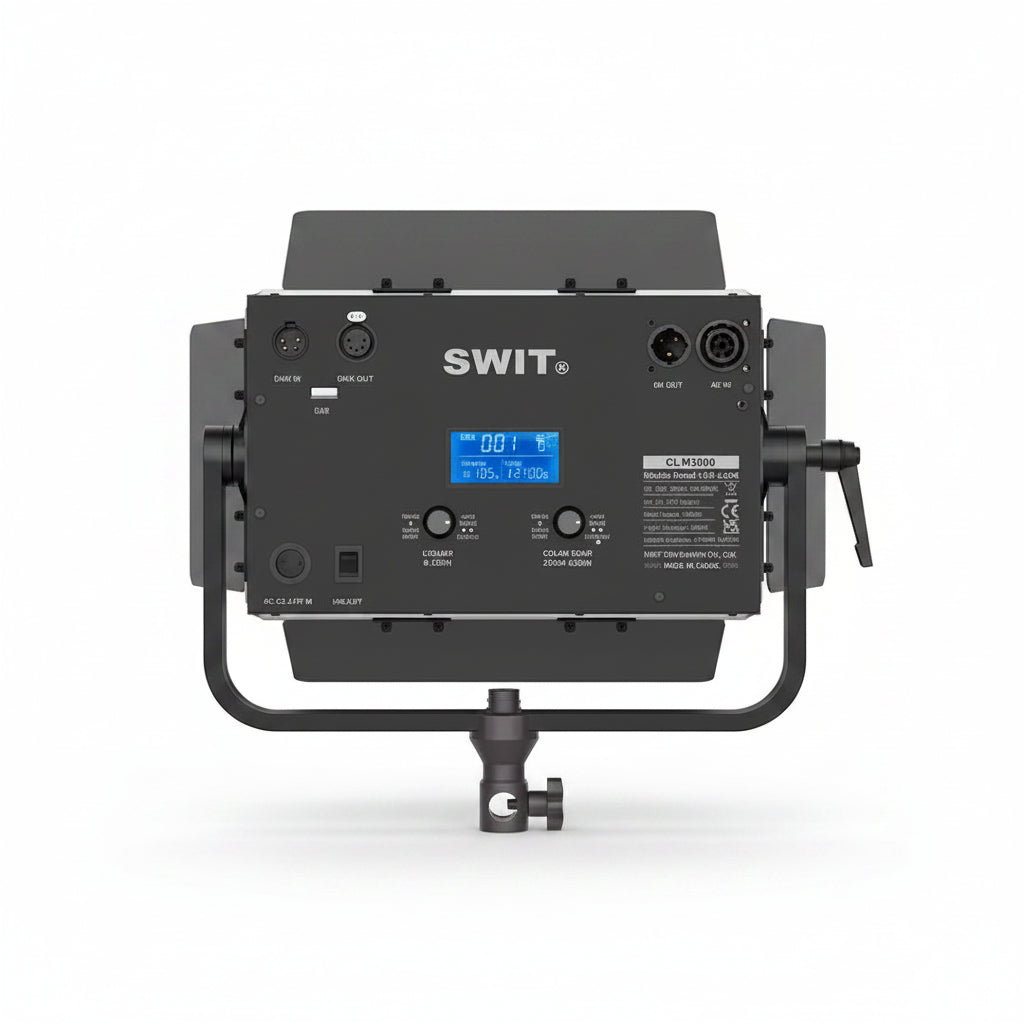

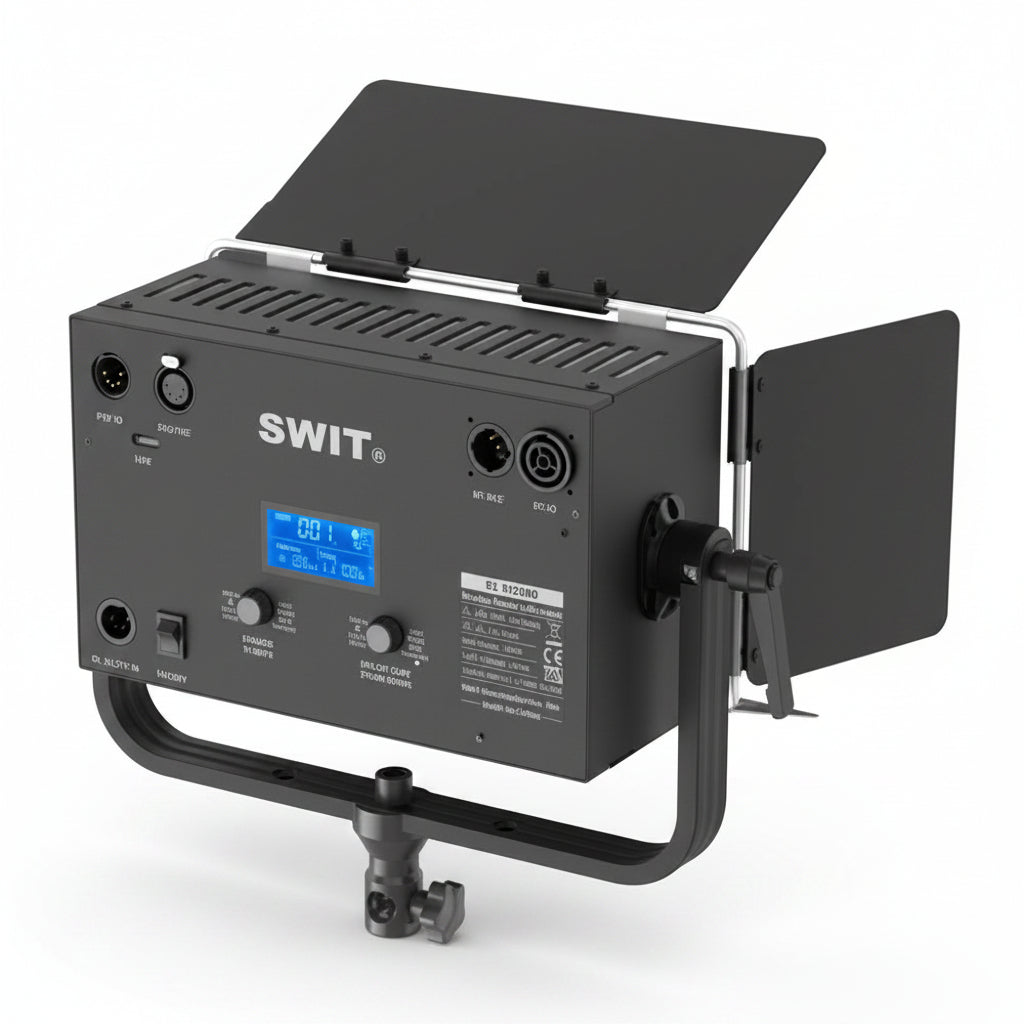

Onboard controls and the rear LCD display provide access to dimming, color temperature, DMX addresses, group channels, and power information. Five-pin DMX512 input and output support centralized studio control, while PowerCON TRUE1 AC pass-through simplifies multi-fixture installations. A 4-pin XLR input also supports optional V-Mount or Gold Mount battery power configurations.

Key Features

• 100W Bi-Color Output: Maintains full 100W light output throughout the adjustable 2700 to 6500K range.
• High-Intensity Illumination: Produces 3400 lux at 3.3 feet for studio, broadcast, and production lighting.
• Accurate Color Reproduction: Delivers CRI 98, TLCI 99, and SSI D55 73 performance.
• Fanless Cooling: Passive heat dissipation supports silent operation during interviews, dialogue, and livestreaming.
• Flicker-Free Dimming: Adjusts from 0 to 100% through smooth PWM digital dimming.
• Professional DMX Control: Five-pin DMX512 input and output control brightness and color temperature remotely.
• Flexible Power Options: Supports PowerCON TRUE1 AC input and output plus 11 to 17V DC through 4-pin XLR.
• Integrated Light Shaping: Includes four-leaf metal barndoors and a manually operated yoke bracket.

Technical Specifications

• Model: CL-M100D
• Fixture Type: Bi-color SMD LED studio light panel
• LED Quantity: 576 SMD LEDs
• Light Output: 100W
• Maximum Power Consumption: 130W
• Illuminance: 3400 lux / 316 fc at 3.3 feet
• Color Temperature: 2700 to 6500K
• Color Modes: Daylight and tungsten
• CRI: 98
• TLCI: 99
• SSI D55: 73
• Beam Angle: 62° half-peak
• Dimming: 0 to 100% PWM digital dimming
• Normal Adjustment Mode: 50K color-temperature steps and 1% brightness increments
• Fast Adjustment Mode: 2700K, 3200K, 4500K, 5600K, or 6500K with 10% brightness increments
• Cooling System: Passive, fanless cooling
• Display: Rear LCD control and status display
• DMX Connections: 5-pin XLR input and output
• USB Connection: USB-A 5V power output for a compatible wireless DMX receiver
• AC Input and Output: PowerCON TRUE1
• AC Power: 100 to 240V AC, 50/60Hz
• DC Input: 4-pin XLR, 11 to 17V DC
• Power Pass-Through: Supported
• Fixture Mount: 1-1/8" Junior pin with 5/8" Baby receiver through the yoke
• Yoke Type: Manually operated
• Light Modifier: Built-in four-leaf metal barndoors
• Diffusion: Built-in
• Lighting Area: 9.65" x 5.75"
• Photobiological Safety: IEC 62471:2008 Exempt classification
• Dimensions: 10.83" x 6.81" x 5.12"
• Weight: 12.35 lbs
• Shipping Carton Dimensions: 17.91" x 7.87" x 14.57"
• Packaged Weight: 16.42 lbs

What's In the Box

• SWIT CL-M100D 100W Mini Bi-Color LED Studio Light Panel
• PowerCON TRUE1 AC cable
• Two safety ropes
