SWIT DB-DF570 Dual-Side NP-F Dummy Battery Adapter with USB-C

SWIT DB-DF570 Dual-Side NP-F Dummy Battery Adapter with USB-C

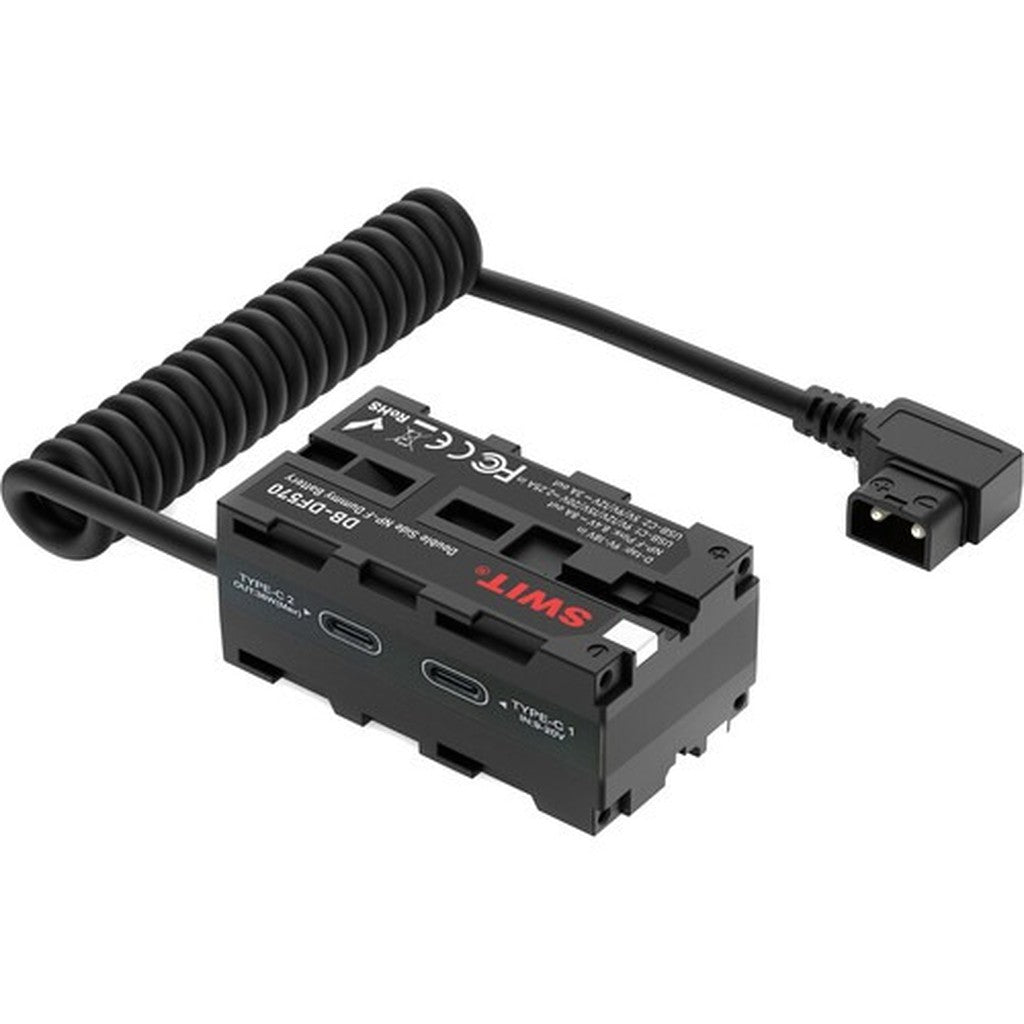

The SWIT DB-DF570 dual-side NP-F dummy battery adapter powers two NP-F battery-plate devices simultaneously from a D-Tap or USB-C PD source. It provides regulated 8.4V, 8A power through two opposing battery-pin interfaces and includes a separate USB-C output delivering up to 36W.

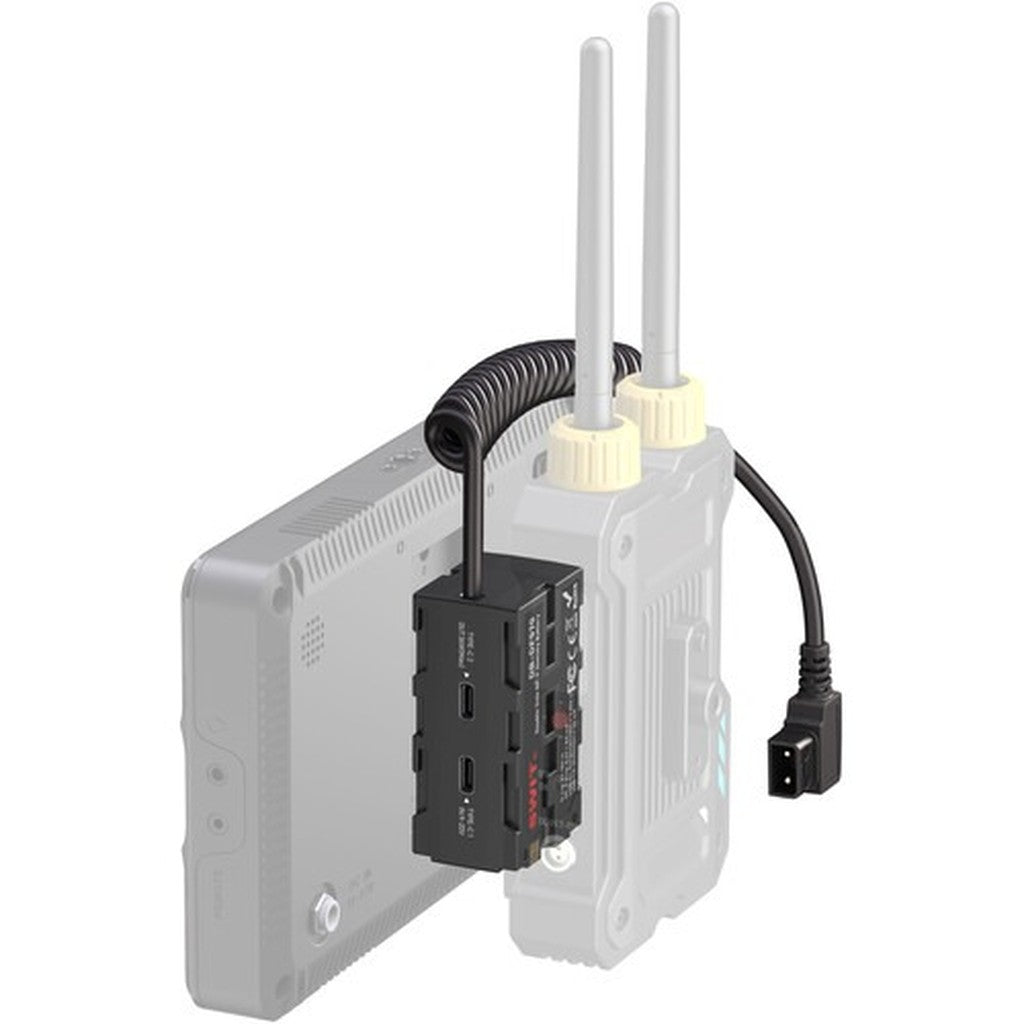

Designed for professional video rigs, the adapter can mount a production monitor and wireless video transmitter together while powering both devices from one external source. It is a practical choice for buyers seeking a dual-sided NP-F power adapter, D-Tap monitor power solution, or USB-C PD adapter for compact camera systems.

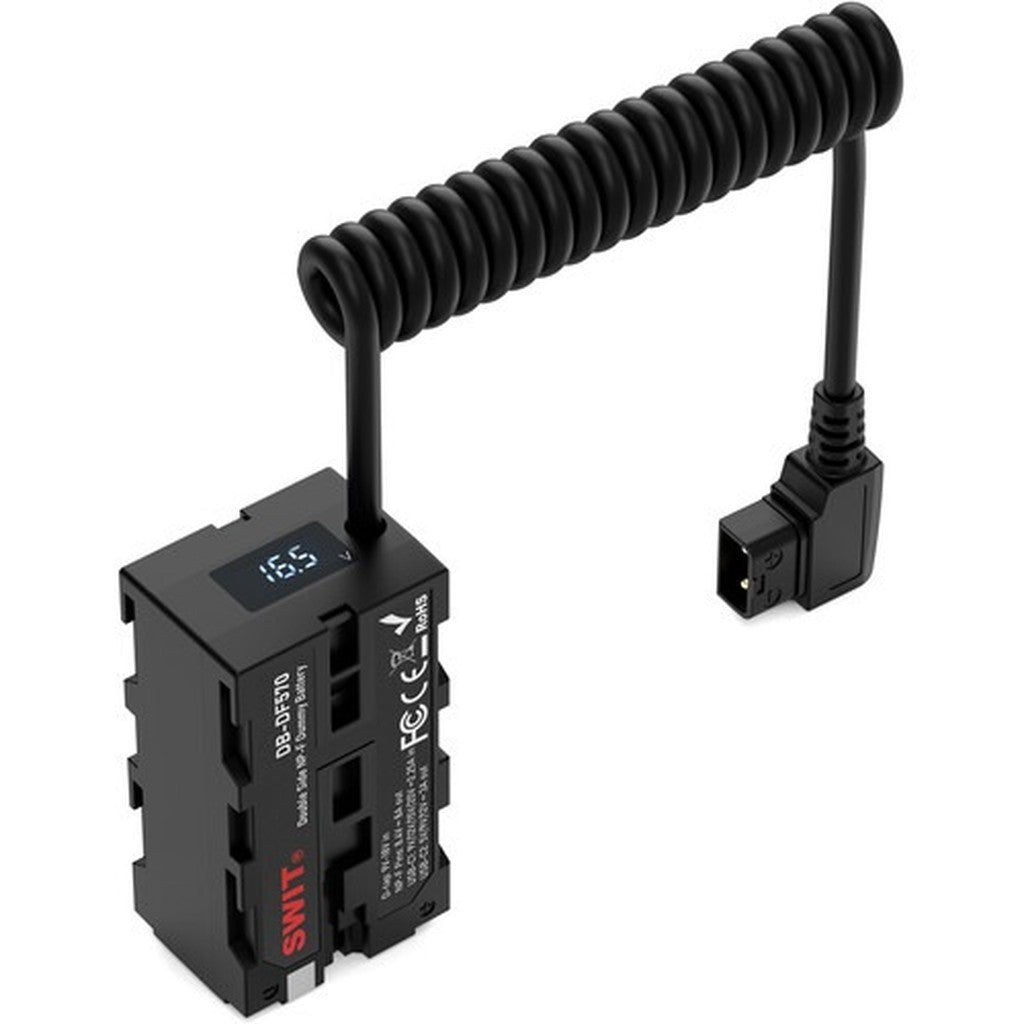

The DB-DF570 accepts 9 to 18V through its D-Tap connector or up to 45W through USB-C Power Delivery. A built-in mini LED display shows the real-time input voltage for either power source, helping camera operators verify electrical conditions during studio shoots, live production, and mobile filmmaking.

Key Features

• Dual-Side NP-F Interface: Powers two compatible NP-F battery-plate devices from one compact adapter.

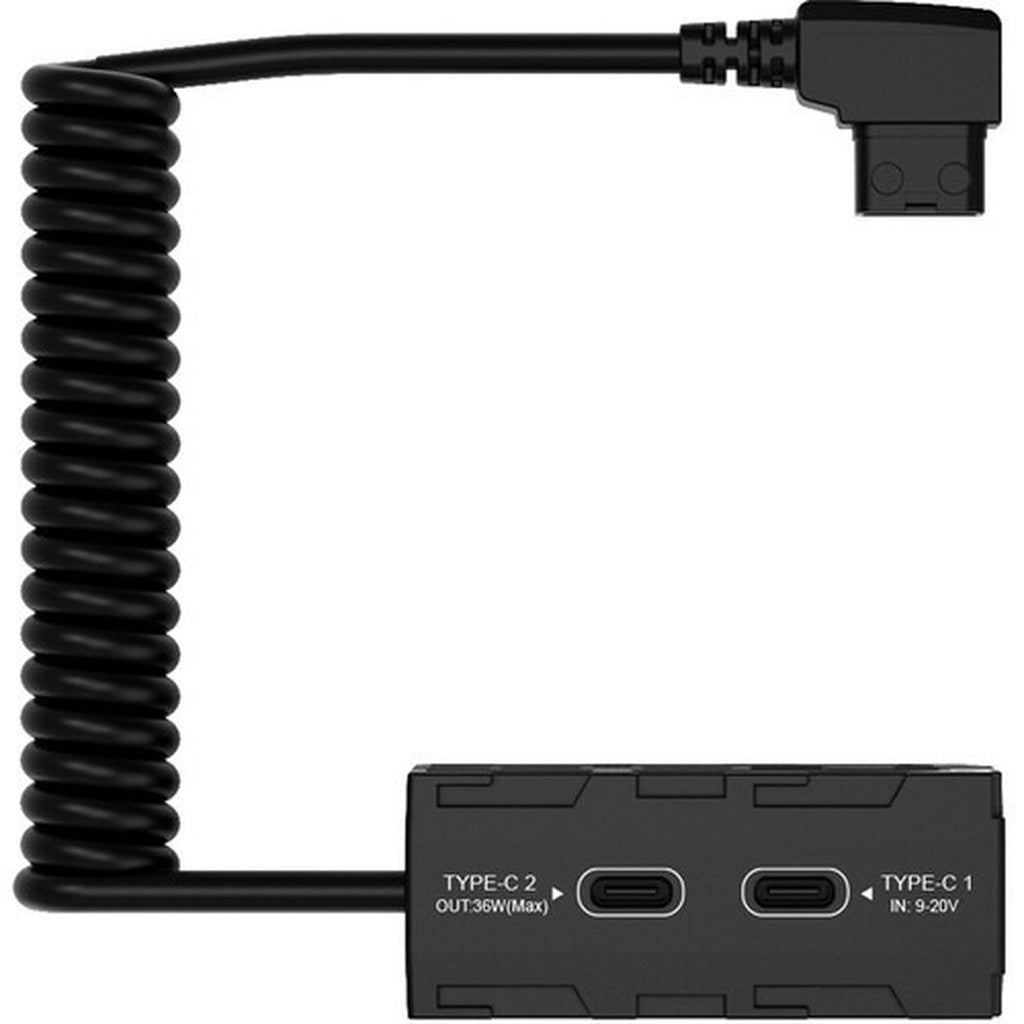

• Flexible Power Input: Accepts power through a 9 to 18V D-Tap source or USB-C PD connection.
• High-Current Battery Output: Supplies regulated 8.4V, 8A power through the two dummy battery pin interfaces.

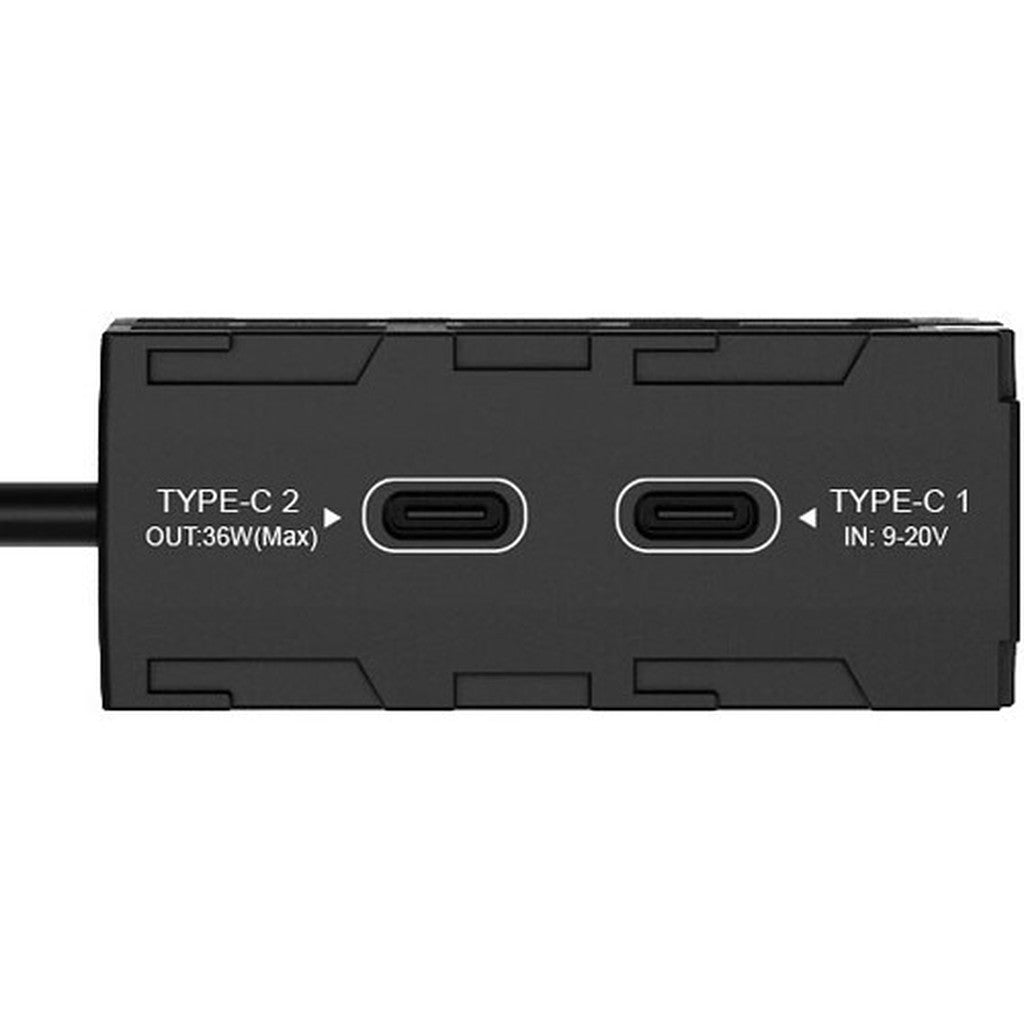

• 36W USB-C Output: Powers an additional compatible device through selectable 5V, 9V, or 12V profiles.

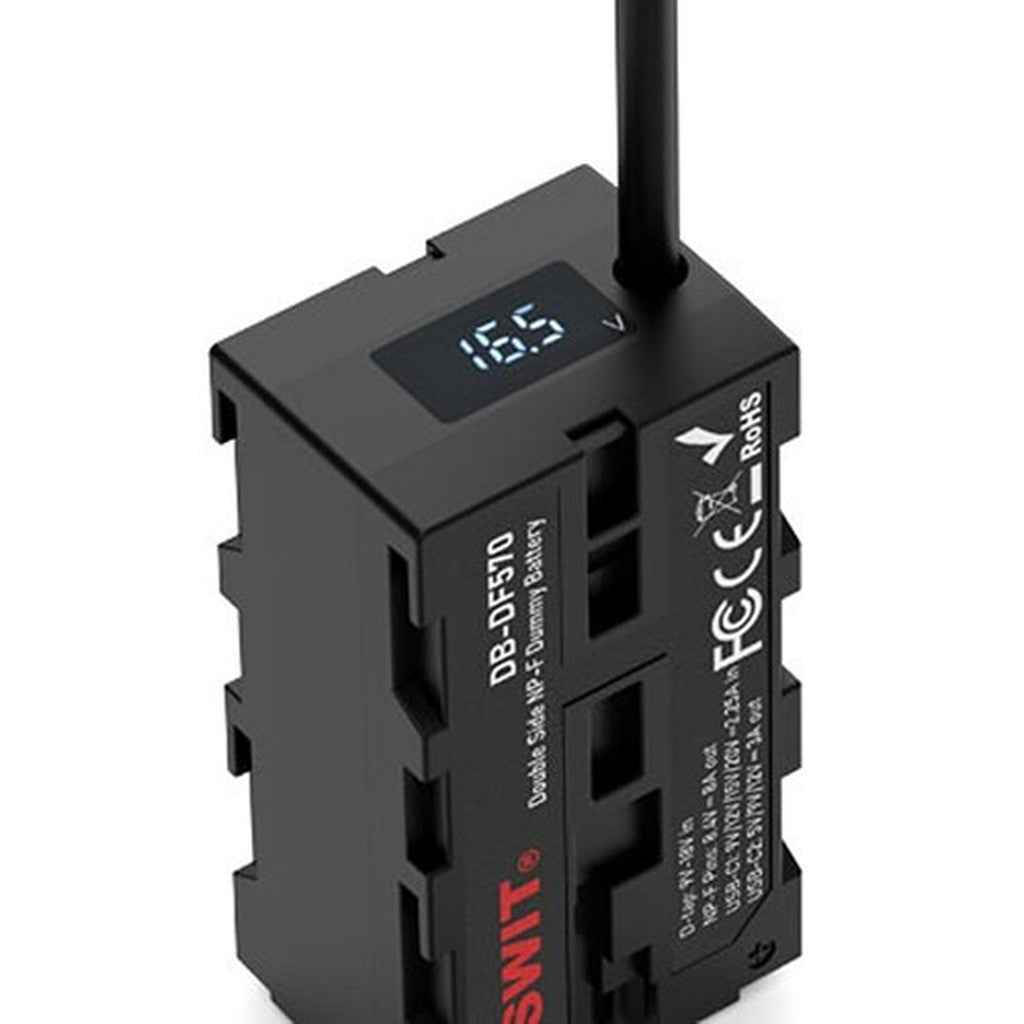

• Real-Time Voltage Display: Shows the active D-Tap or USB-C input voltage on an integrated mini LED screen.
• Multi-Device Rig Support: Accommodates combinations such as a production monitor and wireless video transmitter.
• Compact Production Power: Reduces cabling and separate power adapters on camera cages and mobile video systems.

Technical Specifications

• Model: DB-DF570
• Product Type: Dual-side NP-F dummy battery power adapter
• Device Compatibility: Video equipment with Sony L-Series/NP-F battery plates
• Battery Interfaces: Two opposing NP-F dummy battery pin interfaces
• D-Tap Input: 9 to 18V DC
• USB-C Input: 9V, 12V, 15V, or 20V DC at up to 2.25A
• Maximum USB-C Input Power: 45W
• Dummy Battery Output: Regulated 8.4V DC, 8A
• Maximum Dummy Battery Output Power: 67W
• USB-C Output: 5V, 9V, or 12V DC at up to 3A
• Maximum USB-C Output Power: 36W
• Display: Integrated mini LED voltage display
• Displayed Information: Real-time D-Tap or USB-C input voltage
• Package Weight: 0.31 lbs
• Box Dimensions: 6.4" x 4" x 1.2"

What's In the Box

• SWIT DB-DF570 Dual-Side NP-F Dummy Battery Adapter with USB-C
