SWIT FL-C100D / FL-C200D Bi-Color LED Fresnel Lights - 100W

SWIT FL-C100D / FL-C200D Bi-Color LED Fresnel Lights

The SWIT FL-C100D and FL-C200D Bi-Color LED Fresnel Lights provide adjustable white illumination for theater, stage, broadcast studio, and film production. The FL-C100D delivers 100W output with passive cooling, while the FL-C200D increases output to 200W and adds a broader color-temperature and beam-angle range for higher-output applications.

The FL-C100D covers 2700 to 6500K with a 12 to 26-degree Fresnel beam, producing up to 55,000 lux at 3.3 feet in its 12-degree spot position. The FL-C200D extends adjustment from 2700 to 8000K and focuses from 15 to 50 degrees, reaching 65,000 lux at 3.3 feet at 15 degrees. Both models offer 0 to 100% PWM dimming for controlled intensity changes.

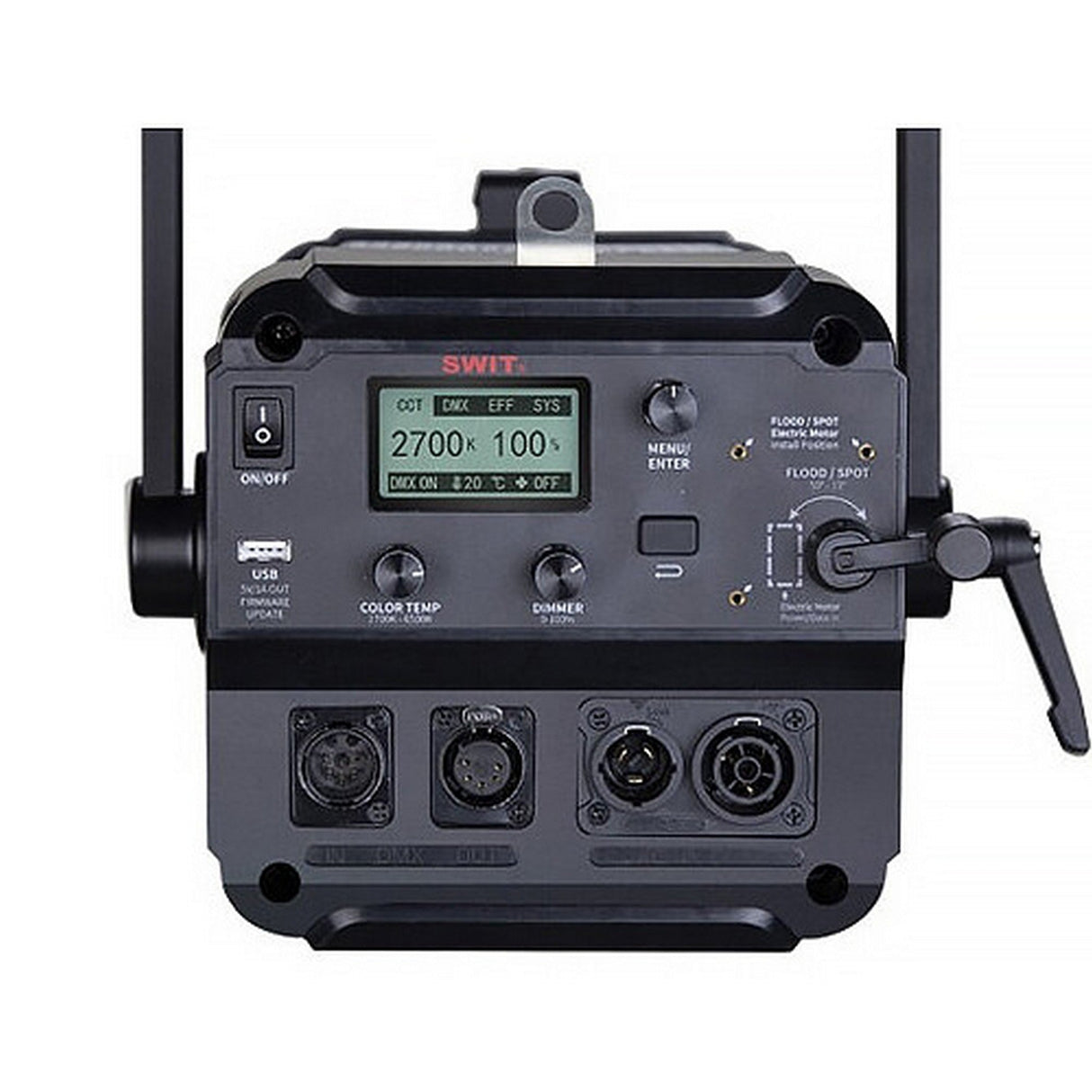

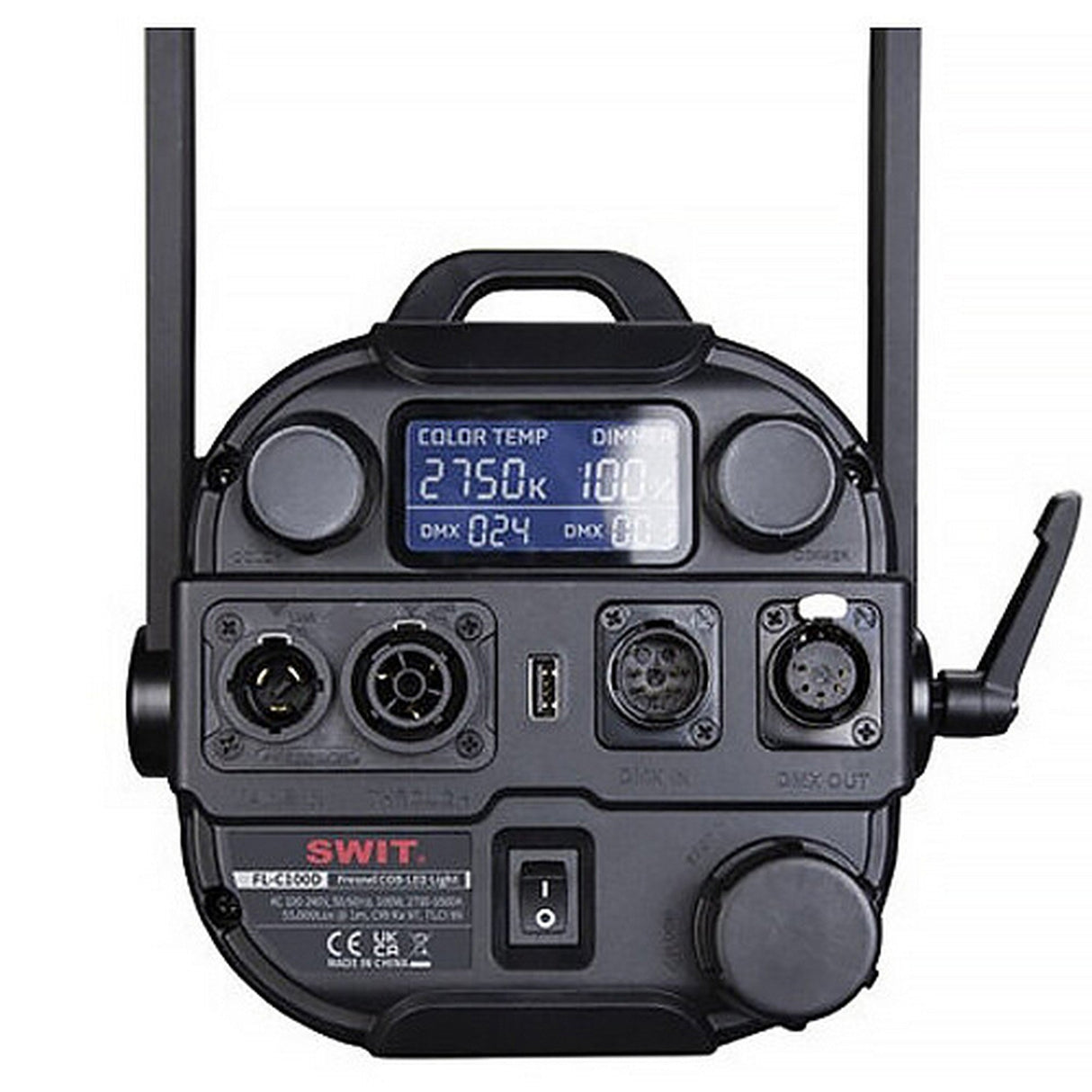

Both fixtures provide CRI 97 and TLCI 99 color ratings, onboard displays, DMX512 connectivity, powerCON TRUE1 AC input and pass-through output, and 5V USB-A power for an optional wireless DMX receiver. Manual yokes and included barndoors support placement and beam shaping. The FL-C100D uses silent passive cooling, while the FL-C200D uses fan cooling with fan-off control for sound-sensitive recording environments.

Key Features

• Two Output Options: Choose the 100W FL-C100D or higher-output 200W FL-C200D for different studio and stage requirements.
• Adjustable Bi-Color Output: FL-C100D covers 2700-6500K, while FL-C200D extends the range to 2700-8000K.
• Focusable Fresnel Beam: Adjust the FL-C100D from 12-26 degrees or the FL-C200D from 15-50 degrees for spot and flood applications.
• High Color Accuracy: Both models are rated at CRI 97 and TLCI 99 for consistent color reproduction.
• 0-100% PWM Dimming: Built-in and DMX dimming provides smooth, flicker-free intensity adjustment.
• DMX512 Control: 5-pin XLR DMX input and output support integration into professional lighting control systems.
• AC Power Pass-Through: powerCON TRUE1 input and output connections simplify power distribution in permanent and temporary installations.
• Included Beam Control: Rotatable barndoors help shape the Fresnel output and limit spill on sets and stages.

Technical Specifications

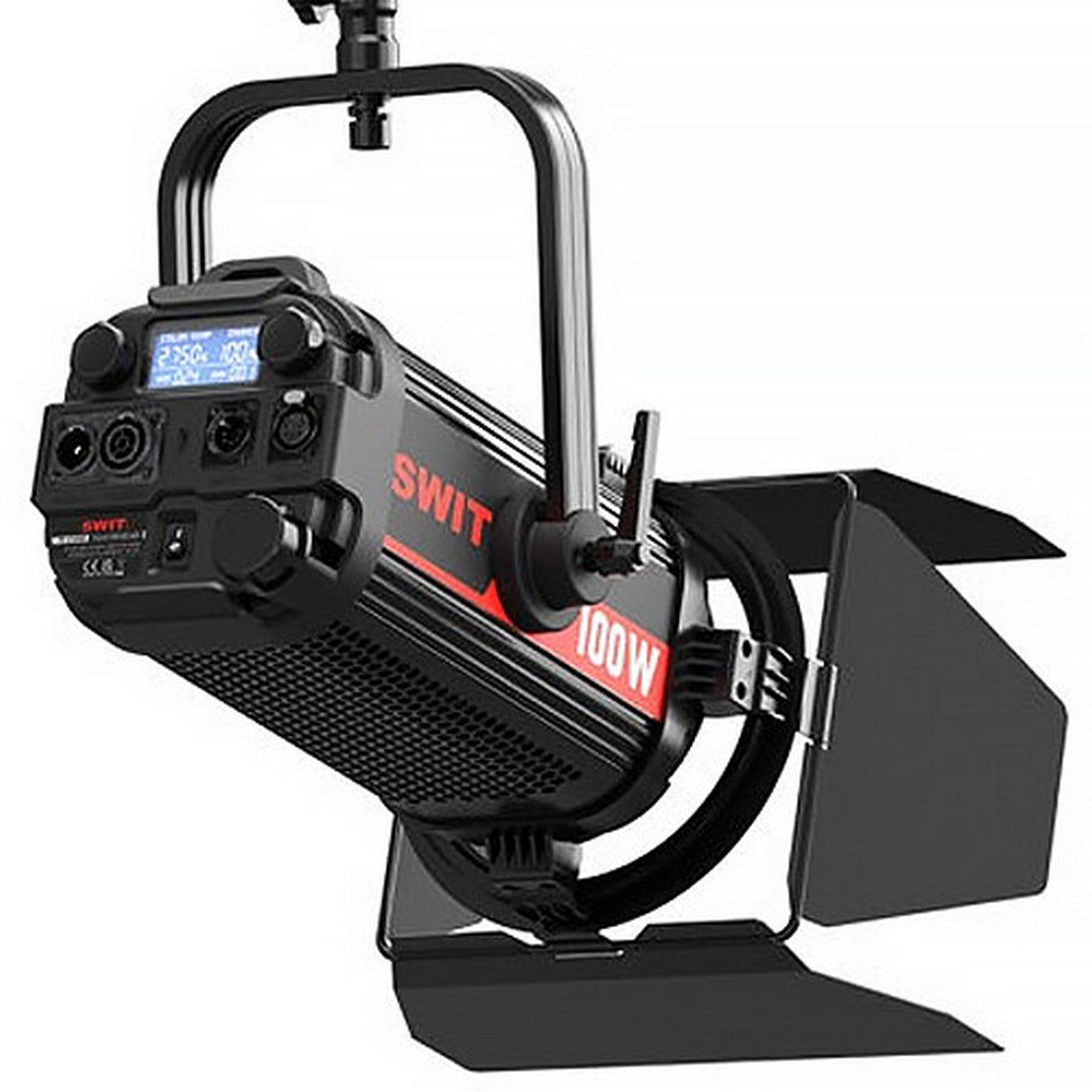

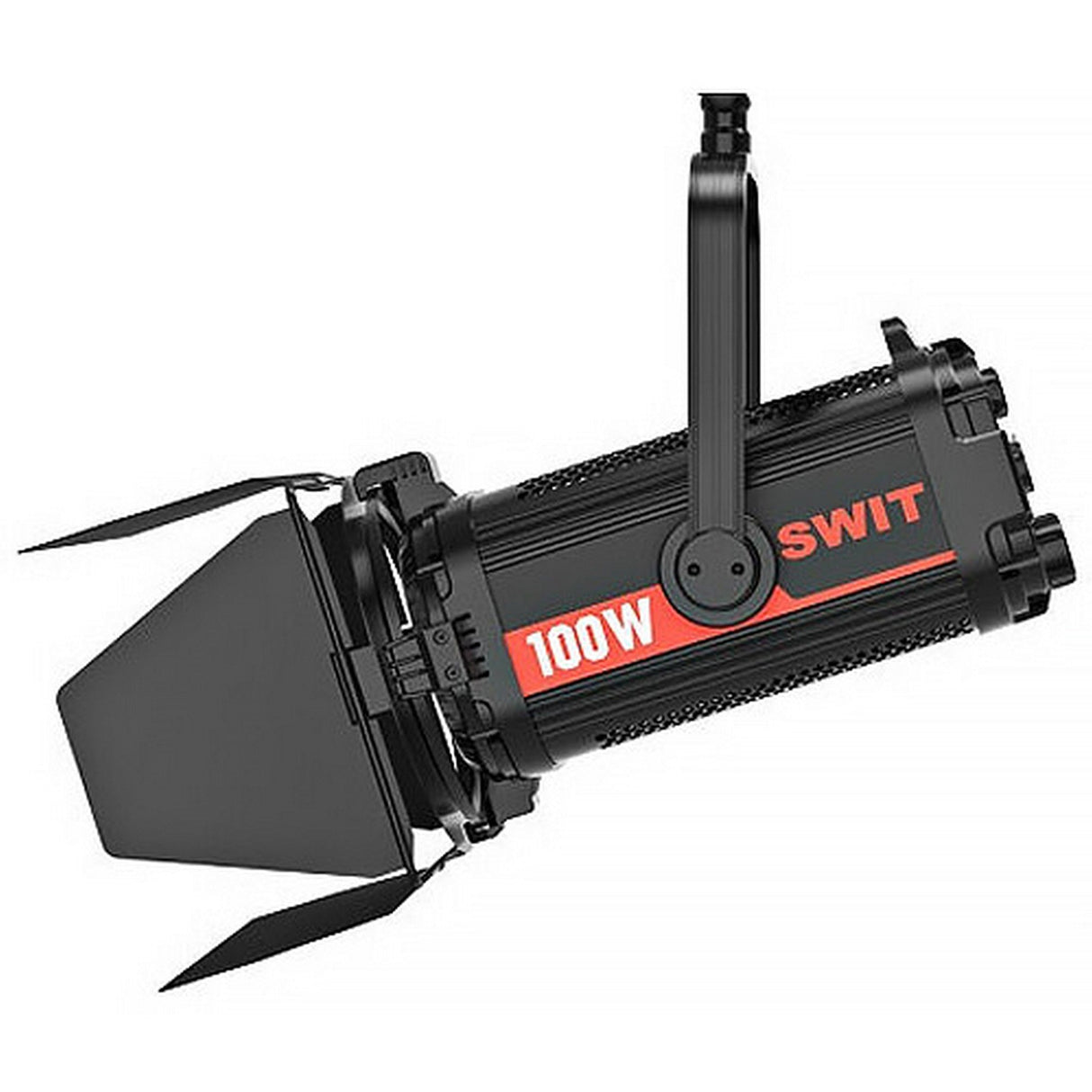

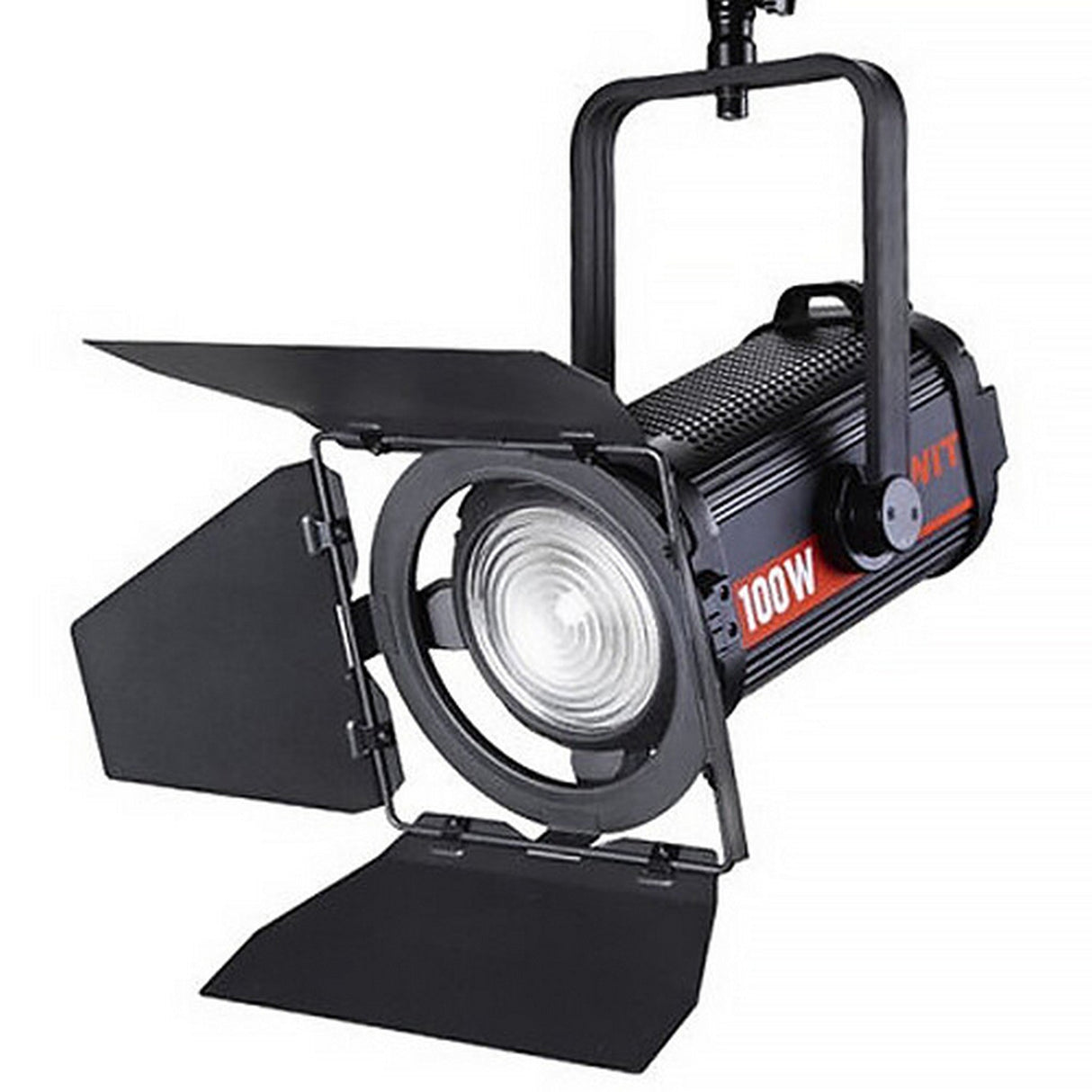

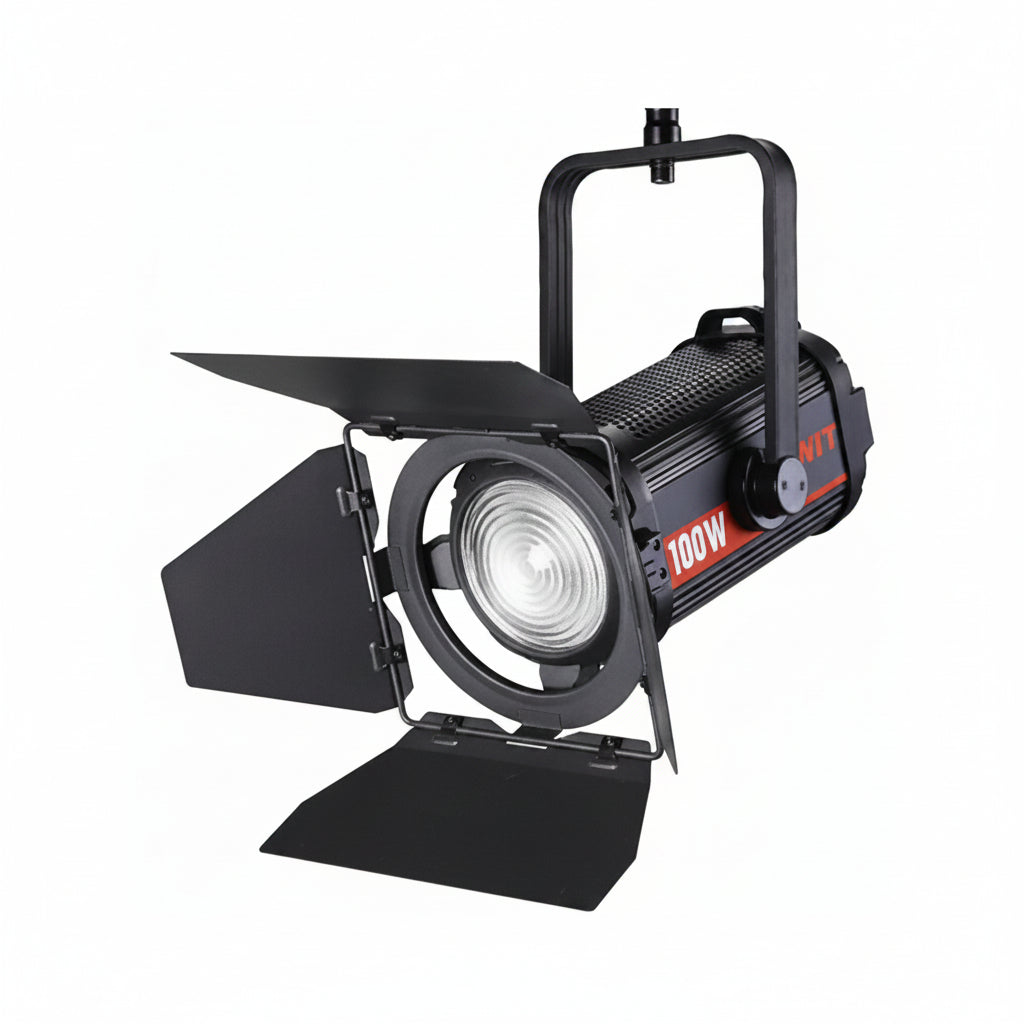

SWIT FL-C100D

• Light Type: 1 x COB LED Fresnel
• Power Consumption: 100W
• Color Temperature: 2700-6500K
• Color Modes: Daylight, Tungsten
• CRI: 97
• TLCI: 99
• Beam Angle: 12-26 degrees
• Dimming: Built-in dimmer and DMX, 0-100%
• Cooling System: Passive
• Lens Type: Fresnel
• Photometrics at 12 Degrees: 5110 fc / 55,000 lux at 3.3 feet; 567 fc / 6100 lux at 9.8 feet; 204 fc / 2200 lux at 16.4 feet
• Photometrics at 26 Degrees: 1858 fc / 20,000 lux at 3.3 feet; 204 fc / 2200 lux at 9.8 feet; 74 fc / 800 lux at 16.4 feet
• Included Light Modifier: 1 x barndoors
• Front Accessory Mount: Proprietary
• Wireless Remote Control: Wireless DMX with optional adapter, not included
• Mobile App Compatible: No
• Power Source: AC power
• AC Input: 1 x powerCON TRUE1
• AC Output: 1 x powerCON TRUE1
• DMX Input: 1 x 5-pin XLR
• DMX Output: 1 x 5-pin XLR
• USB Output: 1 x USB-A, 5 VDC
• Input Power: 100-240 VAC, 50/60 Hz
• Power Pass-Through: Yes
• Included Power Cable: USA Type-A/B to powerCON TRUE1 cable
• Inline Switch: No
• Yoke: Manually operated
• Fixture Mounting: 1-1/8-inch stud with 5/8-inch receiver via yoke mount
• Display: Yes
• Built-In Flash: No
• Preprogrammed Effects: No
• Umbrella Mount: No
• Storage Case: Not included
• Dimensions: 14.3 x 6.3 x 6.3 inches
• Weight: 11.5 lb

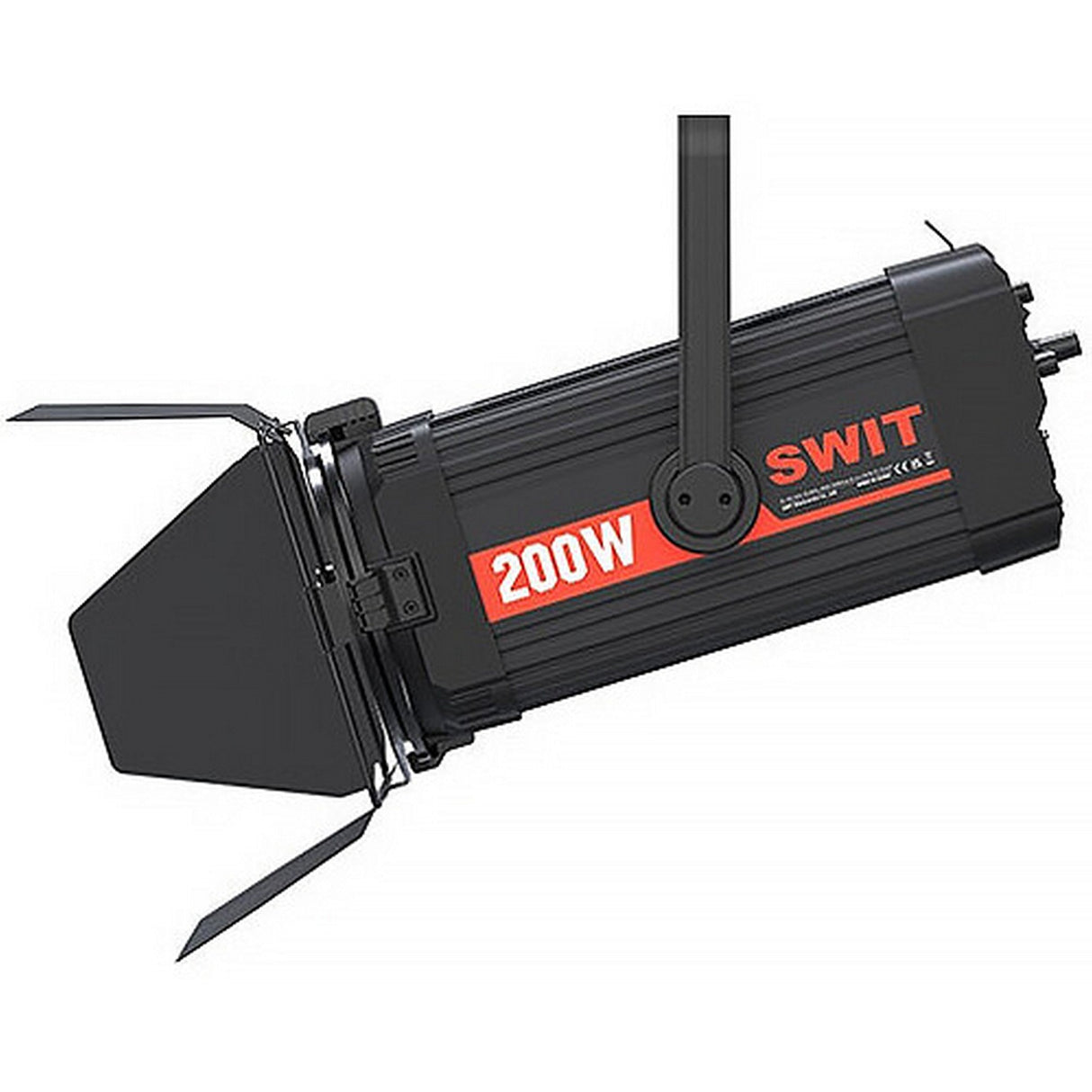

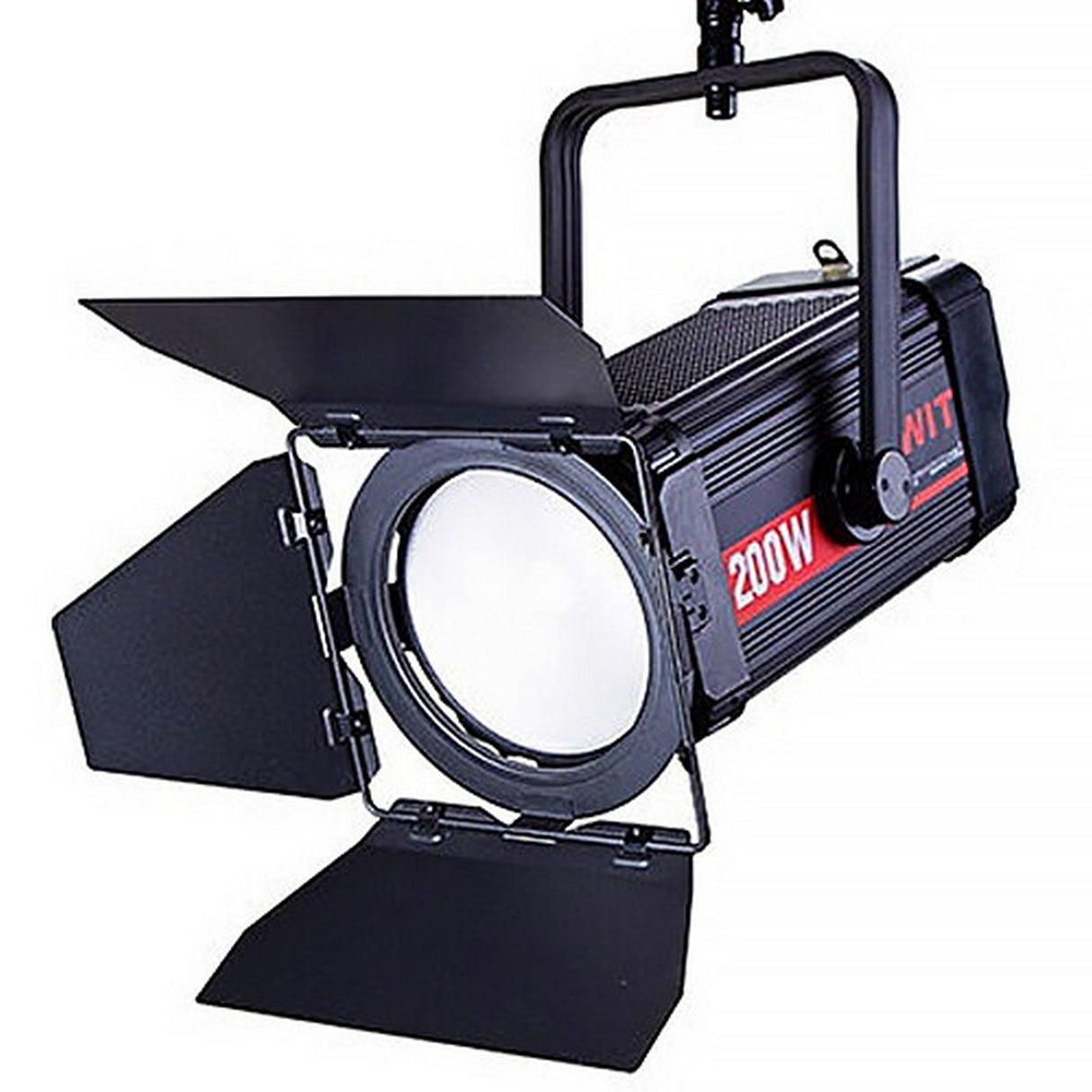

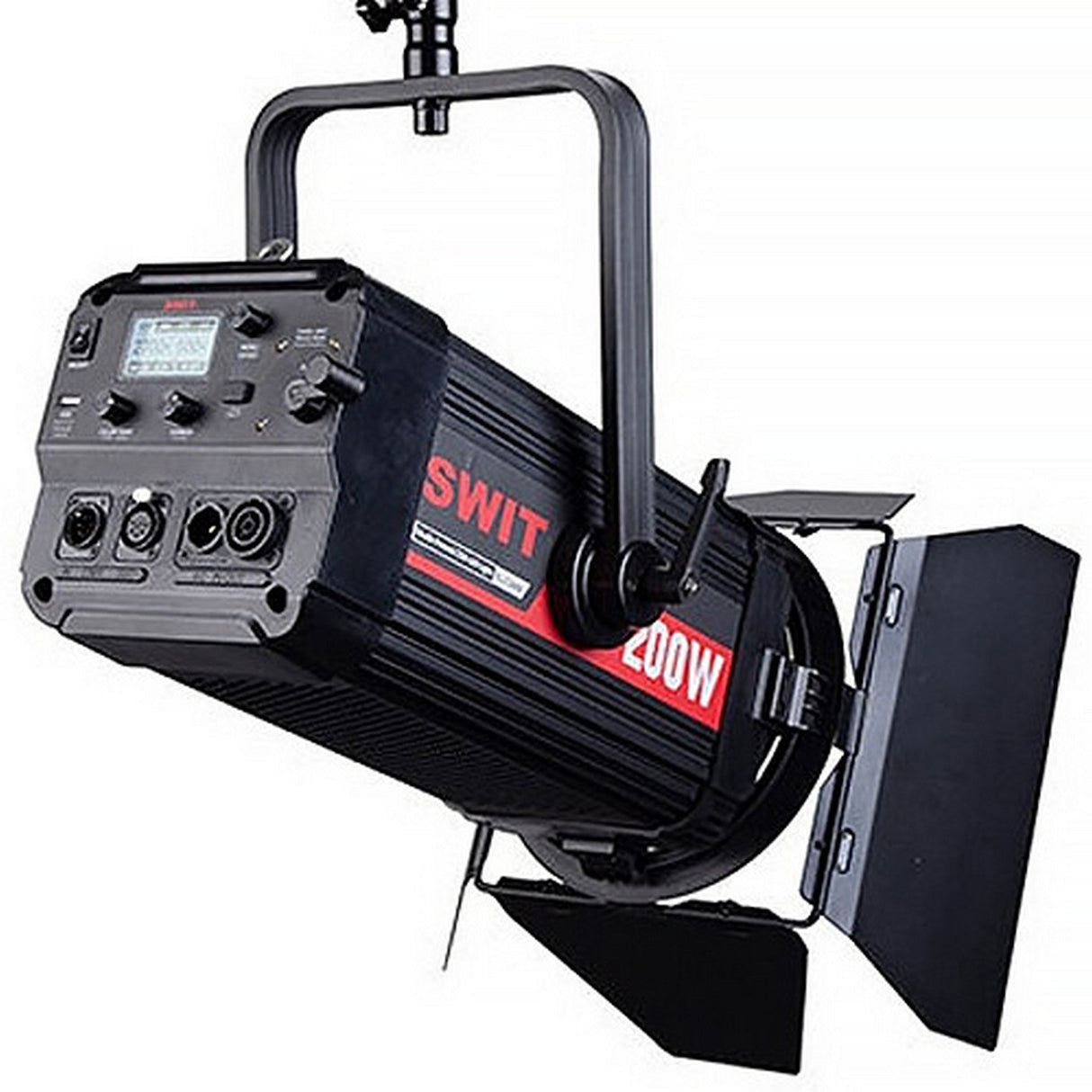

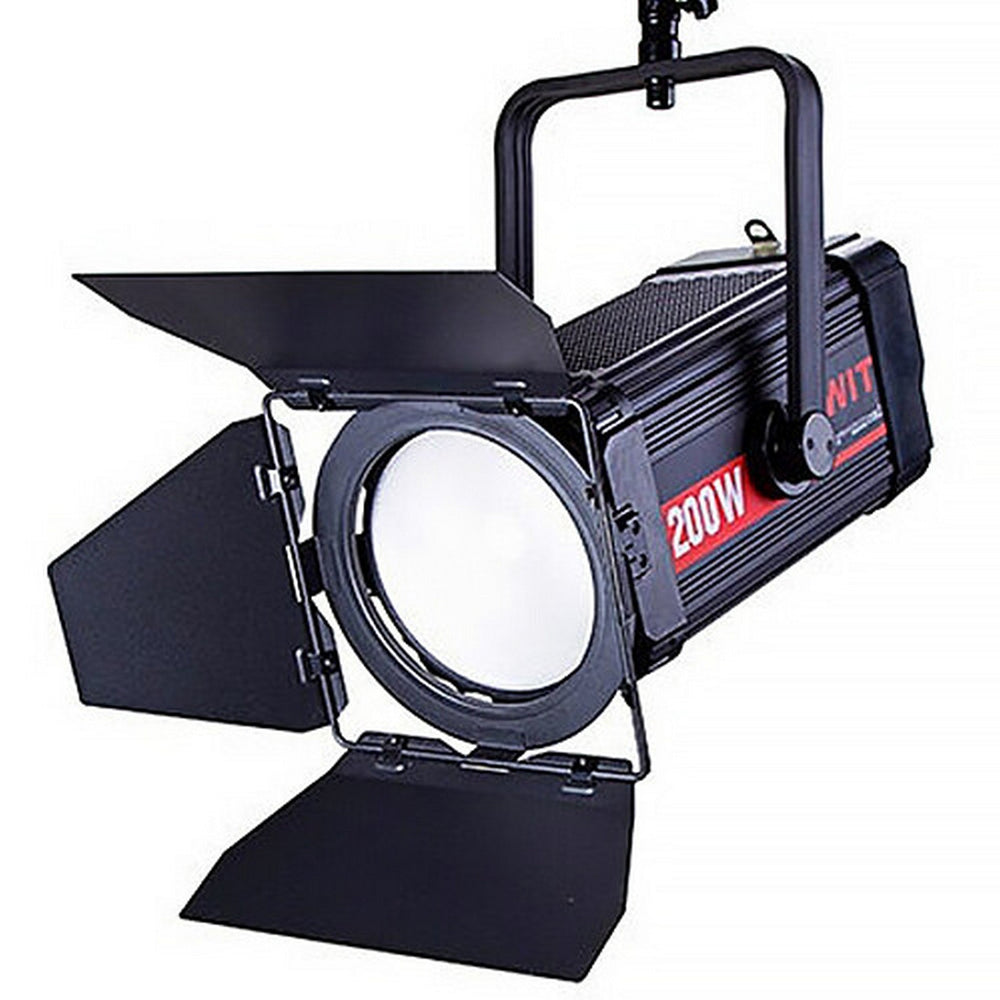

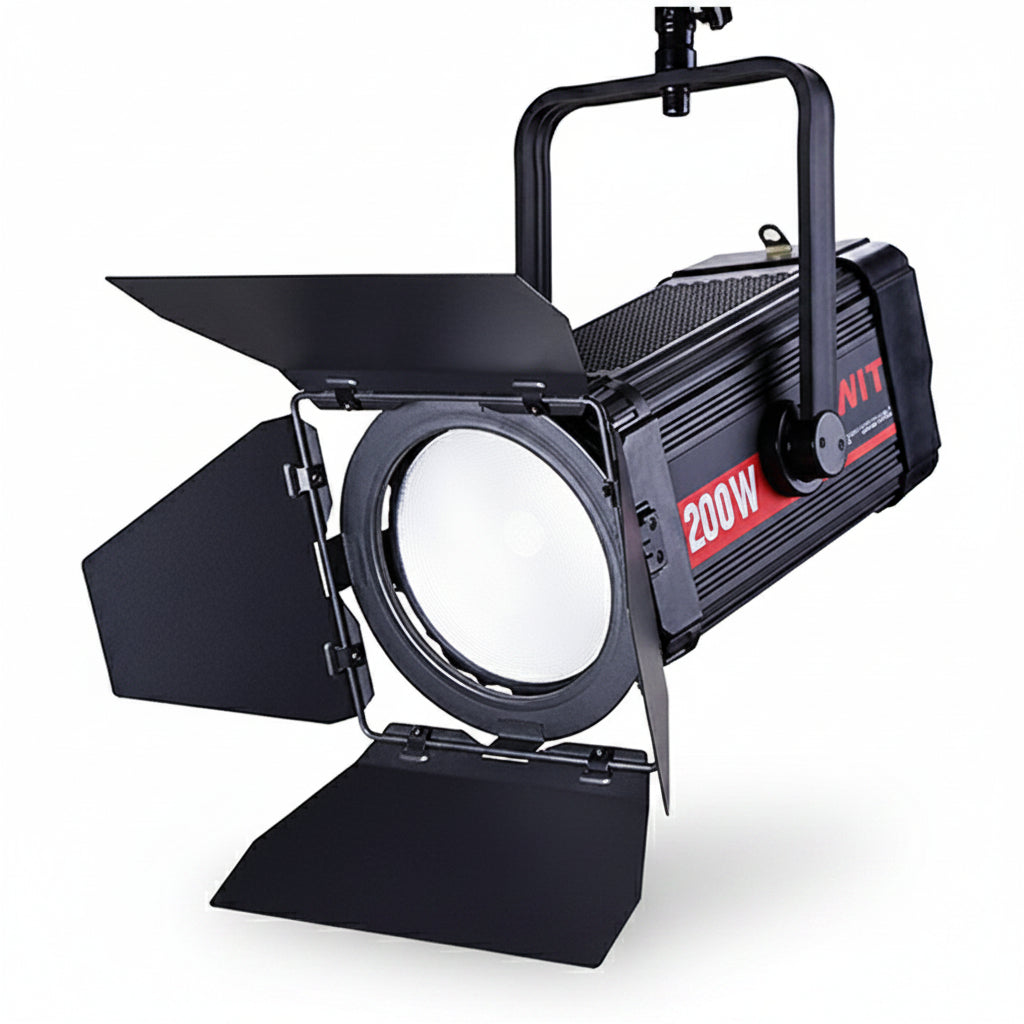

SWIT FL-C200D

• Light Type: 1 x COB LED Fresnel
• Power Consumption: 200W
• Color Temperature: 2700-8000K
• Color Modes: Daylight, Tungsten
• CRI: 97
• TLCI: 99
• Beam Angle: 15-50 degrees
• Dimming: Built-in dimmer and DMX, 0-100%
• Cooling System: Fan with fan-off control
• Lens Type: Fresnel
• Photometrics at 15 Degrees: 6039 fc / 65,000 lux at 3.3 feet; 669 fc / 7200 lux at 9.8 feet; 242 fc / 2600 lux at 16.4 feet
• Photometrics at 50 Degrees: 1115 fc / 12,000 lux at 3.3 feet; 242 fc / 2600 lux at 9.8 feet; 45 fc / 480 lux at 16.4 feet
• Included Light Modifier: 1 x barndoors
• Front Accessory Mount: Proprietary
• Wireless Remote Control: Wireless DMX with optional adapter, not included
• Mobile App Compatible: No
• Power Source: AC power
• AC Input: 1 x powerCON TRUE1
• AC Output: 1 x powerCON TRUE1
• DMX Input: 1 x 5-pin XLR
• DMX Output: 1 x 5-pin XLR
• USB Output: 1 x USB-A, 5 VDC
• Input Power: 100-240 VAC, 50/60 Hz
• Power Pass-Through: Yes
• Included Power Cable: USA Type-A/B to powerCON TRUE1 cable
• Inline Switch: No
• Yoke: Manually operated
• Fixture Mounting: 1-1/8-inch stud with 5/8-inch receiver via yoke mount
• Display: Yes
• Built-In Flash: No
• Umbrella Mount: No
• Storage Case: Not included
• Optional Beam Control: Compatible with an optional E-motor for DMX spot-angle adjustment
• Dimensions: 15.7 x 6.9 x 6.9 inches
• Weight: 13.7 lb

What's In the Box

FL-C100D

• FL-C100D Bi-Color LED Fresnel Light
• powerCON AC Cable
• Barndoor Kit
• Black Out Cloth
• Safety Rope

FL-C200D

• FL-C200D Bi-Color LED Fresnel Light
• powerCON AC Cable
• Barndoor Kit
• Black Out Cloth
• Safety Rope
