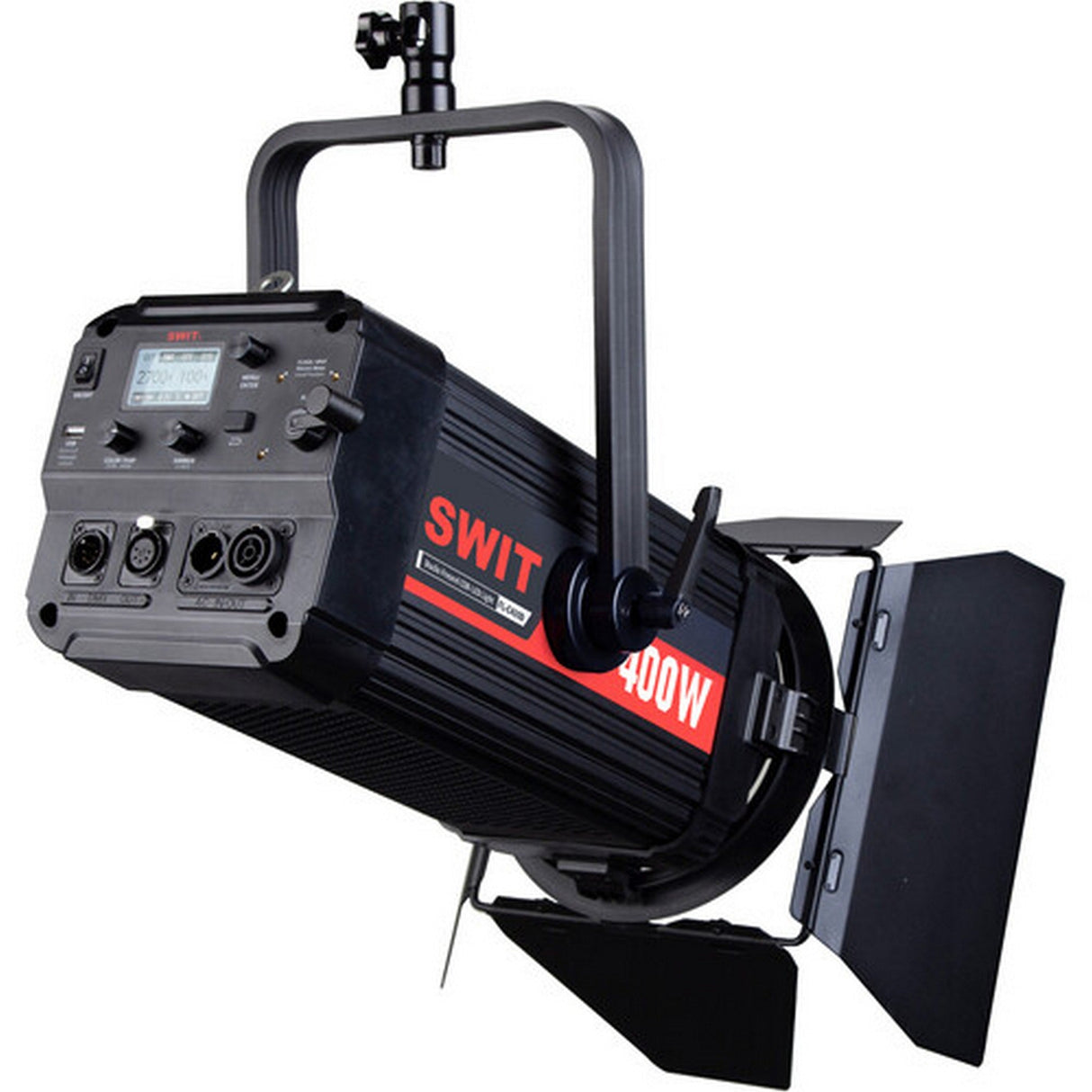

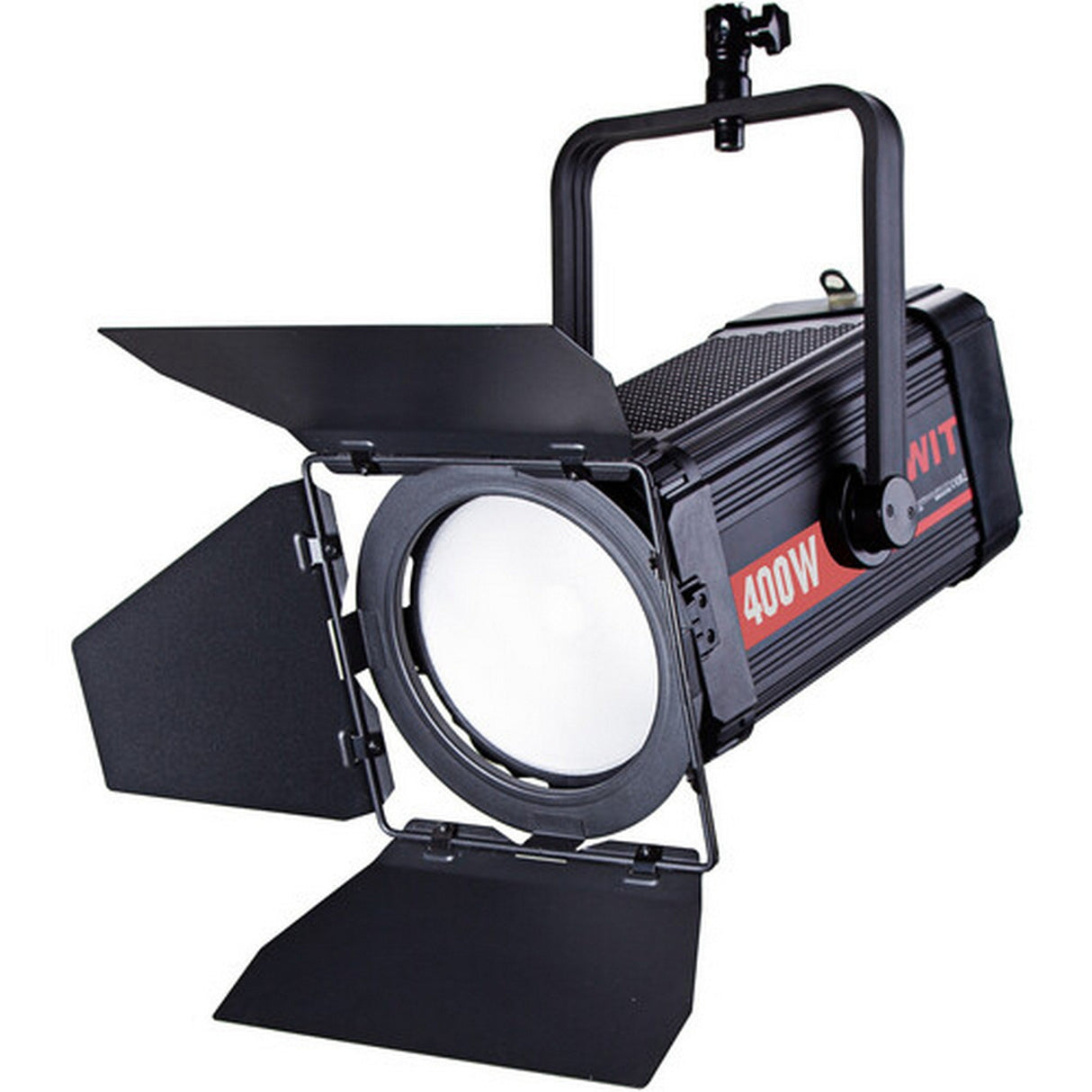

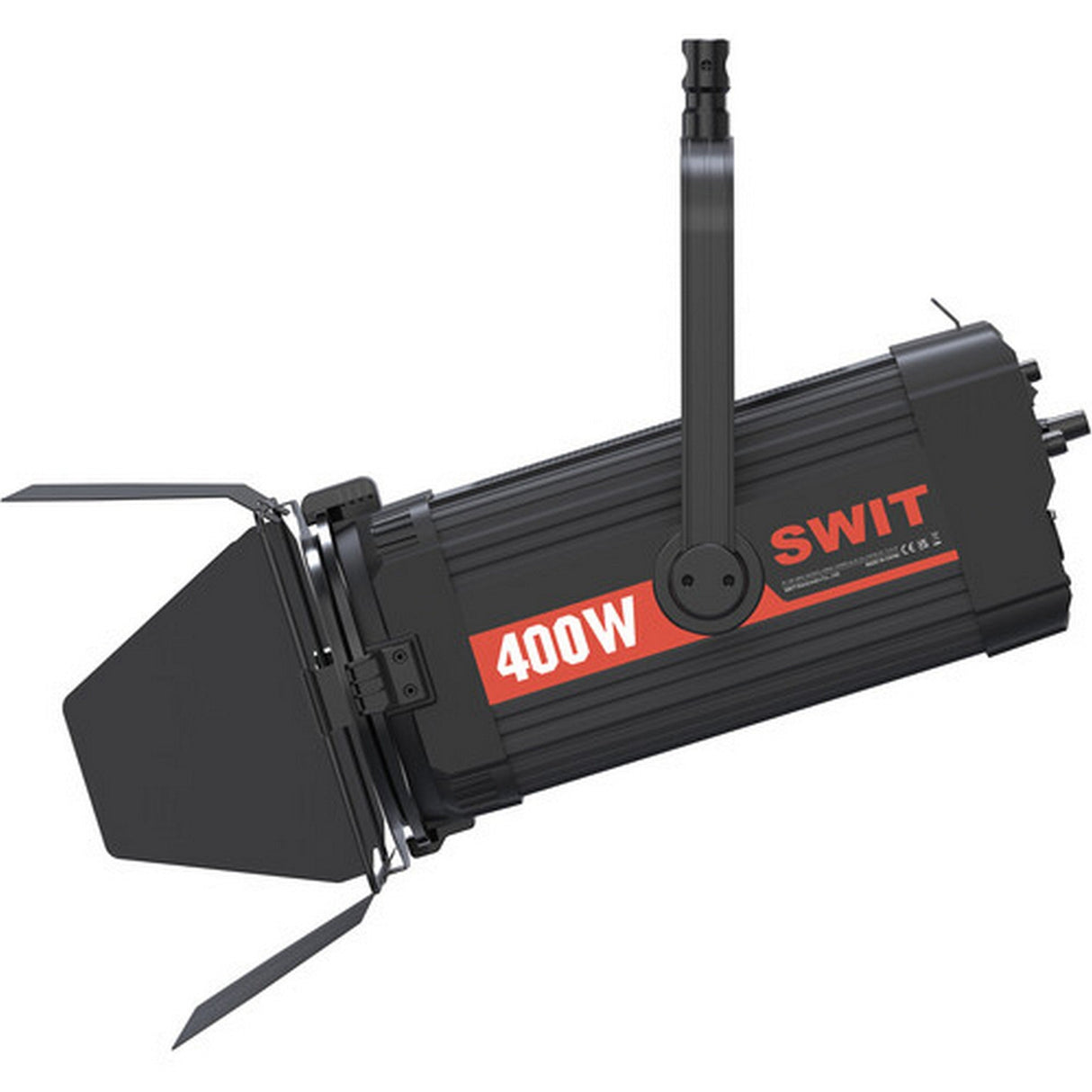

SWIT FL-C400D 400W Bi-Color Studio COB-LED Fresnel Light

SWIT FL-C400D 400W Bi-Color Studio COB-LED Fresnel Light

The SWIT FL-C400D 400W Bi-Color Studio COB-LED Fresnel Light delivers up to 130,000 lux at 3.3 feet with a focusable 15 to 50-degree beam. Designed for broadcast studios, theaters, film sets, and live production, it combines high-output Fresnel optics with continuously adjustable white light, DMX control, and flicker-free dimming.

A compound optical system pairs front Fresnel rings with a rear fly's-eye array to produce a concentrated, evenly distributed beam while reducing unwanted color halos. The FL-C400D supports 2700-8000K adjustment and maintains its 400W output across the color-temperature range. Buyers needing a high-output bi-color studio Fresnel can move between a narrow 15-degree spot and broad 50-degree flood without changing fixtures.

CRI 97, TLCI 99, and SSI D55 75 ratings support color-critical broadcast and camera work. Integrated 5-pin DMX512 input and output provide remote control, while a 5V USB-A port can power a compatible wireless DMX receiver. PowerCON TRUE1 input and loop output simplify studio power distribution, and fan-off control provides a silent operating mode for sound-sensitive productions.

Key Features

• 400W COB-LED Fresnel: Produces up to 130,000 lux at 3.3 feet for high-output studio, stage, and film lighting.
• 15-50 Degree Focusable Beam: Adjusts between a concentrated spot and wider flood for flexible subject and set coverage.
• Bi-Color Adjustment: Provides continuous 2700-8000K control for balancing tungsten, daylight, and intermediate white-light conditions.
• Compound Fresnel Optics: Combines Fresnel rings and a fly's-eye array to create an even beam and reduce yellow halo artifacts.
• High Color Accuracy: CRI 97, TLCI 99, and SSI D55 75 support demanding broadcast, video, and cinema applications.
• Flicker-Free Dimming: PWM digital dimming adjusts output continuously from 0 to 100% for camera-friendly intensity control.

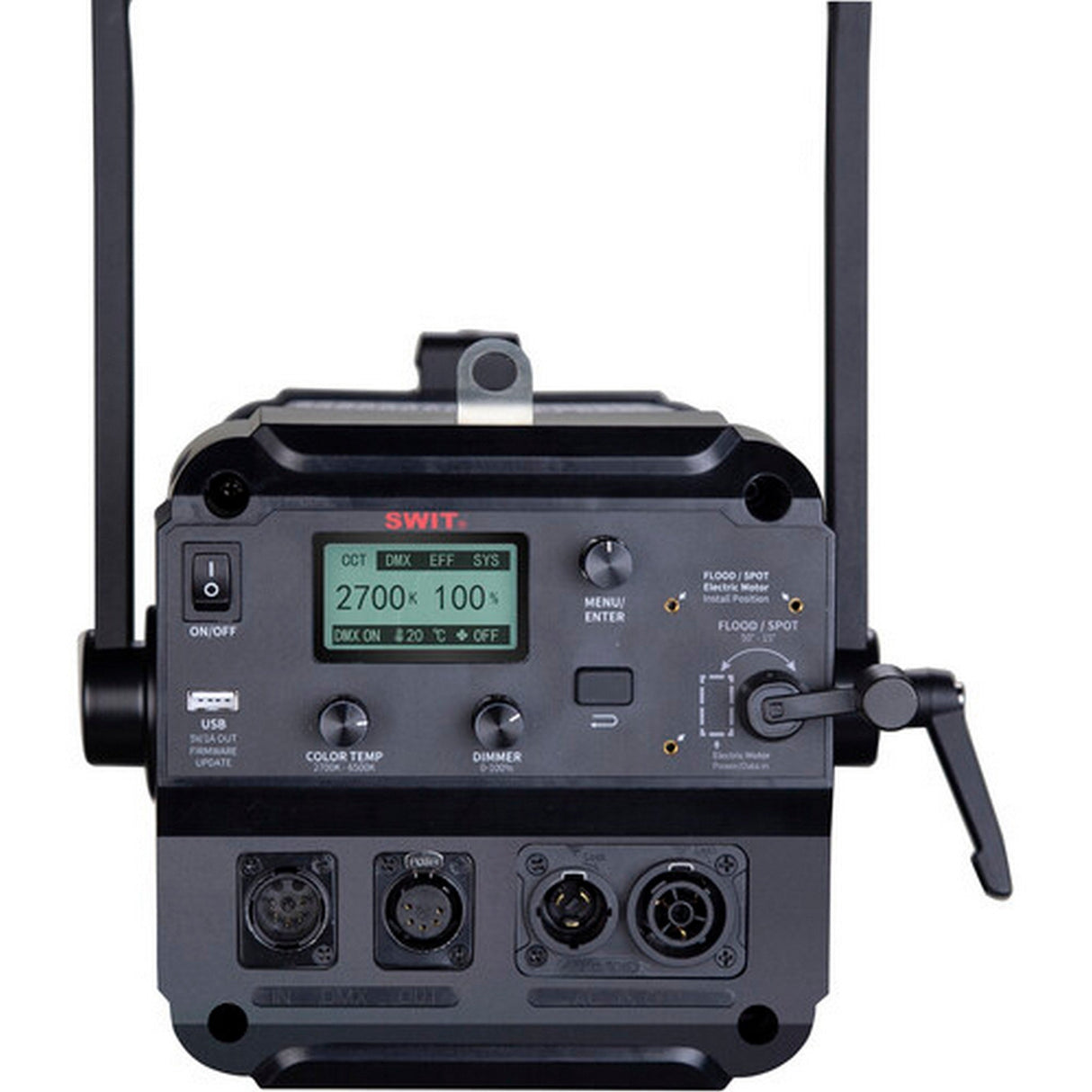

• Professional DMX Integration: 5-pin DMX512 input and output provide control over dimming, color temperature, and fan operation.
• Studio-Ready Power System: PowerCON TRUE1 AC input and loop output enable convenient power distribution across professional lighting setups.

Technical Specifications

• Model: FL-C400D
• Fixture Type: Bi-color studio COB-LED Fresnel light
• LED Type: COB chip-on-board LED
• Power Consumption: 400W
• Manufacturer-Rated Halogen Equivalent: 2000W
• Color Temperature: 2700-8000K continuously adjustable
• CRI: 97
• TLCI: 99
• SSI D55: 75
• Beam Angle: 15-50 degrees
• Lens: Compound Fresnel and fly's-eye optical system
• Dimming: 0-100% PWM digital dimming
• Dimming Control: Onboard and DMX512
• Cooling: Fan cooling with fan-off silent mode
• Display: LCD menu display
• Photometric Output, 15-Degree Spot at 3.3 Feet: 12,077 fc / 130,000 lux
• Photometric Output, 15-Degree Spot at 9.8 Feet: 1394 fc / 15,000 lux
• Photometric Output, 15-Degree Spot at 16.4 Feet: 483 fc / 5200 lux
• Photometric Output, 50-Degree Flood at 3.3 Feet: 2230 fc / 24,000 lux
• Photometric Output, 50-Degree Flood at 9.8 Feet: 242 fc / 2600 lux
• Photometric Output, 50-Degree Flood at 16.4 Feet: 89 fc / 960 lux
• DMX: DMX512
• DMX Input: 1 x 5-pin XLR
• DMX Output: 1 x 5-pin XLR
• DMX-Controlled Functions: Dimming, color temperature, and fan-off control
• USB Output: 1 x USB-A, 5V power output for compatible wireless DMX receiver
• AC Input: PowerCON TRUE1
• AC Output: PowerCON TRUE1 loop output
• Input Power: 100-240 VAC, 50/60 Hz
• Power Pass-Through: Yes
• Yoke: Manually operated
• Fixture Mounting: 1-1/8-inch stud with 5/8-inch receiver via yoke mount
• Barndoors: Removable and rotatable four-leaf metal barndoor assembly
• Optional Motor Control: Supports LA-M50 E-motor for spot/flood adjustment through the onboard menu or DMX
• Optional Diffuser: Compatible with LA-BC90 diffuser box
• Built-In Flash: No
• Preprogrammed Effects: No
• Umbrella Mount: No
• Inline Power Switch: No
• IP Rating: IP20
• Rated Lifespan: 100,000 hours
• Photobiological Safety: IEC 62471:2008 Exempt classification
• Dimensions: 15.7 x 6.9 x 6.9 inches
• Weight: 13.7 lb
• Shipping Carton Dimensions: 23.6 x 13.9 x 12.7 inches
• Packaged Weight: 21.5 lb

What's In the Box

• SWIT FL-C400D 400W Bi-Color Studio COB-LED Fresnel Light
• PowerCON TRUE1 AC Cable
• Barndoor Kit
• Black Out Cloth
• Safety Rope
