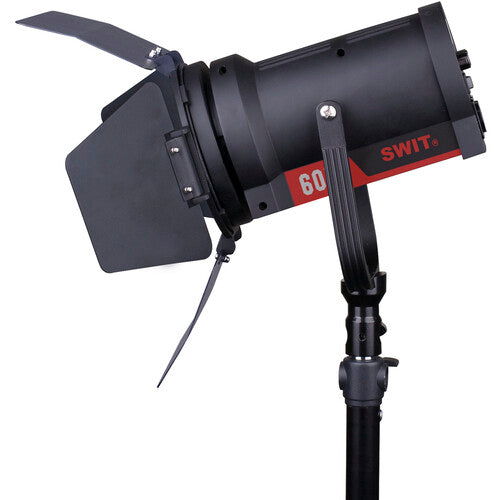

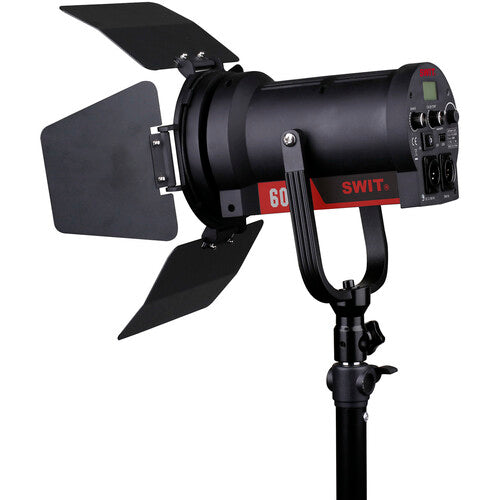

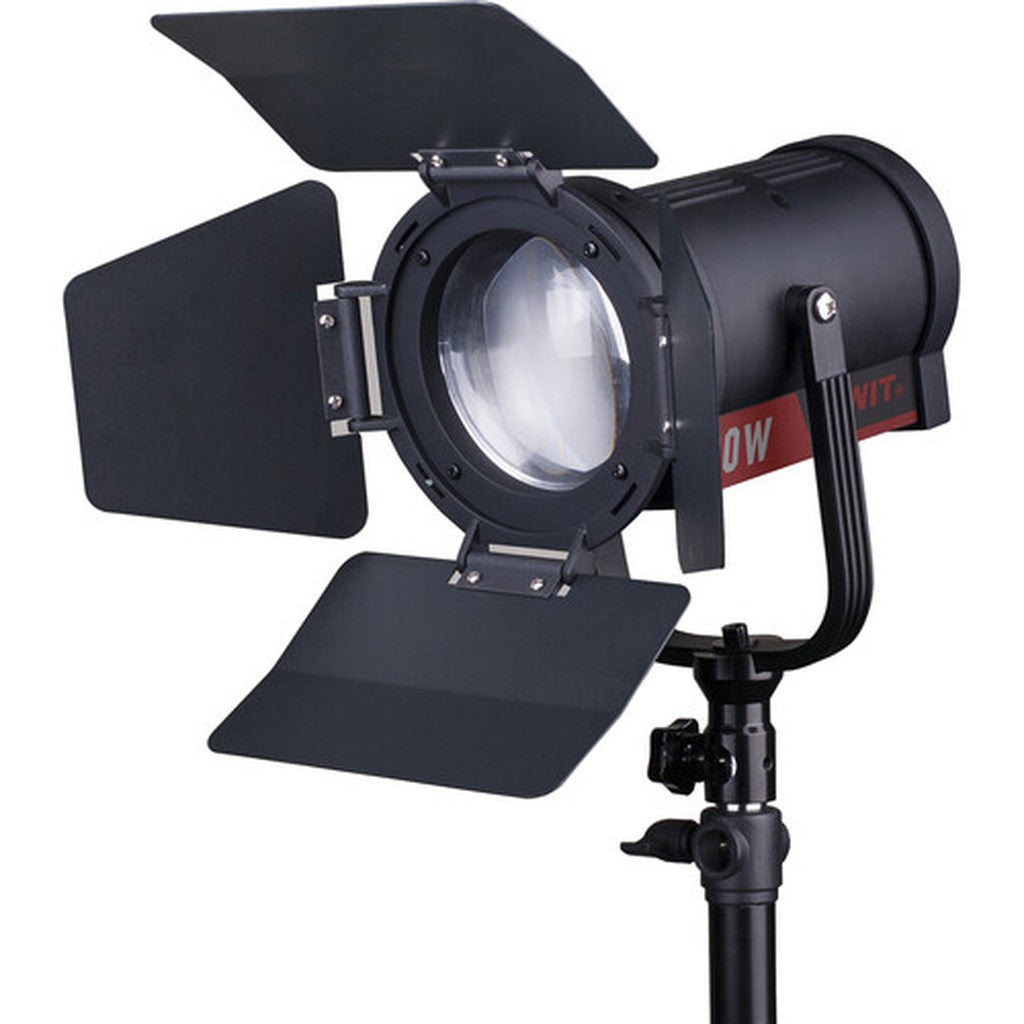

SWIT FL-C60 60W Bi-Color Fresnel LED Light - Gold Mount

SWIT FL-C60D 60W Bi-Color Fresnel Light

The SWIT FL-C60D 60W bi-color Fresnel LED light delivers adjustable spot-to-flood illumination for studio and location production. Available as the FL-C60DA with a Gold Mount plate or FL-C60DS with a V-Mount plate, it combines a 2700 to 8000K range, 15° to 60° beam adjustment, and DMX512 control.

Both battery plate variations share the same compact fixture, 3.8-inch Fresnel lens, onboard controls, and professional lighting performance. Choose the Gold Mount version for Anton/Bauer-style battery workflows or the V-Mount version for V-Lock power systems. The stand-clamped battery plate keeps battery weight off the fixture while supporting mobile interviews, documentaries, and field production.

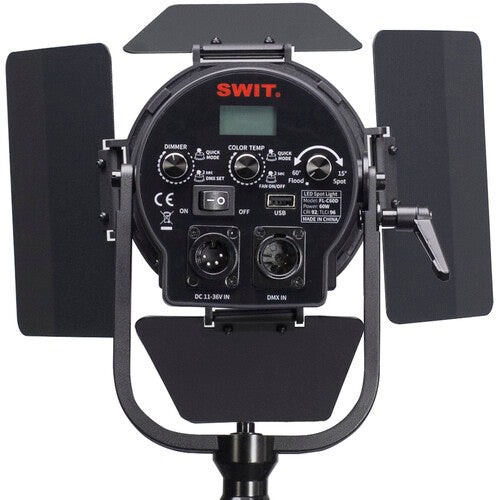

The 60W COB LED produces up to 25,000 lux at 3.3 feet in spot mode and 4,000 lux in flood mode. CRI 92 and TLCI 96 ratings support dependable on-camera color, while flicker-free dimming handles professional video capture. An LCD, switchable silent mode, overheat protection, and included barndoors support controlled operation in demanding environments.

Key Features

• Two Battery Plate Variations: Choose the FL-C60DA with Gold Mount or FL-C60DS with V-Mount.
• 60W COB LED: Produces powerful output for interviews, broadcast sets, and location production.
• Adjustable Fresnel Beam: Changes from a concentrated 15° spot to a broad 60° flood.
• Extended Bi-Color Range: Continuously adjusts from 2700 to 8000K for tungsten, daylight, and mixed lighting.
• Accurate On-Camera Color: CRI 92 and TLCI 96 ratings support consistent skin tones and production color.
• Flicker-Free Dimming: Adjusts smoothly from 0 to 100% for professional video capture.
• DMX512 Operation: Remotely controls brightness, color temperature, and beam angle.
• Switchable Silent Mode: Disables the cooling fan during dialogue and other audio-sensitive recording.

Battery Plate Variations

• FL-C60DA Gold Mount: Includes a Gold Mount battery plate, battery bracket, and C-clamp for stand mounting.
• FL-C60DS V-Mount: Includes a V-Mount battery plate, battery bracket, and C-clamp for stand mounting.
• Battery Power Connection: Both variations use the included D-Tap to 4-pin XLR cable.
• Battery Requirement: Compatible rechargeable battery sold separately.

Technical Specifications

• Product Series: FL-C60D
• Gold Mount Model: FL-C60DA
• V-Mount Model: FL-C60DS
• Fixture Type: Bi-color focusing LED Fresnel light
• Light Source: 60W COB LED
• Maximum Power Consumption: 60W
• Fresnel Lens Diameter: 3.8"
• Beam Angle: 15° to 60°
• Spot Output at 3.3 Feet: 25,000 lux / 2323 fc
• Flood Output at 3.3 Feet: 4,000 lux / 372 fc
• Spot Output at 9.8 Feet: 2,700 lux / 251 fc
• Flood Output at 9.8 Feet: 445 lux / 41 fc
• Color Temperature: 2700 to 8000K
• Color Modes: Daylight and tungsten
• CRI: 92
• TLCI: 96
• Dimming: 0 to 100%
• Cooling System: Fan and passive hybrid cooling
• Silent Mode: Switchable fan-off operation
• Thermal Protection: LED overheat detection and protection
• Display: LCD
• DMX Protocol: DMX512
• DMX Control: Brightness, color temperature, and beam angle
• DMX Input: 5-pin XLR
• Wireless DMX: Supported with an optional adapter
• USB Connection: USB-A service input
• Power Input: 4-pin XLR
• Input Voltage: 11 to 36V DC
• Power Sources: Included AC-to-DC adapter or optional rechargeable battery
• Battery Plate Options: Gold Mount or V-Mount, depending on selected variation
• Included Light Modifier: Four-way barndoors
• Yoke Type: Manually operated U-shaped yoke
• Fixture Mount: 5/8" receiver through the yoke
• Dimensions: 9.3" x 4.7" x 4.4"
• Weight: 4.6 lbs

What's In the Box

• SWIT FL-C60D 60W Bi-Color Fresnel LED Light
• Gold Mount battery plate with FL-C60DA or V-Mount battery plate with FL-C60DS
• Battery bracket
• C-clamp
• D-Tap to 4-pin XLR DC cable
• AC-to-DC power adapter
• Four-way barndoors
