SWIT KA-M20S Dual Pocket V-Mount 300W Hot-Swap Battery Plate

SWIT KA-M20S Dual Pocket V-Mount 300W Hot-Swap Battery Plate

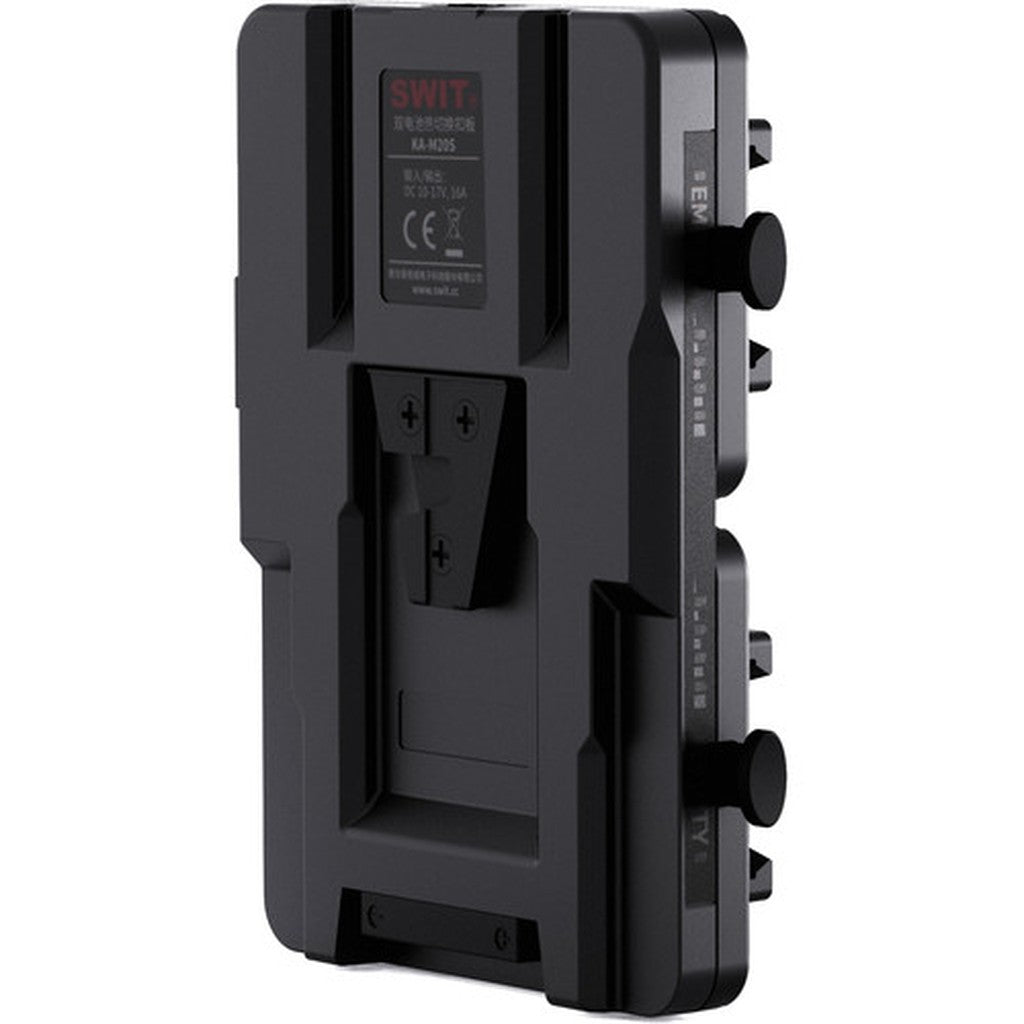

The SWIT KA-M20S hot-swap battery plate holds two compatible pocket V-Mount batteries and automatically manages them for uninterrupted camera power. It uses one battery at a time for loads below 150W or combines both packs to supply demanding equipment with up to 300W through the V-Mount output.

Designed for cinema cameras, broadcast rigs, production monitors, and mobile lighting systems, the plate supports SWIT PB-M98S, OMNI-99S, and OMNI-50S batteries. In hot-swap mode, crews can replace the inactive pack without shutting down connected equipment. High-load mode draws from both batteries simultaneously for power-intensive camera configurations.

Independent LED indicators identify the active and depleted batteries, helping operators manage power changes during live productions and extended takes. Two D-Tap outputs provide flexible accessory power from the top and side of the plate. Compatible Sony and RED systems can also display battery information through the V-Mount connection, while integrated protection circuitry supports reliable professional operation.

Key Features

• Dual Pocket Battery Design: Holds two compatible SWIT pocket V-Mount batteries in a balanced, space-efficient configuration.
• Automatic Power Modes: Switches between sequential hot-swap operation and combined high-load output according to equipment demand.
• Uninterrupted Battery Changes: Allows the inactive battery to be replaced while the other pack continues powering the connected device.
• Up to 300W Output: Combines both installed batteries to support high-draw professional camera and production equipment.
• Dual D-Tap Outputs: Provides top-mounted and side-mounted connections for cameras, monitors, transmitters, and other accessories.
• Independent Status Indicators: Identifies the discharging battery and warns operators when a pack is depleted.
• Camera Battery Communication: Supports power information display on compatible Sony and RED camera systems.
• Integrated Circuit Protection: Provides multiple safeguards for dependable operation in professional production environments.

Technical Specifications

• Model: KA-M20S
• Product Type: Dual pocket V-Mount battery hot-swap plate

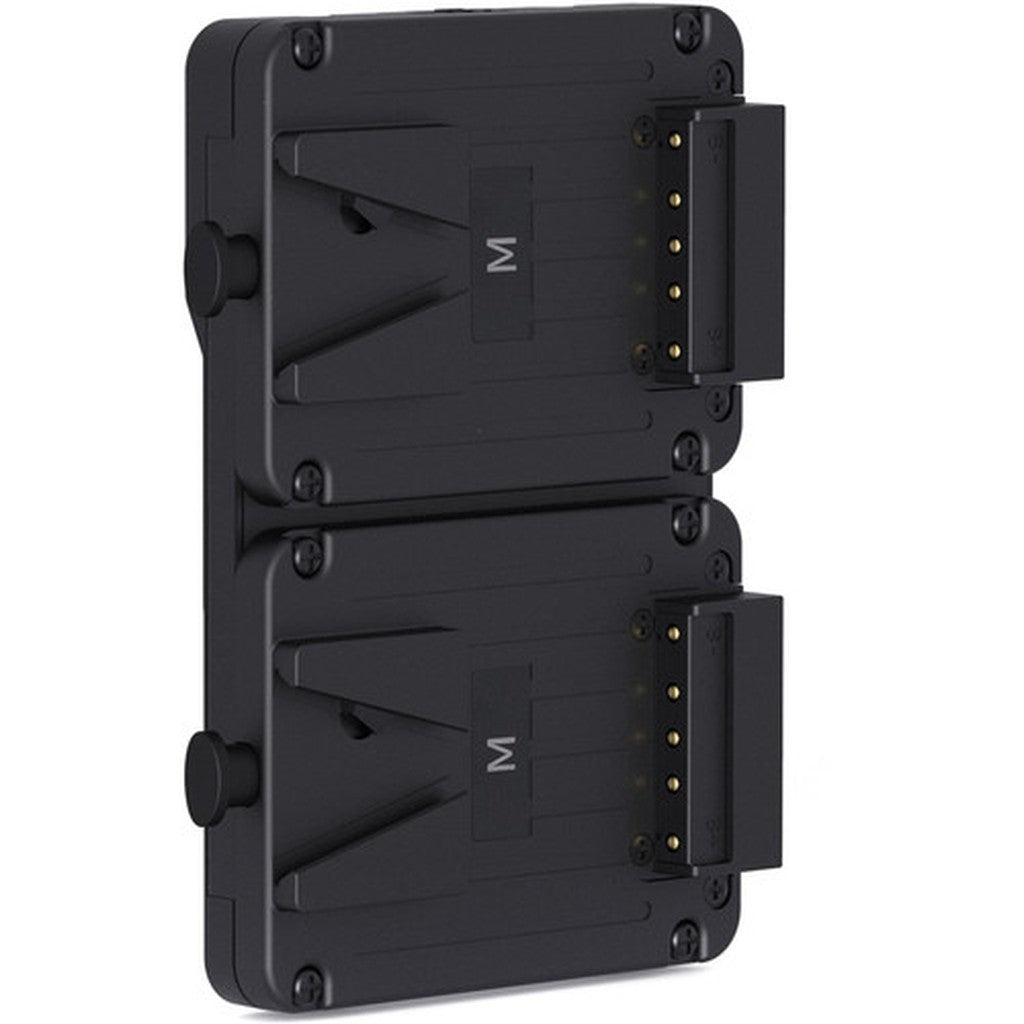

• Battery Inputs: Two SWIT pocket V-Mount batteries

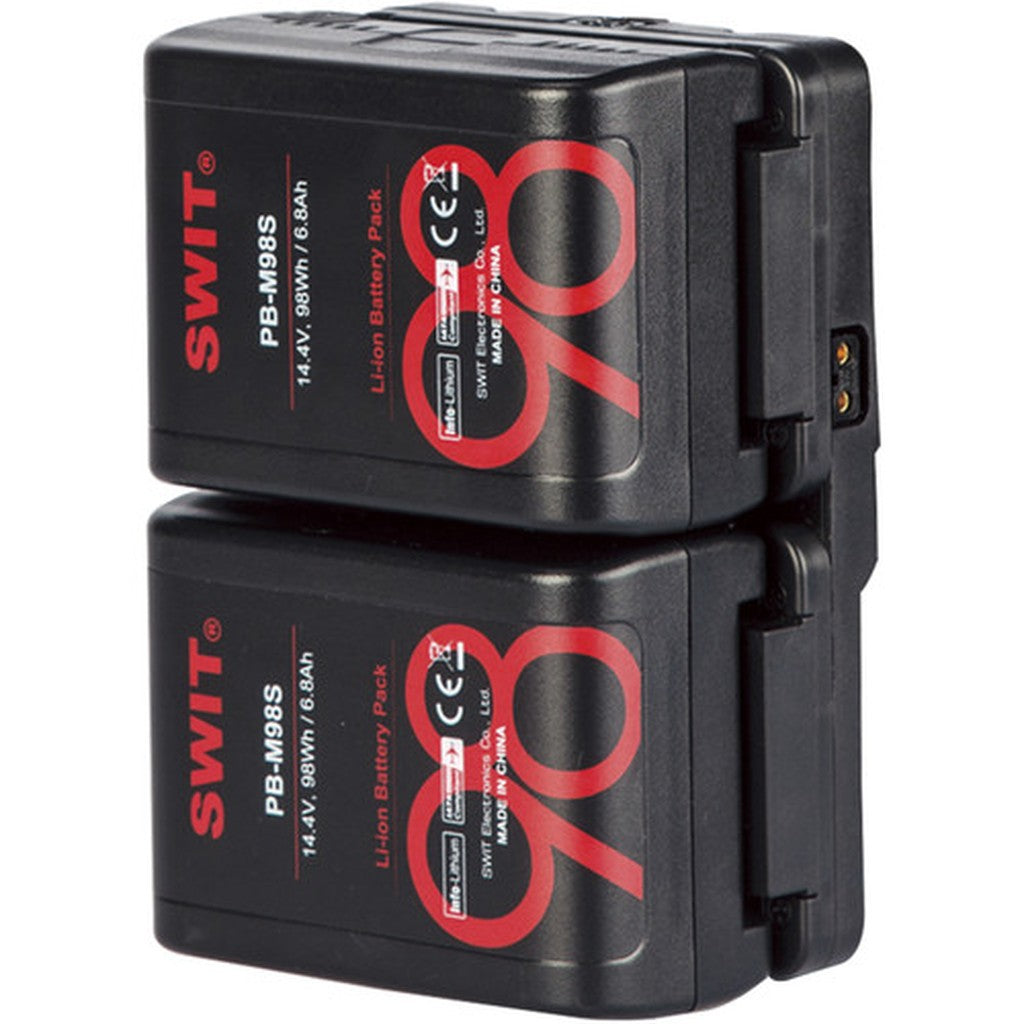

• Compatible Batteries: SWIT PB-M98S, OMNI-99S, and OMNI-50S
• Power Modes: Automatic hot-swap mode and high-load mode
• Hot-Swap Operation: Uses batteries sequentially when connected equipment draws less than 150W
• High-Load Operation: Uses both installed batteries simultaneously when connected equipment draws more than 150W
• V-Mount Output: 11 to 16.8V DC
• D-Tap Outputs: Two female ports
• D-Tap Output Voltage: 11 to 16.8V DC
• Maximum V-Mount Load in Hot-Swap Mode: 150W
• Maximum V-Mount Load in High-Load Mode: 300W
• Maximum D-Tap Load: 150W, 10A

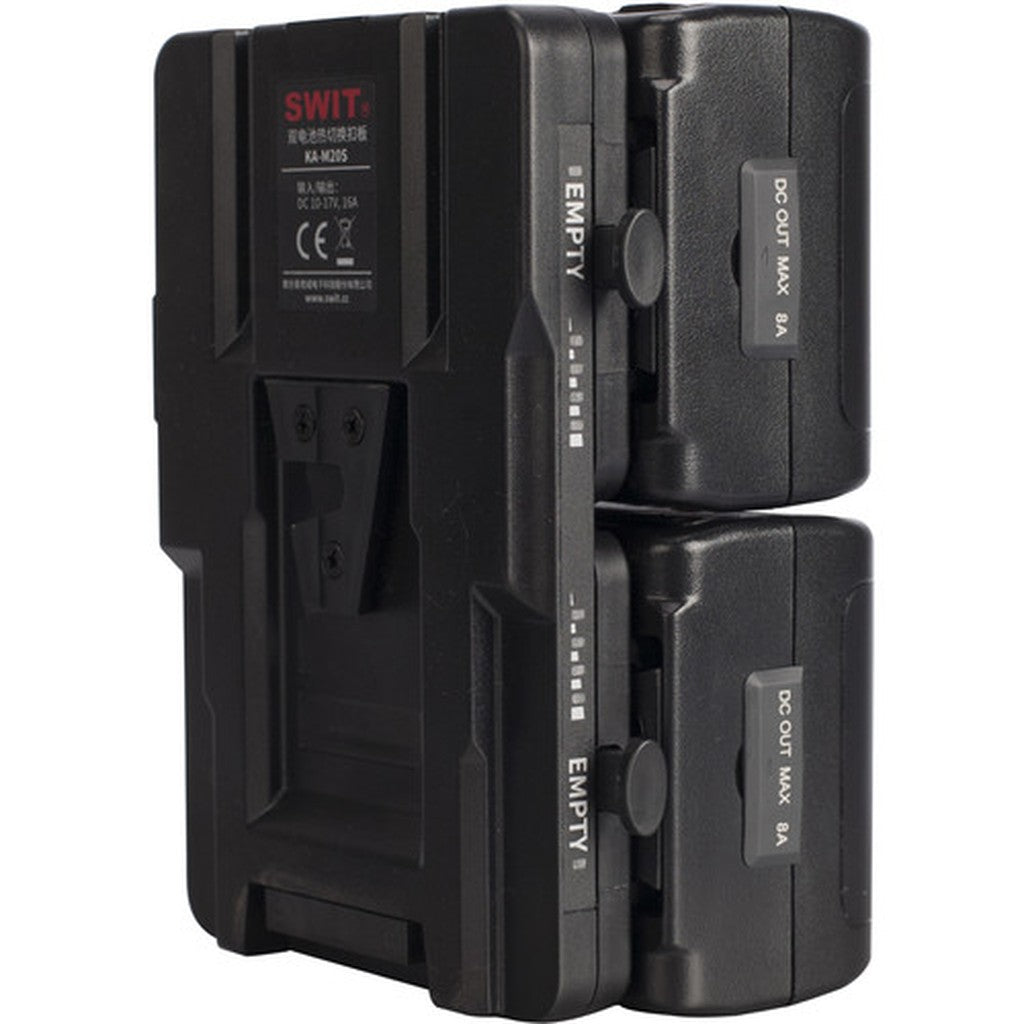

• Battery Indicators: Independent power and hot-swap status LEDs for both batteries
• Active Battery Indication: Flashing upper power LED
• Depleted Battery Indication: Flashing EMPTY LED
• Camera Information Support: Compatible Sony and RED power information display
• Protection: Multiple protection circuits
• Operating Temperature: -4 to 122°F
• Dimensions: 5.83" x 4.25" x 1.10"
• Weight: 0.52 lbs
• Package Weight: 0.66 lbs

What's In the Box

• SWIT KA-M20S Dual Pocket V-Mount Battery Hot-Swap Plate
