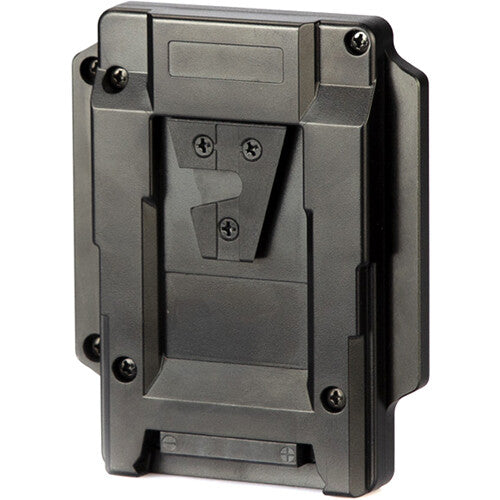

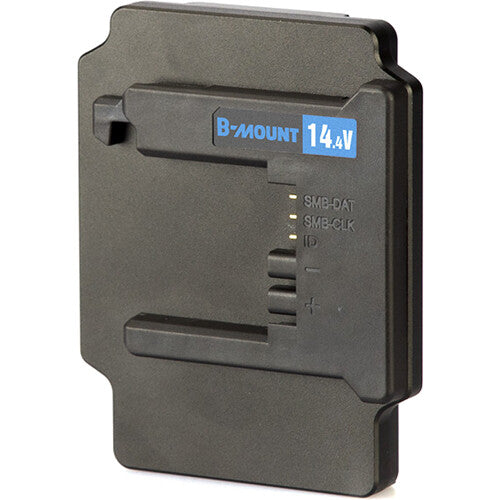

SWIT KA-S20B 14.4V B-Mount to V-Mount Conversion Plate

SWIT KA-S20B 14.4V B-Mount to V-Mount Conversion Plate

The SWIT KA-S20B B-mount to V-mount conversion plate powers compatible 14.4V V-mount cameras and production equipment from a dual-voltage B-mount battery. Its B-mount identification pin selects the battery’s 10.8–16.8V operating range, then passes that voltage directly to the connected V-mount device.

Designed for cinematographers, rental departments, and production crews managing mixed battery systems, the KA-S20B provides a streamlined power solution for the Sony VENICE and other 14.4V V-mount equipment. It also adapts compatible monitors, LED lights, and production accessories to use SWIT BIVO-series batteries without replacing their existing V-mount interfaces.

The thin, lightweight plate adds minimal bulk to professional camera rigs while maintaining a secure battery connection. It supports the BIVO-98, BIVO-160, BIVO-200, and BIVO-290 dual-voltage batteries. Because the adapter operates within a 10.8–16.8V range, it is intended specifically for V-mount equipment designed to accept standard 14.4V battery power.

Key Features

• B-Mount Battery Conversion: Powers compatible V-mount cameras and production devices from a dual-voltage B-mount battery.
• 14.4V Operation: Passes a 10.8–16.8V input and output range for standard-voltage production equipment.
• Sony VENICE Power Solution: Enables the camera to operate from compatible SWIT BIVO-series B-mount batteries.
• Broad Equipment Compatibility: Supports compatible 14.4V V-mount cameras, monitors, lights, and other devices.
• Automatic Battery Voltage Selection: Uses the B-mount identification pin to select the battery’s low-voltage output mode.
• Thin Profile: Adds only 1" of depth to help maintain a compact professional camera setup.
• Lightweight Construction: Weighs 0.5 lbs to minimize additional load on cameras and support systems.

Technical Specifications

• Model: KA-S20B
• Product Type: B-mount battery to V-mount conversion plate
• Battery-Side Mount: B-mount
• Camera-Side Mount: V-mount
• Nominal Input Voltage: 14.4V
• Input Voltage Range: 10.8–16.8V
• Nominal Output Voltage: 14.4V
• Output Voltage Range: 10.8–16.8V
• Compatible Batteries: SWIT BIVO-98, BIVO-160, BIVO-200, and BIVO-290
• Compatible Camera: Sony VENICE
• Compatible Equipment: V-mount cameras, monitors, lights, and other devices supporting 10.8–16.8V input
• Dimensions: 5.5" x 8.3" x 1"
• Weight: 0.5 lbs
