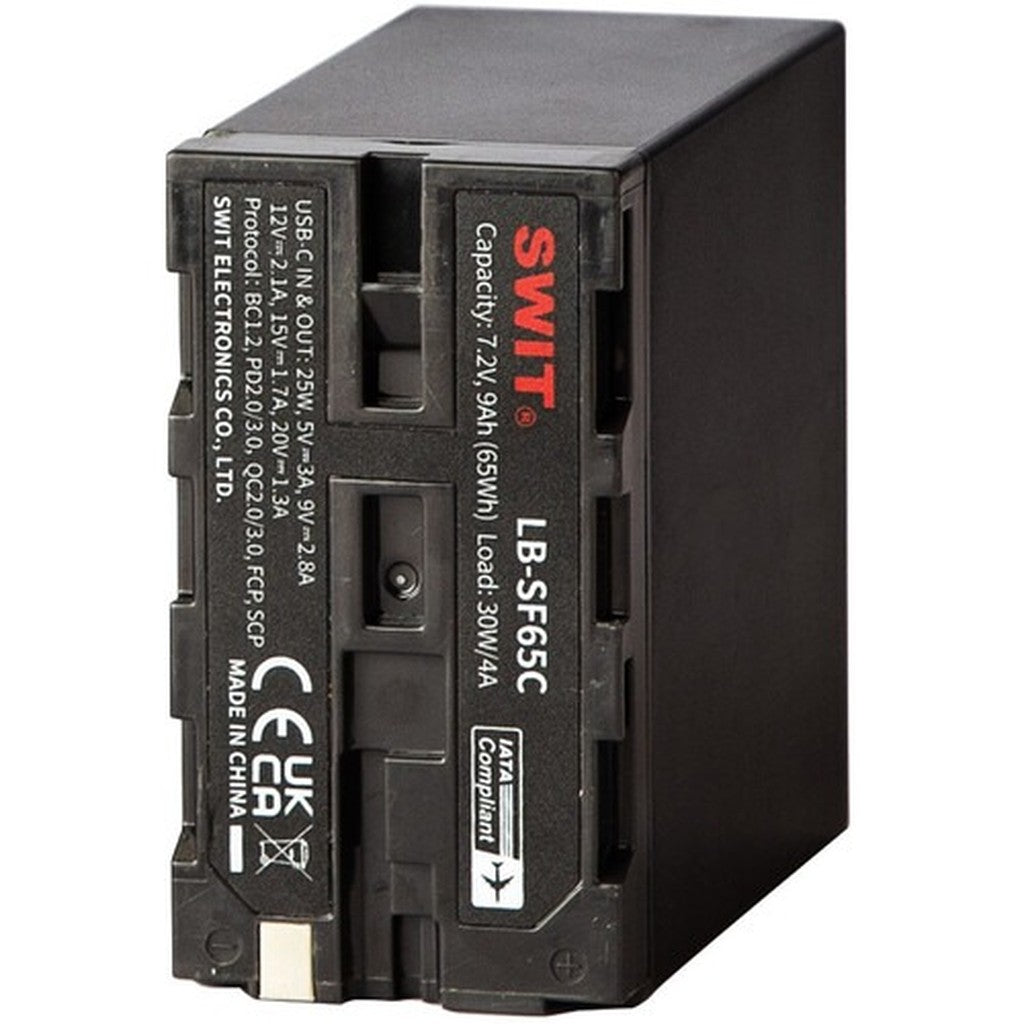

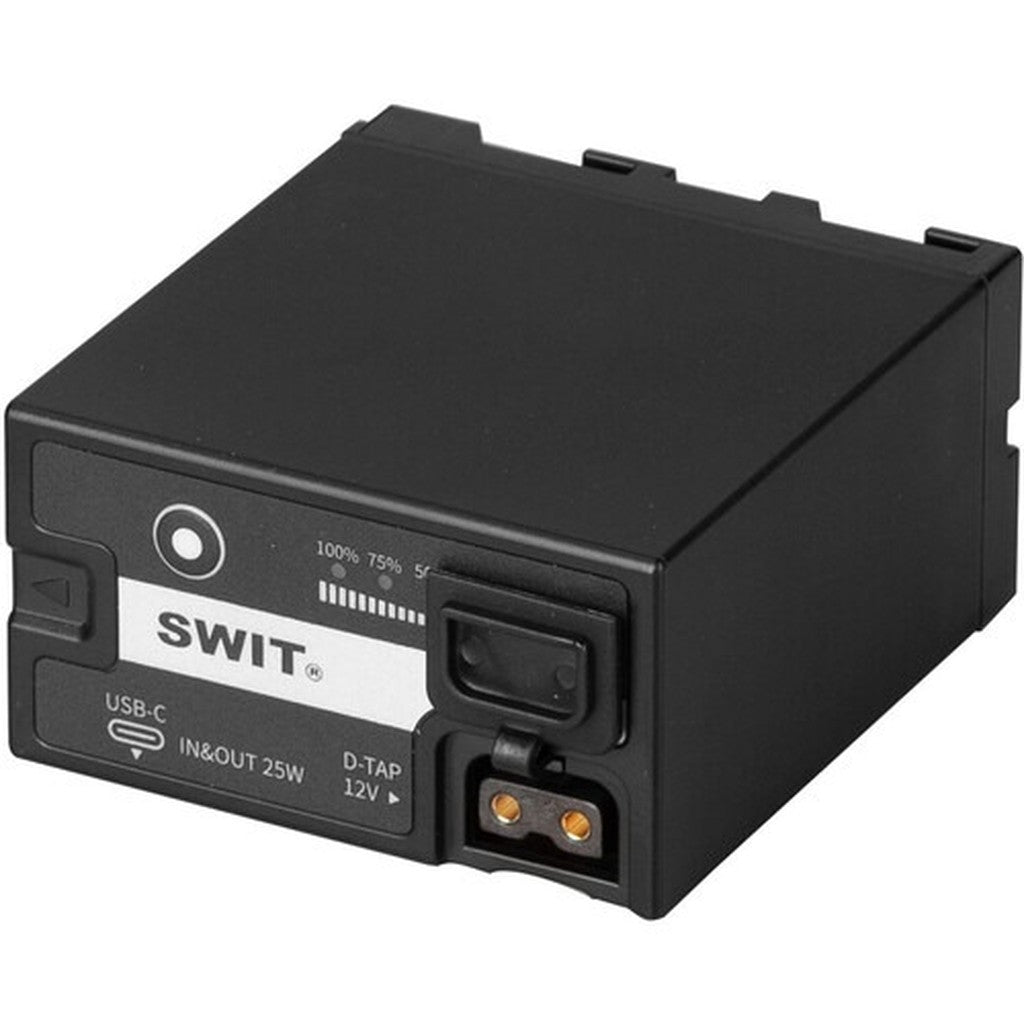

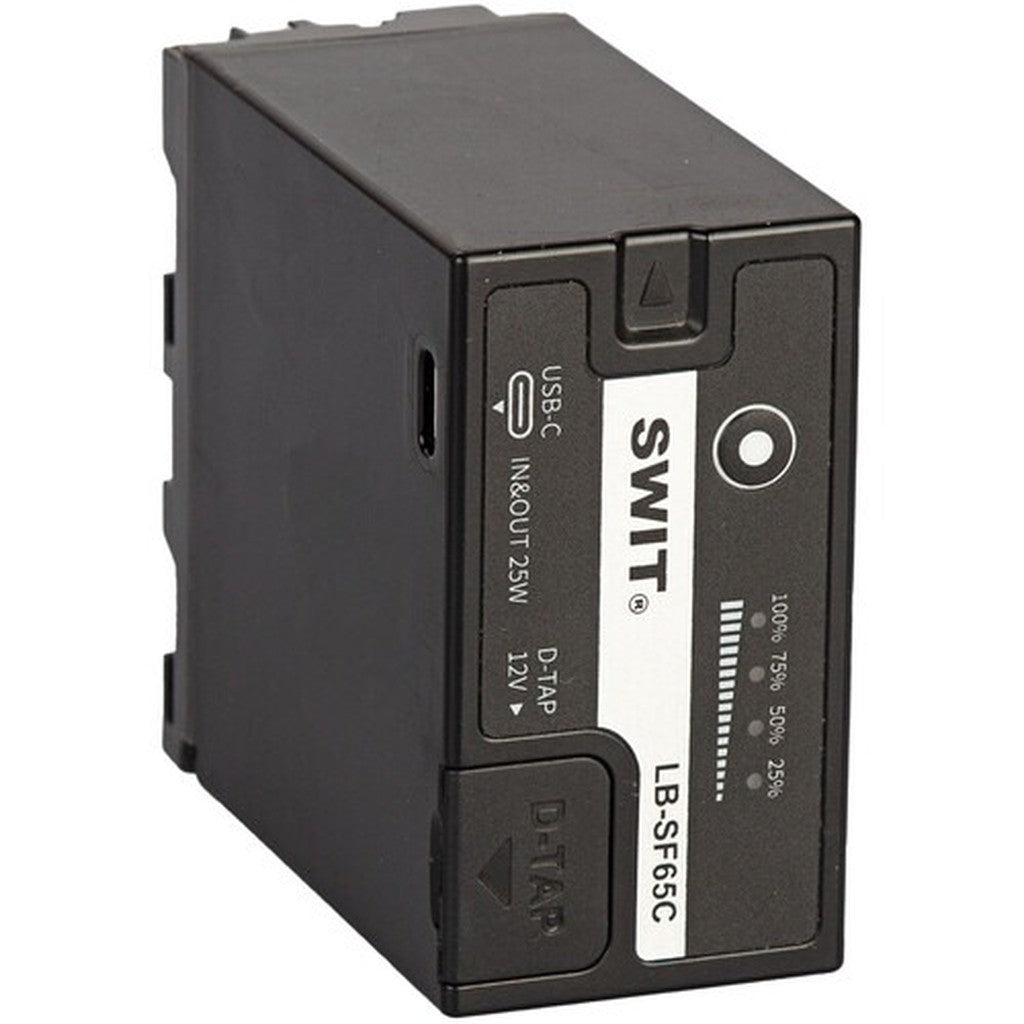

SWIT LB-SF65C 65Wh Sony L-Series NP-F Battery with D-Tap & USB-C

SWIT LB-SF65C 65Wh Sony L-Series NP-F Battery

The SWIT LB-SF65C 65Wh Sony L-Series NP-F battery is a high-capacity 7.2V lithium-ion power solution for cameras and professional video accessories using a Sony BP-F plate. It combines regulated 12V D-Tap output, 25W USB-C input and output, a 30W continuous load, and a four-level LED gauge in one compact pack.

Designed for professional videographers, production crews, and mobile content creators, this Sony L-Series camera battery with USB-C supports flexible power management on location. The 65Wh capacity extends operating time, while the regulated D-Tap connection powers compatible video equipment. USB-C charging also allows the battery to reach a full charge in approximately 3.5 hours with a compatible 25W charger.

The LB-SF65C works with devices using a Sony BP-F battery plate and replaces Sony NP-F770 and NP-F970 batteries. Compatible camera families include select Sony HXR, PXW, NXR, HVR, NEX, and DSR models. Multiple protection circuits monitor temperature, voltage, and current, helping support dependable operation in professional camera rigs and field-production systems.

Key Features

• 65Wh High-Capacity Battery: Provides 9.02Ah of portable power for compatible cameras and professional video equipment.
• Sony NP-F Compatibility: Fits devices equipped with a Sony BP-F plate and replaces NP-F770 and NP-F970 batteries.
• Regulated D-Tap Output: Delivers regulated 12V power at up to 20W for compatible production accessories.

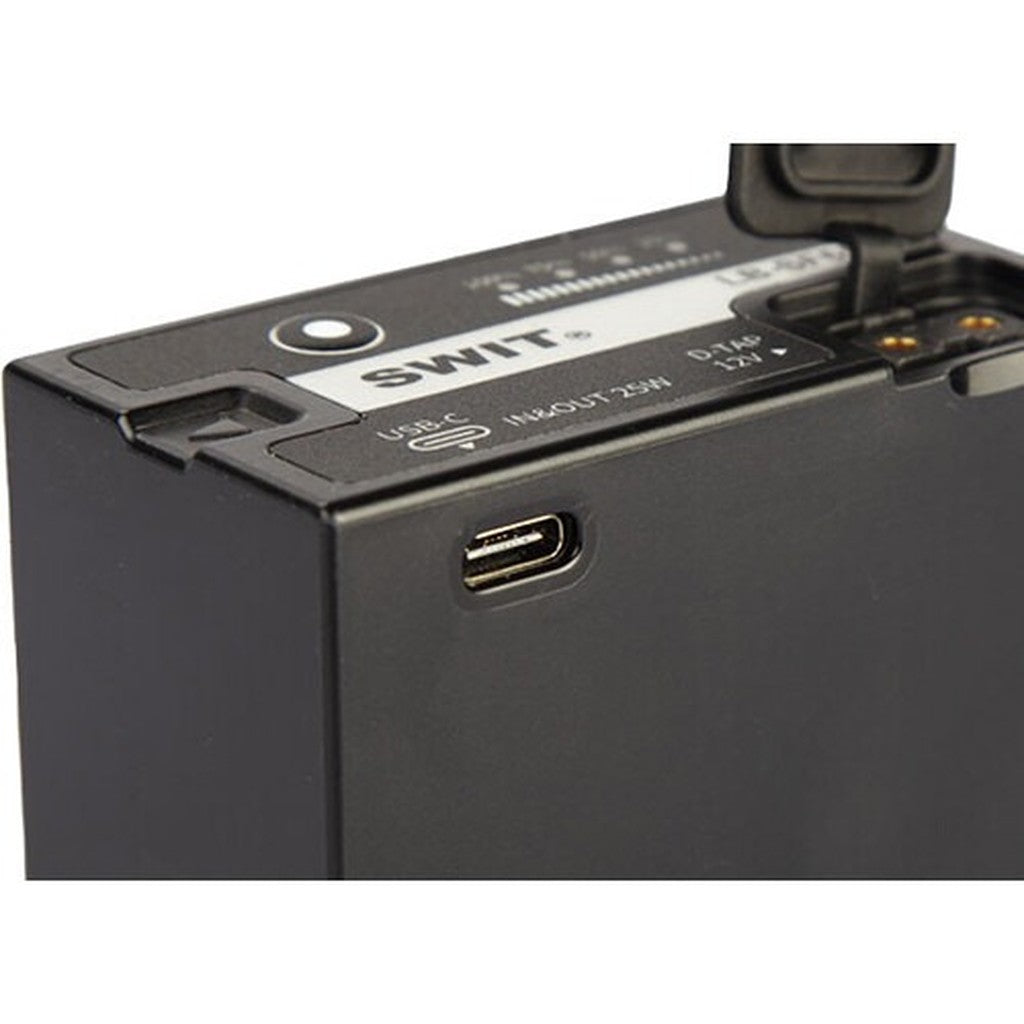

• 25W USB-C Input and Output: Charges the battery or powers compatible smartphones, tablets, and USB-C devices.
• 30W Continuous Load: Supports a maximum constant load of 30W or 4A for demanding video applications.
• Four-Level LED Indicator: Displays remaining battery capacity at the press of the power-check button.
• Flexible Charging Options: Supports USB-C charging and standard chargers designed for Sony NP-F batteries.
• Integrated Circuit Protection: Provides temperature, voltage, and current protection during charging and operation.

Technical Specifications

• Model: LB-SF65C
• Battery Type: Rechargeable lithium-ion Sony L-Series/NP-F-style battery
• Nominal Voltage: 7.2V
• Capacity: 65Wh, 9.02Ah
• Cell Configuration: Six battery cells
• Maximum Continuous Power Load: 30W, 4A
• D-Tap Output: Regulated 12V, 1.7A, 20W
• D-Tap Charging: Charging input is not supported through the D-Tap port
• USB-C Input: Up to 25W; 5V/3A, 9V/2.8A, 12V/2.1A, 15V/1.7A, or 20V/1.3A
• USB-C Output: Up to 25W; 5V/3A, 9V/2.8A, 12V/2.1A, 15V/1.7A, or 20V/1.3A
• USB-C Protocols: BC1.2, QC 2.0/3.0, PD 2.0/3.0, FCP, and SCP
• USB-C Charging Time: Approximately 3.5 hours with a compatible 25W USB-C charger
• NP-F Charger Support: Compatible with chargers designed for Sony NP-F batteries
• Power Indicator: Four-level LED battery gauge
• Comparable Batteries: Sony NP-F770 and NP-F970
• Compatible Plate: Sony BP-F battery plate
• Compatible Sony Models: HXR-NX100, HXR-NX5R, PXW-Z150, NXR-MC2000, NXR-HD1000, HVR-Z1, HVR-Z5, HVR-Z7, HVR-V1, NEX-FS100, NEX-FS700, NEX-EA50, DSR-PD150, DSR-PD170, and DSR-PD190
• Compatibility Exclusions: Not compatible with Z CAM E2, E2-M4, E2-S6, E2-S6G, E2-F6, or E2-F8 cameras, or ARRI Hi-5 and ZMU-4 devices due to battery-slot size limitations
• Charging Temperature: 32°F to 104°F
• Discharging Temperature: -4°F to 122°F; capacity and maximum load may decrease below 32°F
• Dimensions: 2.80" x 1.54" x 2.99"
• Net Weight: Approximately 0.76 lbs
