SWIT LC-D421C 4-Channel Canon BP Simultaneous Battery Charger

SWIT LC-D421C 4-Channel Canon BP Simultaneous Battery Charger

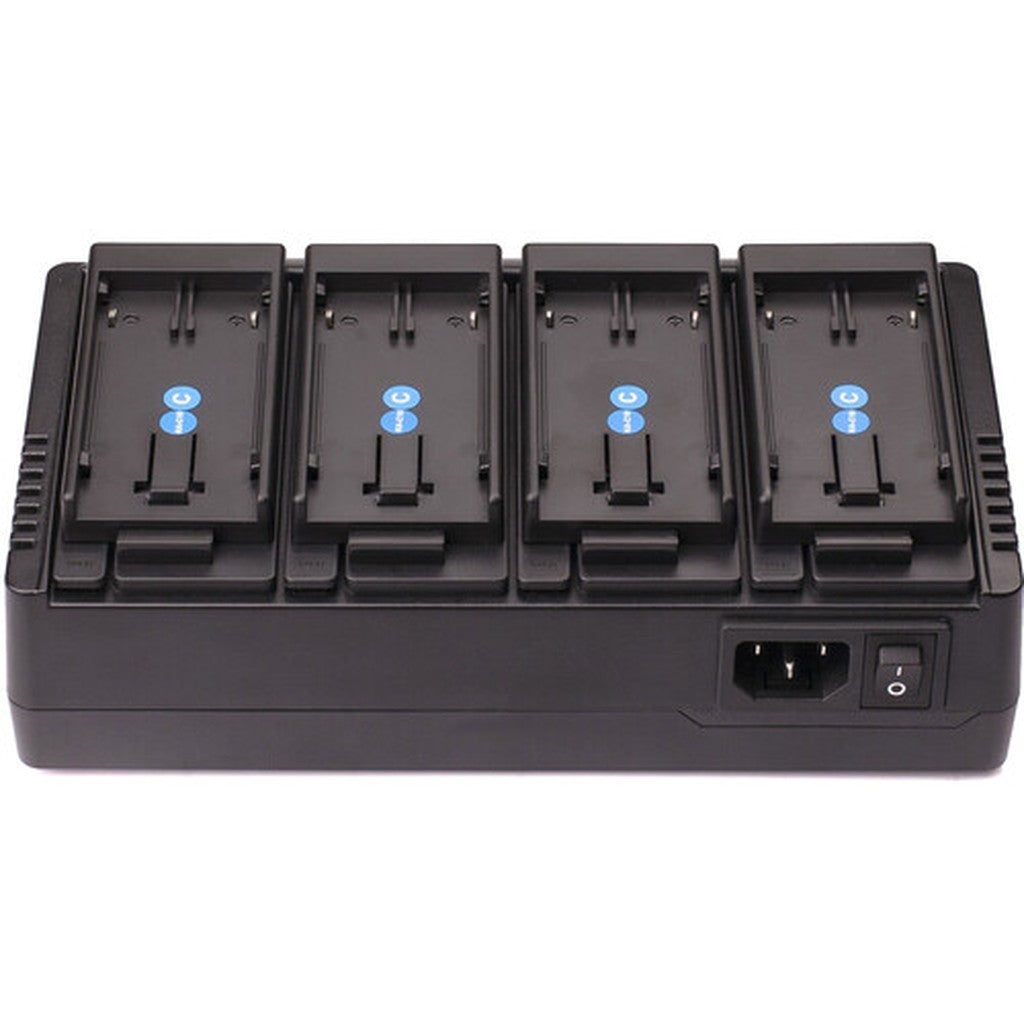

The SWIT LC-D421C 4-channel Canon BP battery charger simultaneously charges up to four compatible 7.2V DV batteries. Each channel delivers an 8.4V, 2A charging output, while individual four-LED indicators display real-time battery capacity for efficient power management during professional video production.

Designed for broadcast crews, filmmakers, rental facilities, and production studios, this multi-battery charger reduces turnaround time between shoots. It supports Canon BP-945, BP-955, and BP-970G batteries, plus compatible SWIT models. Four independent charging positions make it practical for teams managing several cameras or rotating battery sets throughout the day.

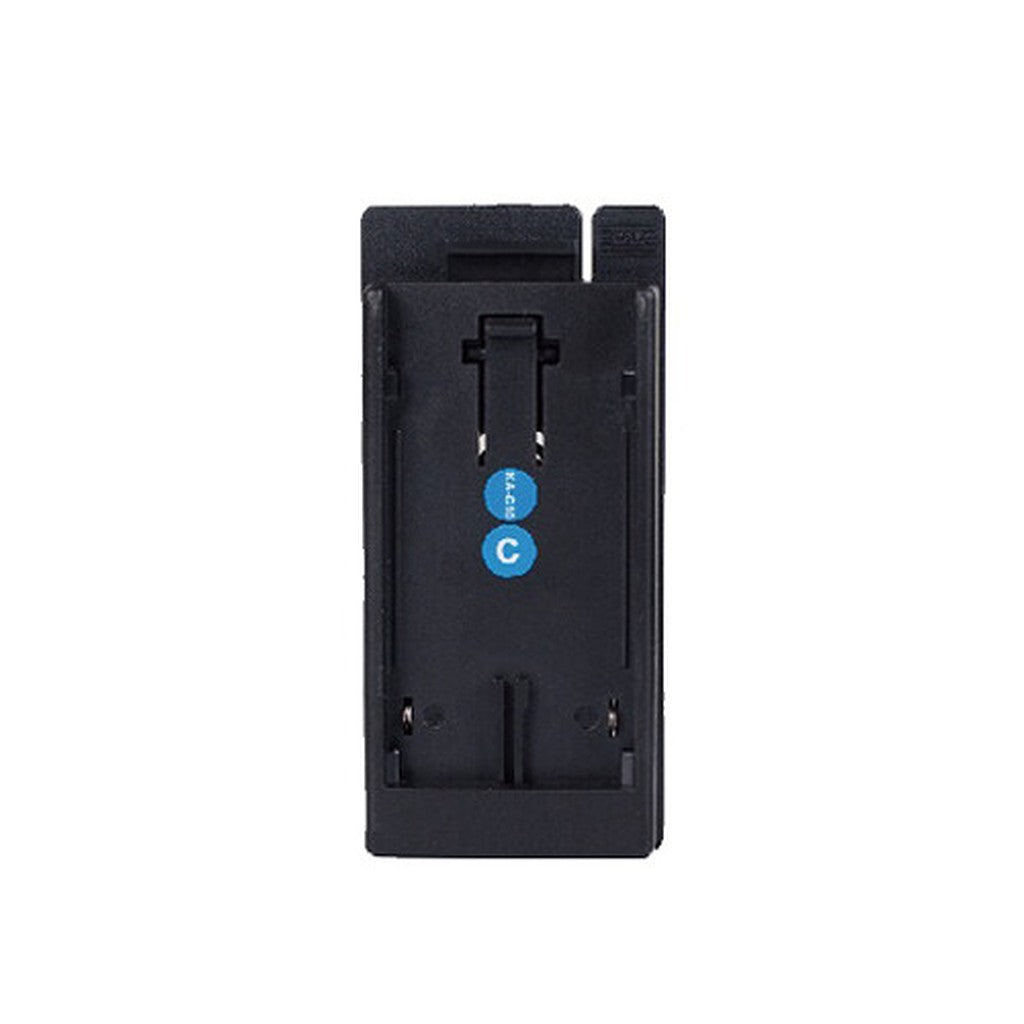

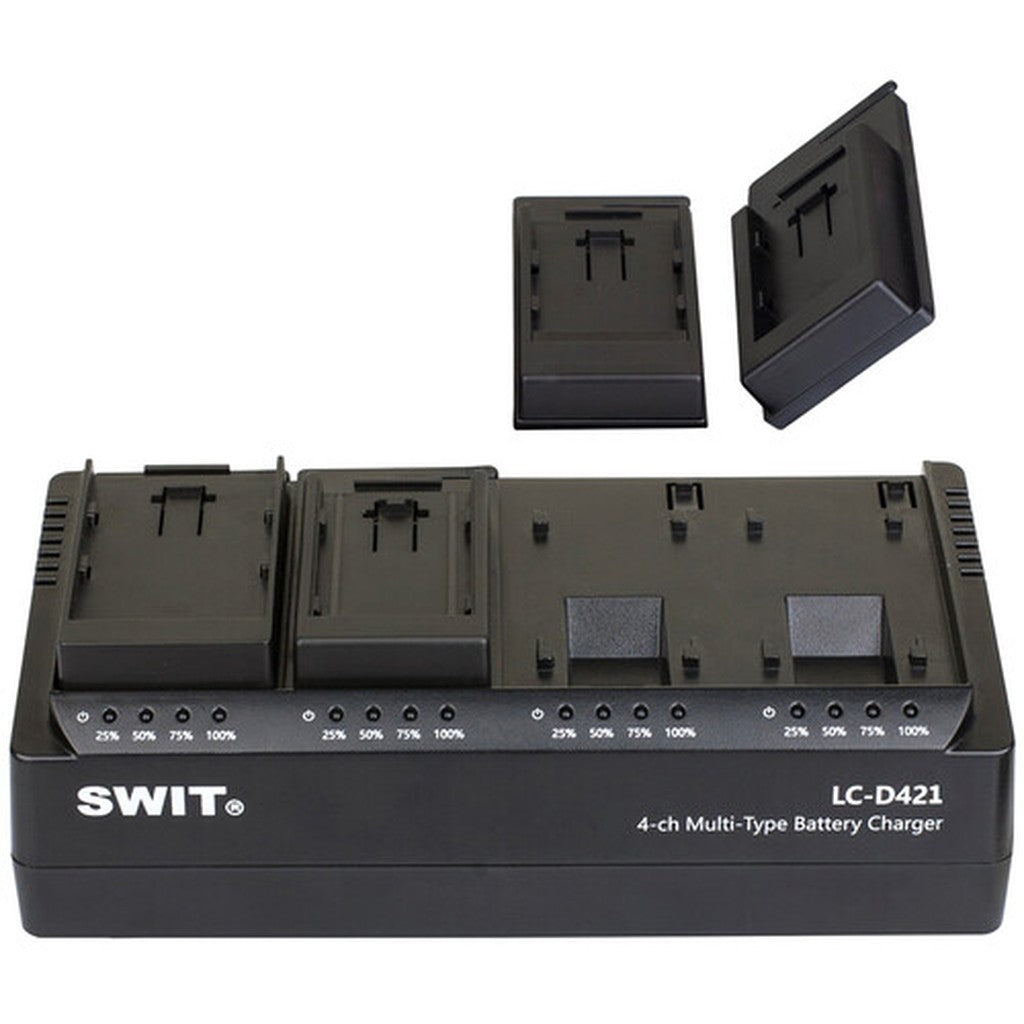

The LC-D421C includes four KA-C10C snap-on battery plates that detach without tools. Its interchangeable plate system also allows the charger base to support other battery families when equipped with separately available compatible plates. Universal AC input, multiple charging configurations, and clear channel indicators make it a flexible charging hub for professional camera departments.

Key Features

• Four-Channel Simultaneous Charging: Charges up to four compatible DV batteries at the same time.
• 2A Per-Channel Output: Delivers fast 8.4V, 2A charging across four 7.2V battery positions.
• Canon BP-Series Compatibility: Supports selected Canon BP-945, BP-955, and BP-970G batteries.
• Independent LED Indicators: Four LEDs on each channel display real-time battery capacity and charging progress.
• Interchangeable Battery Plates: Quick-release snap-on plates detach without tools for flexible battery support.
• Universal AC Input: Operates from 100 to 240V AC power at 50/60Hz.
• Multi-Type Charger Platform: Accepts other compatible plate models for charging additional battery families.

Technical Specifications

• Model: LC-D421C
• Product Type: Four-channel simultaneous DV battery charger
• Charging Channels: Four
• Charging Mode: Simultaneous
• Included Battery Plate: Four KA-C10C snap-on plates
• Compatible Canon Batteries: BP-945, BP-955, and BP-970G
• Compatible SWIT Batteries: S-8845 and S-8945
• Power Input: 100 to 240V AC, 50/60Hz
• Maximum Input Power: 100W
• 7.2V DV Battery Charging Output: 8.4V DC, 2A x 4 channels
• 14.4V Battery Charging Output: 16.8V DC, 2A x 3 channels or 1.5A x 4 channels
• Charging Indicators: Four LED indicators per channel
• Battery Plate System: Tool-free, quick-release interchangeable plates
• Operating Temperature: 32 to 104°F
• Operating Humidity: 10 to 90%
• Dimensions: 8.66" x 4.92" x 2.73"
• Weight: 1.56 lbs

What's In the Box

• SWIT LC-D421 Four-Channel Battery Charger
• Four KA-C10C Canon BP-Series Battery Plates
