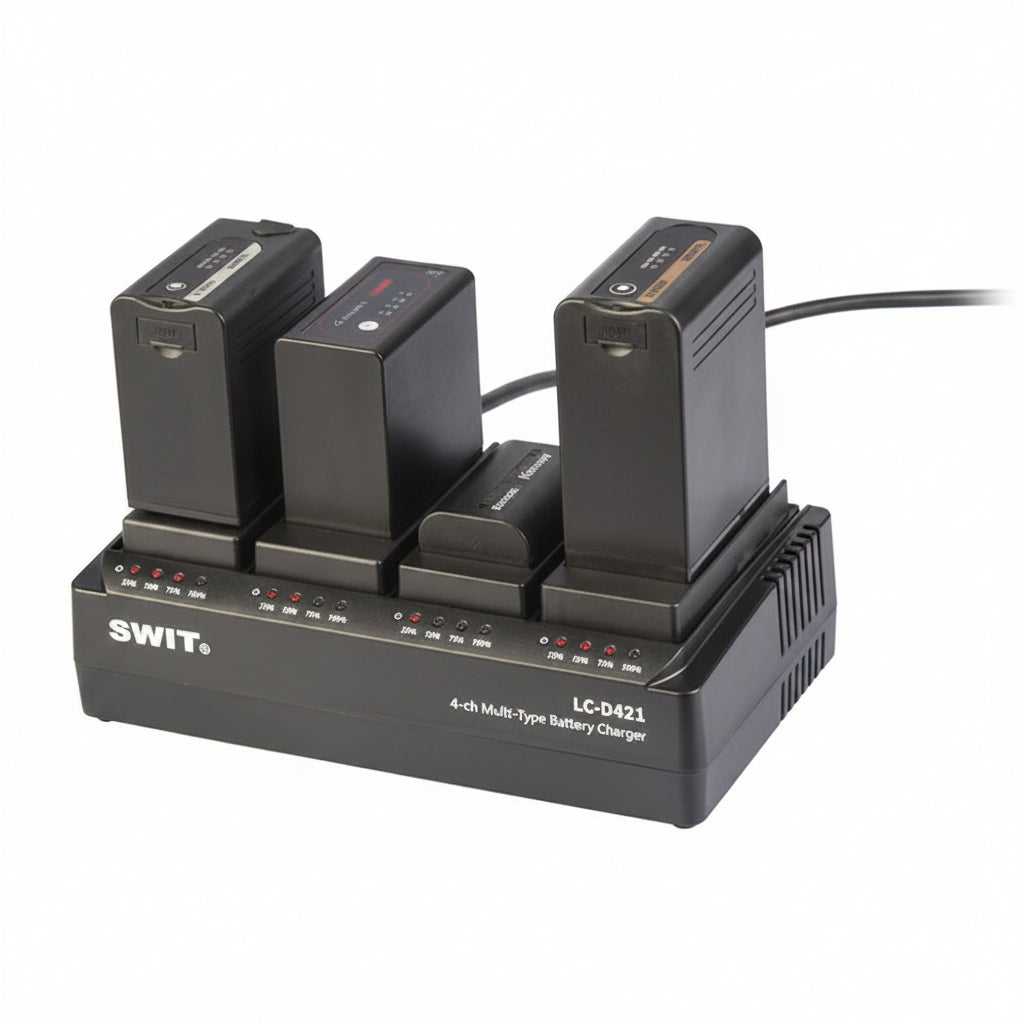

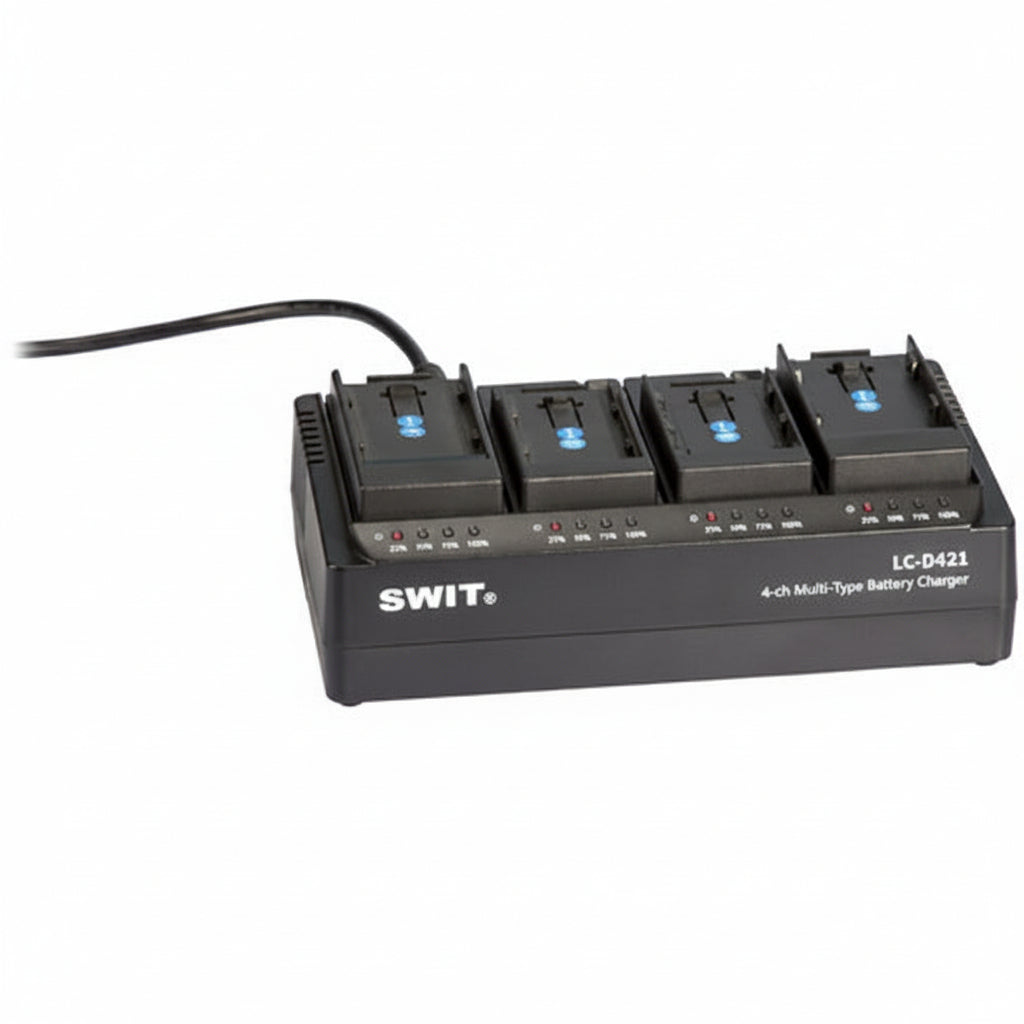

SWIT LC-D421E 4-Channel Canon LP-E6 Simultaneous Battery Charger

SWIT LC-D421E 4-Channel Canon LP-E6 Simultaneous Battery Charger

The SWIT LC-D421E 4-channel Canon LP-E6 battery charger simultaneously charges up to four compatible 7.2V batteries, including the SWIT S-8PE6. Each charging channel supplies 8.4V DC at 2A, while four LEDs per bay display real-time battery capacity for organized professional power management.

Designed for filmmakers, photographers, production studios, and equipment rental facilities, this simultaneous LP-E6 battery charger keeps multiple camera batteries ready between assignments. Four independent bays reduce charging bottlenecks, making the LC-D421E ideal for multi-camera productions, extended shooting schedules, and high-volume battery rotation.

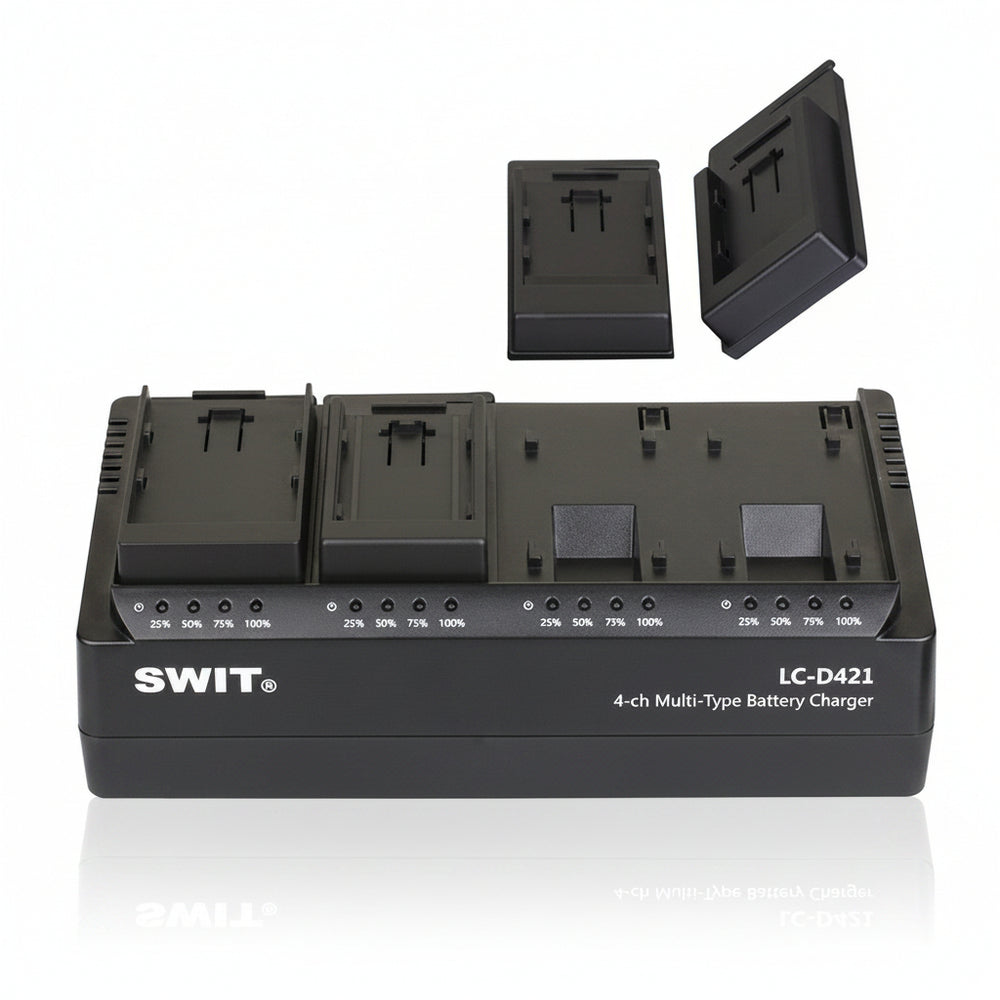

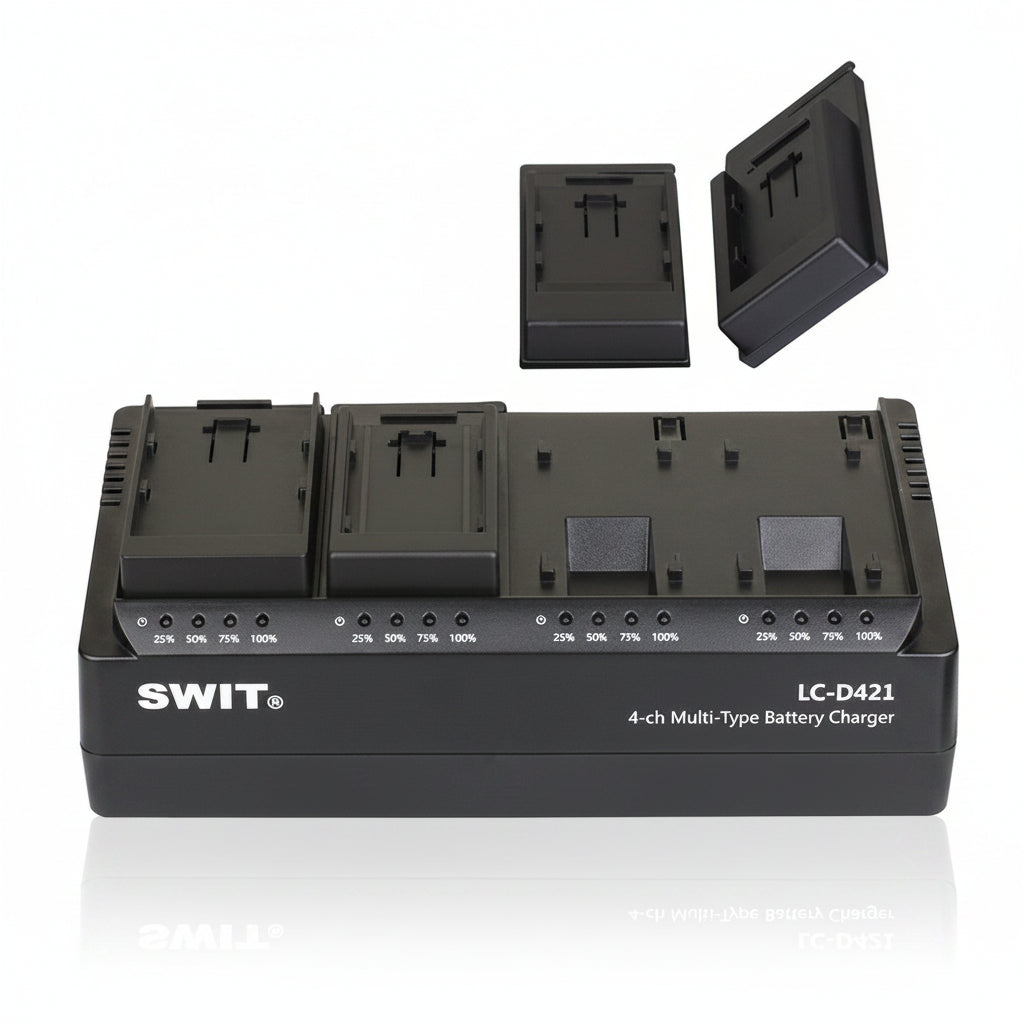

The charger includes four KA-C10E snap-on battery plates for Canon LP-E6–type batteries. Each plate connects through a two-pin cable and releases quickly without tools. The LC-D421 platform also supports separately available interchangeable plates for selected Sony, Panasonic, Canon BP-series, and other compatible professional video batteries.

Key Features

• Four-Channel Simultaneous Charging: Charges up to four compatible batteries at the same time.
• Canon LP-E6 Compatibility: Includes plates designed for Canon LP-E6–type batteries and the SWIT S-8PE6.
• 2A Per-Channel Output: Supplies 8.4V DC at 2A across all four 7.2V battery positions.
• Independent LED Indicators: Four LEDs on each channel display real-time battery capacity and charging progress.
• Exchangeable Battery Plates: Snap-on plates release quickly for convenient battery-system changes.
• Mixed Battery Support: Accepts separately available plate types for charging different compatible battery families.
• Universal AC Input: Operates from 100 to 240V AC power at 50/60Hz.

Technical Specifications

• Model: LC-D421E
• Product Type: Four-channel simultaneous DV battery charger
• Charging Channels: Four
• Charging Mode: Simultaneous
• Included Battery Plates: Four KA-C10E snap-on plates
• Battery Compatibility: Canon LP-E6–type batteries and SWIT S-8PE6
• Power Input: 100 to 240V AC, 50/60Hz
• Maximum Power Consumption: 100W
• 7.2V Battery Charging Output: 8.4V DC, 2A x 4 channels
• 14.4V Battery Charging Output: 16.8V DC, 2A x 3 channels or 1.5A x 4 channels with compatible plates
• Charging Indicators: Four LED indicators per channel
• Battery Plate System: Tool-free, snap-on interchangeable plates with two-pin connections
• Operating Temperature: 32 to 104°F
• Operating Humidity: 10 to 90%
• Dimensions: 8.66" x 4.92" x 2.73"
• Weight: 1.56 lbs
• Packaged Weight: 2.29 lbs

What's In the Box

• SWIT LC-D421 Four-Channel Battery Charger
• Four KA-C10E Canon LP-E6 Battery Plates
• AC Power Cable
