SWIT LC-D421V 4-Channel JVC BN-VF823 Battery Charger

SWIT LC-D421V 4-Channel JVC BN-VF823 Battery Charger

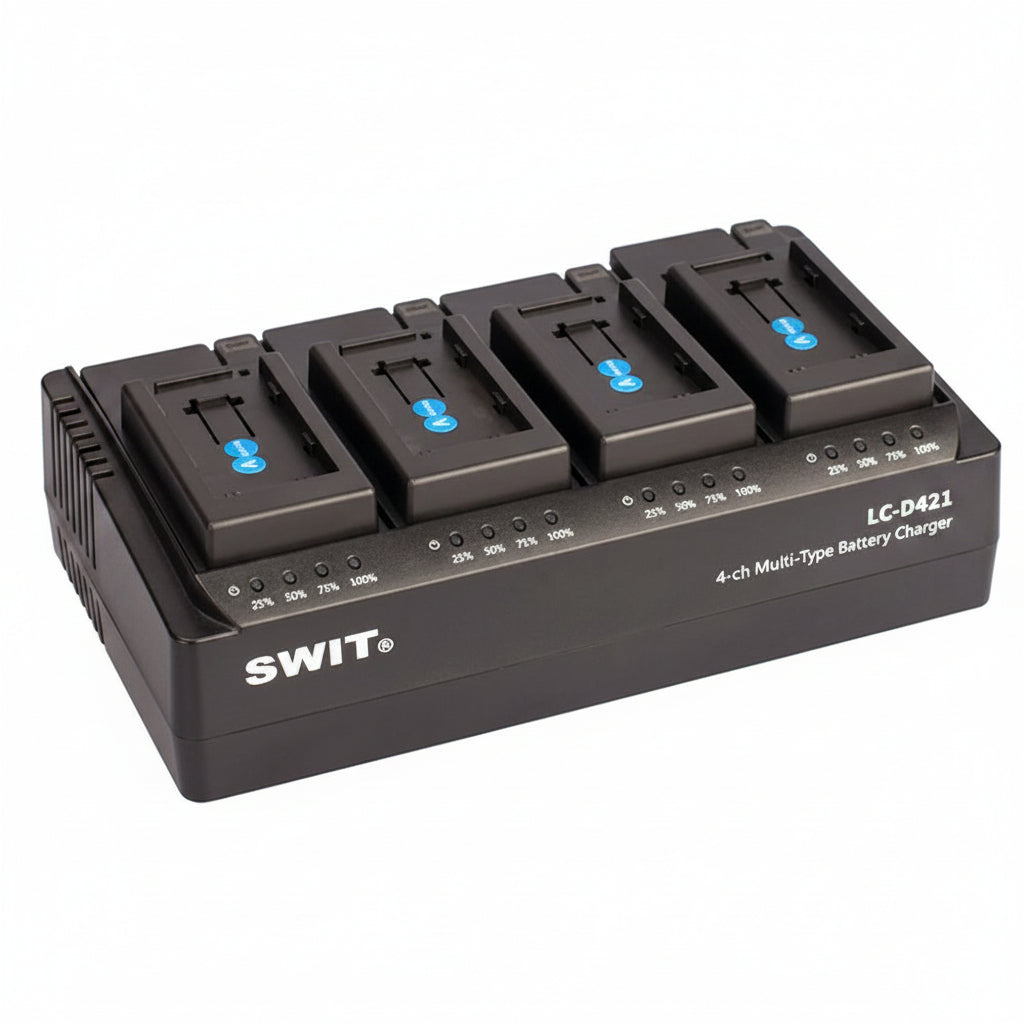

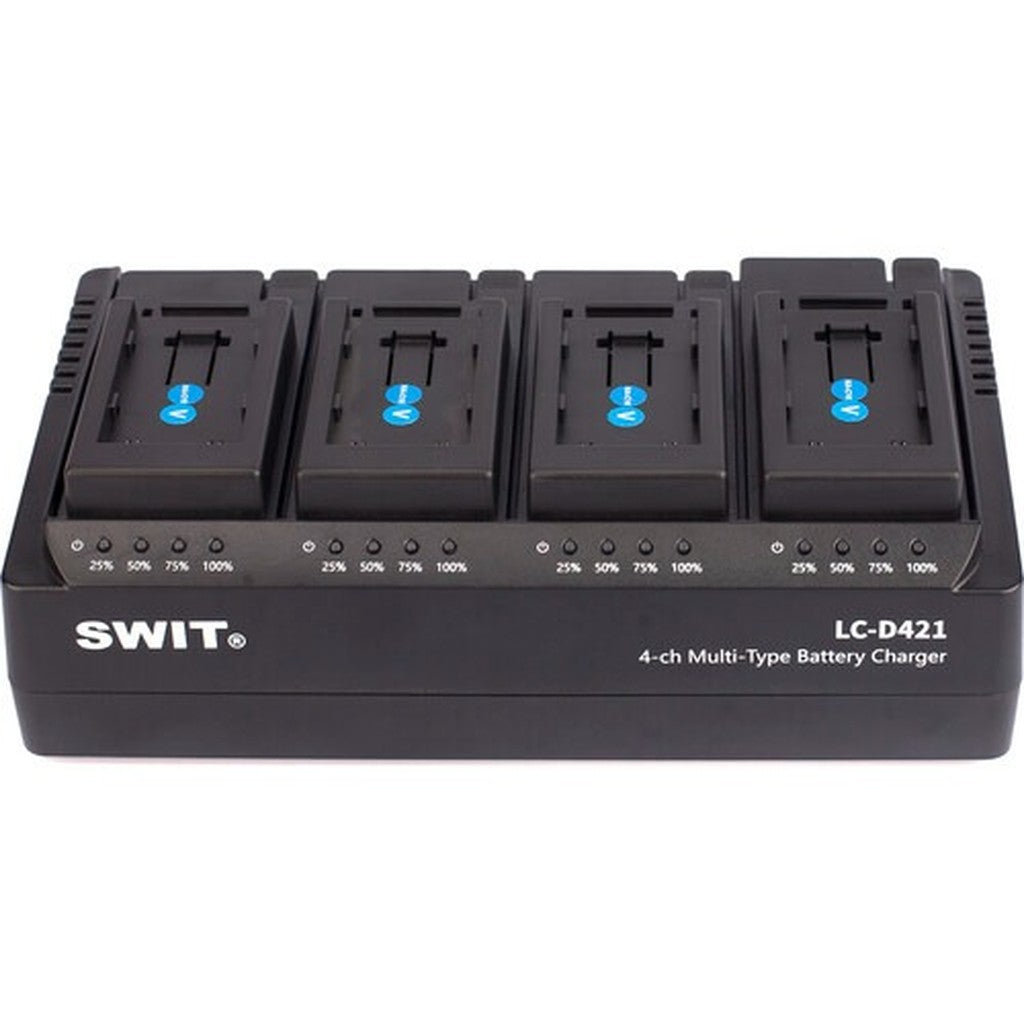

The SWIT LC-D421V 4-channel JVC BN-VF823 battery charger simultaneously charges up to four compatible 7.2V batteries. Each channel supplies an 8.4V, 2A charging output and includes four LED indicators that display real-time capacity levels, helping production teams prepare multiple batteries efficiently.

Designed for studios, rental departments, broadcast crews, and location-production teams, the charger supports JVC BN-VF823 and SWIT S-8823 batteries. Four included KA-C10V battery plates snap securely onto the charging bays. The interchangeable plate design also lets operators configure the LC-D421 platform for other supported battery formats using separately available plates.

All four channels operate simultaneously, minimizing charging delays when several batteries must be ready for a production day. The universal 100–240V AC input supports domestic and international workflows, while the compact enclosure fits easily into equipment rooms, charging stations, and mobile production cases. Independent LED arrays make it easy to monitor every installed battery at a glance.

Key Features

• Four-Channel Charging: Charges up to four compatible camcorder batteries simultaneously for faster production turnaround.
• JVC Battery Compatibility: Supports JVC BN-VF823 and SWIT S-8823 rechargeable batteries.
• 2A Per Channel: Delivers an 8.4V, 2A charging output to each installed 7.2V battery.
• Independent LED Indicators: Four LEDs on each channel display real-time battery capacity and charging progress.

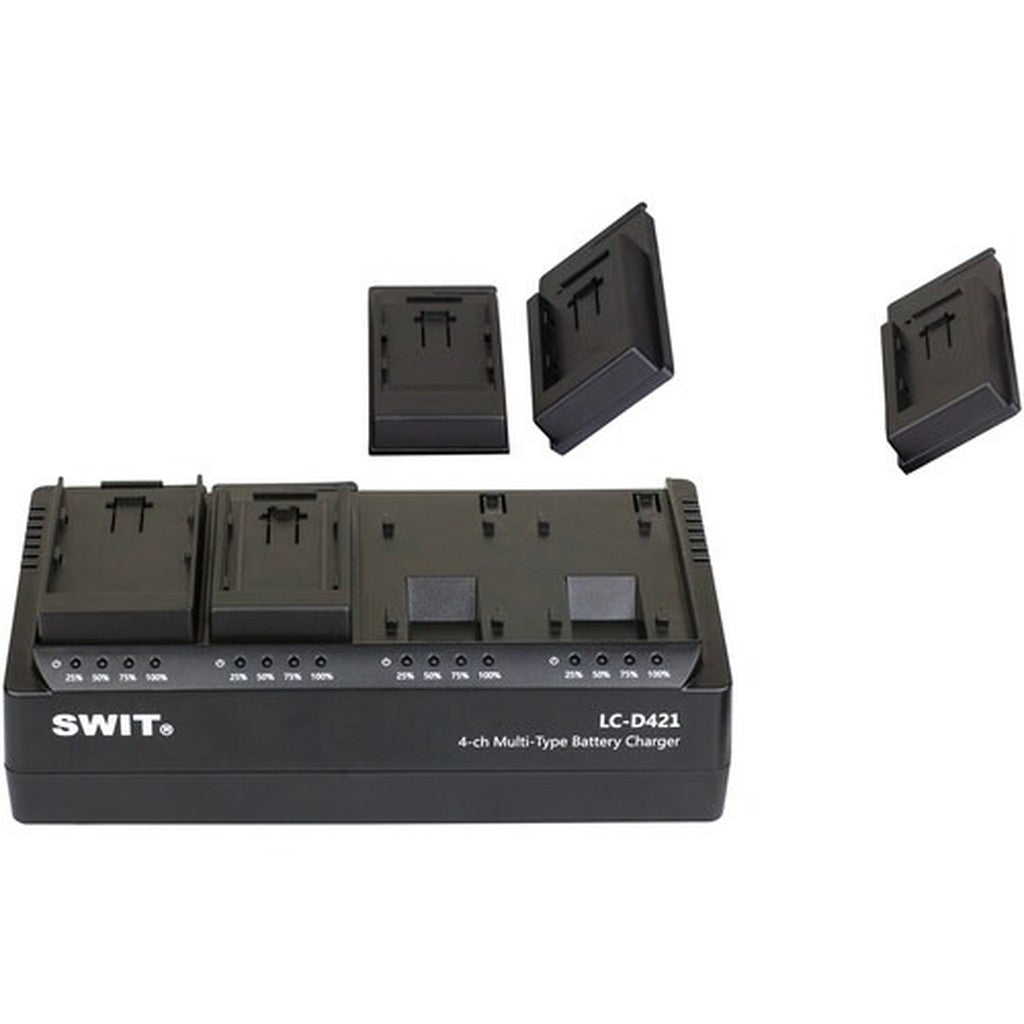

• Interchangeable Battery Plates: Snap-on plate construction supports quick replacement or reconfiguration for compatible battery formats.
• Four JVC Plates Included: Comes configured with four KA-C10V plates for supported JVC BN-VF-series batteries.
• Universal AC Input: Operates from 100–240V AC power at 50 or 60Hz for worldwide production use.

Technical Specifications

• Brand: SWIT
• Model: LC-D421V
• Product Type: Four-channel simultaneous battery charger
• Charging Bays: 4
• Charging Mode: Simultaneous

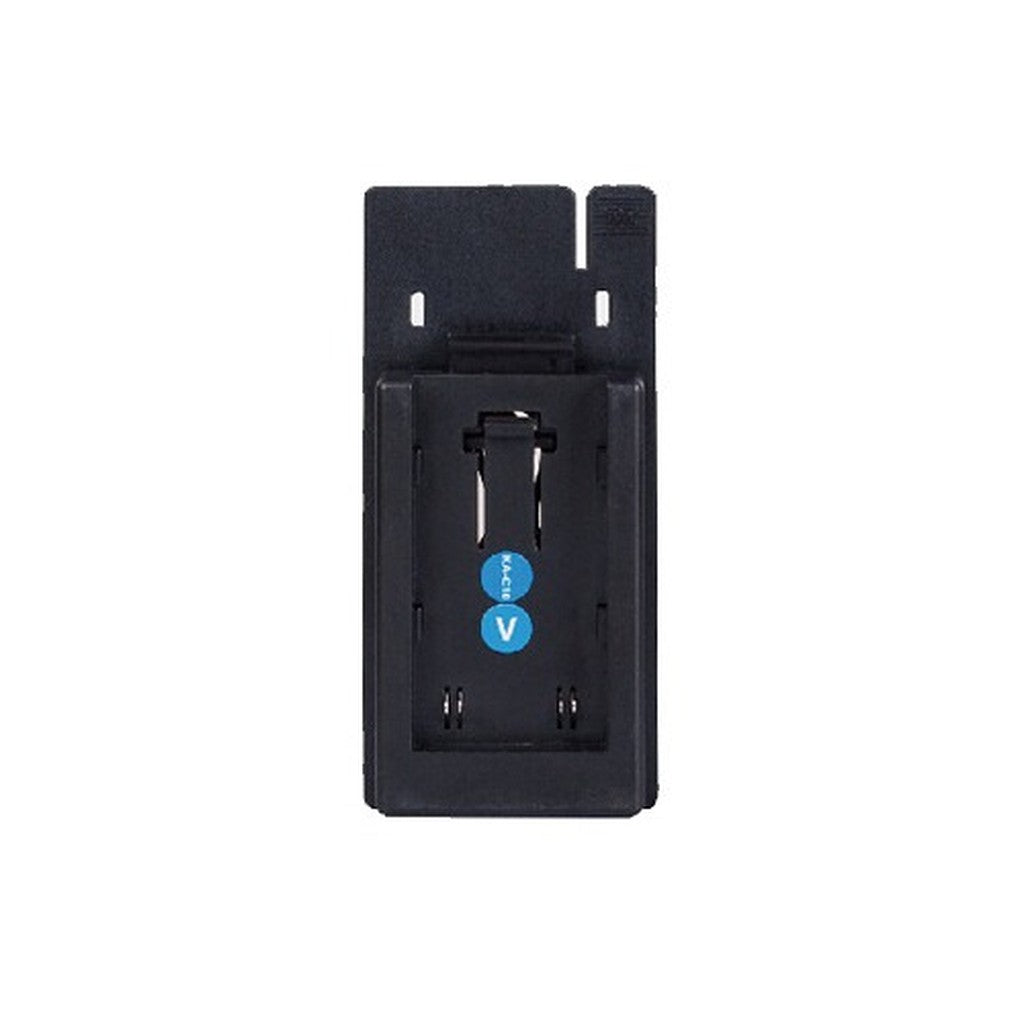

• Included Battery Plates: 4 x SWIT KA-C10V snap-on plates
• Compatible JVC Battery: BN-VF823
• Compatible SWIT Battery: S-8823
• AC Input: 100–240V AC, 50/60Hz
• Maximum Input Power: 100W
• 7.2V DV Battery Charging Output: 8.4V DC at 2A per channel across four channels
• 14.4V Battery Charging Output: 16.8V DC at 2A across three channels or 1.5A across four channels with compatible optional plates
• Power Input Connection: 1 x IEC female input
• Charging Indicators: Four LED status indicators per channel
• Operating Temperature: 32 to 104°F
• Operating Humidity: 10 to 90%
• Dimensions: 8.7" x 4.9" x 2.7"
• Weight: 1.6 lbs
• Package Weight: 2.27 lbs
• Box Dimensions: 9.5" x 8.3" x 3"

What's In the Box

• SWIT LC-D421 4-Channel Battery Charger
• 4 x SWIT KA-C10V JVC BN-VF823 Battery Plates
• AC Power Cable
