SWIT MATRIX-B8 8-Channel 100W B-Mount Wall Charger

SWIT MATRIX-B8 8-Channel 100W B-Mount Wall Charger

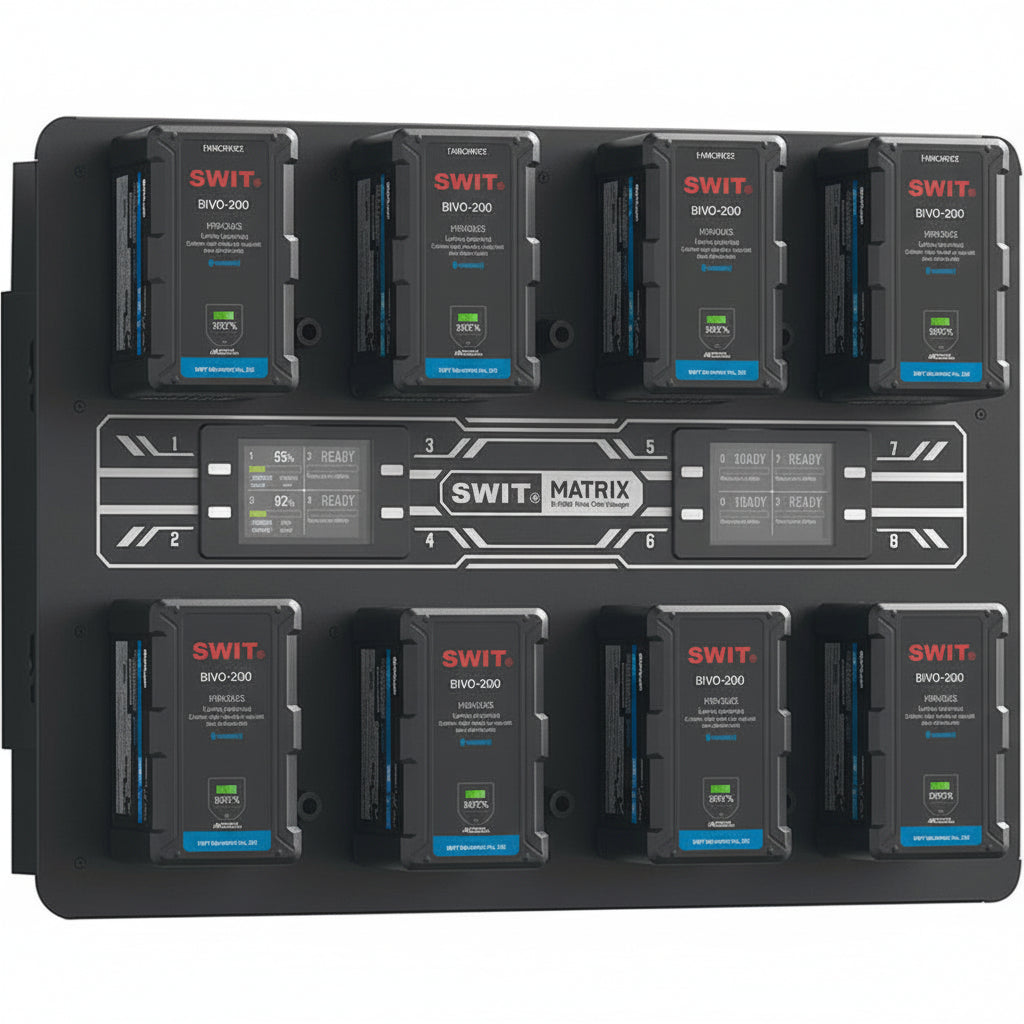

The SWIT MATRIX-B8 B-mount wall charger simultaneously charges up to eight compatible professional camera batteries. Each channel delivers up to 100W at 33.6V DC for batteries rated at 160Wh or higher, helping production teams restore multiple high-capacity packs between shoots without rotating batteries through a smaller charger.

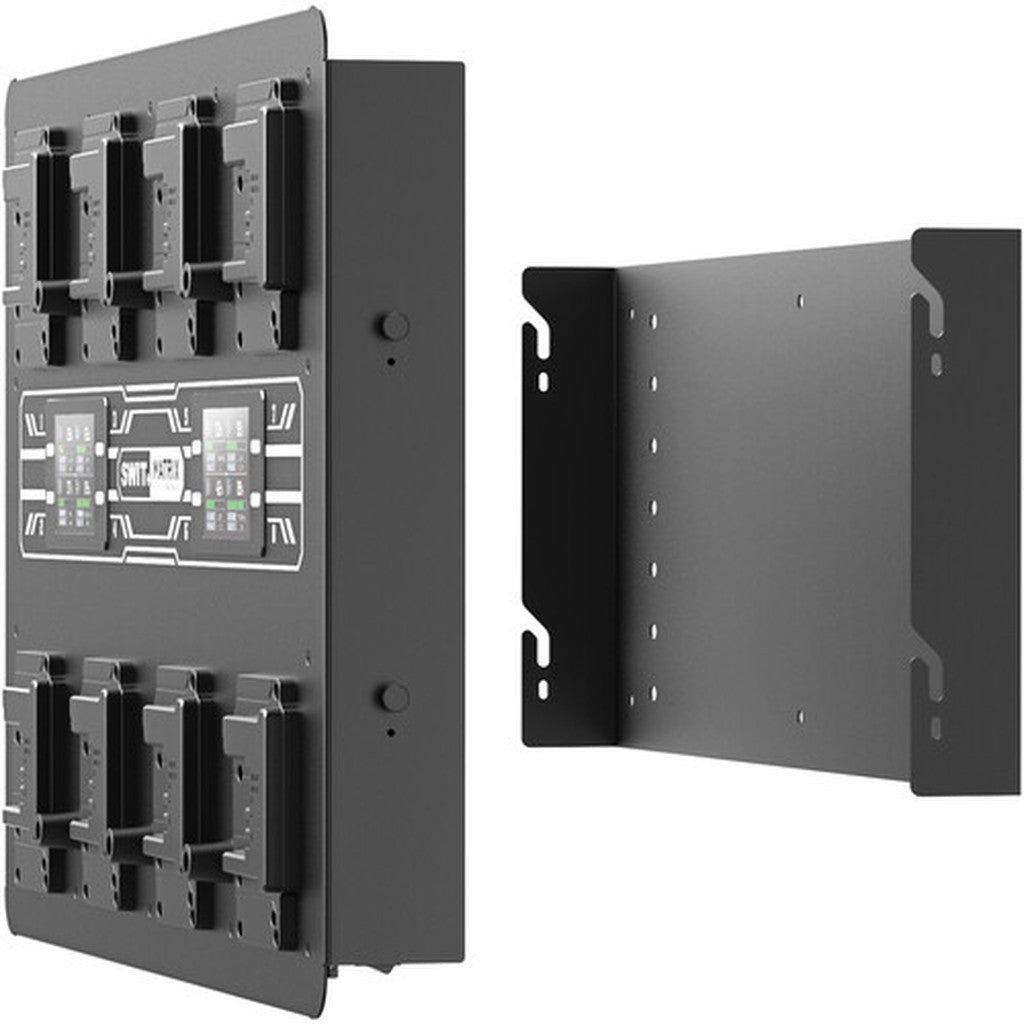

Designed for rental facilities, broadcast studios, DIT carts, and cinema production departments, the MATRIX-B8 centralizes battery charging in a space-efficient installation. The included mounting plate supports direct wall installation or integration with a standard 19-inch rack bracket, making this eight-channel B-mount charger suitable for permanent equipment rooms and mobile production systems.

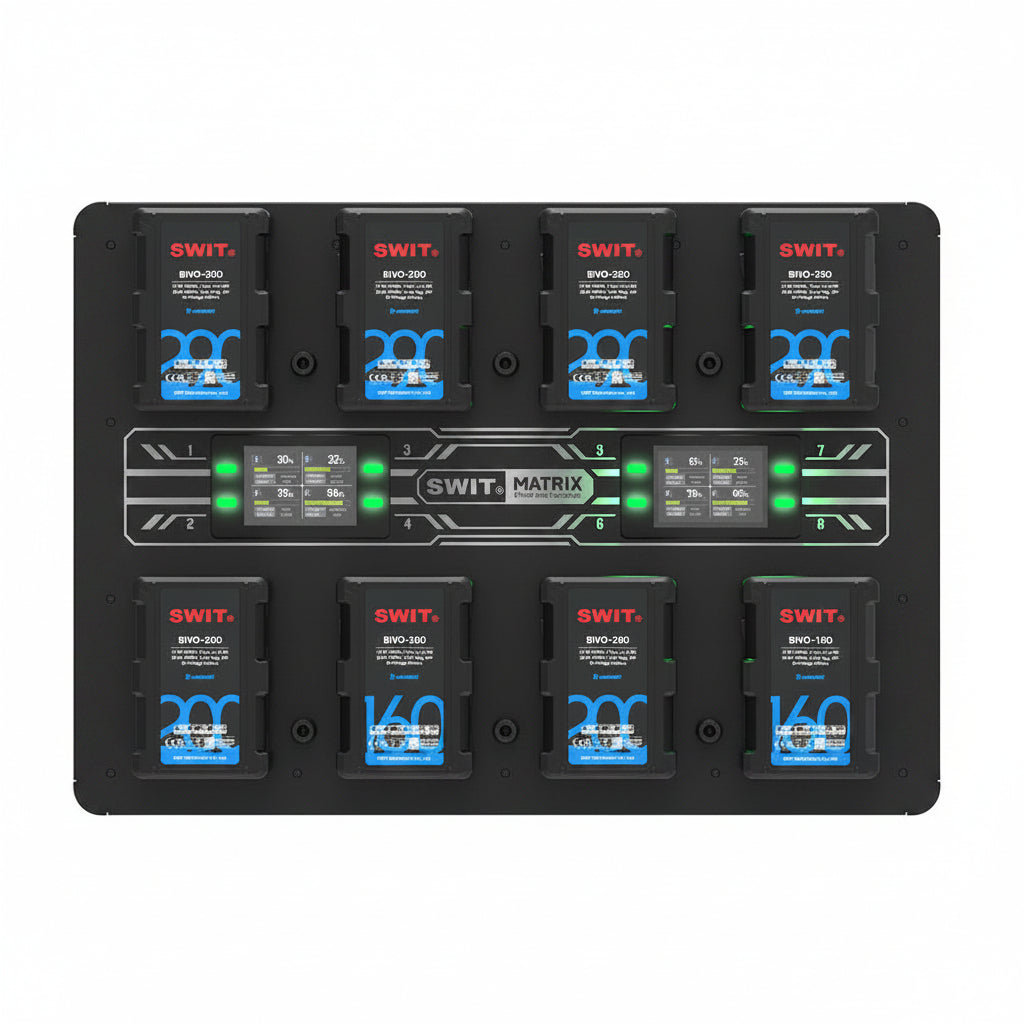

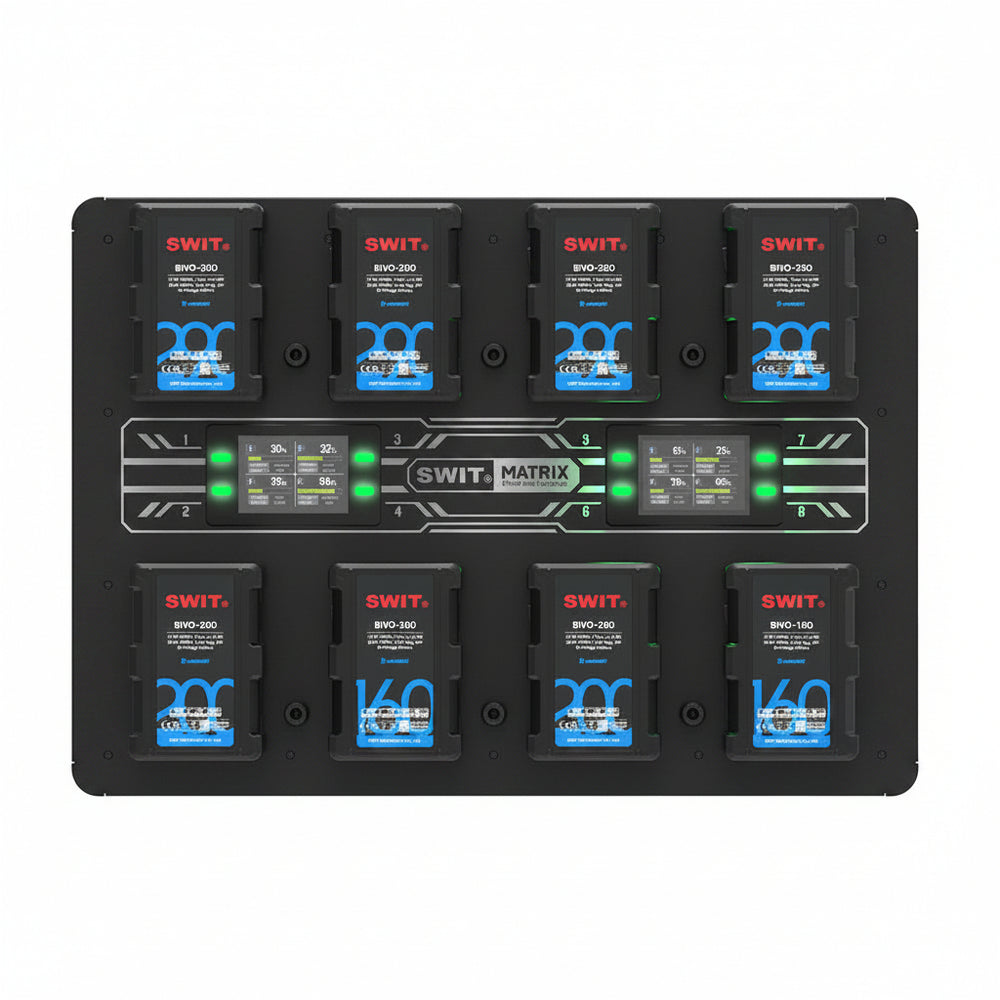

Two 3.5-inch color LCD screens display charging progress, current, voltage, real-time capacity, and battery cycle information for every channel. Large LED indicators remain visible from across the room, while on-screen abnormal charging warnings help operators identify battery issues quickly. The charger supports SWIT HB-A290B and BIVO-series batteries, plus compatible B-mount batteries designed for 33.6V charging.

Key Features

• Eight-Channel Charging: Charges as many as eight B-mount batteries simultaneously for efficient production battery management.
• 100W Per Channel: Delivers 33.6V DC at 3A to batteries rated at 160Wh or higher.
• Automatic Capacity-Based Output: Supplies 44W charging at 33.6V DC and 1.3A for batteries below 160Wh.
• Dual Color Displays: Two 3.5-inch LCD screens present detailed charging information across all eight channels.
• Long-Distance Monitoring: Large LED charging indicators provide quick visual status checks from across an equipment room.
• Flexible Installation: Mounts directly to a wall or attaches to a standard 19-inch rack bracket.
• Professional B-Mount Compatibility: Supports SWIT HB-A290B, BIVO-series, and compatible 33.6V-charge B-mount batteries.
• High-Capacity Power System: Uses an AC 100–240V input and supports up to 900W of total power.

Technical Specifications

• Model: MATRIX-B8
• Charger Type: Eight-channel simultaneous wall charger
• Battery Mount: B-mount
• Compatible Batteries: SWIT HB-A290B, SWIT BIVO series, and compatible B-mount batteries supporting 33.6V charging
• Charging Mode: Simultaneous
• Input: AC 100–240V, 50/60Hz
• Maximum Power: 900W
• Output for Batteries 160Wh and Higher: 33.6V DC, 3A, 100W per channel × 8
• Output for Batteries Below 160Wh: 33.6V DC, 1.3A, 44W per channel × 8
• Displays: Two 3.5-inch color LCD screens
• Displayed Information: Charging progress, current, voltage, real-time capacity, battery cycle count, charging status, and abnormal charging warnings
• Status Indicators: Large LED charging indicators
• Mounting Options: Wall mounting or installation with a standard 19-inch rack bracket
• 98Wh Battery Charging Time: Approximately 2 hours 45 minutes
• 160Wh Battery Charging Time: Approximately 2 hours 15 minutes
• 196Wh Battery Charging Time: Approximately 2 hours 45 minutes
• 290Wh Battery Charging Time: Approximately 3 hours 50 minutes
• Dimensions: 24.8" x 17.2" x 3.5"
• Weight: 23.4 lbs

What's In the Box

• SWIT MATRIX-B8 8-Channel B-Mount Wall Charger
• AC Power Cable

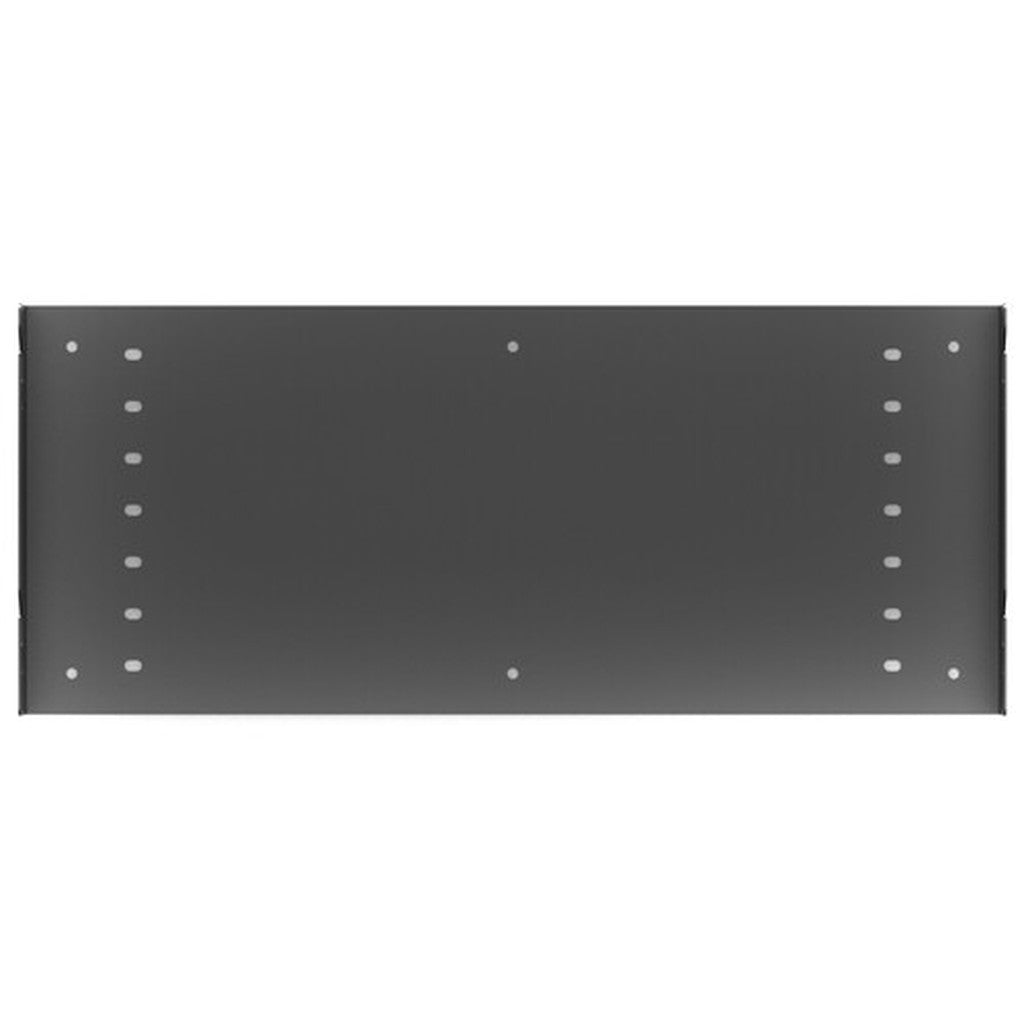

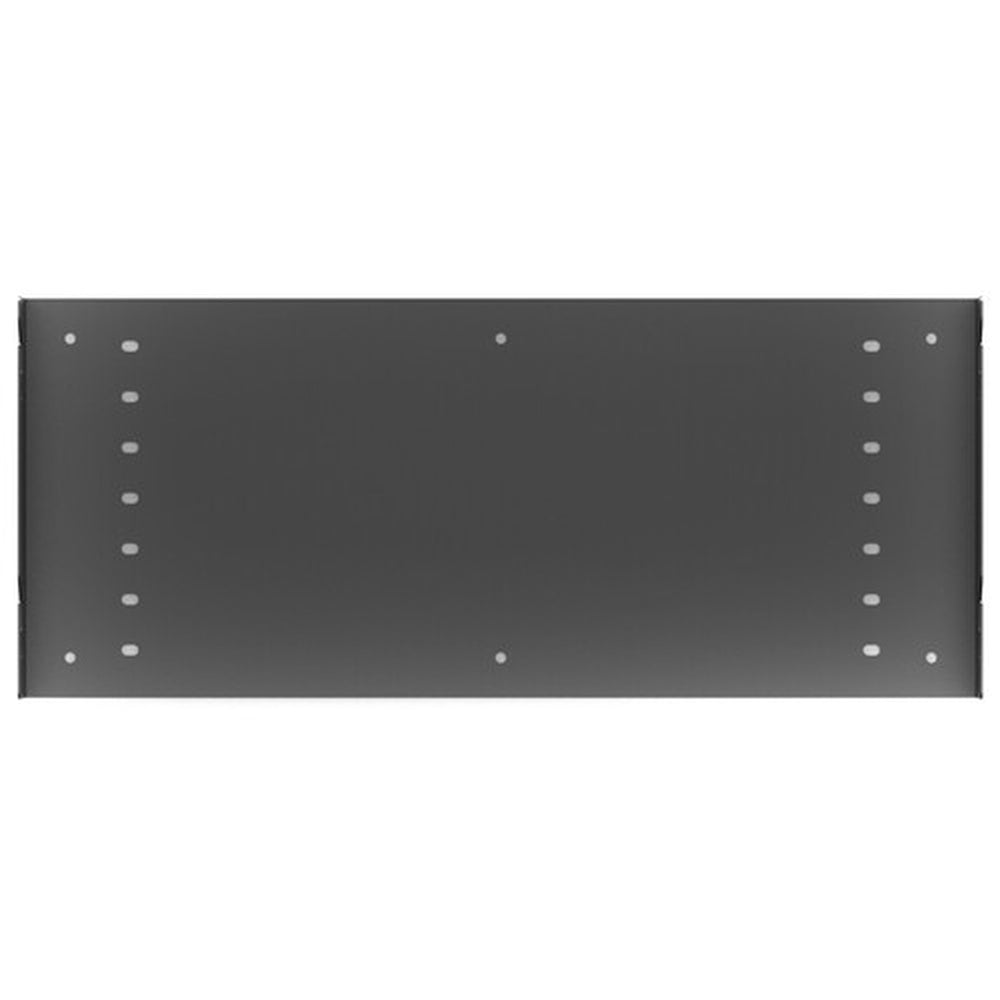

• Wall-Mount Installation Plate
