SWIT OMNI-99S 99Wh USB-C Pocket V-Mount Battery

SWIT OMNI-99S 99Wh USB-C Pocket V-Mount Battery

The SWIT OMNI-99S 99Wh USB-C pocket V-Mount battery provides compact power for cinema cameras, production monitors, LED lights, laptops, and mobile accessories. It supports a constant 150W load, reaches a 200W peak when fully charged, and offers multiple regulated outputs for building streamlined professional video rigs.

Designed for filmmakers, broadcast crews, rental departments, and mobile production teams, this compact V-Mount camera battery delivers 6.9Ah capacity from eight high-grade lithium-ion cells. Buyers seeking a 99Wh travel-friendly V-Mount battery, a 65W USB-C camera battery, or portable power for high-output LED lighting gain flexible connectivity without adding a full-size battery pack.

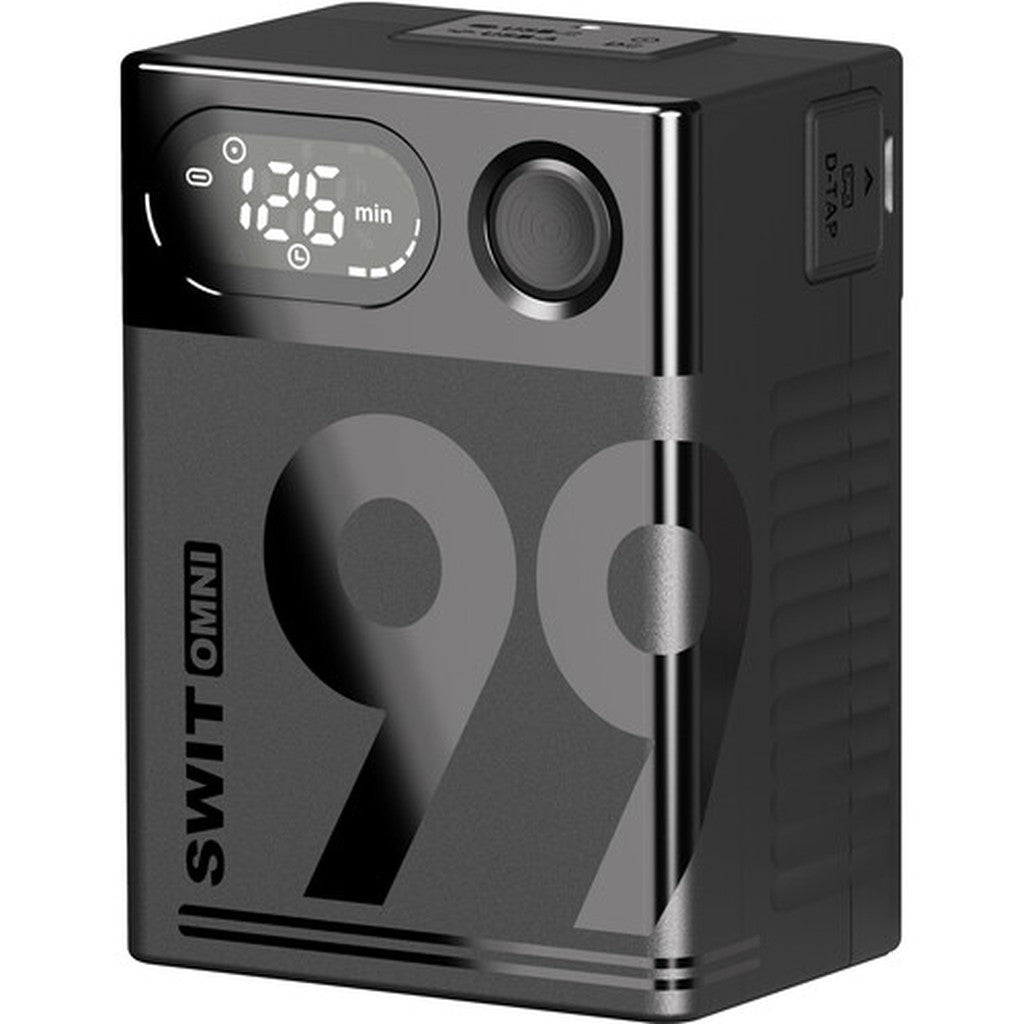

The integrated information display shows remaining capacity, estimated runtime, active output ports, charging progress, and battery health. A touch-sensitive control minimizes physical movement while checking power information during filming. Its battery management system also provides multiple circuit protections, while cold-resistant operation supports demanding exterior productions in temperatures as low as -4°F.

Key Features

• Compact 99Wh Capacity: Delivers 6.9Ah of professional camera power in a pocket-sized V-Mount design.
• High-Load Performance: Supports a constant 150W, 12A output and up to a 200W peak when fully charged.

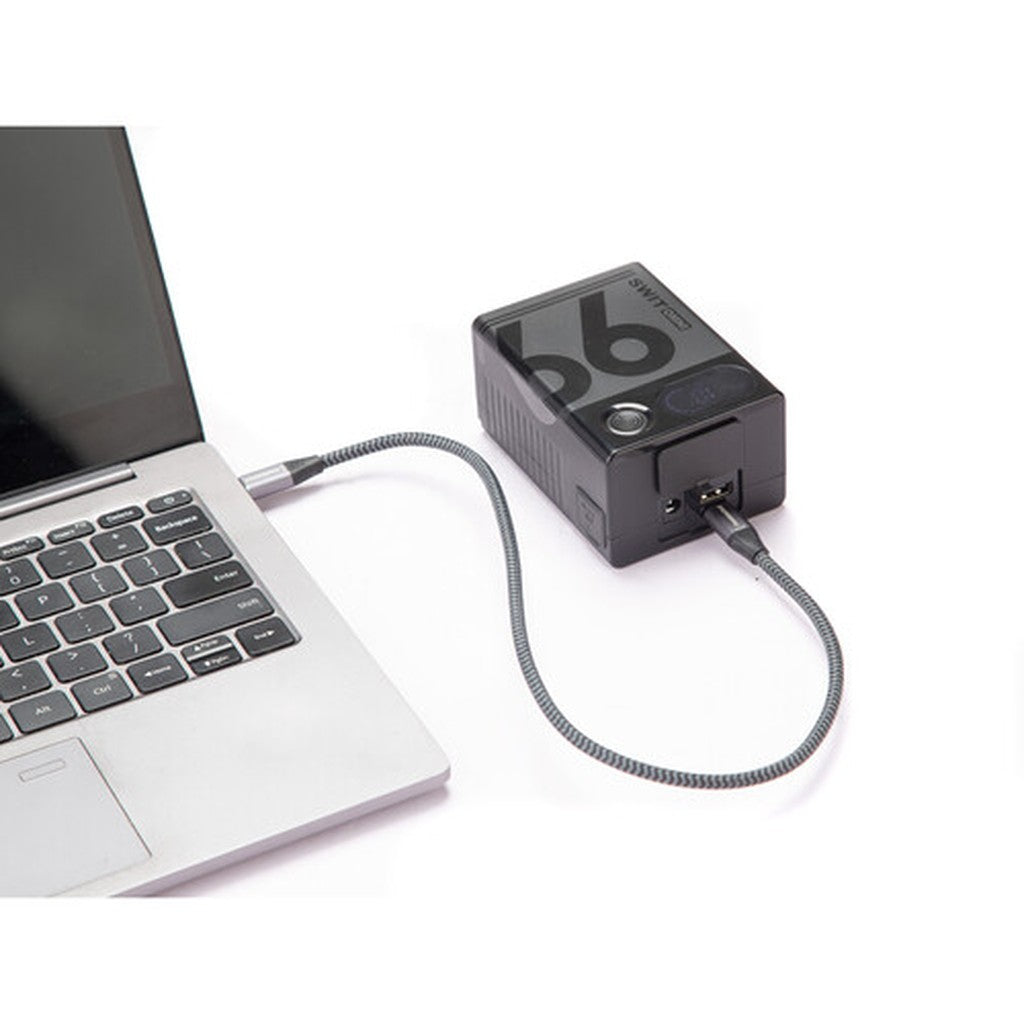

• 65W Bidirectional USB-C: Powers compatible cameras and laptops while accepting up to 48W USB-C charging.

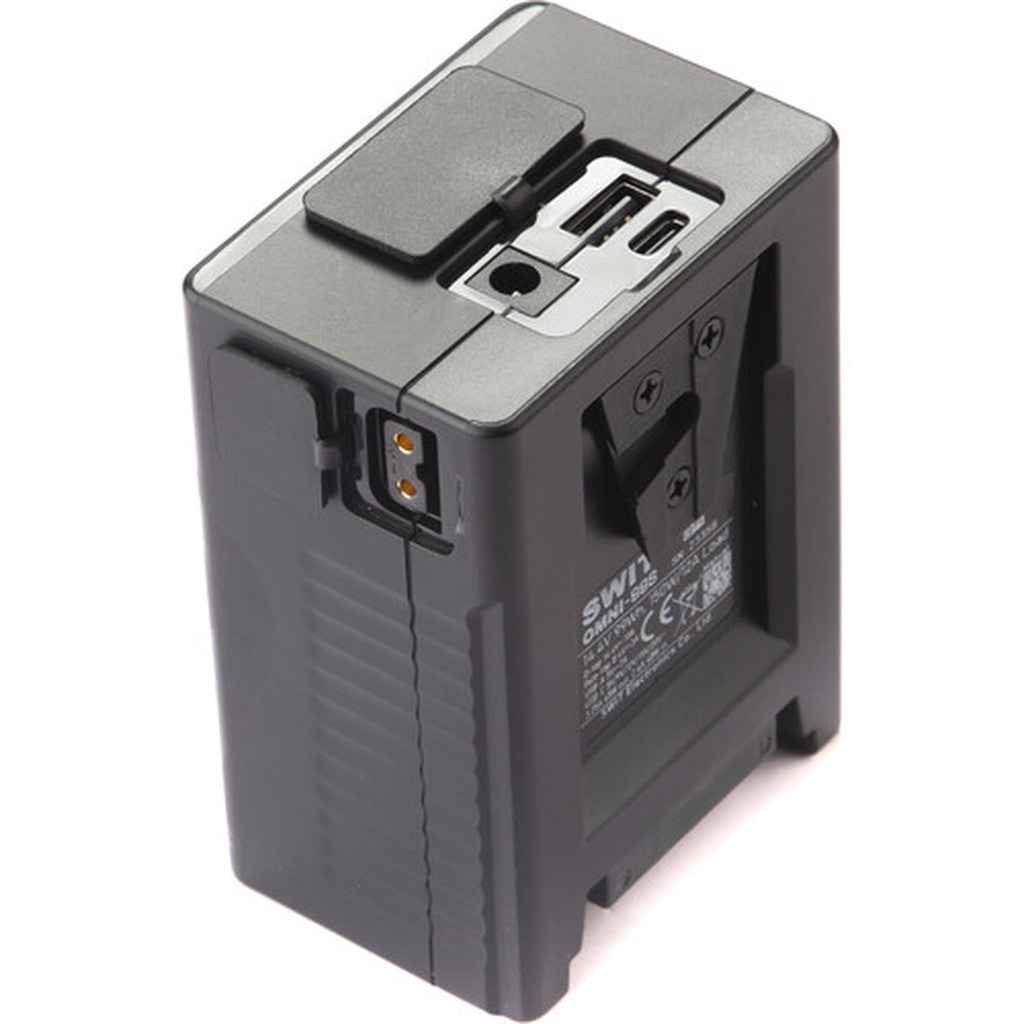

• Versatile Power Connections: Includes V-Mount contacts, D-Tap, USB-C, USB-A, and regulated barrel outputs.
• Power Information Display: Shows remaining percentage, estimated runtime, charging progress, active ports, and battery health.
• Cold-Weather Operation: Supports normal discharge in temperatures down to -4°F for winter and exterior production.
• Multiple Circuit Protections: Helps protect against overtemperature, short circuits, abnormal current, and overvoltage charging.
• Low Standby Consumption: Reduces idle power draw to help preserve charge during extended periods of storage.

Technical Specifications

• Model: OMNI-99S
• Battery Type: Rechargeable lithium-ion camera battery
• Battery Mount: V-Mount
• Nominal Voltage: 14.4V DC
• Capacity: 99Wh, 6.9Ah
• Cell Configuration: Eight Sanyo 3450mAh 18650 lithium-ion cells
• Continuous Load: 150W, 12A
• Peak Load: Up to 200W when fully charged
• V-Mount Contact Output: Up to 150W, 12A
• V-Mount Contact Charging Input: 16.8V DC, 3.4A
• D-Tap Connection: One female input and output port
• D-Tap Output: Up to 150W, 12A
• D-Tap Charging Input: 16.8V DC, 3.4A
• Barrel Output Connector: 5.5 x 2.1mm
• Barrel Output: Regulated 8.4V DC, 3A, up to 25W
• USB-A Output: 5V DC, 2A, 10W
• USB-C Output: 5V, 9V, 12V, 15V, or 20V DC at up to 3.25A
• Maximum USB-C Output: 65W
• USB-C Charging Input: 5V, 9V, 12V, or 15V at 3A; 20V at up to 2.4A
• Maximum USB-C Charging Input: 48W
• USB-C Charging Time: Approximately 2 hours 45 minutes with a compatible charger
• Supported USB Protocols: BC1.2, PD 2.0, PD 3.0, QC 2.0, QC 3.0, FCP, and SCP
• Display Information: Remaining percentage, estimated runtime, charging progress, active output ports, and battery health
• Display Control: Touch-sensitive button
• Standby Power Consumption: Less than 0.5mA, decreasing to approximately 0.01mA after 10 days
• Accessory Mounting Thread: None
• Charging Temperature: 32 to 104°F
• Discharging Temperature: -4 to 122°F
• Low-Temperature Performance: Capacity and maximum load may decrease below 32°F
• Dimensions: 4.02" x 2.91" x 2.05"
• Weight: 1.22 lbs
• Package Weight: 1.56 lbs
• Box Dimensions: 5.9" x 4.1" x 3.2"

What's In the Box

• SWIT OMNI-99S 99Wh Pocket V-Mount Battery
• 19.7" USB-C Cable
