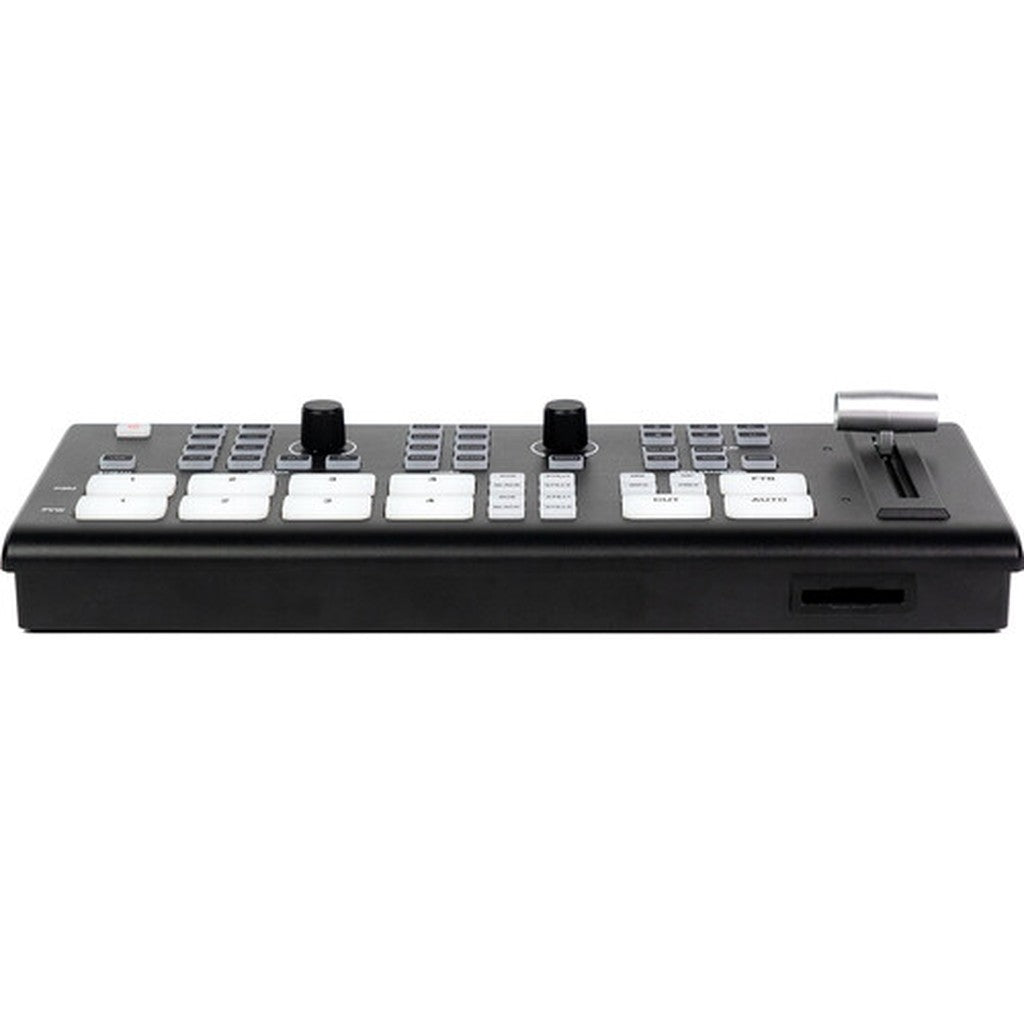

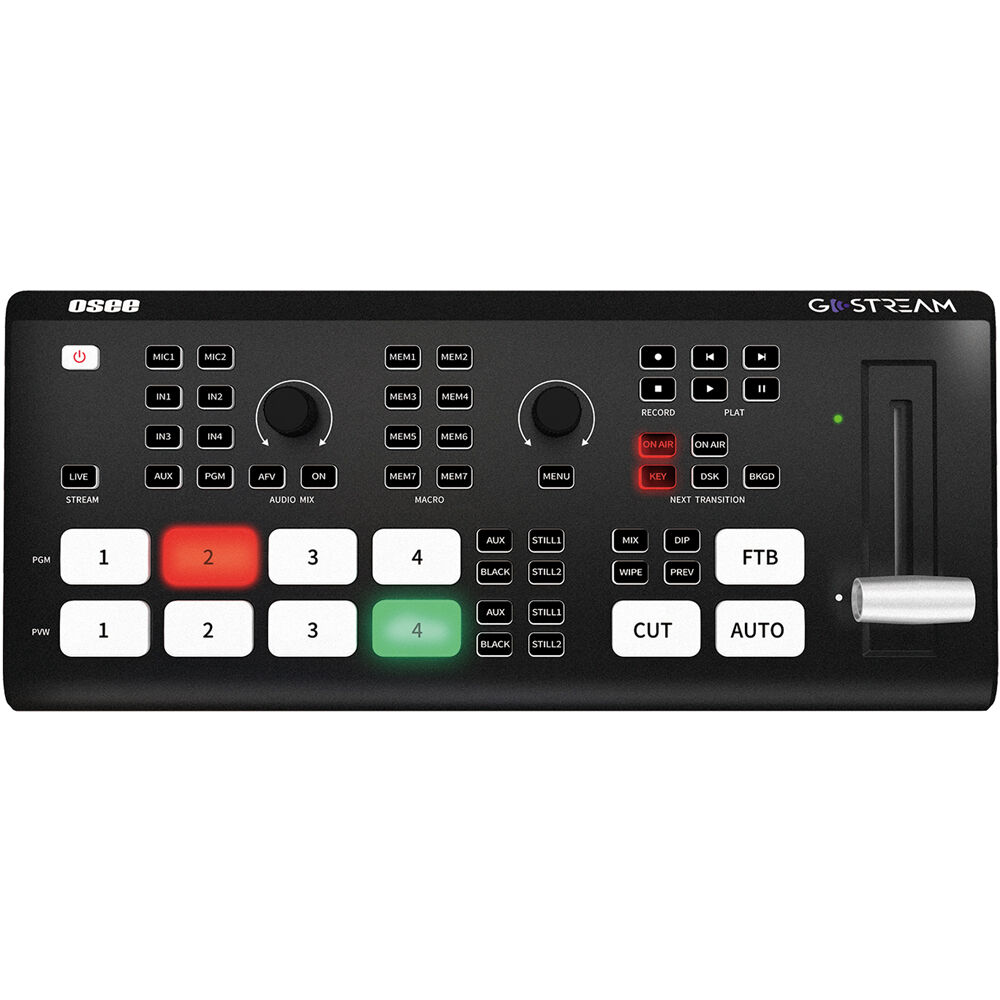

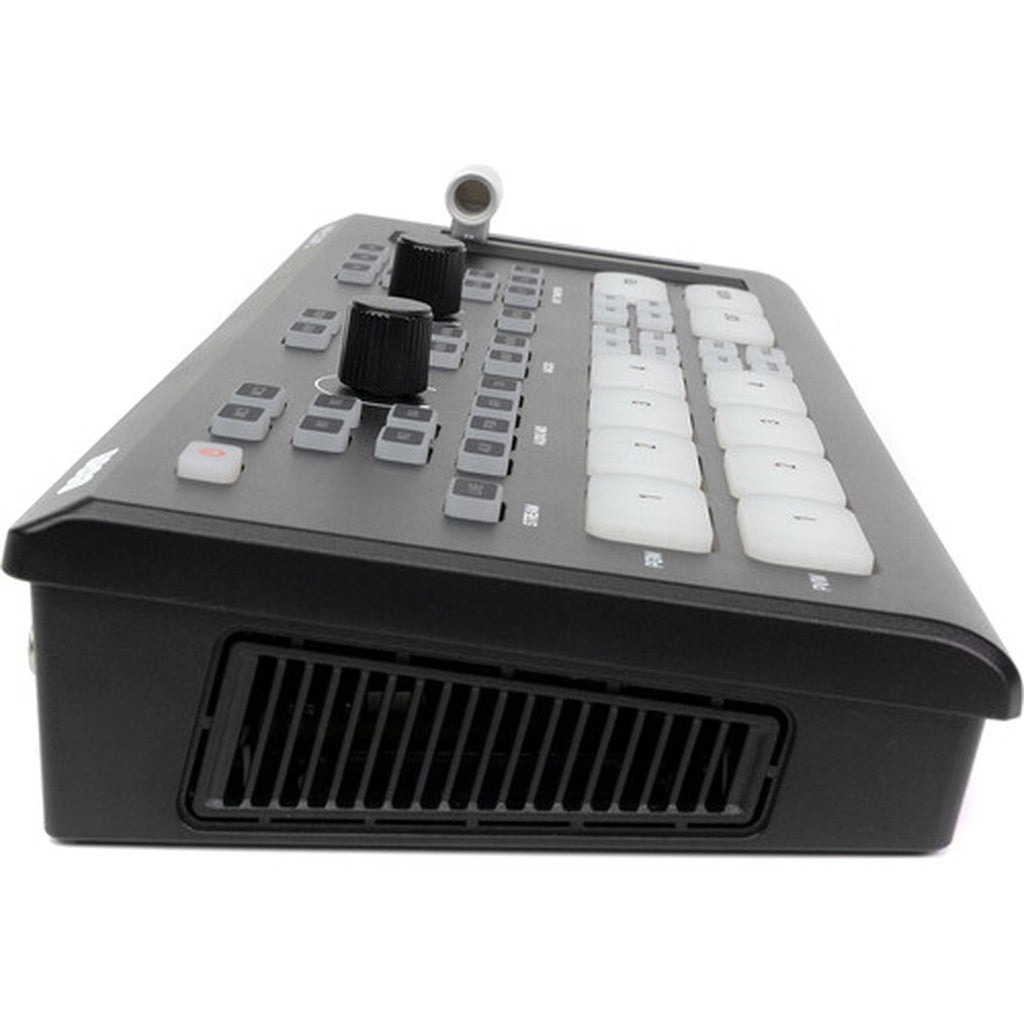

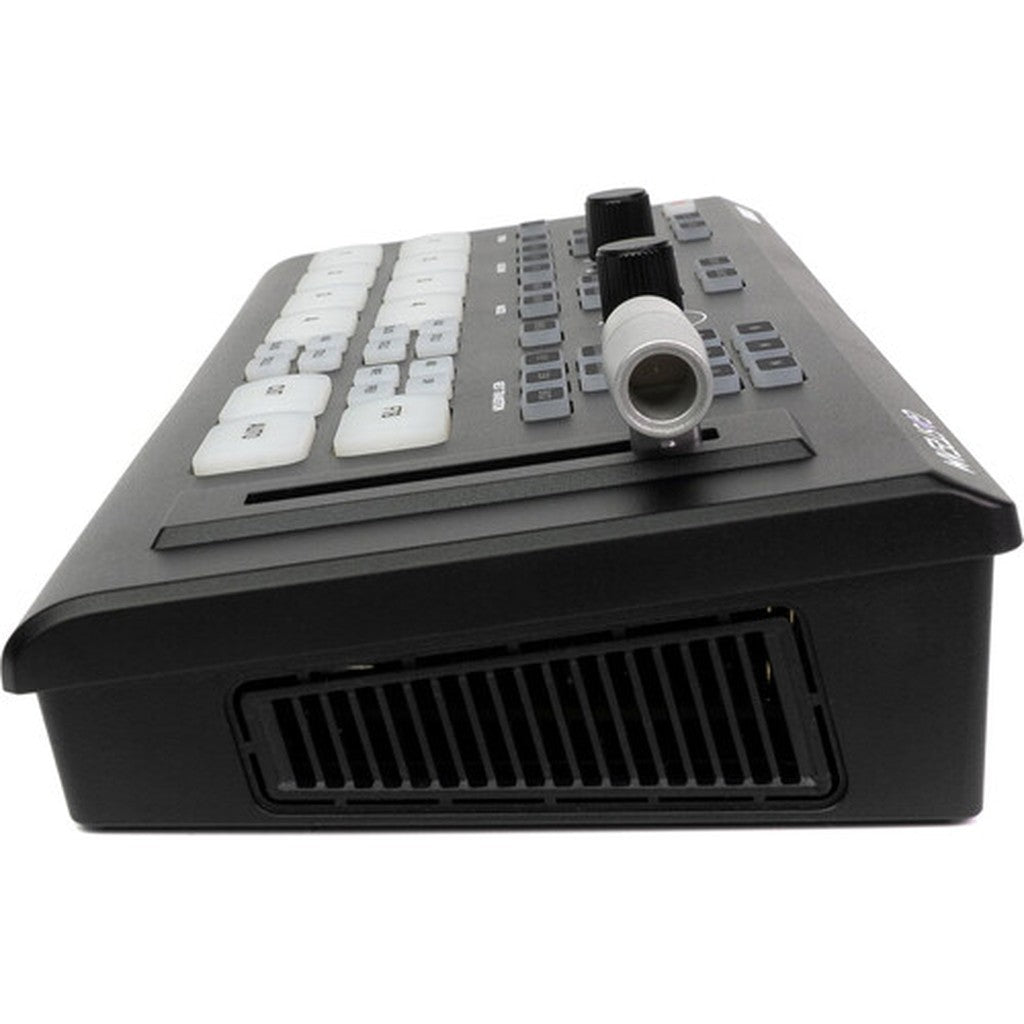

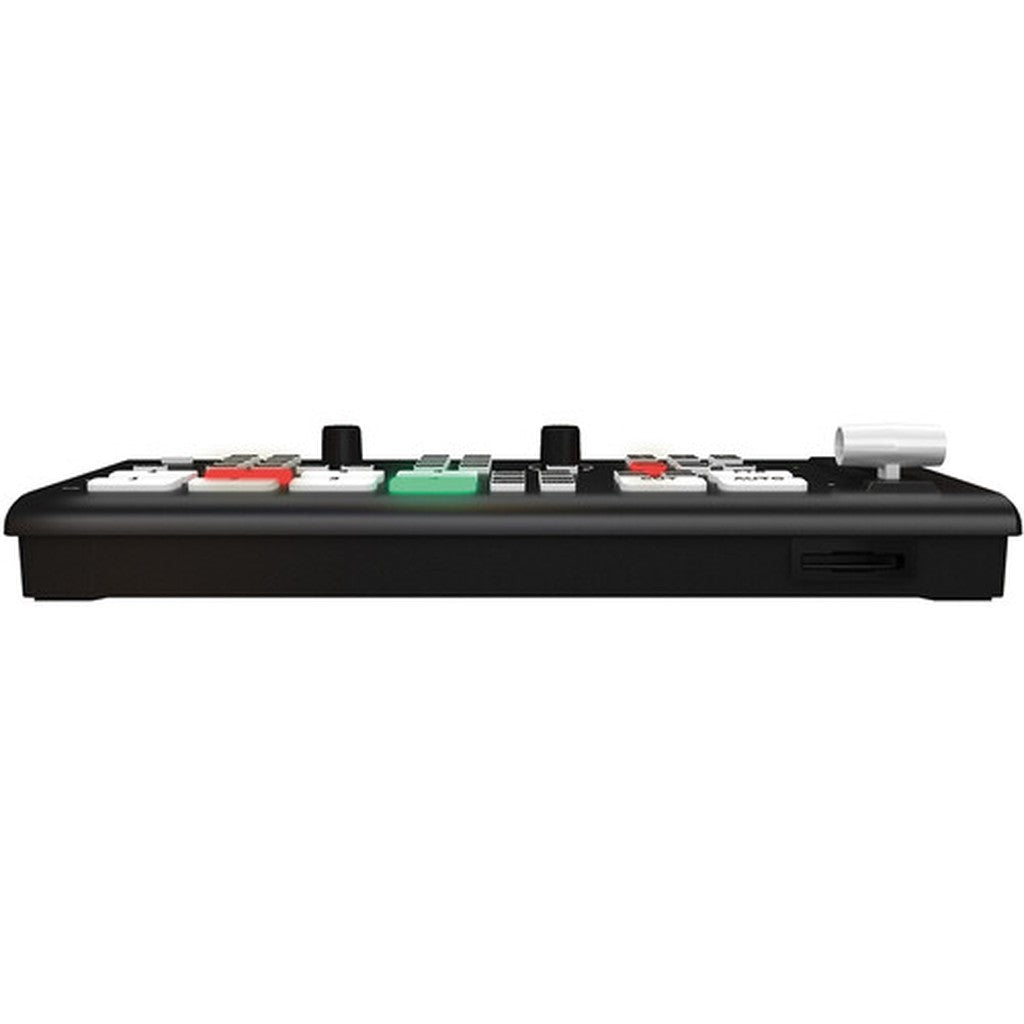

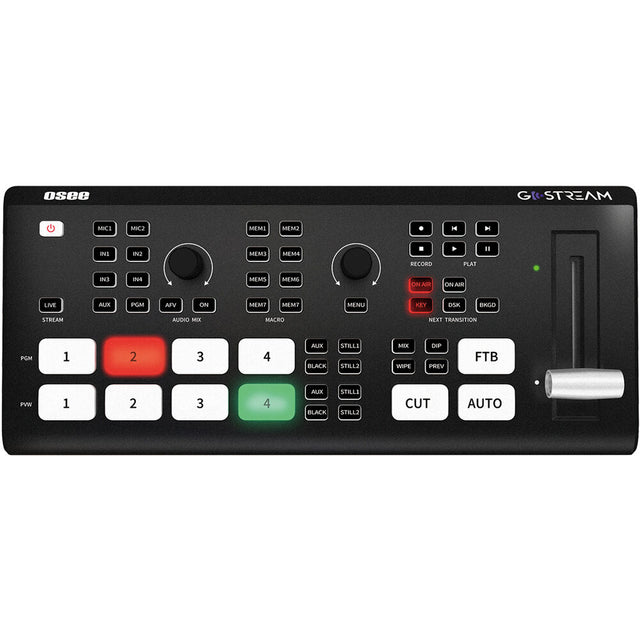

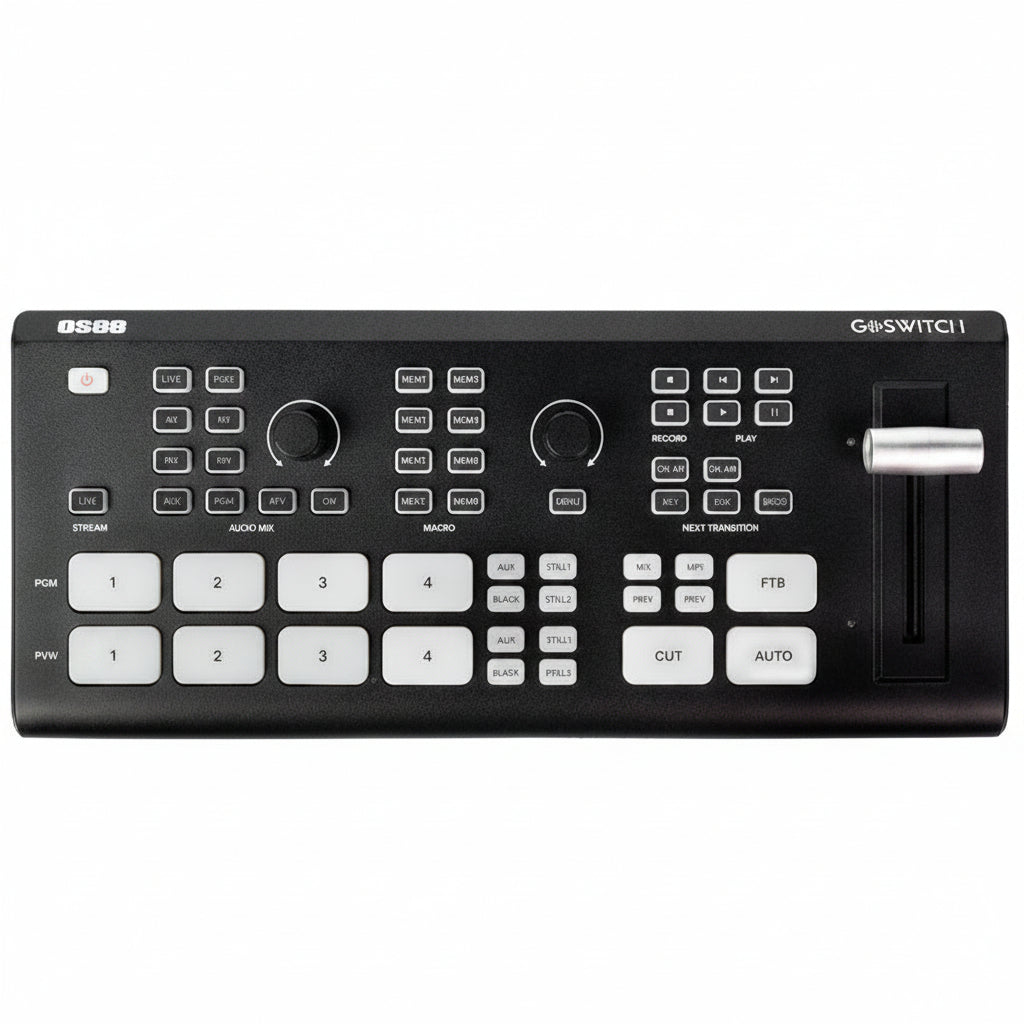

SWIT OSEE GoStream Deck HDMI/USB Live Streaming Video Switcher

SWIT OSEE GoStream Deck HDMI/USB Live Streaming Video Switcher

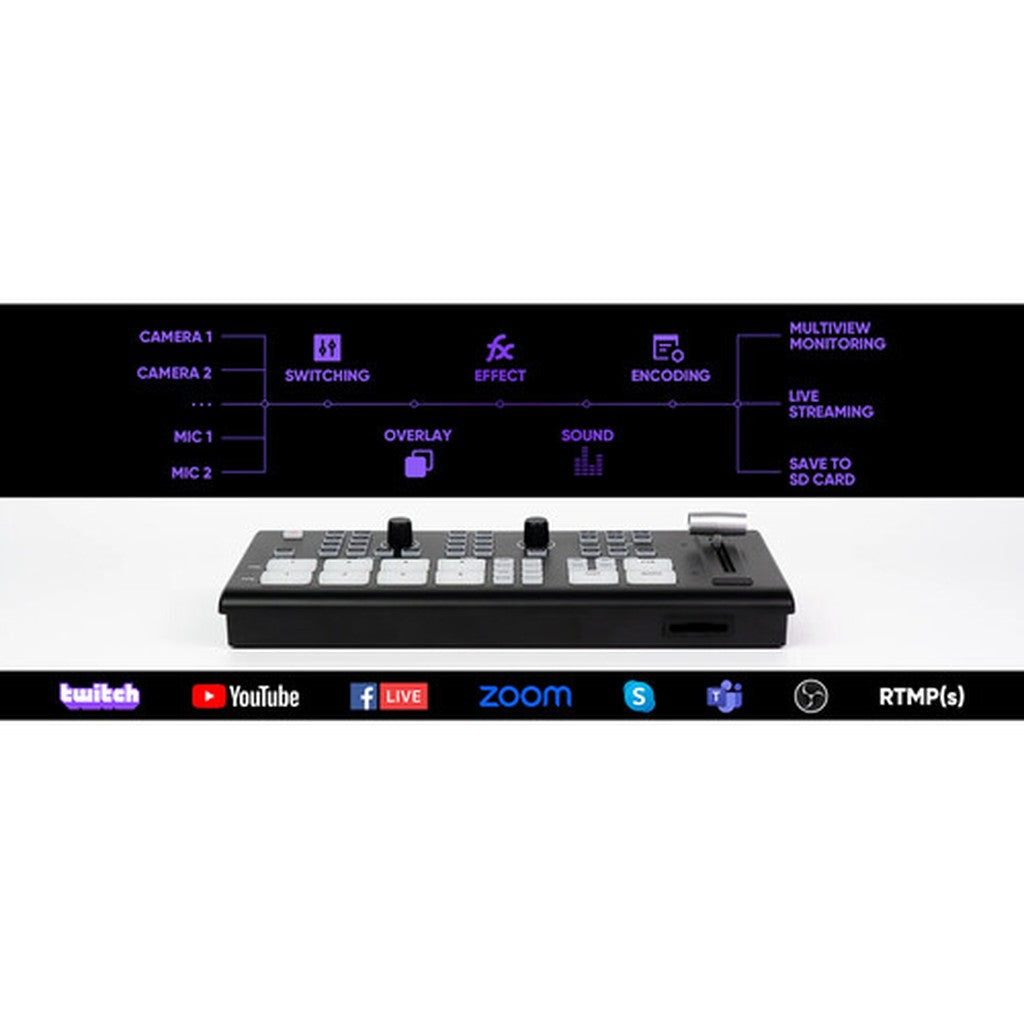

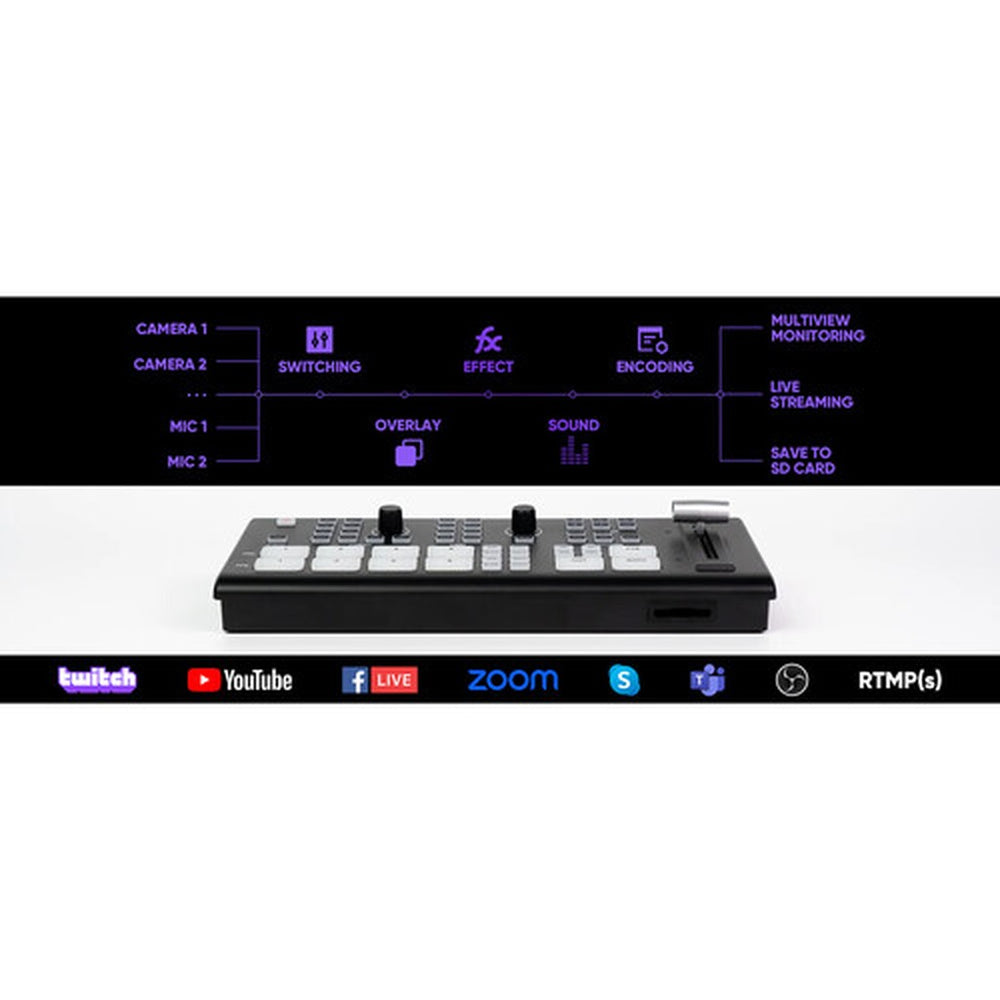

The OSEE GoStream Deck live streaming video switcher combines five video inputs, three outputs, direct SD card recording, and simultaneous streaming to three platforms. It supports video up to 1080p60 and provides hardware controls for portable multicamera productions without requiring a separate computer for core switching and recording.

Four HDMI inputs and one USB-C UVC input accommodate cameras, computers, and compatible USB Video Class sources. Producers can feed program or multiview video to monitors, projectors, streaming software, and conferencing platforms. This portable multicamera video switcher suits live events, houses of worship, education, corporate presentations, interviews, and online broadcasts.

A six-layer composition engine supports chroma keying, luma keying, transitions, downstream keying, still images, and Super Source layouts. The seven-channel audio mixer combines embedded HDMI audio, two microphone inputs, and an auxiliary source with gain, balance, fade, and audio-follow-video controls. Ethernet connectivity enables RTMP streaming, while eight macro memories provide repeatable production presets.

Key Features

• Five Video Inputs: Connects four HDMI sources and one USB-C UVC source for flexible multicamera productions.
• 1080p60 Processing: Accepts and outputs Full HD video at frame rates up to 60 fps.
• Triple-Platform Streaming: Sends RTMP video to as many as three online destinations simultaneously through Ethernet.
• Direct SD Recording: Records the program output in H.264 format without requiring a separate computer or recorder.
• Six-Layer Composition Engine: Builds detailed layouts with keys, transitions, still graphics, patterns, and Super Source windows.
• Seven-Channel Audio Mixer: Controls embedded, microphone, and auxiliary audio with gain, balance, fade, and audio-follow-video functions.
• Four-Way Multiview: Displays multiple production sources and status information through an HDMI monitoring output.
• Eight Macro Memories: Stores frequently used production actions and compositions for fast, repeatable recall.

Technical Specifications

Mix Effects

• Available Mix/Effects Layers: 6
• Effect Types: Transition, chroma key, and luma key
• Downstream Keys: 1 x chroma or luma key
• Generators: 5 x color and 2 x pattern
• Audio Mixing: 7-channel

Processing

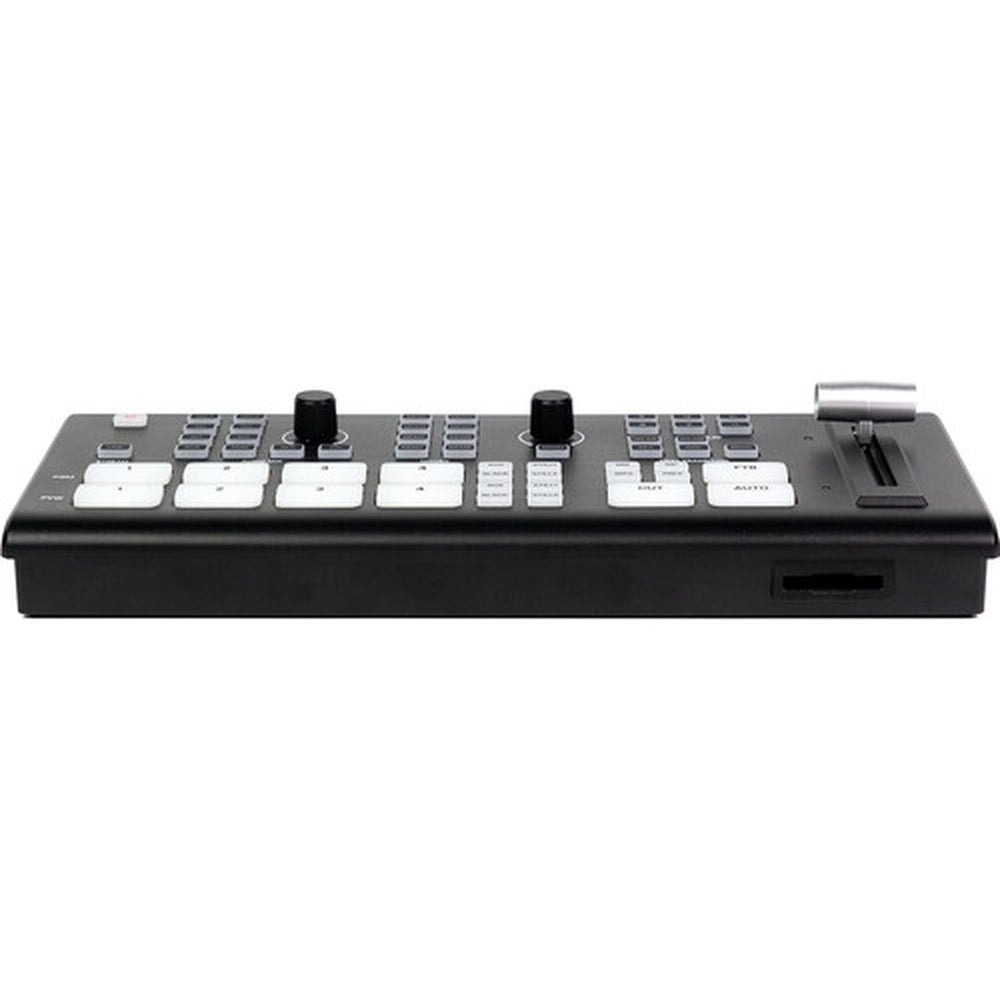

• Switching Control: Pushbutton and software
• YCbCr Color Processing: 12-bit 4:2:2
• RGB Color Processing: 8-bit 4:4:4

Video Inputs

• Number of Video Sources: 5

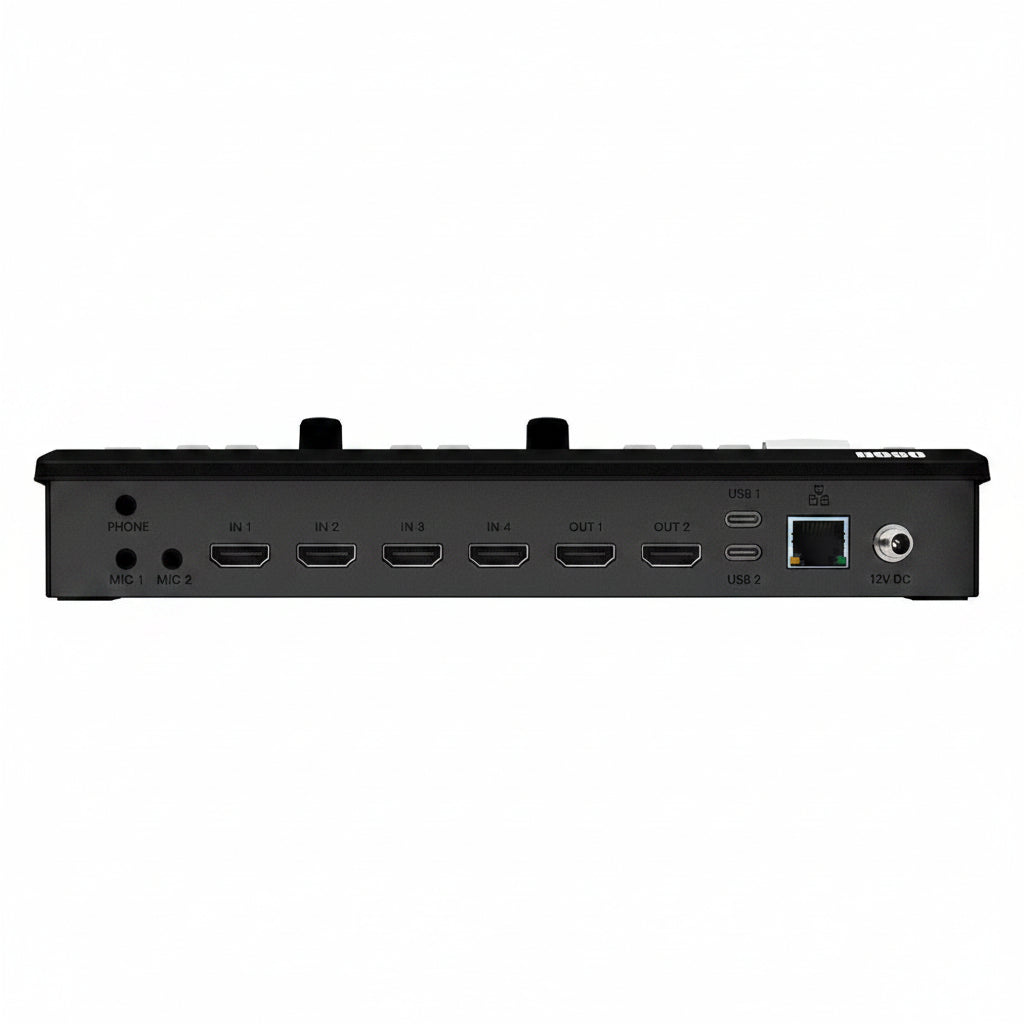

• Video Inputs: 4 x HDMI and 1 x USB-C UVC
• HDMI Color Formats: 8- or 12-bit 4:4:4/4:2:2 RGB and YCC
• 1080p Input Formats: 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 fps
• 1080i Input Formats: 50, 59.94, and 60 fps
• 720p Input Formats: 50, 59.94, and 60 fps
• Audio Inputs: 2 x 3.5mm TRS microphone
• Input Audio Format: Analog
• Embedded Audio Input: HDMI

Video Outputs

• Video Output Channels: 3
• Video Outputs: 2 x HDMI and 1 x USB-C
• HDMI Color Formats: 8- or 12-bit 4:4:4/4:2:2 RGB and YCC
• 1080p Output Formats: 24, 25, 30, 50, and 60 fps
• Audio Output: 1 x 3.5mm TRS stereo
• Embedded Audio Output: HDMI
• Multiview Output: Four-way multiview through HDMI

Network Streaming

• Network Connection: 1 x RJ45 LAN input/output
• IP Video Encoding: 1920 x 1080 at 24p, 25p, 30p, 50p, and 60p
• Transport Protocol: RTMP
• Simultaneous Streams: 3

Internal Recording

• Recording Media: SD card
• Recording Resolution: 1920 x 1080p
• Recording Frame Rates: 24, 25, 30, 50, and 60 fps
• Recording Codec: H.264/AVC
• Recording Bit Rate: 70 Mb/s

Power and Environmental

• Power Input: 12 VDC
• Power Consumption: 12 W
• Wireless Connectivity: No
• Operating Temperature: 32 to 158°F
• Operating Humidity: 10 to 90%

Physical Specifications

• Dimensions: 9.9 x 4.2 x 1.9"
• Weight: 1.1 lb
• Package Dimensions: 12.6 x 6 x 3.9"
• Package Weight: 2.5 lb

What's In the Box

• OSEE GoStream Deck HDMI/USB Live Streaming Video Switcher
• Power Adapter
