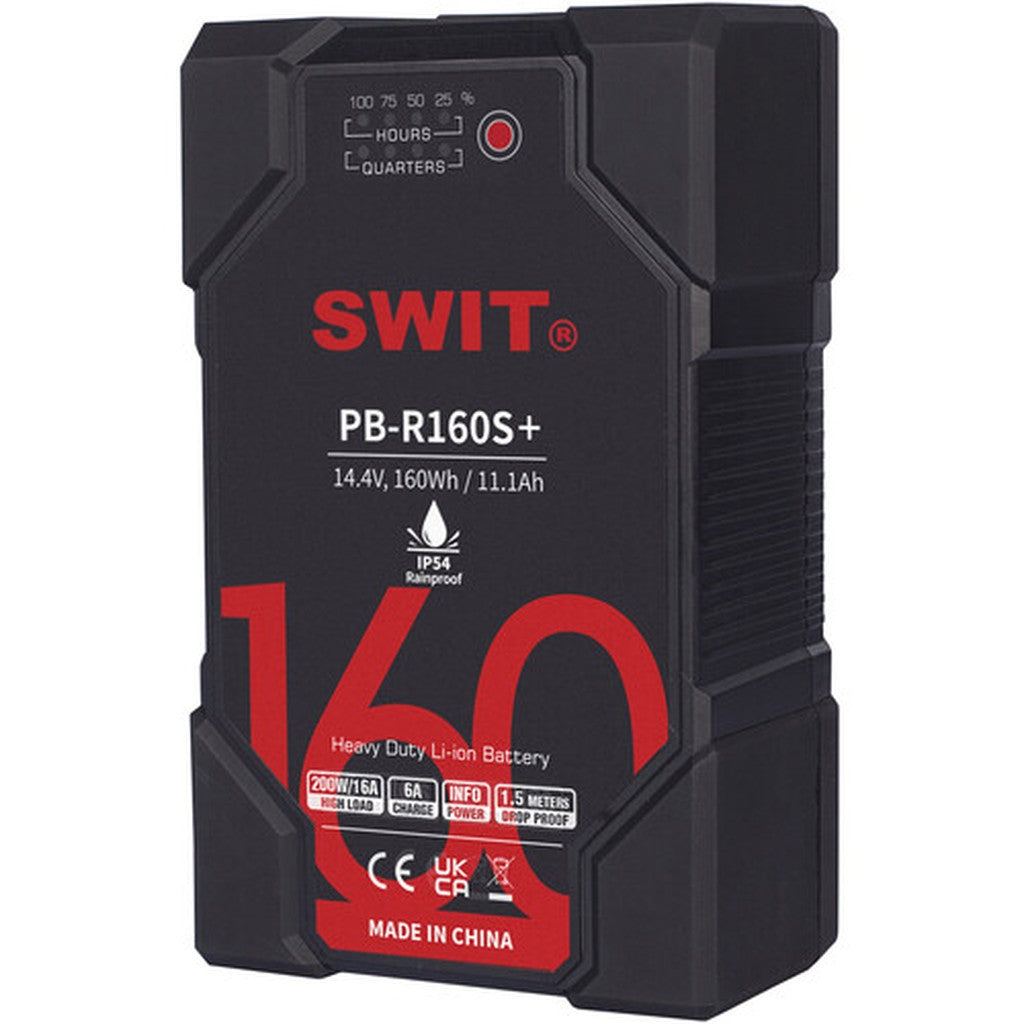

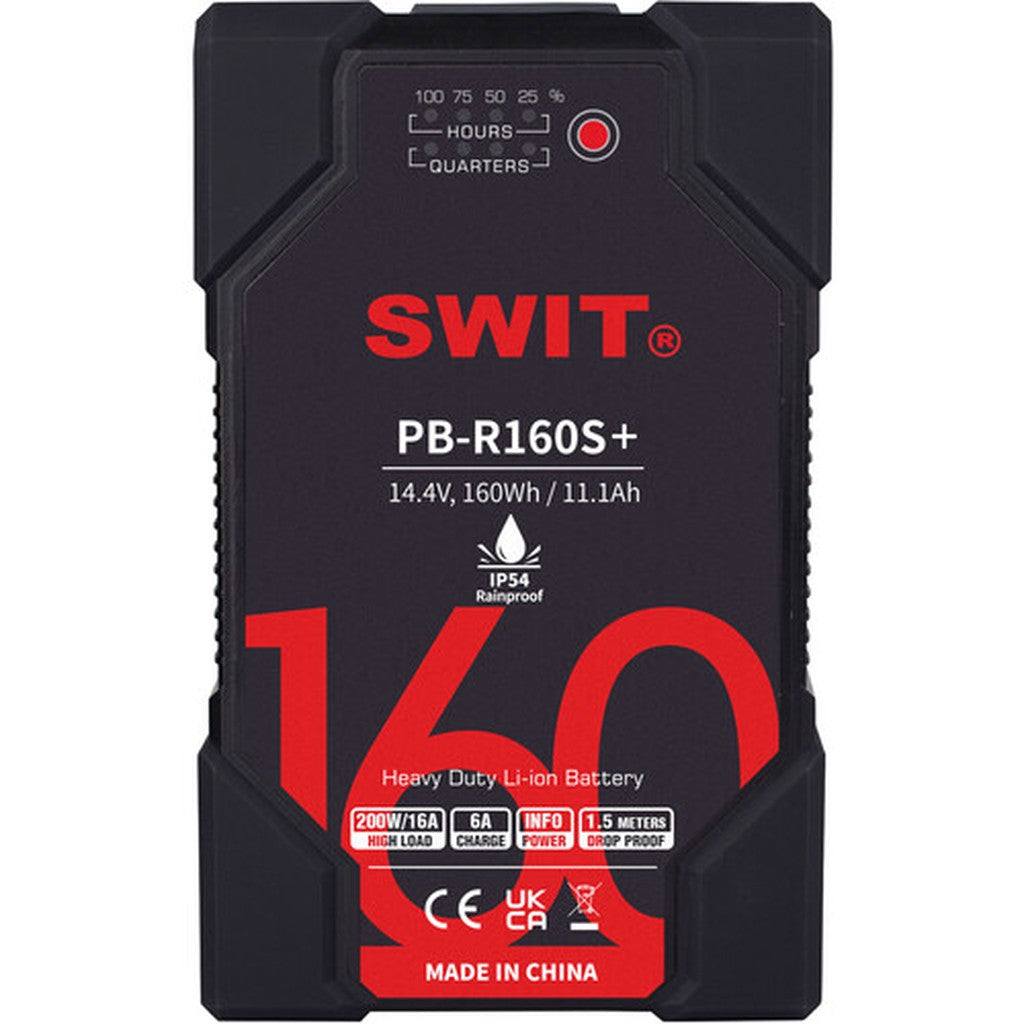

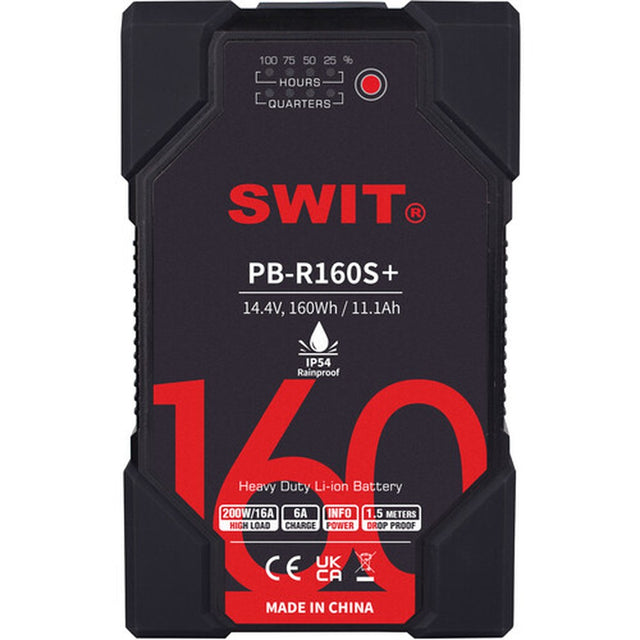

SWIT PB-R160SPLUS 160Wh 200W IP54 Heavy-Duty V-Mount Battery

SWIT PB-R160S+ 160Wh 200W IP54 Heavy-Duty V-Mount Battery

The SWIT PB-R160S+ 160Wh heavy-duty V-Mount battery delivers continuous 200W, 16A power for ENG cameras, cinema cameras, lights, and attached production accessories. Its sealed IP54-rated dual housing resists dust and water exposure, while reinforced construction withstands drops from heights up to 4.9 feet.

Designed for broadcast crews, cinematographers, rental departments, and demanding field productions, this high-load V-Mount battery maintains its rated output even at 1% remaining capacity. Buyers seeking a weather-resistant camera battery, a 160Wh V-Mount power pack, or extended power for cinema equipment receive approximately six hours of typical ENG camera runtime.

An eight-stage LED gauge displays remaining capacity while idle or charging and estimates runtime during discharge in 15-minute increments. SMBus communication sends remaining-time information to compatible Sony and RED camera viewfinders. A top-mounted D-Tap output powers additional accessories, while 6A fast-charging support restores full capacity in approximately 2.5 hours with a compatible charger.

Key Features

• 160Wh High Capacity: Provides 11.1Ah of extended power for professional cinema and broadcast equipment.
• 200W Continuous Output: Delivers at least 16A even at 1% remaining capacity, with peak output reaching 245W.
• IP54-Rated Housing: Resists dust and water exposure during rain, snow, and challenging outdoor productions.
• Heavy-Duty Construction: Uses a sealed dual housing and protective rubber cover for reliable field operation.
• 4.9-Foot Drop Resistance: Withstands impacts from multiple angles for production and rental environments.
• 6A Fast-Charging Support: Reaches approximately 80% in 1.5 hours and full capacity in about 2.5 hours.
• Eight-Stage LED Gauge: Displays remaining capacity and estimates operating time in 15-minute increments.
• Camera Data Communication: Sends remaining runtime information to compatible Sony and RED camera viewfinders.

Technical Specifications

• Model: PB-R160S+
• Battery Type: Rechargeable lithium-ion camera battery
• Battery Mount: V-Mount
• Nominal Voltage: 14.4V DC
• Capacity: 160Wh, 11.1Ah
• Cell Configuration: Eighteen 18650 lithium-ion cells
• Continuous Load: 200W, 16A
• Peak Load: Up to 245W
• D-Tap Connection: One female DC output
• Maximum D-Tap Output: 120W, 10A
• Maximum Charging Current: 6A
• Compatible Fast Chargers: SWIT PC-P461S and S-3812S
• Approximate Charging Time to 80%: 1 hour 30 minutes with a compatible 6A charger
• Approximate Full Charging Time: 2 hours 30 minutes with a compatible 6A charger
• Approximate ENG Camera Runtime: 6 hours
• Approximate ARRI ALEXA Runtime: 2 hours
• Weather Protection: IP54 dust and water resistance
• Drop Resistance: Up to 4.9 feet
• Battery Indicator: Eight-stage LED capacity and runtime gauge
• Runtime Indicator Resolution: 15-minute increments
• Camera Information Support: SMBus communication with compatible Sony and RED camera systems
• Accessory Mounting Thread: None
• Charging Temperature: 32 to 104°F
• Discharging Temperature: -4 to 122°F
• Low-Temperature Performance: Capacity and maximum load may decrease below 32°F
• Dimensions: 6.4" x 4" x 2.1"
• Weight: 2.38 lbs
• Package Weight: 2.6 lbs
• Box Dimensions: 7.3" x 4.7" x 2.3"

What's In the Box

• SWIT PB-R160S+ 160Wh Heavy-Duty IP54 V-Mount Battery
