SWIT PB-R290A and PB-R160A Heavy-Duty Gold Mount Batteries - 290Wh

SWIT PB-R290A and PB-R160A Heavy-Duty Gold Mount Batteries

SWIT PB-R heavy-duty Gold Mount batteries provide high-output 14.4V power for professional cinema cameras, ENG cameras, lights, and field production accessories. Available in 160Wh and 290Wh capacities, the series combines continuous high-load performance with 6A fast-charging support and a rugged dual-housing design.

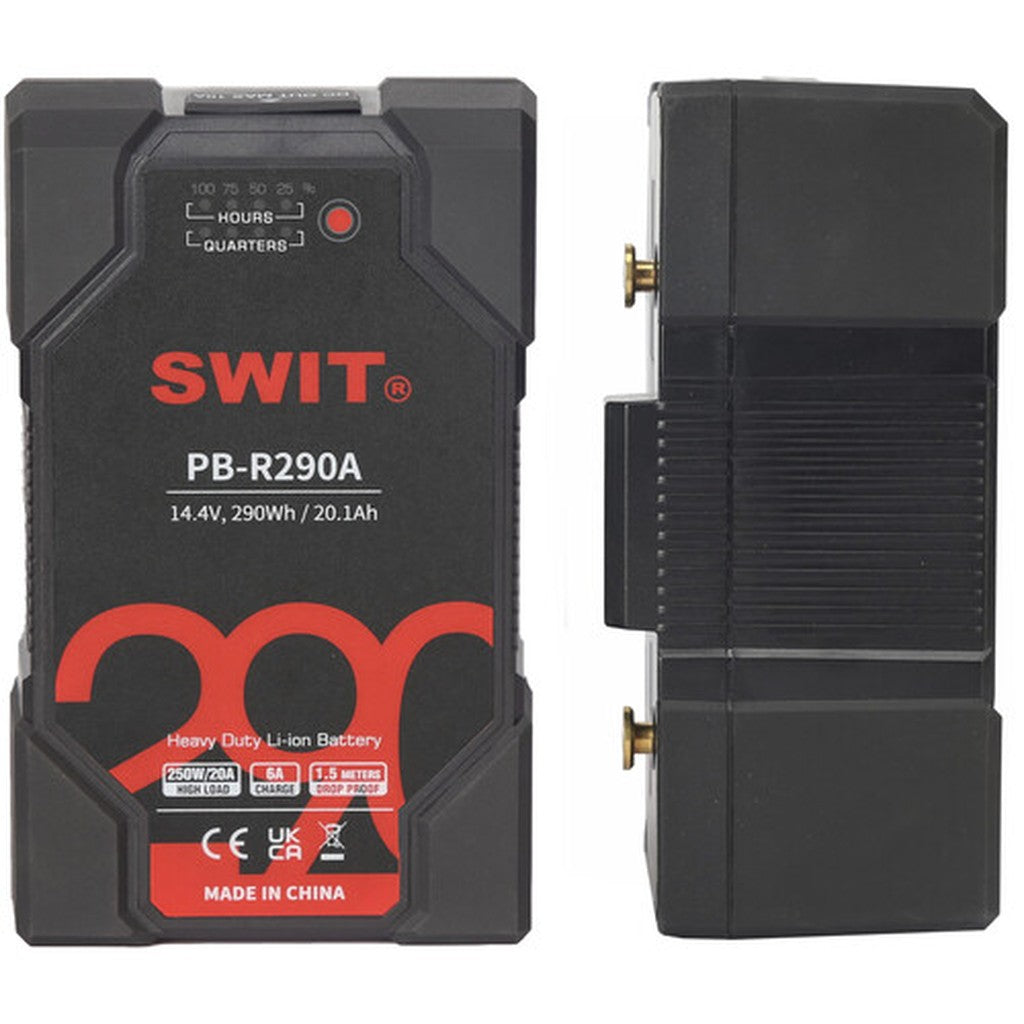

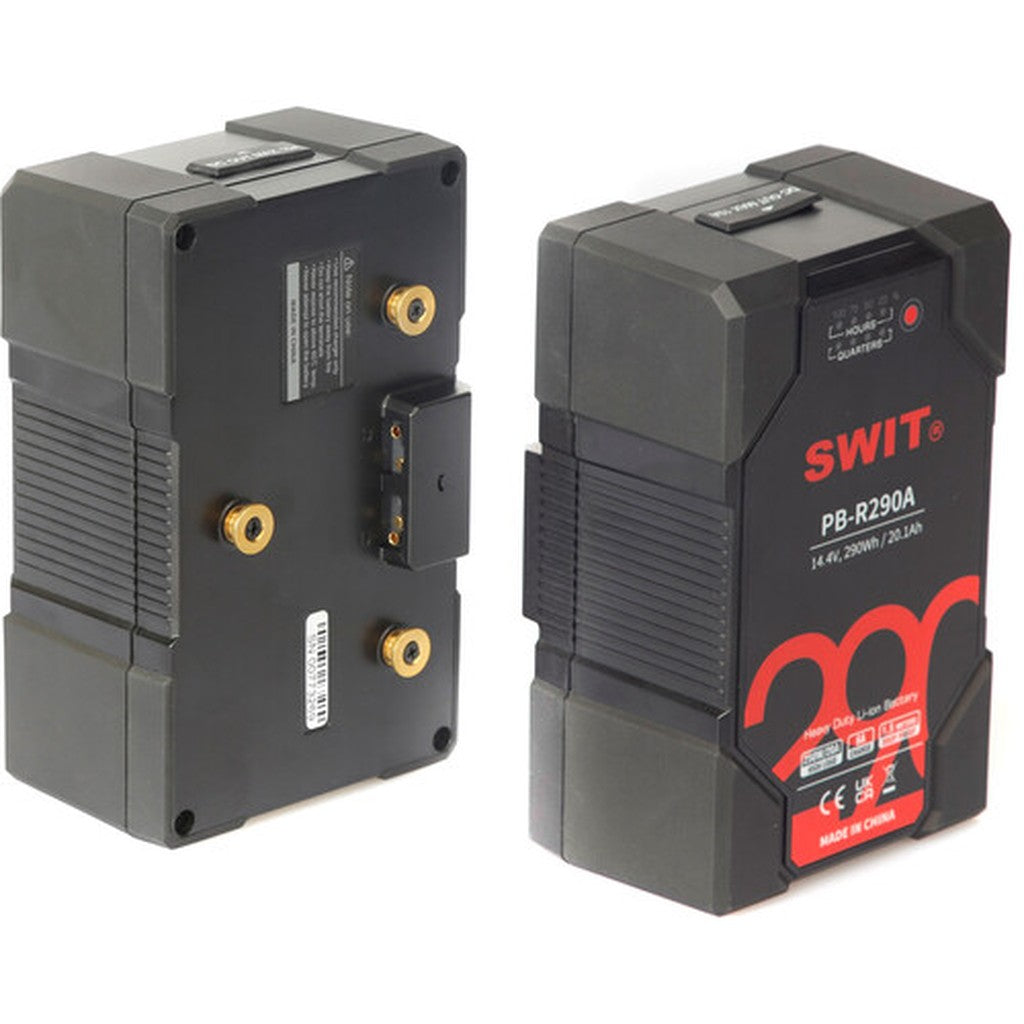

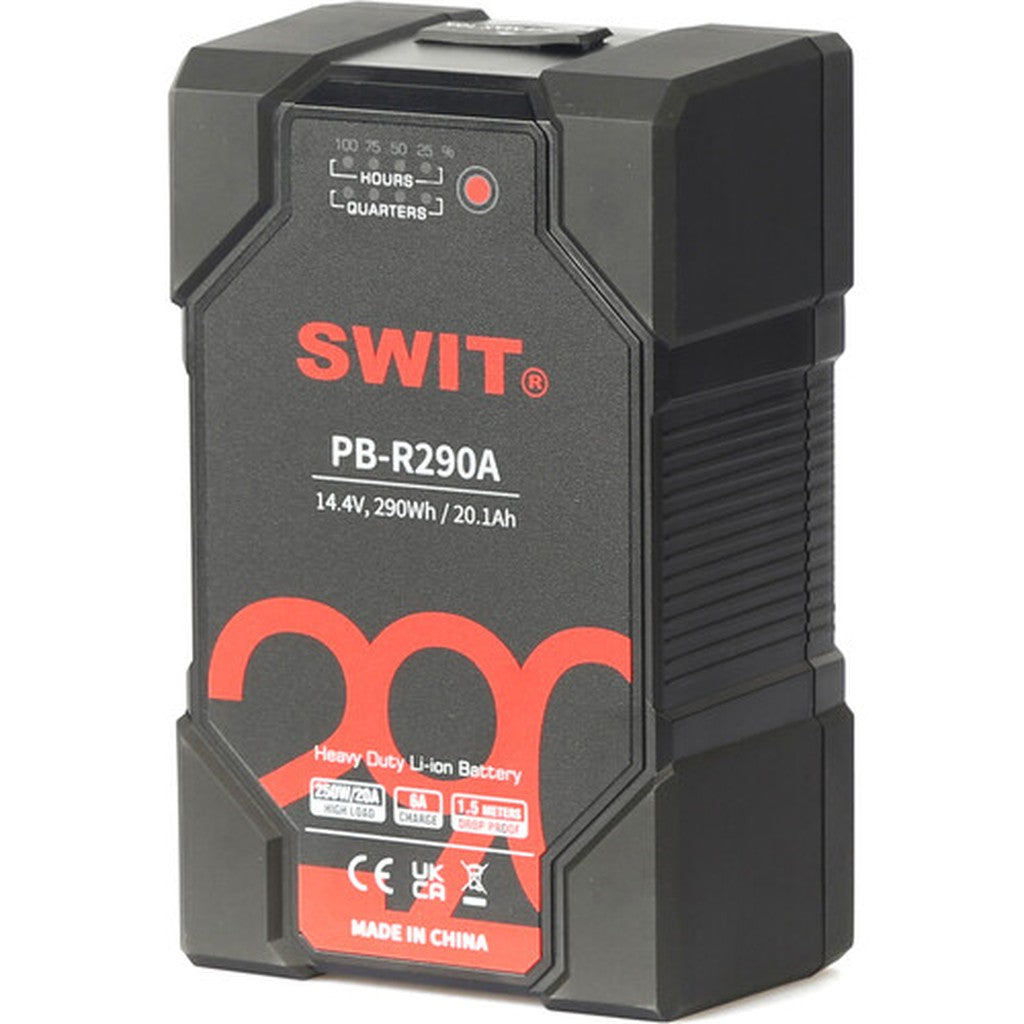

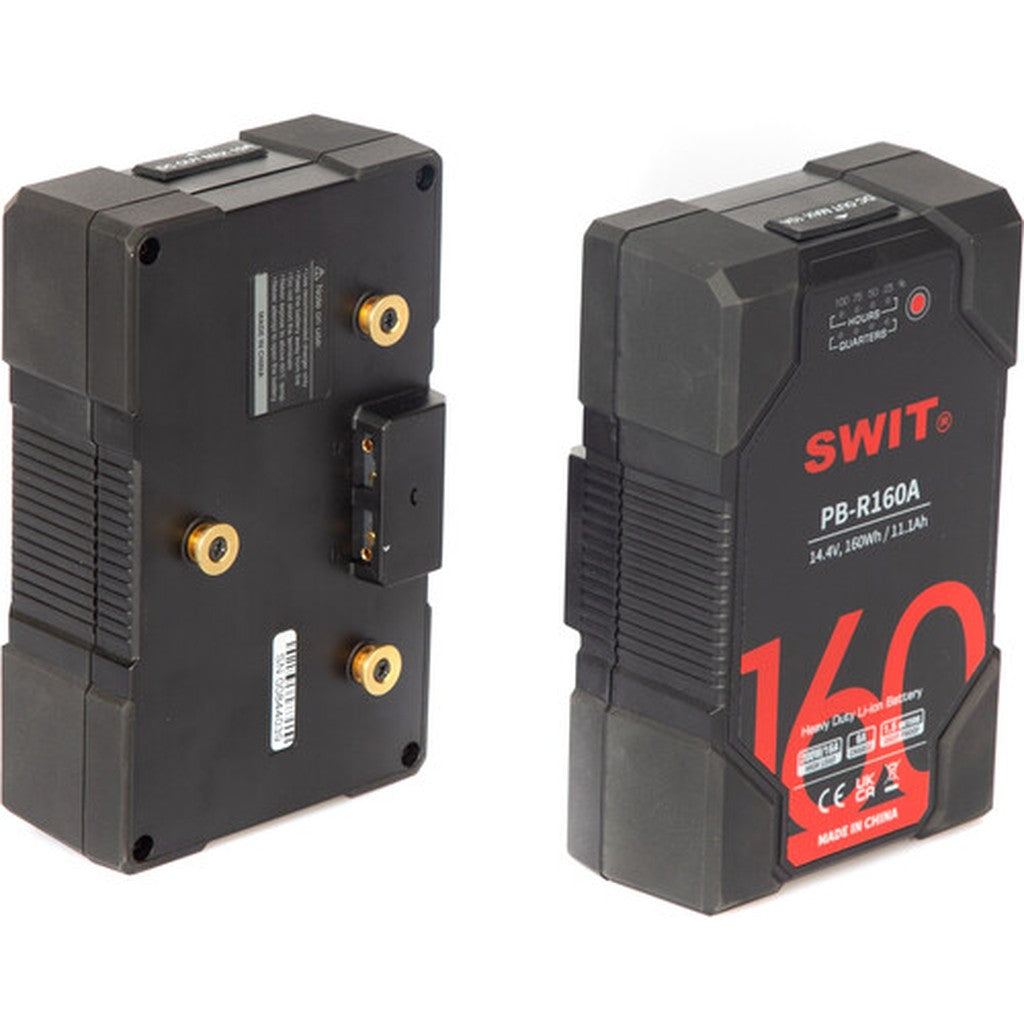

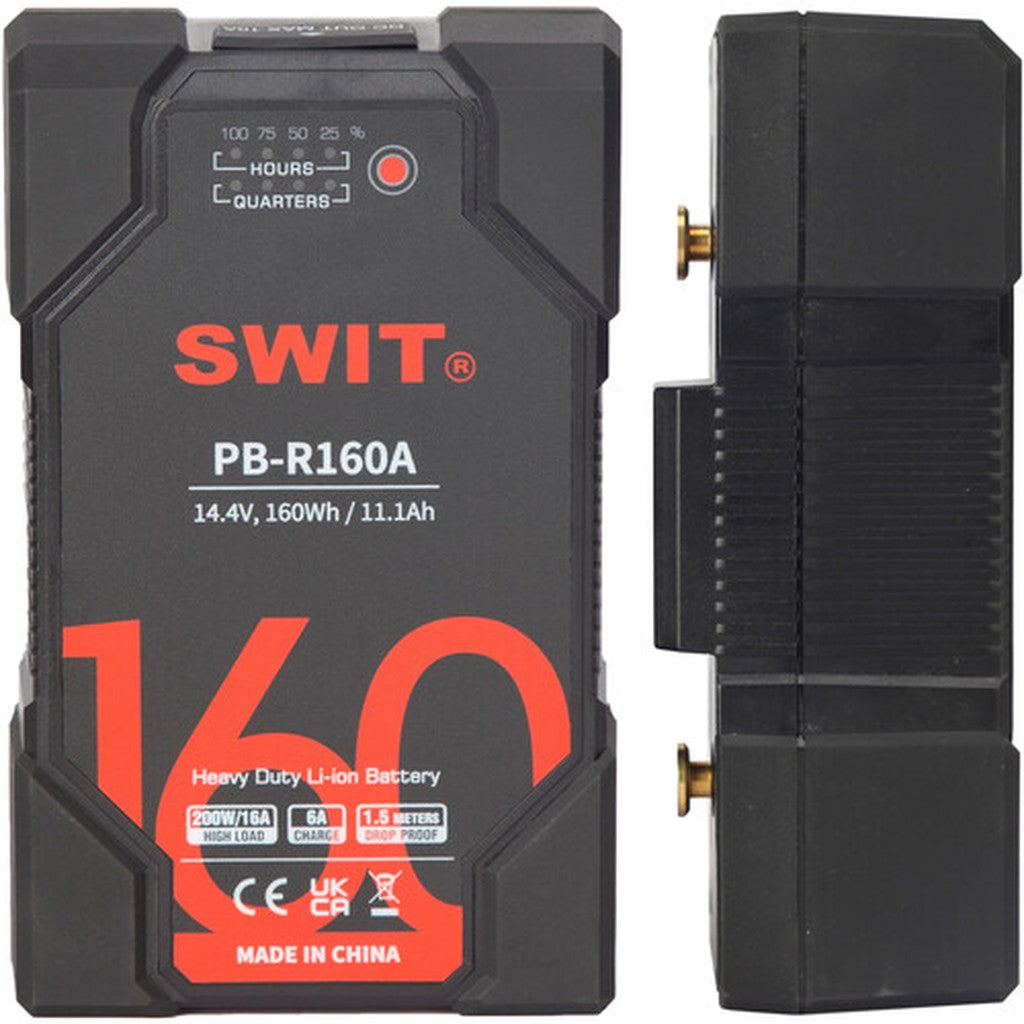

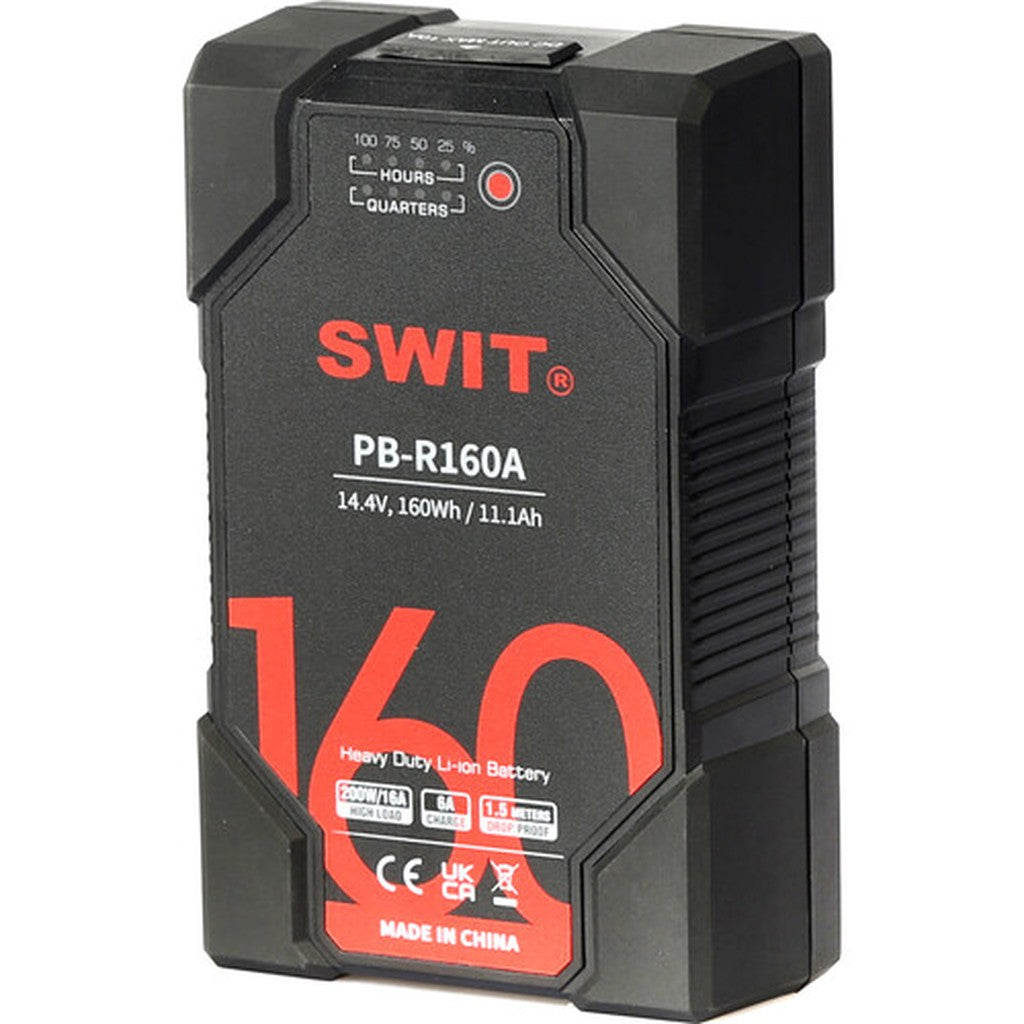

The PB-R160A offers a travel-friendly 160Wh capacity for mobile productions, handheld camera systems, and crews seeking a balance between runtime and weight. The PB-R290A increases capacity to 290Wh and supports a 250W continuous load, making it suitable for longer shooting days, power-intensive cinema cameras, and equipment configurations with several attached accessories.

An inner cell cage, outer impact-resistant housing, and rubber protection help each battery withstand drops from up to 4.92 feet. The eight-LED digital indicator displays capacity while idle or charging, then estimates remaining runtime during operation in 15-minute increments. A top-mounted D-Tap output powers compatible monitors, transmitters, recorders, lights, and other production devices alongside the primary camera.

Key Features

• Capacity Options: Choose 160Wh for lower weight or 290Wh for extended professional camera runtime.
• High-Load Output: Delivers a continuous 200W or 250W load, depending on the selected capacity.
• Heavy-Duty Housing: Uses an internal cell cage, impact-resistant outer shell, and protective rubber covers.
• Drop-Resistant Construction: Withstands falls from heights up to 4.92 feet at multiple angles.
• 6A Fast Charging: Supports compatible high-current chargers to reduce battery turnaround time.
• Eight-LED Display: Shows battery percentage and estimated remaining runtime in 15-minute increments.
• D-Tap Accessory Power: Supplies up to 10A for compatible camera-mounted production equipment.
• Integrated Protection: Incorporates multiple circuit protections for dependable professional operation.

Technical Specifications

• Available Models: PB-R160A and PB-R290A
• Battery Type: Rechargeable professional camera battery
• Battery Chemistry: Lithium-ion
• Nominal Voltage: 14.4V DC

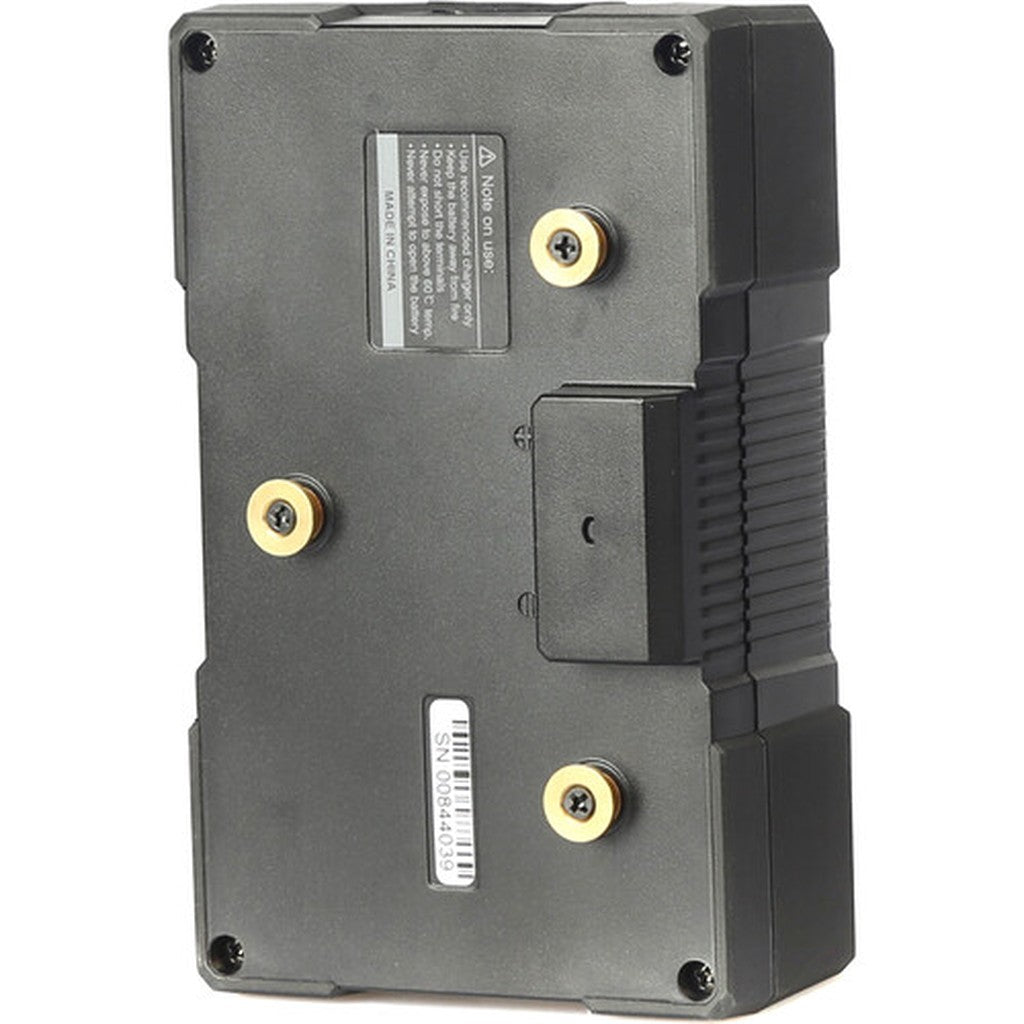

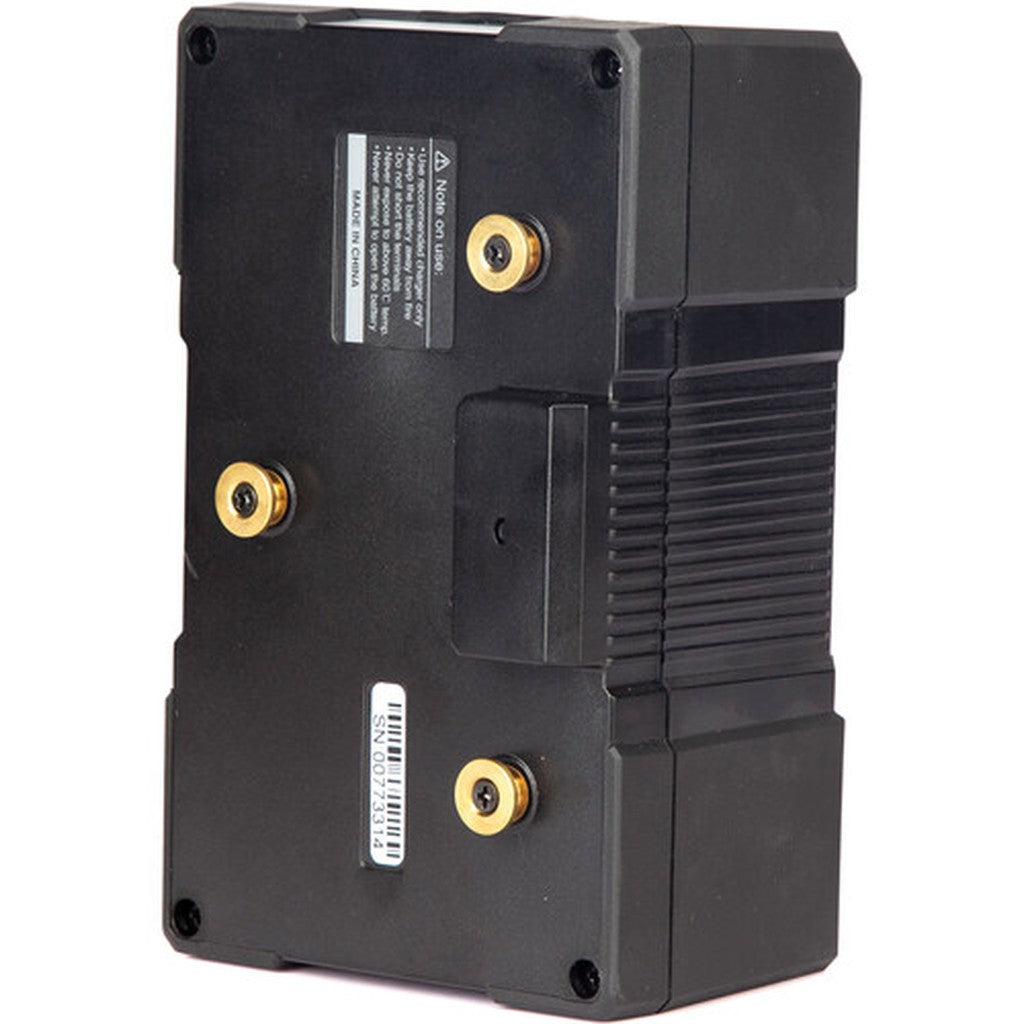

• Battery Mount: Gold Mount
• Power Output: 1 D-Tap female output
• Maximum D-Tap Current: 10A
• Maximum Charging Current: 6A
• Power Indicator: Eight-LED digital capacity and runtime display
• Runtime Display Resolution: 15-minute increments
• Drop Resistance: Up to 4.92'
• Charging Temperature: 32 to 104°F
• Discharging Temperature: -4 to 122°F

PB-R160A 160Wh Specifications

• Capacity: 160Wh / 11.1Ah
• Cell Configuration: 18 high-class 18650 battery cells
• Continuous Load: 200W / 16A
• Peak Load: Up to 245W
• Approximate ENG Camera Runtime: 6 hours
• Approximate Cinema Camera Runtime: 2 hours with an ARRI ALEXA
• Charge Time to 80%: Approximately 1.5 hours with a compatible 6A charger
• Full Charge Time: Approximately 2.5 hours with a compatible 6A charger
• Dimensions: 6.38" x 3.98" x 2.32"
• Weight: 2.38 lbs

PB-R290A 290Wh Specifications

• Capacity: 290Wh / 20.1Ah
• Cell Configuration: 24 high-class 18650 battery cells
• Continuous Load: 250W / 20A
• Peak Load: Up to 305W
• Overcurrent Protection: 24A
• Approximate ENG Camera Runtime: 11 hours
• Approximate Cinema Camera Runtime: 3.5 hours with an ARRI ALEXA
• Charge Time to 80%: Approximately 2.5 hours with a compatible 6A charger
• Full Charge Time: Approximately 3.8 hours with a compatible 6A charger
• Dimensions: 6.38" x 3.98" x 2.95"
• Weight: 3.33 lbs

What's In the Box

• Selected SWIT PB-R Heavy-Duty Gold Mount Battery
