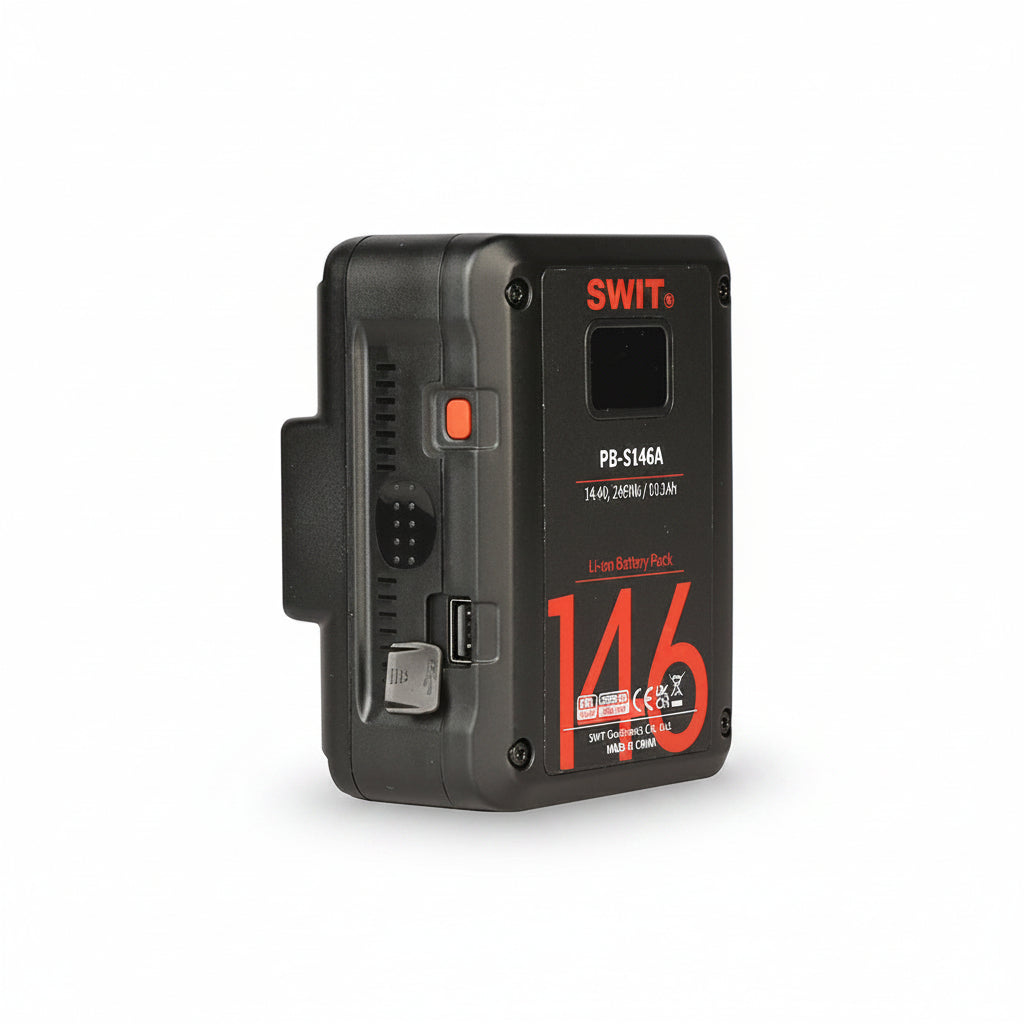

SWIT PB-S146A 146Wh Gold Mount Square Digital Battery

SWIT PB-S146A 146Wh Gold Mount Square Digital Battery

The SWIT PB-S146A 146Wh Gold Mount square digital battery delivers reliable 14.4V power for professional cinema cameras and attached production accessories. Its compact housing supplies at least 200W and 16A continuously, even at 1% remaining capacity, helping high-draw camera systems operate consistently throughout the discharge cycle.

Designed for cinematographers, camera crews, and rental departments, the PB-S146A combines 146Wh capacity with two D-Tap outputs and one USB power port. It can operate a typical 30W camera for approximately five hours, while its shortened square profile fits cine-style camera bodies more naturally than conventional elongated battery designs.

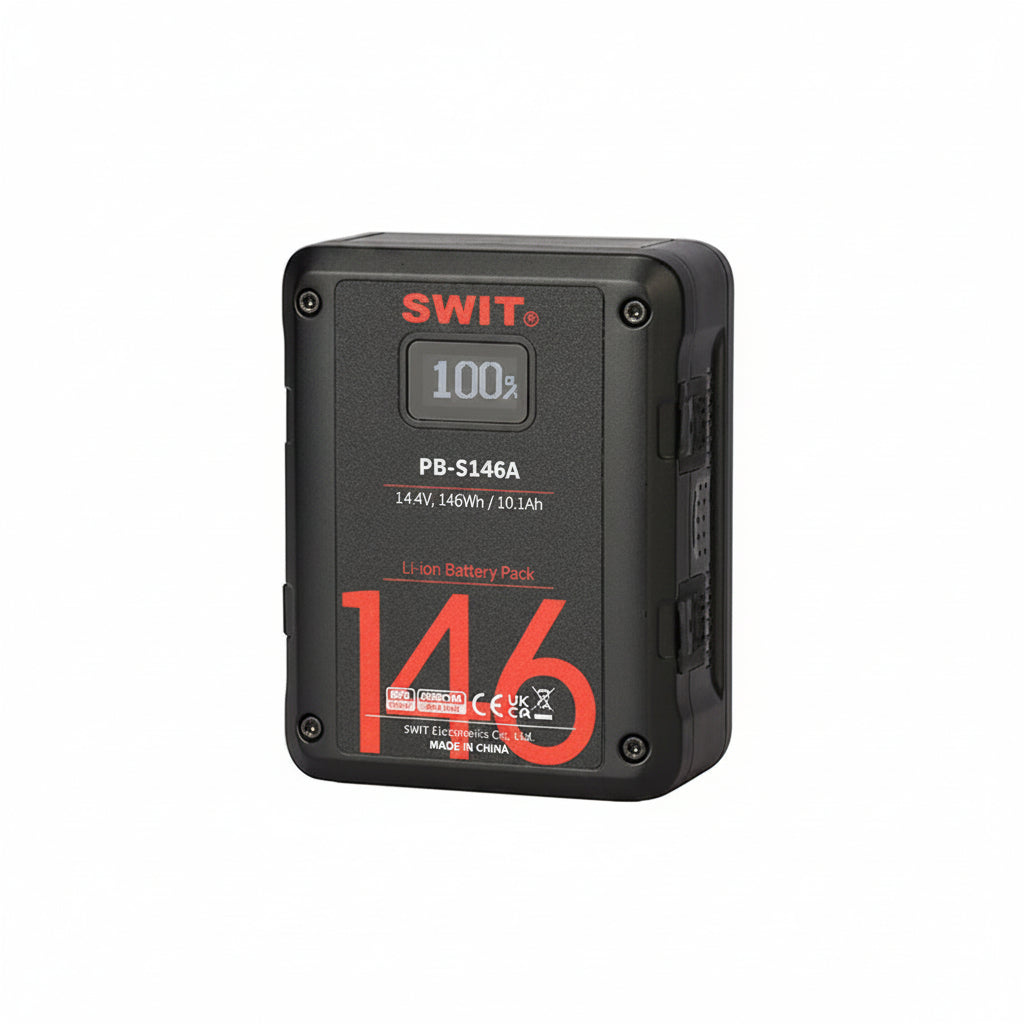

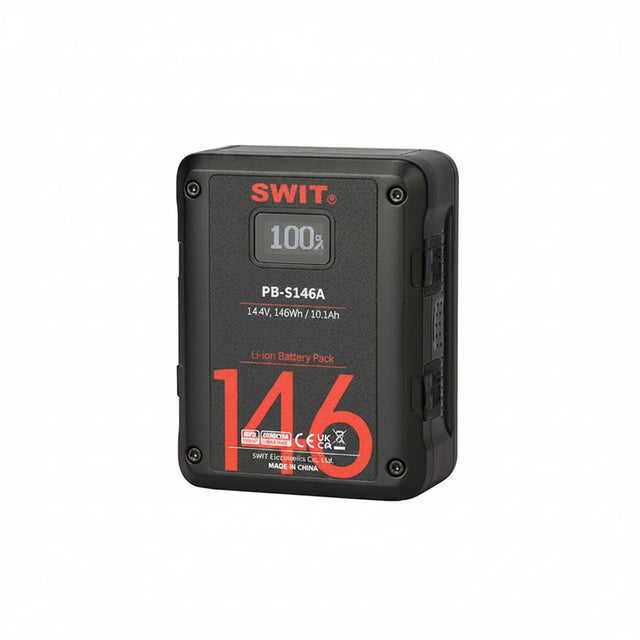

An integrated OLED screen displays remaining capacity, estimated operating time, and accumulated battery cycles for informed on-set power management. Protection circuits respond to overloads, overcharging, short circuits, and extreme temperatures. An ultra-low standby power design also helps preserve stored energy during extended periods between productions.

Key Features

• 146Wh Capacity: Provides 10.1Ah of rechargeable power for professional cameras and production accessories.
• High-Load Performance: Maintains at least 200W and 16A output, including at 1% remaining capacity.
• Compact Square Design: Uses a shortened housing that complements professional cine-camera bodies.

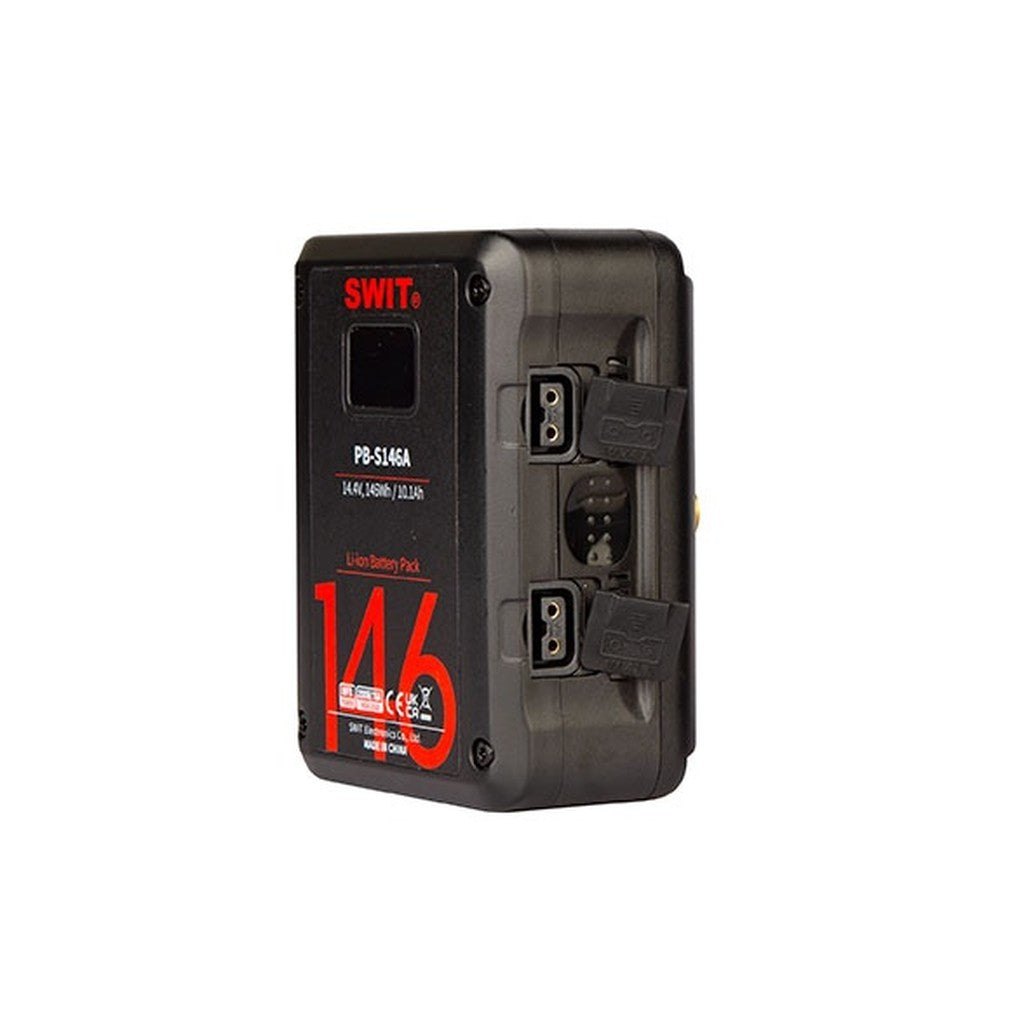

• Dual D-Tap Outputs: Supplies up to 120W and 10A total for compatible camera-mounted equipment.
• USB Device Power: Delivers 5V and 2A for supported mobile devices and production accessories.
• OLED Power Information: Shows remaining percentage, estimated runtime, battery cycles, and protection alerts.
• 5A Charging Support: Accepts compatible high-current charging for efficient battery turnaround.
• Integrated Circuit Protection: Guards against overloads, overcharging, short circuits, and extreme temperatures.

Technical Specifications

• Model: PB-S146A
• Product Type: Square digital professional camera battery

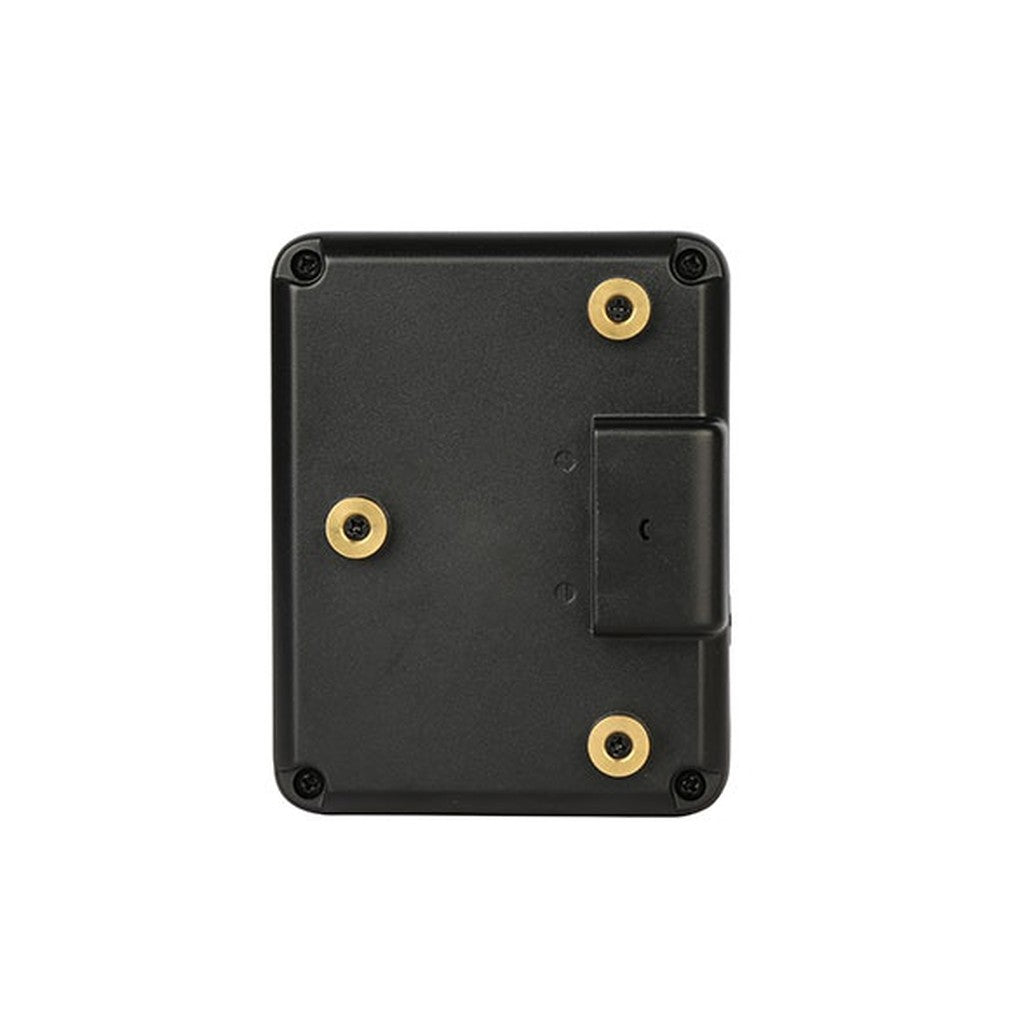

• Battery Mount: Gold Mount
• Battery Chemistry: Lithium-ion
• Cell Configuration: 12 high-class 18650 battery cells
• Nominal Voltage: 14.4V
• Capacity: 146Wh / 10.1Ah
• Maximum Total Output: 200W
• Main Electrode Output: 200W / 16A
• Continuous Load at 1% Capacity: At least 200W / 16A
• Overcurrent Protection: 18A
• D-Tap Outputs: 2
• Total D-Tap Output: 120W / 10A
• USB Outputs: 1
• USB Output: 5V / 2A, 10W
• Maximum Charging Current: 5A
• Approximate Runtime: 5 hours with a 30W camera
• Display: Integrated OLED
• Displayed Information: Remaining percentage, estimated runtime, battery cycle count, and protection status
• Circuit Protection: Overload, overcharge, short-circuit, and high/low-temperature protection
• Charging Temperature: 32 to 104°F
• Discharging Temperature: -4 to 122°F
• Low-Temperature Performance: Capacity and maximum load may decrease below 32°F
• Dimensions: 4.76" x 3.74" x 2.32"
• Weight: 1.94 lbs
• Package Weight: 1.98 lbs
