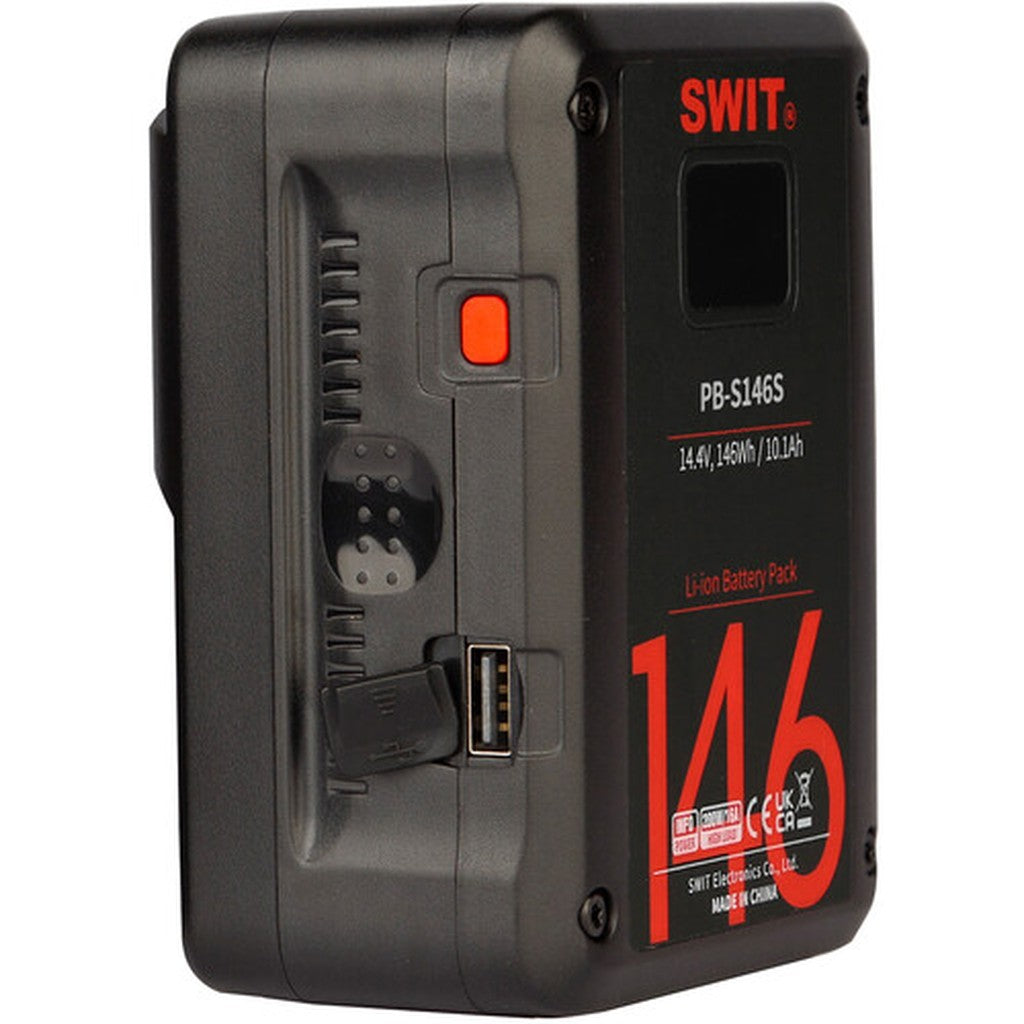

SWIT PB-S146S 146Wh 200W V-Mount Battery with OLED Display

SWIT PB-S146S 146Wh 200W V-Mount Battery with OLED Display

The SWIT PB-S146S 146Wh V-Mount battery delivers at least 200W and 16A of continuous power, even at 1% remaining capacity. Its compact square design supports high-draw cinema cameras and connected accessories while providing two D-Tap ports, a USB-A output, and an integrated OLED power-information display.

Built for cinematographers, broadcast operators, rental departments, and production crews, this high-load cinema camera battery can run a typical 30W camera for approximately five hours. Buyers seeking a 146Wh V-Mount battery, a compact battery for cinema cameras, or a multi-output production power source can operate compatible camera equipment and accessories from one pack.

The OLED display reports remaining charge percentage, estimated runtime, and battery cycle count. It also displays protection information when the system detects overload, overcharging, short circuits, or abnormal temperatures. Compatible Sony and RED cameras can show battery information through the V-Mount interface, supporting accurate power management during long takes and demanding location shoots.

Key Features

• 146Wh High Capacity: Provides 10.1Ah of extended power for professional cinema and broadcast equipment.
• 200W Continuous Output: Delivers at least 16A of high-load performance, even at 1% remaining capacity.
• Compact Square Housing: Maintains a shorter profile than conventional V-Mount batteries for streamlined cinema rigs.

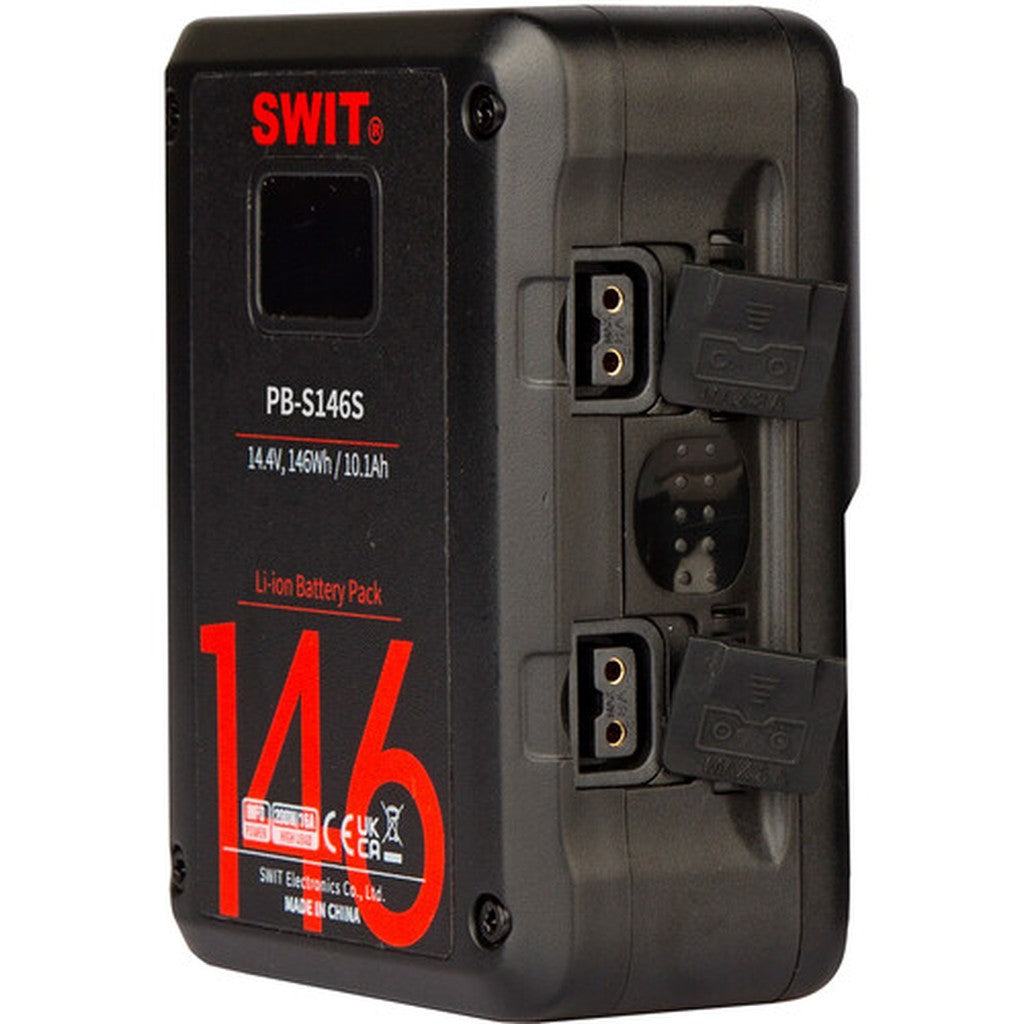

• Dual D-Tap Connections: Powers compatible camera accessories with up to 120W and 10A combined output.
• USB-A Power Output: Supplies 5V, 2A power for compatible mobile devices and production accessories.

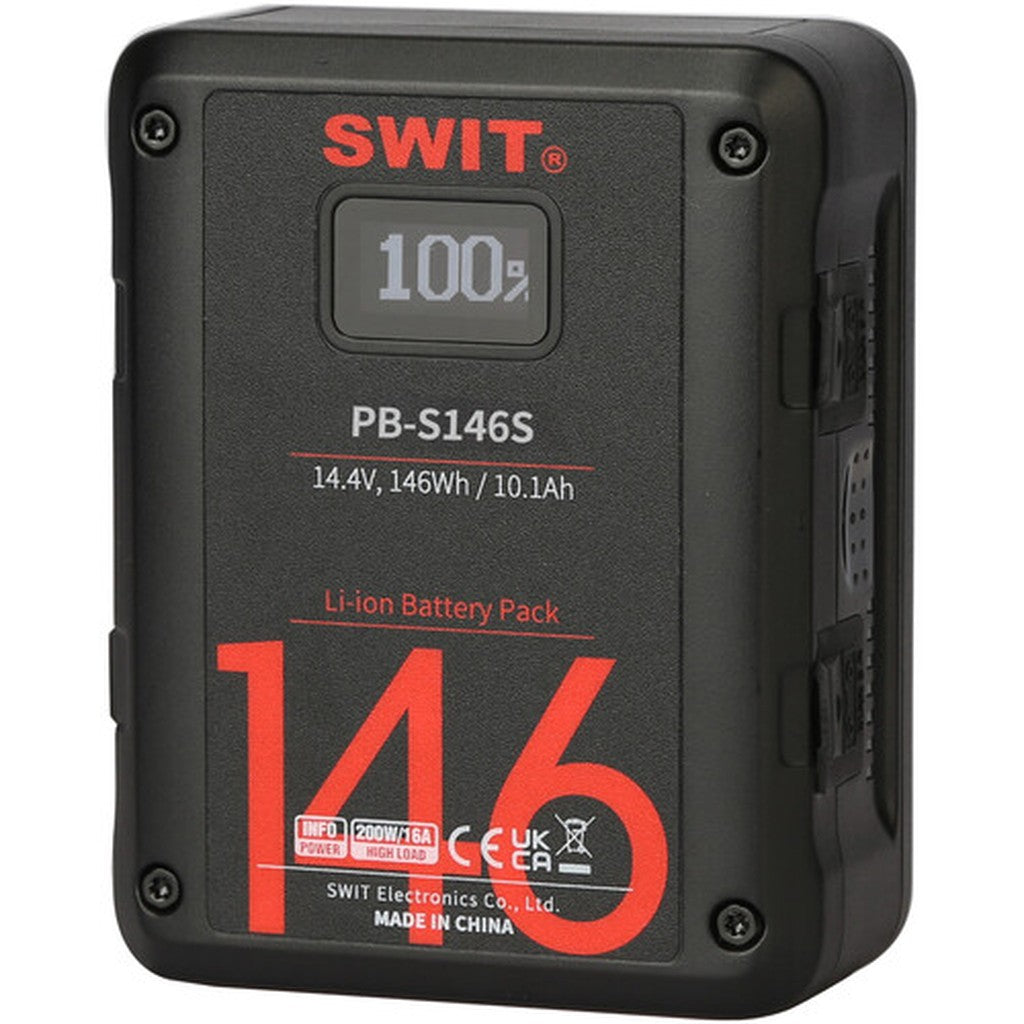

• OLED Information Display: Shows charge percentage, estimated runtime, cycle count, and battery protection alerts.
• Camera Data Communication: Displays power information through compatible Sony and RED camera viewfinders.
• Multiple Circuit Protections: Responds to overload, overcharge, short-circuit, and abnormal-temperature conditions.

Technical Specifications

• Model: PB-S146S
• Battery Type: Rechargeable lithium-ion camera battery

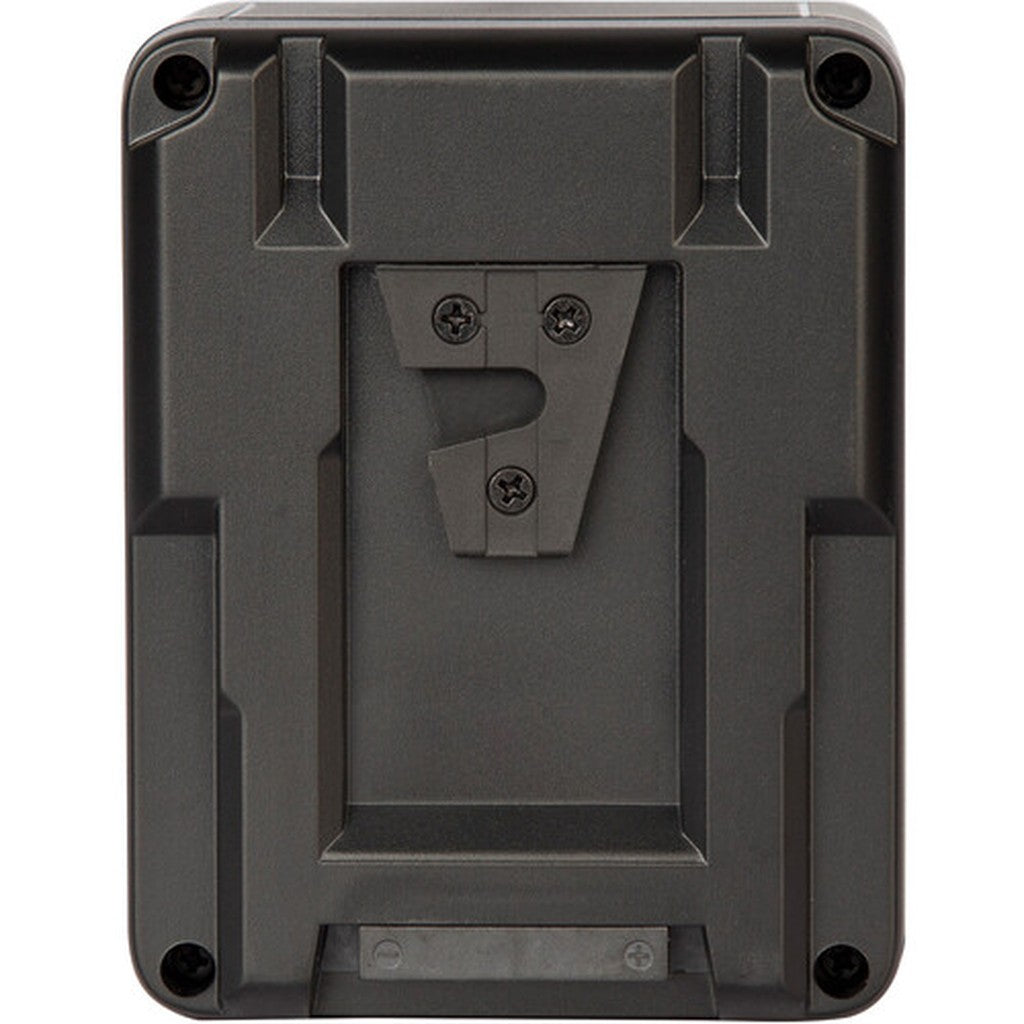

• Battery Mount: V-Mount
• Nominal Voltage: 14.4V DC
• Capacity: 146Wh, 10.1Ah
• Cell Configuration: Twelve 18650 lithium-ion cells
• Approximate Runtime: 5 hours with a typical 30W cinema camera
• Maximum Total Output: 200W
• V-Mount Contact Output: 200W, 16A
• Overcurrent Protection: 18A
• D-Tap Connections: Two female input and output ports
• Maximum Combined D-Tap Output: 120W, 10A
• D-Tap Charging: Both D-Tap ports support charging input
• USB Connection: One USB-A female output
• USB-A Output: 5V DC, 2A, 10W
• Maximum Charging Current: 5A
• Display Type: Integrated OLED
• Displayed Information: Remaining percentage, estimated runtime, battery cycle count, and protection information
• Camera Information Support: Compatible Sony and RED camera systems
• Accessory Mounting Thread: None
• Charging Temperature: 32 to 104°F
• Discharging Temperature: -4 to 122°F
• Low-Temperature Performance: Capacity and maximum load may decrease below 32°F
• Dimensions: 4.76" x 3.74" x 2.32"
• Weight: 1.94 lbs
• Package Weight: 1.98 lbs
• Box Dimensions: 5.1" x 4.4" x 2.6"

What's In the Box

• SWIT PB-S146S 146Wh V-Mount Battery with OLED Display
