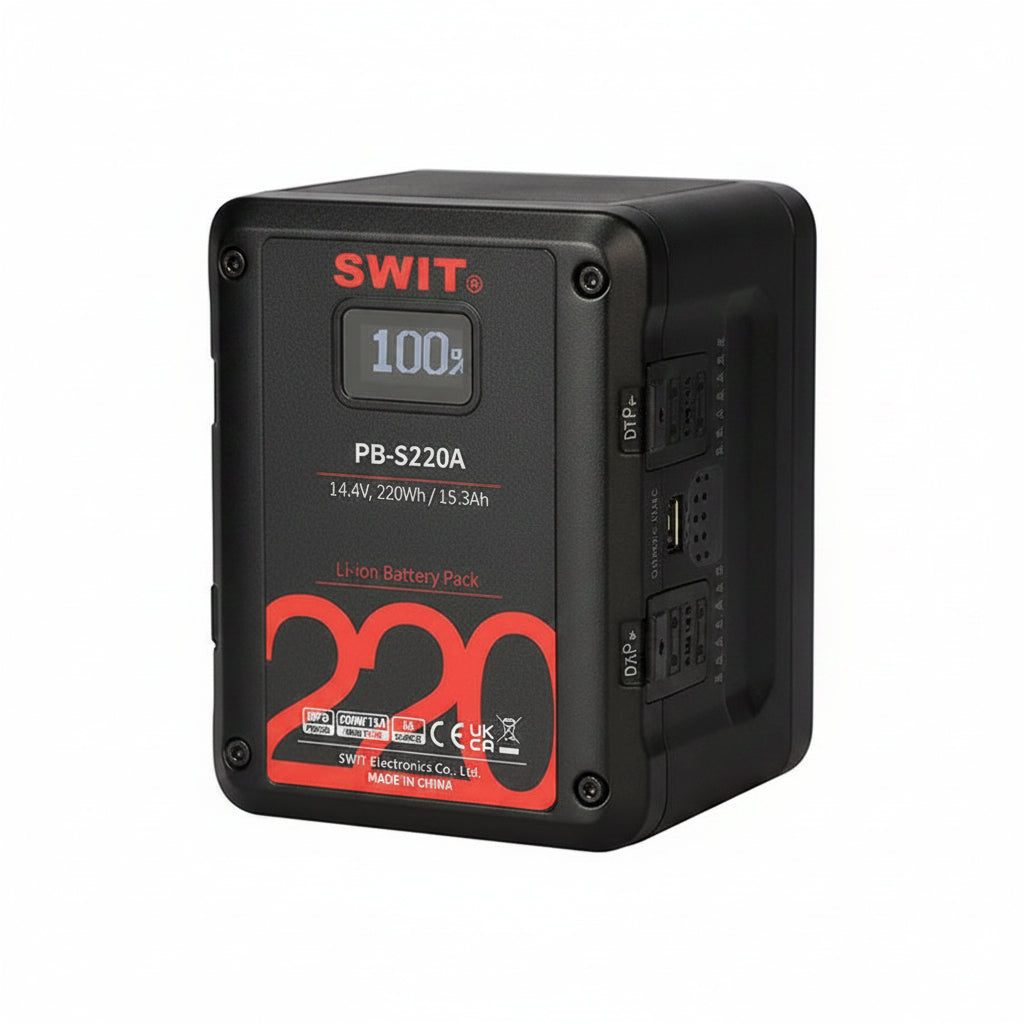

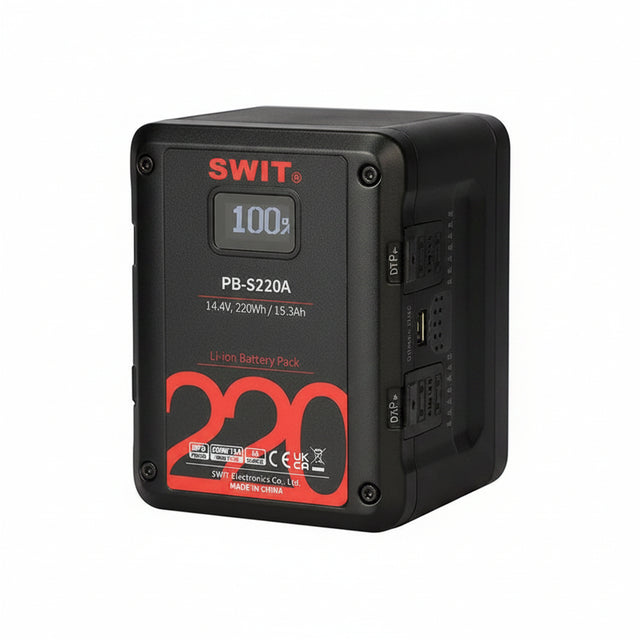

SWIT PB-S220A 220Wh Gold Mount Square Digital Battery

SWIT PB-S220A 220Wh Gold Mount Square Digital Battery

The SWIT PB-S220A 220Wh Gold Mount square digital battery delivers dependable 14.4V power for cinema cameras and attached production accessories. Its compact, shortened housing fits cine-style camera bodies while providing at least 200W and 16A of continuous output, even when the remaining battery capacity reaches 1%.

Built for cinematographers, camera crews, and rental departments, the PB-S220A combines 220Wh capacity with four D-Tap outputs and one USB power port. It can operate a typical ENG camera for approximately seven hours or an ARRI ALEXA for approximately 2.5 hours, depending on the complete equipment load and operating conditions.

An integrated OLED display reports remaining capacity, estimated operating time, and accumulated battery cycles for informed power management. Multiple circuit protections respond to overloads, overcharging, short circuits, and extreme temperatures. Ultra-low standby consumption also helps preserve stored power during extended periods between productions without routine charge-and-discharge maintenance.

Key Features

• 220Wh High Capacity: Provides 15.3Ah of power for extended professional camera and accessory operation.
• High-Load Performance: Delivers at least 200W and 16A continuously, including at 1% remaining capacity.
• Compact Square Housing: Uses a shorter profile designed to complement professional cinema camera bodies.

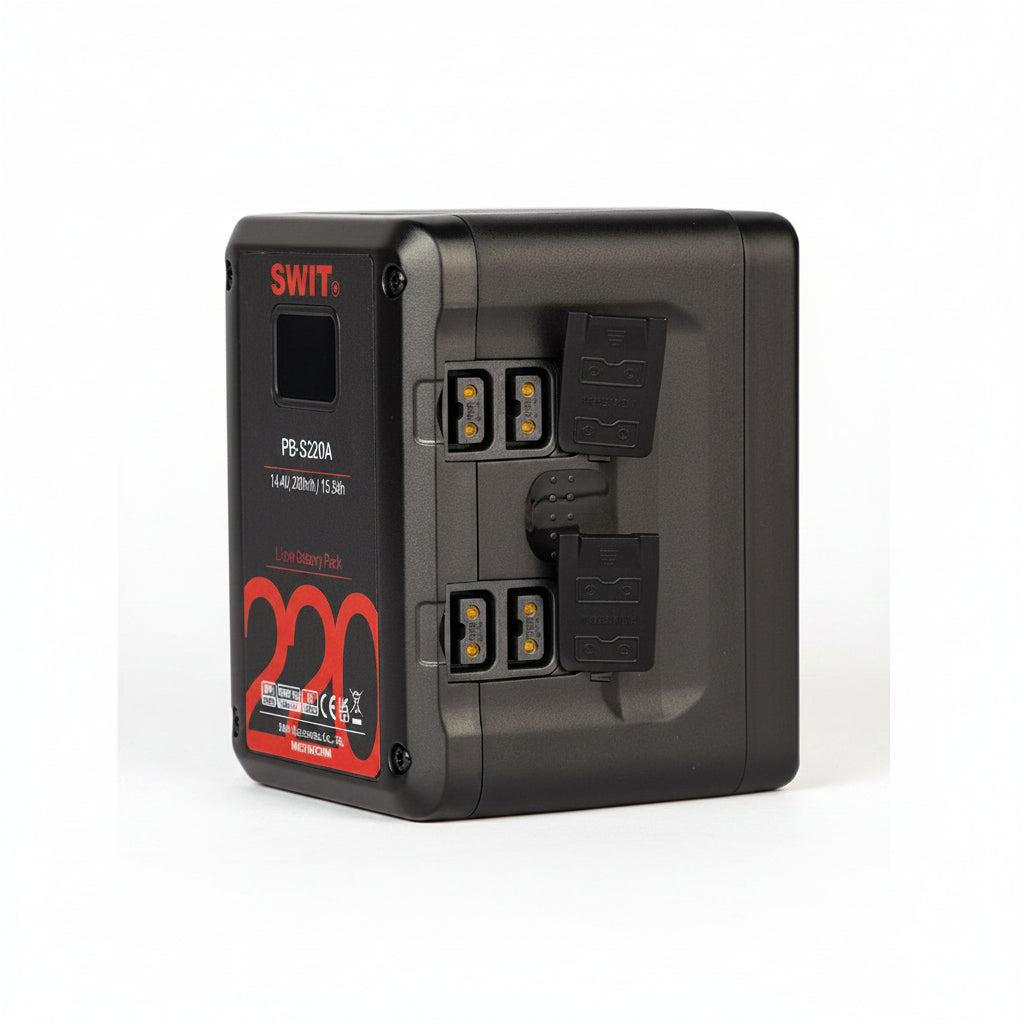

• Four D-Tap Outputs: Powers multiple camera-mounted monitors, transmitters, recorders, and other accessories.

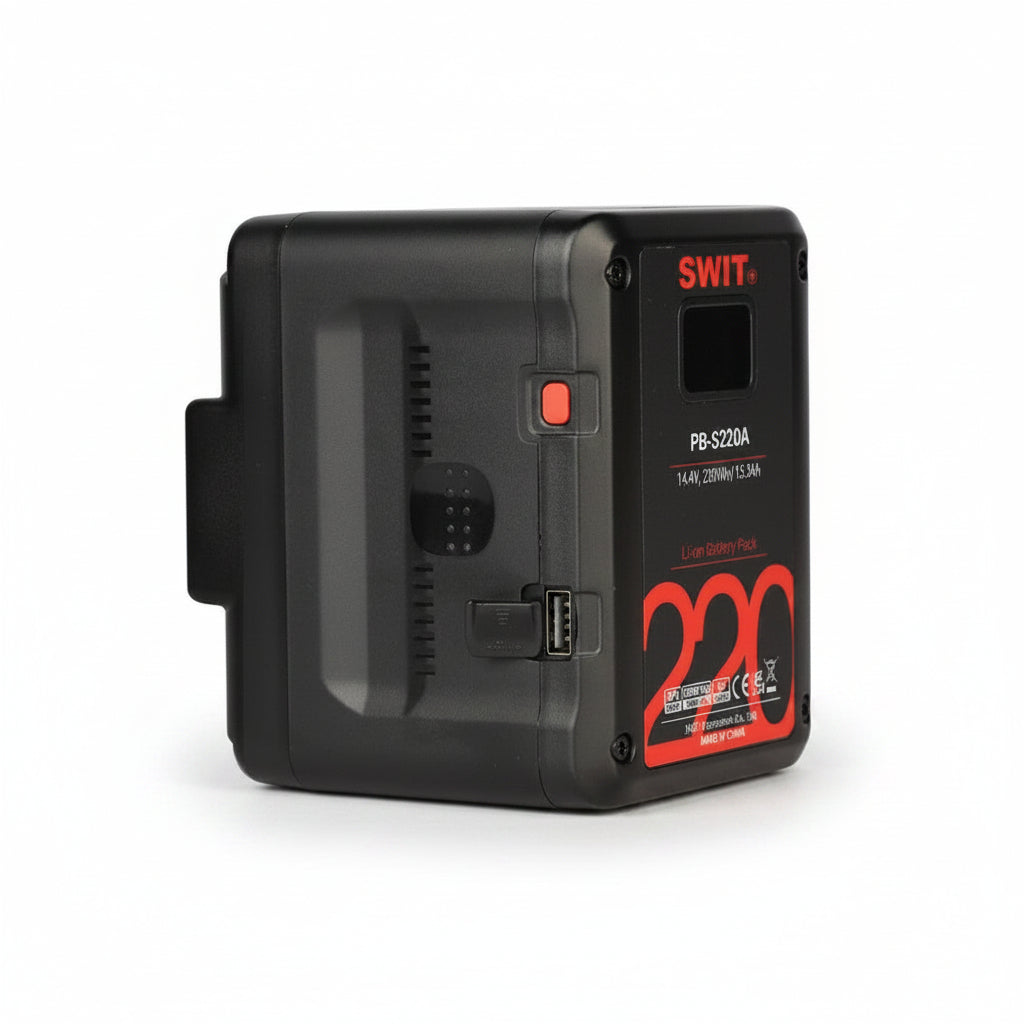

• USB Device Power: Supplies 5V and 2A for compatible mobile devices and production accessories.
• 6A Fast Charging: Reaches approximately 80% in 2.3 hours and full capacity within 3.5 hours with a compatible charger.
• OLED Power Information: Displays remaining percentage, estimated runtime, battery cycle count, and protection alerts.
• Ultra-Low Standby Consumption: Helps retain stored power and reduces maintenance requirements during extended storage.

Technical Specifications

• Model: PB-S220A
• Product Type: Square digital professional camera battery

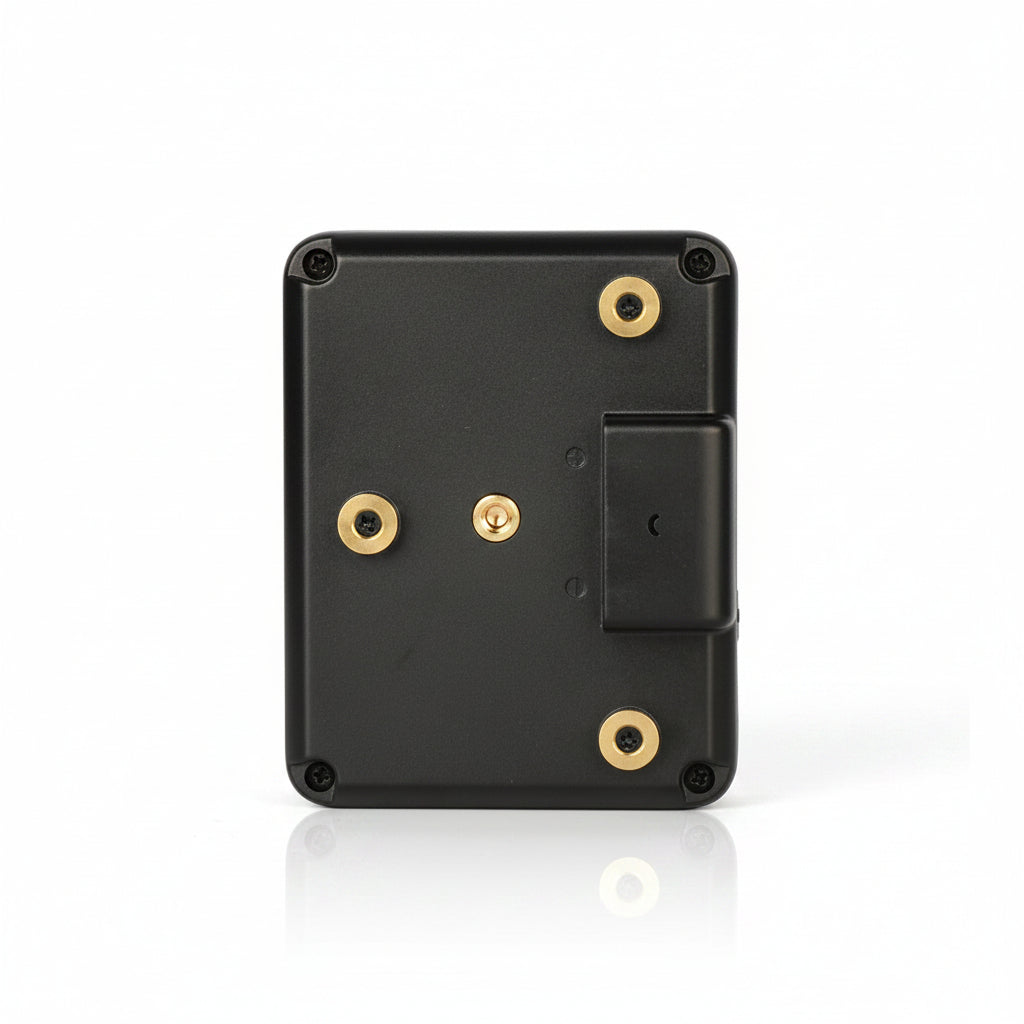

• Battery Mount: Gold Mount
• Battery Chemistry: Lithium-ion
• Cell Configuration: 24 high-class 18650 battery cells
• Nominal Voltage: 14.4V
• Capacity: 220Wh / 15.3Ah
• Maximum Total Output: 200W
• Main Electrode Output: 200W / 16A
• Continuous Load at 1% Capacity: At least 200W / 16A
• D-Tap Outputs: 4
• D-Tap Output Rating: 120W / 10A
• USB Outputs: 1
• USB Output Rating: 5V / 2A, 10W
• Maximum Charging Current: 6A
• Charge Time to 80%: Approximately 2.3 hours with a compatible 6A charger
• Full Charging Time: Approximately 3.5 hours with a compatible 6A charger
• Approximate ENG Camera Runtime: 7 hours
• Approximate ARRI ALEXA Runtime: 2.5 hours
• Display: Integrated OLED
• Displayed Information: Remaining percentage, estimated runtime, battery cycle count, and protection status
• Circuit Protection: Overload, overcharge, short-circuit, and high/low-temperature protection
• Charging Temperature: 32 to 104°F
• Discharging Temperature: -4 to 122°F
• Dimensions: 4.76" x 3.74" x 3.90"
• Weight: 3.16 lbs
• Package Weight: 3.42 lbs
