SWIT PB-S220S 220Wh 200W Multi-Socket V-Mount Battery

SWIT PB-S220S 220Wh 200W Multi-Socket V-Mount Battery

The SWIT PB-S220S 220Wh V-Mount battery delivers up to 200W of continuous power for cinema cameras, monitors, wireless systems, and production accessories. Its compact square enclosure combines four D-Tap ports, a USB-A output, an OLED information display, and 6A fast-charging support for demanding professional video workflows.

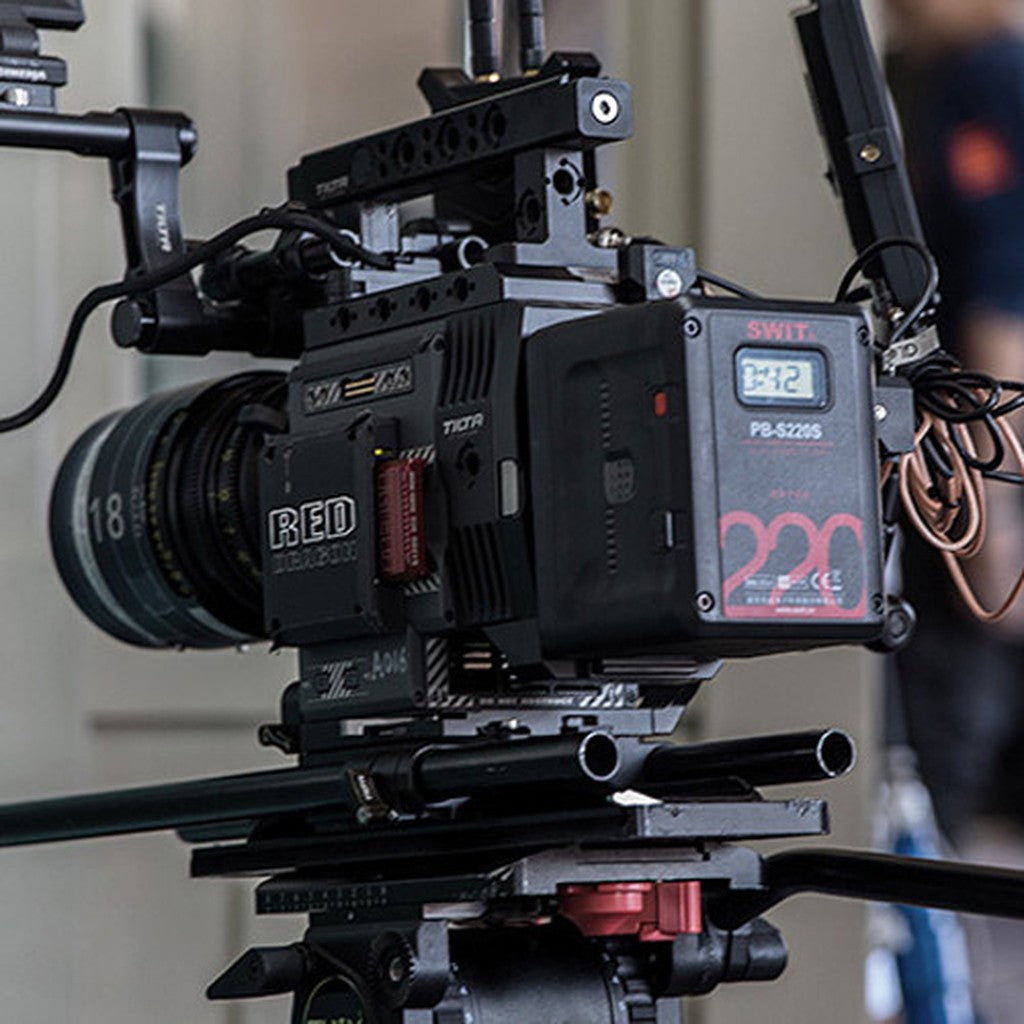

Designed for cinematographers, broadcast crews, rental facilities, and multi-accessory camera builds, this high-capacity V-Mount battery provides approximately seven hours of power for a typical ENG camera. It can also operate an ARRI ALEXA for approximately 2.5 hours, making it a practical choice for buyers seeking a 220Wh cinema camera battery or high-output production power source.

The integrated OLED displays remaining capacity, estimated operating time, battery cycle count, and protection alerts. Compatible Sony and RED cameras can receive battery information through the V-Mount contacts. Twenty-four lithium-ion cells, multiple circuit protections, and ultra-low standby consumption support reliable operation during long productions and extended storage periods.

Key Features

• 220Wh High Capacity: Provides 15.3Ah of extended runtime for professional cameras and production equipment.
• 200W Continuous Output: Supports demanding cinema cameras and connected accessories at up to 16A.
• Four D-Tap Connections: Powers several camera-mounted accessories without requiring an external splitter.
• USB-A Power Output: Supplies 5V, 2A power to compatible mobile devices and production accessories.
• 6A Fast-Charging Support: Reaches approximately 80% capacity in 2.3 hours with a compatible fast charger.
• OLED Battery Display: Shows remaining percentage, estimated runtime, battery cycles, and protection information.
• Camera Data Communication: Displays remaining battery information on compatible Sony and RED camera systems.
• Compact Square Design: Fits cine-camera builds while maintaining a shorter profile than conventional battery packs.

Technical Specifications

• Model: PB-S220S
• Battery Type: Rechargeable lithium-ion camera battery
• Battery Mount: V-Mount
• Nominal Voltage: 14.4V DC
• Capacity: 220Wh, 15.3Ah
• Cell Configuration: Twenty-four 18650 lithium-ion cells
• Maximum Total Output: 200W
• V-Mount Contact Output: 200W, 16A
• D-Tap Connections: Four female input and output ports
• Maximum Combined D-Tap Output: 120W, 10A
• D-Tap Charging Support: All four D-Tap ports accept compatible charging input
• USB Connection: One USB-A female output
• USB-A Output: 5V DC, 2A, 10W
• Maximum Charging Current: 6A
• Fast-Charging Compatibility: SWIT PC-P461S and S-3812S chargers
• Approximate Charging Time to 80%: 2 hours 18 minutes with a compatible 6A charger
• Approximate Full Charging Time: 3 hours 30 minutes with a compatible 6A charger
• Approximate ENG Camera Runtime: 7 hours
• Approximate ARRI ALEXA Runtime: 2 hours 30 minutes
• Display Type: Integrated OLED
• Displayed Information: Remaining capacity, estimated runtime, battery cycle count, low-power alerts, and protection codes
• Camera Information Support: Compatible Sony and RED camera systems
• Protection Features: Overload, overcharge, short-circuit, and high- or low-temperature protection
• Charging Temperature: 32 to 104°F
• Discharging Temperature: -4 to 122°F
• Low-Temperature Performance: Capacity and maximum load may decrease below 32°F
• Accessory Mounting Thread: None
• Dimensions: 4.76" x 3.74" x 3.78"
• Weight: 3.17 lbs
• Package Weight: 3.42 lbs
• Box Dimensions: 5.15" x 4.05" x 4"

What's In the Box

• SWIT PB-S220S 220Wh V-Mount Battery
