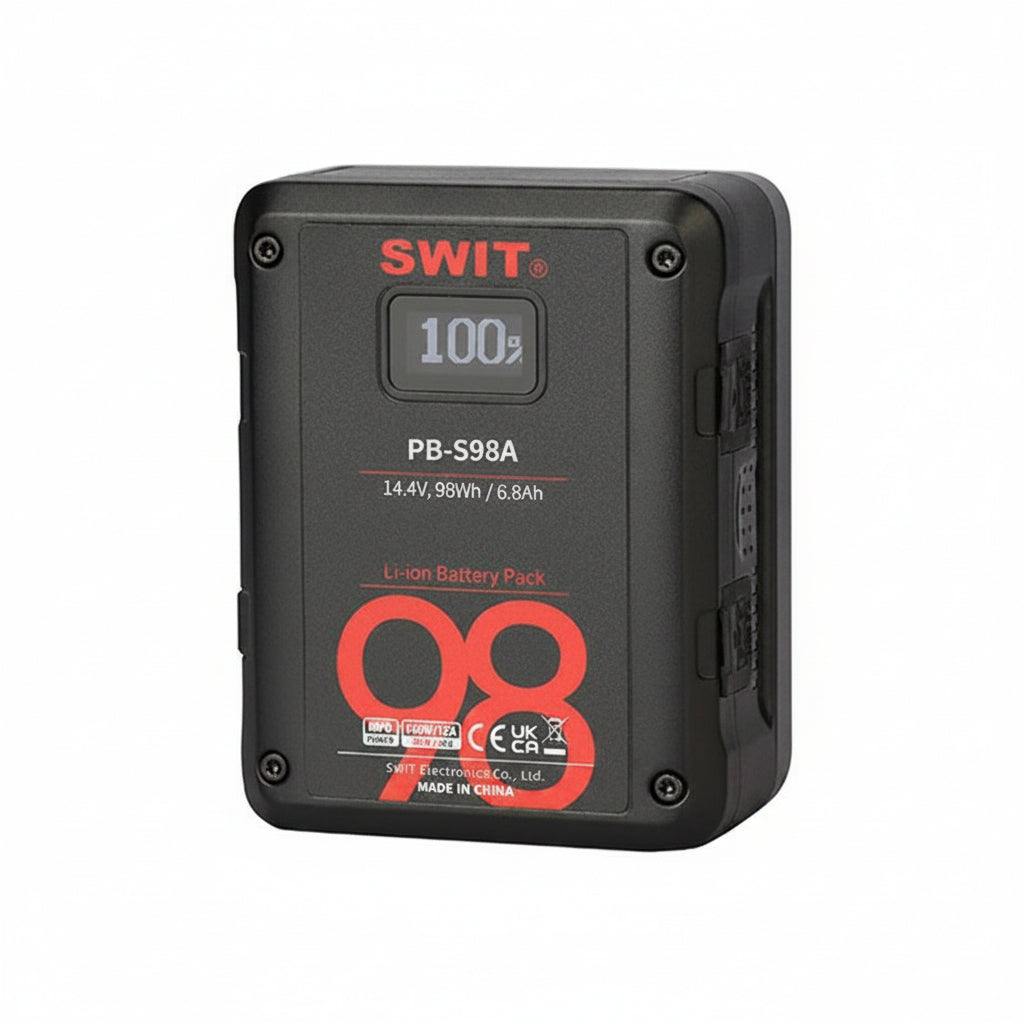

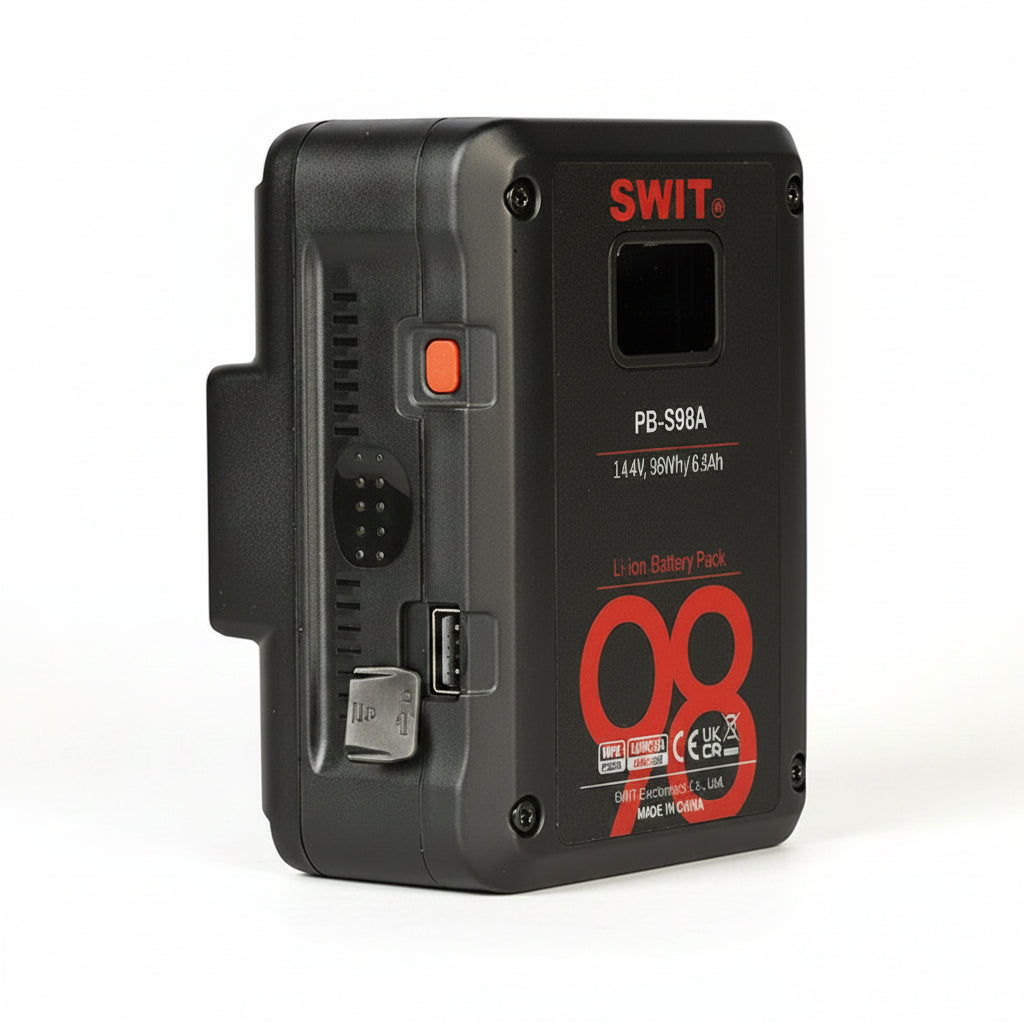

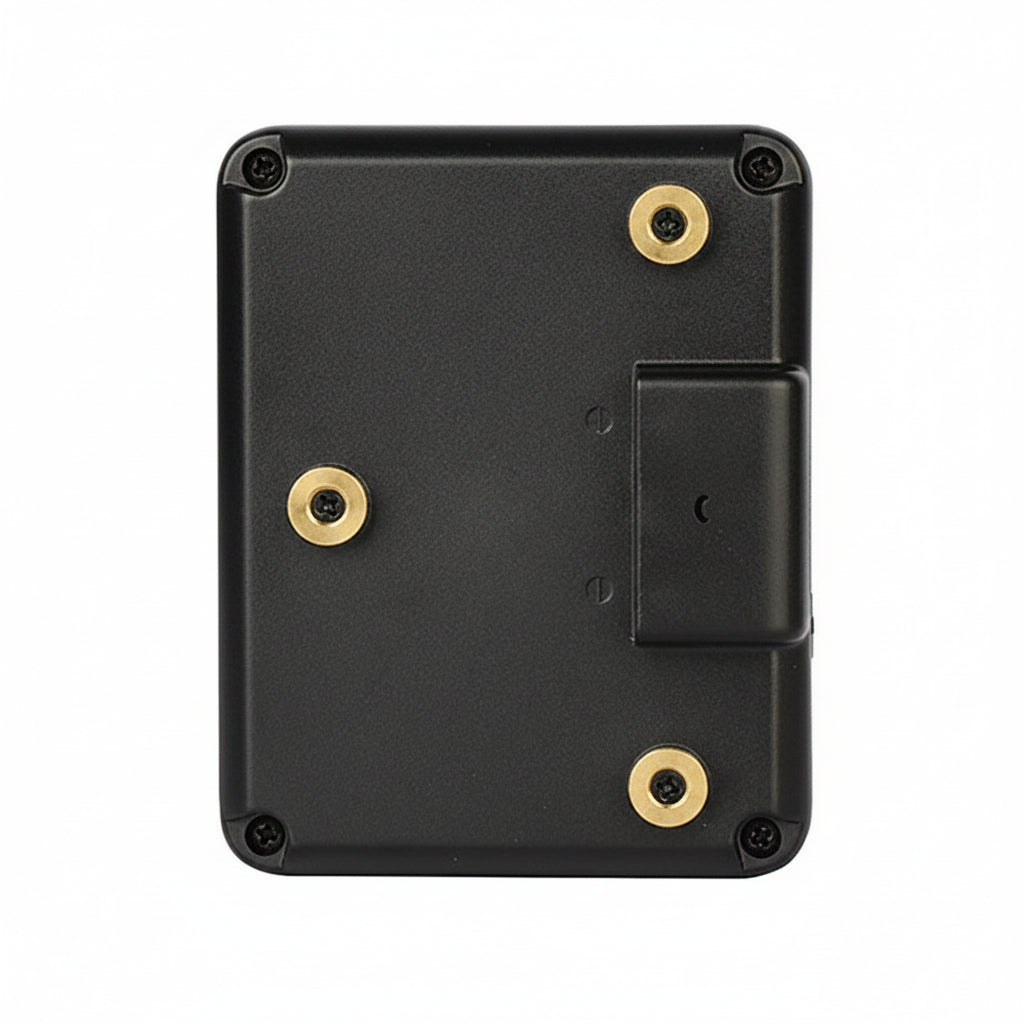

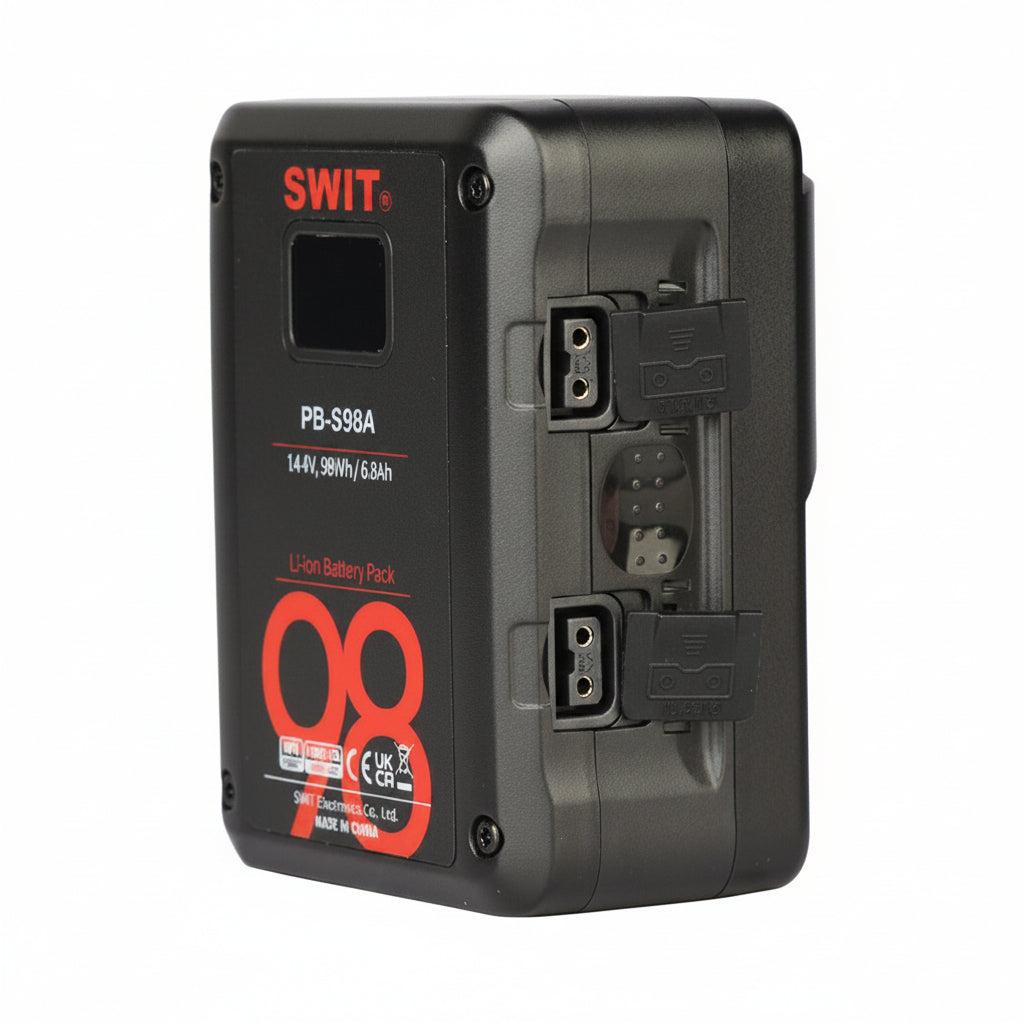

SWIT PB-S98A 98Wh Gold Mount Square Digital Camera Battery

SWIT PB-S98A 98Wh Gold Mount Square Digital Camera Battery

The SWIT PB-S98A 98Wh Gold Mount camera battery delivers compact, high-output power for professional cine and ENG cameras. Its 14.4V lithium-ion system sustains at least 150W and 12A, even at 1% remaining capacity, while the shortened square housing fits cine-style camera bodies without the height of a conventional battery pack.

Built for cinematographers, rental departments, and mobile production crews, the PB-S98A provides approximately three hours of operation with a typical ENG camera. Two D-Tap sockets supply monitors, wireless transmitters, recorders, and other on-camera accessories, while a dedicated USB port powers compatible mobile devices and compact production equipment.

The integrated OLED screen displays remaining charge percentage, estimated operating time, and accumulated battery cycles for informed on-set power management. Multiple protection circuits respond to overloads, overcharging, short circuits, and extreme temperatures. An ultra-low standby power design also helps preserve the stored charge during extended periods between productions.

Key Features

• 98Wh Capacity: Provides 6.8Ah of portable power for professional cameras and production accessories.
• High-Load Performance: Maintains at least 150W and 12A output at charge levels down to 1%.
• Compact Square Housing: Uses a shortened design that complements professional cine-camera bodies.
• Dual D-Tap Outputs: Supplies up to 120W and 10A total for compatible on-camera equipment.
• USB Power Output: Delivers 5V and 2A for mobile devices and compact accessories.
• OLED Power Information: Displays remaining percentage, estimated runtime, battery cycles, and protection alerts.
• Multiple Circuit Protections: Responds to overloads, overcharging, short circuits, and extreme temperatures.
• Ultra-Low Standby Power: Helps preserve stored energy during extended periods without use.

Technical Specifications

• Model: PB-S98A
• Product Type: Square digital professional camera battery
• Battery Mount: Gold Mount
• Battery Chemistry: Lithium-ion
• Cell Configuration: 12 high-class 18650 battery cells
• Nominal Voltage: 14.4V
• Capacity: 98Wh / 6.8Ah
• Maximum Total Output: 150W
• Main Electrode Output: 150W / 12A
• Continuous Load at 1% Capacity: At least 150W / 12A
• D-Tap Outputs: 2
• Total D-Tap Output: 120W / 10A
• USB Outputs: 1
• USB Output: 5V / 2A, 10W
• Maximum Charging Current: 3A
• Approximate ENG Camera Runtime: 3 hours
• Display: Integrated OLED
• Displayed Information: Remaining percentage, estimated runtime, battery cycle count, and protection status
• Circuit Protection: Overload, overcharge, short-circuit, and high/low-temperature protection
• Charging Temperature: 32 to 104°F
• Discharging Temperature: -4 to 122°F
• Low-Temperature Performance: Capacity and maximum load may decrease below 32°F
• Dimensions: 4.76" x 3.74" x 2.44"
• Weight: 1.78 lbs
• Package Weight: 1.87 lbs
