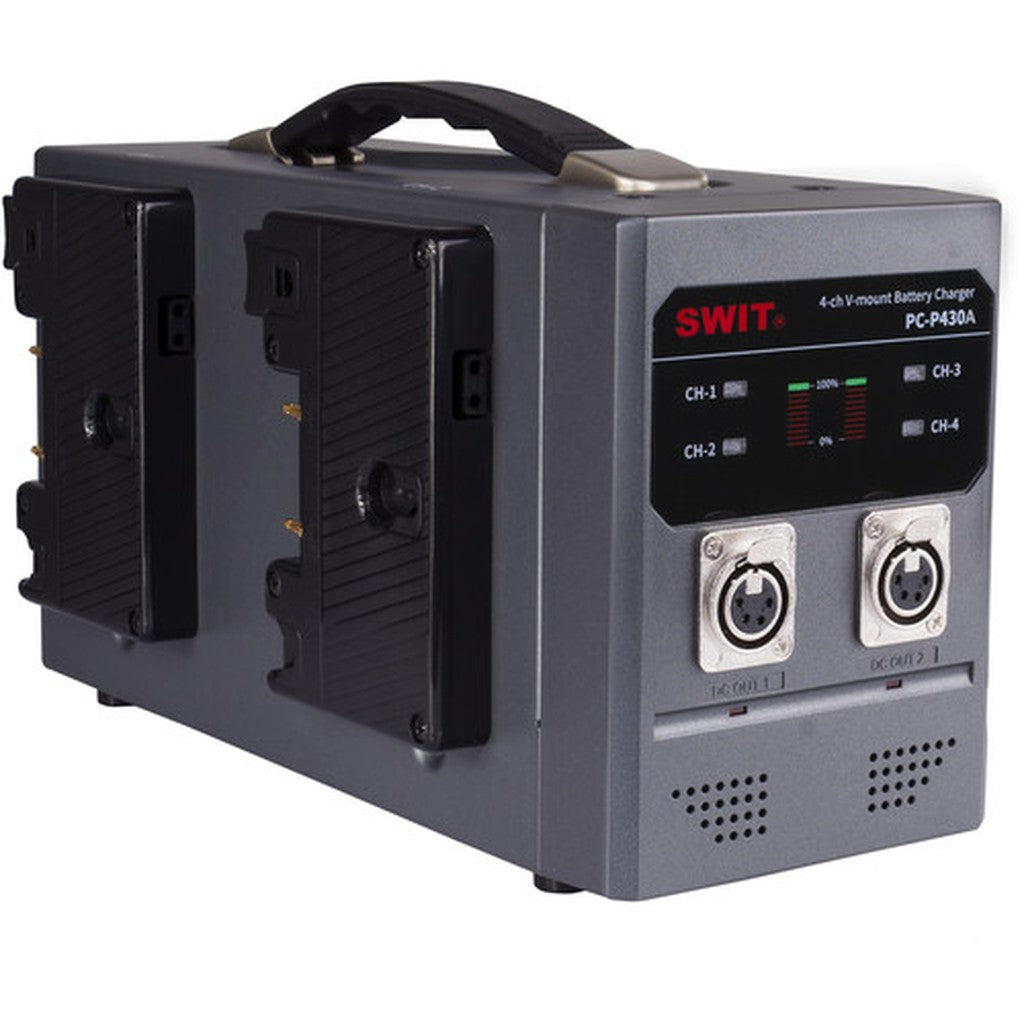

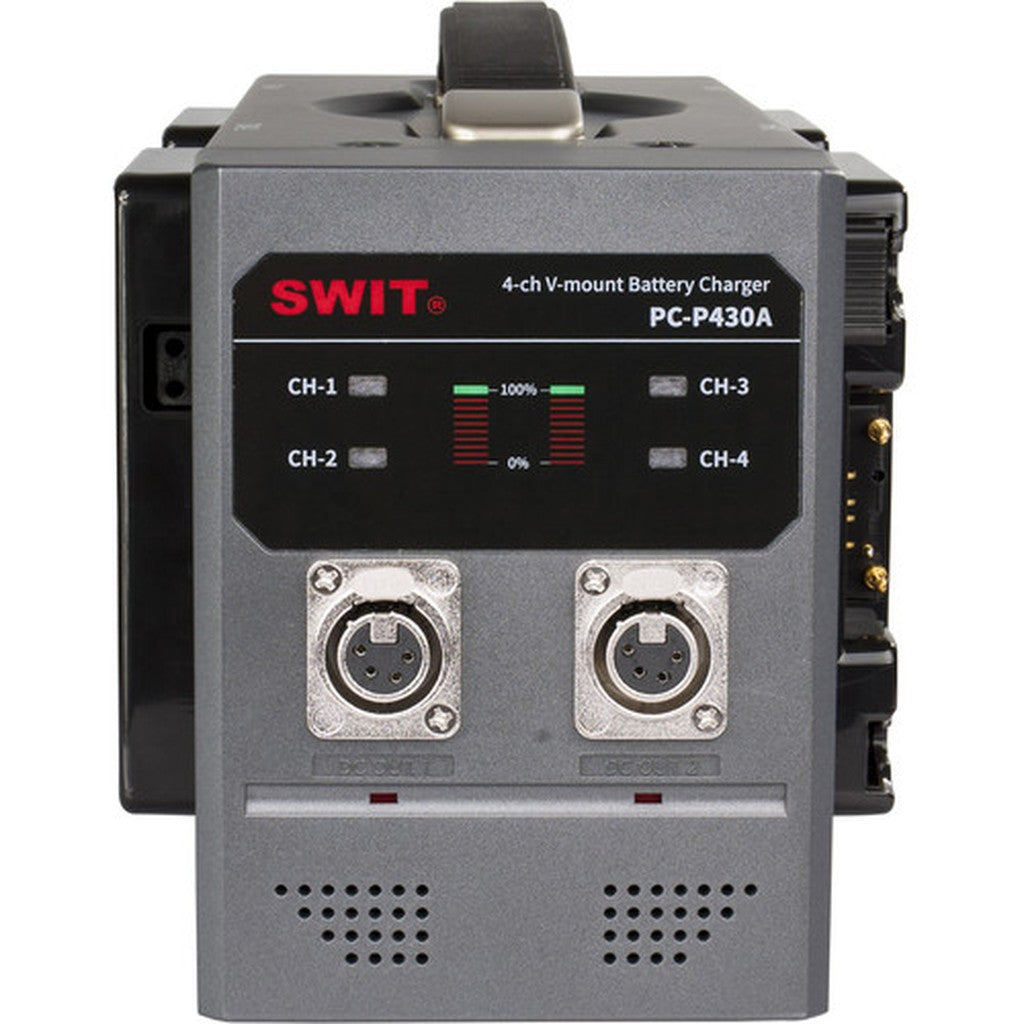

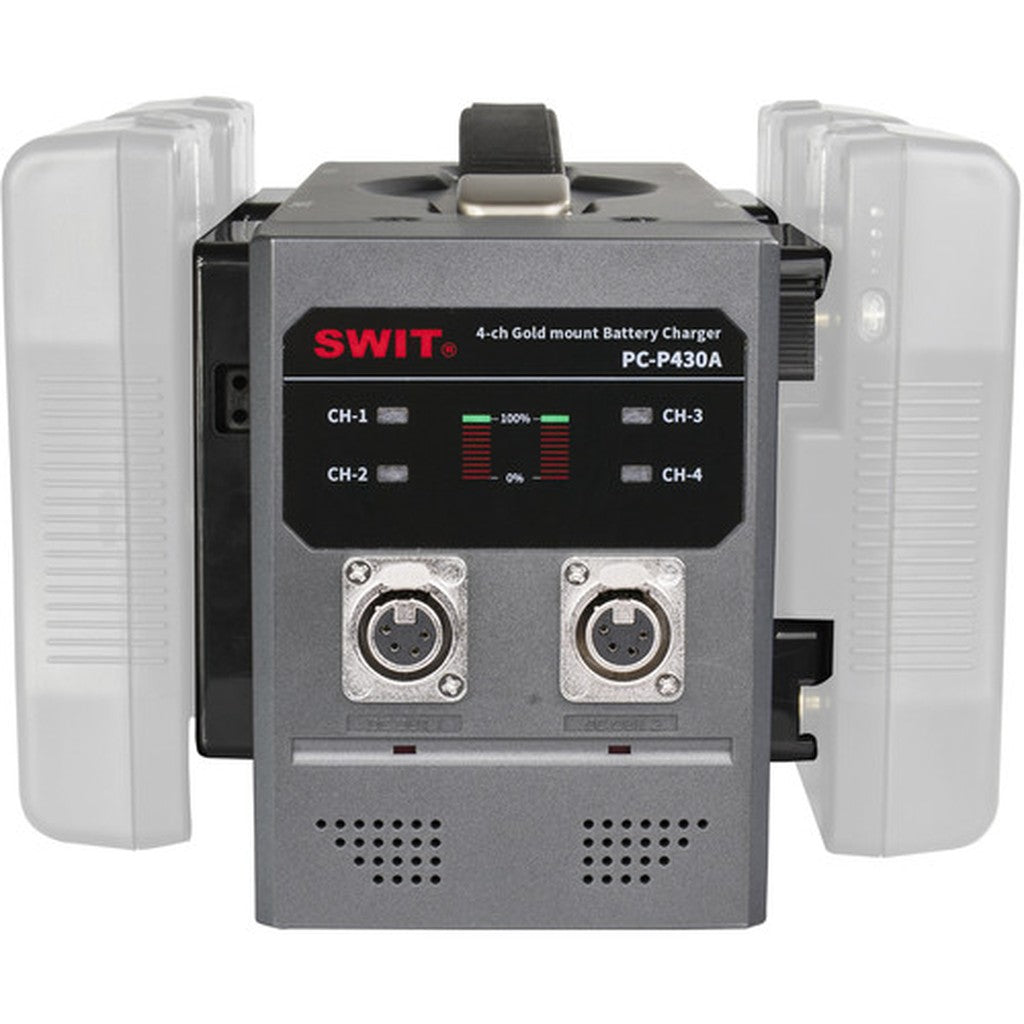

SWIT PC-P430A 4-Bay 3A Gold Mount Battery Charger

SWIT PC-P430A 4-Bay 3A Gold Mount Battery Charger

The SWIT PC-P430A Gold Mount battery charger replenishes four professional lithium-ion camera batteries simultaneously at 16.8V and 3A per channel. Its four-bay design helps broadcast crews, studios, rental facilities, and production teams maintain charged battery inventories without waiting for sequential charging cycles.

This four-channel simultaneous battery charger combines fast battery management with two 4-pin XLR power outputs. When batteries are not charging, the unit functions as an AC-to-DC adapter and supplies two external devices with regulated 15V power. It is well suited for buyers seeking a portable Gold Mount charger, a multi-bay broadcast battery charger, or centralized power support for professional video equipment.

Front-panel LED indicators use distinct colors to show the charging stage of each installed battery. Integrated overcurrent and overcharge protection controls the power delivered to compatible packs, while the universal internal power supply supports worldwide production environments. A vertical enclosure and integrated carrying handle simplify transportation between studios, equipment rooms, production vehicles, and location sets.

Key Features

• Four-Bay Simultaneous Charging: Charges up to four compatible Gold Mount lithium-ion batteries at the same time.
• 3A Charging Per Channel: Delivers 16.8V DC at 3A to each installed battery for efficient turnaround.
• Dual XLR Power Outputs: Supplies two external devices with 15V, 6A DC power when batteries are not charging.
• Color-Coded LED Indicators: Shows the real-time charging stage of each battery through red, yellow, and green lights.
• Battery Protection: Overcurrent and overcharge safeguards regulate charging power to help protect compatible battery packs.
• Universal AC Input: Accepts 100 to 240 VAC power for use in domestic and international production environments.
• Portable Vertical Design: Features a compact footprint and integrated handle for easier transport and storage.

Technical Specifications

• Model: PC-P430A
• Charger Type: Four-bay lithium-ion battery charger
• Battery Mount: Gold Mount
• Charging Mode: Simultaneous
• Charging Capacity: Four batteries
• Maximum Power: 276W
• AC Power Input: 100 to 240 VAC, 50/60 Hz
• AC Input Connector: IEC female
• Battery Charging Output: 16.8 VDC, 3A per channel
• DC Adapter Outputs: Two 4-pin XLR female connectors
• DC Adapter Output Rating: 15 VDC, 6A per channel
• Simultaneous DC Adapter Power: 90W per output
• Adapter Operation: DC adapter outputs operate only when batteries are not charging
• Charging Indicators: Four color-coded LED status indicators
• Red Indicator: Battery is charging with capacity below 80%
• Yellow Indicator: Battery is charging with capacity above 80%
• Green Indicator: Battery charging is complete
• Safety Features: Overcurrent and overcharge protection
• Operating Temperature: 32 to 104°F
• Operating Humidity: 10% to 90%
• Dimensions: 11.22" x 6.81" x 5.67"
• Weight: 7.21 lbs
• Package Weight: 7.94 lbs
• Box Dimensions: 14.4" x 9" x 8.5"
• Warranty: Limited two-year manufacturer warranty

What's In the Box

• SWIT PC-P430A 4-Bay Gold Mount Battery Charger
• AC power cable
