SWIT PC-P461B 4-Channel 100W B-Mount Battery Charger

SWIT PC-P461B 4-Channel 100W B-Mount Battery Charger

The SWIT PC-P461B B-mount battery charger simultaneously charges four professional camera batteries through independent 33.6V channels. It delivers up to 100W per channel for batteries rated at 160Wh or higher, providing an efficient charging station for high-capacity cinema battery systems.

Designed for broadcast studios, rental departments, production vehicles, and location crews, this four-channel simultaneous charger reduces the need to rotate batteries through individual bays. It supports pure 28.8V B-mount batteries and 14.4V/28.8V dual-voltage models, including high-capacity packs used with professional cinema cameras and lighting equipment.

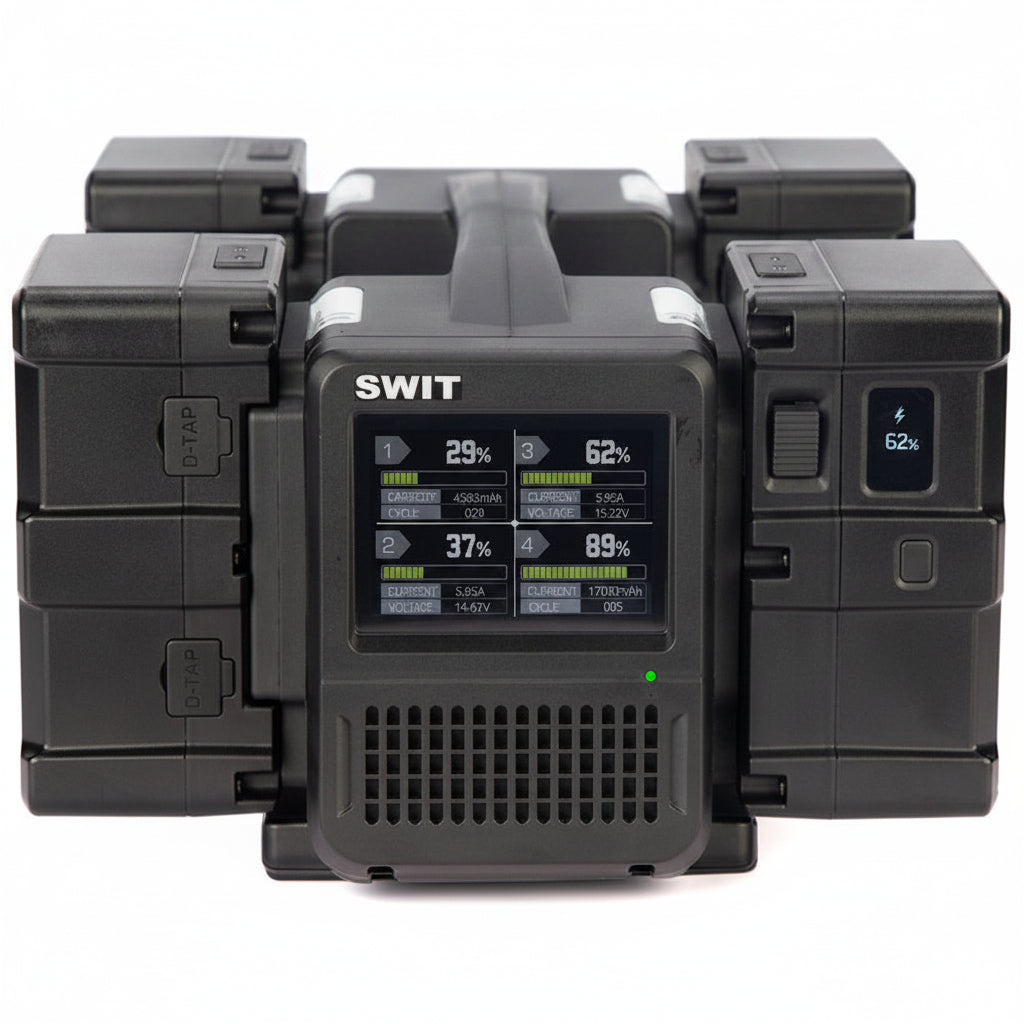

A built-in 3.5-inch color LCD displays charging progress, current, voltage, and battery cycle information for each channel. Four large top-mounted indicators provide visible status updates from across the workspace. The compact housing and integrated carrying handle make the charger easier to transport between equipment rooms, studios, and production locations.

Key Features

• Four-Channel Charging: Charges up to four compatible B-mount batteries simultaneously.
• 100W Maximum Per Channel: Supplies 33.6V DC at 3A to batteries rated at 160Wh or higher.
• Capacity-Based Charging: Delivers 33.6V DC at 1.5A and 50W to batteries below 160Wh.
• Broad B-Mount Support: Charges pure 28.8V and 14.4V/28.8V dual-voltage B-mount batteries.
• Color Status Display: Shows charging percentage, output current, voltage, and battery cycle count.
• Large LED Indicators: Provides at-a-glance status information for all four charging channels.
• Portable Construction: Combines a compact footprint with an integrated carrying handle.
• Universal AC Input: Supports 100–240V AC power for use in international production environments.

Technical Specifications

• Model: PC-P461B
• Product Type: Four-channel simultaneous battery charger
• Battery Mount: B-mount
• Charging Bays: 4
• Charging Mode: Simultaneous
• Compatible Battery Types: Pure 28.8V B-mount and 14.4V/28.8V dual-voltage B-mount batteries
• AC Input: 100–240V AC, 50/60Hz
• Power Input Connection: IEC female input
• Maximum Power: 450W
• Output for Batteries 160Wh and Higher: 33.6V DC, 3A, 100W maximum per channel
• Output for Batteries Below 160Wh: 33.6V DC, 1.5A, 50W per channel
• Maximum Simultaneous Output: 4 x 100W
• Display: 3.5-inch color LCD
• Displayed Information: Charging progress, charging current, voltage, and battery cycle count for each channel
• Status Indicators: Four large top-mounted LED indicators
• Red Indicator: Battery charge level from 0% to 80%
• Flashing Green Indicator: Battery charge level from 81% to 99%
• Solid Green Indicator: Battery fully charged
• Flashing Red Indicator: Charging error with additional information shown on the LCD
• 290Wh Battery Charge to 80%: Approximately 2 hours 30 minutes
• 290Wh Battery Full Charge: Approximately 3 hours 50 minutes
• Operating Temperature: 32 to 104°F
• Operating Humidity: 10% to 90%
• Dimensions: 12.99" x 6.02" x 6.38"
• Weight: 5.36 lbs
• Package Dimensions: 15" x 9" x 8.5"
• Package Weight: 7.28 lbs

What's In the Box

• SWIT PC-P461B 4-Channel B-Mount Battery Charger
• AC Power Cable
