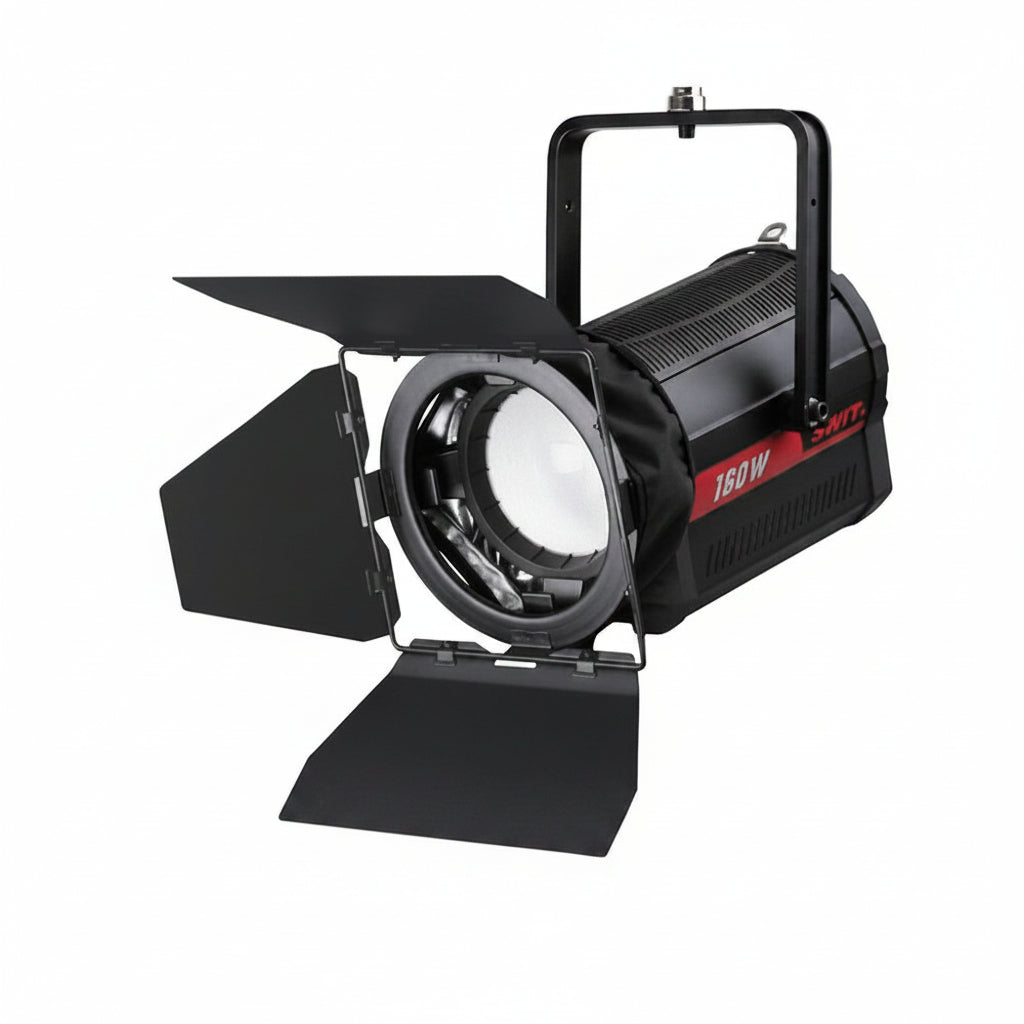

SWIT S-2320 160W Bi-Color Studio LED Spotlight with DMX

SWIT S-2320 160W Bi-Color Studio LED Spotlight with DMX

The SWIT S-2320 160W bi-color studio LED spotlight delivers adjustable hard light for broadcast studios, film sets, interviews, and field production. Its COB LED source provides a 20° to 70° spot-to-flood beam, continuously adjustable 3000 to 8000K color temperature, flicker-free dimming, and DMX512 control.

Production teams can shape the fixture as a focused key light, wider fill source, or controlled background light without changing fixtures. High CRI 95 and TLCI 95 ratings support accurate skin tones and dependable camera reproduction. A rotatable four-leaf barndoor set and blackout cloth help reduce spill and prevent unwanted light leakage.

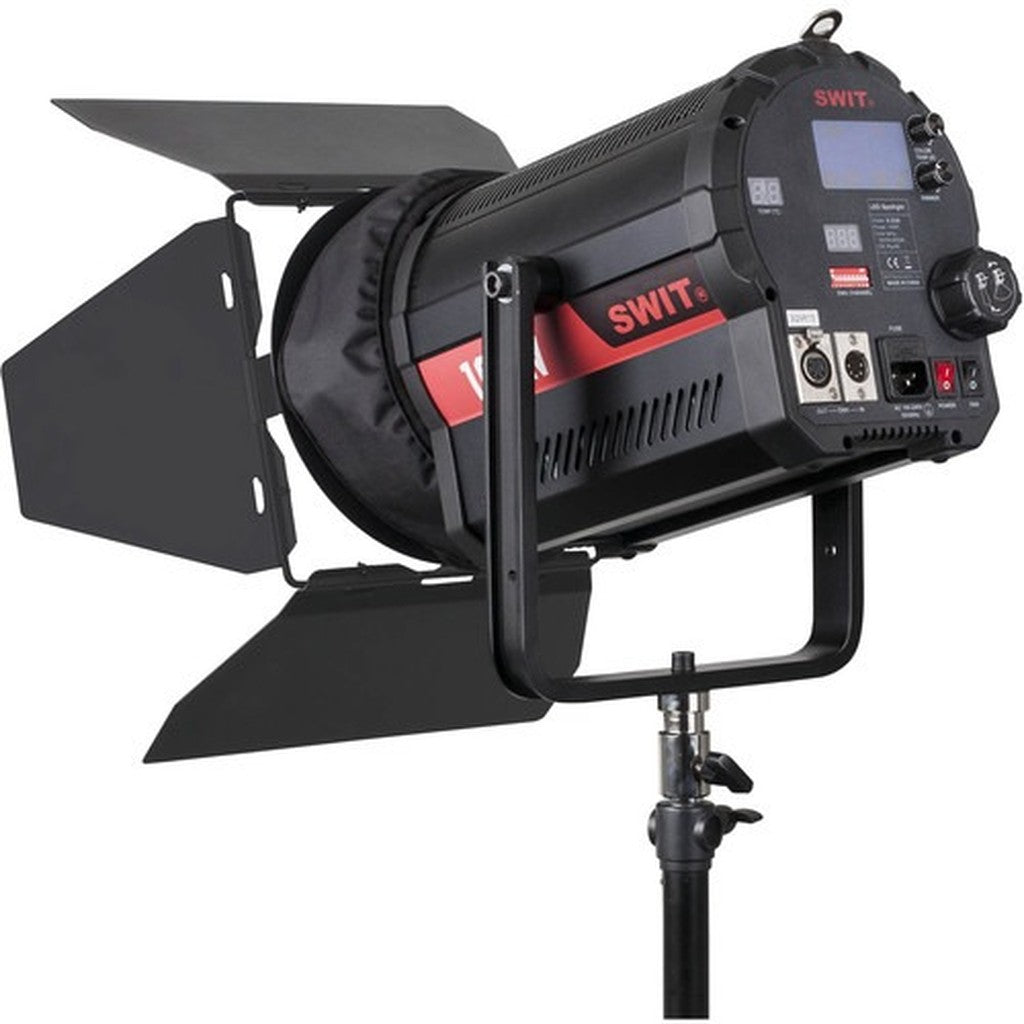

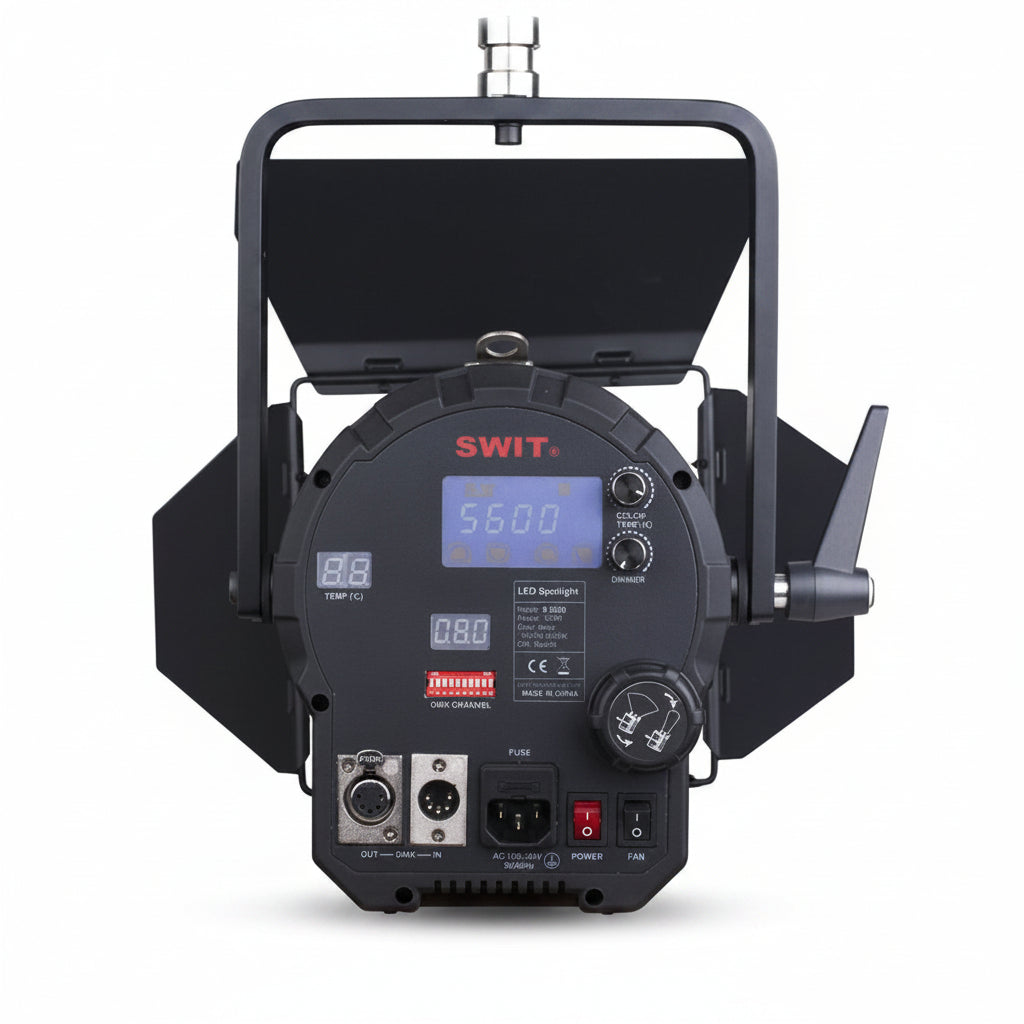

The rear LCD displays brightness, color temperature, and DMX settings while supporting direct onboard adjustment. Five-pin DMX input and output integrate the spotlight into professional lighting systems. Silent Mode switches off the cooling fans for audio-sensitive recording, while Sleep Mode temporarily darkens the fixture and restores the previous brightness setting when reactivated.

Key Features

• 160W COB LED Source: Produces concentrated studio illumination with a rated 50,000-hour operating life.
• Adjustable Spot-to-Flood Beam: Changes from a focused 20° beam to a broad 70° spread.
• Extended Bi-Color Range: Continuously adjusts from 3000 to 8000K for tungsten, daylight, and mixed environments.
• Accurate Color Rendering: CRI 95 and TLCI 95 ratings support faithful colors and natural skin tones.
• Flicker-Free Dimming: Provides continuous 0 to 100% brightness adjustment for professional video capture.
• DMX512 Integration: Five-pin input and output connections control brightness and color temperature remotely.
• Silent and Sleep Modes: Supports quiet recording and rapid restoration of the previous brightness level.
• Durable Light Shaping: Includes rotatable metal barndoors and blackout cloth within a strong metal housing.

Technical Specifications

• Model: S-2320
• Item Type: Bi-color LED studio spotlight
• Light Source: Chip-on-board LED
• Light Output: 160W
• Rated LED Life: 50,000 hours
• Beam Angle: 20° to 70° spot/flood adjustment
• Spot Output at 3.3 Feet: 16,200 lux / 1505 fc
• Flood Output at 3.3 Feet: 4914 lux / 457 fc
• Spot Output at 9.8 Feet: 1800 lux / 167 fc
• Flood Output at 9.8 Feet: 546 lux / 51 fc
• Spot Output at 16.4 Feet: 666 lux / 62 fc
• Flood Output at 16.4 Feet: 196 lux / 18 fc
• Color Temperature: 3000 to 8000K
• Color Modes: Daylight and tungsten
• CRI: 95 at 5600K
• TLCI: 95
• Dimming: Continuous 0 to 100%
• DMX Protocol: DMX512
• DMX Control: Brightness and color temperature
• DMX Input: 1 x 5-pin XLR
• DMX Output: 1 x 5-pin XLR
• DMX Addressing: Separate address for brightness and color temperature
• Display: Rear LCD
• Onboard Display Information: Brightness, color temperature, and DMX address
• Cooling System: Fan cooled
• Silent Mode: Switches off cooling fans and limits maximum brightness to 50%
• Sleep Mode: Temporarily switches off output and restores the previous dimmer level
• Thermal Protection: LED overheat detection and protection
• Included Light Modifier: Removable and rotatable four-leaf barndoors
• Front Accessory Mount: Proprietary
• Preprogrammed Effects: No
• Built-In Flash: No
• Umbrella Mount: No
• Power Source: AC power
• Power Input: 100 to 240V AC, 50/60Hz
• Power Connection: IEC input
• Power Consumption: 160W
• Power Pass-Through: No
• Inline Power Switch: No
• Yoke Type: Manually operated U-shaped yoke
• Fixture Mount: 1-1/8" stud with 5/8" receiver through the yoke
• Housing Material: Metal
• Environmental Resistance: No
• Dimensions: 15.4" x 14.6" x 12.6"
• Weight: 11 lbs
• Package Dimensions: 22.8" x 15.2" x 14"
• Packaged Weight: 18.26 lbs
• Included Storage Case: No

What's In the Box

• SWIT S-2320 160W Bi-Color Studio LED Spotlight
• U-shaped mounting bracket
• Four-leaf barndoors
• Blackout cloth
• 13.1-foot AC power cable
