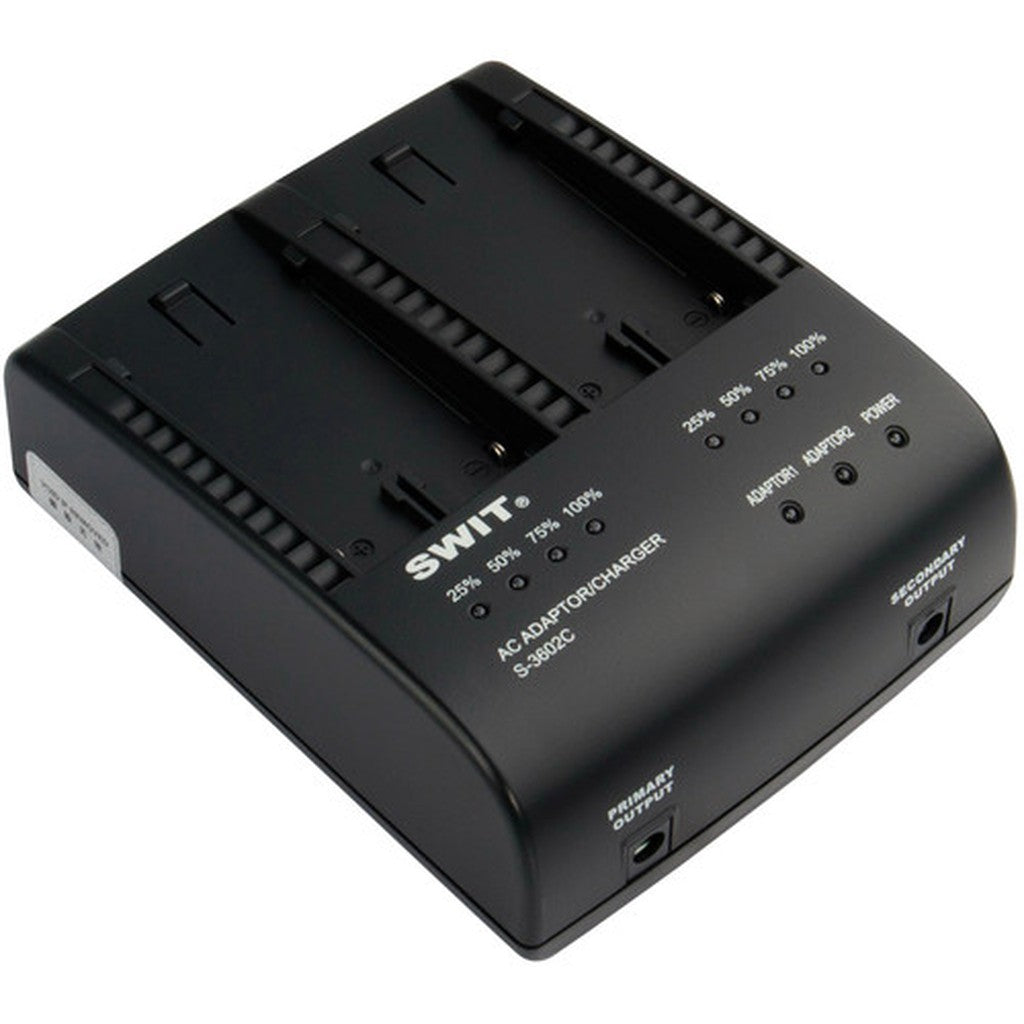

SWIT S-3602C Dual Canon BP Battery Charger and Power Adapter

SWIT S-3602C Dual Canon BP Battery Charger and Power Adapter

The SWIT S-3602C dual Canon BP battery charger and power adapter simultaneously charges two compatible batteries while serving as an AC-to-DC power source. Each charging channel supplies 7 to 8.4V DC at 1.8A, while two 5.5/2.1mm outputs deliver 8.4V DC at up to 3.5A total.

Built for camera operators, production teams, and rental facilities, this two-channel charger supports efficient battery management between shoots. Use it to charge two Canon BP-series batteries simultaneously, power two compatible devices, or charge one battery while supplying DC power to a camera or production accessory.

The S-3602C supports SWIT S-8845 and S-8945 batteries, plus Canon BP-945 and BP-970G models. Independent four-level LED indicators display charging progress at 25%, 50%, 75%, and 100%, giving crews a clear view of each battery’s status during studio, broadcast, and field production.

Key Features

• Dual-Channel Charging: Charges two compatible Canon BP-series batteries at the same time.
• Independent Charging Output: Delivers 7 to 8.4V DC at 1.8A through each charging channel.

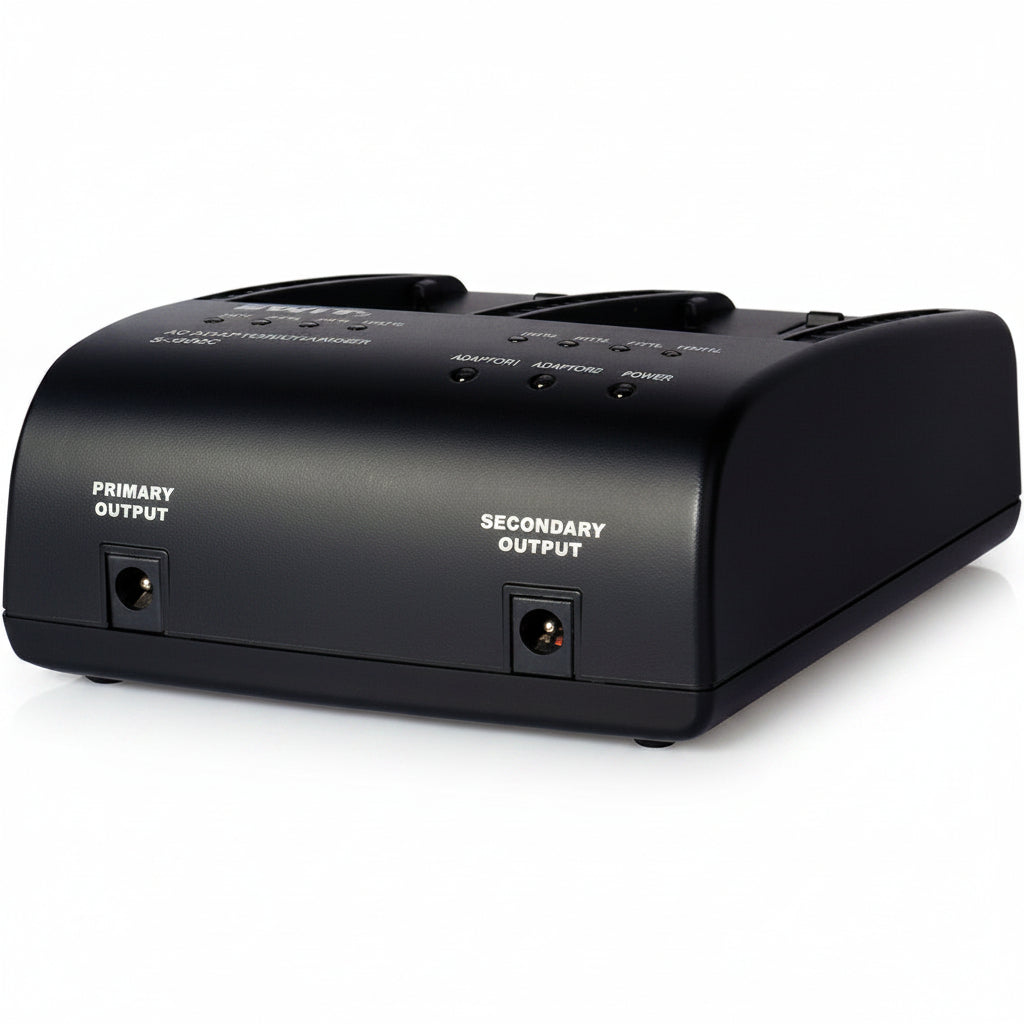

• Dual DC Power Outputs: Two 5.5/2.1mm sockets provide 8.4V DC at up to 3.5A total.

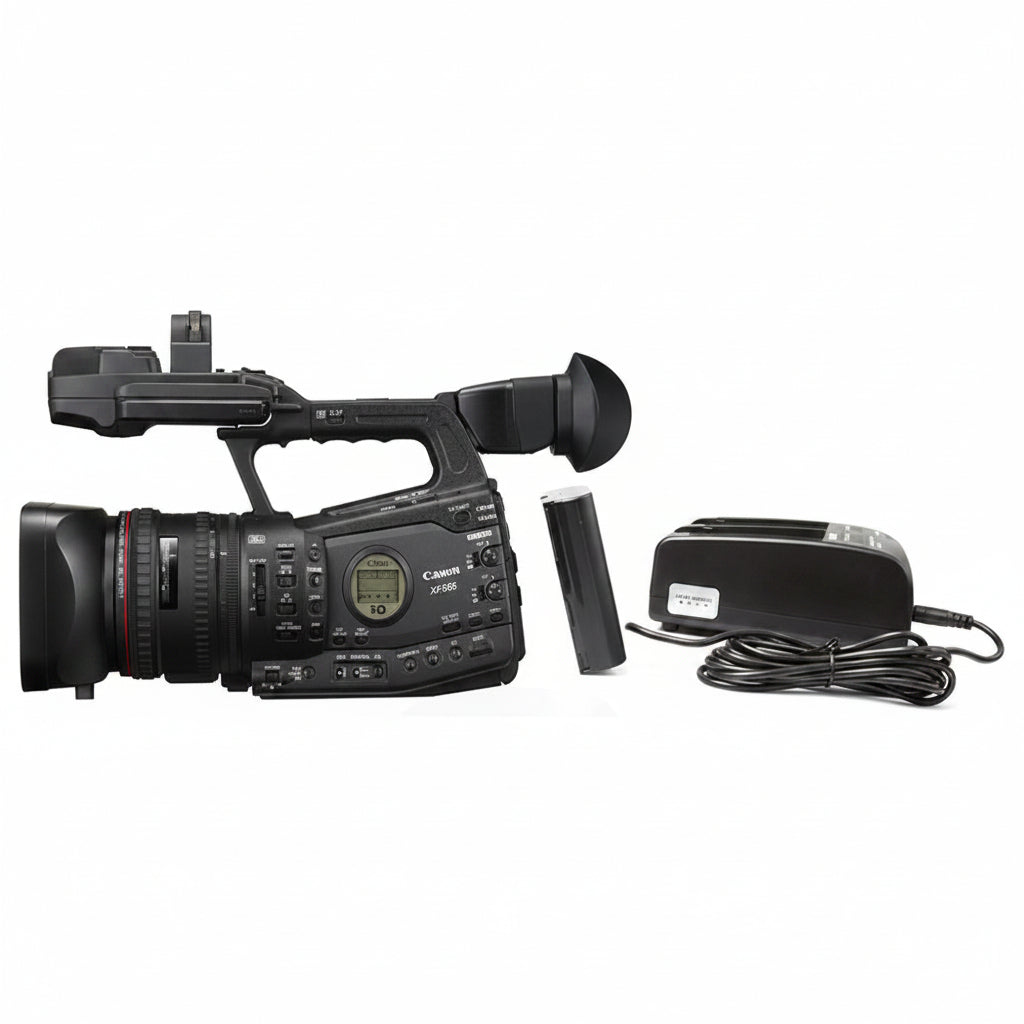

• Flexible Charger and Adapter Operation: Charges a battery while simultaneously powering compatible camera equipment.
• Four-Level LED Indicators: Displays real-time charging capacity at 25%, 50%, 75%, and 100%.
• Universal AC Input: Accepts 100 to 240V AC power for use across common regional electrical systems.
• Canon BP Compatibility: Supports selected SWIT and Canon BP-series professional video batteries.

Technical Specifications

• Model: S-3602C
• Product Type: Dual-channel battery charger and AC-to-DC power adapter
• Charging Channels: Two
• Charging Mode: Simultaneous
• Power Input: 100 to 240V AC, 50/60Hz
• Charging Output: 7 to 8.4V DC, 1.8A per channel
• DC Adapter Output: 8.4V DC, 3.5A total
• DC Output Connections: Two 5.5/2.1mm female barrel sockets
• Maximum Power Consumption: 50W
• Charging Indicators: Independent four-level LED indicators
• Displayed Capacity Levels: 25%, 50%, 75%, and 100%
• Compatible SWIT Batteries: S-8845 and S-8945
• Compatible Canon Batteries: BP-945 and BP-970G
• Compatible Camera Series: Canon XF100, XF105, XF300, XF305, XH-A1, and XL-H1
• Operating Temperature: 32 to 104°F
• Dimensions: 5.35" x 4.33" x 1.85"
• Weight: 0.79 lbs

What's In the Box

• SWIT S-3602C Dual Charger and Power Adapter
• AC Power Cable
