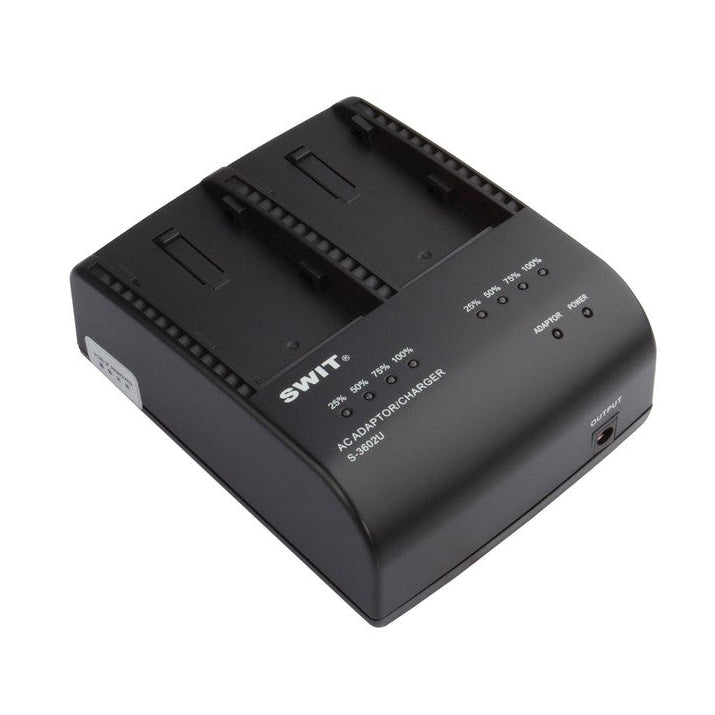

SWIT S-3602U Dual Sony BP-U Battery Charger and Camera Adapter

SWIT S-3602U Dual Sony BP-U Battery Charger and Camera Adapter

The SWIT S-3602U dual Sony BP-U battery charger provides intelligent two-channel charging for compatible SWIT and Sony camcorder batteries. It also functions as a 12V AC-to-DC camera adapter, allowing production crews to power select Sony PMW and PXW cameras directly from an electrical outlet.

Designed for studios, rental departments, news crews, and field-production kits, the S-3602U supports SWIT S-8U65 and S-8U95 batteries plus Sony BP-U30 and BP-U60 models. It charges one battery in approximately three hours or two batteries in approximately five hours, helping operators prepare multiple packs between shoots.

Dynamic power management charges two installed batteries sequentially to 75% capacity before completing both batteries simultaneously. Independent four-level LED indicators display real-time charging progress for each channel. A universal 100–240V AC input supports international production workflows, while the included DC adapter cable connects the charger’s regulated output to compatible Sony cameras.

Key Features

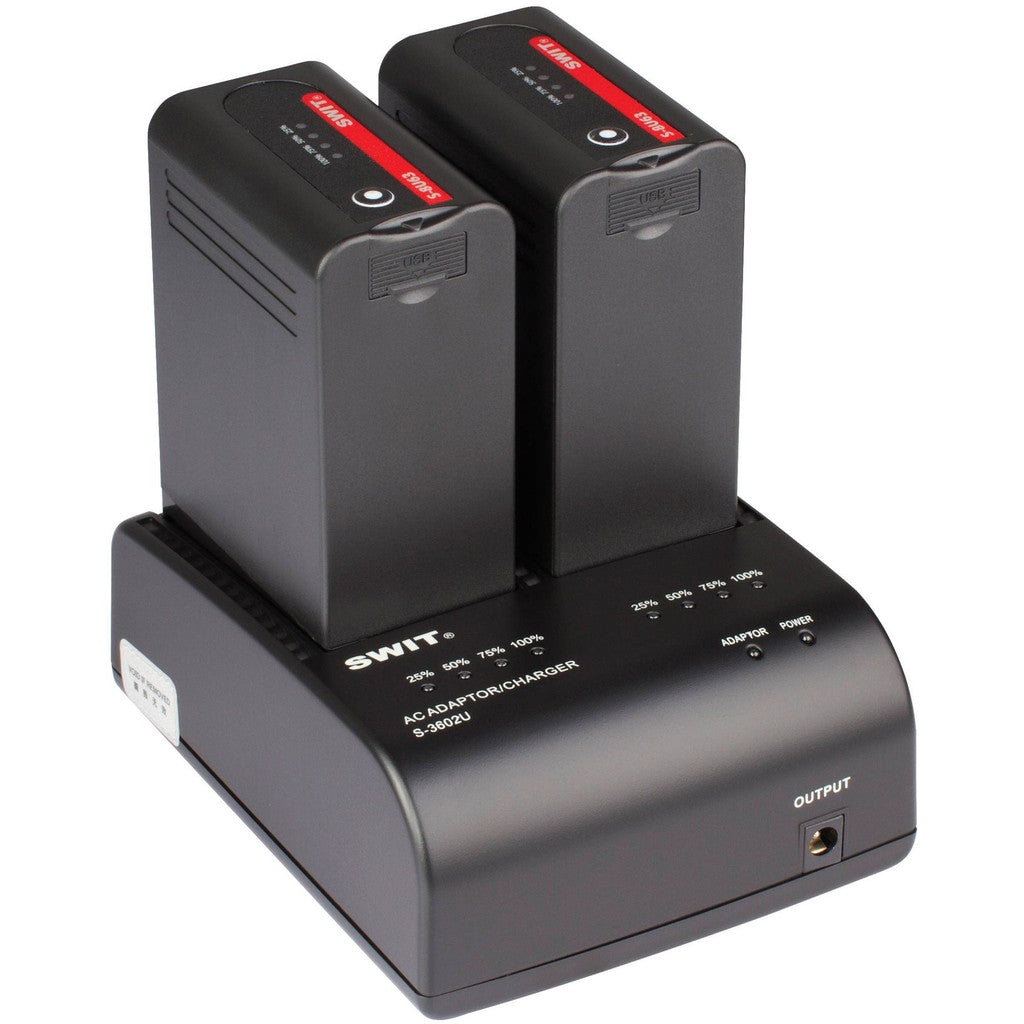

• Two-Channel BP-U Charging: Accommodates two compatible SWIT or Sony camcorder batteries for efficient production turnaround.
• Intelligent Power Management: Charges both batteries sequentially to 75% before completing them simultaneously.

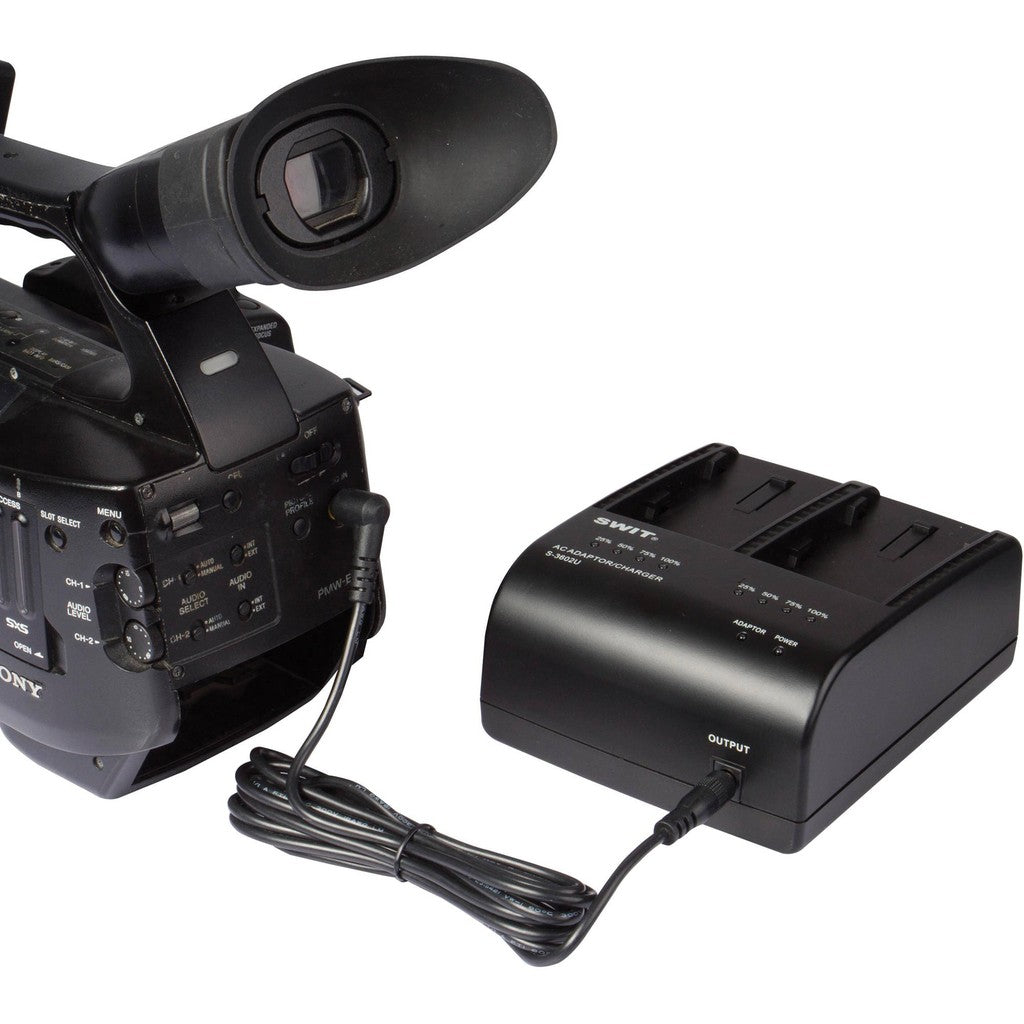

• Camera Adapter Function: Supplies regulated 12V DC power to compatible Sony PMW and PXW camcorders.
• Fast Charging Performance: Charges one supported battery in approximately three hours or two in five hours.
• Independent LED Indicators: Four-level displays show real-time charging progress separately for each battery channel.
• Universal AC Input: Accepts 100–240V AC power at 50 or 60Hz for worldwide operation.
• Compact Production Design: Combines battery charging and direct camera power in one portable unit.

Technical Specifications

• Brand: SWIT
• Model: S-3602U
• Product Type: Dual-channel battery charger and AC-to-DC camera adapter
• Battery Mount: Sony BP-U Series
• Battery Bays: 2
• Charging Mode: Intelligent dynamic power management
• Charging Sequence: Sequential charging to 75% capacity followed by simultaneous charging to full capacity
• Compatible SWIT Batteries: S-8U65 and S-8U95
• Compatible Sony Batteries: BP-U30 and BP-U60
• AC Input: 100–240V AC, 50/60Hz
• Charging Output: 16.7V DC, 1.9A
• Adapter Output: 12V DC, 1.9A
• Maximum Adapter Output Power: 23W

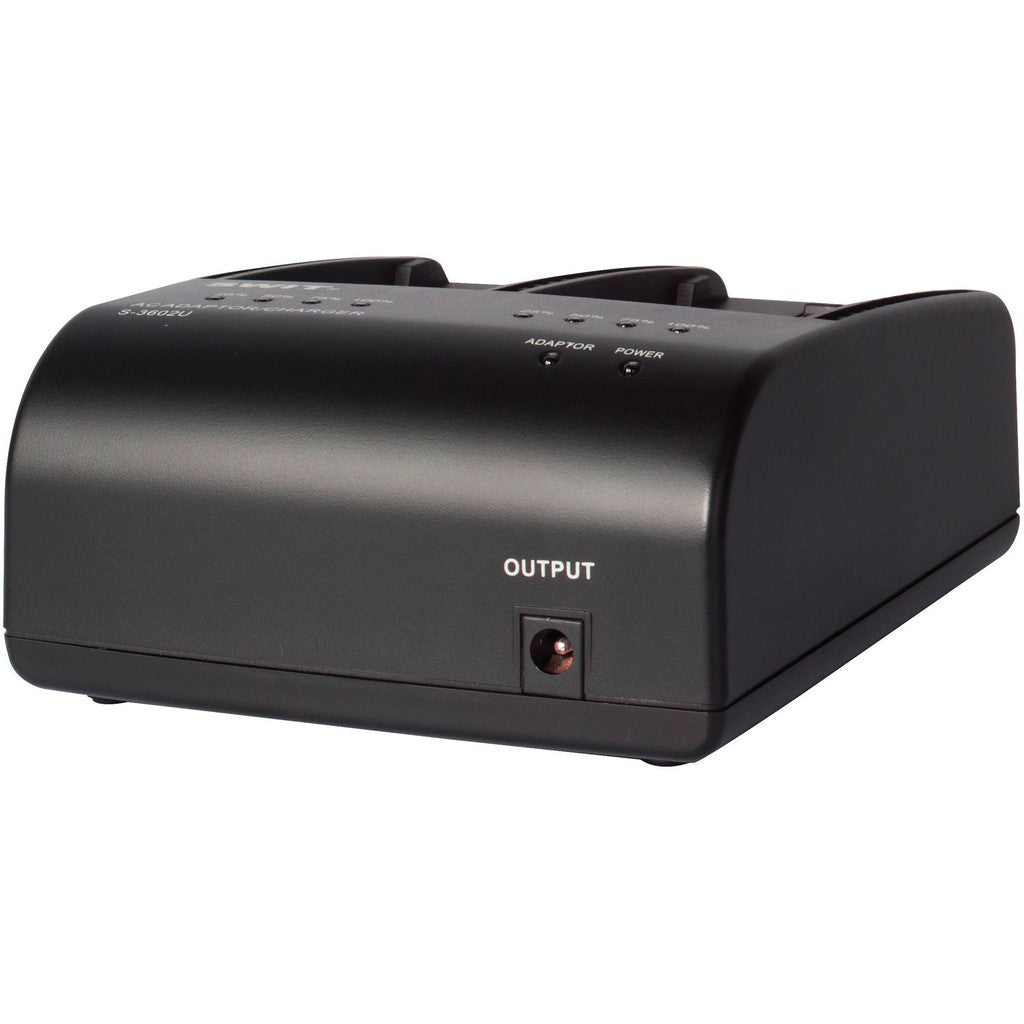

• Adapter Output Connection: 1 x 5.5/2.1mm barrel/coax female socket
• AC Input Connection: 1 x IEC female input
• Approximate Charging Time: 3 hours for one battery; 5 hours for two batteries
• Charging Indicators: Independent four-level LED indicators
• Compatible Sony Cameras: PMW-EX1, PMW-EX3, PMW-F3, PMW-100, PMW-200, PMW-300, PXW-X160, PXW-X180, PXW-X200, PXW-FS7, and PXW-FS5
• Dimensions: 5.4" x 4.3" x 2.1"
• Weight: 0.8 lbs
• Package Weight: 1.4 lbs
• Box Dimensions: 9.2" x 7.7" x 2.7"

What's In the Box

• SWIT S-3602U Dual Sony BP-U Battery Charger and Camera Adapter
• DC Camera Adapter Cable
• AC Power Cable
