SWIT S-3602V Dual JVC BN-VF823 Battery Charger and DC Adapter

SWIT S-3602V Dual JVC BN-VF823 Battery Charger and DC Adapter

The SWIT S-3602V dual JVC BN-VF823 battery charger simultaneously charges two compatible camcorder batteries through independent charging channels. It also functions as an AC-to-DC adapter, delivering regulated 8.4V power through two barrel outputs for compatible cameras, accessories, and dummy-battery adapters.

Designed for studios, production companies, rental departments, and location crews, the S-3602V supports SWIT S-8823 and JVC BN-VF823 DV batteries. Two-channel simultaneous charging helps reduce battery turnaround time, while separate four-level LED indicators display the real-time charge status of each installed battery.

Both 5.5/2.1mm DC sockets can operate together with a combined output of up to 3.5A. Operators can also charge a battery on one channel while using the other connection to power compatible equipment. The universal 100–240V AC input supports professional workflows across different regions and electrical systems.

Key Features

• Dual-Battery Charging: Charges two compatible SWIT or JVC camcorder batteries simultaneously.
• JVC BN-VF823 Compatibility: Supports JVC BN-VF823 DV batteries and SWIT S-8823 replacement batteries.
• Independent Charging Channels: Provides dedicated charging control and status monitoring for each installed battery.
• Dual DC Adapter Outputs: Two barrel sockets power compatible cameras, accessories, or dummy-battery adapters.
• Flexible Power Operation: Charges a battery while simultaneously supplying DC power through the other channel.
• Four-Level LED Indicators: Displays the real-time charging percentage for each battery independently.
• Universal AC Input: Accepts 100–240V AC power at 50 or 60Hz for international operation.

Technical Specifications

• Brand: SWIT
• Model: S-3602V
• Product Type: Dual-channel battery charger and AC-to-DC adapter
• Battery Bays: 2
• Charging Mode: Independent, simultaneous charging
• Compatible SWIT Battery: S-8823
• Compatible JVC Battery: BN-VF823 DV Series
• AC Input: 100–240V AC, 50/60Hz
• Charging Output: 7–8.4V DC at 1.8A per channel
• DC Adapter Output: 8.4V DC at 3.5A combined

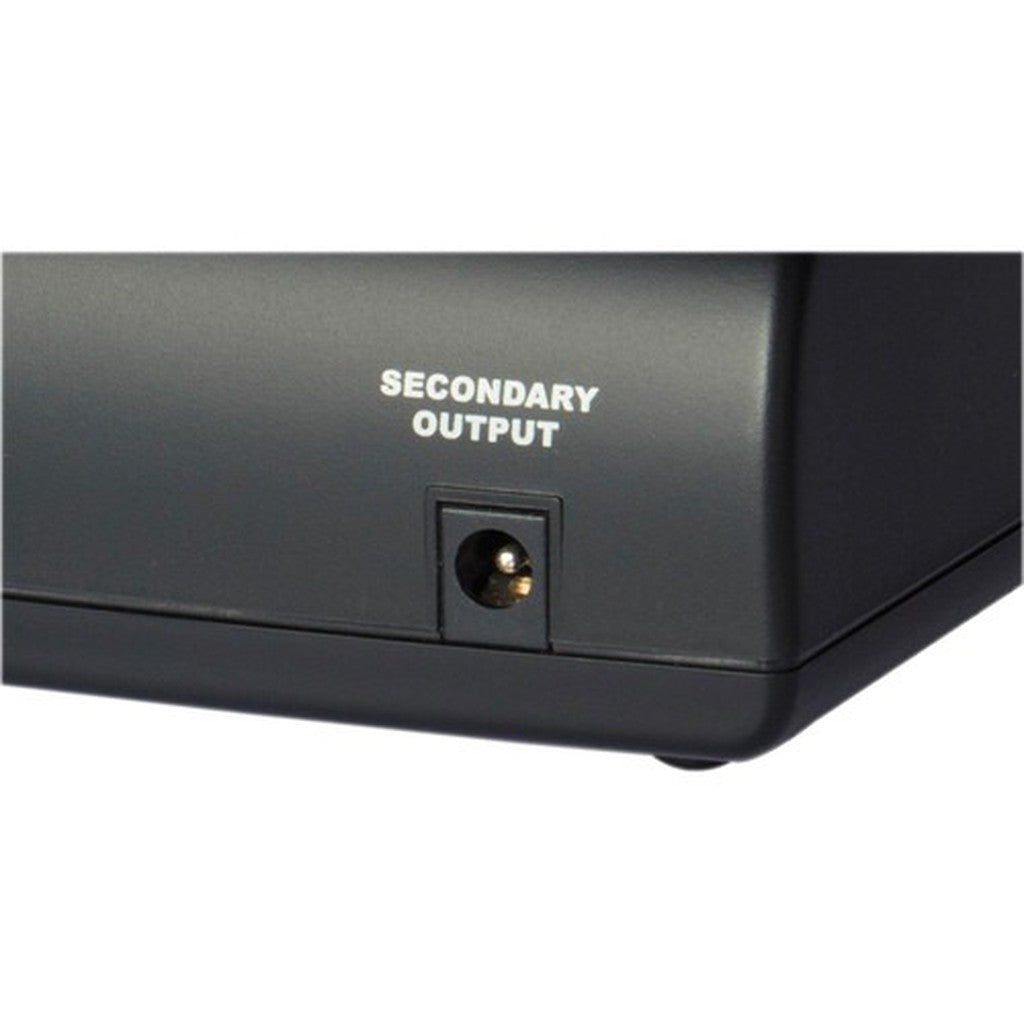

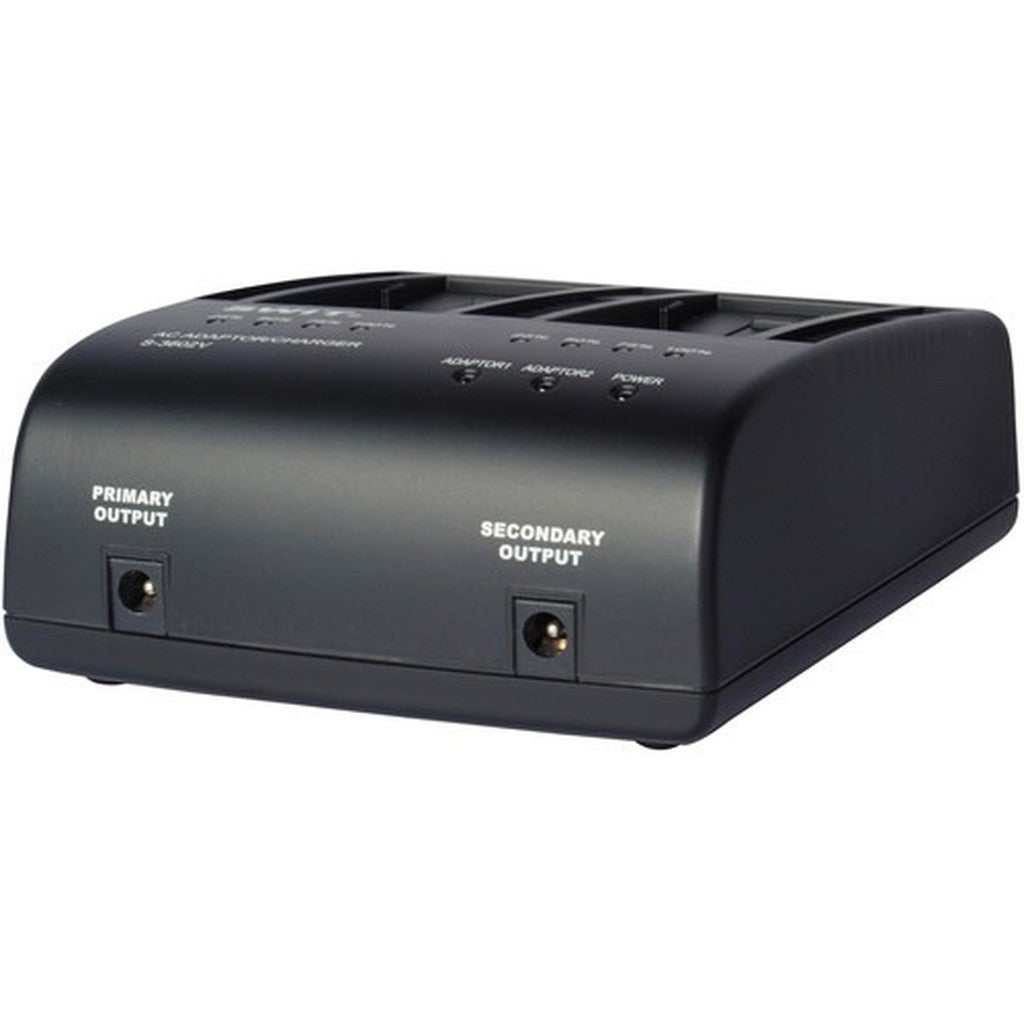

• DC Output Connections: 2 x 5.5/2.1mm barrel/coax female sockets
• AC Input Connection: 1 x IEC female input
• Charging Indicators: Independent four-level LED indicators
• Included Power Cable: USA Type-A/B plug to IEC male cable
• Dimensions: 5.4" x 4.3" x 1.9"
• Weight: 0.79 lbs
• Package Weight: 1.44 lbs
• Box Dimensions: 9.1" x 7.7" x 2.5"

What's In the Box

• SWIT S-3602V Dual Charger and DC Adapter
• Power Supply
