SWIT S-3822A 2-Channel 3A Gold Mount Battery Charger

SWIT S-3822A 2-Channel 3A Gold Mount Battery Charger

The SWIT S-3822A Gold Mount battery charger simultaneously charges two professional camera batteries at 16.8V and 3A per channel. Its dual-channel design helps camera crews, studios, rental facilities, and broadcast teams replenish two battery packs together instead of waiting through separate charging cycles.

Built for portable production workflows, the S-3822A combines multi-battery charging with a front-panel 4-pin XLR power output. When batteries are not charging, the unit operates as a 15V, 6A AC-to-DC adapter for compatible cameras, monitors, lights, and production accessories. It is a practical choice for buyers seeking a portable Gold Mount charger or a compact broadcast power solution.

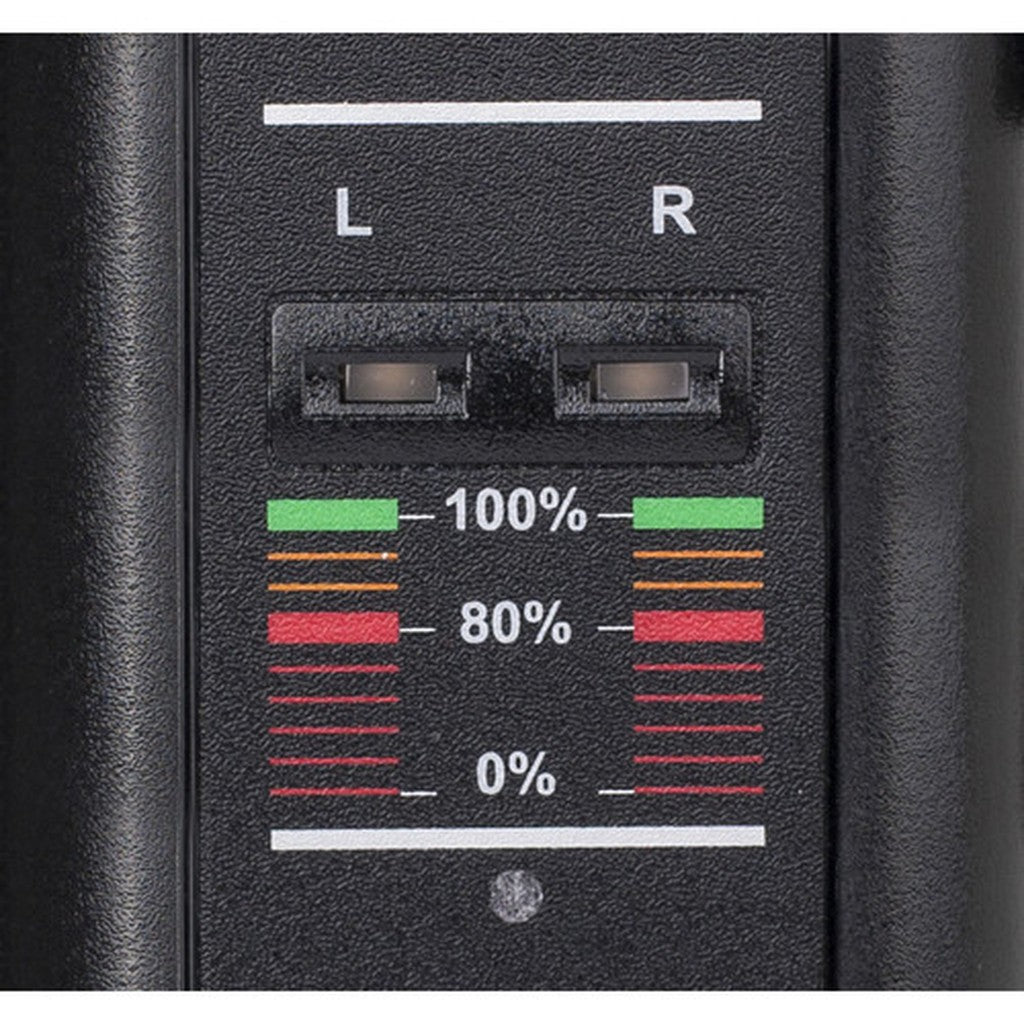

Color-coded LED indicators show the charging condition of each installed battery without requiring a separate display. Red indicates capacity below 80%, yellow shows capacity above 80%, and green confirms charging is complete. Universal 100 to 240 VAC input supports domestic and international operation, while the lightweight housing simplifies transportation between studios, production vehicles, and location sets.

Key Features

• Dual-Channel Charging: Charges two compatible Gold Mount batteries simultaneously for more efficient battery rotation.
• 3A Output Per Channel: Delivers 16.8V charging power independently to both installed battery packs.
• 4-Pin XLR Power Output: Functions as a 15V, 6A, 90W AC-to-DC adapter when batteries are not charging.
• Color-Coded Status Indicators: Uses red, yellow, and green LEDs to communicate charging progress clearly.
• Universal AC Input: Accepts 100 to 240 VAC power for use in worldwide production environments.
• Portable Construction: Features a lightweight, compact enclosure suited to mobile crews and equipment rooms.
• Professional Gold Mount Support: Provides centralized charging for compatible broadcast and cinema battery systems.

Technical Specifications

• Model: S-3822A
• Charger Type: Dual-channel battery charger and AC-to-DC adapter
• Battery Compatibility: Gold Mount batteries
• Charging Capacity: Two batteries
• Charging Mode: Simultaneous
• AC Power Input: 100 to 240 VAC, 50/60 Hz
• AC Input Connector: IEC female
• Maximum Power Consumption: 136W
• Charging Output: 16.8 VDC, 3A per channel
• Charging Channels: Two
• DC Output Connector: 4-pin XLR female
• AC-to-DC Adapter Output: 15 VDC, 6A, 90W
• Adapter Operation: The 4-pin XLR output does not operate while batteries are charging
• Charging Indicators: Front-panel color LED indicators
• Red Indicator: Battery is charging with capacity below 80%
• Yellow Indicator: Battery is charging with capacity above 80%
• Green Indicator: Charging is complete
• Operating Temperature: 32 to 104°F
• Dimensions: 9" x 5.5" x 3.4"
• Weight: 2.2 lbs
• Package Weight: 2.91 lbs
• Box Dimensions: 10" x 6.25" x 4.75"
• Warranty: Two-year conditional manufacturer warranty

What's In the Box

• SWIT S-3822A Dual-Channel Gold Mount Battery Charger
• USA Type-A/B to IEC power cable
