SWIT S-4609 Portable 3G-SDI Audio De-Embedder

SWIT S-4609 Portable 3G-SDI Audio De-Embedder

The SWIT S-4609 SDI Audio De-Embedder extracts any two audio channels from the first eight channels embedded in a 3G, HD, or SD-SDI signal. It provides professional AES/EBU digital audio and balanced analog outputs while maintaining two reclocked SDI loop outputs for broadcast, field production, and AV conversion workflows.

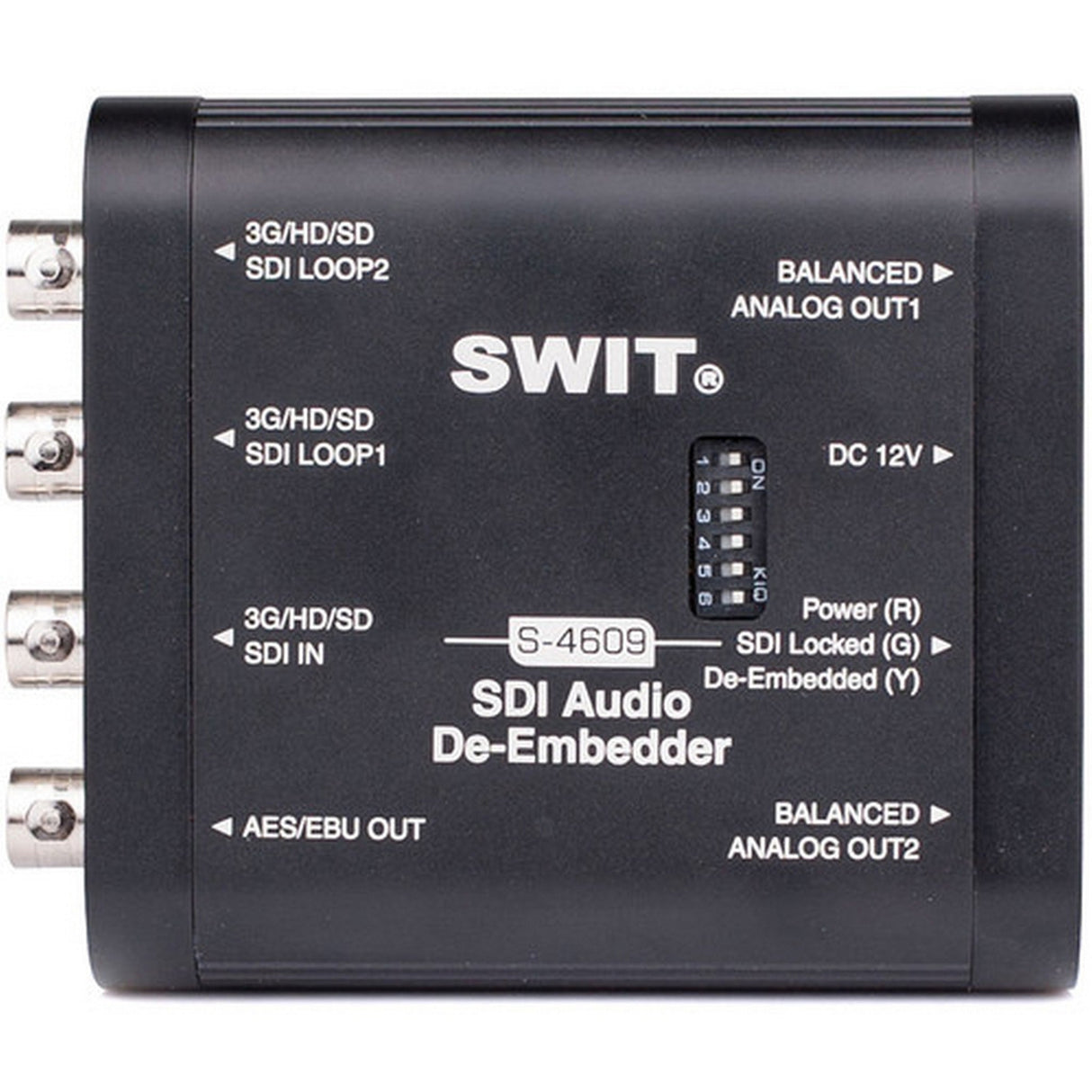

Six front-panel switches select the desired two-channel audio pair without requiring software or an external controller. The S-4609 is especially useful when a production needs separate audio feeds for recorders, mixers, monitoring equipment, or other professional audio hardware while preserving the original SDI signal for downstream devices. If AES/EBU and analog audio outputs are connected simultaneously, the AES/EBU output takes priority.

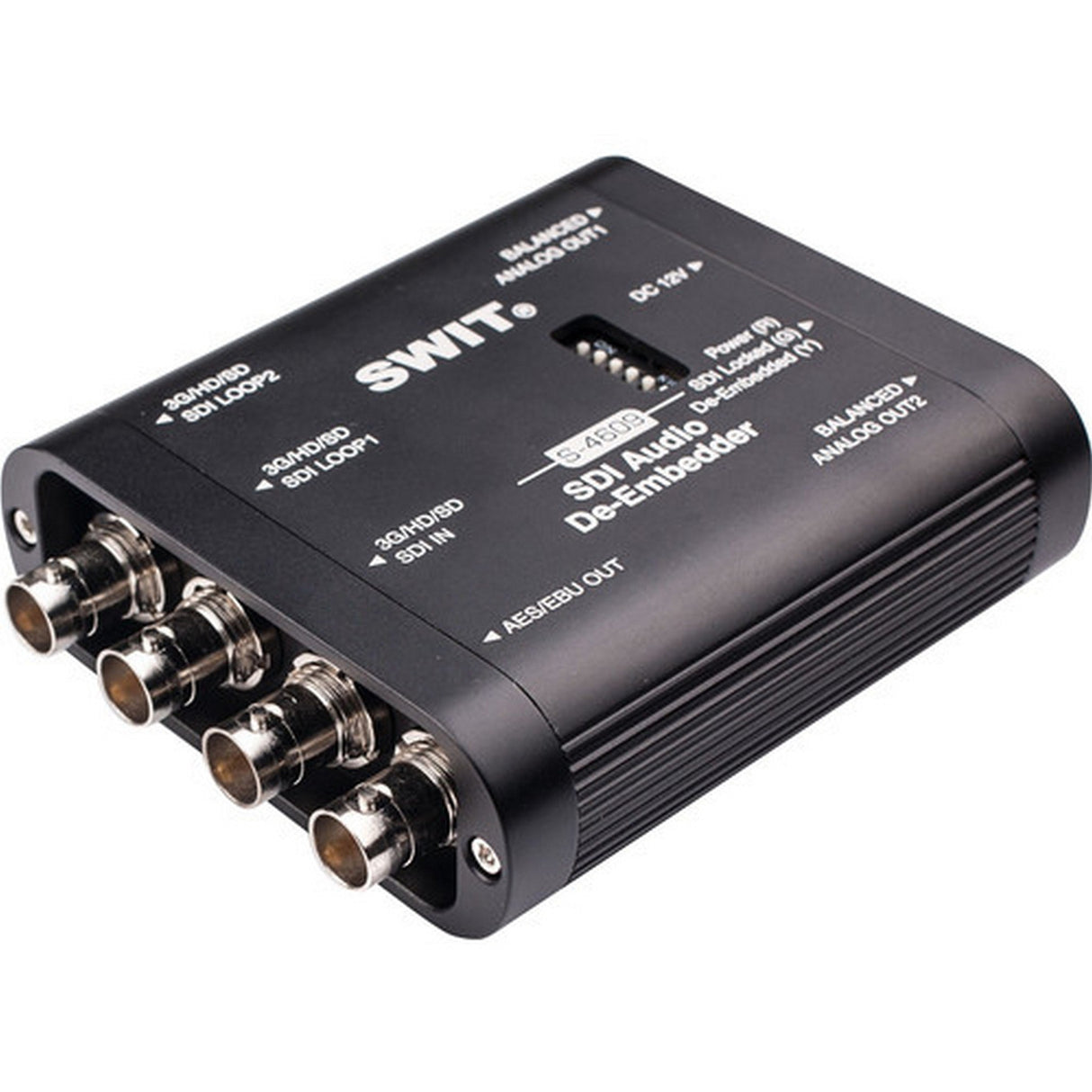

A unibody aluminum-alloy enclosure protects the connectors during mobile production, while bottom 1/4-inch mounting threads support camera installation. The included installation plate also allows wall mounting and cable management. Three status indicators provide immediate confirmation of power, recognized SDI input, and active audio de-embedding, and the 6-18V DC input supports either the included AC adapter or a compatible battery-powered field setup.

Key Features

• 3G/HD/SD-SDI Audio Extraction: De-embeds two channels of audio from the first eight channels carried by a compatible SDI signal.
• Selectable Audio Channels: Six onboard switches let operators choose the required embedded two-channel pair directly from the converter.
• Digital and Analog Audio Outputs: Provides two-channel AES/EBU digital audio plus two balanced 1/4-inch analog outputs.
• Dual Reclocked SDI Outputs: Two loop outputs pass the incoming 3G, HD, or SD-SDI signal to additional production equipment.

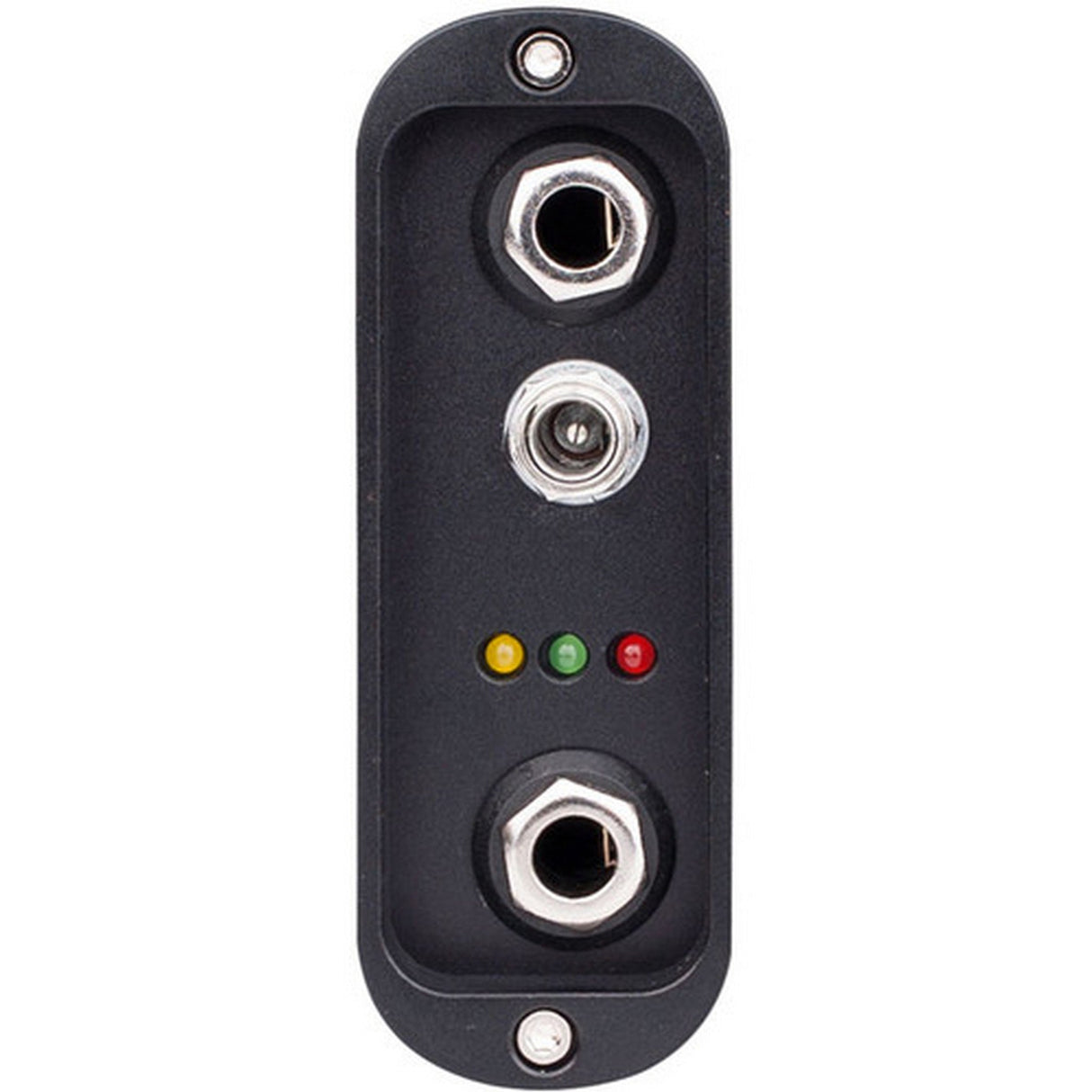

• Professional Status Monitoring: Dedicated LEDs indicate power, SDI signal recognition, and successful audio de-embedding.
• Field-Ready Power: Operates from 6-18V DC and can run from the included AC adapter or a compatible external battery source.
• Rugged Aluminum Housing: A compact unibody enclosure protects the BNC and audio connections during field and studio use.
• Flexible Installation: Bottom 1/4-inch mounting threads and an included installation plate support camera, wall, and fixed-system mounting.

Technical Specifications

Video and Audio Connections

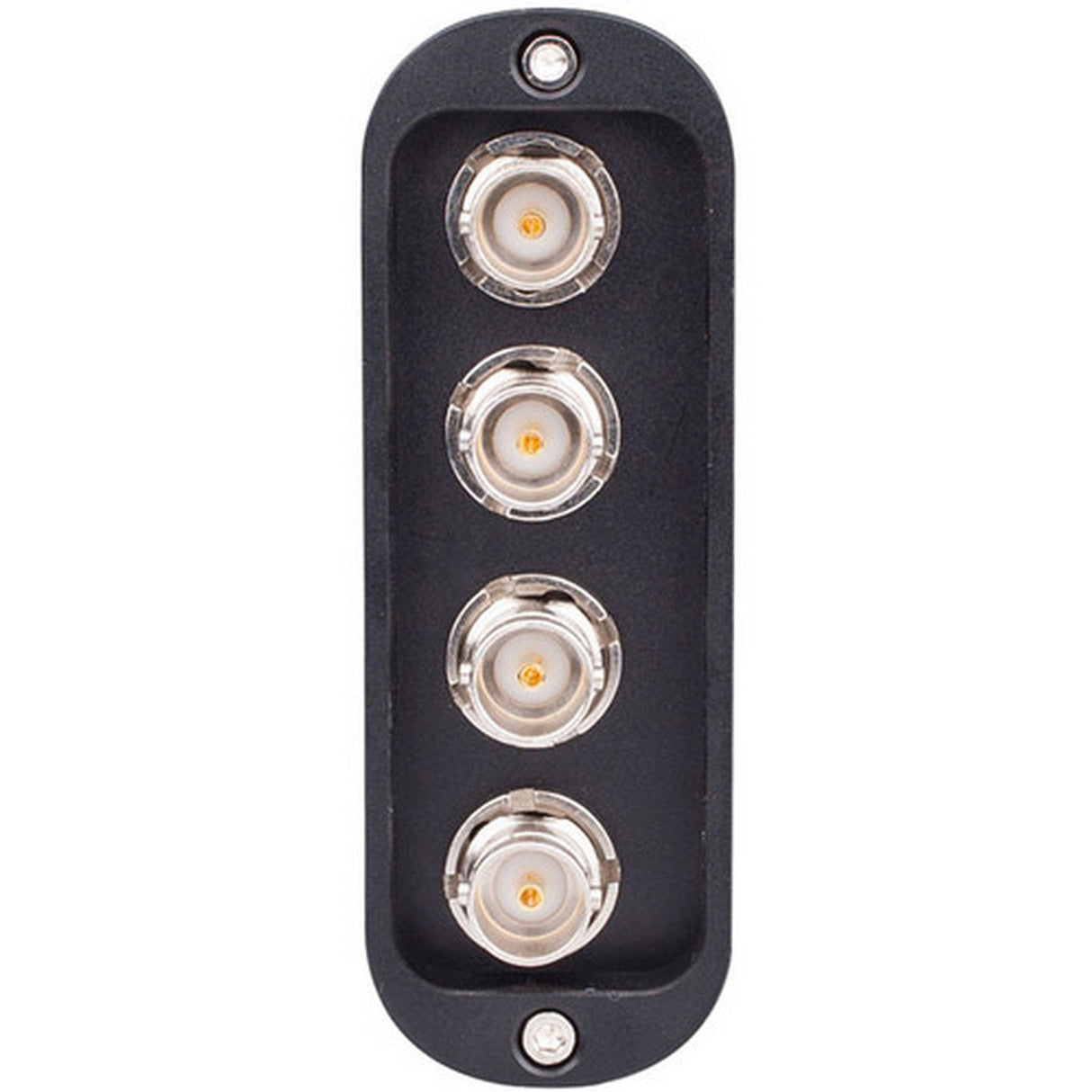

• SDI Input: 1 x BNC, 3G/HD/SD-SDI
• SDI Loop Outputs: 2 x BNC, reclocked 3G/HD/SD-SDI
• Digital Audio Output: 1 x BNC, 2-channel AES/EBU
• Analog Audio Outputs: 2 x 1/4-inch balanced outputs
• Audio De-Embedding: Any two channels selectable from the first eight embedded SDI audio channels

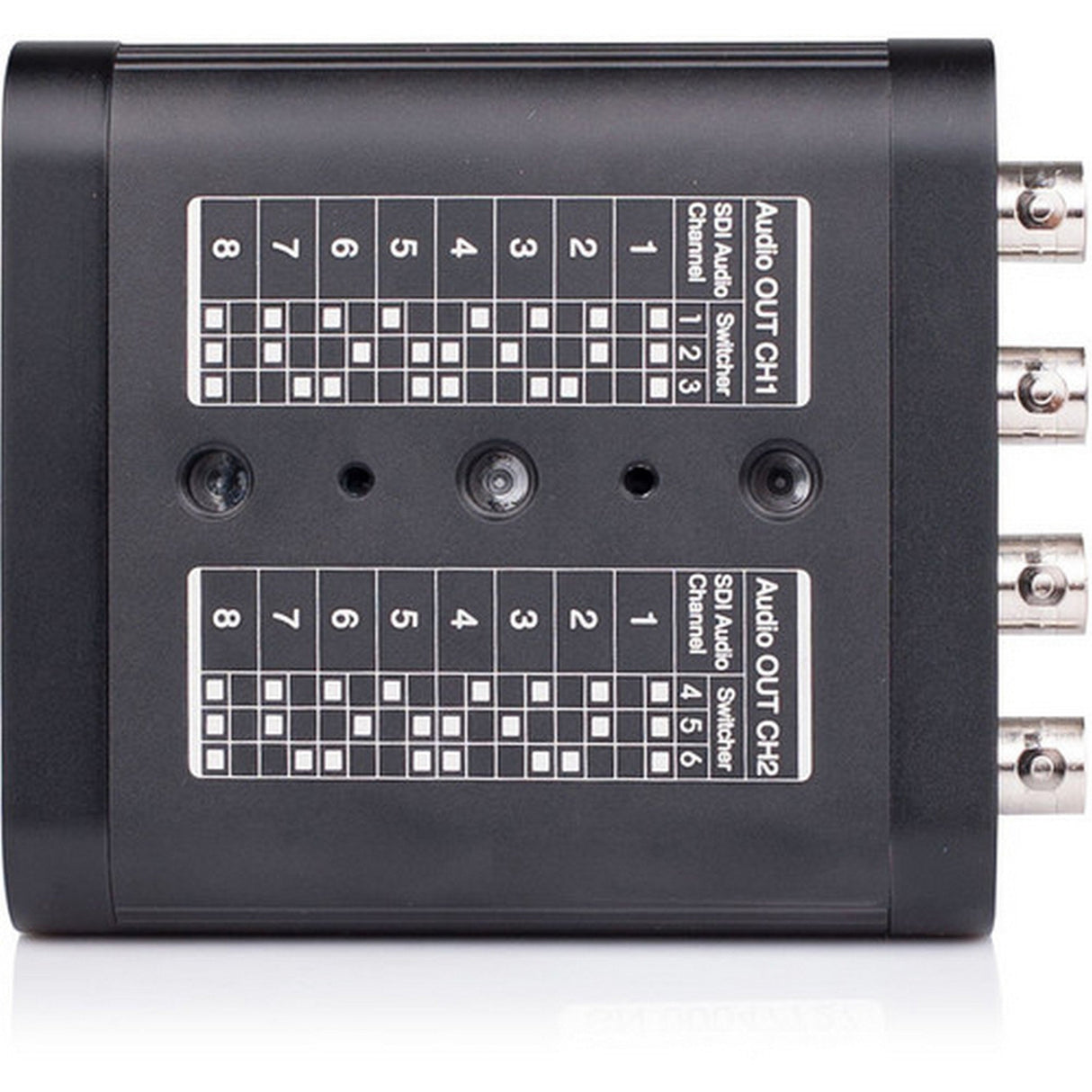

• Channel Selection: Six onboard switches
• Simultaneous Audio Output Behavior: AES/EBU output takes priority when AES/EBU and analog outputs are connected simultaneously

Supported SDI Formats

• SMPTE 425M: 1080p at 60, 59.94, and 50 fps
• SMPTE 274M: 1080i at 60, 59.94, and 50; 1080p at 30, 29.97, 25, 24, and 23.98 fps
• SMPTE RP211: 1080PsF at 30, 29.97, 25, 24, and 23.98 fps
• SMPTE 296M: 720p at 60, 59.94, and 50 fps
• SMPTE 125M: 480i at 59.94
• ITU-R BT.656: 576i at 50

Audio Specifications

• Digital Audio Type: AES/EBU
• Digital Audio Output Level: 5 Vp-p
• Digital Audio Sample Frequency: 48 kHz
• Analog Audio Maximum Output Level: +24 dBu
• Analog Audio Bandwidth: 20 Hz-20 kHz

Power and Status

• Power Consumption: 3W maximum
• Operating Voltage: 6-18V DC
• Power Connection: Pole-tap DC input
• Status Indicators: Power, SDI input recognition, and audio de-embedding

Physical and Environmental

• Housing: Unibody aluminum alloy
• Mounting: Bottom 1/4-inch threaded mounting points
• Operating Temperature: 32-122 degrees F
• Operating Humidity: 10-90%
• Dimensions: 3.9 x 3.3 x 1.1 inches
• Weight: 0.5 lb
• Package Dimensions: 6.5 x 4.8 x 3 inches
• Package Weight: 1.2 lb

What's In the Box

• SWIT S-4609 SDI Audio De-Embedder
• AC-DC Power Adapter
• Installation Plate
