SWIT S-4610 Portable 3G-SDI Audio Embedder

SWIT S-4610 Portable 3G-SDI Audio Embedder

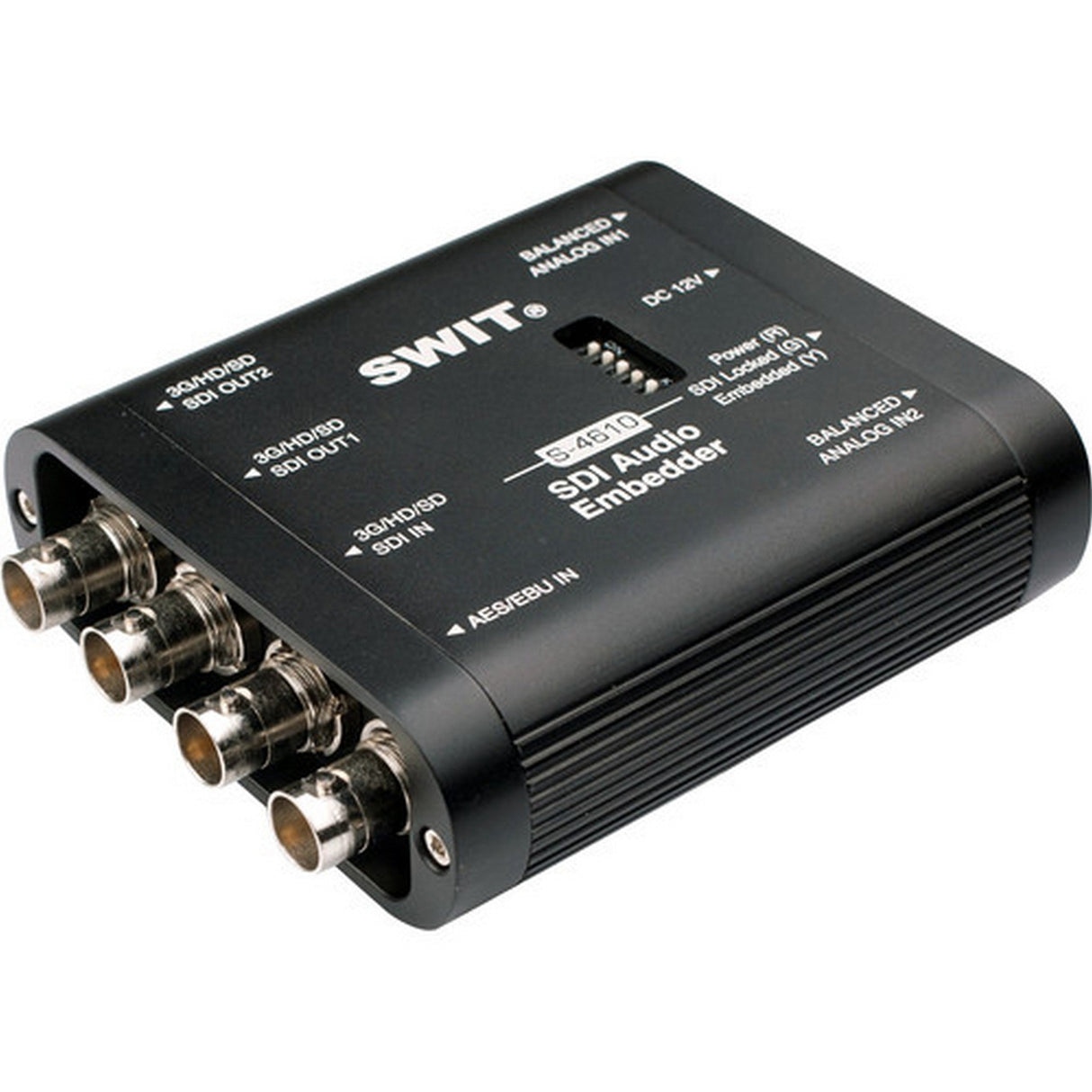

The SWIT S-4610 Portable 3G-SDI Audio Embedder inserts two channels of AES/EBU or balanced analog audio into any two positions within the first eight SDI audio channels. It accepts 3G-SDI, HD-SDI, and SD-SDI video and provides two newly embedded SDI outputs for professional broadcast and production workflows.

Six front-panel switches select the destination audio channels without requiring software or an external controller. The S-4610 works well for field production, studio routing, transmission systems, and installations that need to combine separately sourced audio with an existing SDI video feed. When digital and analog audio are connected simultaneously, the AES/EBU source takes priority for embedding.

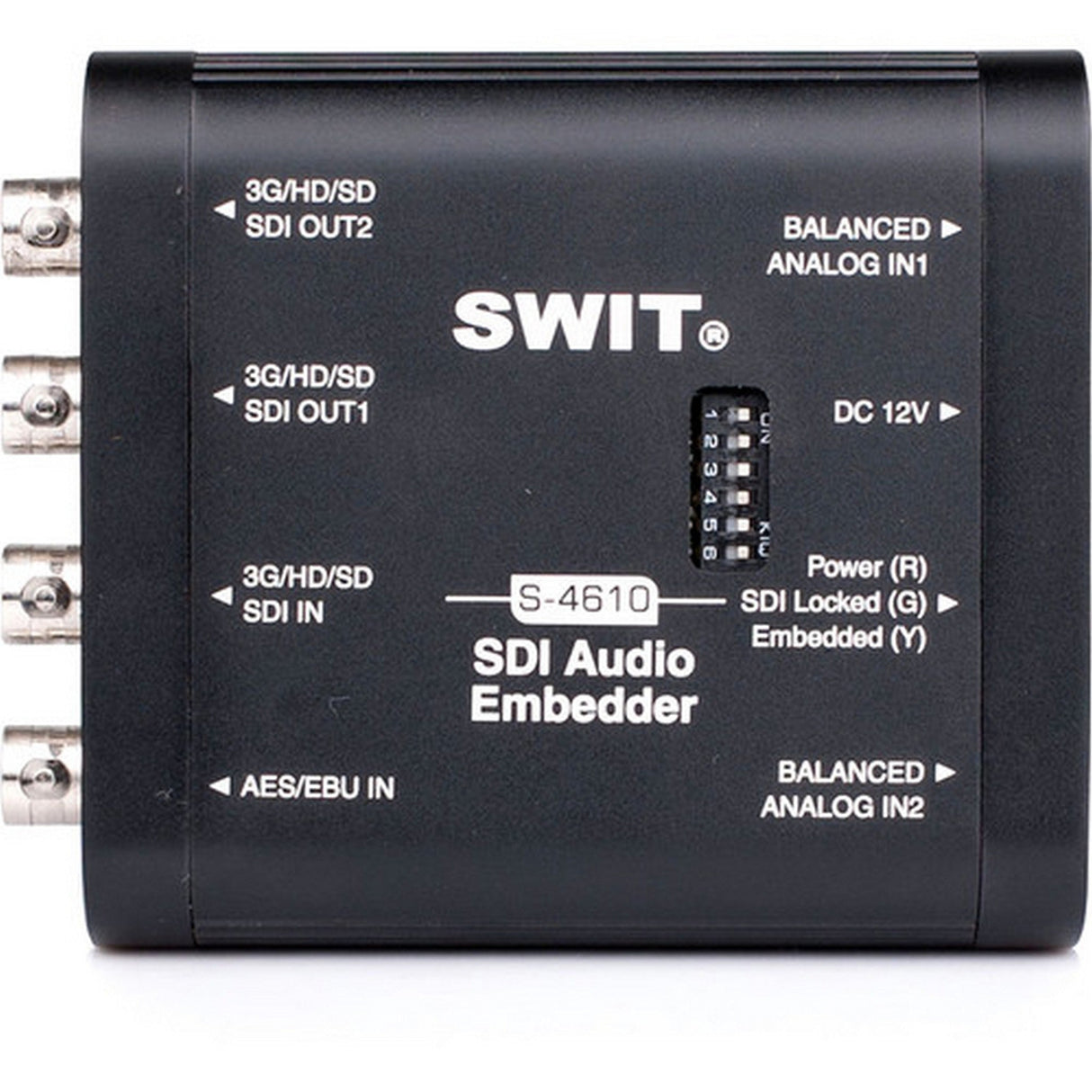

A unibody aluminum-alloy enclosure protects the connections in mobile environments, while bottom 1/4-inch mounting threads allow camera installation. The included mounting plate supports wall installation and cable management. Three LEDs indicate power, recognized SDI input, and successful embedding, while the 6-18V DC input supports the supplied AC adapter or compatible battery power.

Key Features

• 3G/HD/SD-SDI Audio Embedding: Adds external audio to compatible SDI video signals at data rates up to 3 Gb/s.
• Selectable Two-Channel Placement: Embeds two audio channels into any two positions among the first eight SDI audio channels.
• Digital Audio Input: Accepts two-channel AES/EBU audio through a BNC connection for professional digital audio workflows.

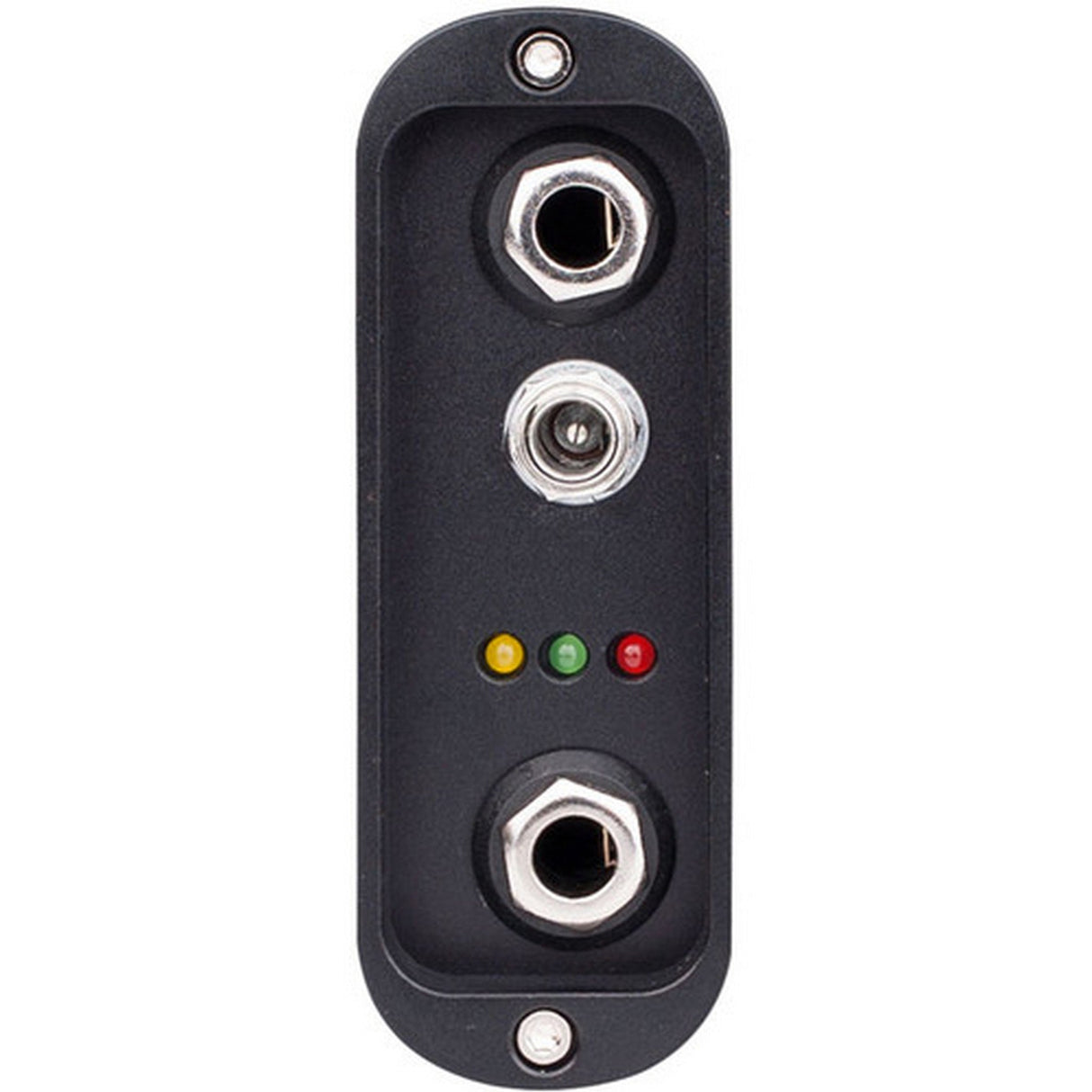

• Balanced Analog Inputs: Two 1/4-inch balanced connections accommodate external analog audio sources.
• Dual Embedded SDI Outputs: Provides two 3G/HD/SD-SDI outputs carrying the newly embedded audio.

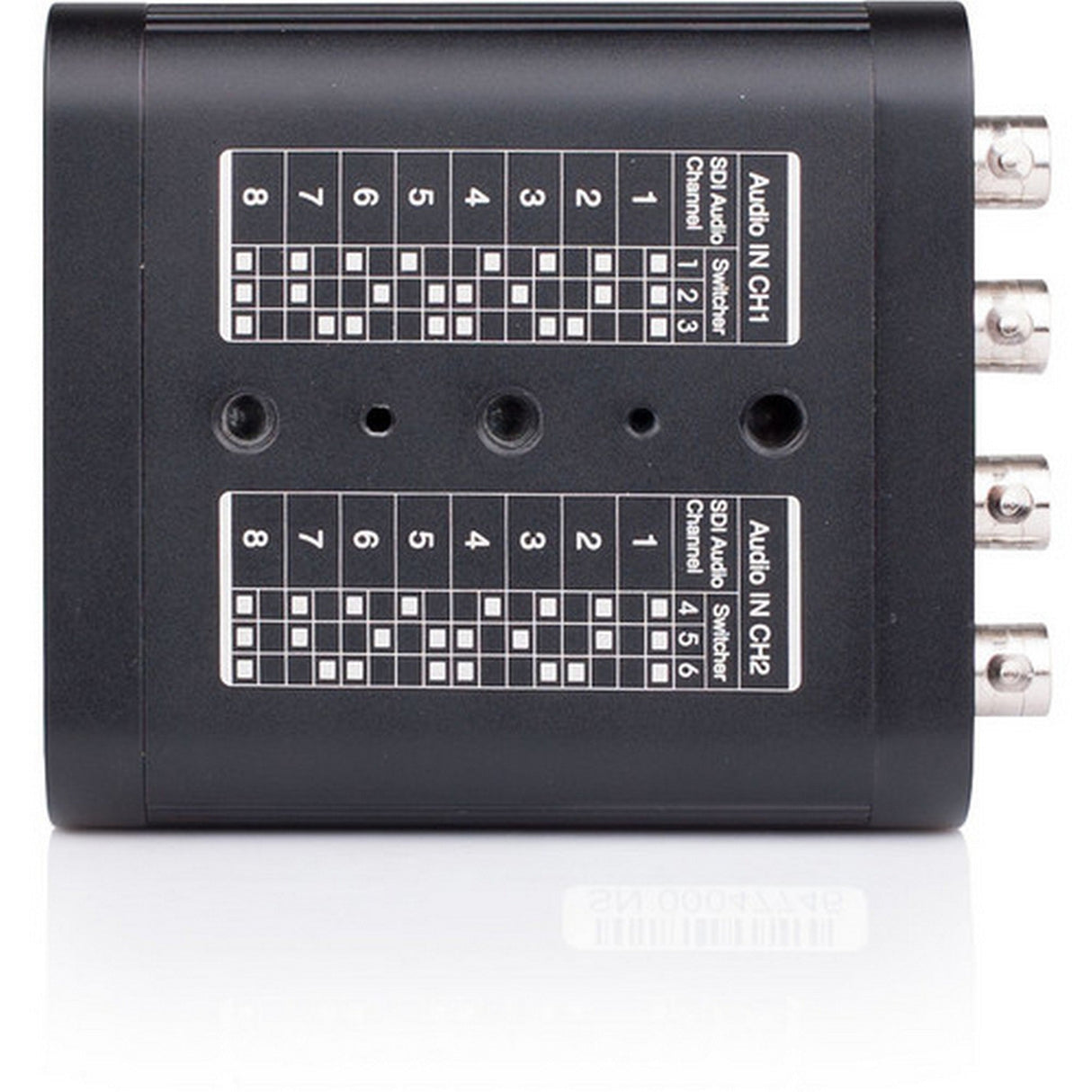

• Six-Switch Channel Control: Physical switches provide direct selection of the SDI channels receiving the incoming audio.
• Field-Ready Power: Operates from 6-18V DC using the included AC adapter or a compatible external battery source.
• Flexible Installation: Aluminum construction, 1/4-inch mounting threads, and an included plate support mobile and fixed installations.

Technical Specifications

Video and Audio Connections

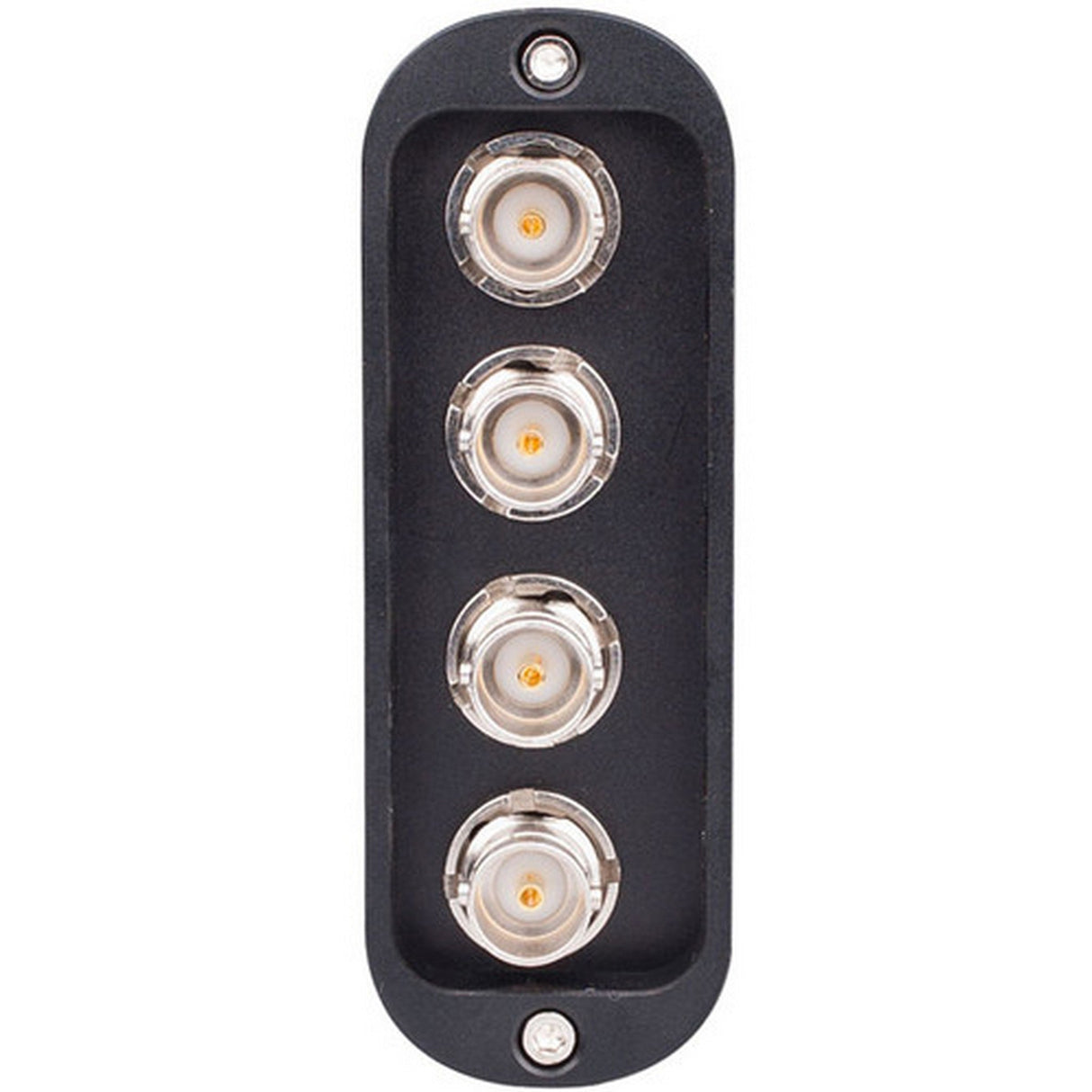

• SDI Input: 1 x BNC, 3G/HD/SD-SDI
• AES/EBU Audio Input: 1 x BNC, 2-channel digital audio
• Analog Audio Inputs: 2 x 1/4-inch balanced
• SDI Outputs: 2 x BNC, 3G/HD/SD-SDI with newly embedded audio
• Audio Embedding: Two channels selectable among the first eight embedded SDI audio positions
• Channel Selection: Six onboard switches
• Input Priority: AES/EBU audio takes priority when digital and analog audio inputs are connected simultaneously

Supported SDI Formats

• SMPTE 425M: 1080p at 60, 59.94, and 50 fps
• SMPTE 274M: 1080i at 60, 59.94, and 50; 1080p at 30, 29.97, 25, 24, and 23.98 fps
• SMPTE RP211: 1080PsF at 30, 29.97, 25, 24, and 23.98 fps
• SMPTE 296M: 720p at 60, 59.94, and 50 fps
• SMPTE 125M: 480i at 59.94
• ITU-R BT.656: 576i at 50

Audio Specifications

• Digital Audio Type: AES/EBU
• AES/EBU Signal Level: 5 Vp-p
• Digital Audio Sample Frequency: 48 kHz
• Analog Audio Maximum Level: +24 dBu
• Analog Audio Bandwidth: 20 Hz-20 kHz

Power and Status

• Power Consumption: 3W maximum
• Operating Voltage: 6-18V DC
• Power Connection: Pole-tap DC socket
• Status Indicators: Power, SDI input recognition, and audio embedding

Physical and Environmental

• Housing: Unibody aluminum alloy
• Mounting: Bottom 1/4-inch threaded mounting points
• Operating Temperature: 32-158 degrees F
• Operating Humidity: 10-90%
• Dimensions: 3.9 x 3.3 x 1.1 inches
• Weight: 0.5 lb
• Package Dimensions: 7.9 x 4.8 x 3.6 inches
• Packaged Weight: 1.2 lb

What's In the Box

• SWIT S-4610 SDI Audio Embedder
• AC-DC Power Adapter
• Installation Plate
