SWIT S-4611 Portable 3G/HD/SD-SDI to DVI-D Converter

SWIT S-4611 Portable 3G/HD/SD-SDI to DVI-D Converter

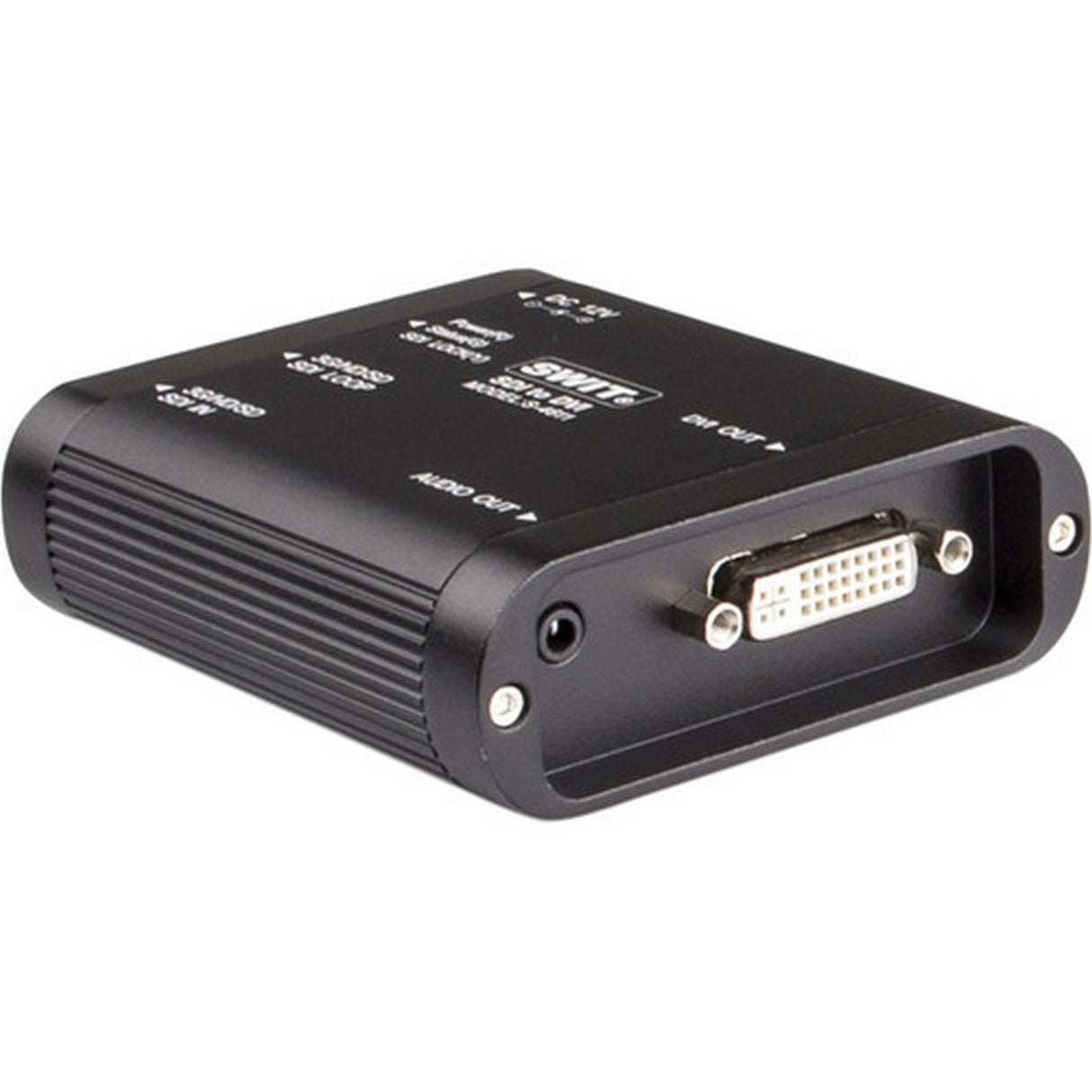

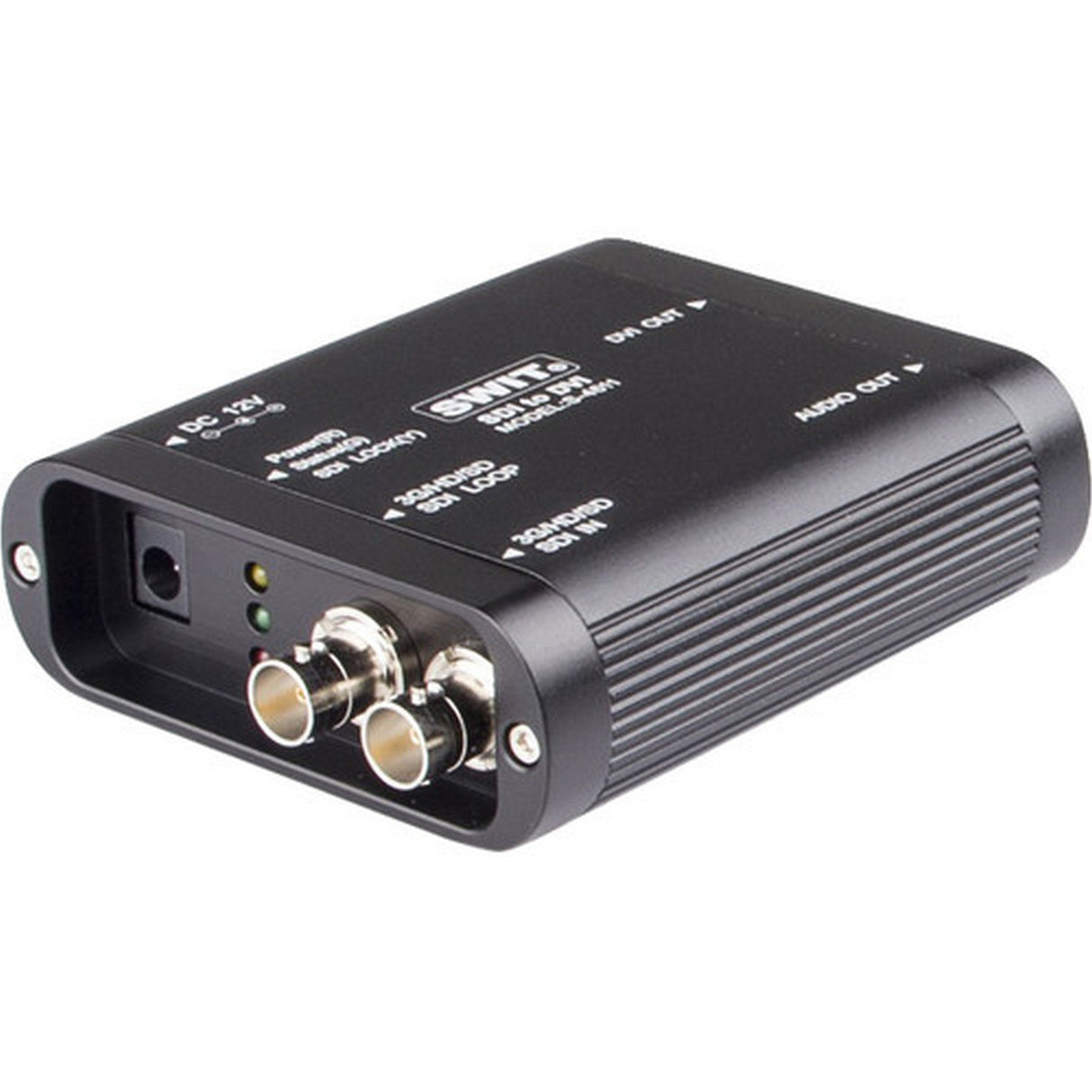

The SWIT S-4611 SDI to DVI Converter converts professional 3G-SDI, HD-SDI, or SD-SDI video to a DVI-D output for monitors, televisions, LED displays, and projectors. It supports broadcast signals through 1080p60 while also extracting the first two embedded SDI audio channels to a separate 3.5mm analog output.

A reclocked SDI loop output, meaning the converter regenerates the SDI signal timing before passing it downstream, lets operators feed another monitor or device without sacrificing the original connection. The DVI-D output follows the incoming format rather than performing resolution scaling, making this portable SDI-to-DVI converter useful for broadcast monitoring, studio integration, field production, and fixed AV systems.

The compact aluminum-alloy housing protects the BNC connections during production use, while bottom 1/4-inch mounting threads support camera or equipment installation. Three LED indicators show power, input, and output status at a glance. The S-4611 accepts 6-18V DC power and includes both an AC-DC adapter and installation plate for portable or permanent deployment.

Key Features

• 3G/HD/SD-SDI to DVI-D Conversion: Converts professional SDI video up to 1080p60 for compatible DVI displays and projectors.
• Reclocked SDI Loop Output: Regenerates and passes the incoming SDI signal to another monitor or downstream video device.
• Embedded Audio Extraction: Converts SDI audio channels 1 and 2 to analog audio through a 3.5mm output at a 48 kHz sample rate.
• Same-Format Video Conversion: Maintains the incoming video format when converting from SDI to DVI rather than functioning as a scaler.

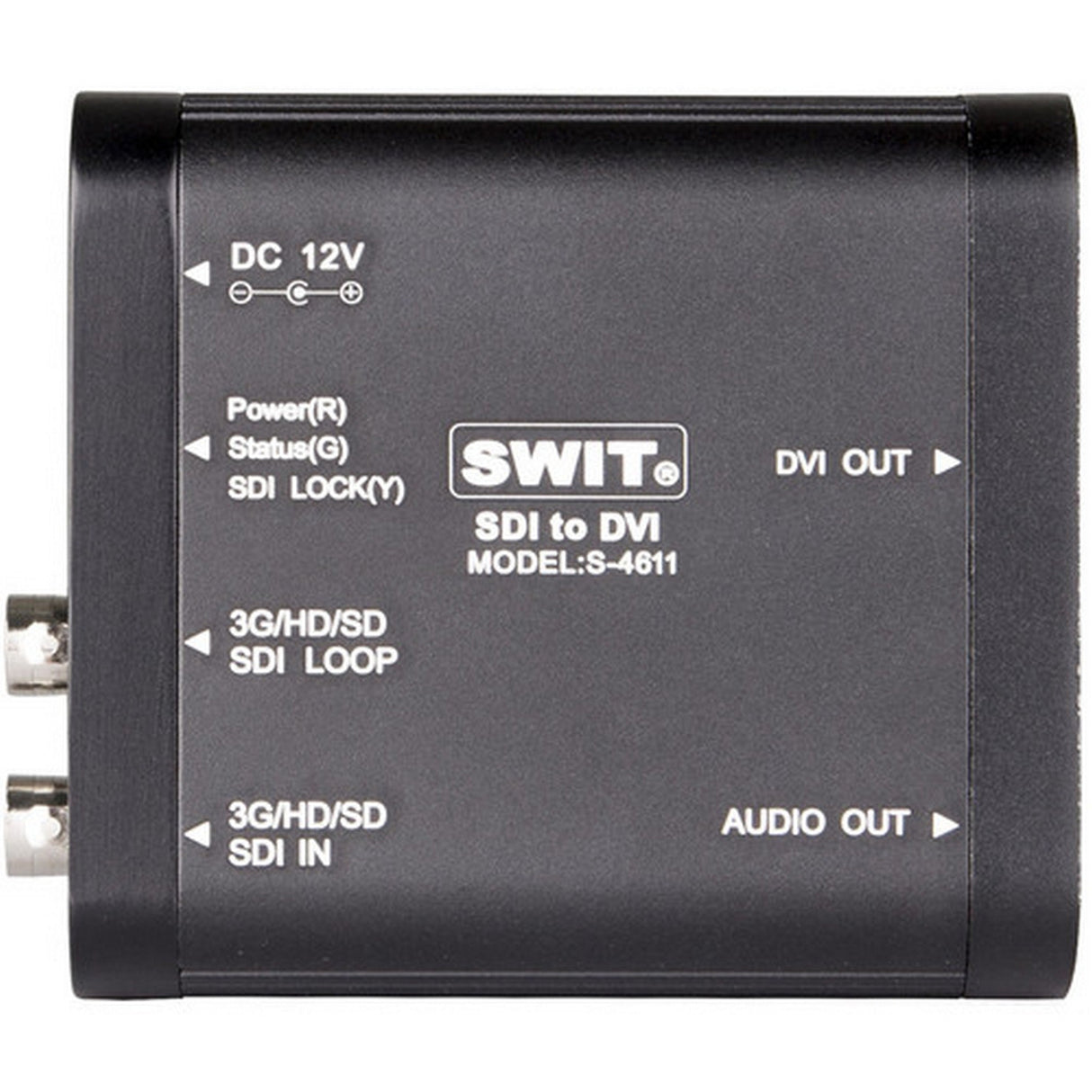

• Status Monitoring: Three onboard LEDs provide visual confirmation of power, SDI input, and converted output status.
• Wide DC Power Range: Operates from 6-18V DC for use with the included AC adapter or a compatible field battery connection.
• Rugged Aluminum Housing: Unibody construction protects the converter and BNC connectors during studio and field production.
• Flexible Mounting: Bottom 1/4-inch threads and the supplied A-IP00 installation plate support camera, wall, and equipment mounting.

Technical Specifications

Video and Audio Connections

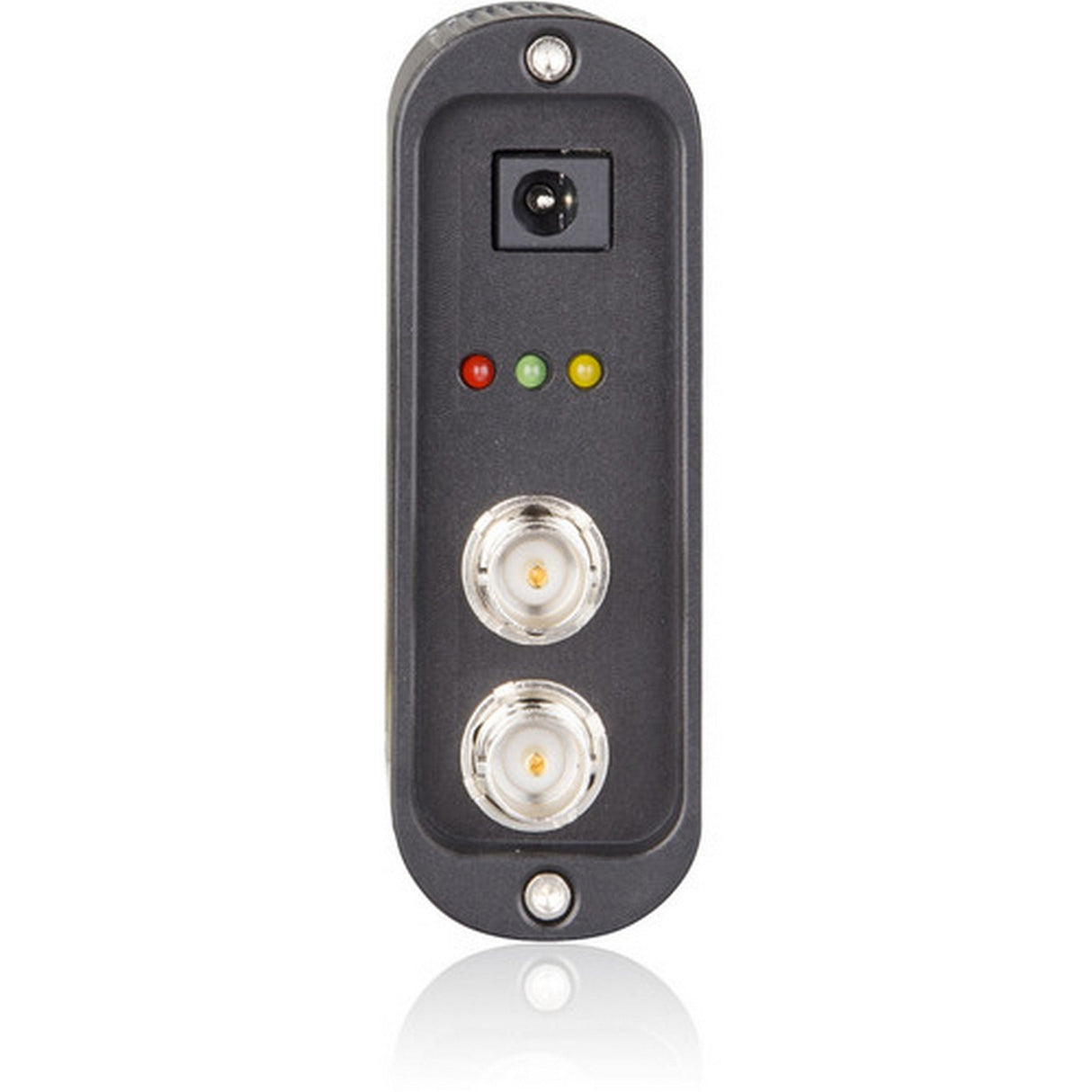

• SDI Input: 1 x BNC, 3G/HD/SD-SDI
• SDI Loop Output: 1 x BNC, reclocked 3G/HD/SD-SDI

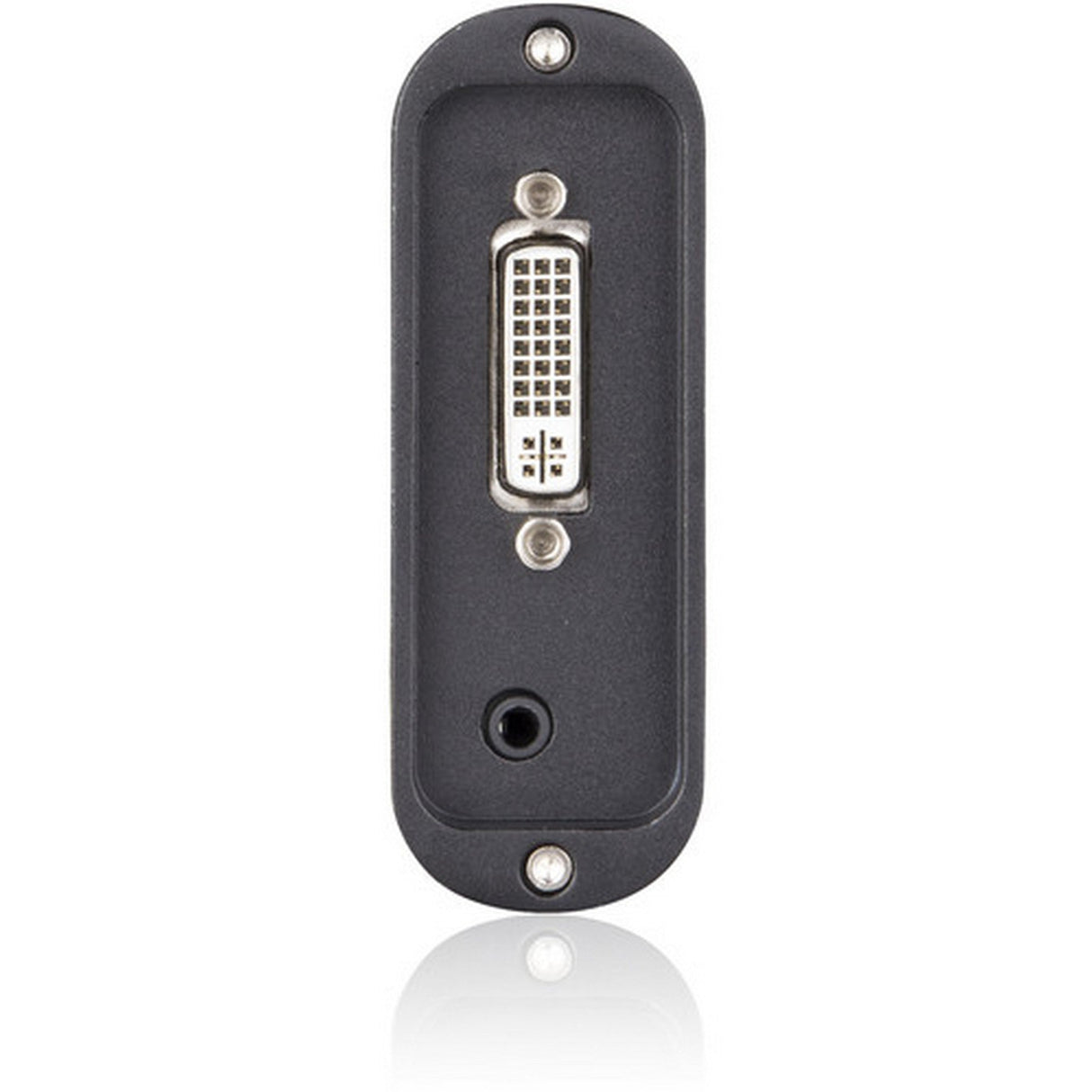

• DVI Output: 1 x DVI-D, 18+1 connector
• Analog Audio Output: 1 x 3.5mm
• Audio Channels: SDI embedded channels 1 and 2
• Audio Sample Rate: 48 kHz synchronized
• Conversion Type: Same-format SDI-to-DVI conversion
• Maximum SDI Data Rate: Up to 3 Gb/s

Supported SDI Video Formats

• SMPTE 425M: 1080p at 60, 59.94, and 50 fps
• SMPTE 274M: 1080i at 60, 59.94, and 50; 1080p at 30, 29.97, 25, 24, and 23.98 fps
• SMPTE RP211: 1080PsF at 30, 29.97, 25, 24, and 23.98 fps
• SMPTE 296M: 720p at 60, 59.94, and 50 fps
• SMPTE 125M: 480i at 59.94
• ITU-R BT.656: 576i at 50

Supported DVI Video Formats

• 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98 fps
• 1080i: 60, 59.94, and 50
• 720p: 60, 59.94, and 50 fps
• Standard Definition: 480i and 576i

Power and Status

• Operating Voltage: 6-18V DC
• Power Input: Pole-tap DC socket
• Power Consumption: 3W maximum
• Status Indicators: Power, input, and output LEDs

Physical and Environmental

• Housing: Unibody aluminum alloy

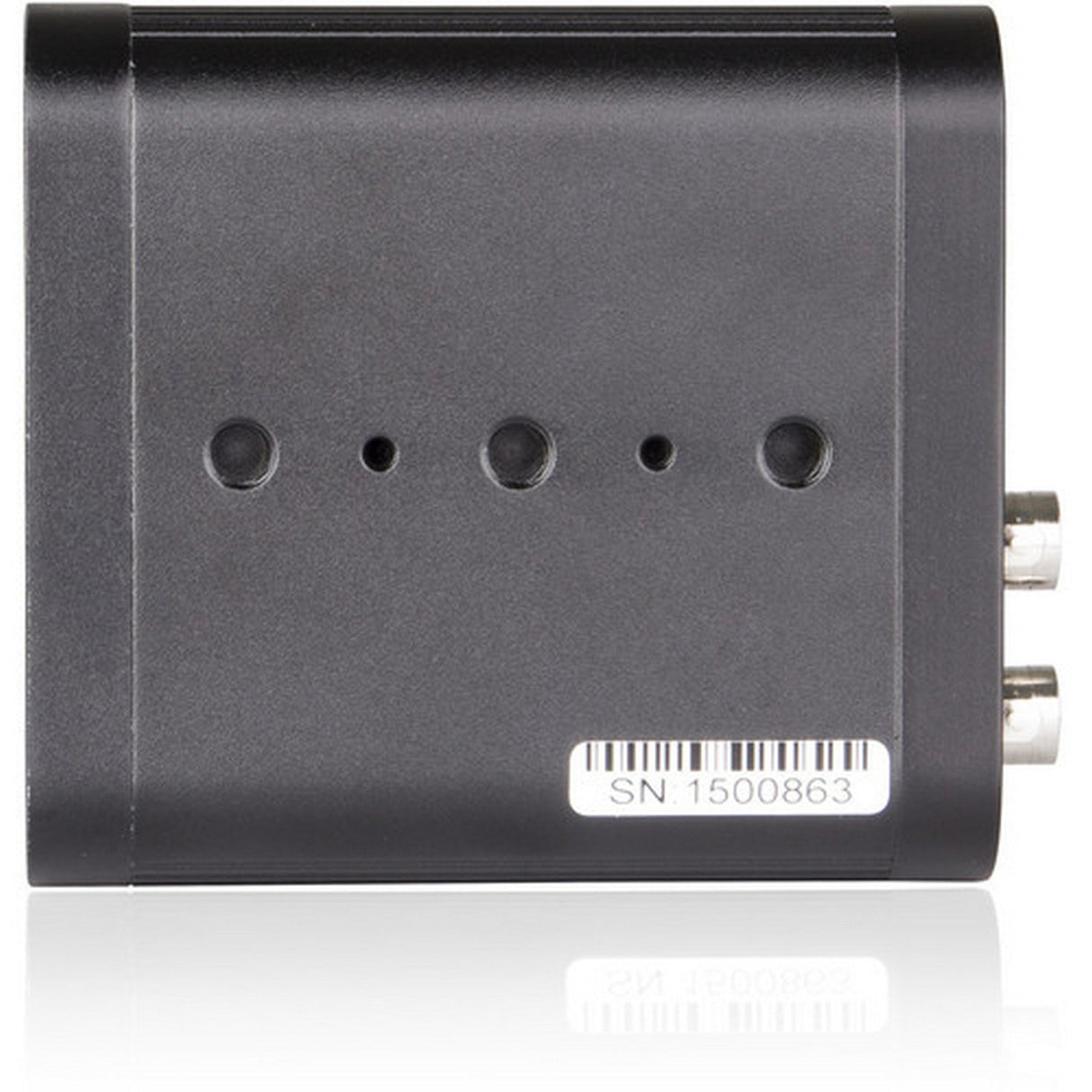

• Mounting: Bottom 1/4-inch threaded mounting points
• Operating Temperature: 32-158 degrees F
• Operating Humidity: 10-90%
• Dimensions: 3.9 x 3.3 x 1.1 inches
• Weight: 0.5 lb
• Package Dimensions: 6.5 x 4.8 x 3.1 inches
• Package Weight: 1.1 lb

What's In the Box

• SWIT S-4611 SDI to DVI Converter
• A-PA03 AC-DC Power Adapter
• A-IP00 Installation Plate
