SWIT S-8073N 73Wh NP-1 Battery with Dual D-Tap Outputs

SWIT S-8073N 73Wh NP-1 Battery with Dual D-Tap Outputs

The SWIT S-8073N 73Wh NP-1 battery supplies rechargeable lithium-ion power to professional video cameras and audio mixers with NP-1 connections. Its 14.4V design delivers up to 66W and 5.5A, while two integrated D-Tap sockets power compatible production accessories from the same compact battery pack.

Built for field recording, electronic news gathering, documentary work, and location production, the S-8073N helps streamline demanding mobile setups. Camera operators and sound professionals can power their primary equipment while connecting accessories such as wireless receivers, monitors, recorders, or lighting through the dual D-Tap outputs.

Eight 18650 lithium-ion cells provide 73Wh and 5.1Ah of capacity within the established NP-1 form factor. A four-level LED gauge gives crews a quick view of remaining power before deployment. Integrated circuit protection helps guard against abnormal current, voltage, and temperature conditions during professional operation.

Key Features

• 73Wh Lithium-Ion Capacity: Provides 5.1Ah of rechargeable power for compatible professional production equipment.
• NP-1 Form Factor: Fits cameras, field audio mixers, and other devices with an NP-1 battery connection.

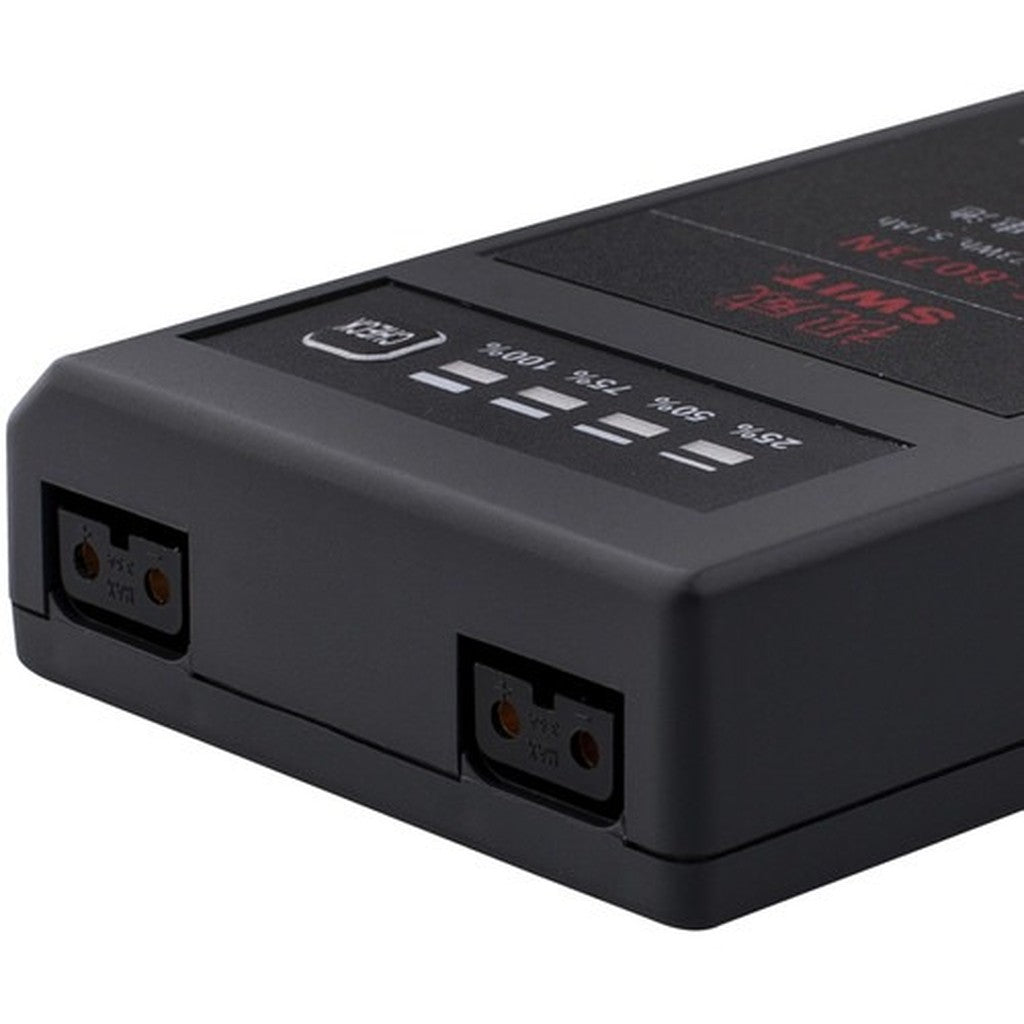

• Dual D-Tap Outputs: Powers two compatible camera or audio accessories directly from the battery.
• High-Draw Performance: Delivers up to 66W and 5.5A total for demanding production configurations.

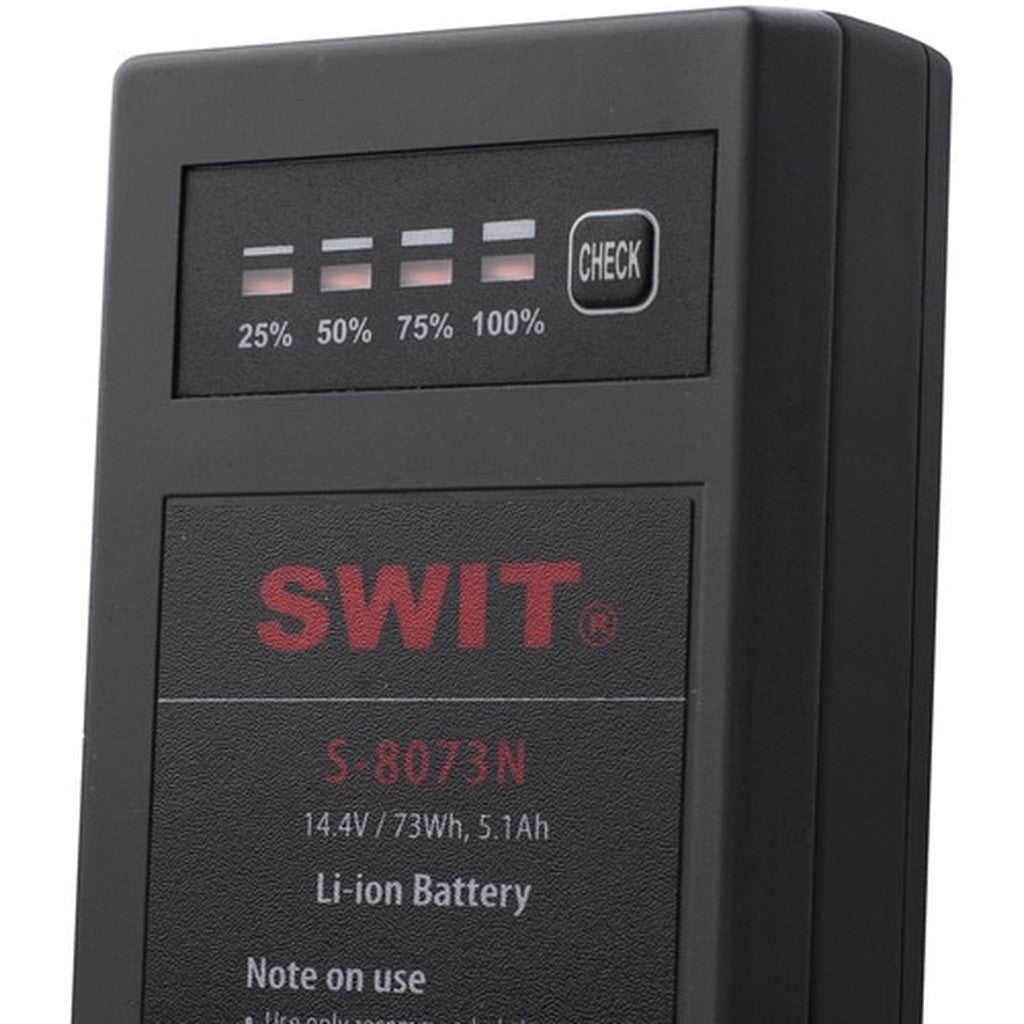

• Four-Level LED Gauge: Displays remaining battery capacity through an easy-to-read front indicator.
• D-Tap Charging Support: Accepts charging through a D-Tap socket with a compatible SWIT charger.
• Integrated Circuit Protection: Helps protect against abnormal current, voltage, and temperature conditions.

Technical Specifications

• Model: S-8073N
• Product Type: Rechargeable NP-1 battery pack
• Battery Chemistry: Lithium-ion
• Cell Configuration: Eight 18650 cells
• Mount Type: NP-1
• Nominal Voltage: 14.4V
• Capacity: 73Wh, 5.1Ah
• Maximum Total Output Power: 66W
• Maximum Total Output Current: 5.5A
• Accessory Outputs: Two D-Tap sockets
• Maximum Output per D-Tap Socket: 50W, 3.5A
• Power Indicator: Four-level LED capacity gauge
• Charging Method: NP-1 contacts or compatible D-Tap charger
• Charging Temperature: 32 to 104°F
• Discharging Temperature: -4 to 122°F
• Dimensions: 7.3" x 2.8" x 1"
• Weight: 0.99 lbs
• Package Dimensions: 7.5" x 3" x 1.2"
• Package Weight: 1.15 lbs

What's In the Box

• SWIT S-8073N 73Wh NP-1 Battery
