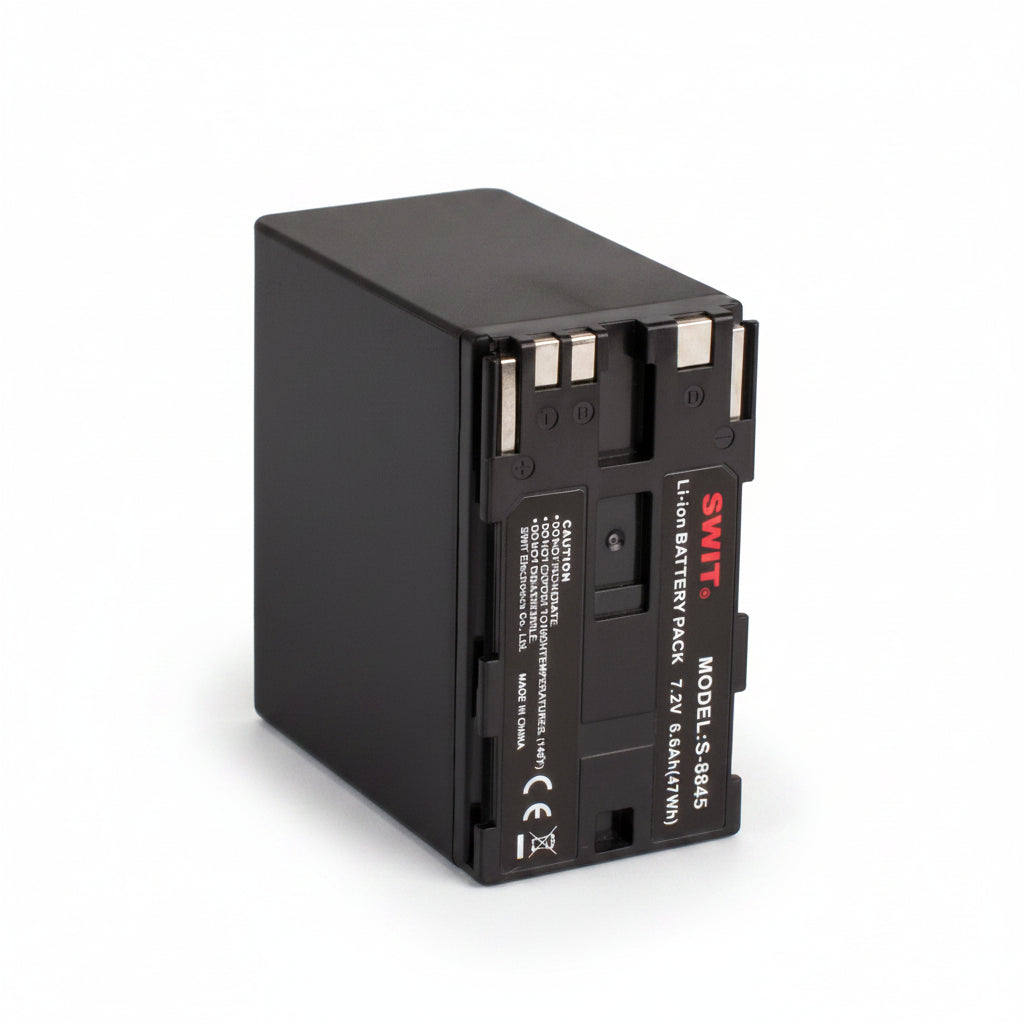

SWIT S-8845 47Wh Canon BP-955 Battery with 7.2V DC Output

SWIT S-8845 47Wh Canon BP-955 Battery with 7.2V DC Output

The SWIT S-8845 47Wh Canon BP-955 battery is a rechargeable lithium-ion power pack for compatible Canon professional video cameras and the RED KOMODO. It combines a 7.2V nominal output, 6.6Ah capacity, four-level power gauge, and side-mounted DC port for powering an accessory alongside the camera.

Designed for mobile cinema, documentary, broadcast, and event production, this Canon BP-series replacement battery supports extended shooting without adding a separate accessory battery. The 5.5/2.1mm pole-tap output can supply an on-camera monitor, LED light, or wireless transmitter while the main contacts power compatible camera equipment.

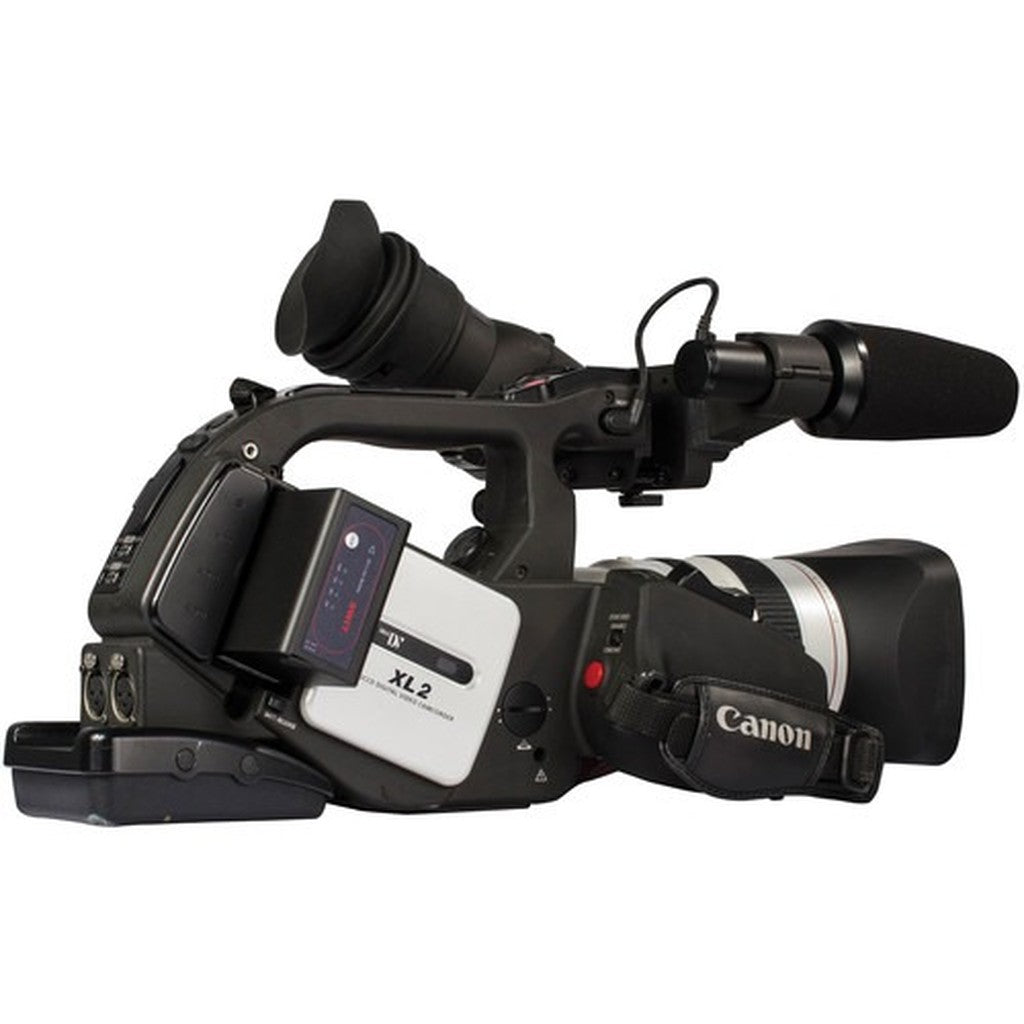

The S-8845 works with Canon XF100, XF105, EOS C100, C100 Mark II, C300, and C500 cameras. It is also compatible with the RED KOMODO. Multiple circuit protections support dependable professional operation, while compatible SWIT charging options make the battery practical for individual shooters, production companies, and rental inventories.

Key Features

• 47Wh Lithium-Ion Capacity: Provides 6.6Ah of rechargeable power for compatible professional cameras.
• Canon BP-Series Design: Replaces Canon BP-955 batteries and supports BP-945/955/970-compatible equipment.

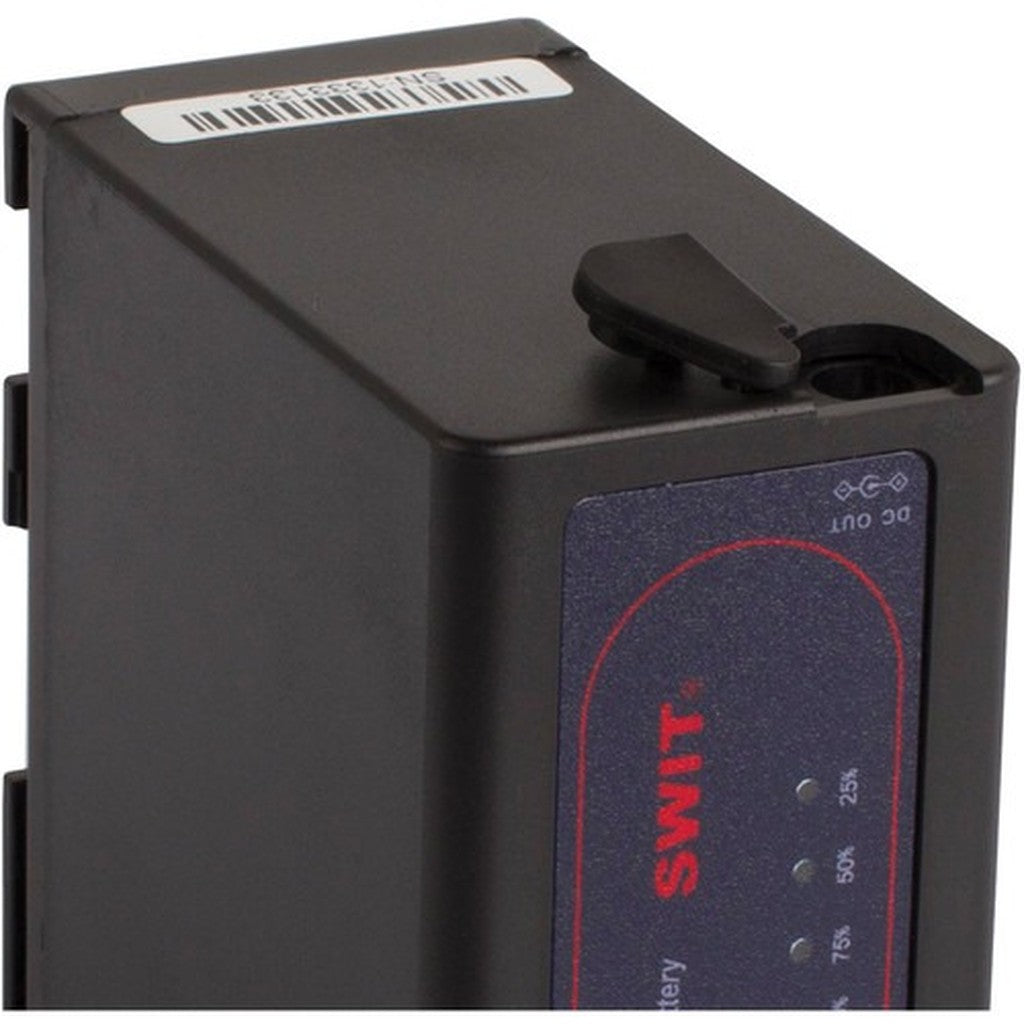

• Accessory Power Output: A 5.5/2.1mm pole-tap socket powers compatible production accessories.
• Simultaneous Power Delivery: Runs a camera and connected DC accessory from one compact battery.

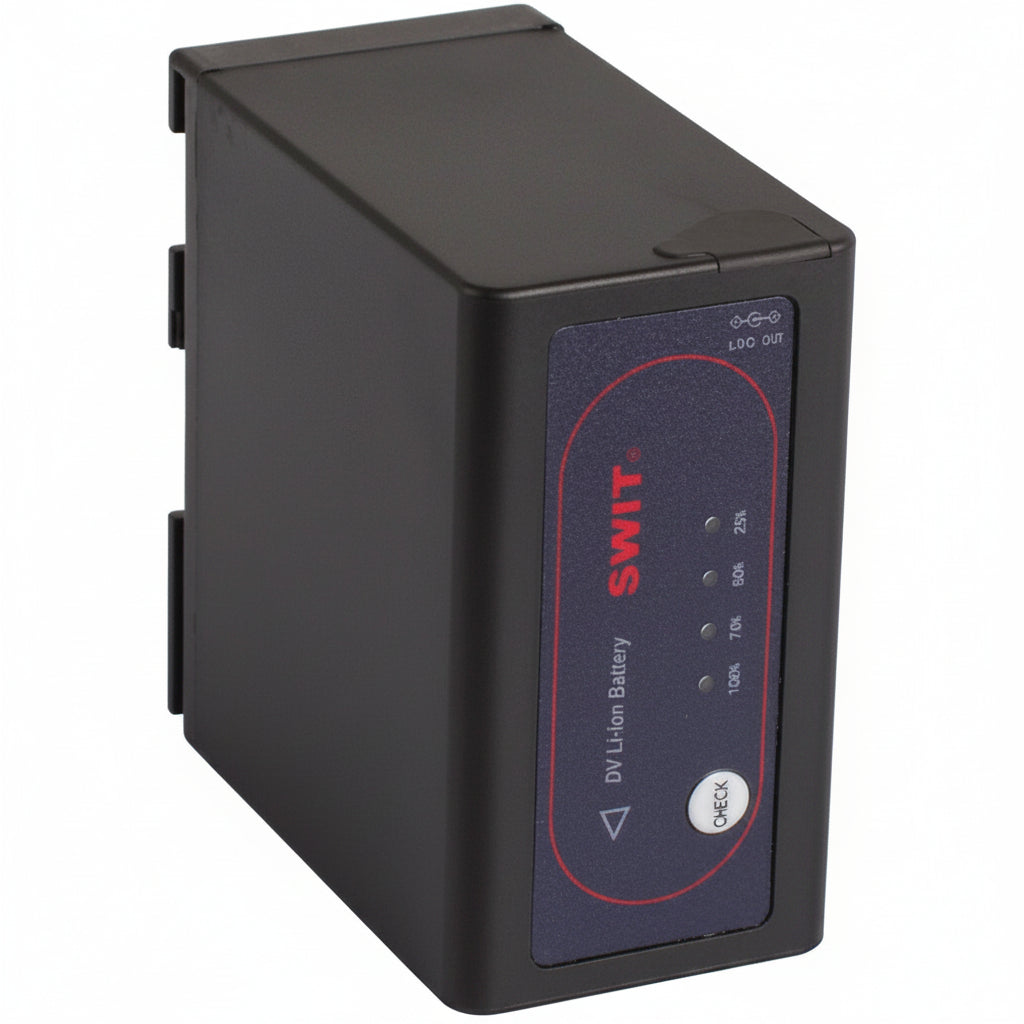

• Four-Level LED Gauge: Displays the remaining battery capacity before and during production.
• RED KOMODO Compatibility: Provides a compact battery option for compatible RED KOMODO camera configurations.
• Multiple Circuit Protections: Helps protect the battery during professional charging and discharging cycles.

Technical Specifications

• Model: S-8845
• Battery Chemistry: Lithium-ion
• Battery Mount Type: Canon BP-945/955/970 style
• Nominal Voltage: 7.2V
• Battery Capacity: 47Wh, 6.6Ah
• Maximum Total Output: 45W, 6A
• Maximum Contact-Pin Output: 30W, 4A
• Accessory Output: 7.2V DC pole-tap
• Accessory Connector: 5.5/2.1mm female barrel connector
• Maximum Pole-Tap Output: 30W, 4A
• Power Indicator: Four-level LED capacity gauge
• Accessory Mounting Thread: No
• Compatible Cameras: Canon XF100, XF105, EOS C100, C100 Mark II, C300, C500, and RED KOMODO
• Compatible Chargers: SWIT S-3602C, LC-D421, and S-3010D
• Approximate Charging Time: 4 hours 30 minutes
• Charging Temperature: 32 to 104°F
• Discharging Temperature: -4 to 122°F
• Dimensions: 2.79" x 2.76" x 1.50"
• Weight: 0.66 lbs
• Package Weight: 0.71 lbs
• Package Dimensions: 3.20" x 3.15" x 1.85"

What's In the Box

• SWIT S-8845 47Wh Canon BP-Series Battery
