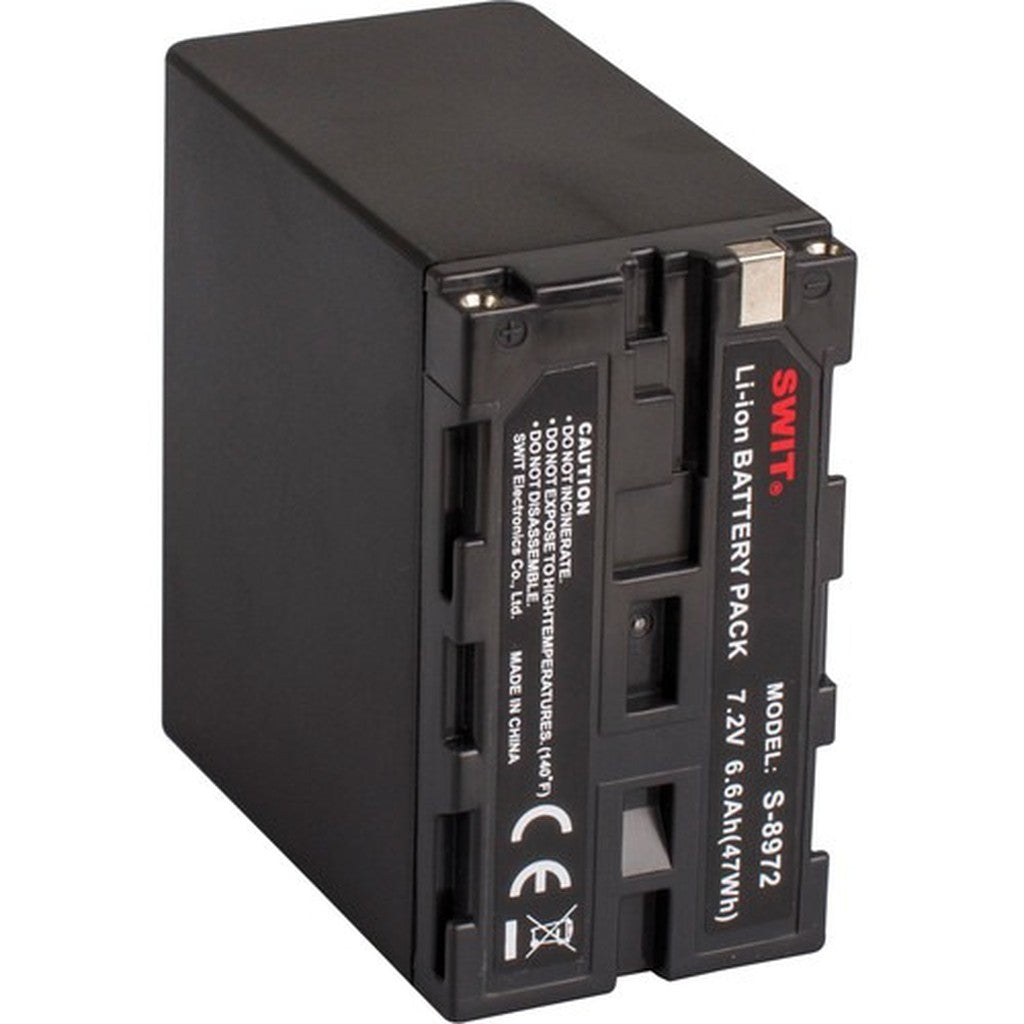

SWIT S-8972 47Wh Sony L-Series Battery with DC Output

SWIT S-8972 47Wh Sony L-Series Battery with DC Output

The SWIT S-8972 47Wh Sony L-Series battery provides rechargeable 7.2V power for compatible cameras and production accessories. Its built-in DC output can power select equipment alongside a camera, while the four-level LED gauge lets operators check the remaining capacity before mounting the battery.

Designed as a replacement for Sony NP-F770, NP-F950, NP-F960, and NP-F970 batteries, the S-8972 suits field cameras, video monitors, wireless transmitters, and on-camera lighting with compatible battery plates. The 47Wh capacity balances useful runtime with a compact form factor, making it a practical Sony L-Series battery for mobile video production.

Digital communication displays remaining power information through supported camera viewfinders. An intelligent internal circuit provides protection against abnormal current, voltage, and temperature conditions. The battery supports selected Sony HVR, DSR, NEX, NXR, HXR, and PXW cameras, Z CAM E2-series models, and other devices equipped with a compatible Sony BP-F plate.

Key Features

• 47Wh Lithium-Ion Capacity: Supplies 6.6Ah of rechargeable power for cameras and video production accessories.
• Sony L-Series Design: Replaces compatible NP-F770, NP-F950, NP-F960, and NP-F970 batteries.
• 7.2V DC Accessory Output: Powers select lights, monitors, or wireless transmitters through the built-in barrel connector.
• Simultaneous Equipment Power: Operates a compatible camera and accessory within the battery’s total output limit.
• Digital Power Communication: Displays remaining battery information through supported camera viewfinders.

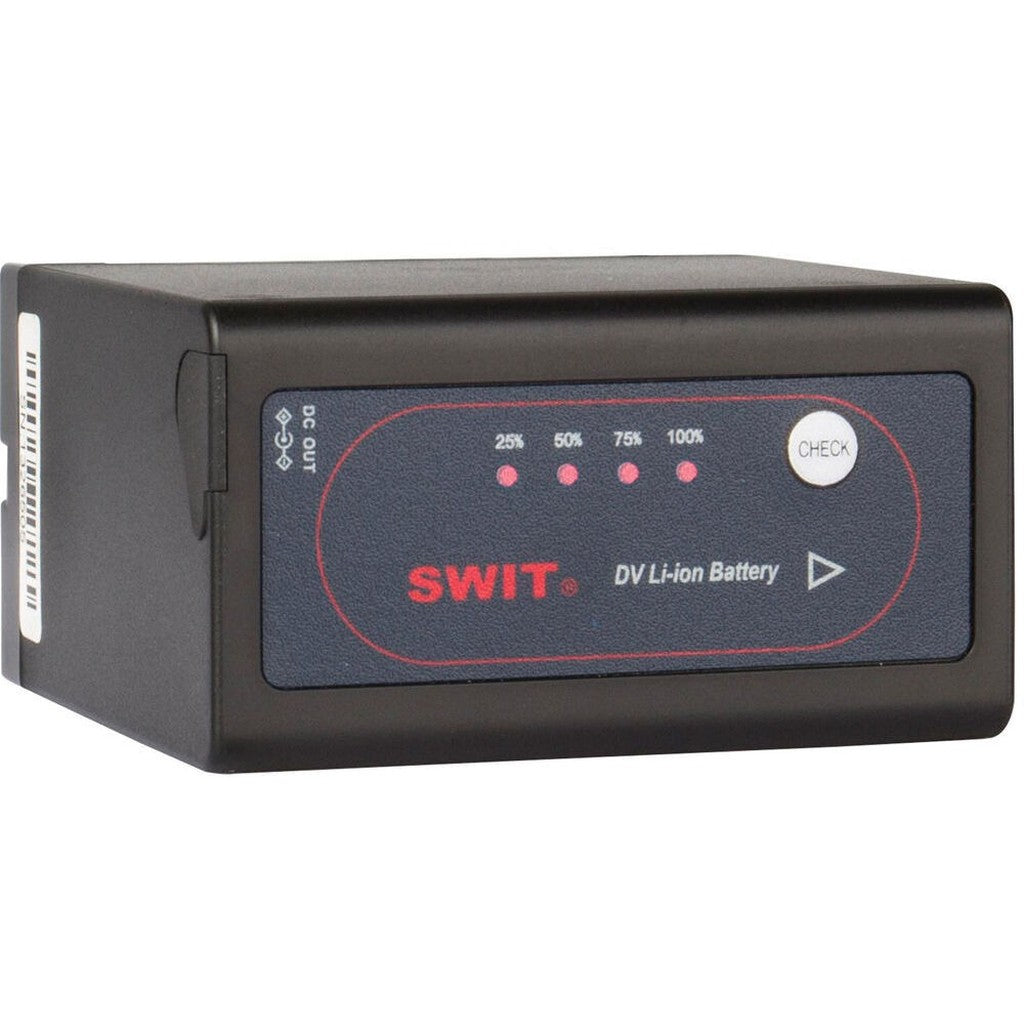

• Four-Level LED Gauge: Provides a quick visual capacity check before mounting the battery.
• Intelligent Circuit Protection: Helps protect against abnormal current, voltage, and temperature conditions.

Technical Specifications

• Brand: SWIT
• Model: S-8972
• Battery Type: Sony L-Series-style rechargeable battery
• Compatible Battery Types: Sony NP-F770, NP-F950, NP-F960, and NP-F970
• Battery Chemistry: Lithium-ion
• Nominal Voltage: 7.2V DC
• Capacity: 47Wh, 6.6Ah
• Power Output: 1 x 5.5/2.1mm barrel/coax female output
• DC Output Voltage: 7.2V nominal
• Total Maximum Output: 30W, 4A
• Battery Pin Maximum Output: 30W, 4A
• Pole-Tap Maximum Output: 30W, 4A
• Power Indicator: Four-level LED status indicator
• Camera Communication: Remaining power display on supported camera viewfinders
• Approximate Runtime: 5.5 hours with a Sony HVR-Z1 and its LCD monitor operating
• Compatible Sony Cameras: HVR-Z1, HVR-Z5, HVR-Z7, HVR-V1, DSR-PD150, DSR-PD170, DSR-PD190, NEX-FS100, NEX-FS700, NEX-EA50, NXR-MC2000, HD1000, HXR-NX100, HXR-NX5R, and PXW-Z150
• Compatible Z CAM Cameras: E2, E2-M4, E2-S6, E2-S6G, E2-F6, and E2-F8
• Additional Compatibility: Devices equipped with a compatible Sony BP-F battery plate
• Compatibility Exclusions: ARRI Hi-5 and ARRI ZMU-4 due to battery-slot size limitations

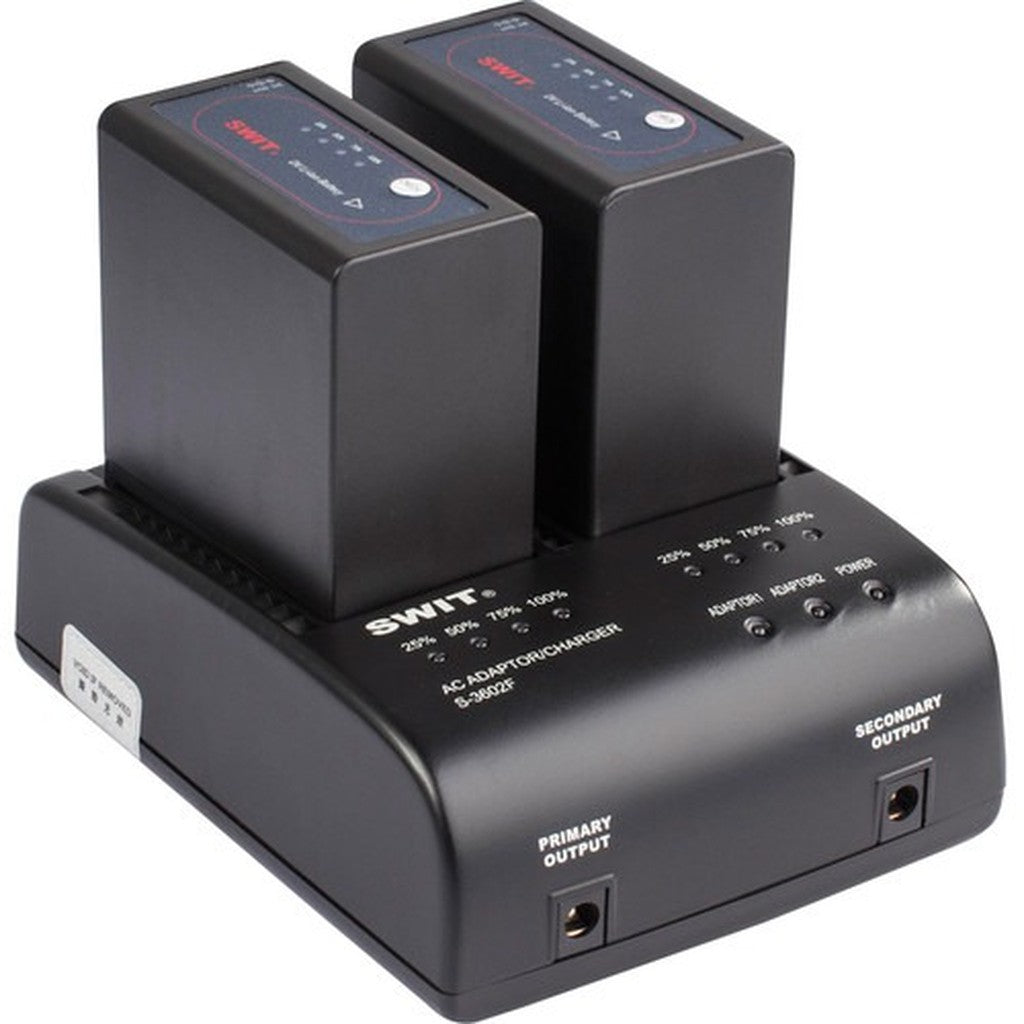

• Compatible Chargers: SWIT S-3602F, S-3010D, and LC-D421
• Approximate Charging Time: 4 hours 30 minutes from empty to full
• Charging Temperature: 32 to 104°F
• Operating Temperature: -4 to 122°F
• Accessory Mounting Thread: None
• Dimensions: 2.8" x 2.76" x 1.54"
• Weight: 0.66 lbs
• Package Weight: 0.7 lbs
• Box Dimensions: 3.2" x 3.1" x 1.9"

What's In the Box

• SWIT S-8972 47Wh Sony L-Series Battery with DC Output
