SWIT S-8D58 43Wh Panasonic VW-VBD Battery with DC and USB Outputs

SWIT S-8D58 43Wh Panasonic VW-VBD Battery with DC and USB Outputs

The SWIT S-8D58 43Wh Panasonic VW-VBD battery supplies rechargeable 7.2V lithium-ion power to compatible professional camcorders. It also features a pole-tap DC socket for powering camera-mounted equipment and a USB-A output for charging mobile devices, giving video crews a versatile power source for field and studio production.

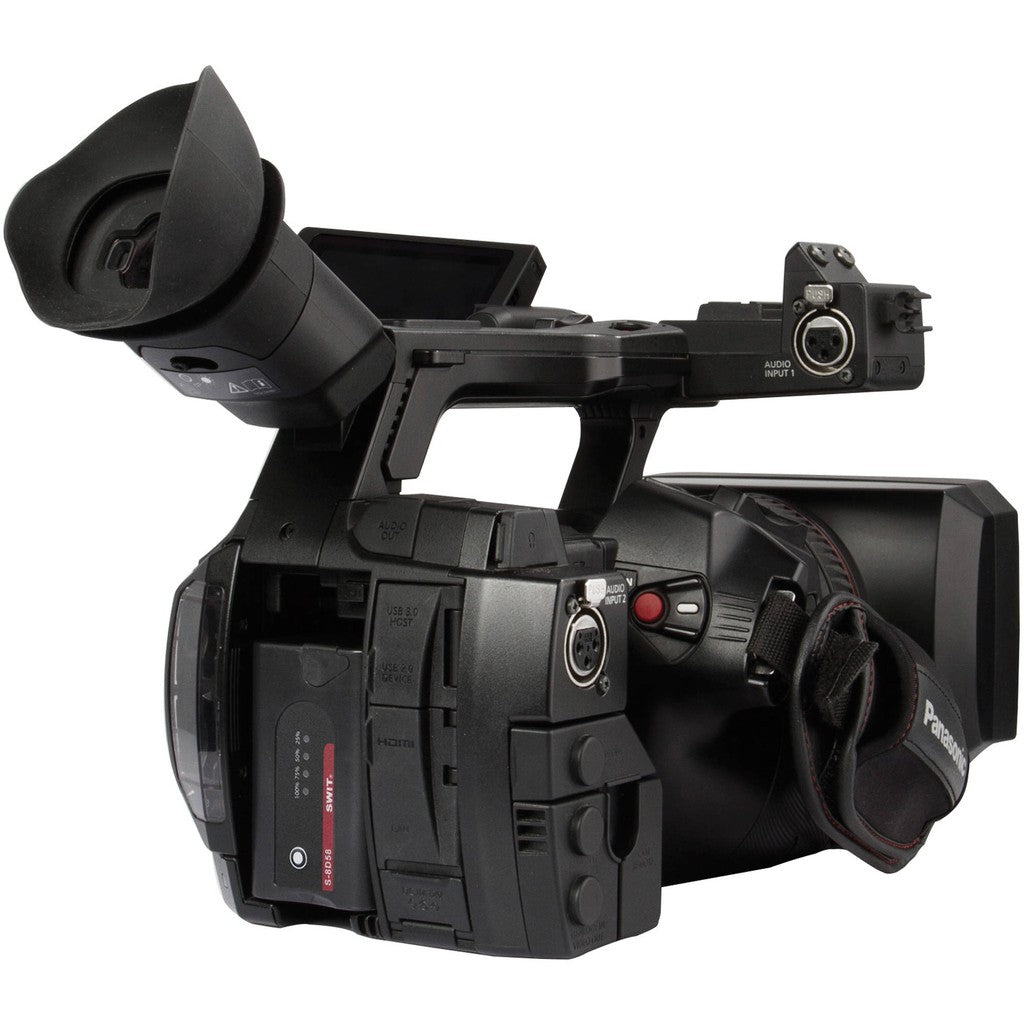

Designed as an alternative to Panasonic VW-VBD58 and AG-VBR-series batteries, the S-8D58 supports selected Panasonic AU-EVA1, AG-DVX200, AJ-PX, AG-CX, AG-UX, and AG-HVX cameras. Its 6000mAh capacity provides approximately two hours of operation with an AJ-PX270-series camcorder and the camera’s LCD monitor switched on.

The 5.5/2.1mm pole-tap socket can power an LED light, field monitor, or wireless transmitter while the battery operates a compatible camera. It also functions as a charging input with the SWIT S-3010D charger. A four-level LED gauge provides quick capacity checks, while multiple circuit protections support dependable professional use.

Key Features

• 43Wh Lithium-Ion Capacity: Provides 6000mAh of rechargeable power for compatible Panasonic camcorders.
• Panasonic VW-VBD Compatibility: Replaces select VW-VBD58 and AG-VBR-series camera batteries.
• Pole-Tap DC Socket: Supplies 7.2V nominal power to compatible camera-mounted production accessories.
• Simultaneous Accessory Power: Runs an LED light, monitor, or wireless transmitter while powering the camera.
• USB-A Charging Output: Delivers 5V at 1A for charging smartphones, tablets, and other USB devices.

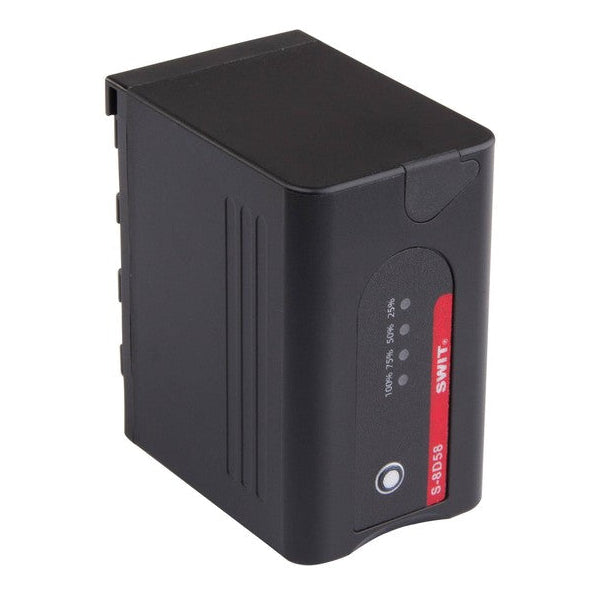

• Four-Level LED Gauge: Displays remaining battery capacity before the pack is installed on equipment.
• Multiple Charging Options: Supports compatible Panasonic and SWIT desktop, multichannel, and portable chargers.
• Multiple Circuit Protections: Helps safeguard the battery and connected production equipment during operation.

Technical Specifications

• Brand: SWIT
• Model: S-8D58
• Product Type: Panasonic VW-VBD-series rechargeable camcorder battery
• Comparable Panasonic Batteries: VW-VBD58, AG-VBR59P, AG-VBR89G, and AG-VBR118G
• Battery Chemistry: Lithium-ion
• Nominal Voltage: 7.2V DC
• Capacity: 43Wh, 6000mAh
• Total Maximum Output: 30W, 4A
• Battery Pin Maximum Output: 25W, 3.5A
• Pole-Tap Maximum Output: 30W, 4A
• USB-A Maximum Output: 5W, 5V DC at 1A
• Power Connections: 1 x 5.5/2.1mm barrel/coax female pole-tap socket; 1 x USB-A female output
• Pole-Tap Voltage: 7.2V DC nominal
• Pole-Tap Charging Input: Supported with the SWIT S-3010D portable charger
• Power Indicator: Four-level LED capacity indicator
• Approximate Runtime: Approximately 2 hours with an AJ-PX270-series camcorder and its LCD monitor operating
• Compatible Panasonic Cameras: AU-EVA1, AG-DVX200, AJ-PX230, AJ-PX270, AJ-PX285, AJ-PX298, AJ-UPX360, AG-CX350, AG-CX370, AG-UX90, AG-UX180, AG-DVC30, AG-DVX100, AG-HVX200, AG-HVX201, AG-HPX171, AG-HPX250, and AG-AC30
• Compatibility Exclusions: Panasonic AG-CX10, AG-CX18, AG-CX20, HC-X1200, HC-X1500, HC-X1600, HC-X2000, and HC-X2100 due to battery-slot size limitations

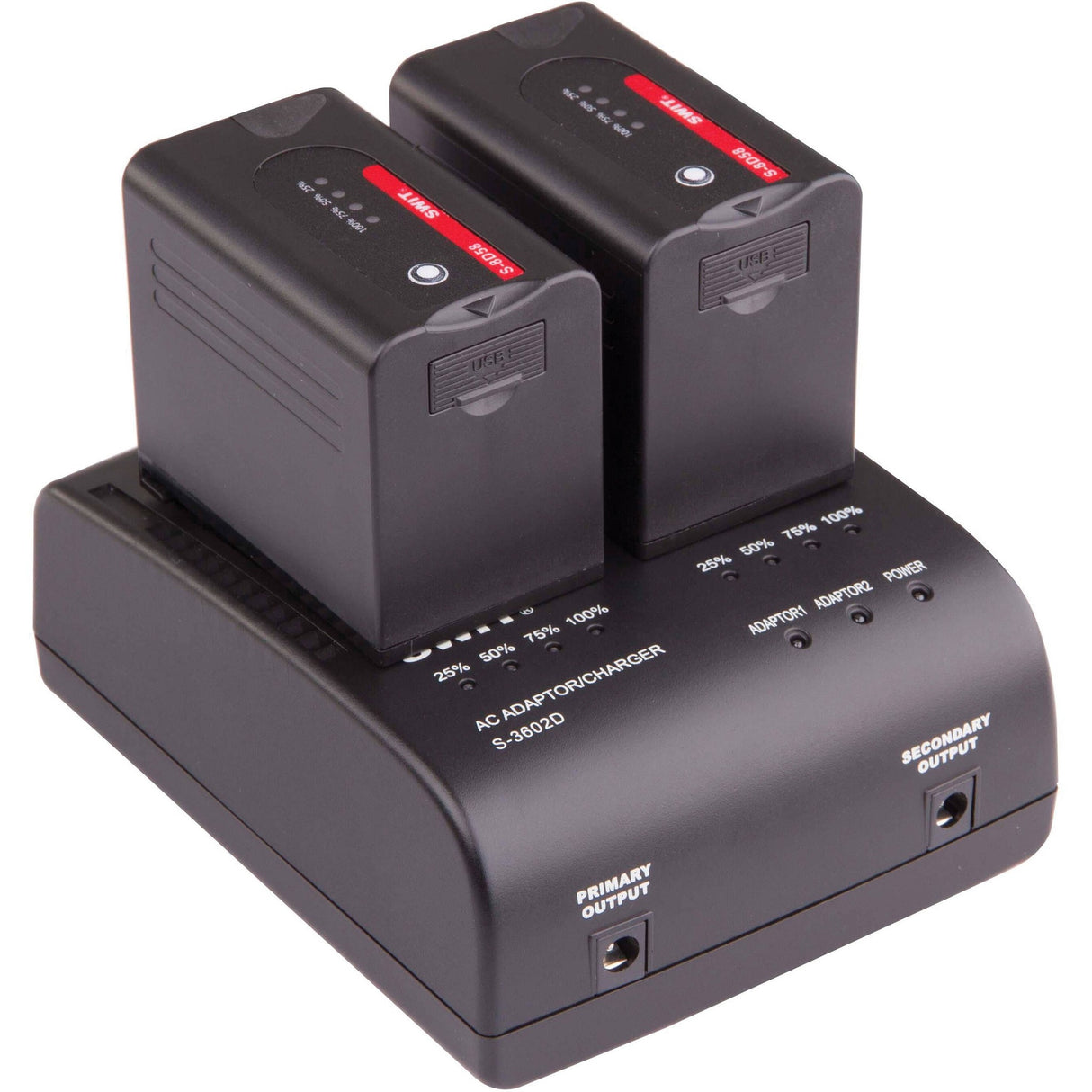

• Compatible Chargers: Panasonic DE-A88 and AG-BRD50; SWIT S-3602D, LC-D421D, and S-3010D
• Approximate Charging Time: 4 hours with the Panasonic DE-A88 or SWIT S-3602D; 7 hours with the SWIT S-3010D
• Charging Temperature: 32 to 104°F
• Discharging Temperature: -4 to 122°F; capacity and maximum load may decrease below 32°F
• Accessory Mounting Thread: None
• Dimensions: 2.76" x 2.52" x 1.61"
• Weight: 0.52 lbs
• Package Weight: 0.59 lbs
• Box Dimensions: 3.2" x 3.15" x 1.85"

What's In the Box

• SWIT S-8D58 43Wh Panasonic VW-VBD-Series Battery
