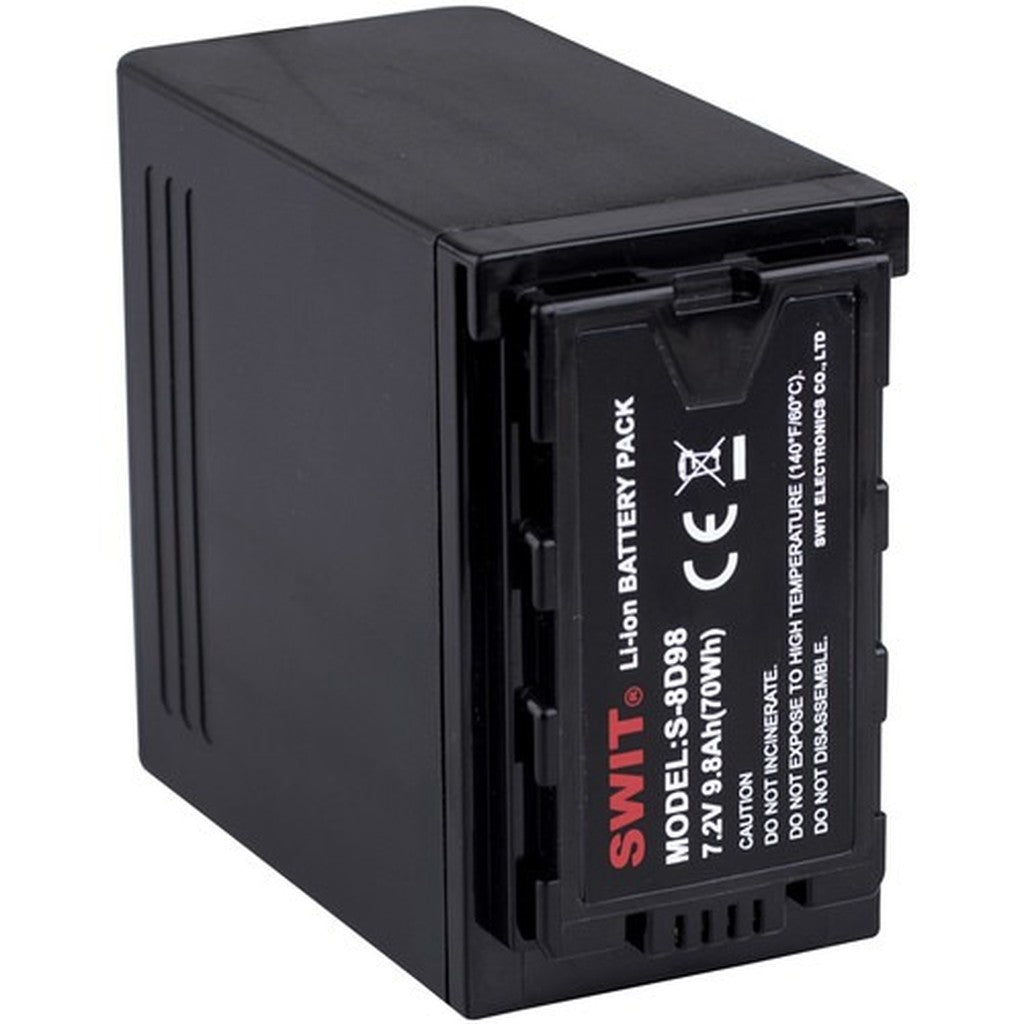

SWIT S-8D98 70Wh Panasonic VW-VBD Battery with DC and USB Outputs

SWIT S-8D98 70Wh Panasonic VW-VBD Battery with DC and USB Outputs

The SWIT S-8D98 70Wh Panasonic VW-VBD battery supplies dependable 7.2V lithium-ion power to compatible professional camcorders. A built-in pole-tap DC connection powers camera-mounted accessories, while the USB-A output charges mobile devices. Its four-level LED indicator provides a quick view of remaining capacity before production begins.

With 9800mAh capacity, the S-8D98 supports extended field recording with Panasonic AU-EVA1, AG-DVX200, AJ-PX, AG-CX, AG-UX, and additional compatible camcorders. Camera operators can use the 5.5/2.1mm output to run an LED light, monitor, or wireless transmitter while simultaneously powering the camera. The USB port also turns the pack into a convenient mobile charging source.

The battery replaces select Panasonic VW-VBD and AG-VBR models and integrates with compatible Panasonic and SWIT charging systems. Multiple circuit protections support reliable professional operation, while separate output limits help crews match cameras and accessories to the available power. The compact design suits documentary, broadcast, event, and location-production workflows.

Key Features

• 70Wh Lithium-Ion Capacity: Provides 9800mAh of rechargeable power for compatible Panasonic camcorders.
• Panasonic VW-VBD Compatibility: Replaces select VW-VBD and AG-VBR-series camera batteries.
• Pole-Tap DC Connection: Powers a compatible monitor, LED light, or wireless transmitter alongside the camera.
• USB-A Charging Output: Supplies 5V at 1A for charging smartphones, tablets, and other USB devices.

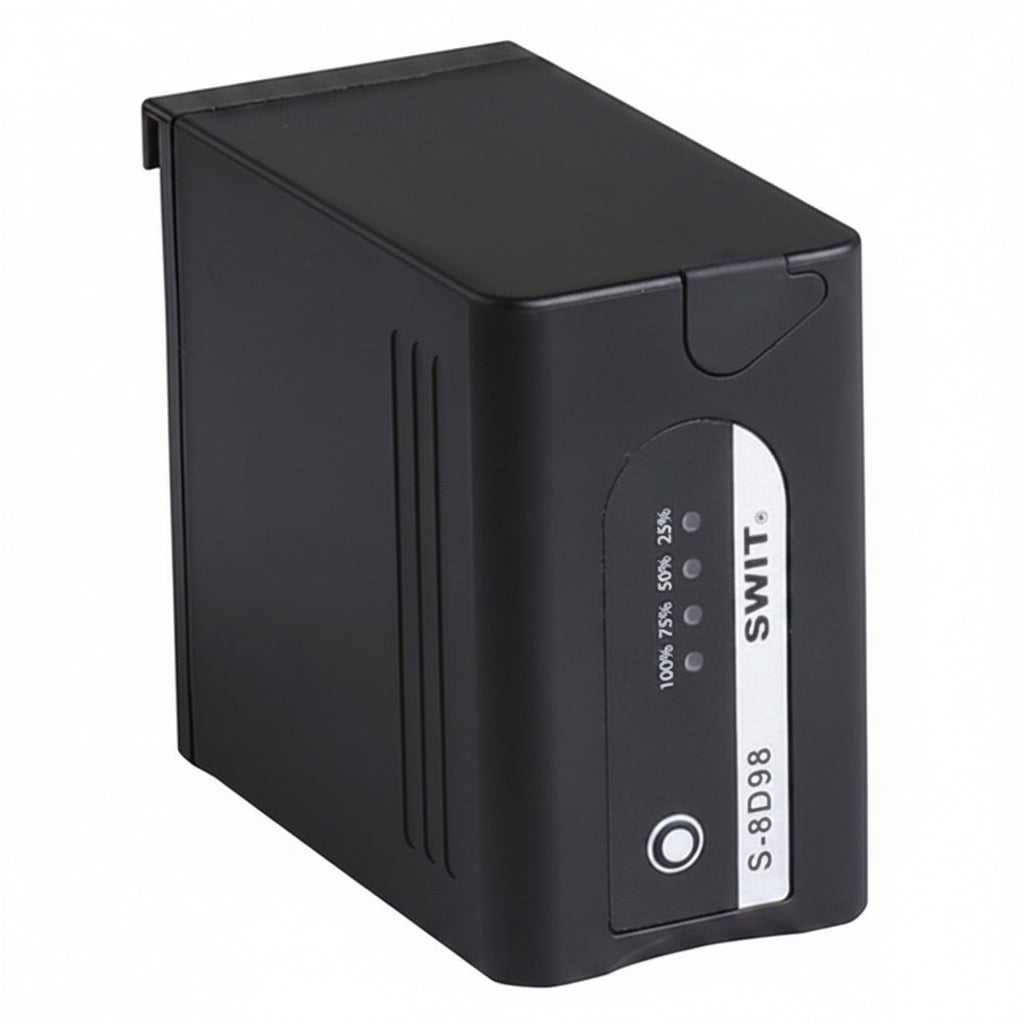

• Four-Level LED Gauge: Displays remaining battery capacity before the pack is installed.
• High-Current Performance: Supports a total maximum output of 30W or 4A.
• Multiple Charging Options: Works with compatible Panasonic and SWIT desktop or portable chargers.
• Multiple Circuit Protections: Helps protect the battery and connected production equipment during operation.

Technical Specifications

• Brand: SWIT
• Model: S-8D98
• Product Type: Panasonic VW-VBD-series rechargeable camcorder battery
• Battery Chemistry: Lithium-ion
• Nominal Voltage: 7.2V DC
• Capacity: 70Wh, 9800mAh
• Comparable Panasonic Batteries: VW-VBD58, AG-VBR59P, AG-VBR89G, and AG-VBR118G
• Power Connections: 1 x 5.5/2.1mm barrel/coax female pole-tap connection; 1 x USB-A female output
• Total Maximum Output: 30W, 4A
• Battery Pin Maximum Output: 25W, 3.5A
• Pole-Tap Maximum Output: 30W, 4A
• Pole-Tap Voltage: 7.2V DC nominal
• USB-A Output: 5W maximum, 5V DC at 1A
• Pole-Tap Charging Input: Supported with the SWIT S-3010D portable charger
• Power Indicator: Four-level LED capacity indicator
• Approximate Runtime: Approximately 3 hours on an AJ-PX270-series camcorder with its LCD monitor operating

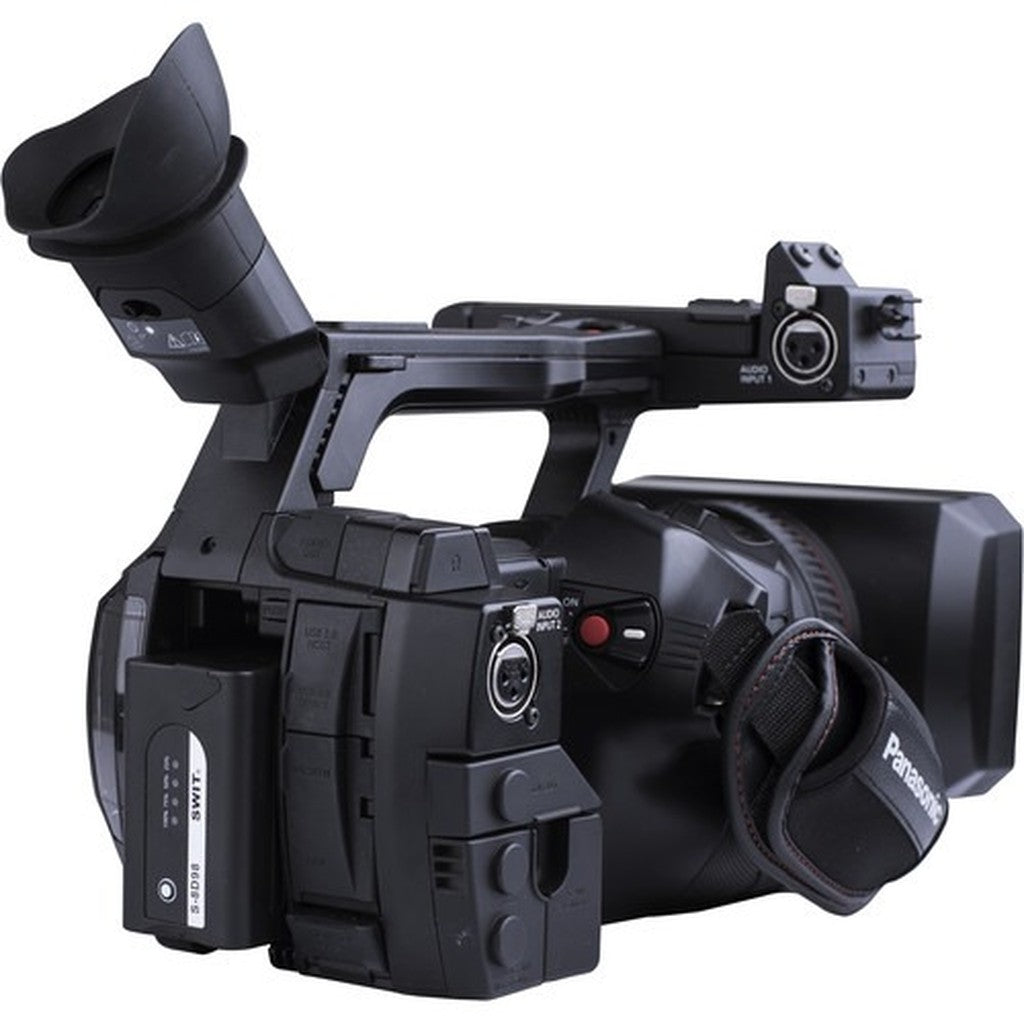

• Compatible Panasonic Cameras: AU-EVA1, AG-DVX200, AJ-PX230, AJ-PX270, AJ-PX285, AJ-PX298, AJ-UPX360, AG-CX350, AG-CX370, AG-UX90, AG-UX180, AG-DVC30, AG-DVX100, AG-HVX200, AG-HVX201, AG-HPX171, AG-HPX250, and AG-AC30
• Compatibility Exclusions: Panasonic AG-CX10, AG-CX18, AG-CX20, HC-X1200, HC-X1500, HC-X1600, HC-X2000, and HC-X2100 due to battery-slot size limitations

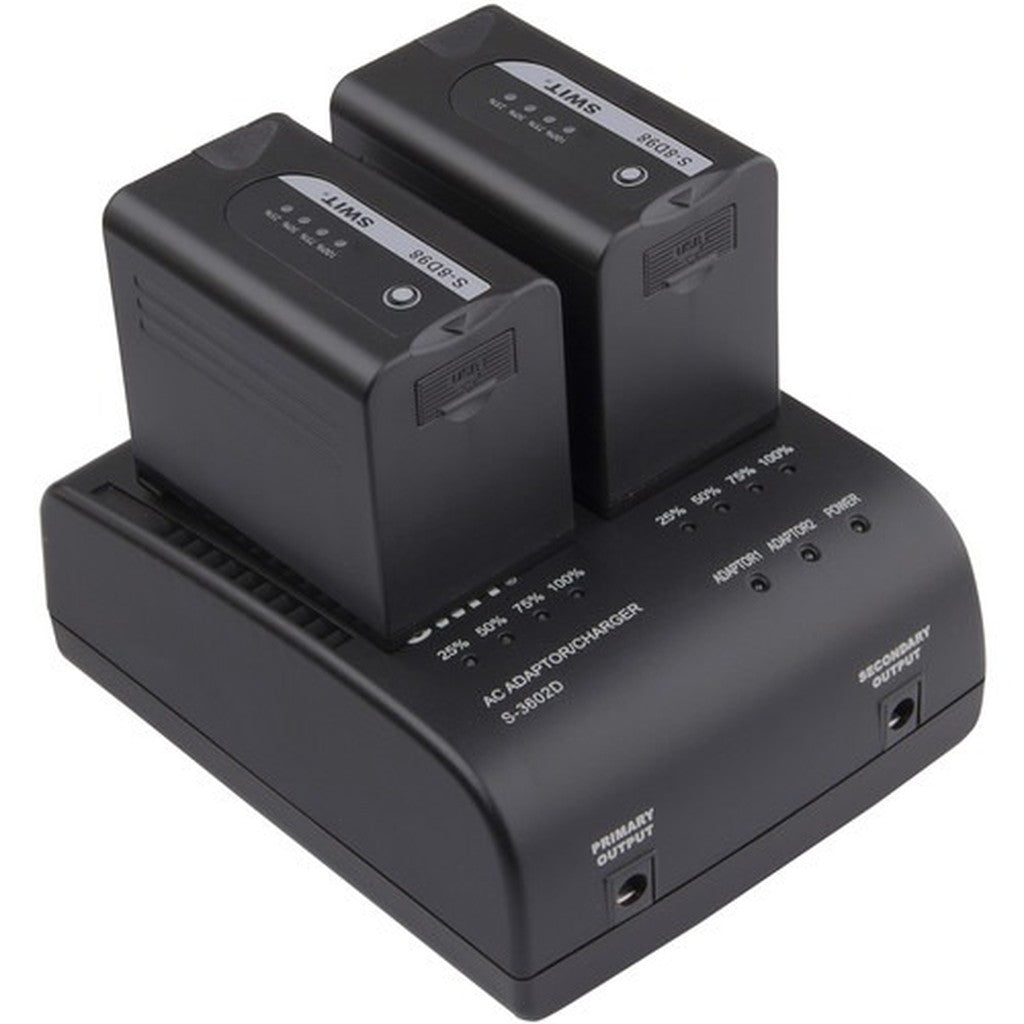

• Compatible Chargers: Panasonic DE-A88 and AG-BRD50; SWIT S-3602D, LC-D421, and S-3010D
• Approximate Charging Time: 6 hours with the Panasonic DE-A88 or SWIT S-3602D; 9.5 hours with the SWIT S-3010D
• Charging Temperature: 32 to 104°F
• Discharging Temperature: -4 to 122°F; capacity and maximum load may decrease below 32°F
• Accessory Mounting Thread: None
• Dimensions: 3.27" x 2.76" x 1.61"
• Weight: 0.74 lbs

What's In the Box

• SWIT S-8D98 70Wh Panasonic VW-VBD-Series Battery
