SWIT TA-T10S Arca-Type V-Mount Battery Plate and Mini Tripod

SWIT TA-T10S Arca-Type V-Mount Battery Plate and Mini Tripod

The SWIT TA-T10S Arca-Type V-Mount Battery Plate gives camera operators a compact way to mount a V-mount battery beside or behind a camera rig. Its articulating support provides 210° tilt and 360° rotation, while the lightweight aluminum-alloy construction supports equipment weighing up to 4.4 lbs.

Designed for mirrorless cameras, field monitors, livestreaming equipment, and other production devices, the TA-T10S helps crews build extended-runtime camera setups without relying exclusively on small internal batteries. The Arca-type base enables quick attachment to compatible tripod heads, and two 1/4"-20 mounting screws secure cameras or accessories in flexible configurations.

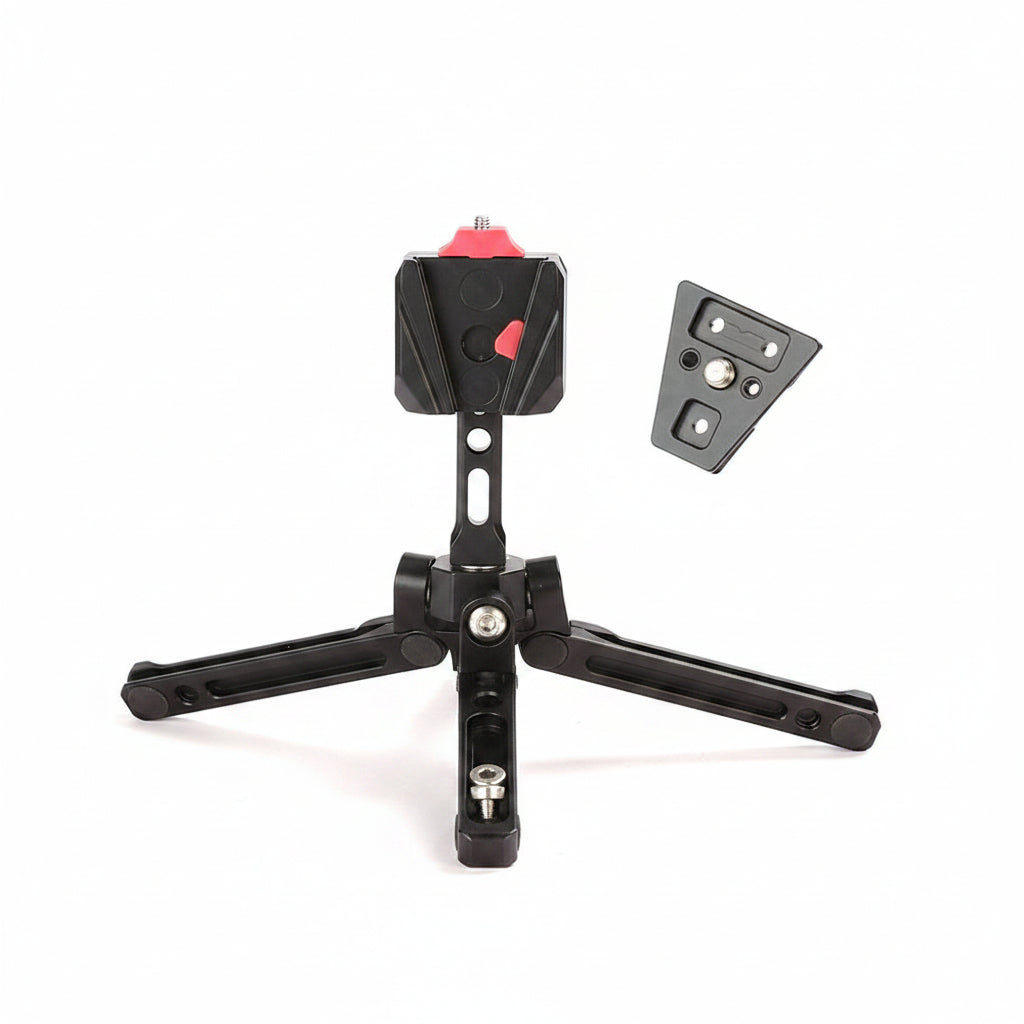

The transformable design also converts into a compact desktop tripod for tabletop filming, monitoring, and mobile production. An included V-wedge quick release plate attaches compatible devices through a 1/4"-20 screw, while the foldable structure collapses to only 4.1" long for convenient storage in camera bags and production cases.

Key Features

• V-Mount Battery Support: Positions a compatible battery beside or behind a camera or production device.
• Arca-Type Base: Attaches quickly to compatible Arca-style tripod heads and support systems.
• Articulating Adjustment: Provides 210° tilt and 360° rotation for flexible battery placement.
• 4.4 lb Load Capacity: Supports compatible batteries, cameras, monitors, and compact video accessories.
• Dual 1/4"-20 Mounts: Secures cameras and production devices using standard threaded connections.
• V-Wedge Quick Release Plate: Expands mounting options for devices equipped with a 1/4"-20 socket.
• Desktop Tripod Conversion: Transforms into foldable legs for tabletop filming and equipment support.
• Compact Aluminum Design: Combines durable construction with a lightweight, travel-friendly folded profile.

Technical Specifications

• Brand: SWIT
• Model: TA-T10S
• Product Type: Transformable Arca-type mounting plate with V-mount arm
• Compatible Battery Mount: V-mount
• Material: Aluminum alloy
• Maximum Load Capacity: 4.4 lbs
• Tilt Range: 210°
• Rotation Range: 360°
• Rail Mounting: Two 1/4"-20 male screws
• Quick Release Plate Mounting: One 1/4"-20 male screw
• Plate Locking Method: Screw knob
• Quick Release Plate Type: Proprietary V-wedge plate
• Quick Disconnect System: No
• Bubble Level: No
• Strap Loop: No
• Secondary Configuration: Foldable desktop mini tripod
• Collapsed Dimensions: 4.1" x 1.5" x 1.2"
• Weight: 0.26 lbs
• Package Dimensions: 5.4" x 3.0" x 1.6"
• Package Weight: 0.39 lbs

What's In the Box

• SWIT TA-T10S Mounting Plate with V-Mount Arm
• V-Wedge Quick Release Plate
• Two 1/4"-20 Screws
