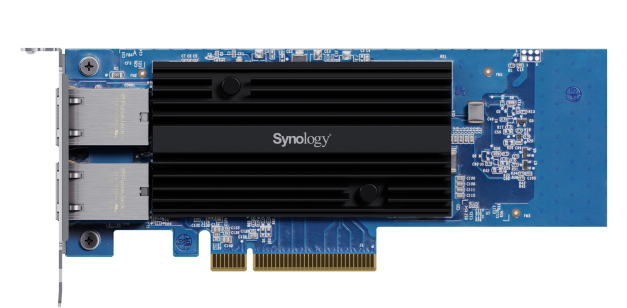

Synology E10G30-T2 Dual-Port 10GbE RJ-45 PCIe Network Adapter

Synology E10G30-T2 Dual-Port 10GbE PCIe Network Adapter

The Synology E10G30-T2 is a dual-port 10GbE RJ-45 PCIe 3.0 x8 network adapter that delivers up to 20 Gb/s of combined throughput through link aggregation, making it an ideal upgrade for high-performance Synology NAS and server environments.

Designed for IT professionals, content creators, and businesses requiring fast, reliable network connectivity, the E10G30-T2 is perfect for data-intensive workloads, media streaming, virtualization, and backup operations where maximum network throughput is critical. Its familiar RJ-45 connector ensures backward compatibility with existing Gigabit Ethernet infrastructure for seamless, incremental network upgrades.

Backed by a 5-year warranty and engineered to work within the Synology ecosystem, the E10G30-T2 requires DSM 7.1.1-42962 Update 5 or later. It is compatible with a wide range of Synology FS, SA, HD, UC, DP, and consumer NAS series, ensuring long-term investment protection for your storage infrastructure.

Key Features of the Synology E10G30-T2

• Dual 10GbE Ports: Two RJ-45 ports deliver up to 10 Gbps per port, supporting both 10 Gbps and 1 Gbps data transfer rates for flexible deployment.
• Link Aggregation (LACP): Combine both ports into a single Link Aggregation Group (LAG) for up to 20 Gb/s of total throughput, plus port failover and load balancing.
• PCIe 3.0 x8 Interface: High-bandwidth PCIe 3.0 x8 host interface ensures minimal bottlenecking for demanding network workloads.
• CPU Offloading: Supports TSO, RSS, GSO, LRO, TSS, and TCP/UDP Checksum Offload to reduce CPU load and improve overall system performance.
• SR-IOV Support: Single Root I/O Virtualization enables efficient sharing of the adapter across multiple virtual machines in virtualized environments.
• Jumbo Frame Support: Supports jumbo frames from 1.5 KB to 9 KB for optimized large-file transfers over the network.
• Backward Compatible RJ-45: Standard RJ-45 connectors work with existing Cat5e/Cat6 cabling and legacy Gigabit switches, protecting current infrastructure investments.
• Flexible Bracket Options: Includes both low-profile and full-height brackets to fit a variety of server and workstation chassis.

Technical Specifications

• Host Bus Interface: PCIe 3.0 x8
• Number of Ports: 2
• Connector Type: RJ-45
• Data Transfer Rates: 10 Gbps / 1 Gbps
• Maximum Aggregate Throughput: 20 Gb/s (with link aggregation)
• IEEE Compliance: IEEE 802.3x Flow Control, IEEE 802.3ad Link Aggregation, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3an 10Gbps Ethernet
• Offload Features: TCP Segmentation Offload (TSO), Receive Side Scaling (RSS), Generic Segmentation Offload (GSO), TCP/UDP Checksum Offload, Transmit Side Scaling (TSS), Large Receive Offload (LRO)
• Virtualization: SR-IOV
• Jumbo Frame: 1.5 KB to 9 KB
• Bracket Height: Low Profile and Full Height
• Operating Temperature: 0 degrees C to 40 degrees C (32 degrees F to 104 degrees F)
• Storage Temperature: -20 degrees C to 60 degrees C (-5 degrees F to 140 degrees F)
• Relative Humidity: 5% to 95% RH
• Dimensions (L x W x H): 9 x 6 x 2 inches
• Weight: 1.00 lb
• DSM Requirement: DSM 7.1.1-42962 Update 5 or later
• Compatible Series: FS, HD, SA, UC, DP series; select RS and DS NAS models (17-25 series)
• Warranty: 5 years
