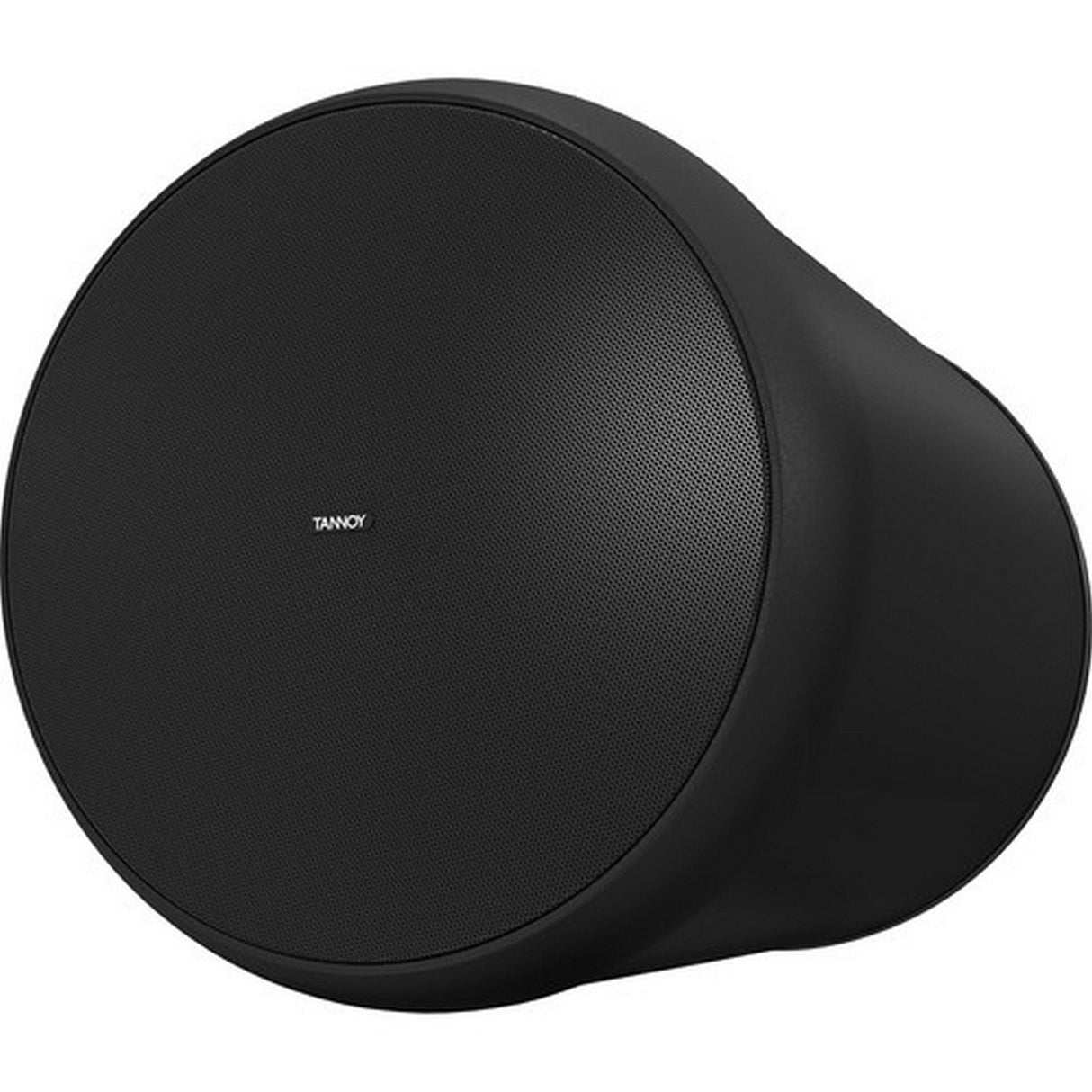

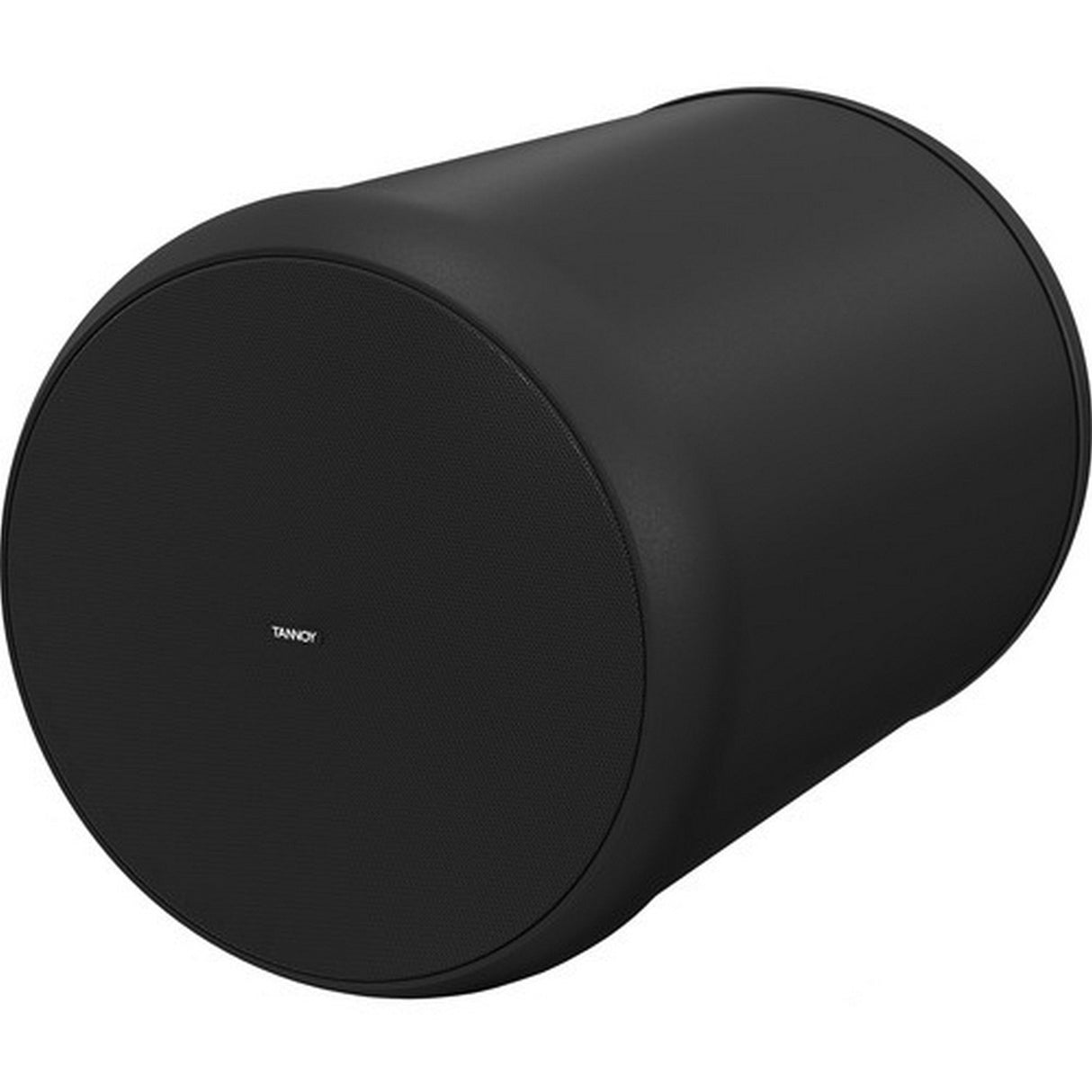

Tannoy OCV 6 Coaxial Pendant Black Loudspeaker, 6 Inch

Tannoy OCV 6 Coaxial Pendant Loudspeaker, 6 Inch

The Tannoy OCV 6 Coaxial Pendant Loudspeaker is a passive installation speaker designed for suspended mounting in open-ceiling commercial spaces. It combines a coaxial 6" low-frequency driver and 0.79" high-frequency driver with 90-degree conical coverage, 60W continuous power handling, and an integrated transformer for 70V or 100V distributed audio systems.

With an 80 Hz to 20 kHz frequency response and 88 dB sensitivity, the OCV 6 supports music and speech reinforcement in retail spaces, transportation facilities, conference areas, fitness centers, hotels, and other large commercial interiors. Its transformer provides selectable 60W, 30W, and 15W taps, plus a 7.5W tap on 70V systems. Installers can also select low-impedance operation for compatible 16-ohm amplification.

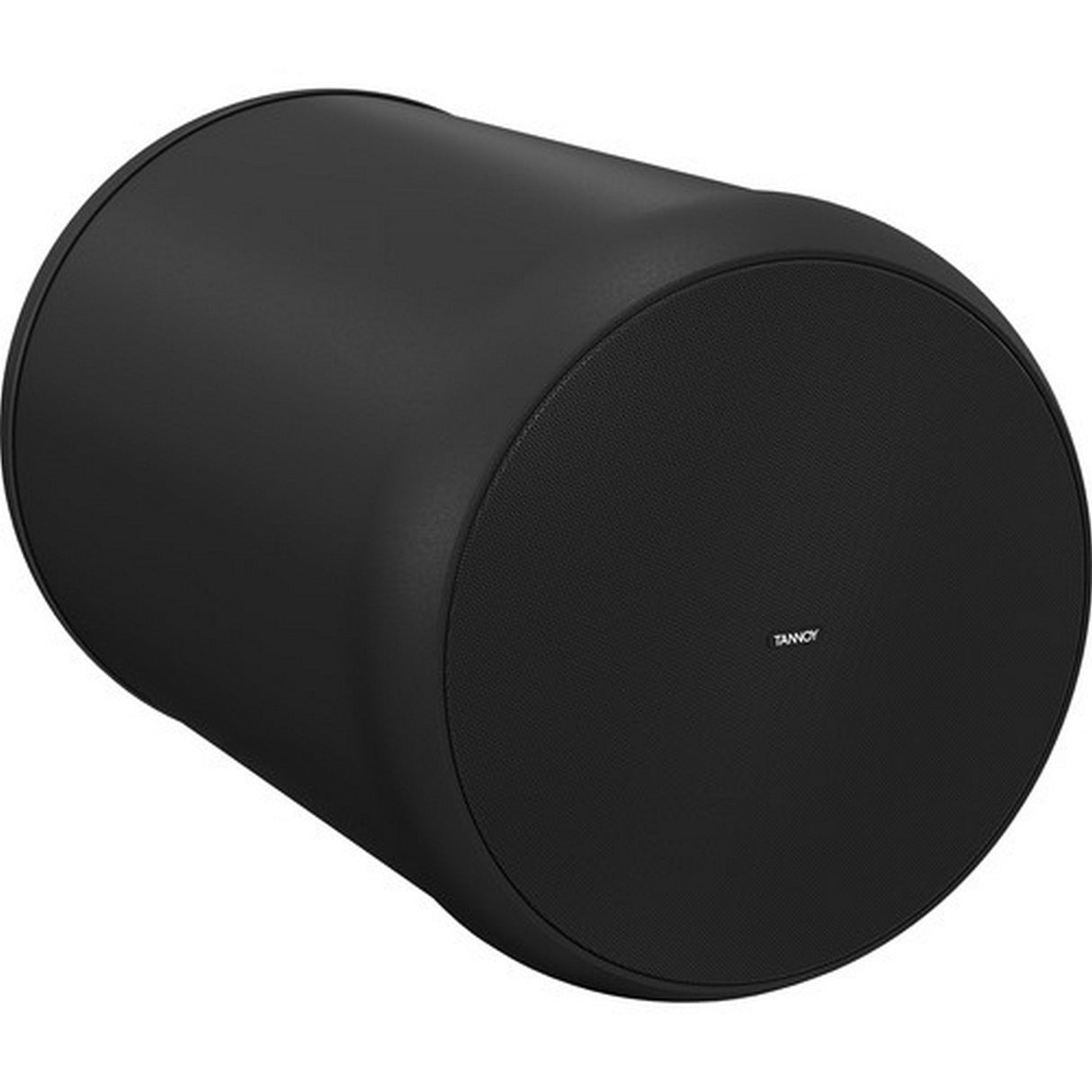

The cylindrical ABS and steel enclosure uses a plated, powder-coated steel grille and carries an IP64 rating for resistance to dust and water exposure. A removable locking Euroblock connector supports loop-through wiring for distributed speaker runs. The included suspension and safety hardware supports professional overhead installation, while UL-1480, UL-2043, and CE ratings address common commercial installation requirements.

Key Features

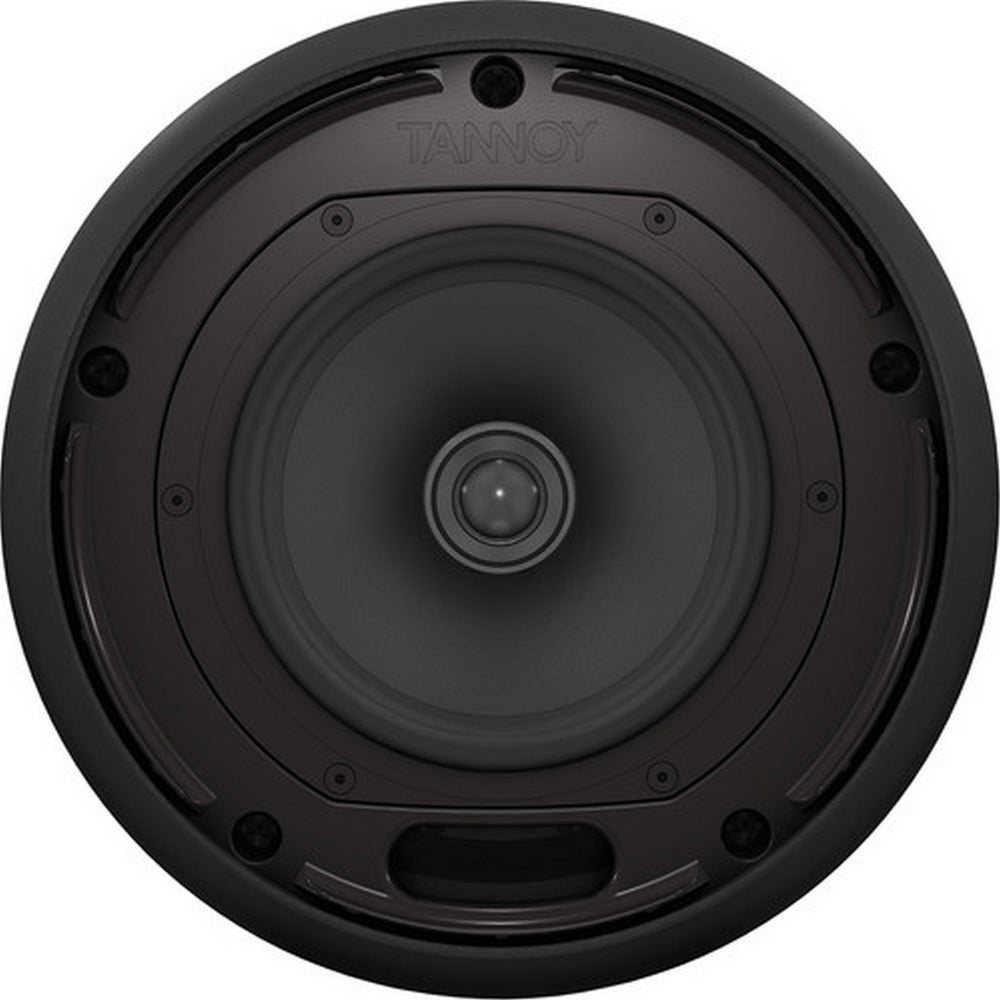

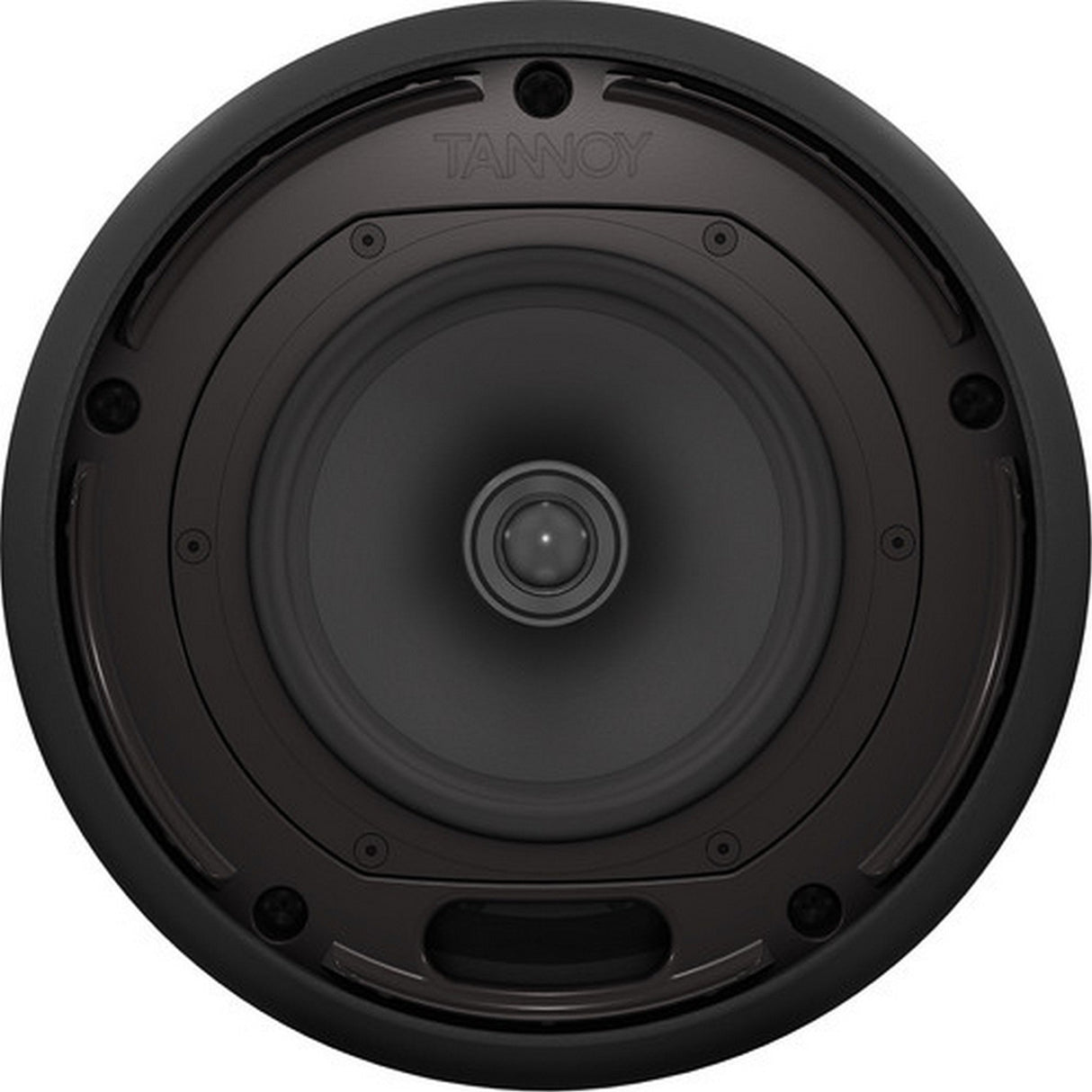

• Coaxial Driver Design: Combines a 6" mineral-loaded low-frequency cone with a 0.79" high-frequency driver for compact full-range reproduction.
• 90-Degree Conical Coverage: Provides controlled, symmetrical dispersion for consistent coverage beneath suspended installations.
• 240W Peak Power Handling: Handles 60W average, 120W program, and 240W peak power for commercial music and speech systems.
• 70V and 100V Transformer: Integrated 60W transformer supports distributed audio installations with selectable power taps.
• Low-Impedance Operation: Supports direct 16-ohm operation when used with a compatible amplifier.
• Loop-Through Connectivity: Removable locking Euroblock terminals simplify connection to additional loudspeakers in distributed systems.
• IP64-Rated Construction: Enclosure design provides protection against dust and water exposure for demanding installation environments.
• Suspended Installation Hardware: Includes hanging and safety cables plus mounting accessories for pendant installation.

Technical Specifications

• Product Type: Coaxial pendant loudspeaker
• Finish: Black
• Frequency Response: 80 Hz to 20 kHz (-3 dB)
• Frequency Range: 60 Hz to 30 kHz (-10 dB)
• System Sensitivity: 88 dB, 1W at 1 m
• Dispersion: 90° conical (-6 dB)
• Transducer Configuration: Coaxial
• Low-Frequency Driver: 6" mineral-loaded cone
• High-Frequency Driver: 0.79"
• Crossover: 5.4 kHz, 2nd-order LF / 2nd-order HF
• Directivity Factor: 11.3 average from 1 kHz to 6.3 kHz
• Directivity Index: 10.5 dB average from 1 kHz to 6.3 kHz
• Maximum SPL: 105 dB average / 111 dB peak
• Average Power Handling: 60W
• Program Power Handling: 120W
• Peak Power Handling: 240W
• Recommended Amplifier Power: 120W at 16 ohms
• Nominal Impedance: 16 ohms
• 70V Transformer Taps: 60W / 30W / 15W / 7.5W / low-impedance operation
• 100V Transformer Taps: 60W / 30W / 15W / low-impedance operation

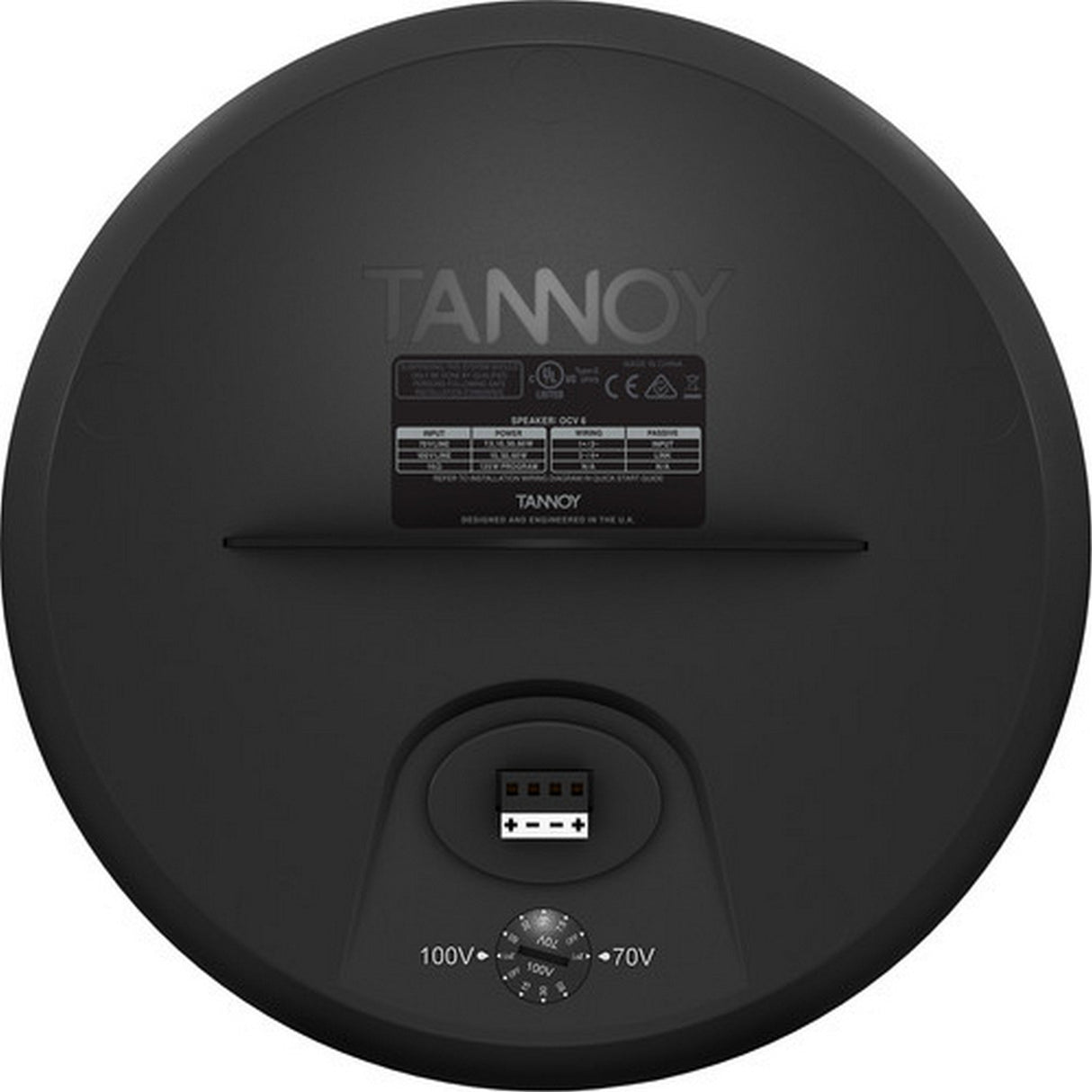

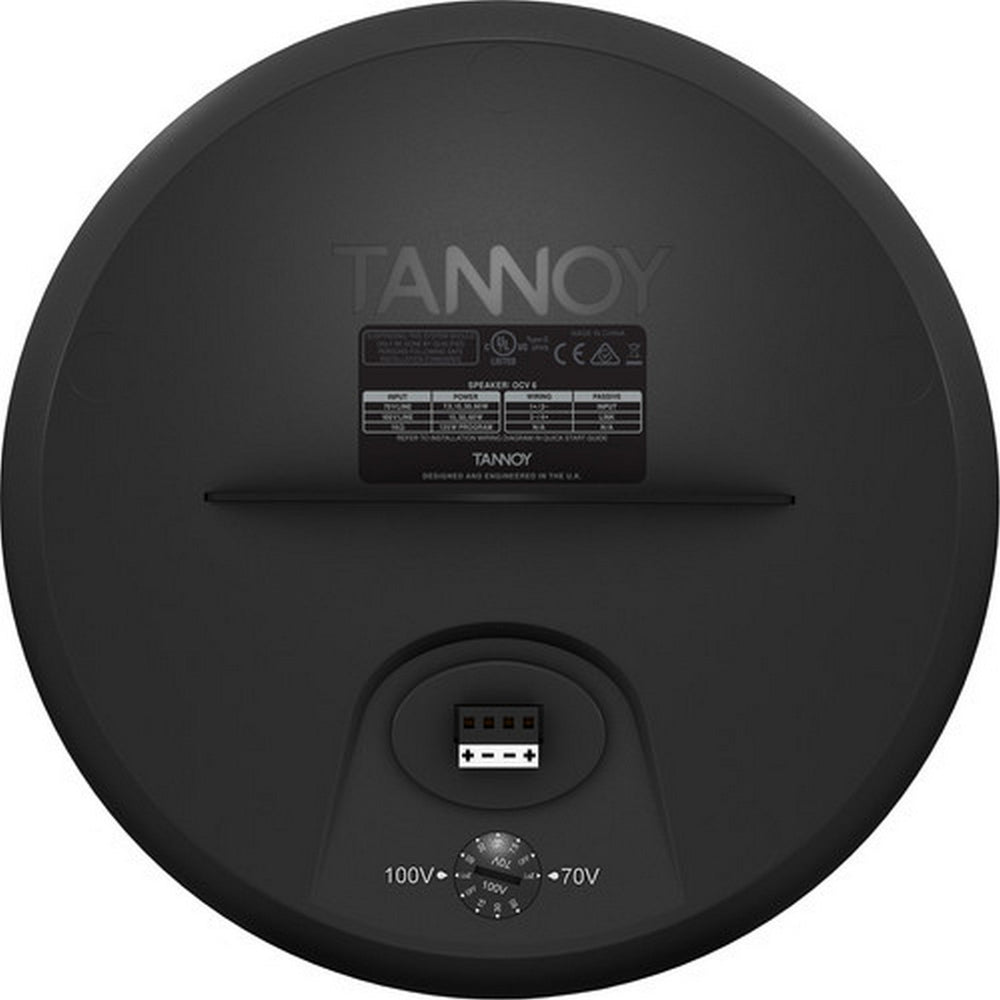

• Transformer Selection: Rotary switch
• Connector: Removable locking Euroblock with screw terminals and loop-through facility
• Enclosure: ABS / steel

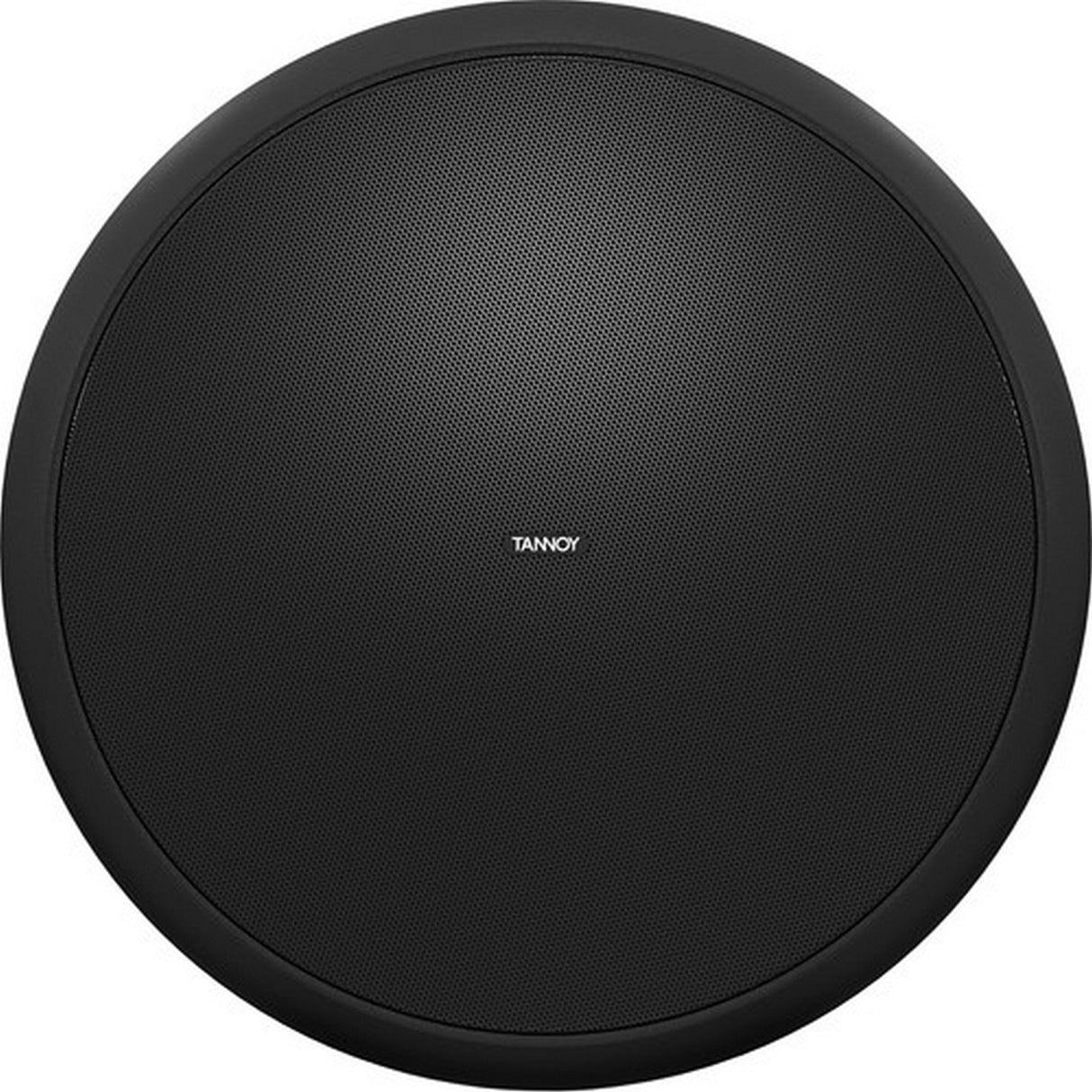

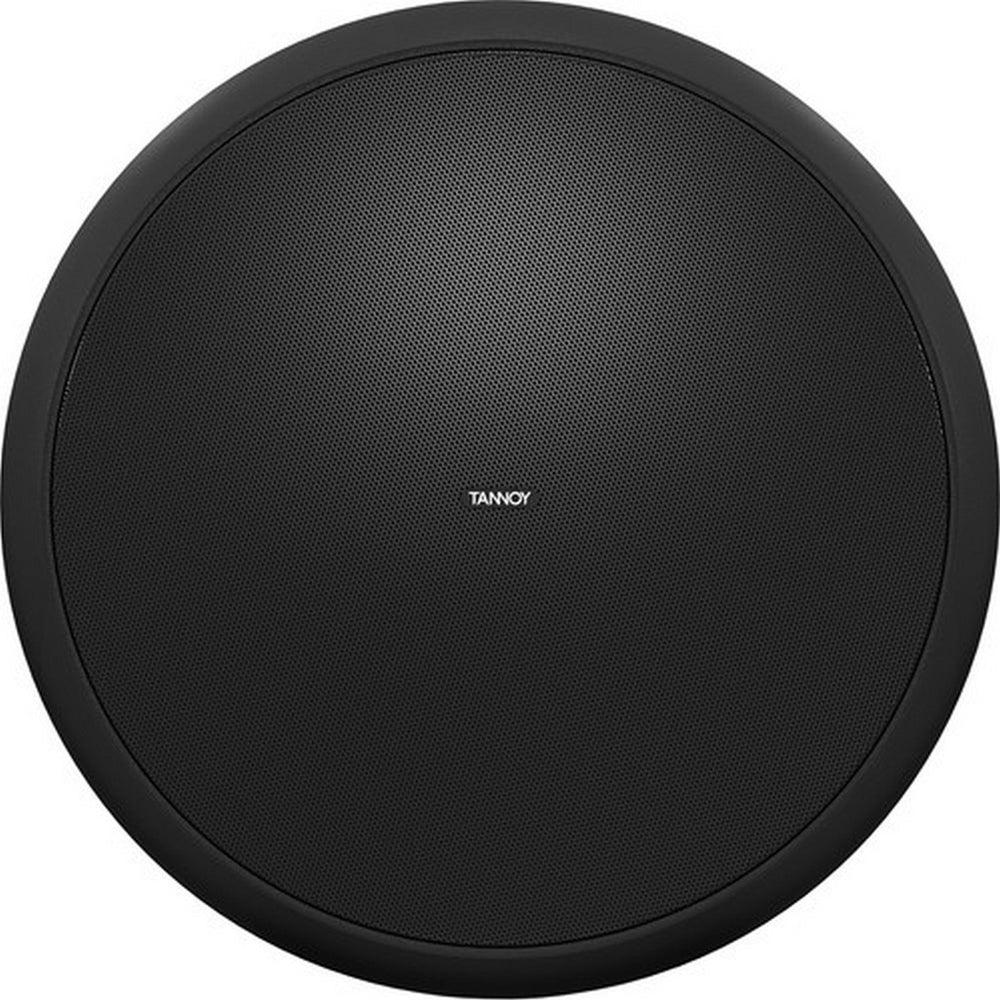

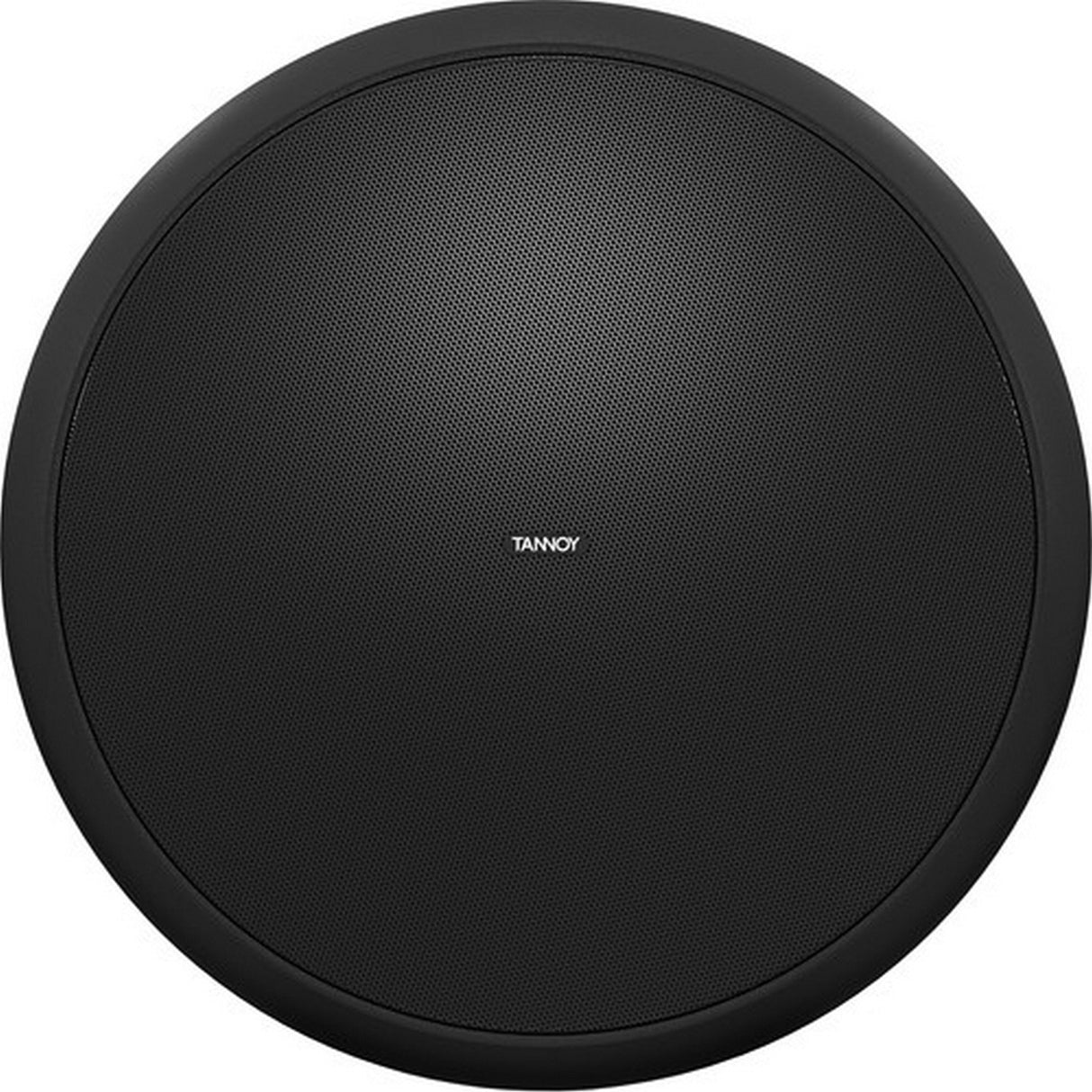

• Grille: Plated and powder-coated steel
• Ingress Protection: IP64
• Safety Agency Ratings: UL-1480, UL-2043, CE
• Diameter: 10.2"
• Overall Length: 16.7"
• Weight: 12.8 lb
• Shipping Weight: 16.7 lb

What's In the Box

• Tannoy OCV 6 Coaxial Pendant Loudspeaker
• Cable clamps
• Hanging cable
• Safety cable
• Terminal weather boot
• Euroblock connector
• 3/8" threaded rod adapter
• Cable ties
