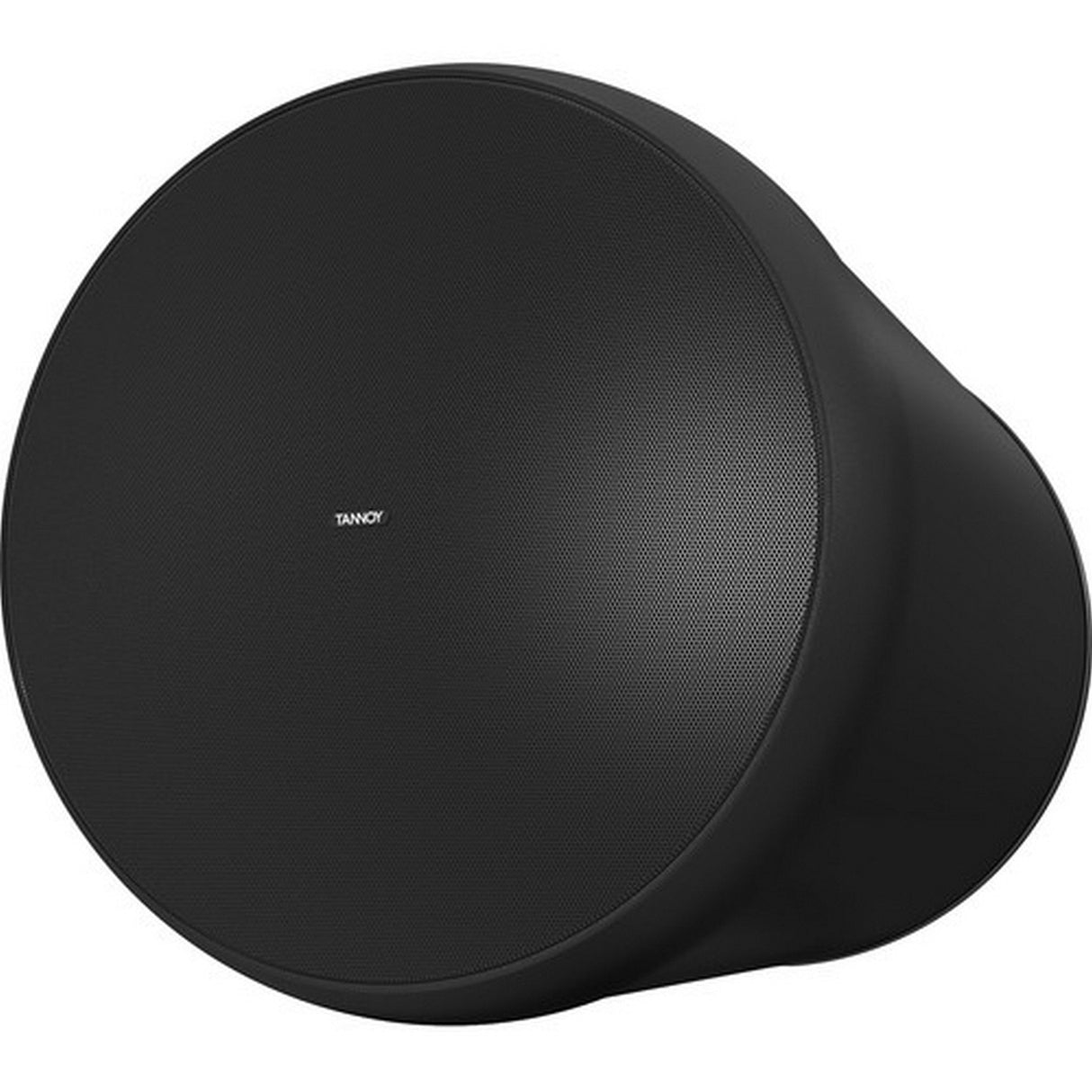

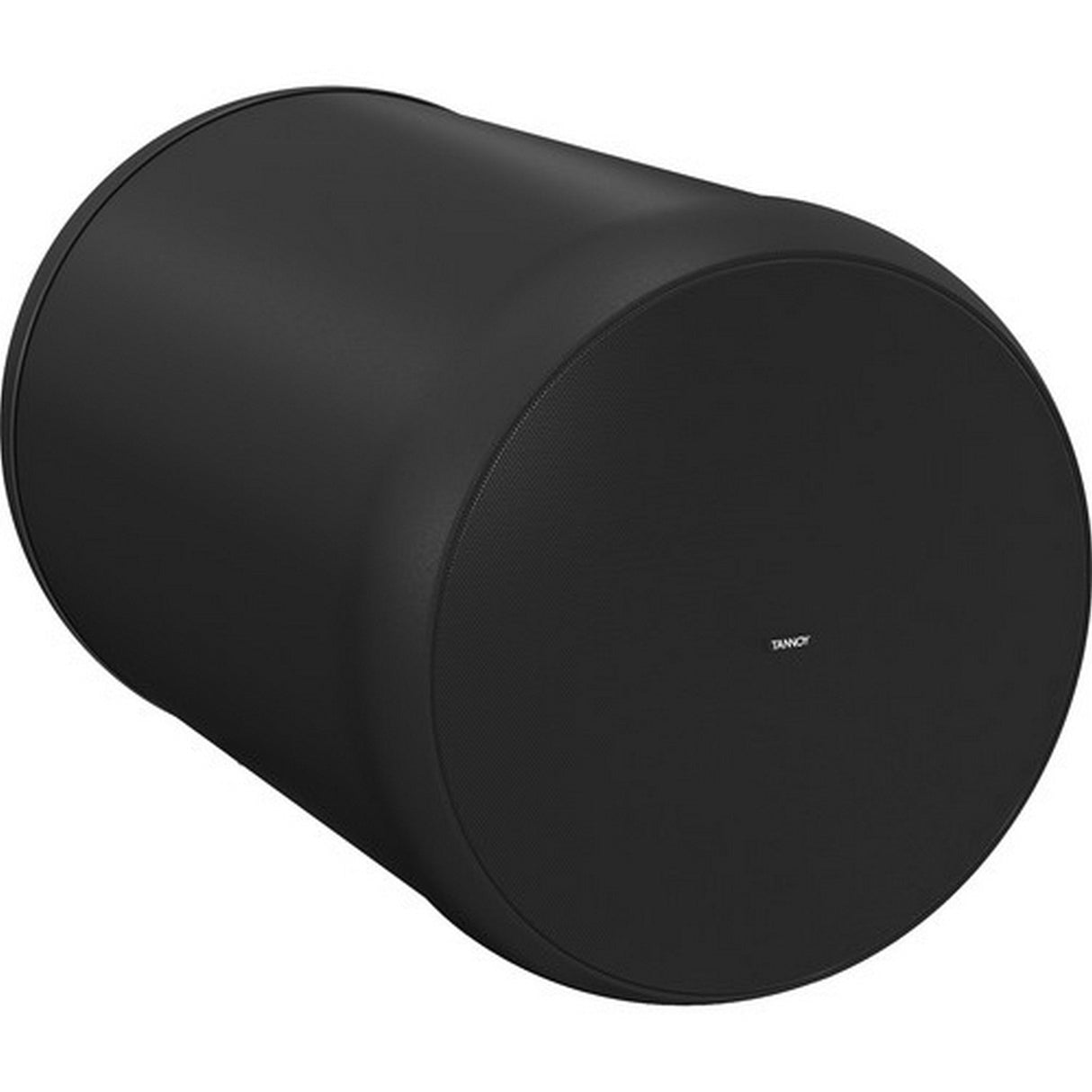

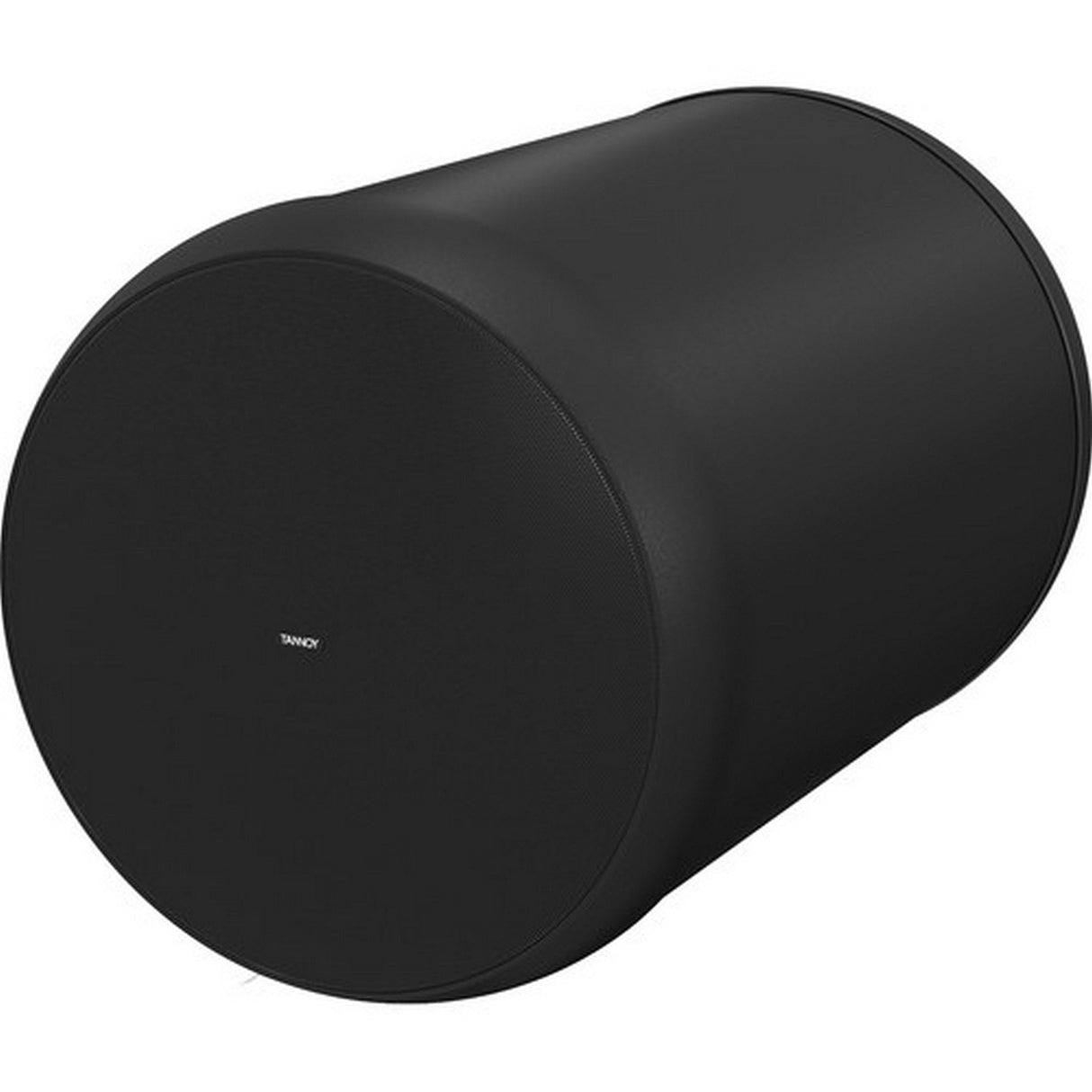

Tannoy OCV 8 Coaxial Pendant Black Loudspeaker, 8 Inch

Tannoy OCV 8 Coaxial Pendant Loudspeaker, 8 Inch

The Tannoy OCV 8 8" Coaxial Pendant Loudspeaker is a passive commercial installation speaker for open ceilings and suspended applications. Its coaxial 8" low-frequency driver and 1" high-frequency driver deliver 80-degree conical coverage, while 70W average power handling supports clear music and speech reinforcement in larger spaces.

The OCV 8 suits retail environments, transportation facilities, hospitality spaces, conference areas, atriums, and other commercial locations where conventional in-ceiling speakers are impractical. An integrated 60W transformer supports 70V and 100V distributed systems, with selectable taps and a low-impedance 16-ohm mode for compatible amplifiers. A removable Euroblock connector also provides loop-through wiring for multi-speaker installations.

Its cylindrical ABS and steel enclosure combines a compact architectural profile with professional installation hardware. The OCV 8 reaches 114 dB peak SPL, covers frequencies from 75 Hz to 20 kHz within its -3 dB response, and carries UL-1480, UL-2043, and CE ratings. Included suspension and safety hardware supports secure pendant installation in permanent commercial AV systems.

Key Features

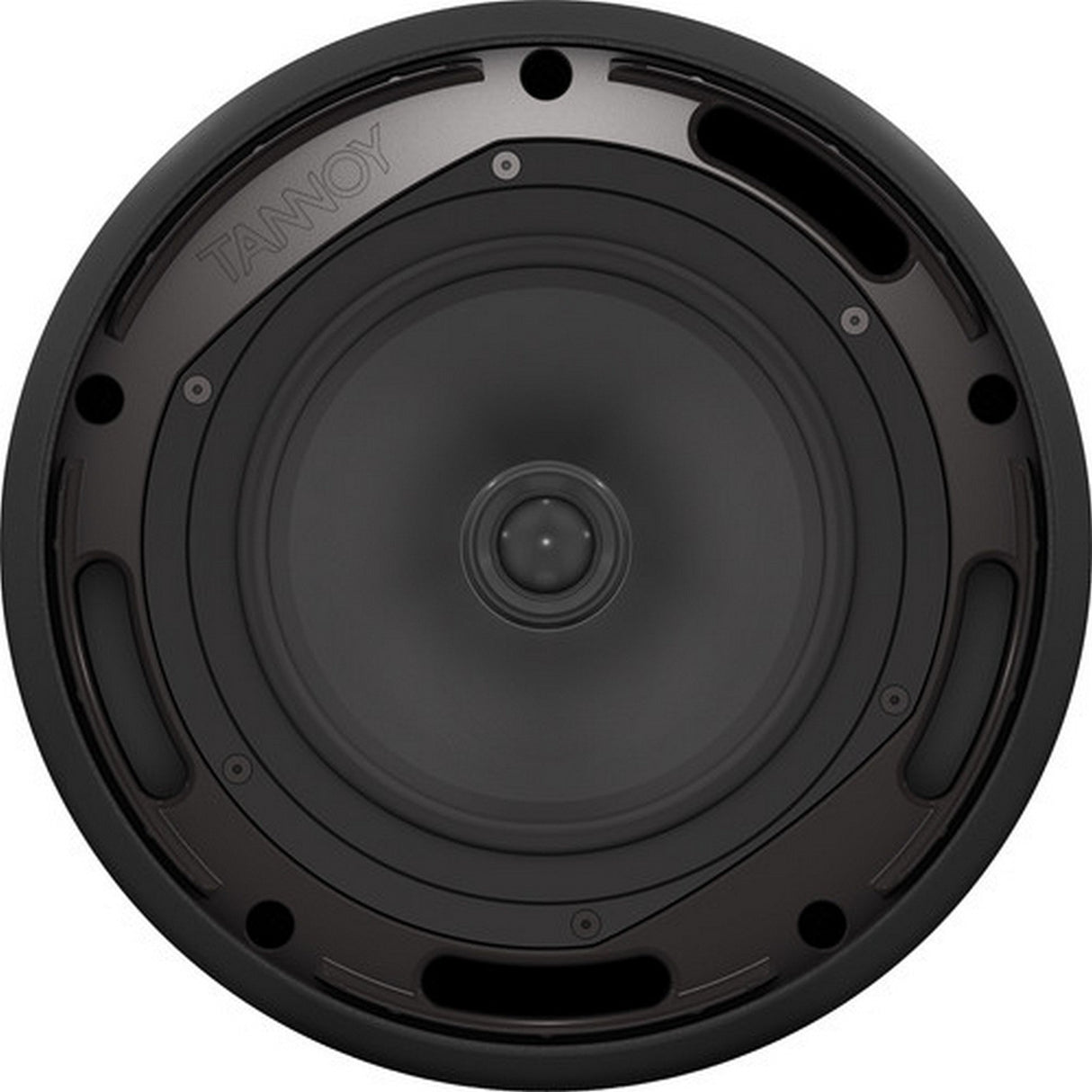

• 8" Coaxial Driver: Combines an 8" mineral-loaded low-frequency cone with a coaxially mounted 1" high-frequency driver.
• 80-Degree Conical Coverage: Provides symmetrical dispersion for consistent sound coverage beneath suspended installations.
• 280W Peak Power Handling: Handles 70W average, 140W program, and 280W peak power.
• 70V and 100V Operation: Integrated transformer supports distributed commercial audio systems with selectable power taps.
• 16-Ohm Low-Impedance Mode: Allows direct connection to compatible low-impedance amplification when required.
• High Output Capability: Produces up to 108 dB average and 114 dB peak SPL for larger commercial spaces.
• Loop-Through Euroblock Connector: Simplifies wiring multiple loudspeakers along a distributed audio line.
• Commercial Installation Ratings: Carries UL-1480, UL-2043, and CE ratings for professional installation environments.

Technical Specifications

• Product Type: Coaxial pendant loudspeaker
• Finish: Black
• Frequency Response: 75 Hz to 20 kHz (-3 dB)
• Frequency Range: 60 Hz to 30 kHz (-10 dB)
• System Sensitivity: 90 dB, 1W at 1 m
• Dispersion: 80° conical (-6 dB)
• Transducer Configuration: Coaxial
• Low-Frequency Driver: 8" mineral-loaded cone
• High-Frequency Driver: 1"
• Crossover: 4.5 kHz, 3rd-order LF / 2nd-order HF
• Directivity Factor: 14.4 average from 1 kHz to 6.3 kHz
• Directivity Index: 11.6 dB average from 1 kHz to 6.3 kHz
• Maximum SPL: 108 dB average / 114 dB peak
• Average Power Handling: 70W
• Program Power Handling: 140W
• Peak Power Handling: 280W
• Recommended Amplifier Power: 140W at 16 ohms
• Nominal Impedance: 16 ohms
• 70V Transformer Taps: 60W / 30W / 15W / 7.5W / low-impedance operation
• 100V Transformer Taps: 60W / 30W / 15W / low-impedance operation
• Transformer: 60W

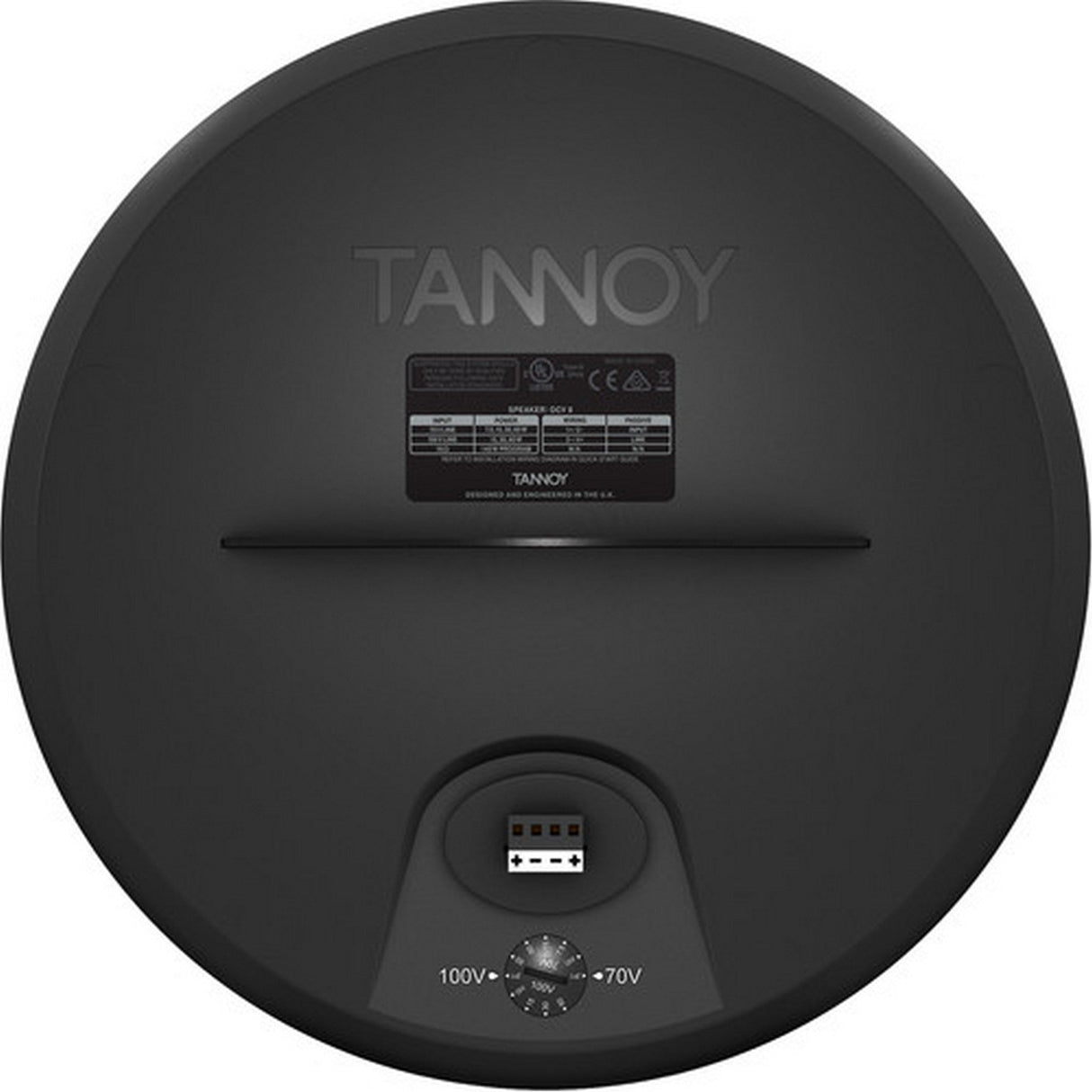

• Transformer Selection: Rotary switch
• Connector: Removable locking Euroblock with screw terminals and loop-through facility
• Enclosure: ABS / steel

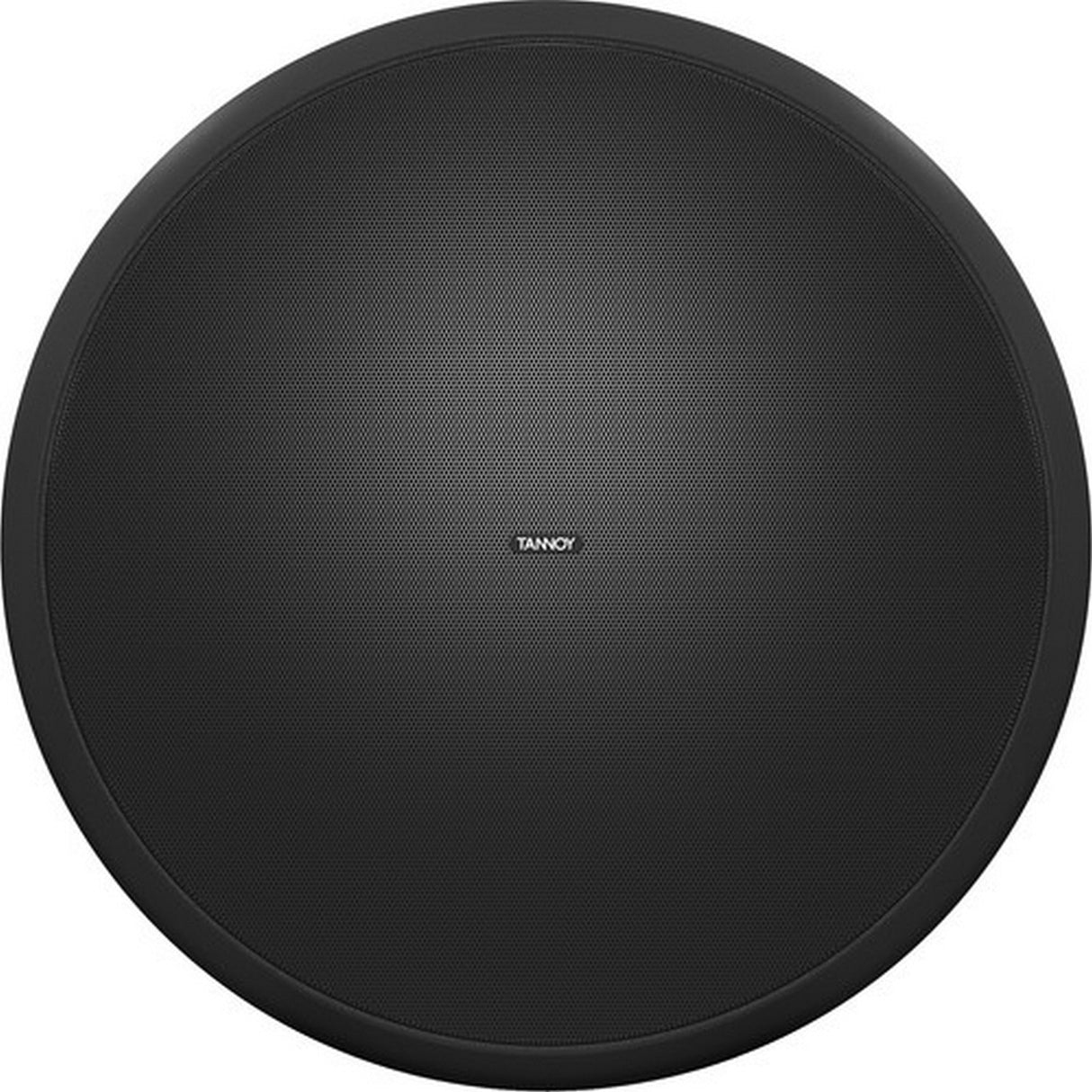

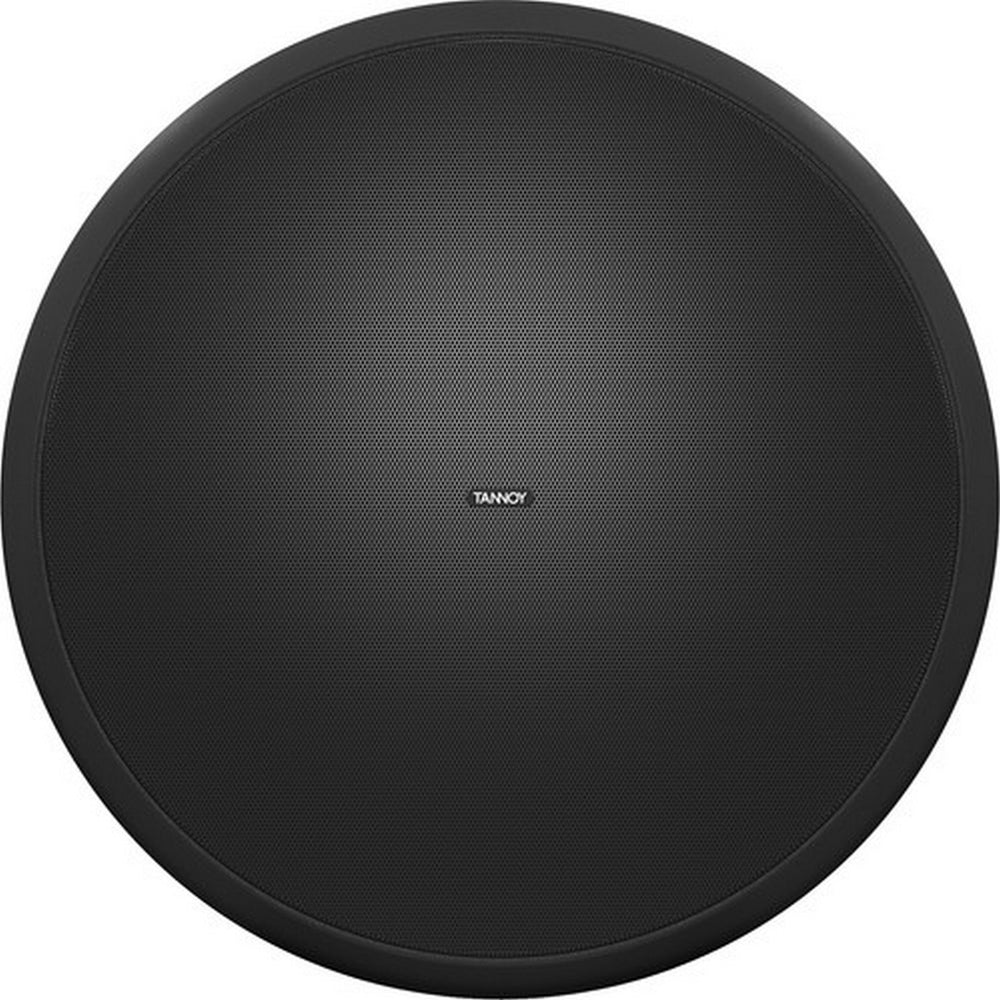

• Grille: Plated and powder-coated steel
• Safety Agency Ratings: UL-1480, UL-2043, CE
• Diameter: 11.9"
• Overall Length: 19.4"
• Weight: 18.1 lb
• Shipping Weight: 22.9 lb

What's In the Box

• Tannoy OCV 8 Coaxial Pendant Loudspeaker
• Cable clamps
• Hanging cable
• Safety cable
• Terminal weather boot
• Euroblock connector
• 3/8" threaded rod adapter
• Cable ties
