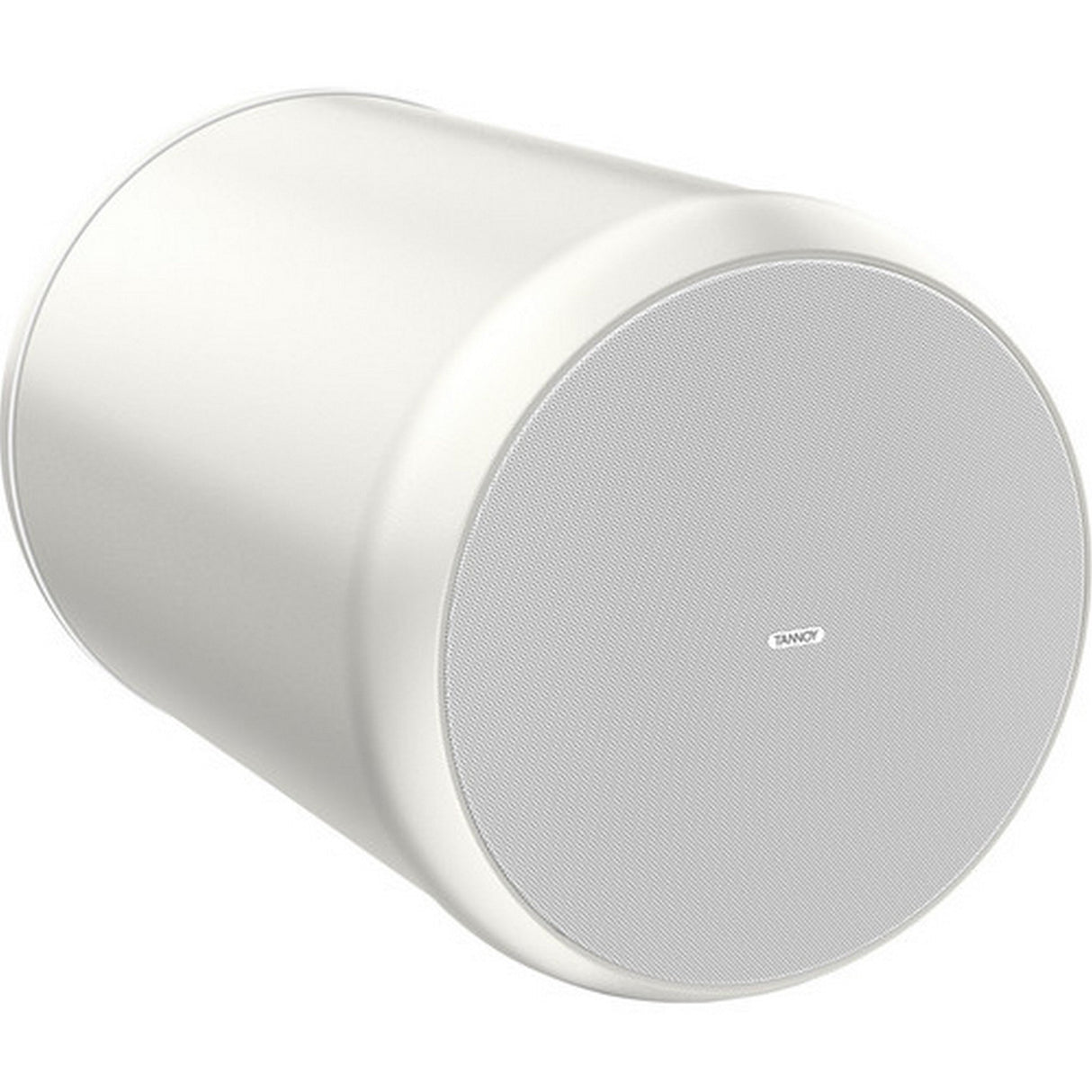

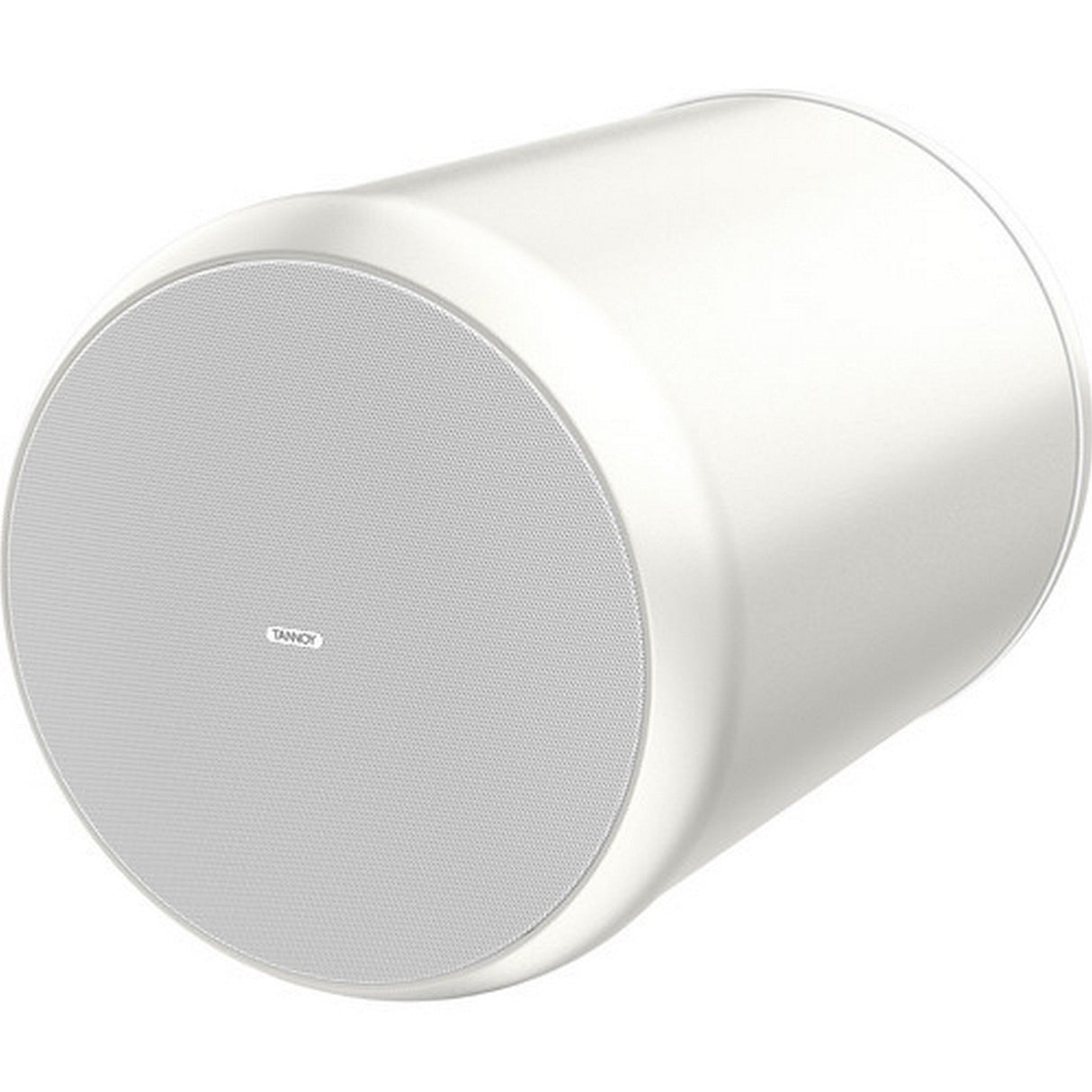

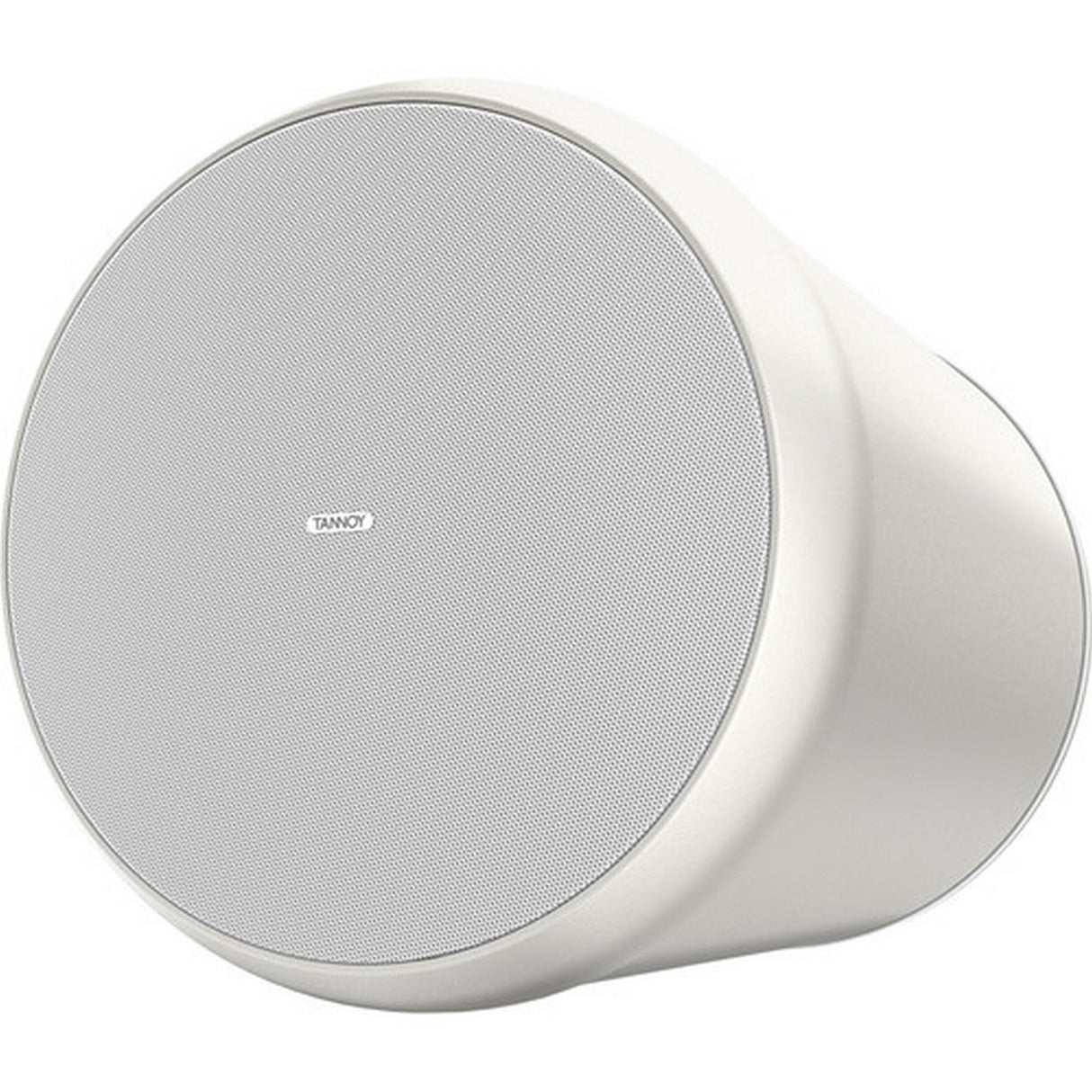

Tannoy OCV6WH Coaxial Pendant White Loudspeaker, 6 Inch

Tannoy OCV6WH Coaxial Pendant White Loudspeaker, 6 Inch

The Tannoy OCV6WH 6" Coaxial Pendant Loudspeaker is a passive commercial speaker for suspended installation in open- and high-ceiling spaces. Its coaxial 6" low-frequency driver and 0.79" high-frequency driver deliver 90-degree conical coverage, while 60W average power handling supports music, paging, and speech reinforcement.

The OCV6WH integrates a 60W transformer for 70V and 100V distributed audio systems, with selectable transformer taps and a 16-ohm low-impedance operating mode. This configuration makes it suitable for retail environments, transportation facilities, conference spaces, hotels, fitness centers, and other commercial installations where recessed ceiling loudspeakers are impractical.

The cylindrical ABS and steel enclosure uses a plated, powder-coated steel grille and an IP64-rated design for resistance to dust and water. A locking Euroblock connector supports loop-through wiring for multi-speaker systems, while the supplied hanging cable, secondary safety cable, weather boot, and mounting accessories support professional pendant installation. UL-1480, UL-2043, and CE ratings further suit permanent commercial AV applications.

Key Features

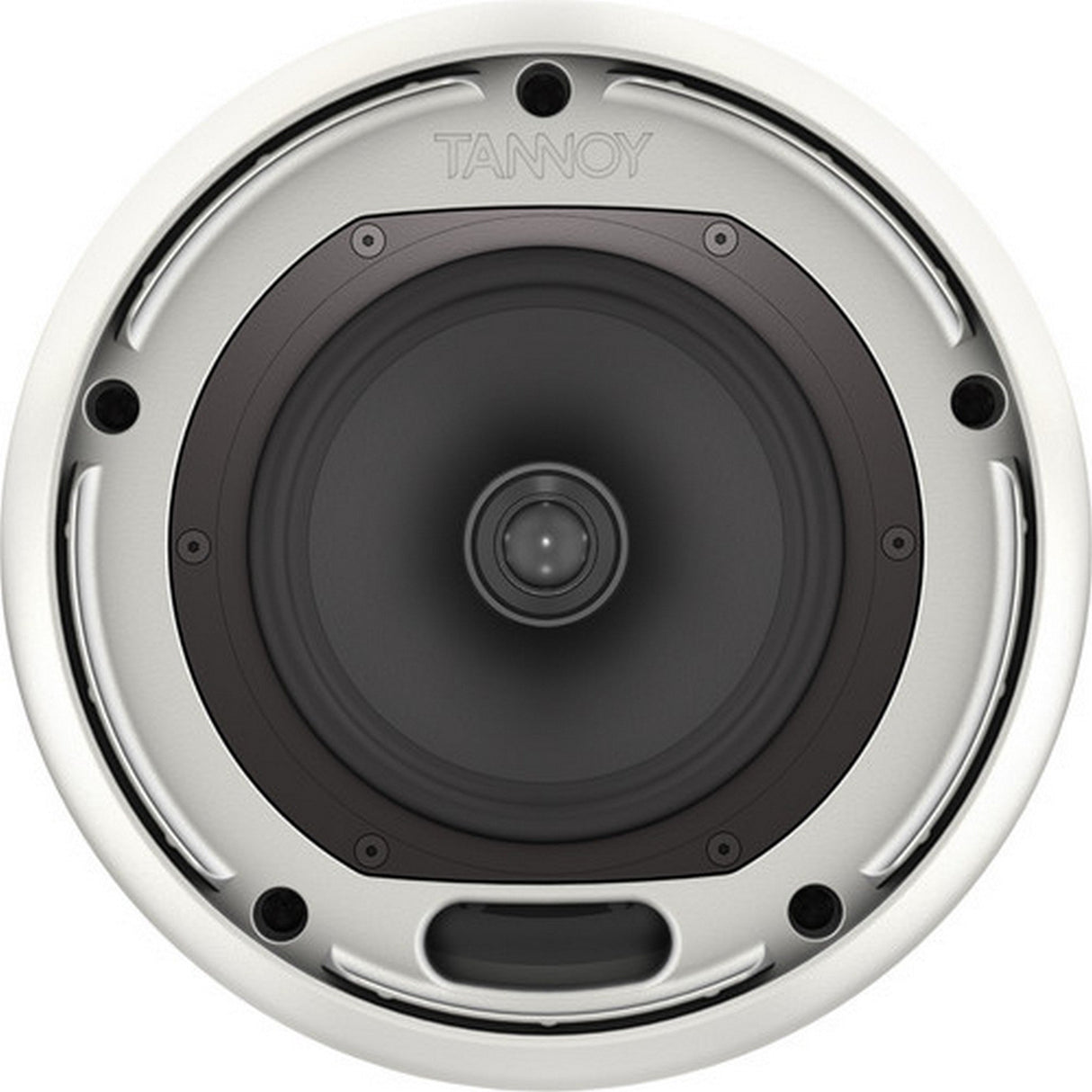

• 6" Coaxial Driver System: Combines a 6" mineral-loaded low-frequency cone with a coaxially mounted 0.79" high-frequency driver.
• 90-Degree Conical Coverage: Provides symmetrical dispersion for consistent coverage beneath suspended installations.
• 240W Peak Power Handling: Supports 60W average, 120W program, and 240W peak power.
• 70V and 100V Compatibility: Integrated 60W transformer supports distributed commercial audio systems with selectable taps.
• 16-Ohm Low-Impedance Mode: Allows operation from compatible conventional amplifiers without using the transformer taps.
• 111 dB Peak SPL: Delivers useful output for background music, foreground audio, paging, and speech reinforcement.
• IP64-Rated Construction: Provides resistance to dust and water for demanding indoor and moderate-weather installations.
• White Architectural Finish: Integrates cleanly with light-colored ceilings and architectural environments.

Technical Specifications

• Product Type: Coaxial pendant loudspeaker
• Model: OCV6WH
• Finish: White
• Frequency Response: 80 Hz to 20 kHz (-3 dB)
• Frequency Range: 60 Hz to 30 kHz (-10 dB)
• System Sensitivity: 88 dB, 1W at 1 m
• Dispersion: 90° conical (-6 dB)
• Transducer Configuration: Coaxial
• Low-Frequency Driver: 6" mineral-loaded cone
• High-Frequency Driver: 0.79"
• Crossover: 5.4 kHz, 2nd-order LF / 2nd-order HF
• Directivity Factor: 11.3 average from 1 kHz to 6.3 kHz
• Directivity Index: 10.5 dB average from 1 kHz to 6.3 kHz
• Maximum SPL: 105 dB average / 111 dB peak
• Average Power Handling: 60W
• Program Power Handling: 120W
• Peak Power Handling: 240W
• Recommended Amplifier Power: 120W at 16 ohms
• Nominal Impedance: 16 ohms
• Transformer: 60W
• 70V Transformer Taps: 60W / 30W / 15W / 7.5W / low-impedance operation
• 100V Transformer Taps: 60W / 30W / 15W / low-impedance operation

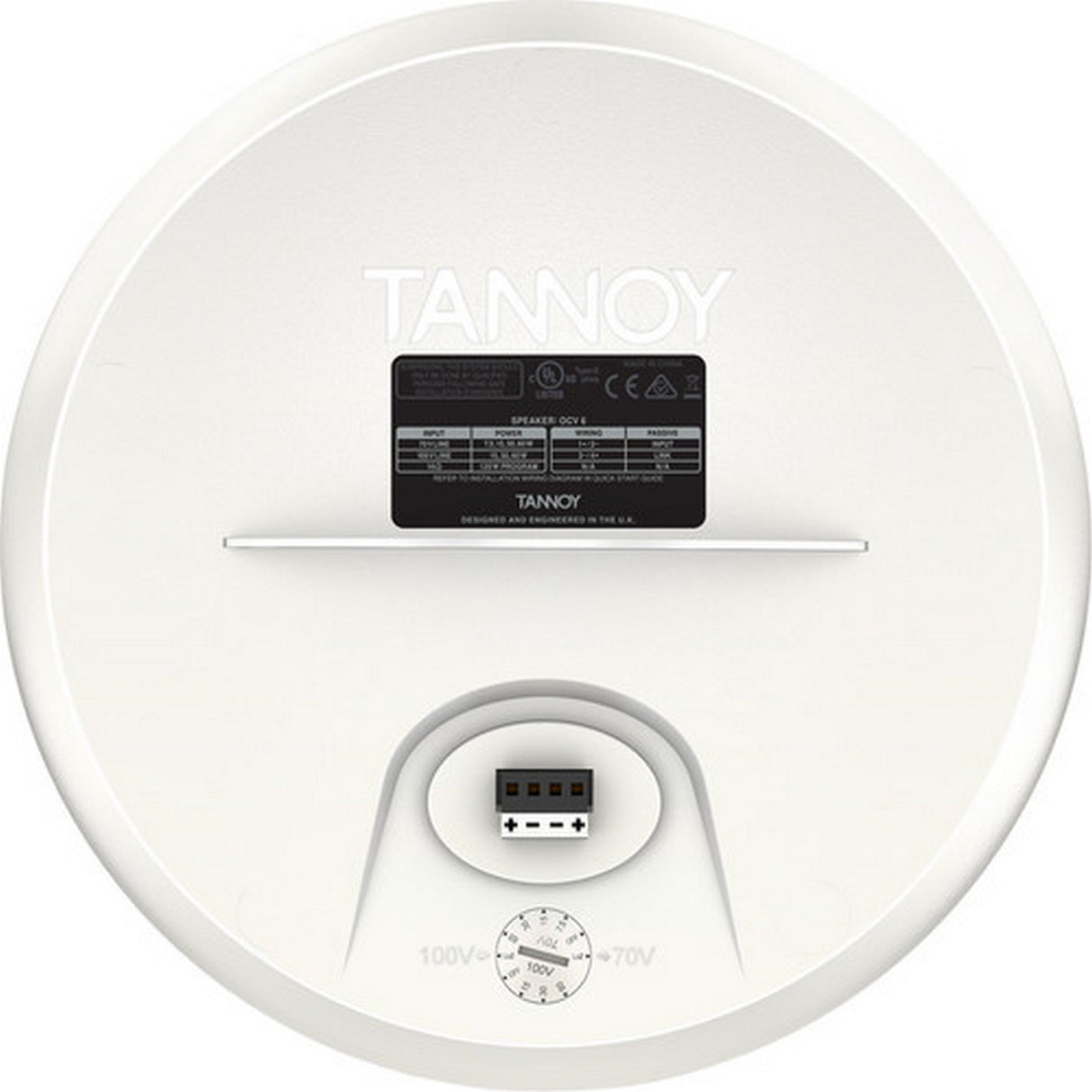

• Transformer Selection: Rotary switch
• Connector: Removable locking Euroblock with screw terminals and loop-through capability
• Enclosure: ABS / steel

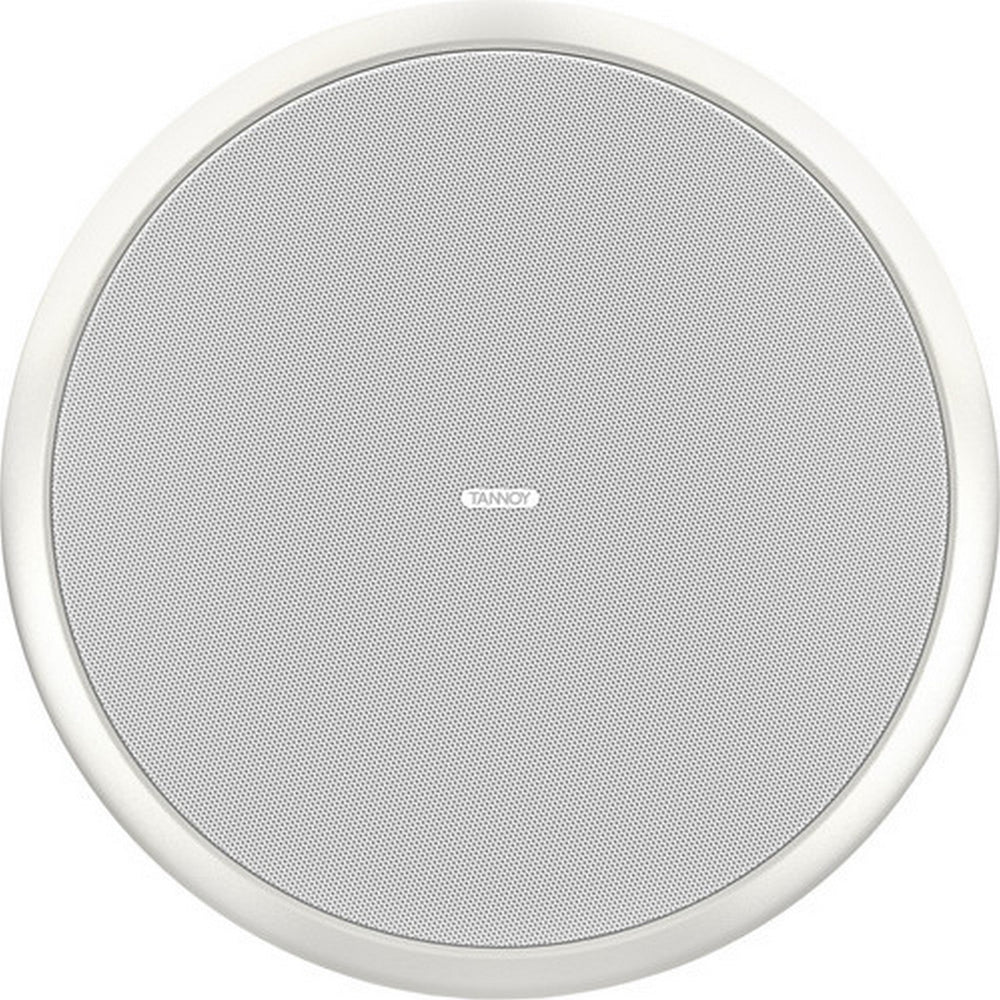

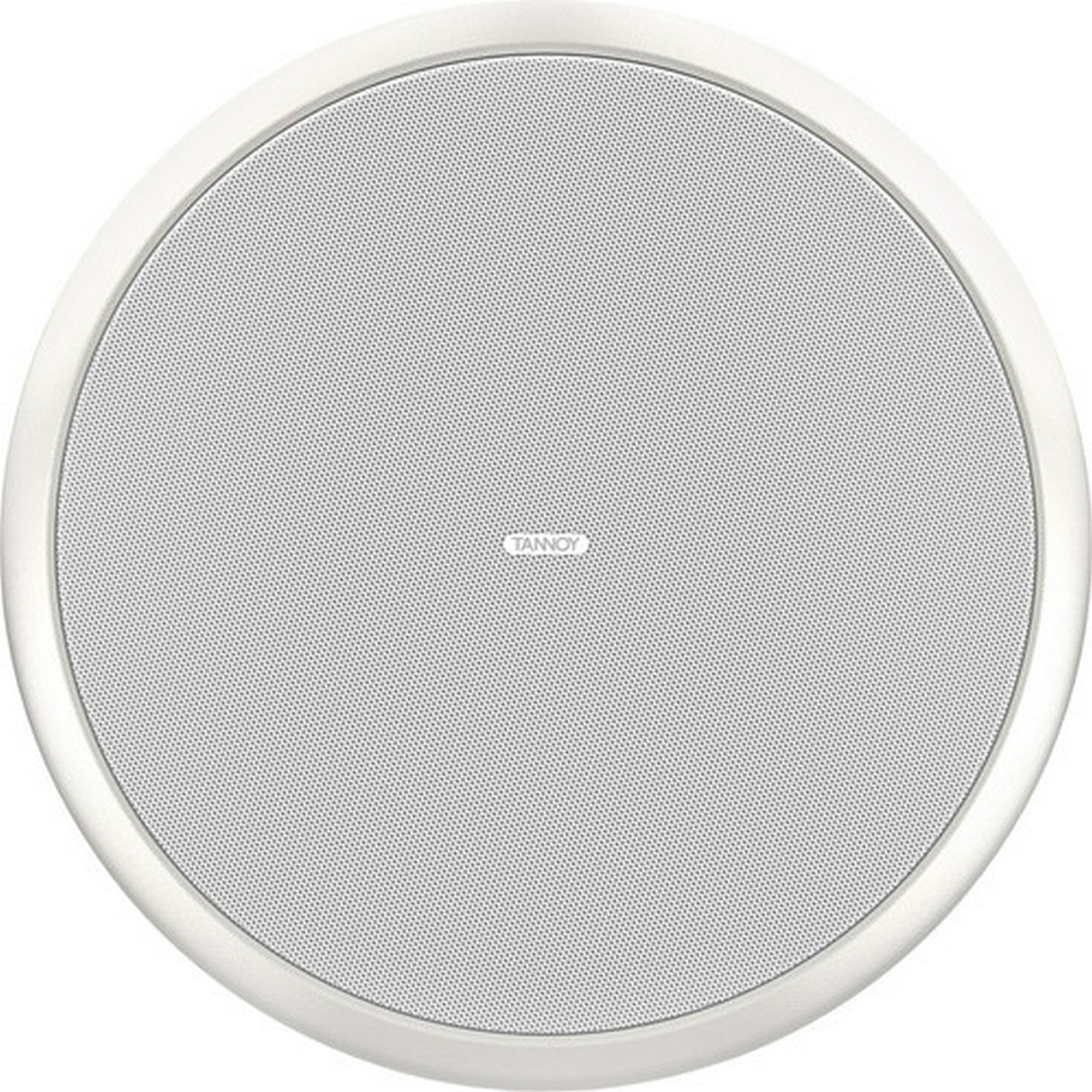

• Grille: Plated and powder-coated steel
• Ingress Protection: IP64
• Safety Agency Ratings: UL-1480, UL-2043, CE
• Diameter: 10.2"
• Overall Length: 16.7"
• Weight: 12.8 lb
• Shipping Weight: 16.7 lb

What's In the Box

• Tannoy OCV6WH 6" Coaxial Pendant Loudspeaker
• Cable clamps
• Hanging cable
• Safety cable
• Terminal weather boot
• Euroblock connector
• 3/8" threaded rod adapter
• Cable ties
