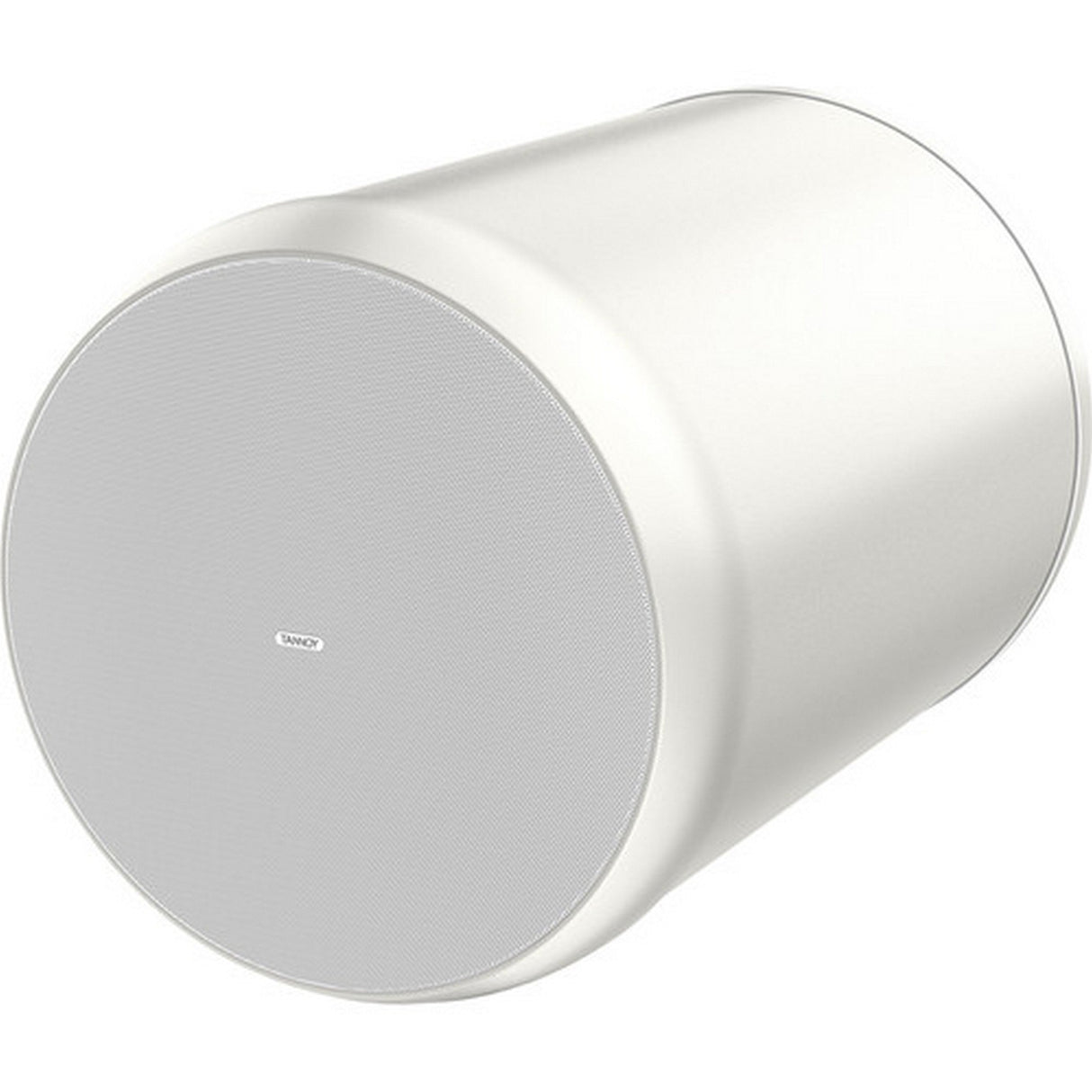

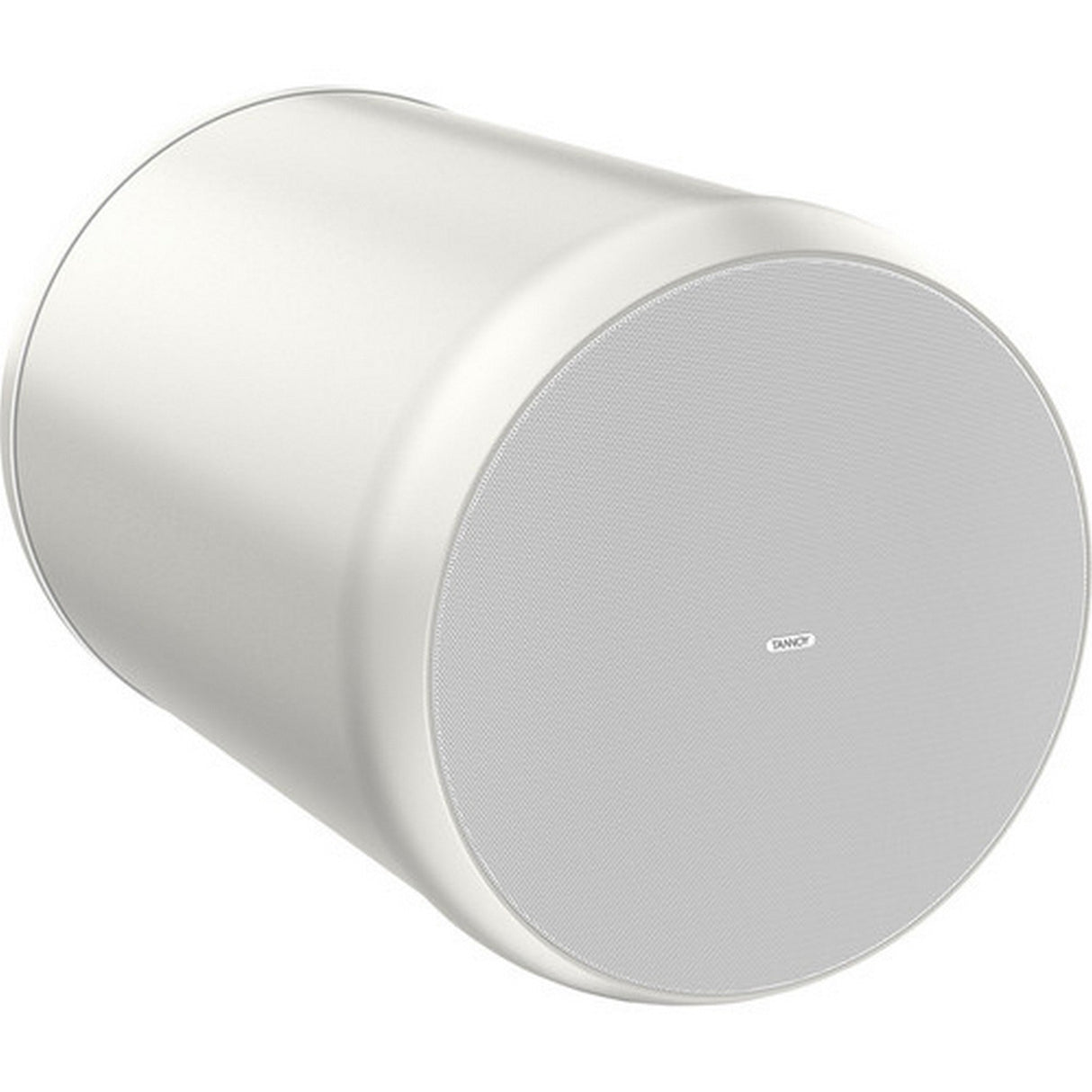

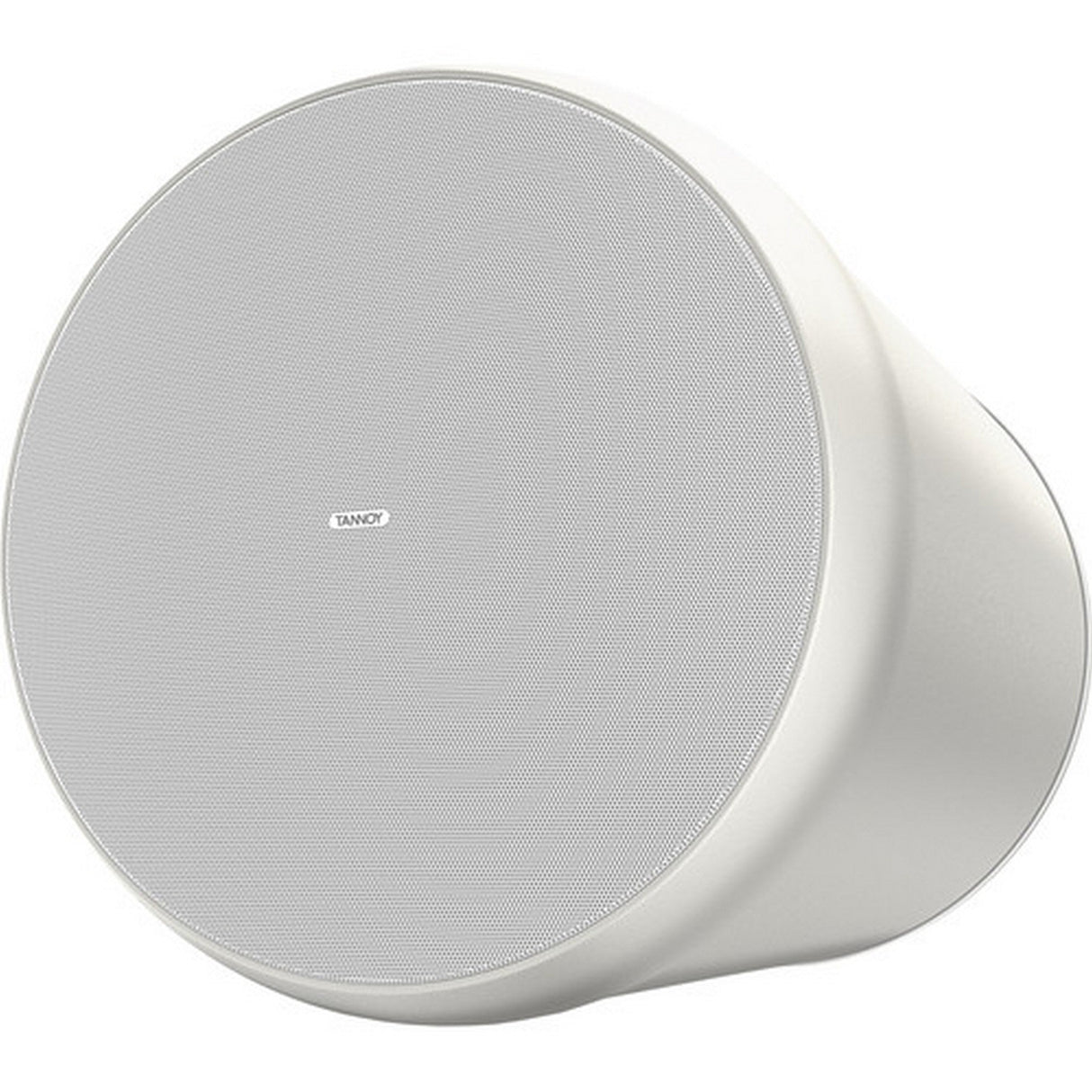

Tannoy OCV8WH Coaxial Pendant White Loudspeaker, 8 Inch

Tannoy OCV8WH Coaxial Pendant White Loudspeaker, 8 Inch

The Tannoy OCV8WH 8" Coaxial Pendant Loudspeaker is a passive commercial speaker built for suspended installation in open or high-ceiling spaces. Its coaxial 8" low-frequency driver and 1" high-frequency driver provide 80-degree conical coverage, while 70W average power handling supports clear music and speech reinforcement.

The OCV8WH works with both distributed and low-impedance audio systems. Its integrated 60W transformer provides selectable 70V and 100V taps, while 16-ohm operation supports compatible conventional amplifiers. The cylindrical pendant format suits transportation facilities, retail environments, conference spaces, fitness centers, hotels, and other installations where conventional recessed ceiling speakers are impractical.

A mineral-loaded low-frequency cone, steel grille, and ABS/steel enclosure support long-term installed use. The OCV8WH reaches 114 dB peak SPL and provides a 75 Hz to 20 kHz frequency response. Euroblock connectivity with loop-through capability simplifies multi-speaker wiring, while UL-1480, UL-2043, and CE ratings support professional commercial AV installations.

Key Features

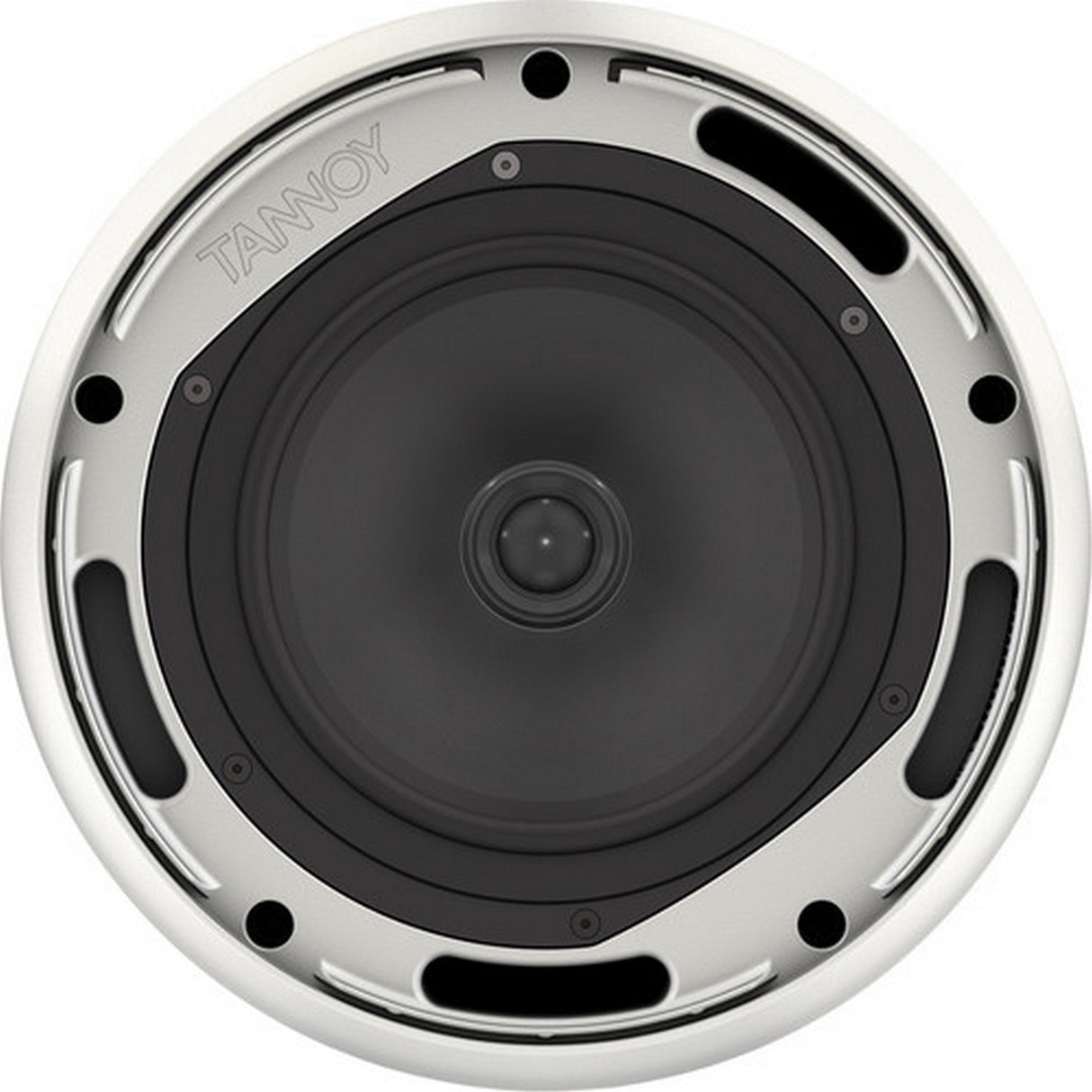

• 8" Coaxial Driver System: Combines an 8" mineral-loaded low-frequency cone with a coaxially mounted 1" high-frequency driver.
• 80-Degree Conical Coverage: Delivers symmetrical dispersion for consistent coverage beneath suspended installations.
• 280W Peak Power Handling: Supports 70W average, 140W program, and 280W peak power.
• 70V and 100V Transformer: Integrated 60W transformer provides selectable taps for distributed commercial audio systems.
• 16-Ohm Operation: Supports direct low-impedance connection to compatible amplification systems.
• High Output Capability: Produces up to 108 dB average and 114 dB peak SPL.
• Loop-Through Connectivity: Removable Euroblock terminals simplify wiring additional loudspeakers along a distributed line.
• White Pendant Enclosure: Semi-matte white construction blends into light-colored architectural and open-ceiling environments.

Technical Specifications

• Product Type: Coaxial pendant loudspeaker
• Model: OCV8WH
• Finish: White
• Frequency Response: 75 Hz to 20 kHz (-3 dB)
• Frequency Range: 60 Hz to 30 kHz (-10 dB)
• System Sensitivity: 90 dB, 1W at 1 m
• Dispersion: 80° conical (-6 dB)
• Transducer Configuration: Coaxial
• Low-Frequency Driver: 8" mineral-loaded cone
• High-Frequency Driver: 1"
• Crossover: 4.5 kHz, 3rd-order LF / 2nd-order HF
• Directivity Factor: 14.4 average from 1 kHz to 6.3 kHz
• Directivity Index: 11.6 dB average from 1 kHz to 6.3 kHz
• Maximum SPL: 108 dB average / 114 dB peak
• Average Power Handling: 70W
• Program Power Handling: 140W
• Peak Power Handling: 280W
• Recommended Amplifier Power: 140W at 16 ohms
• Nominal Impedance: 16 ohms
• Transformer: 60W
• 70V Transformer Taps: 60W / 30W / 15W / 7.5W / low-impedance operation
• 100V Transformer Taps: 60W / 30W / 15W / low-impedance operation
• Transformer Selection: Rotary switch

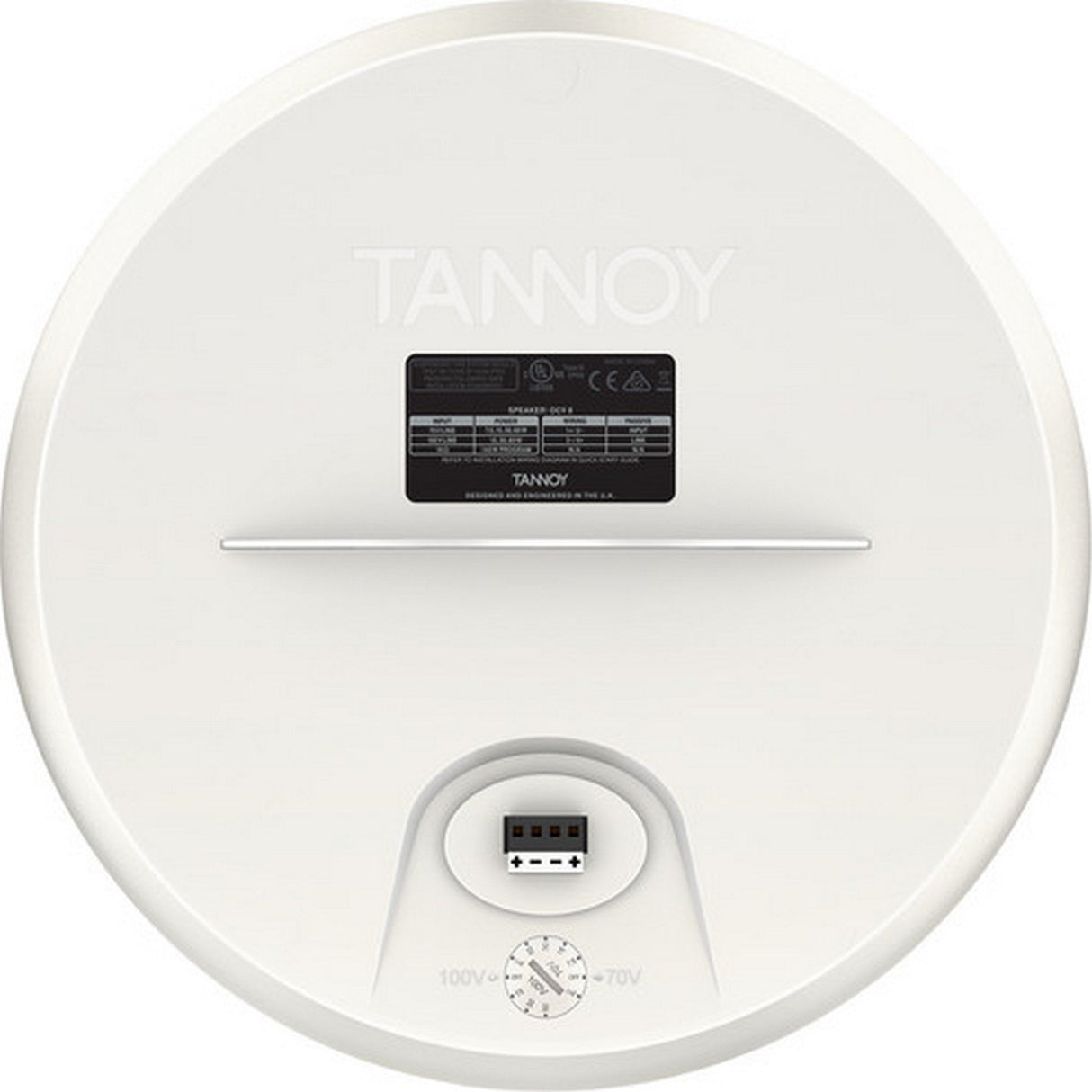

• Connector: Removable locking Euroblock with screw terminals and loop-through capability
• Enclosure: ABS / steel

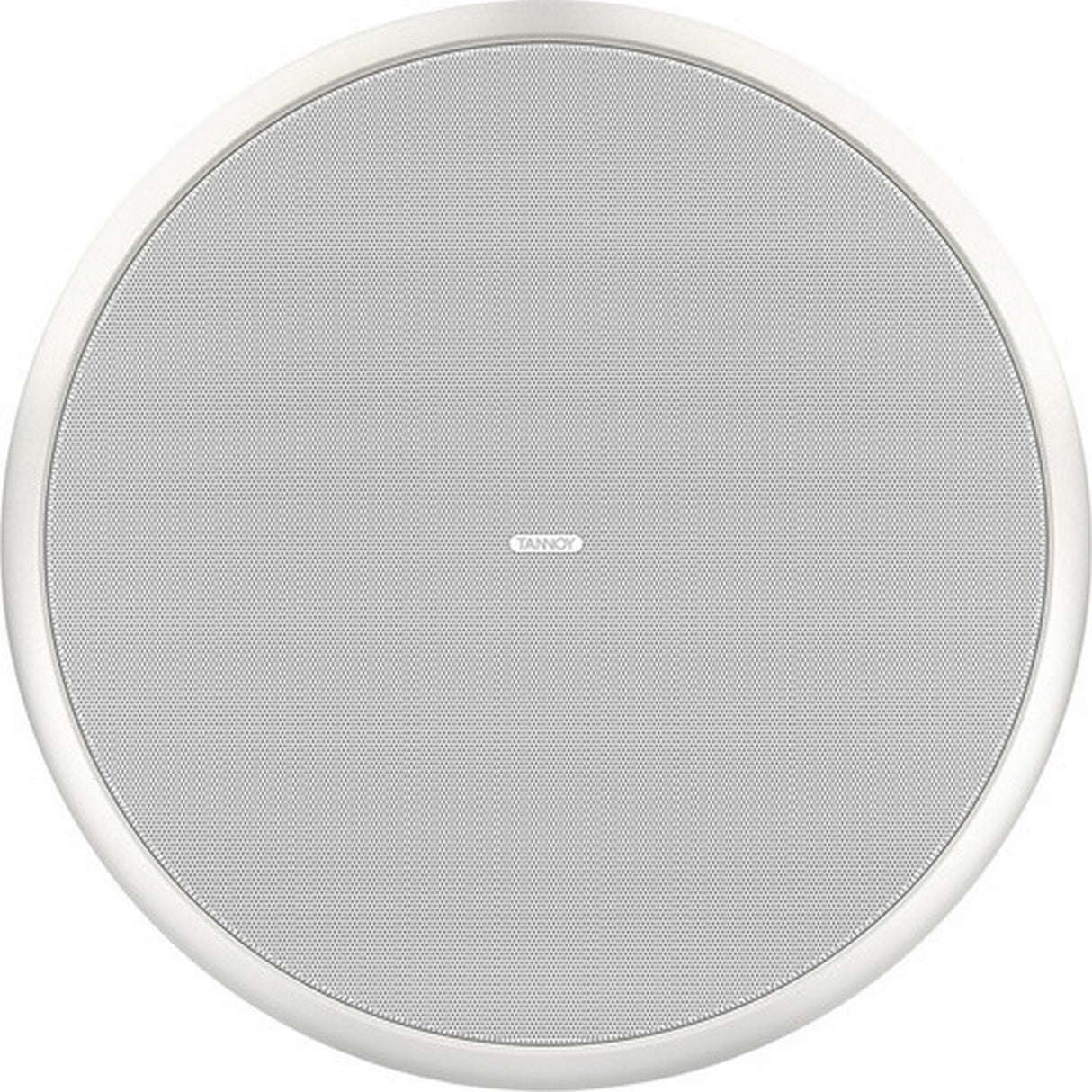

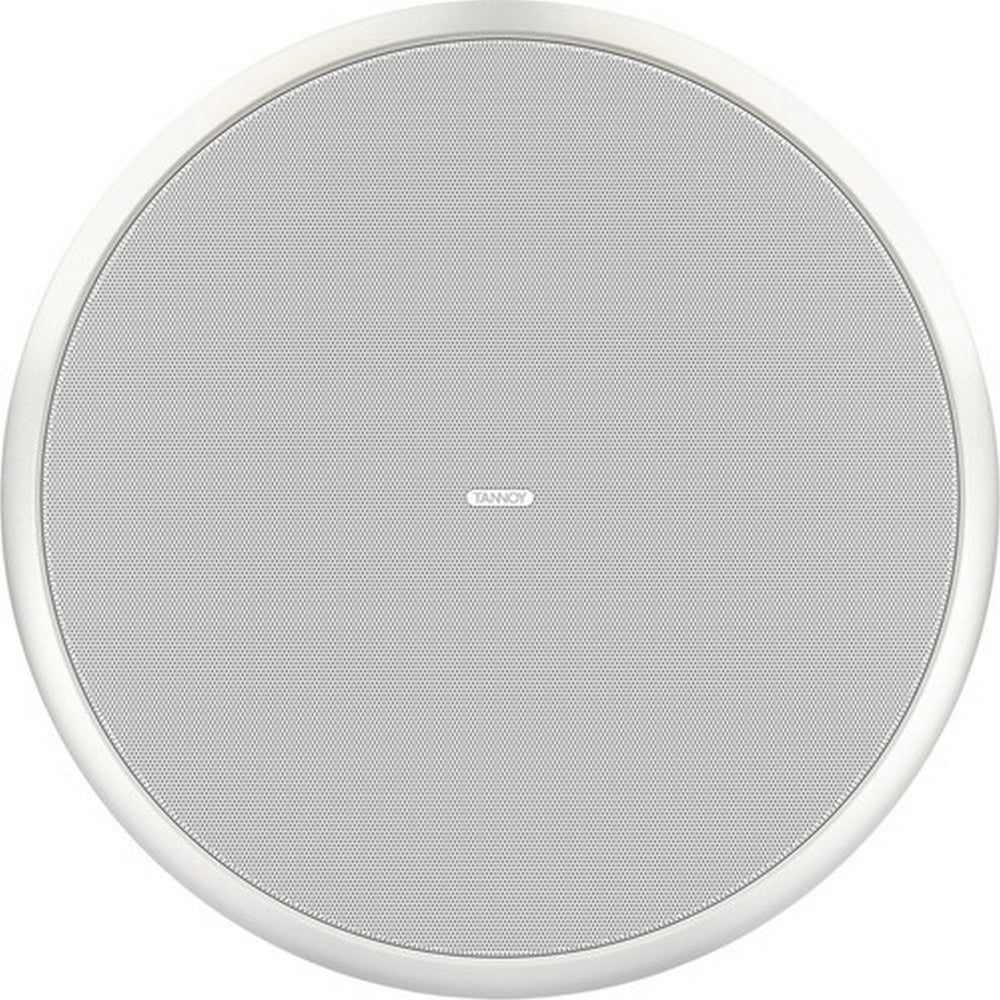

• Grille: Plated and powder-coated steel
• Ingress Protection: IP64
• Safety Agency Ratings: UL-1480, UL-2043, CE
• Diameter: 11.9"
• Overall Length: 19.4"
• Weight: 18.1 lb
• Shipping Weight: 22.9 lb

What's In the Box

• Tannoy OCV8WH 8" Coaxial Pendant Loudspeaker
• Cable clamps
• Hanging cable
• Safety cable
• Terminal weather boot
• Euroblock connector
• 3/8" threaded rod adapter
• Cable ties
