Tannoy VLS 5 Passive Column Array Loudspeaker - White

Tannoy VLS 5 Passive Column Array Loudspeaker

The Tannoy VLS 5 Passive Column Array Loudspeaker is a five-driver installation speaker engineered for high-intelligibility speech reinforcement in acoustically challenging spaces. Five vertically arrayed 3.5" full-range drivers provide 130° horizontal by 45° vertical nominal dispersion, while 120W average and 480W peak power handling support demanding commercial sound systems.

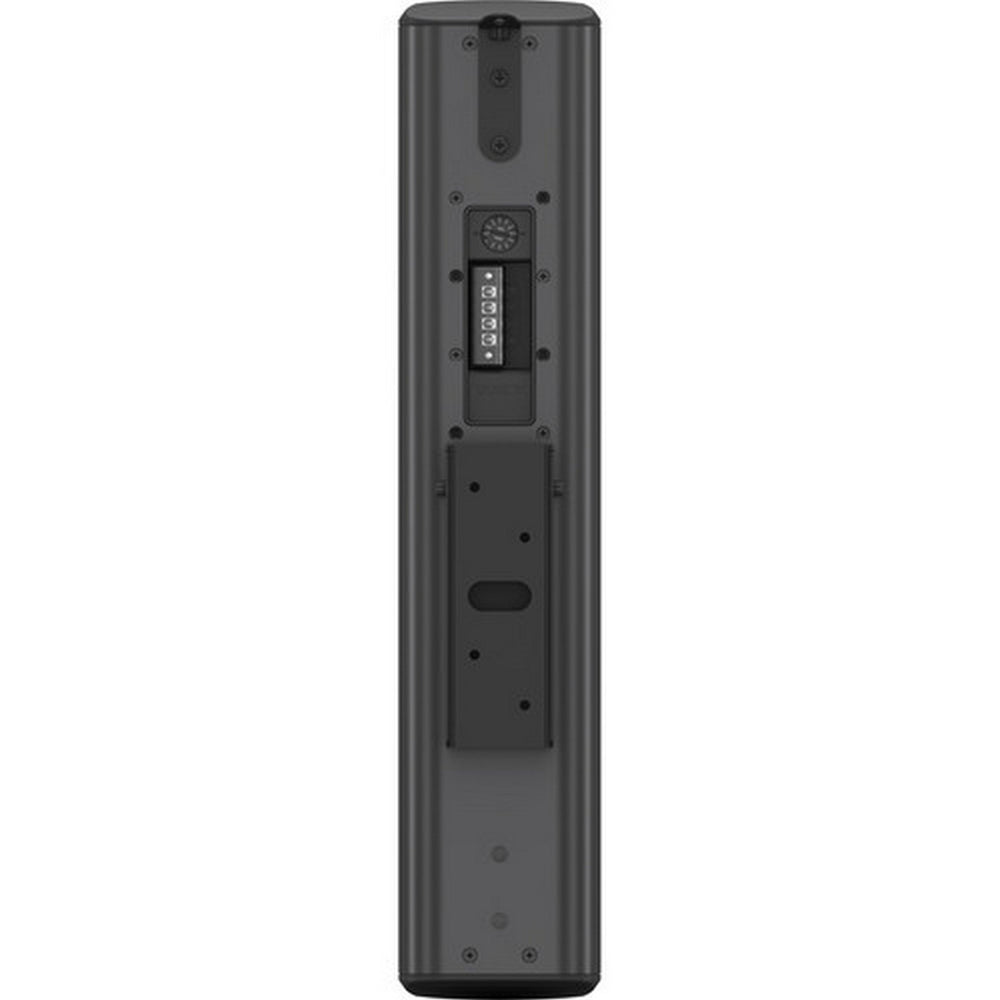

Available in black VLS5 and white VLS5WH versions, this column loudspeaker suits airports, transportation facilities, conference centers, houses of worship, stadium concourses, museums, hotels, and long corridors. A rear rotary selector supports 12-ohm low-impedance operation or 70V and 100V distributed systems through an integrated 100W line transformer with multiple power taps.

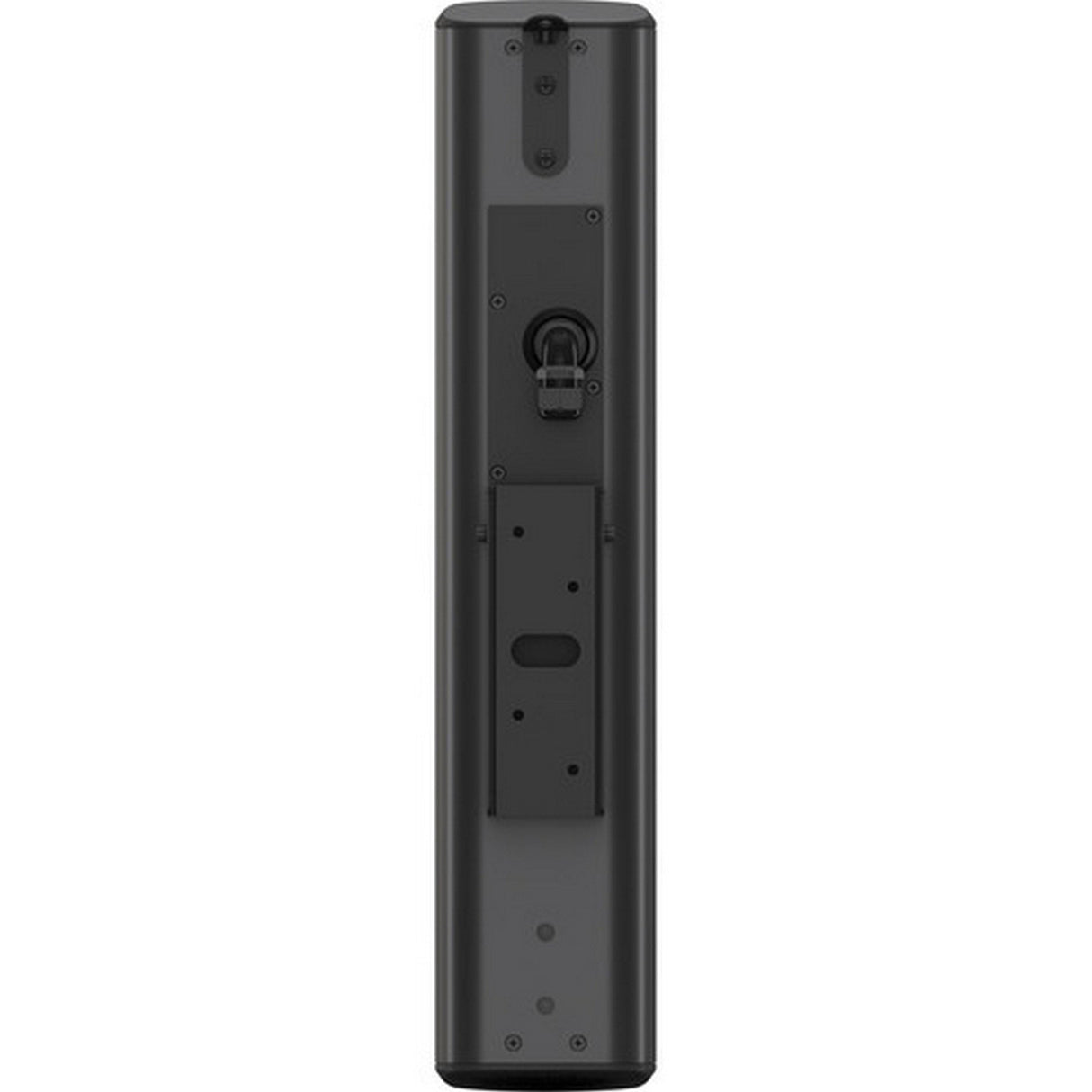

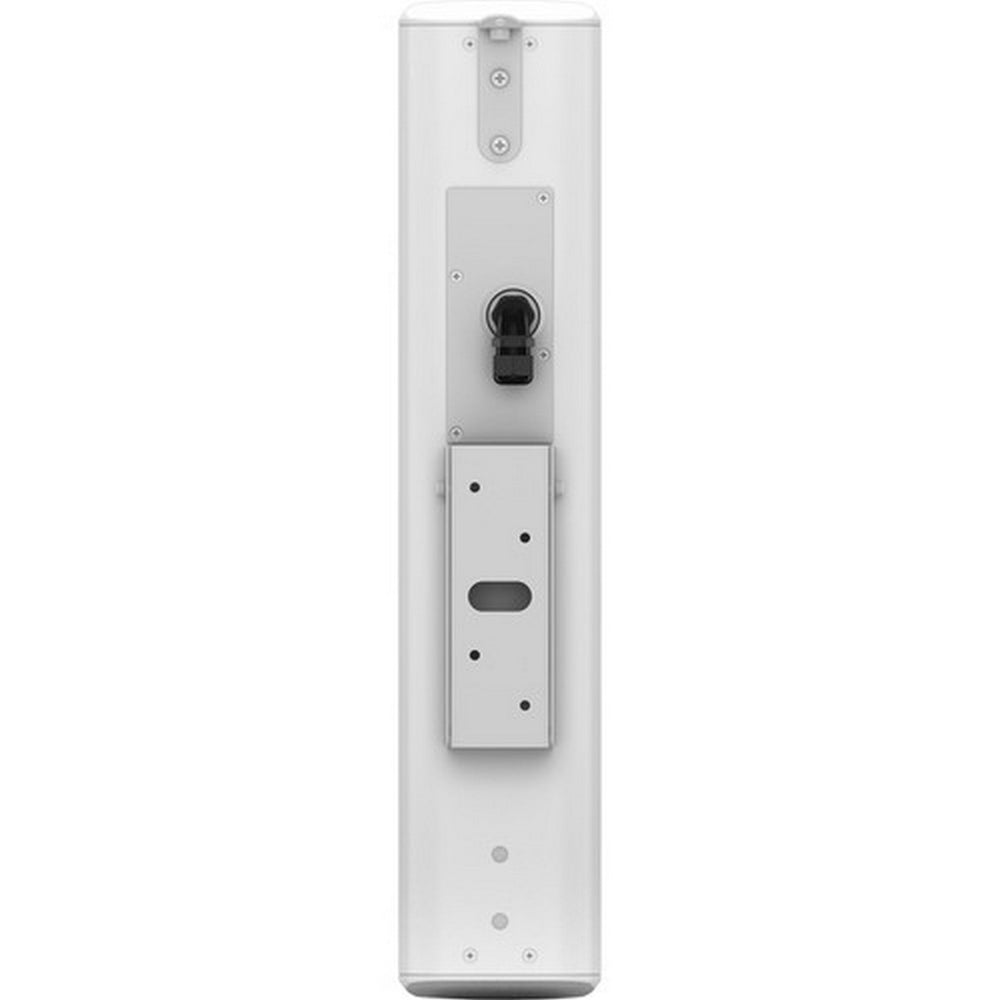

The VLS 5 uses a passive frequency-shading network to control the output of its vertical driver array while maintaining a slim architectural profile. Its aluminum enclosure and powder-coated perforated steel grille are rated IP64 for resistance to dust and moisture ingress. Internally paralleled barrier-strip connectors simplify system linking, while included mounting and weather-protection hardware supports permanent indoor and suitable outdoor installations.

Available Color Variants

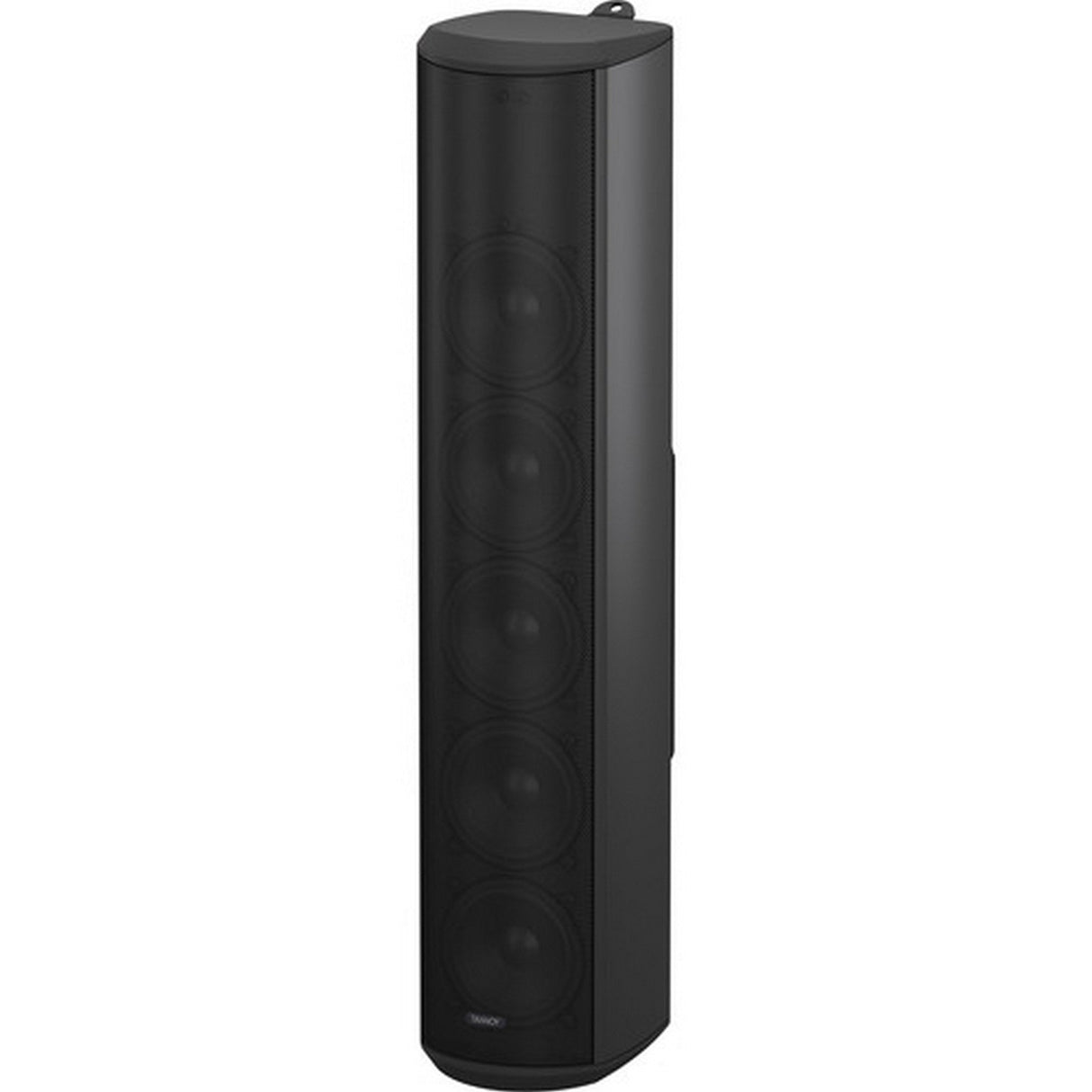

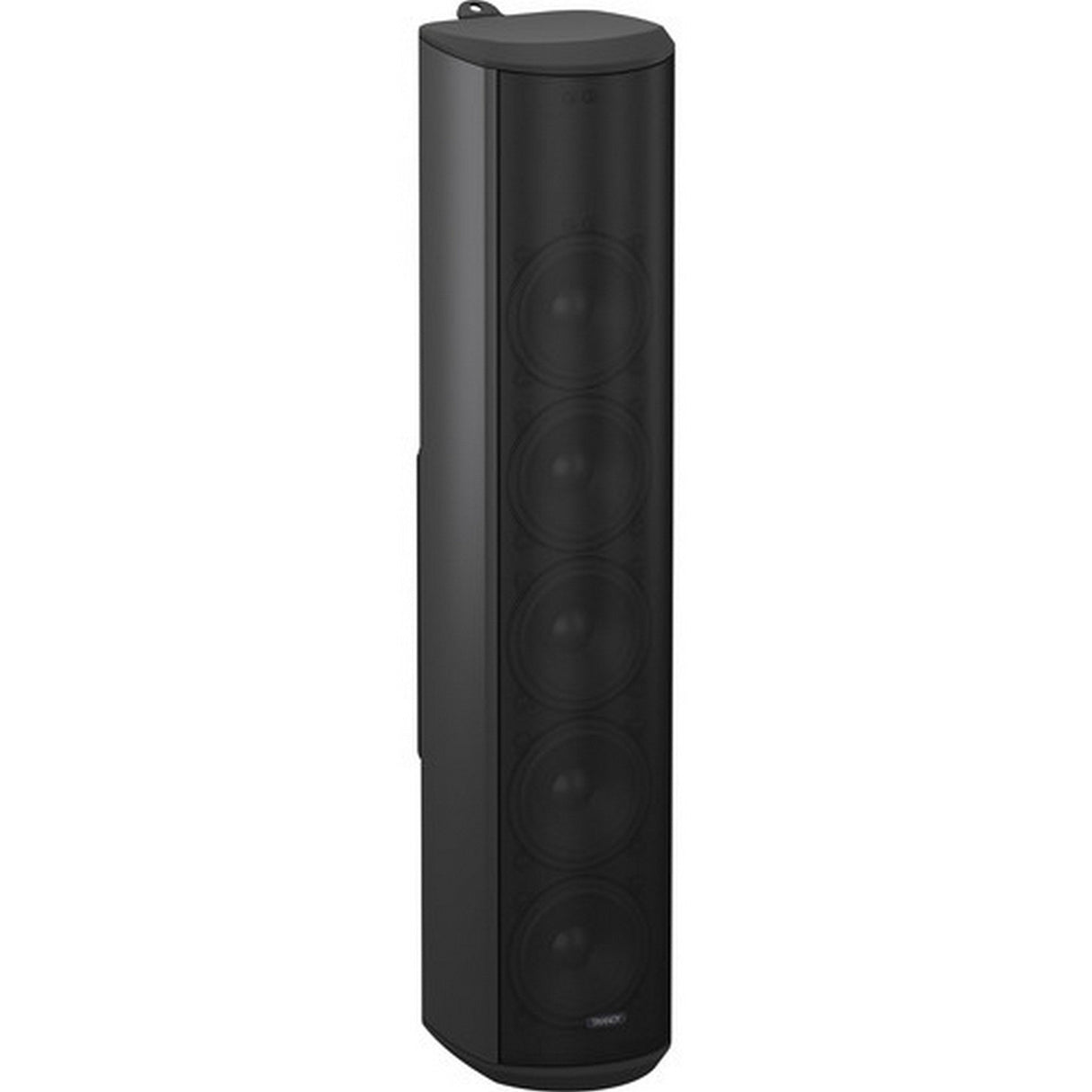

• VLS5: Black finish, RAL 9004

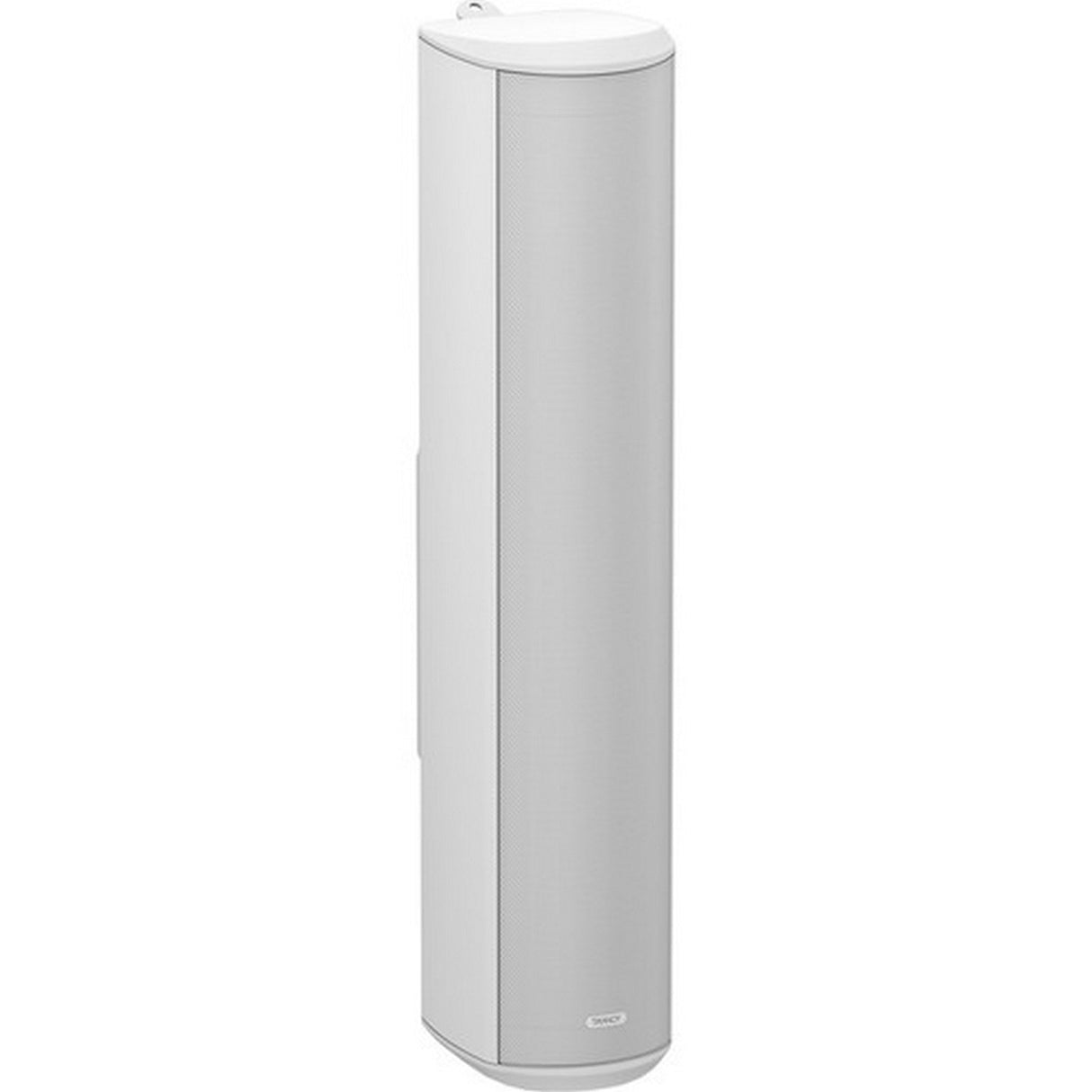

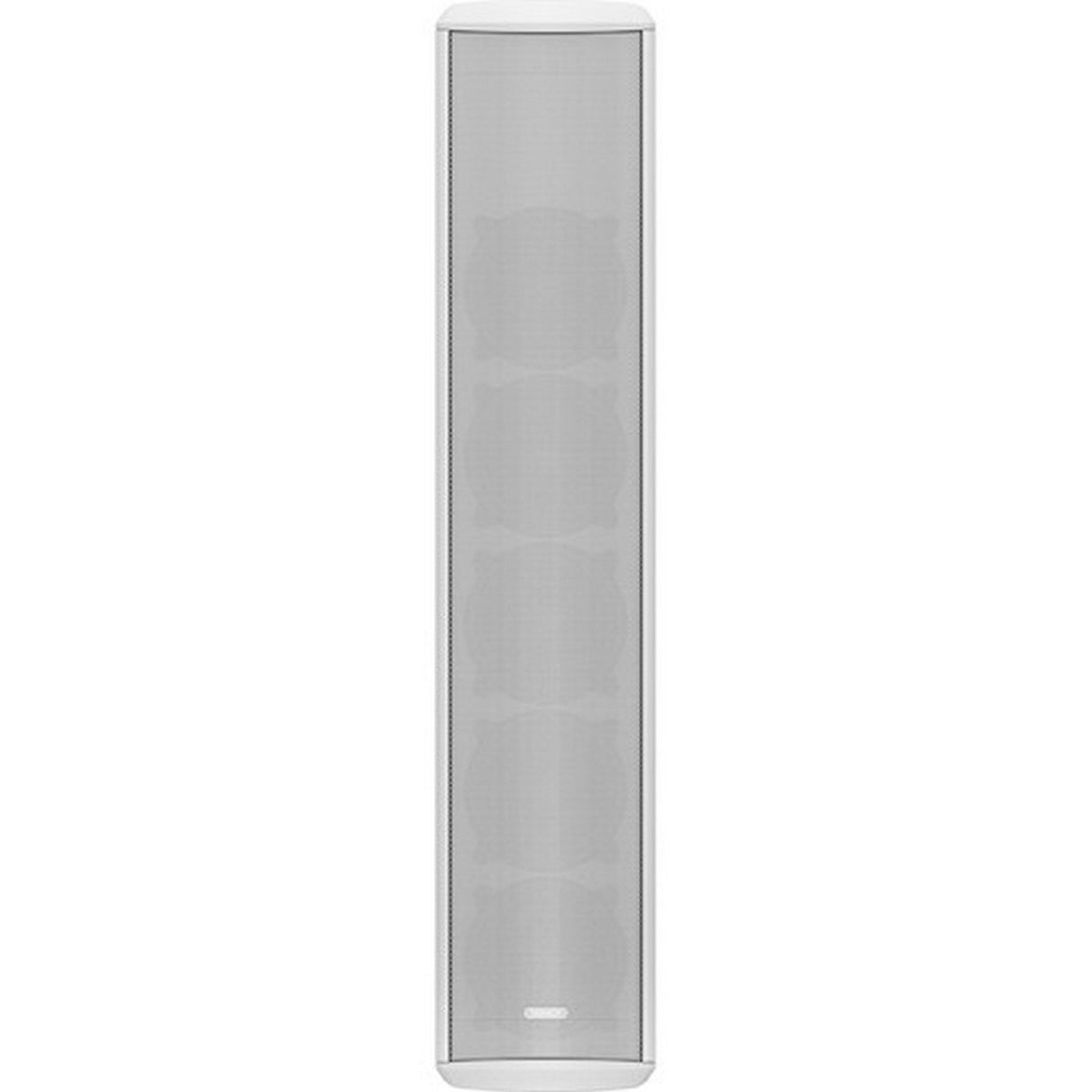

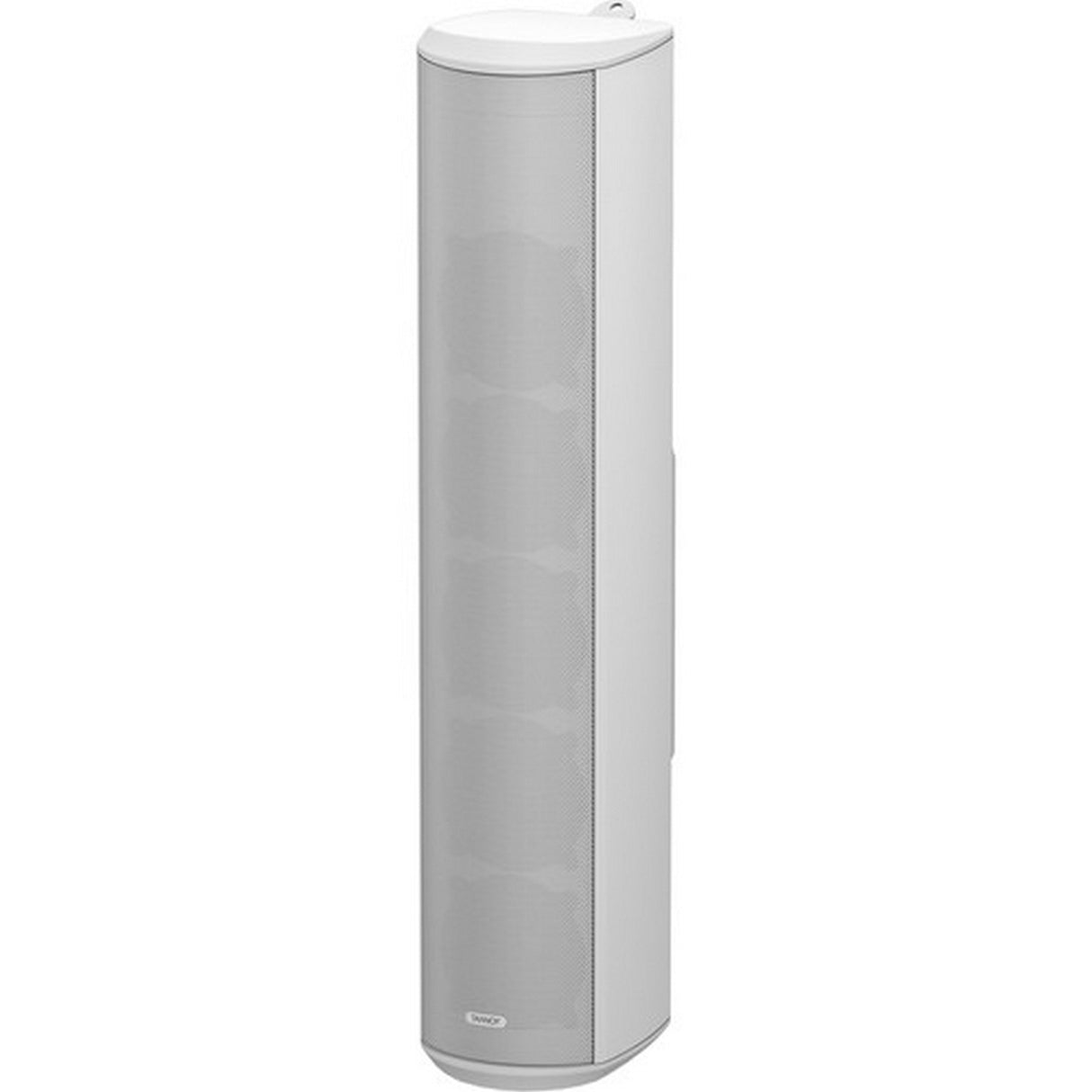

• VLS5WH: White finish, RAL 9003

Key Features

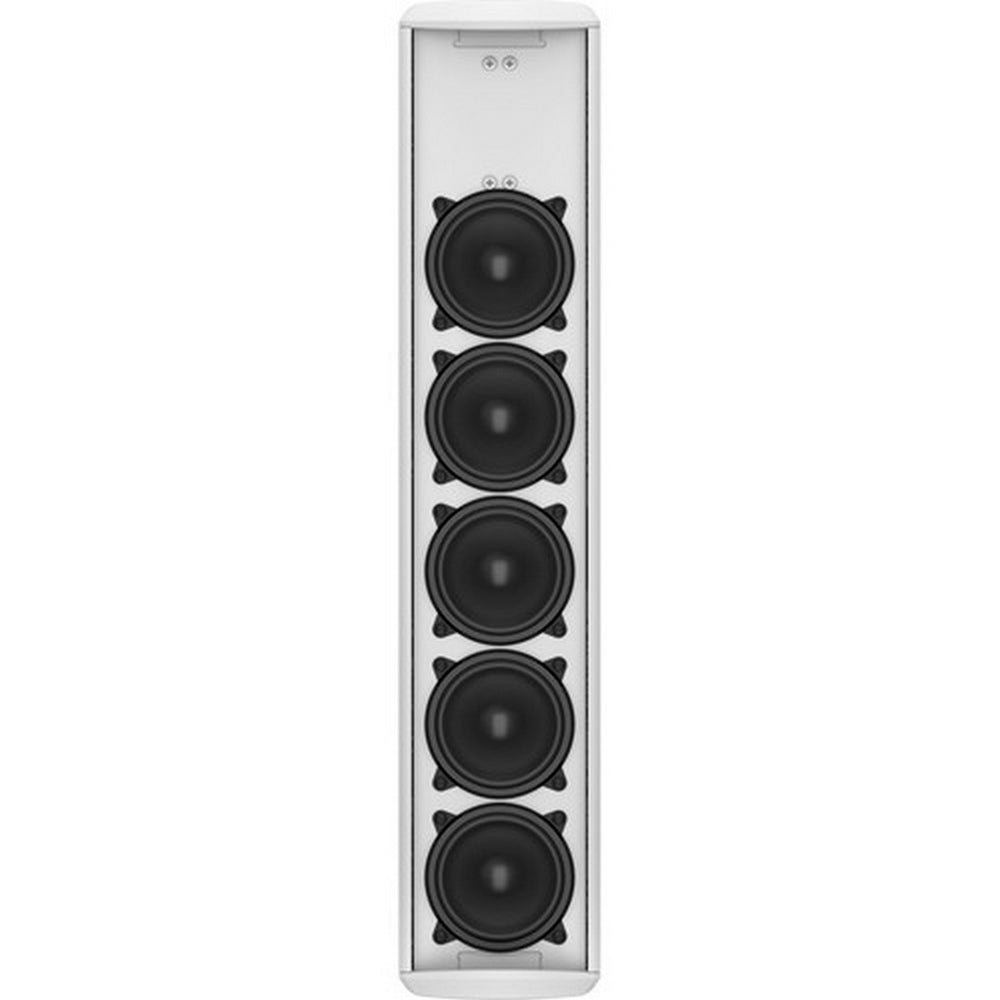

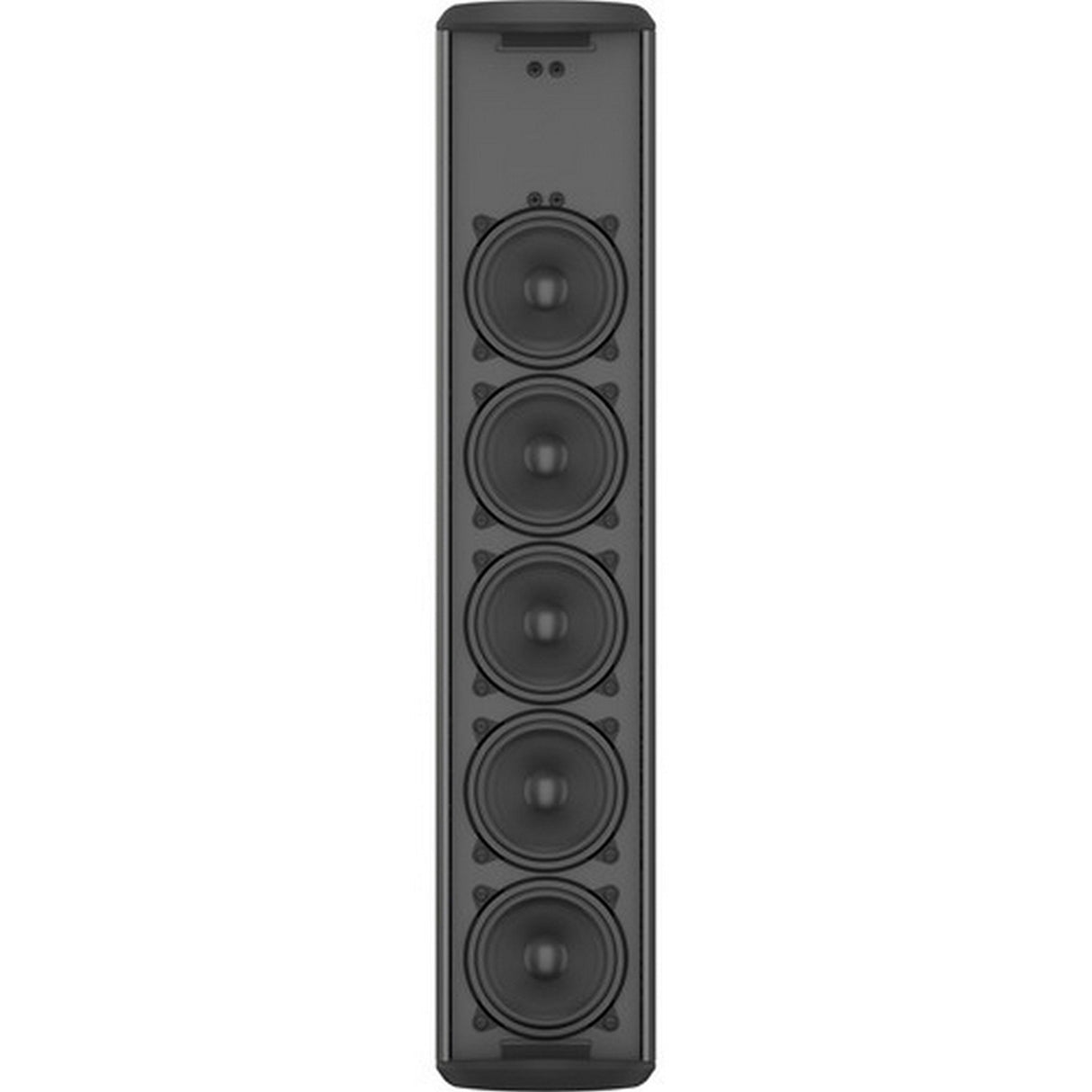

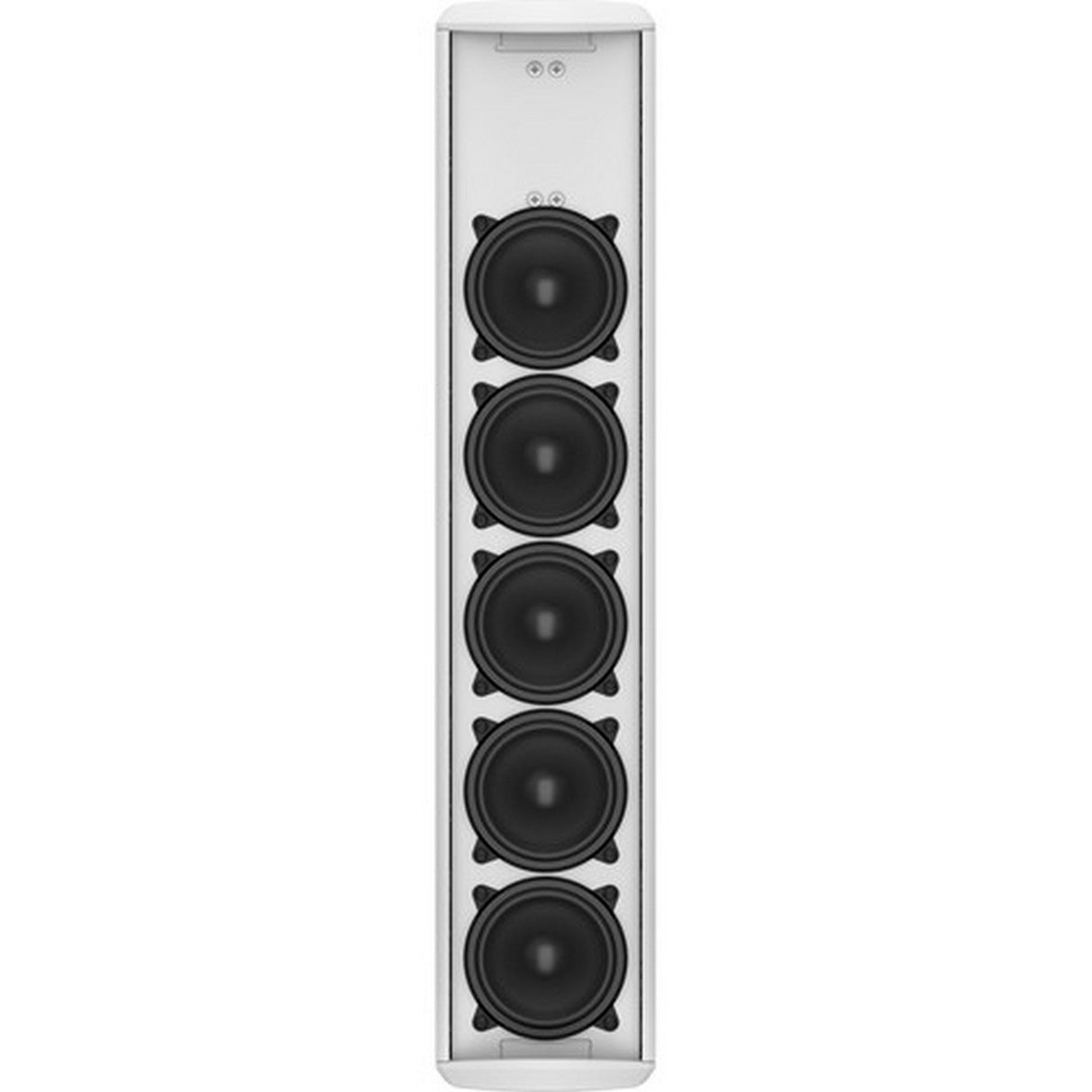

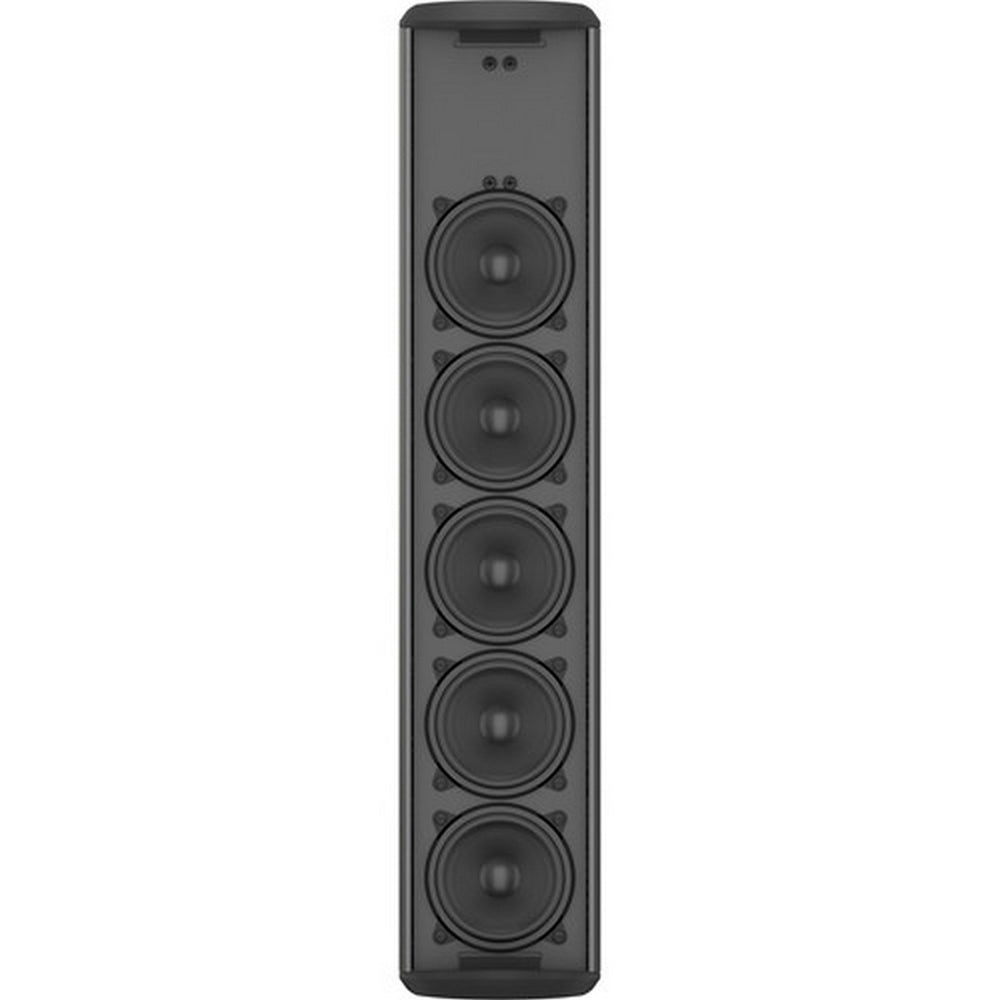

• Five 3.5" Full-Range Drivers: Vertically arrayed transducers provide focused reproduction optimized for speech intelligibility.
• Controlled Column Coverage: Delivers 130° horizontal by 45° vertical nominal dispersion for targeted installed sound.
• 480W Peak Power Handling: Supports 120W average, 240W program, and 480W peak power under IEC testing.
• 70V, 100V, or Low-Z Operation: Accommodates distributed commercial systems and direct 12-ohm amplifier connections.
• 100W Line Transformer: Provides multiple selectable transformer taps through a rear rotary control.
• Passive Frequency Shading: Controls the vertically arranged drivers without requiring active processing inside the loudspeaker.
• 116 dB Peak SPL: Produces substantial speech output from a narrow architectural enclosure.
• Black or White Finish: Offers two factory colors for integration with different architectural environments.

Technical Specifications

• Product Type: Passive column array loudspeaker
• Models: VLS5 black / VLS5WH white
• Application: Speech reinforcement installation
• Components: 5 x 3.5" full-range drivers
• Frequency Response: 150 Hz to 12 kHz, ±3 dB
• Frequency Range: 130 Hz to 15 kHz, -10 dB
• Horizontal Dispersion: 130° at -6 dB
• Vertical Dispersion: 45° at -6 dB
• Average Power Handling: 120W
• Program Power Handling: 240W
• Peak Power Handling: 480W
• Recommended Amplifier Power: 350W at 8 ohms
• System Sensitivity: 89 dB at 1 m in low-impedance mode
• Transformer Sensitivity: 75 dB at 4 m
• Nominal Impedance: 12 ohms in low-impedance mode
• Maximum SPL Through Transformer: 89 dB at 4 m
• Rated Maximum SPL: 110 dB average / 116 dB peak at 1 m in low-impedance mode
• Crossover: Passive network using frequency shading
• Directivity Factor: 7.2 average from 1 kHz to 10 kHz
• Directivity Index: 8.6 dB average from 1 kHz to 10 kHz
• Transformer: 100W line transformer
• 70V Transformer Taps: 100W at 50 ohms / 50W at 100 ohms / 25W at 200 ohms / 12.5W at 400 ohms / off / low-impedance operation
• 100V Transformer Taps: 100W at 100 ohms / 50W at 200 ohms / 25W at 400 ohms / off / low-impedance operation
• Coverage at 500 Hz: 360° H x 106° V
• Coverage at 1 kHz: 220° H x 60° V
• Coverage at 2 kHz: 150° H x 46° V
• Coverage at 4 kHz: 170° H x 30° V

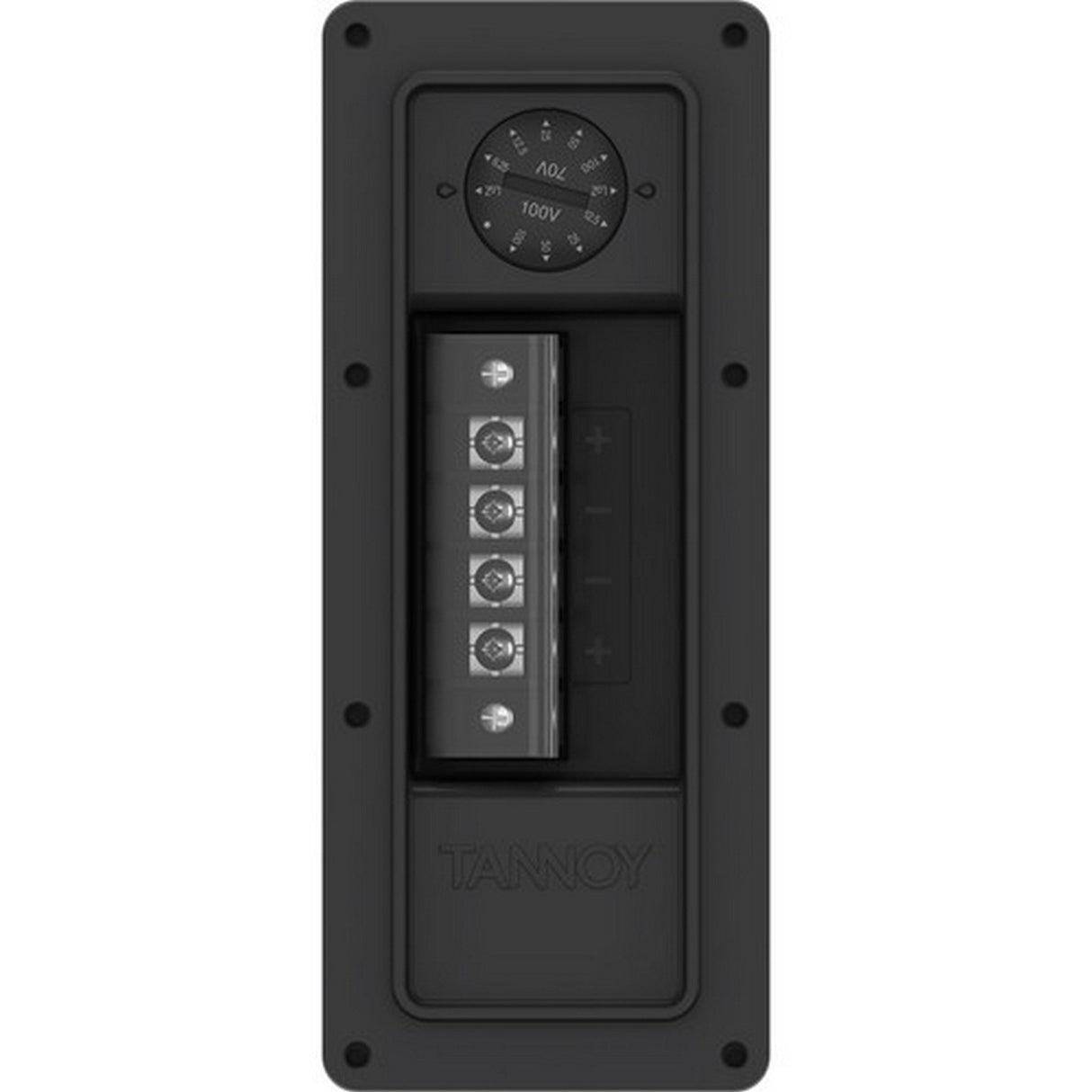

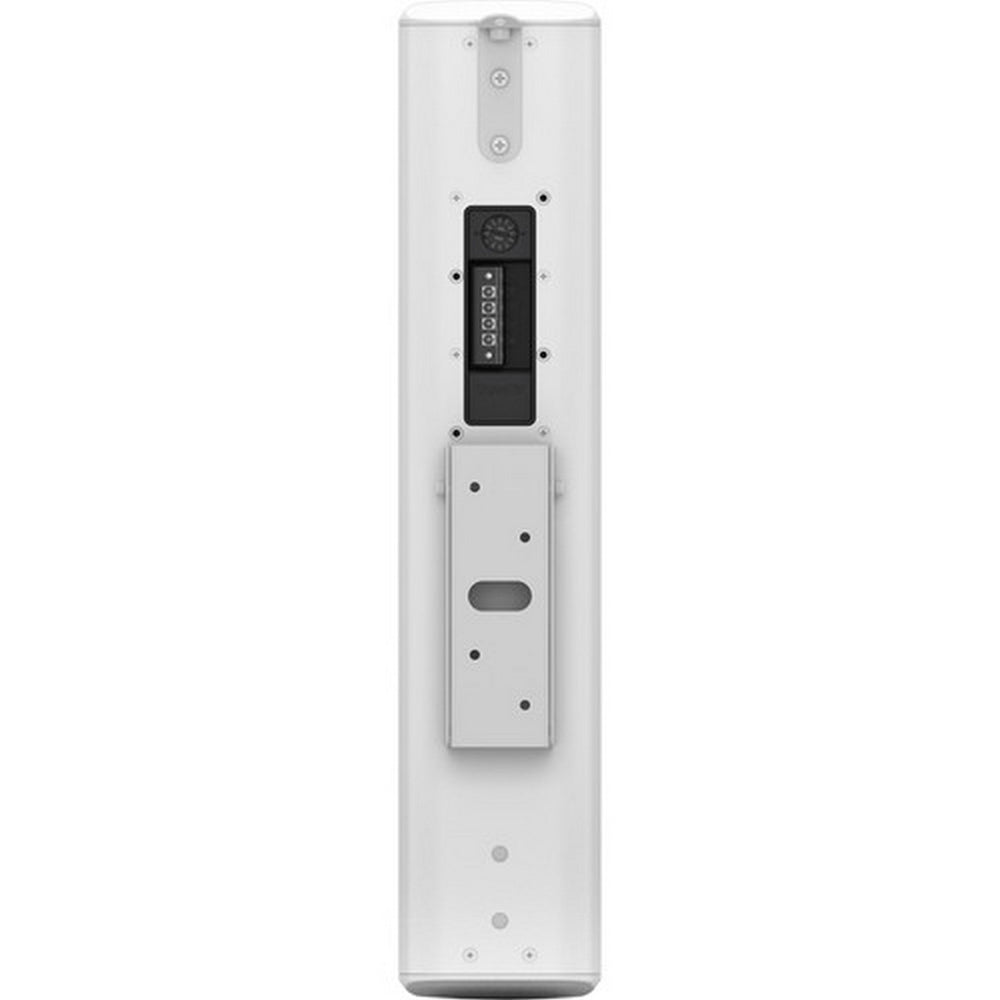

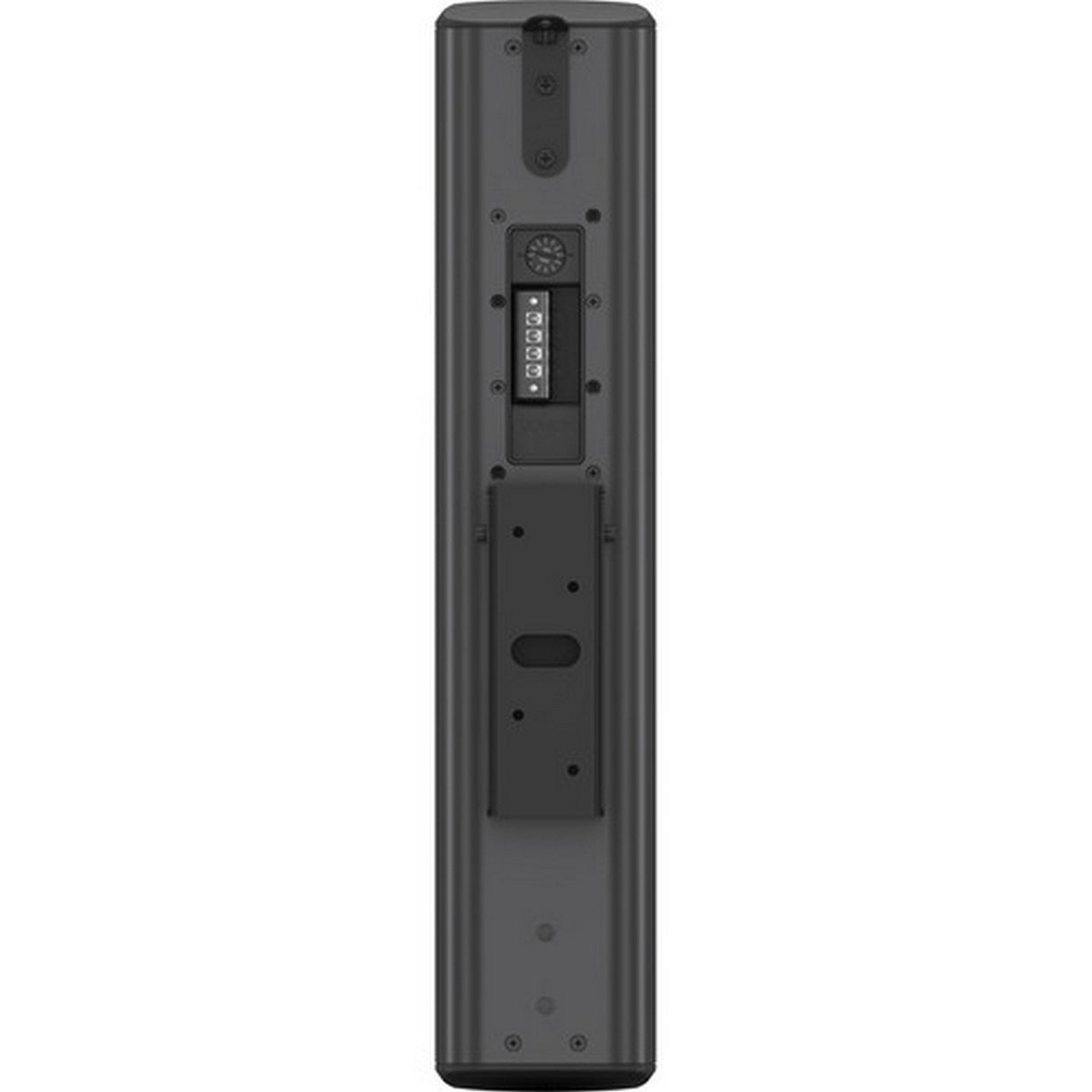

• Connectors: Internally paralleled barrier strips
• Wiring: Terminal 1+ / 2- input; 3- / 4+ link
• Construction: Aluminum extrusion
• Black Finish: RAL 9004
• White Finish: RAL 9003

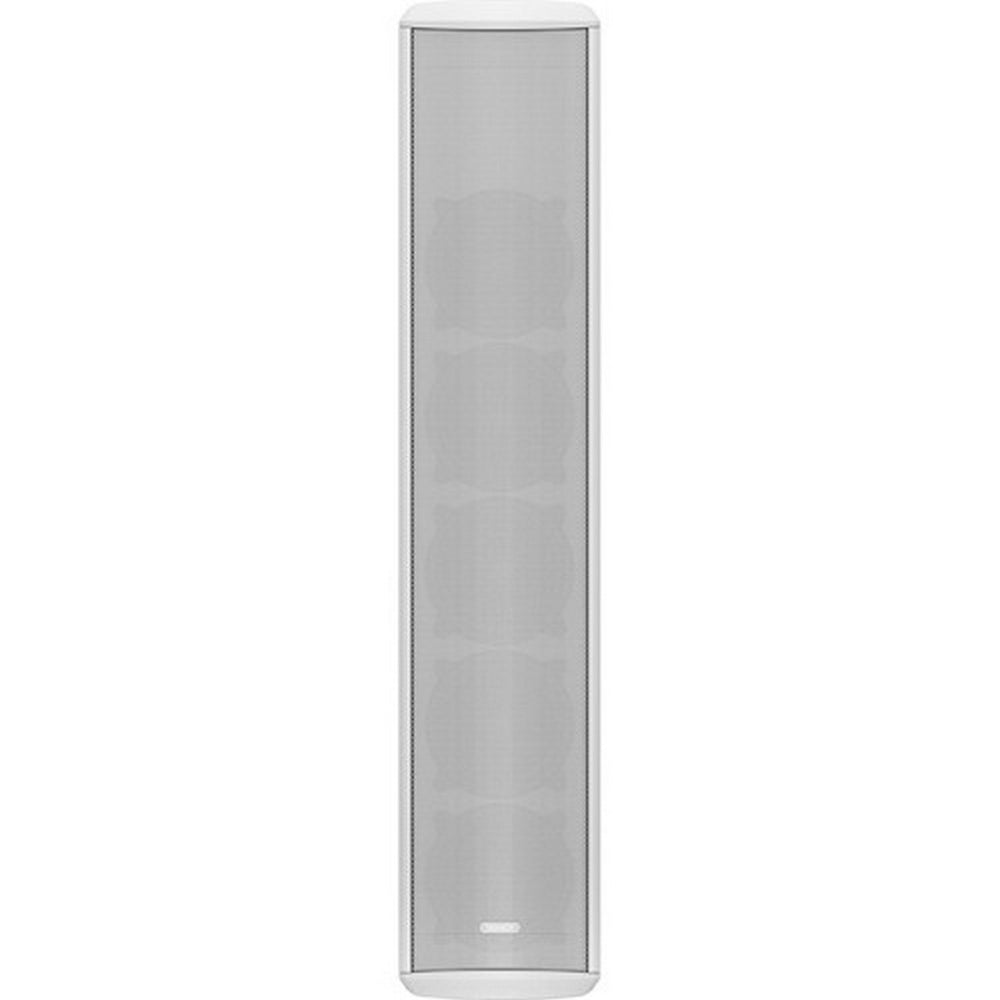

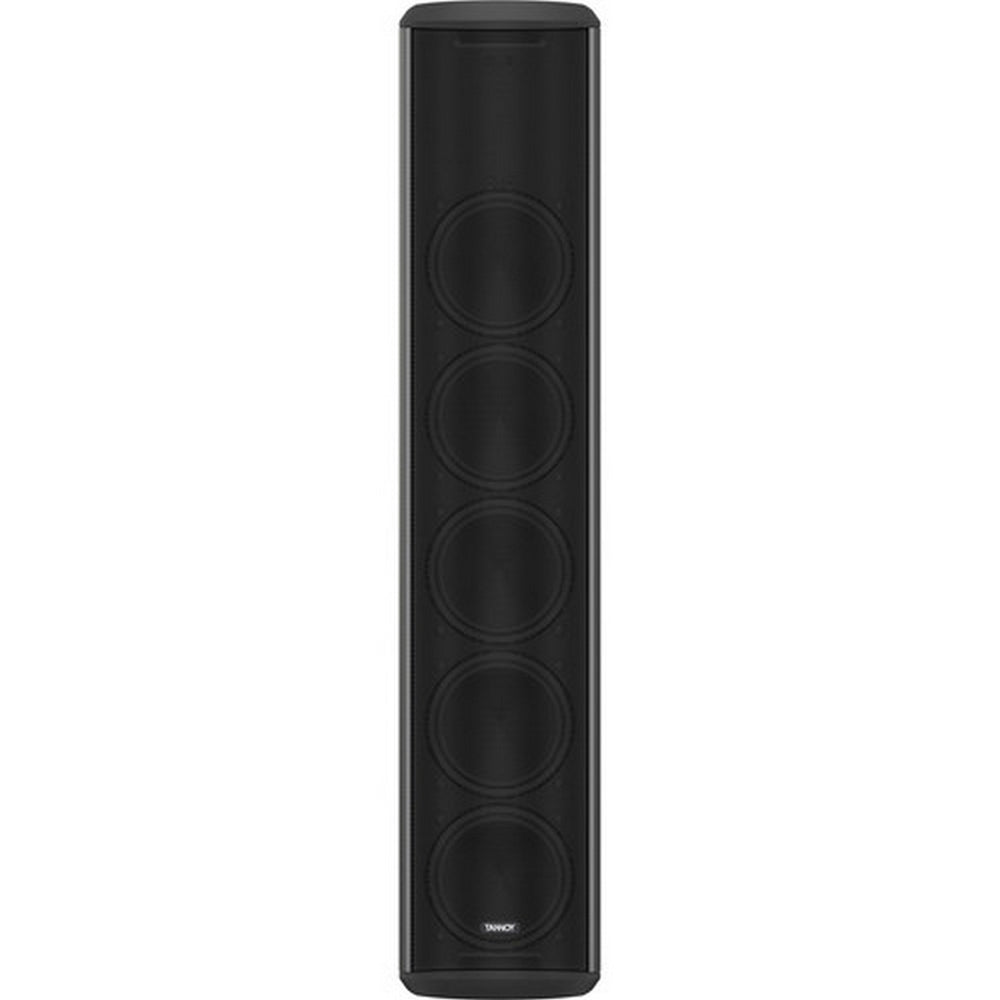

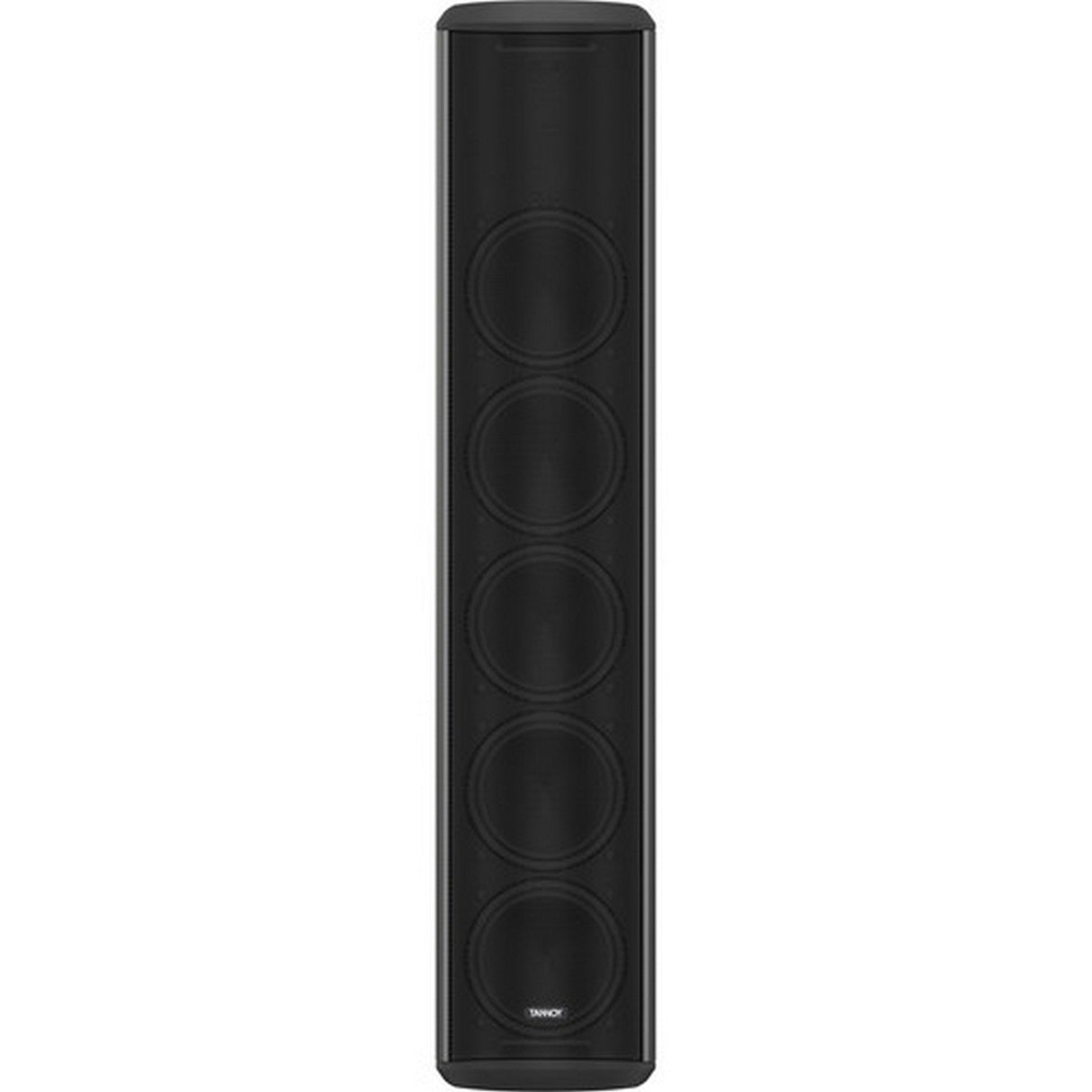

• Grille: Powder-coated perforated steel
• Environmental Rating: IP64
• Environmental Resistance: Resistant to salt spray and UV exposure
• Dimensions: 23.6" H x 4.8" W x 5.8" D
• Weight: 18.1 lb

What's In the Box

• Tannoy VLS 5 Passive Column Array Loudspeaker in selected color
• Flying bracket

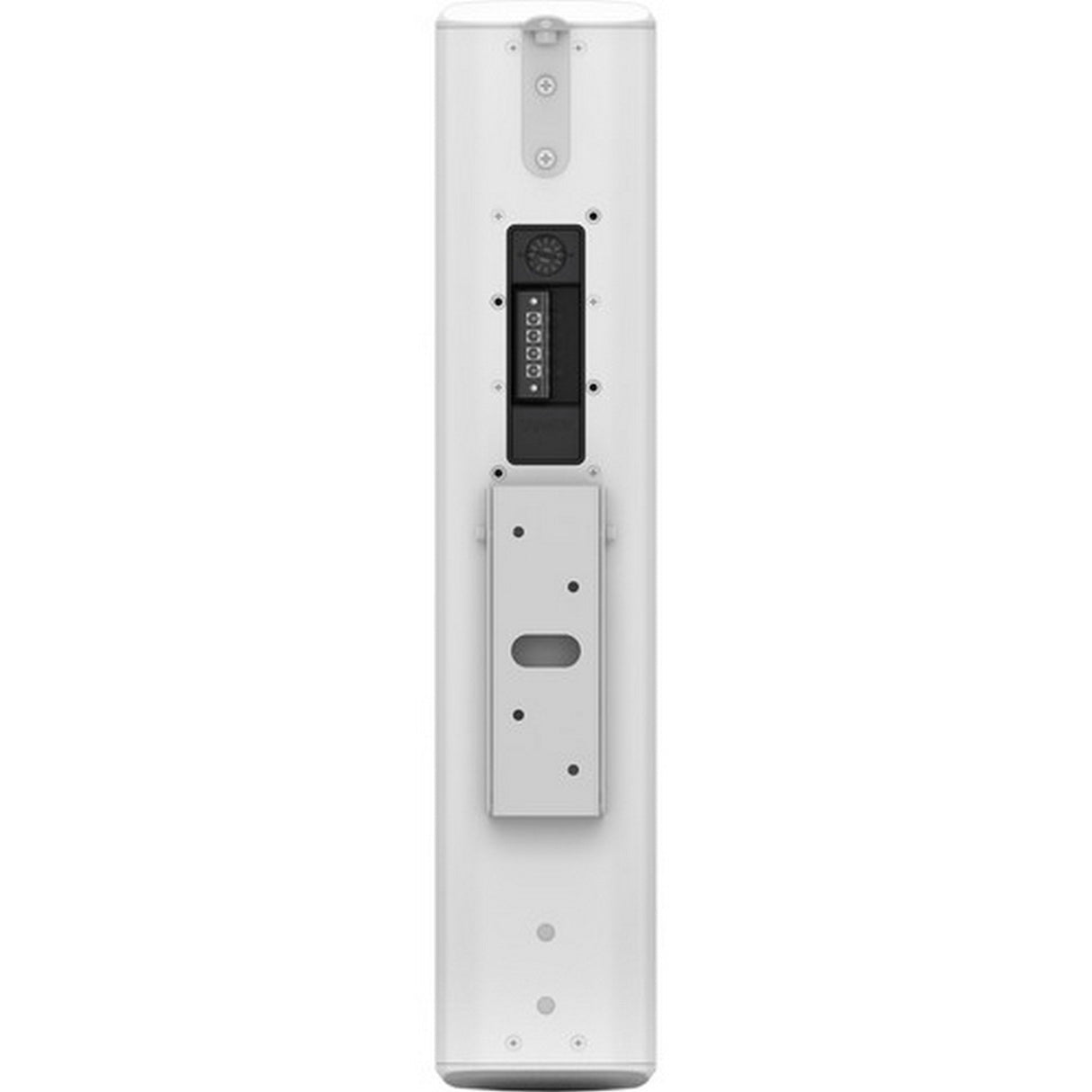

• Wall-mount bracket
• Input-panel cover plate

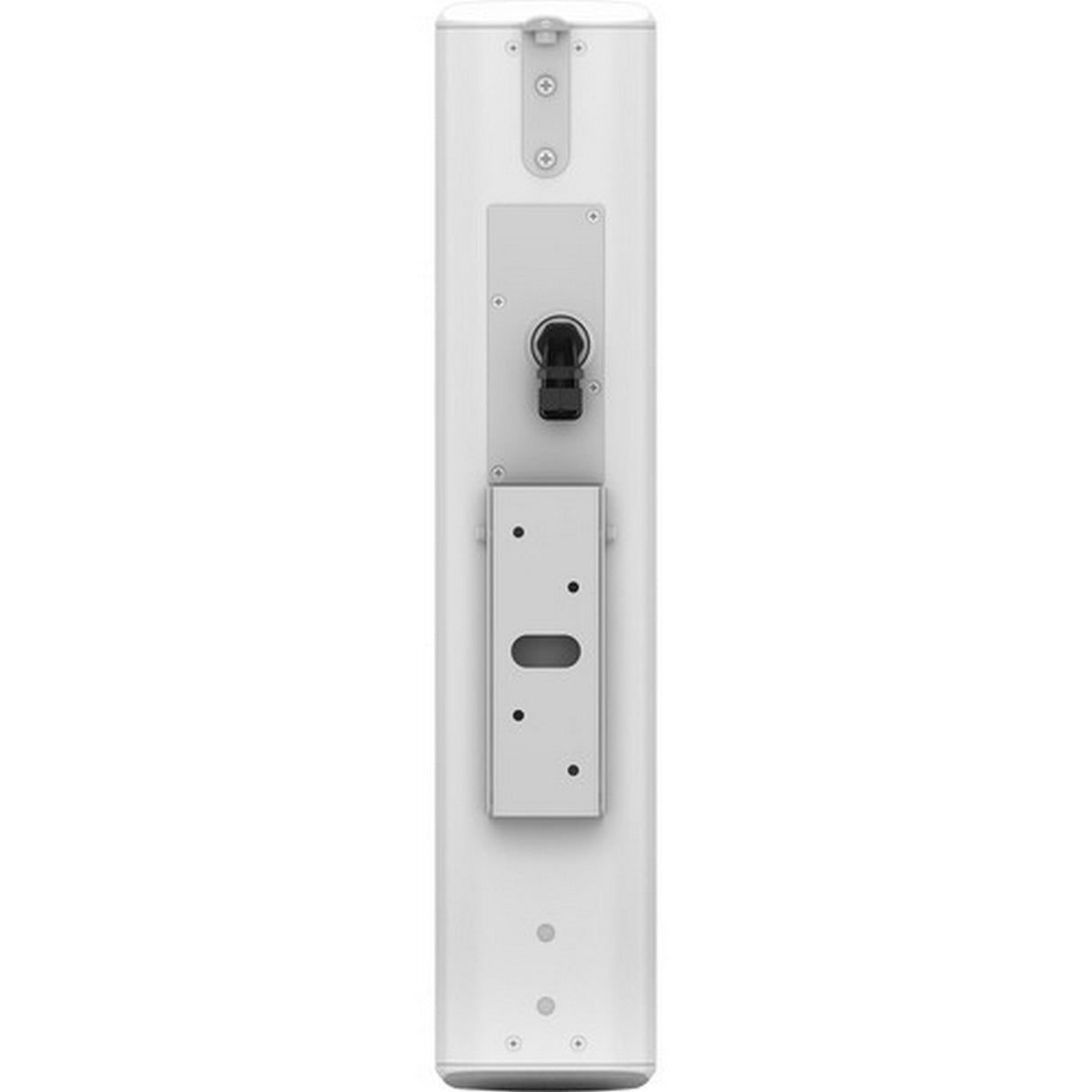

• Watertight cable gland
