Tannoy VLS 7 (EN 54) Passive Column Array Loudspeaker - White

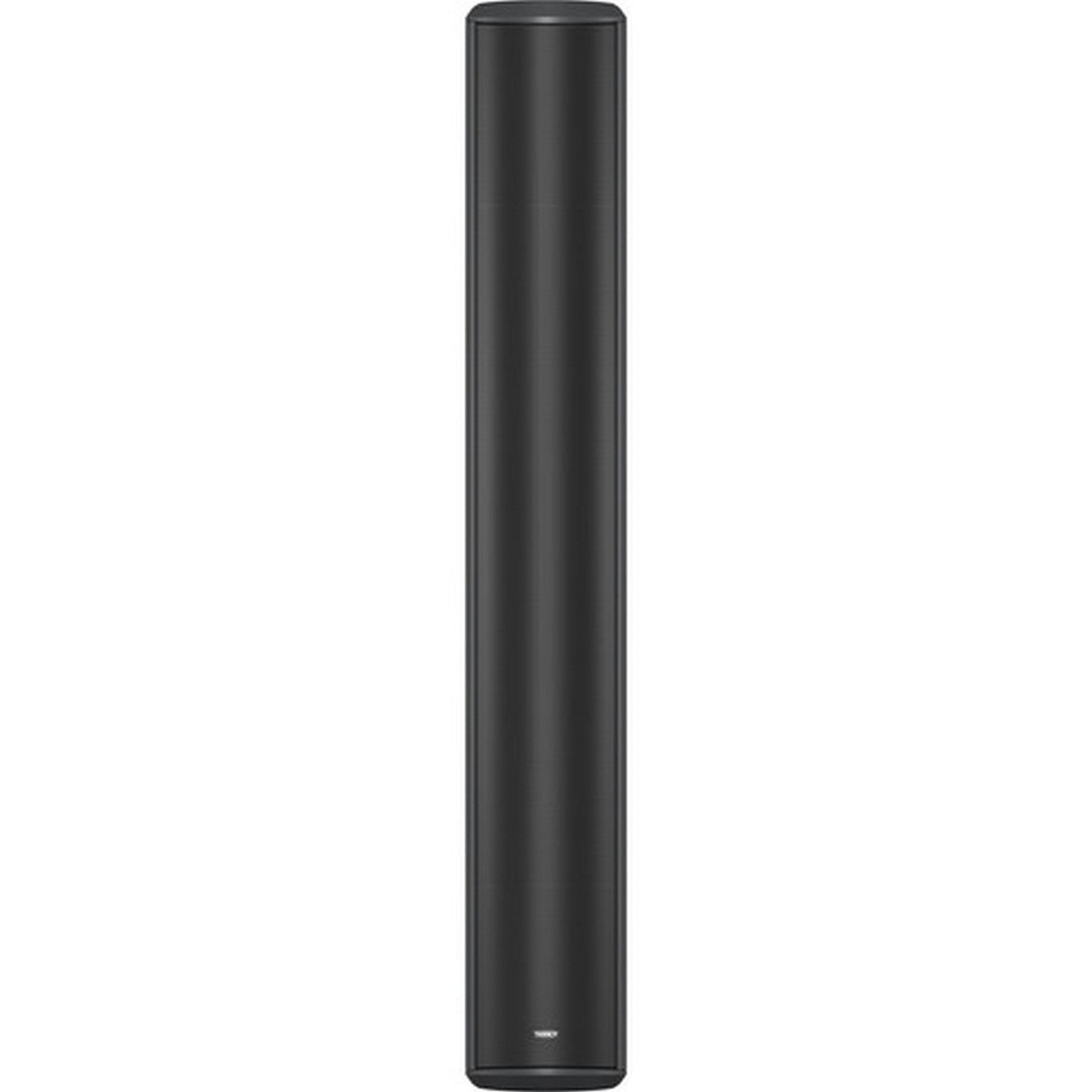

Tannoy VLS 7 (EN 54) Passive Column Array Loudspeaker

The Tannoy VLS 7 (EN 54) Passive Column Array Loudspeaker is a seven-driver installation speaker designed for highly intelligible speech in acoustically challenging spaces. Seven vertically arrayed 3.5" full-range drivers combine with FAST dispersion control, 150W average power handling, and EN 54-24 certification for professional life-safety and commercial audio applications.

Available in black and white finishes, the VLS 7 (EN 54) suits airports, train stations, conference centers, houses of worship, stadium concourses, museums, and other architecturally sensitive installations. Focussed Asymmetrical Shaping Technology, or FAST, directs more vertical energy toward the lower listening area, reducing the amount of downward cabinet tilt normally required for column loudspeakers.

The VLS 7 (EN 54) supports 12-ohm low-impedance operation plus 70V and 100V distributed systems through an integrated 150W transformer. Its aluminum enclosure, powder-coated perforated steel grille, IP64 environmental rating, salt-spray resistance, and UV resistance support permanent indoor and suitable outdoor installations. Barrier-strip connections and included wall, flying, and weather-protection hardware simplify professional system integration.

Available Color Variants

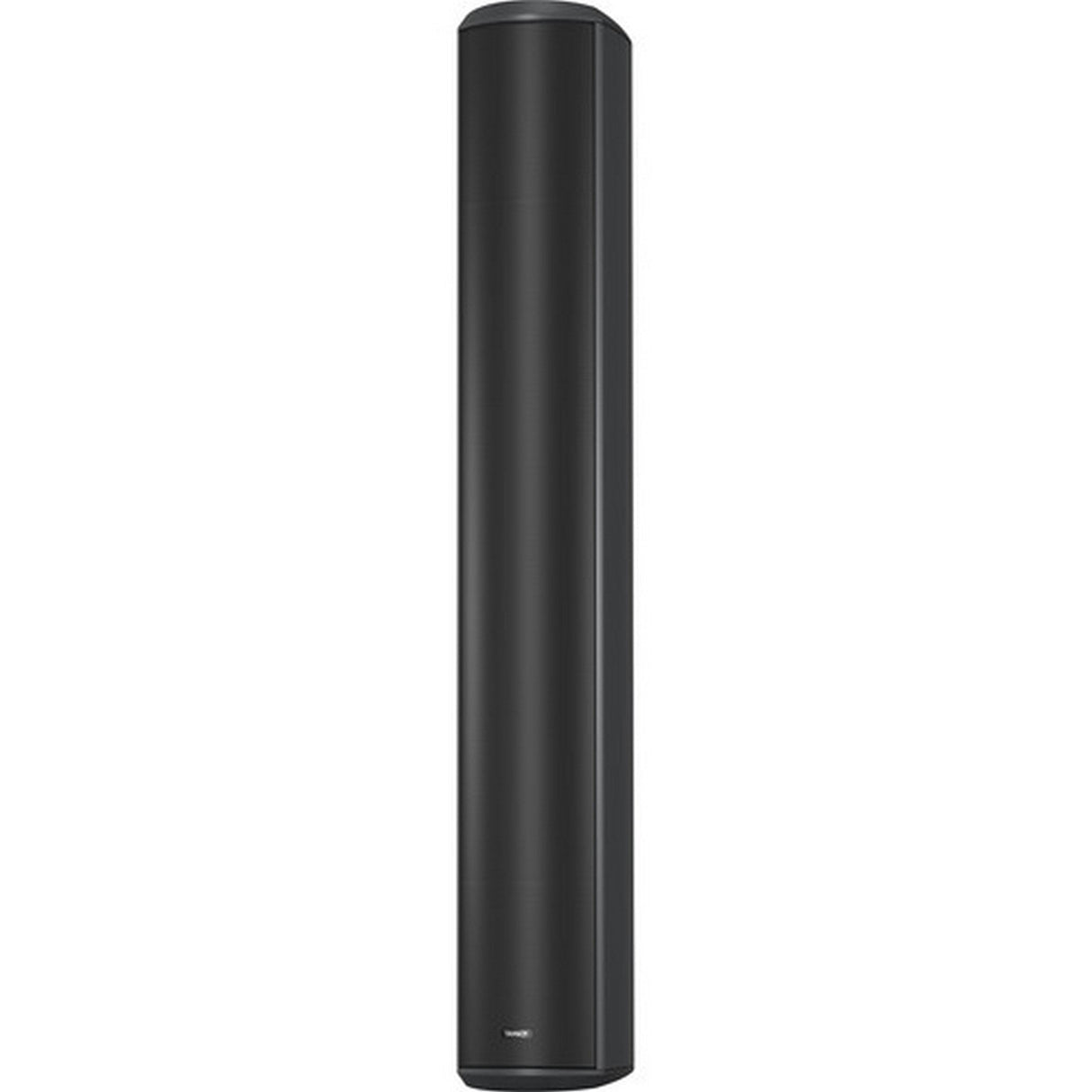

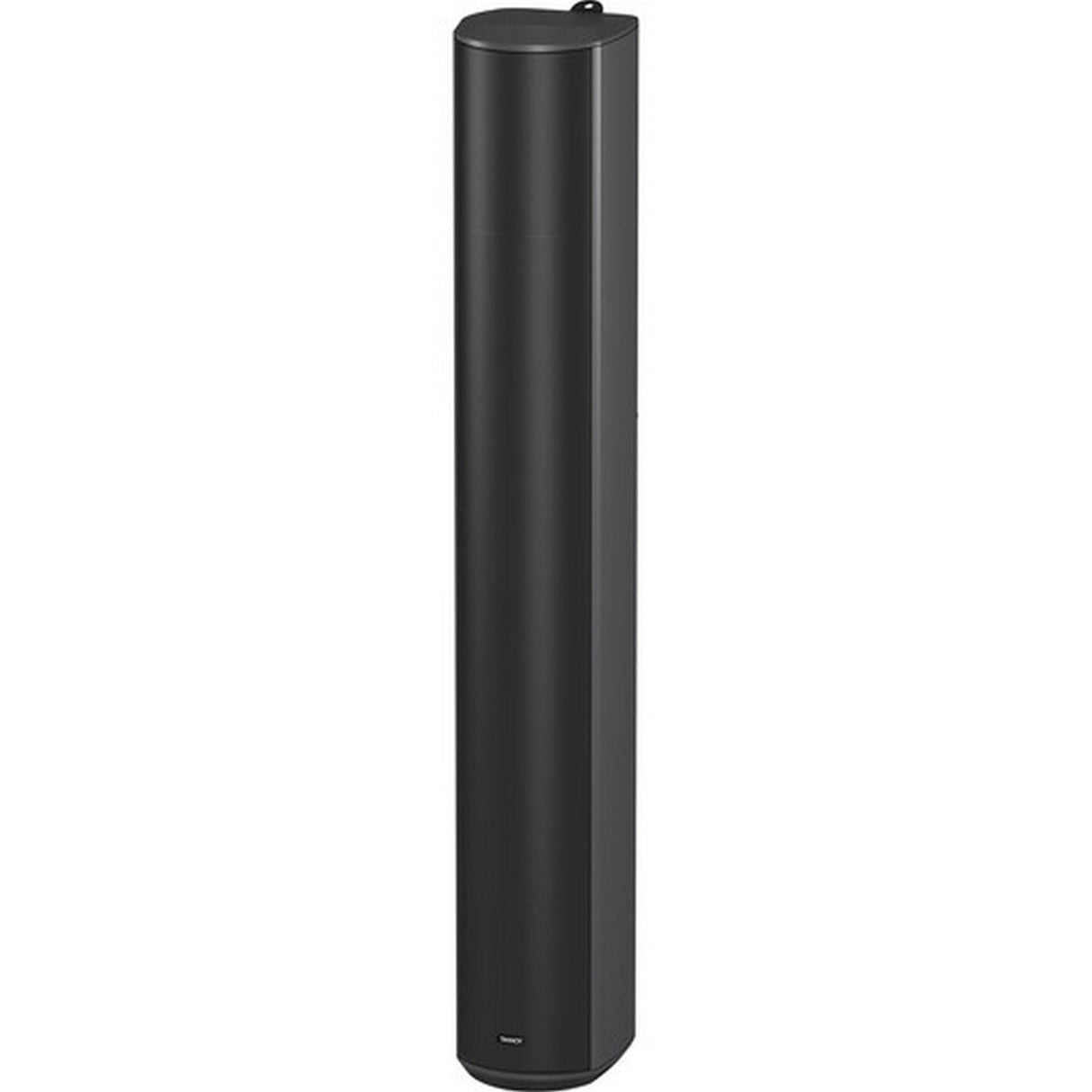

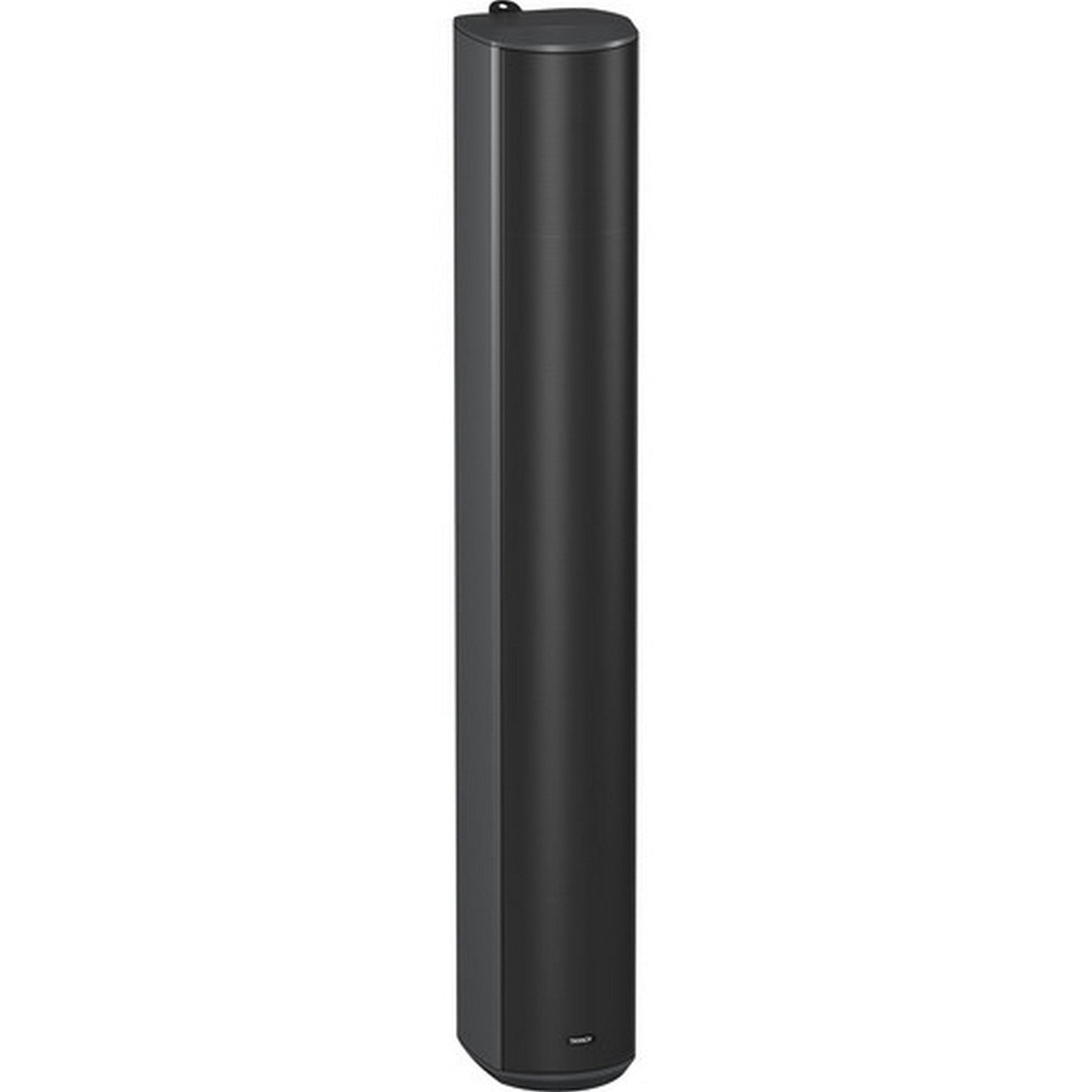

• VLS7EN54: Black finish, RAL 9004

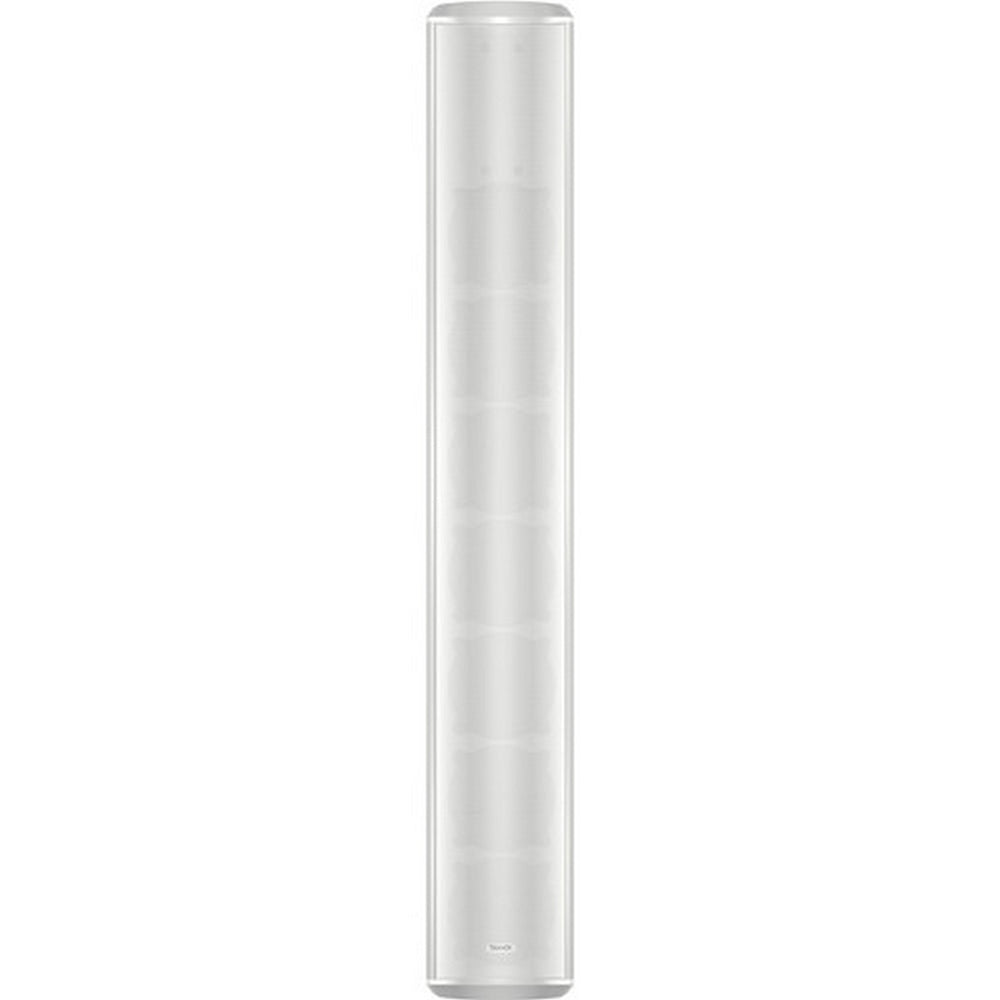

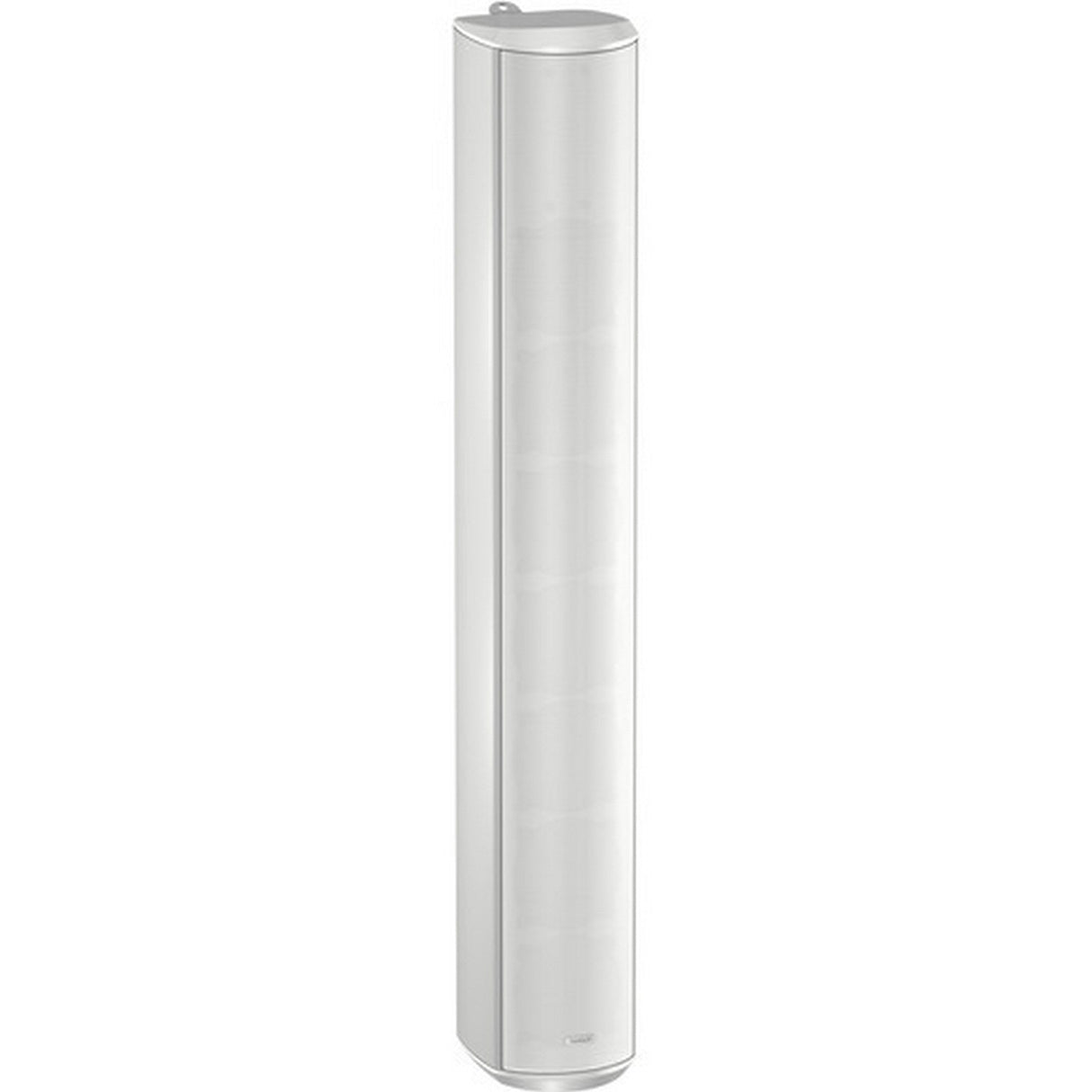

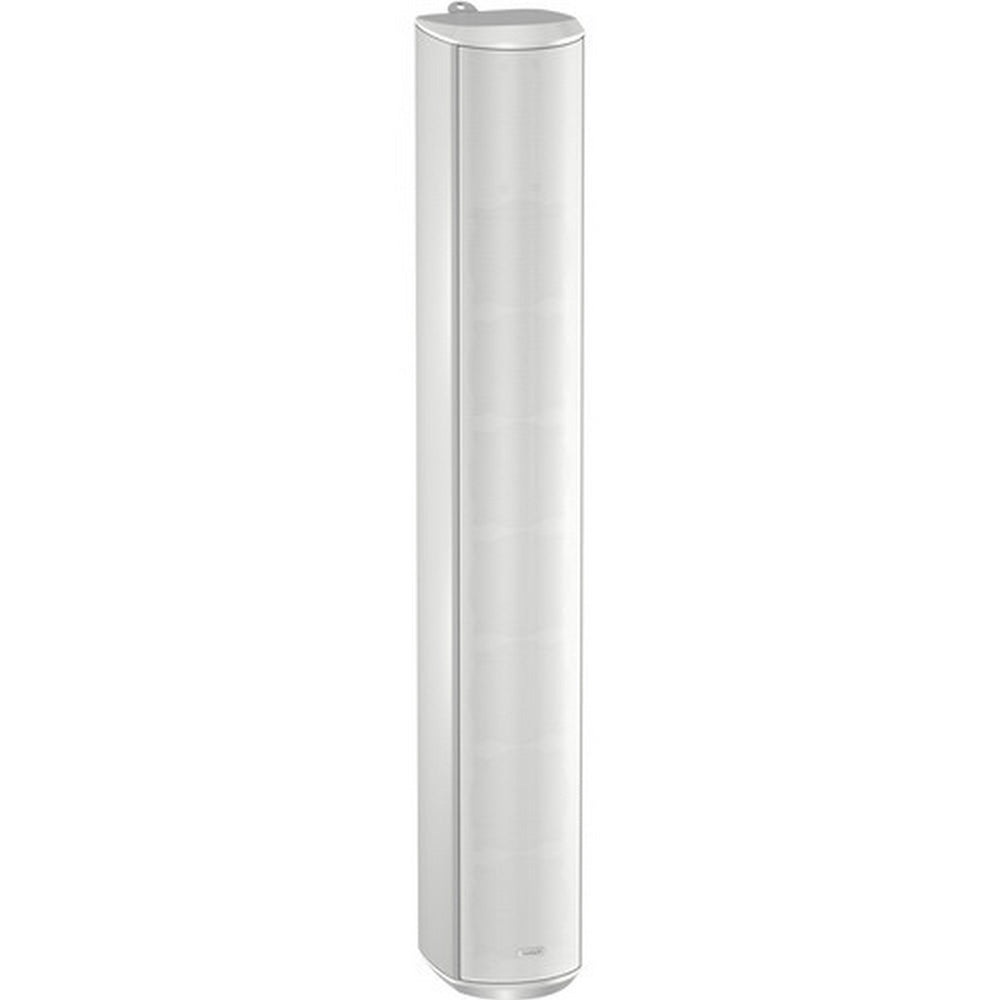

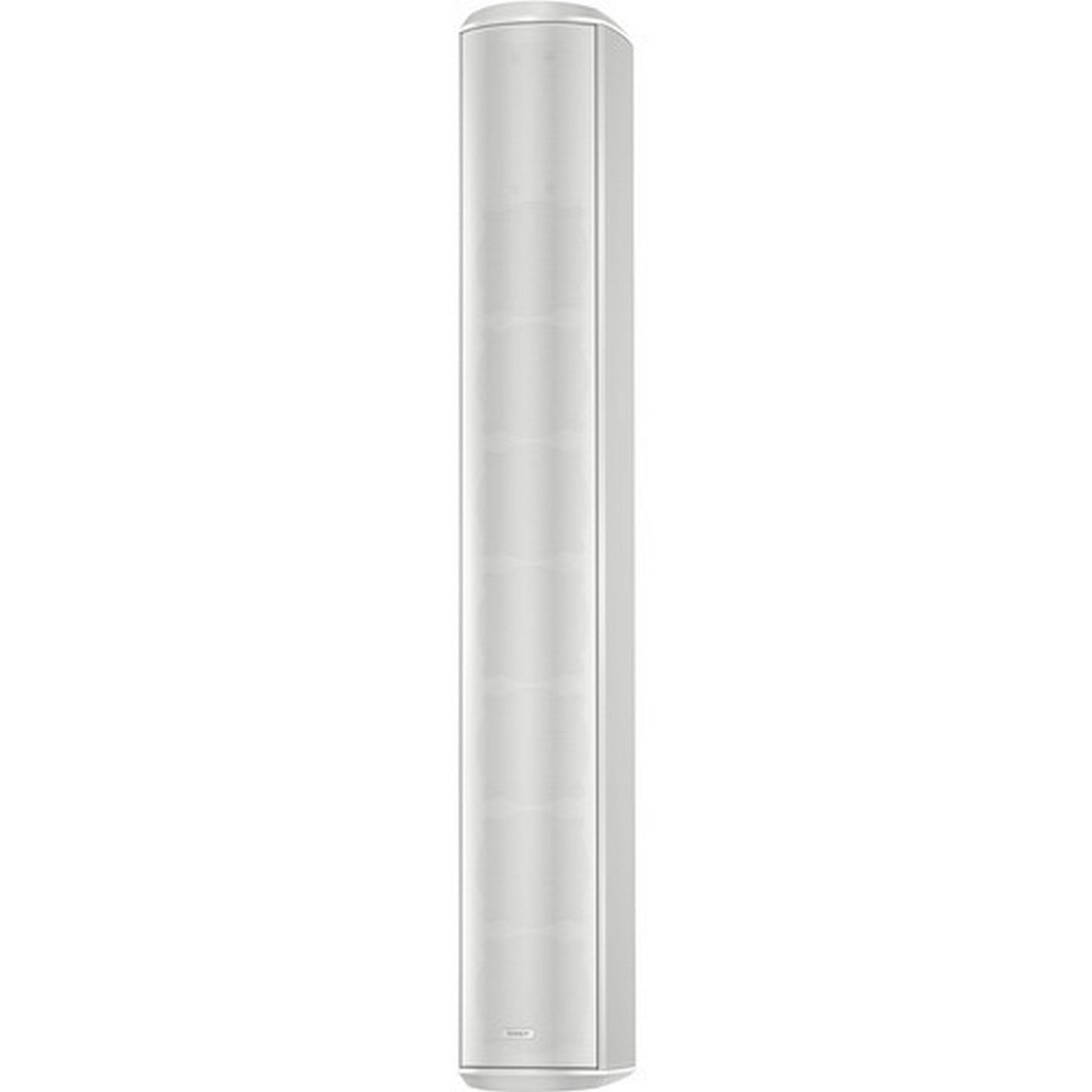

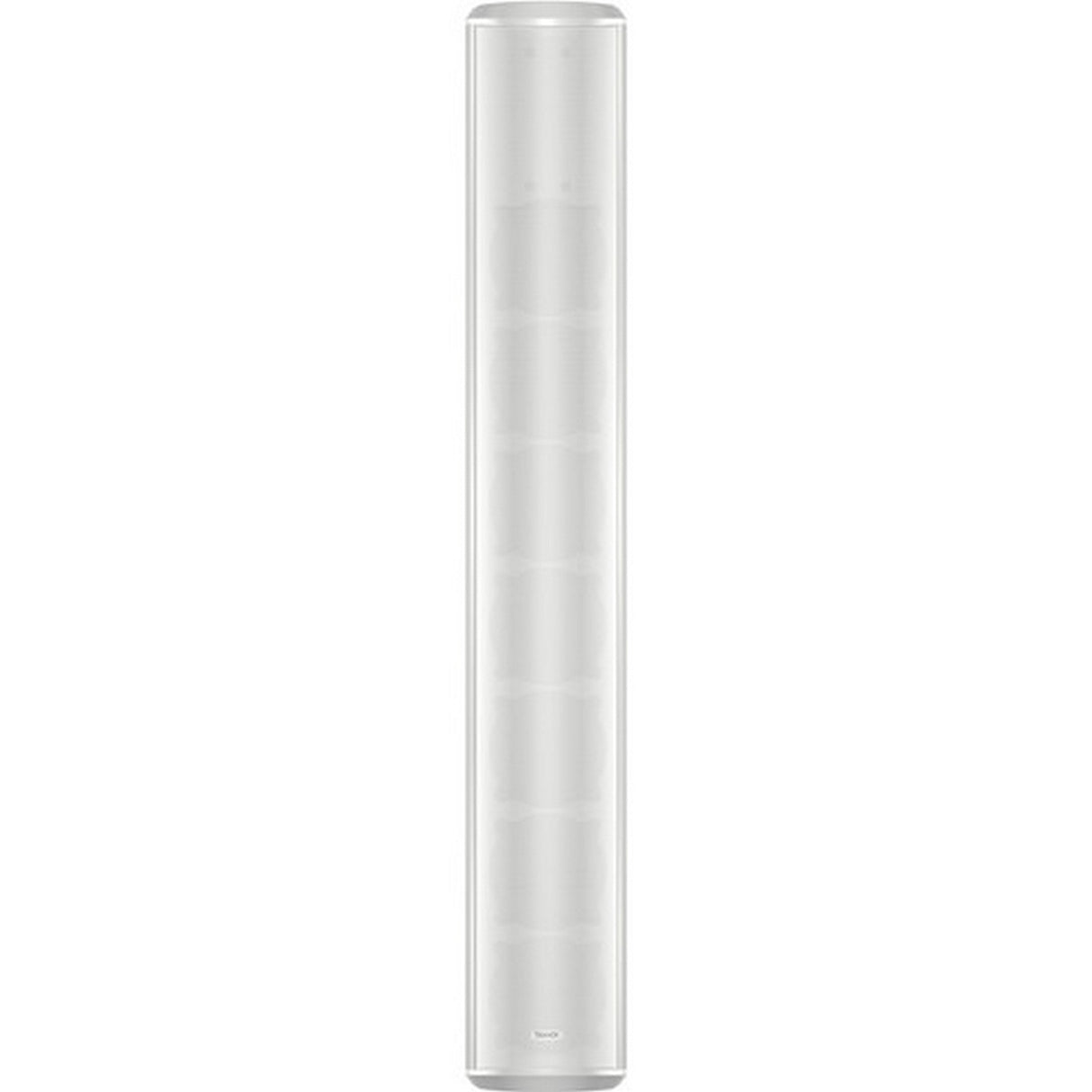

• VLS 7 (EN 54)-WH: White finish, RAL 9003

Key Features

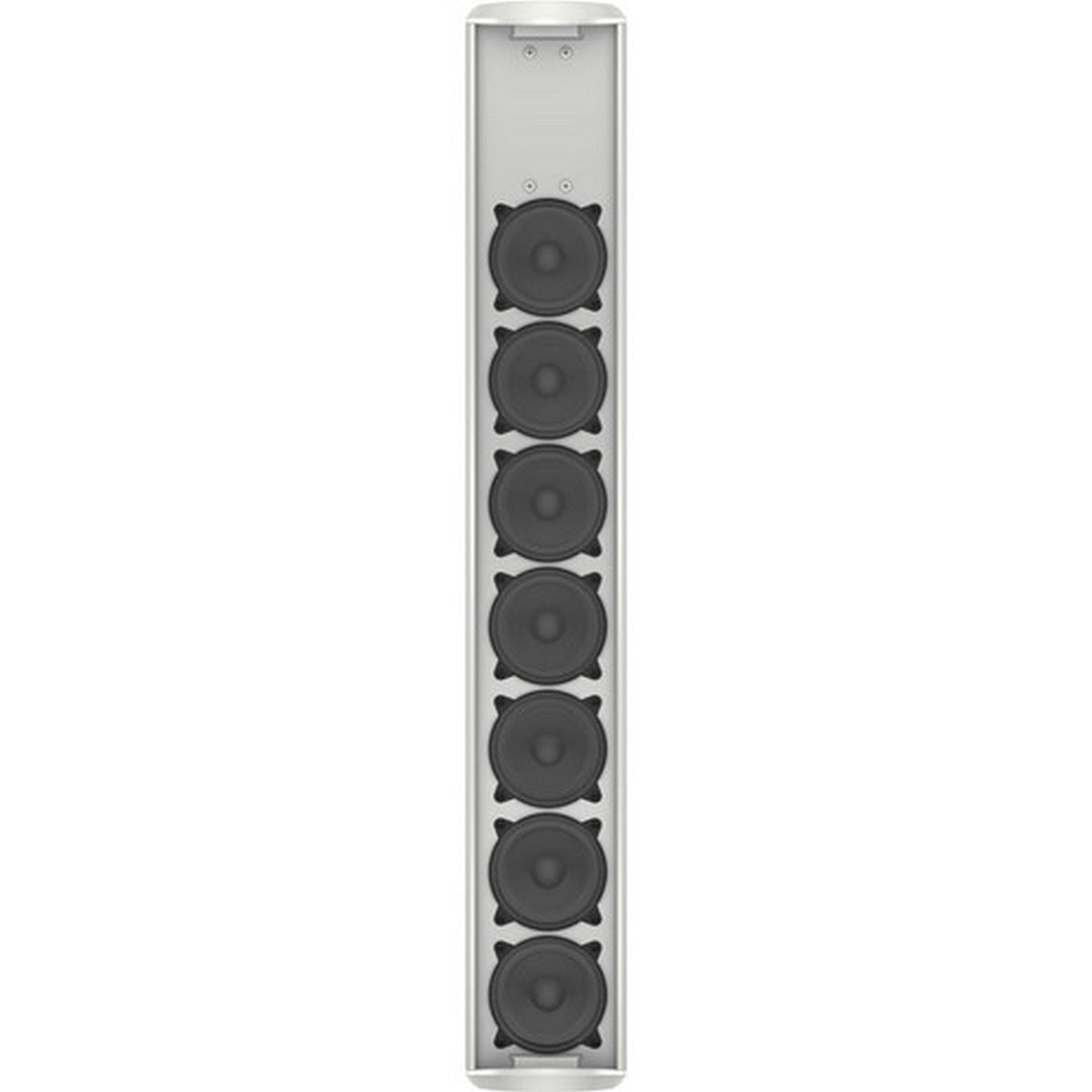

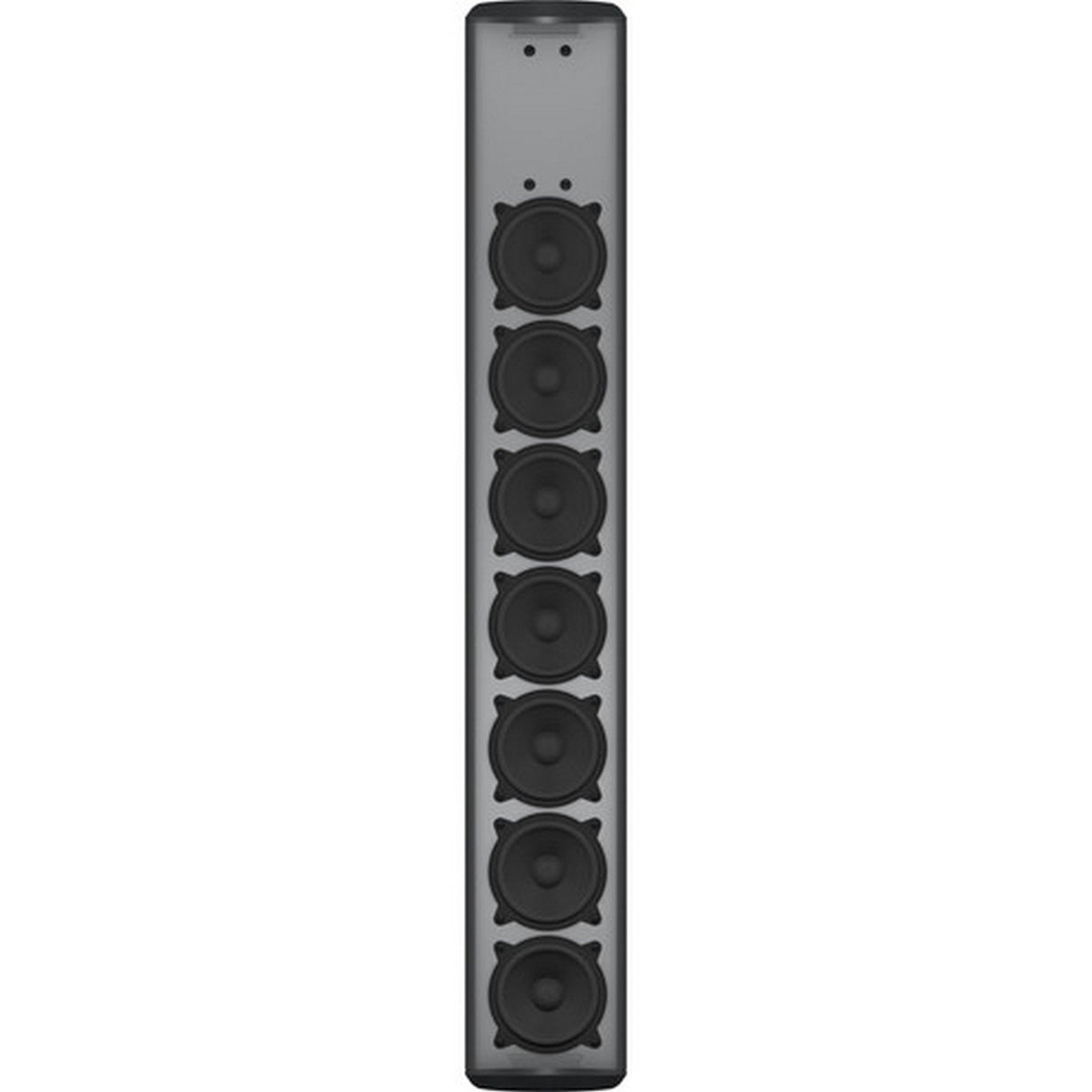

• Seven 3.5" Full-Range Drivers: Vertically arrayed transducers provide focused speech reproduction from a narrow architectural enclosure.
• FAST Dispersion Control: Focussed Asymmetrical Shaping Technology directs vertical coverage toward the typical listening plane.
• EN 54-24 Certified: Supports installation in qualifying fire-detection and fire-alarm voice systems.
• 600W Peak Power Handling: Handles 150W average, 300W continuous, and 600W peak power under IEC testing.
• 70V, 100V, or Low-Z Operation: Supports distributed commercial systems or direct 12-ohm amplifier connection.
• Asymmetrical Vertical Coverage: Provides +6° / -22° vertical dispersion with an -8° bias for targeted listening-area coverage.
• IP64 Environmental Rating: Resists dust and moisture ingress along with salt spray and UV exposure.
• Black or White Finish: Offers factory RAL 9004 black and RAL 9003 white options for architectural integration.

Technical Specifications

• Product Type: Passive column array loudspeaker
• Models: VLS7EN54 black / VLS 7 (EN 54)-WH white
• Application: Speech reinforcement installation
• Certification: EN 54-24
• Components: 7 x 3.5" full-range drivers
• Frequency Response: 150 Hz to 11 kHz, ±3 dB
• Frequency Range: 110 Hz to 14 kHz, -10 dB
• Horizontal Dispersion: 130° at -6 dB
• Vertical Dispersion: +6° / -22° at -6 dB, -8° bias
• Average Power Handling: 150W
• Continuous Power Handling: 300W
• Peak Power Handling: 600W
• Recommended Amplifier Power: 450W at 8 ohms
• System Sensitivity: 90 dB at 1 m, low-impedance mode
• EN 54-24 Sensitivity: 76 dB at 4 m through transformer
• Nominal Impedance: 12 ohms, low-impedance mode
• Maximum SPL per EN 54-24: 91 dB at 4 m through transformer
• Rated Maximum SPL: 112 dB continuous / 118 dB peak at 1 m in low-impedance mode
• Crossover: Passive network using Focussed Asymmetrical Shaping Technology
• Directivity Factor: 6.1 average from 1 kHz to 10 kHz
• Directivity Index: 7.9 dB average from 1 kHz to 10 kHz
• Transformer: 150W line transformer
• 70V Transformer Taps: 150W at 33 ohms / 75W at 66 ohms / 37.5W at 133 ohms / 19W at 265 ohms / 9.5W at 520 ohms / 5W at 1000 ohms / off / low-impedance operation
• 100V Transformer Taps: 150W at 66 ohms / 75W at 133 ohms / 37.5W at 265 ohms / 19W at 520 ohms / 9.5W at 1000 ohms / off / low-impedance operation
• Coverage at 500 Hz: 360° H x 129° V
• Coverage at 1 kHz: 202° H x 62° V
• Coverage at 2 kHz: 137° H x 49° V
• Coverage at 4 kHz: 127° H x 40° V

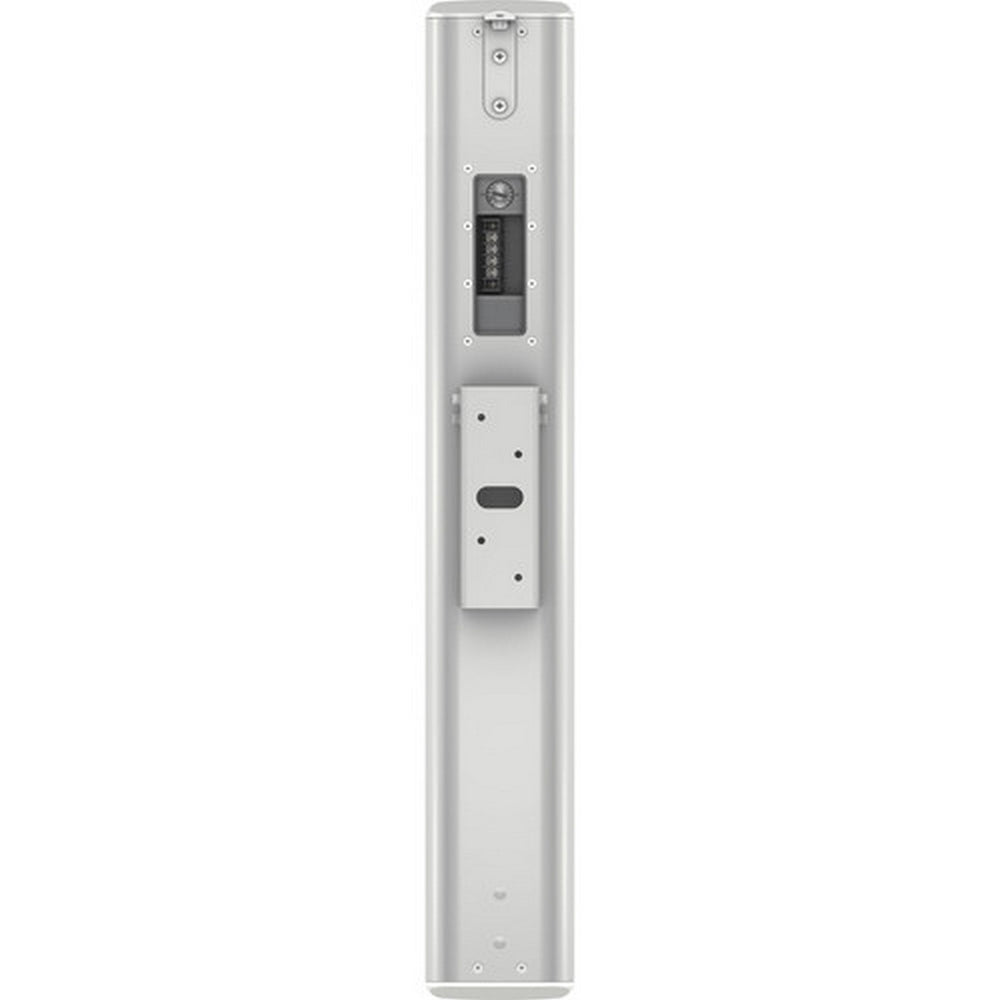

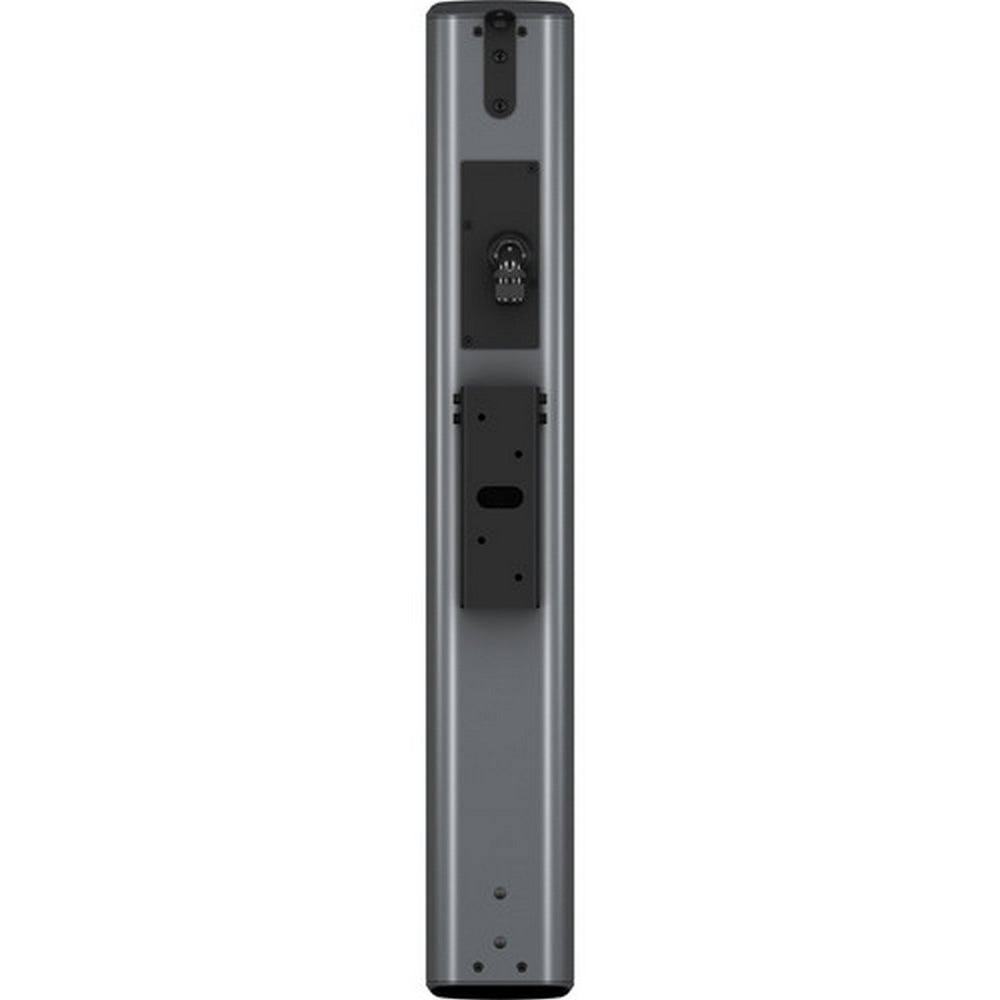

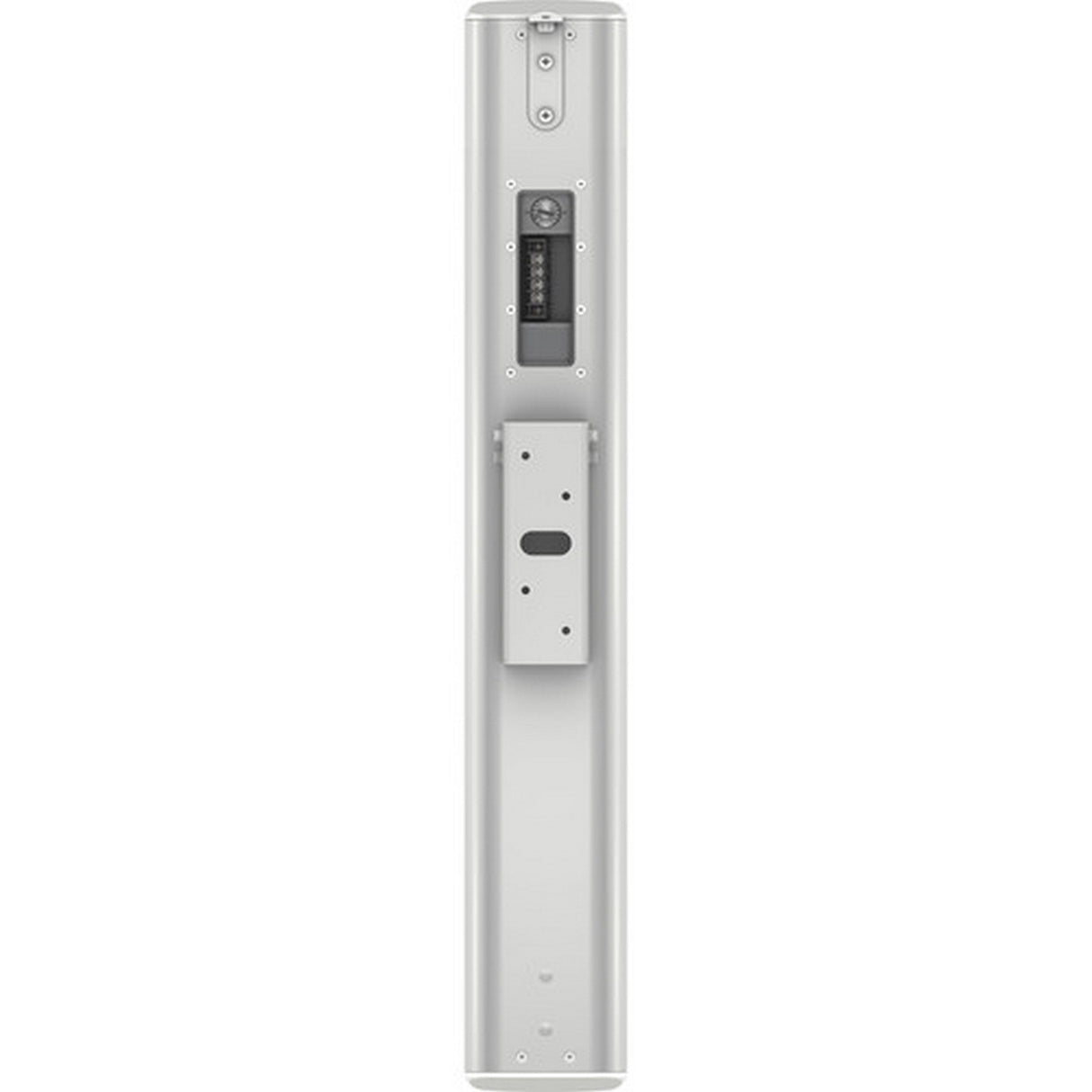

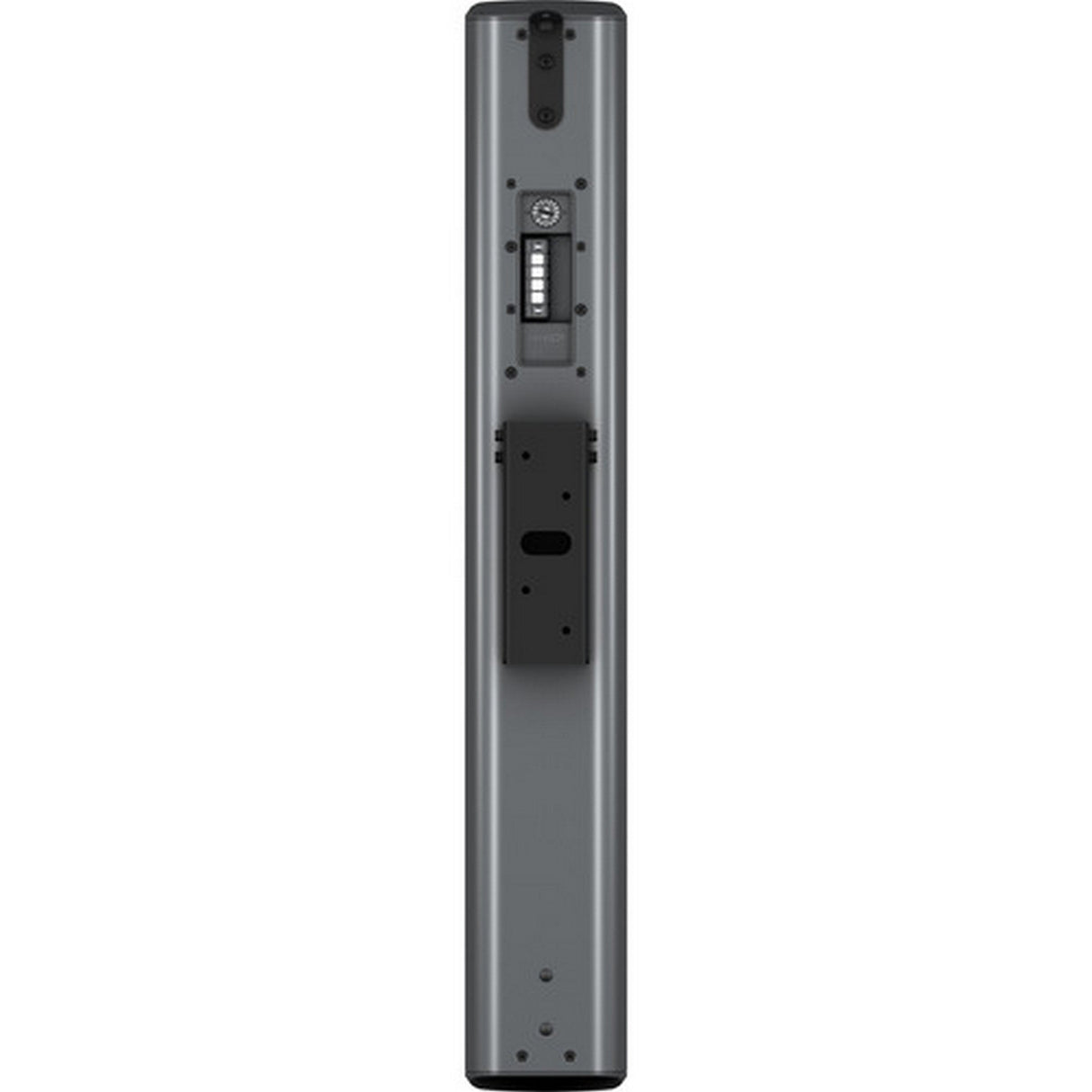

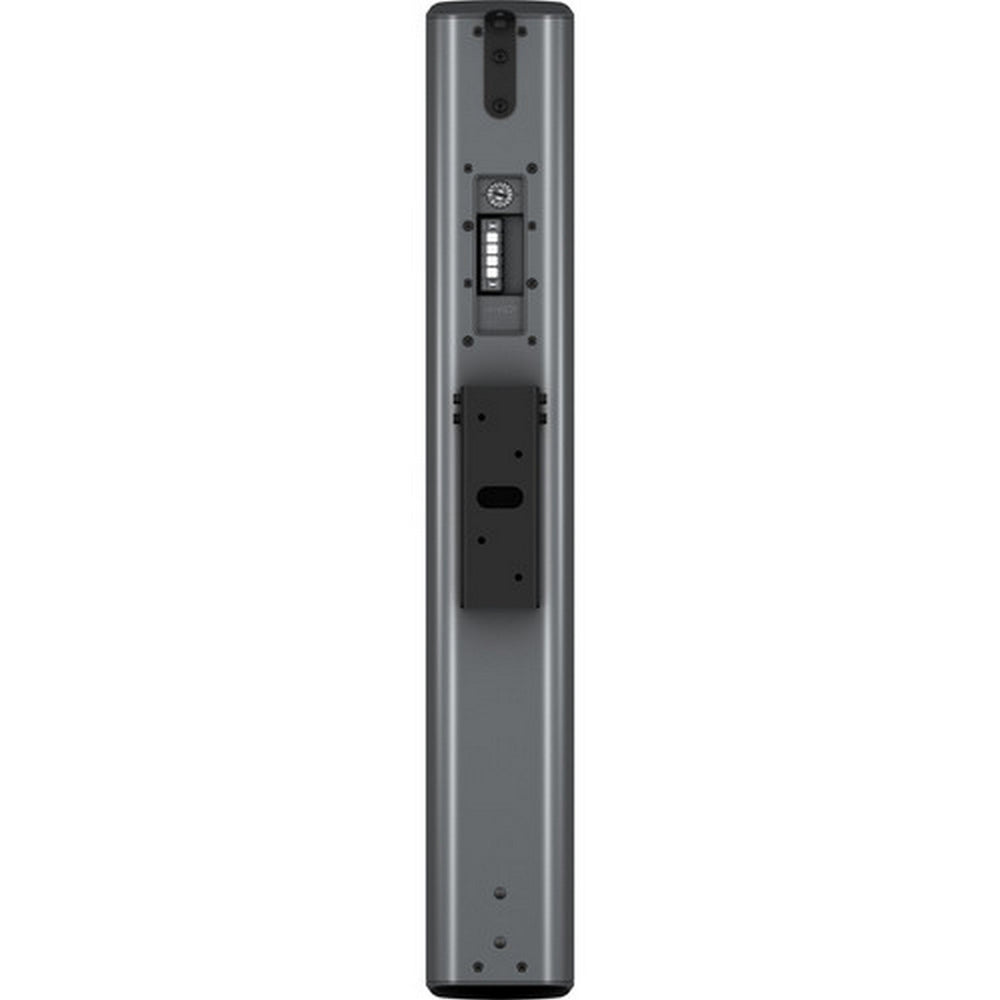

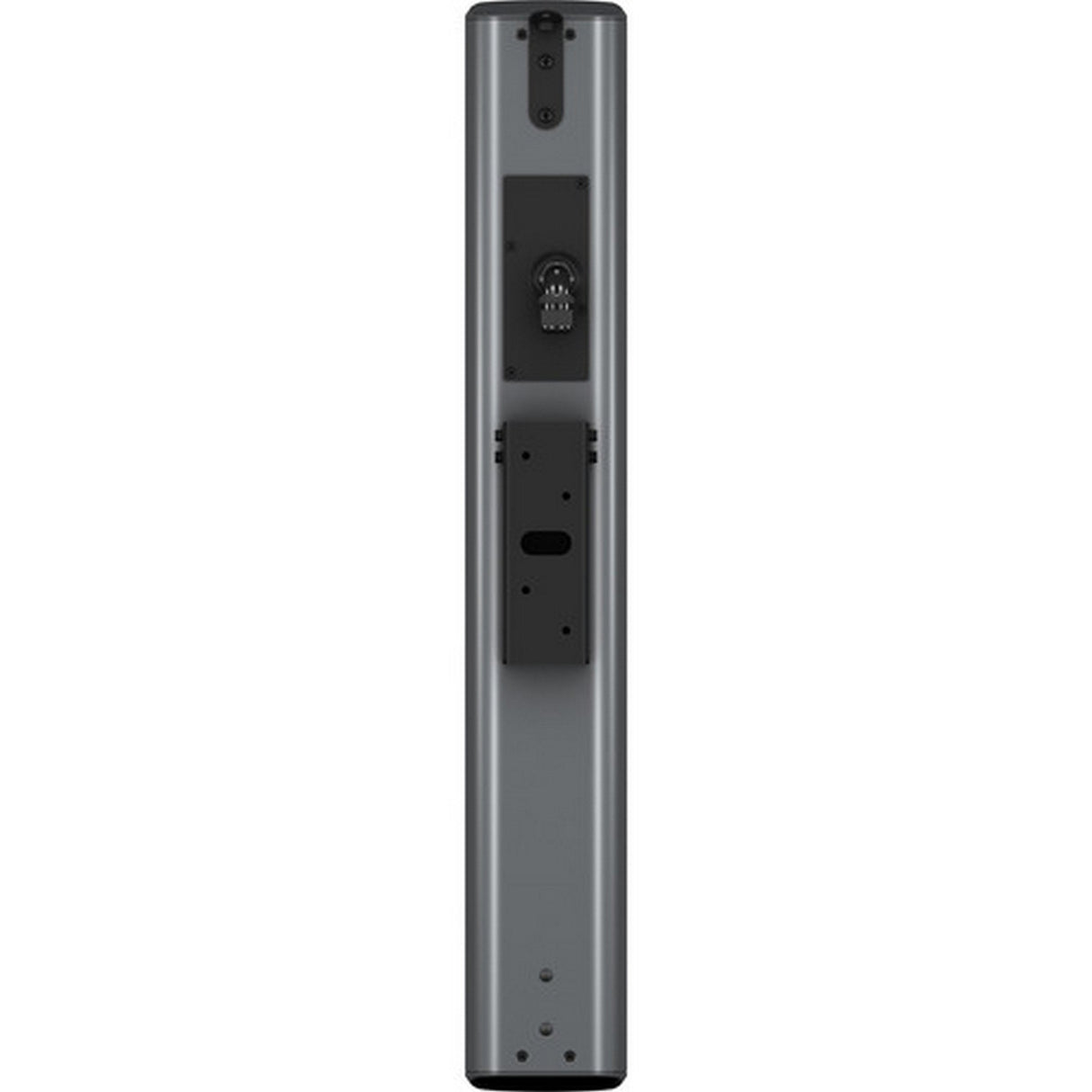

• Connectors: Internally paralleled barrier strips
• Wiring: Terminal 1+ / 2- input; 3- / 4+ link
• Construction: Aluminum extrusion
• Black Finish: RAL 9004
• White Finish: RAL 9003
• Grille: Powder-coated perforated steel
• Environmental Rating: IP64
• Environmental Resistance: Salt-spray and UV resistant
• Dimensions: 32.1" H x 4.8" W x 5.8" D
• Weight: 23.8 lb

What's In the Box

• Tannoy VLS 7 (EN 54) Passive Column Array Loudspeaker in selected color
• Wall-mount bracket
• Flying bracket
• Input-panel cover plate

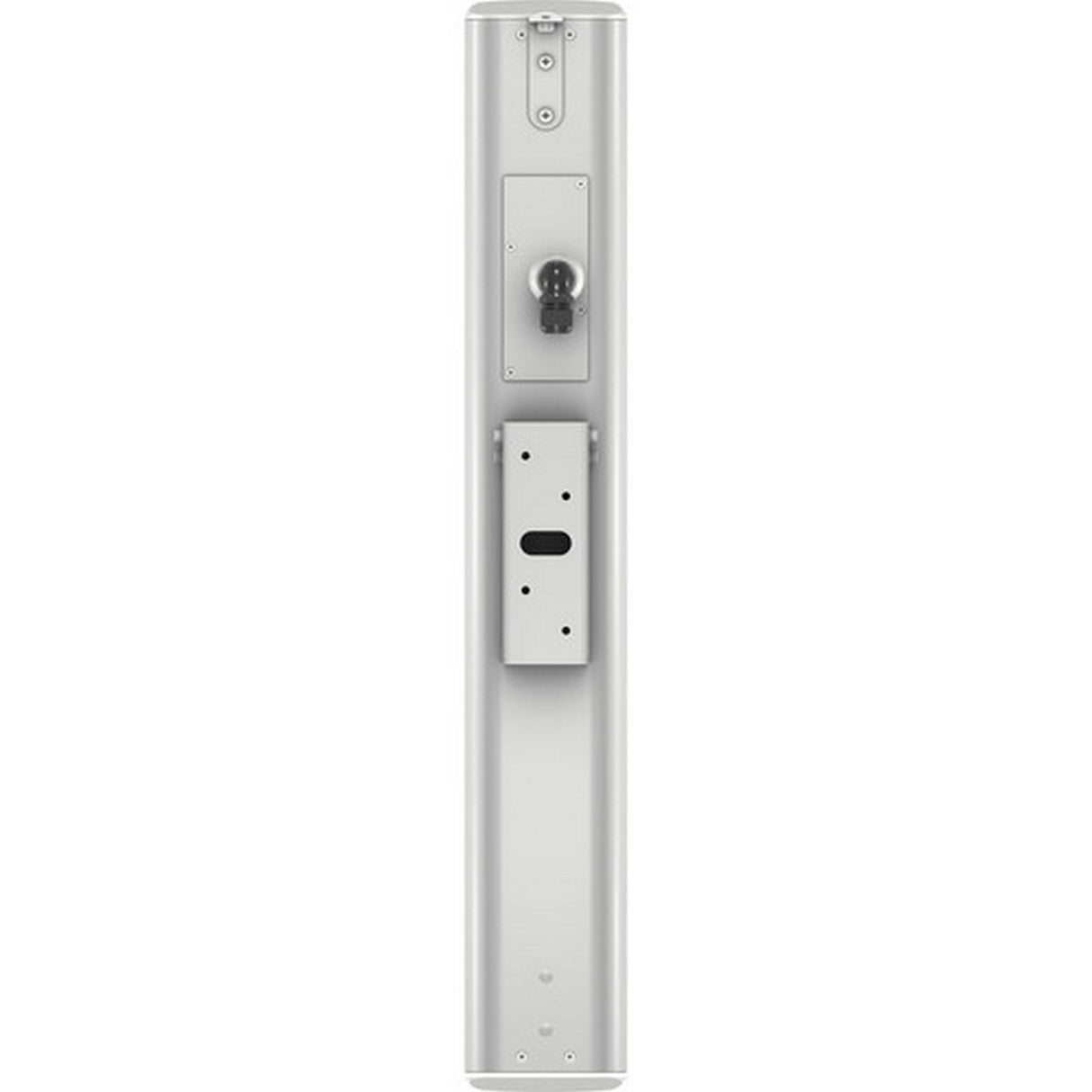

• Watertight cable gland
