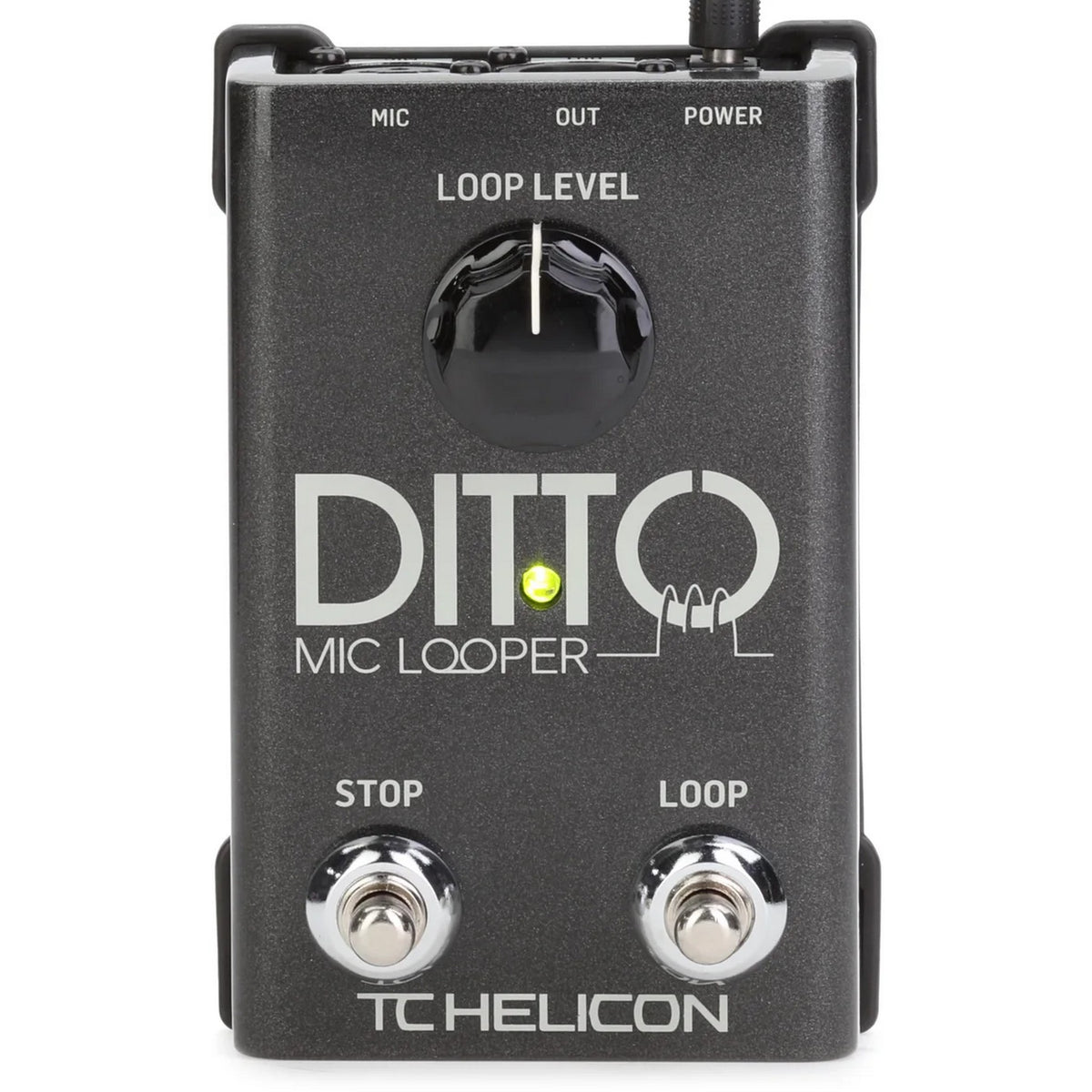

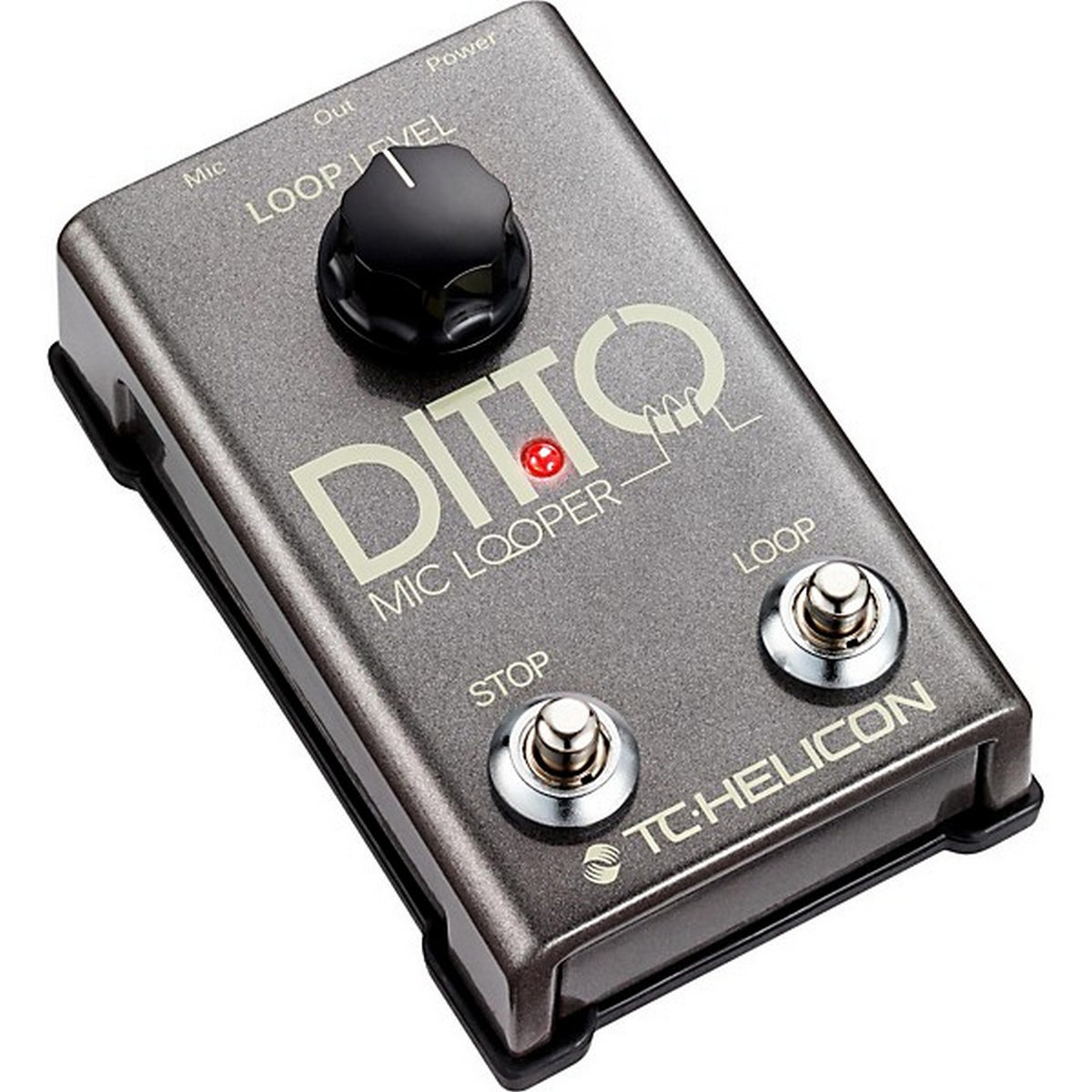

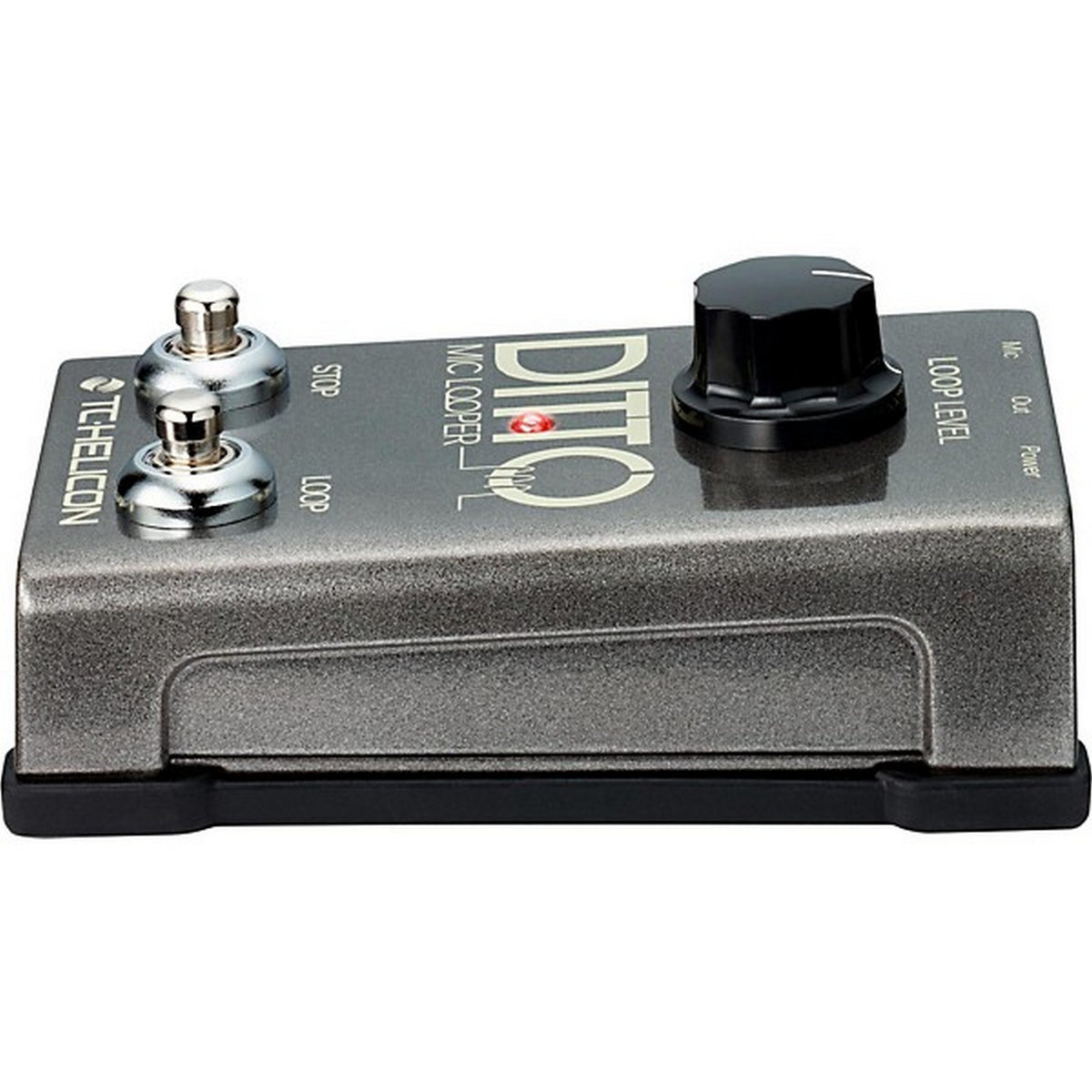

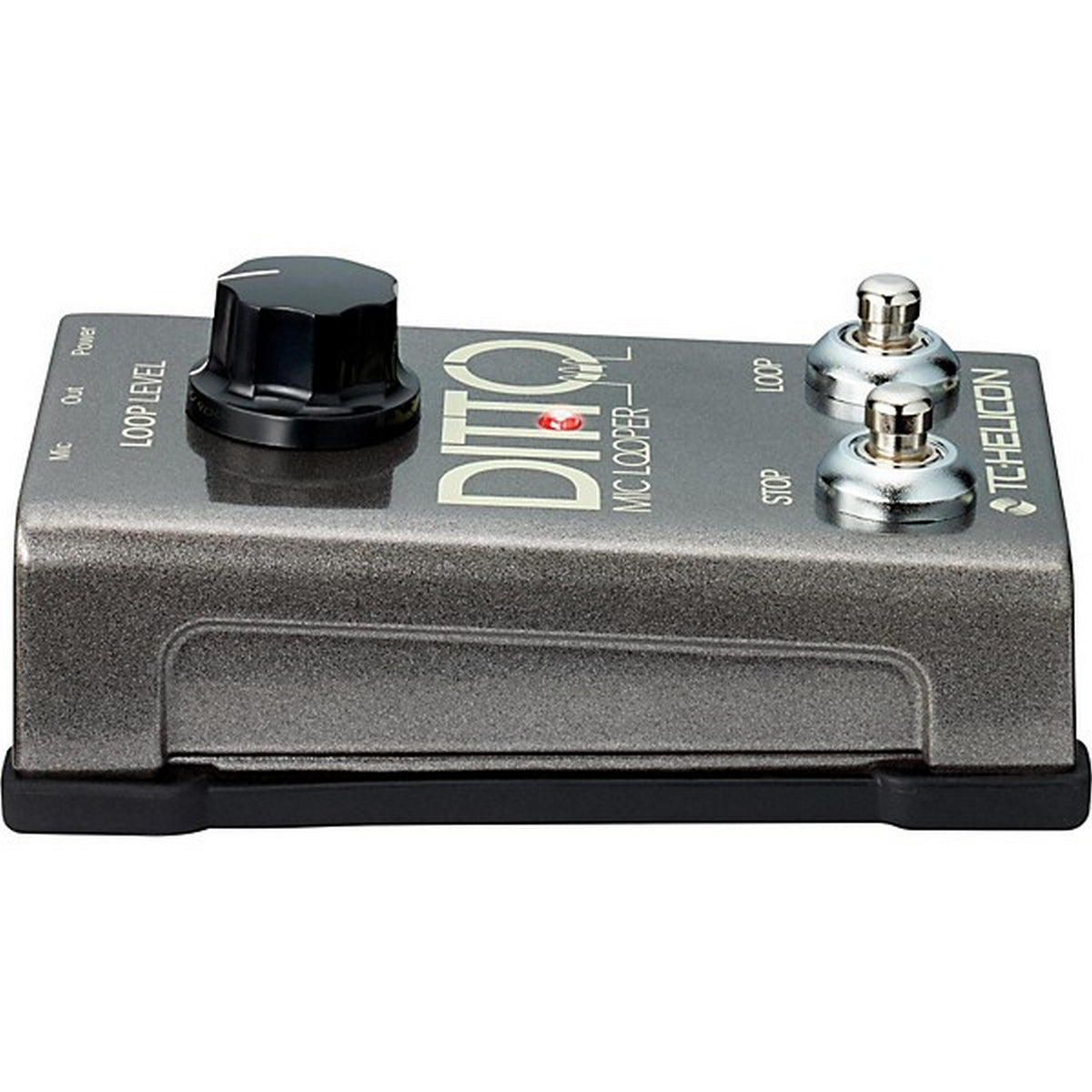

TC-Helicon Ditto Mic Looper Pedal for Vocals and Acoustic Instruments

TC-Helicon Ditto Mic Looper Pedal for Vocals & Acoustic Instruments

The TC-Helicon Ditto Mic Looper is a two-button vocal and acoustic instrument looper built around balanced XLR microphone connections. It provides up to five minutes of loop recording, unlimited overdubs, undo and redo control, intelligent microphone gain, 24-bit uncompressed audio, and a dedicated Stop footswitch for precise live looping.

Singers, beatboxers, percussionists, horn players, and acoustic musicians can build layered arrangements without navigating menus or adjusting multiple controls. The Loop footswitch handles record, playback, and overdub functions, while the separate Stop switch provides immediate loop stopping and clearing. A large Loop Level control adjusts recorded-loop playback independently from the direct microphone signal.

A low-noise microphone preamp and always-active phantom power support compatible dynamic and condenser microphones. Balanced XLR input and output connections integrate directly with microphones, mixers, and vocal-processing chains. Mic Control compatibility provides remote operation from supported microphones, while the Mini-USB connection supports firmware functions. The rugged die-cast metal enclosure and rubberized base suit regular stage, rehearsal, and studio use.

Key Features

• Five-Minute Loop Recording: Captures loops up to five minutes long for vocals, percussion, and microphone-based instruments.
• Unlimited Overdubs: Adds repeated layers without a specified overdub limit and provides undo and redo control for correcting performances.
• Dedicated Stop Footswitch: Stops loop playback directly without requiring a timed double-tap during a performance.
• Intelligent Mic Gain: Maintains practical signal levels after the microphone gain is established at the connected mixer.
• 24-Bit Uncompressed Audio: Preserves loop detail through high-resolution digital recording and playback.
• Built-In Phantom Power: Provides always-active phantom power for compatible condenser microphones while also supporting dynamic microphones.
• Balanced XLR Connectivity: Provides a balanced female XLR microphone input and male XLR output for professional audio integration.
• Mic Control Support: Allows compatible TC-Helicon MP-75 and Sennheiser e835 FX microphones to remotely control looping functions.

Technical Specifications

Looping and Audio

• Product Type: Vocal and acoustic instrument looper pedal
• Maximum Loop Time: 5 minutes
• Overdubs: Unlimited
• Undo/Redo: Supported
• Audio Resolution: 24-bit uncompressed
• Frequency Response: 20 Hz to 20 kHz, +0/-0.3 dB
• Dynamic Range: Greater than 104 dB, 20 Hz to 20 kHz
• Signal-to-Noise Ratio: 112 dB A-weighted
• Loop Level Control: Dedicated rotary control
• Footswitches: Loop and Stop
• Microphone Gain: Intelligent automatic input gain management

Analog Input

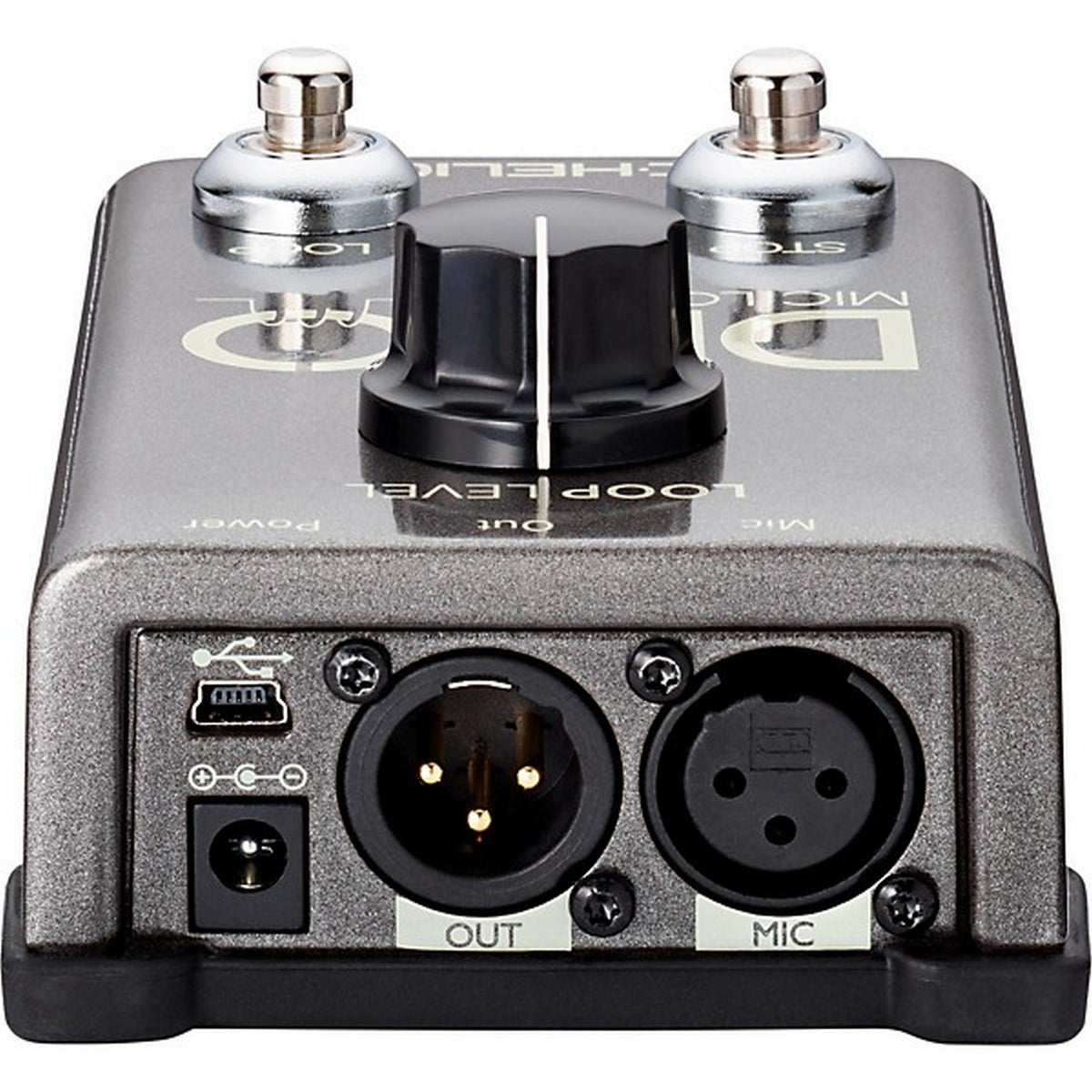

• Input Connector: 1 x balanced female XLR
• Input Impedance: 2.7 kOhms balanced
• Maximum Input Level: -1 dBu
• Phantom Power: 32V, always on

Analog Output

• Output Connector: 1 x balanced male XLR
• Output Impedance: 250 Ohms balanced
• Maximum Output Level: -1 dBu

Control and USB

• USB Connection: Mini-USB
• USB Function: Firmware and control functions
• Mic Control Compatibility: TC-Helicon MP-75 and Sennheiser e835 FX

Power

• Power Supply: 12V DC, 400 mA adapter
• Power Consumption: 5.6W
• Power Adapter: Included

Construction and Environment

• Construction: Two-part die-cast metal enclosure
• Base: Rubberized
• Operating Temperature: 32 to 122 degrees F
• Storage Temperature: -22 to 167 degrees F
• Maximum Humidity: 90%, non-condensing
• EMC Compliance: EN 55103-1, EN 55103-2, FCC Part 15 Class B, CISPR 22 Class B
• Safety Certifications: IEC 65, EN 60065, UL6500, CSA
• Dimensions: 5.4 x 3.5 x 2.3 inches
• Weight: 0.9 lb

What's In the Box

• TC-Helicon Ditto Mic Looper
• 12V Power Supply
• USB Cable
