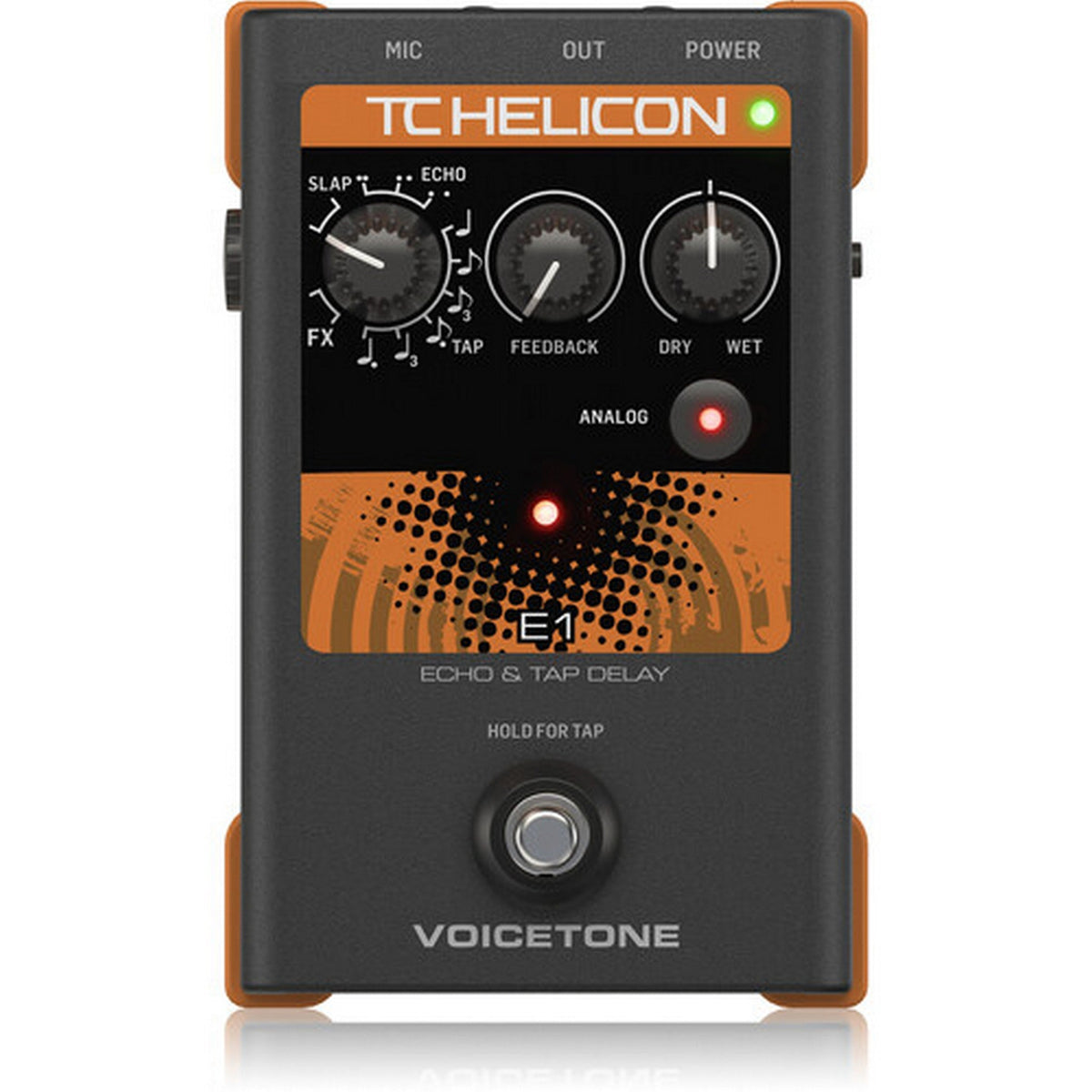

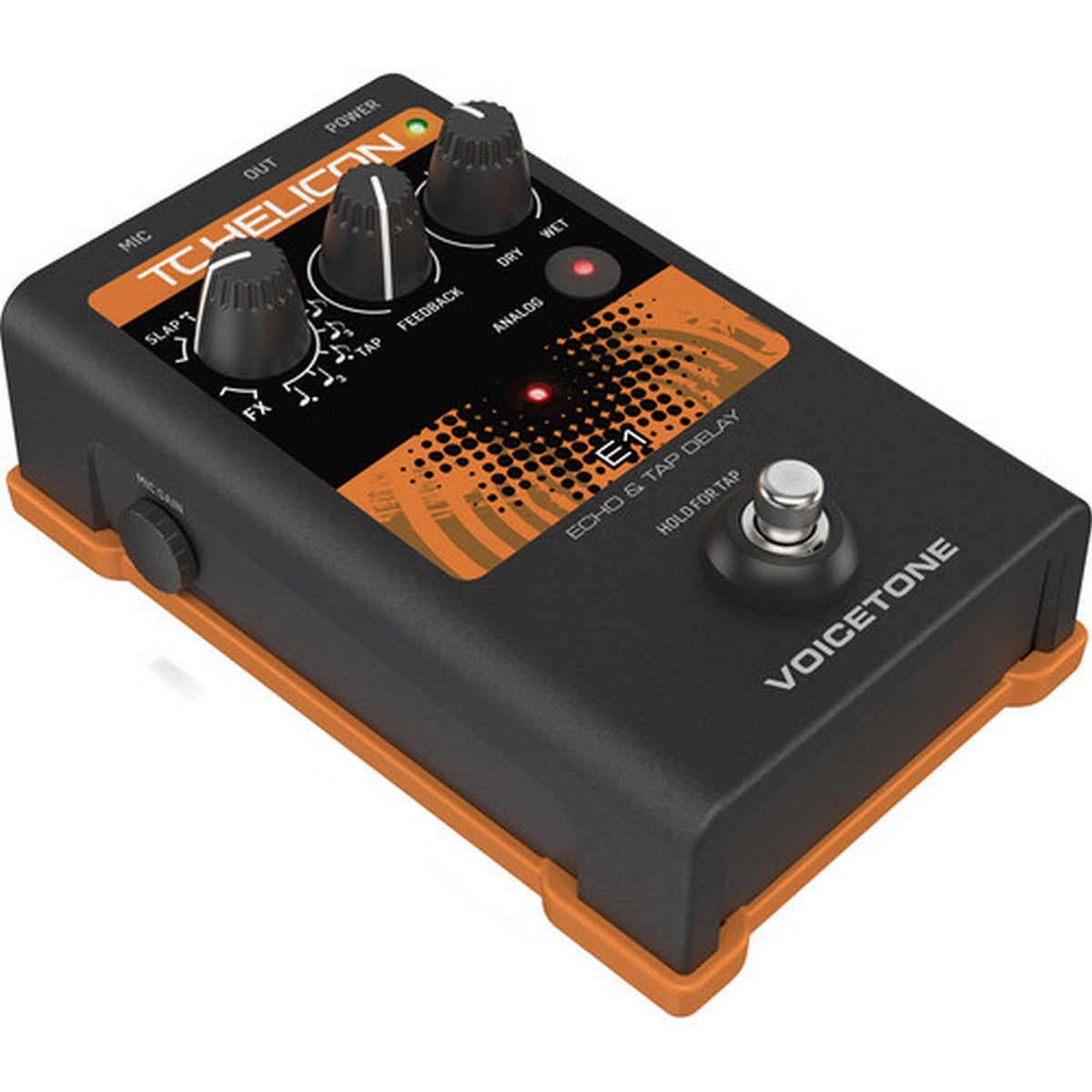

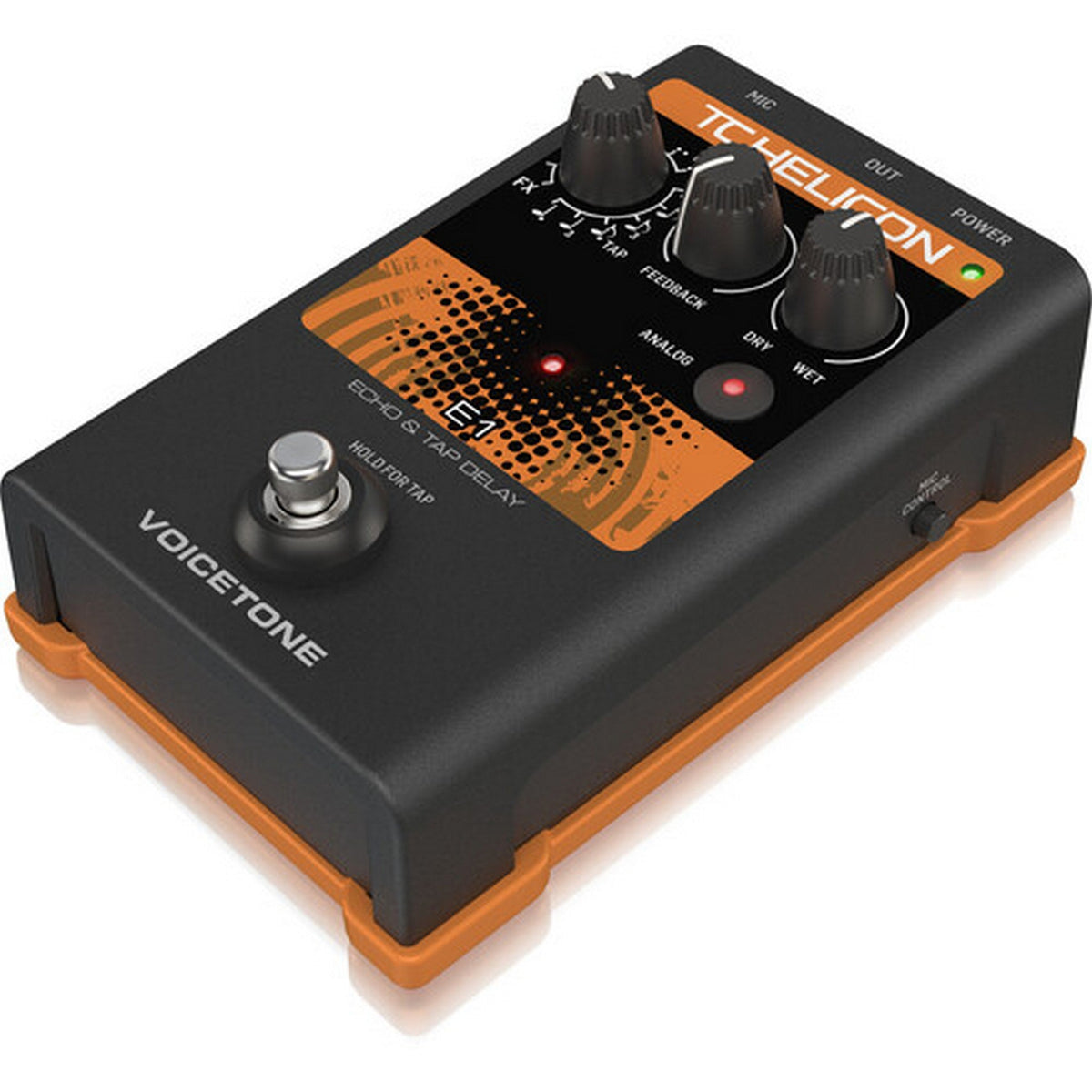

TC Helicon VoiceTone E1 Vocal Echo & Tap Delay Effects Pedal

TC Helicon VoiceTone E1 Vocal Echo & Tap Delay Effects Pedal

The TC Helicon VoiceTone E1 Vocal Echo Effects Pedal gives singers 13 preset echo styles ranging from short slapback treatments to tempo-synchronized delays and special effects. Dedicated Style, Feedback, and Dry/Wet controls provide direct adjustment, while footswitch tapping synchronizes compatible echo styles to the tempo of a song.

Designed for vocalists who want hands-free effects control on stage, the VoiceTone E1 connects inline between a standard microphone and a mixer or powered speaker. The Analog control rolls off high frequencies in the repeats for a softer tape-inspired character. Its Mic Control function also supports compatible microphones for remote effect switching without reaching for the pedal.

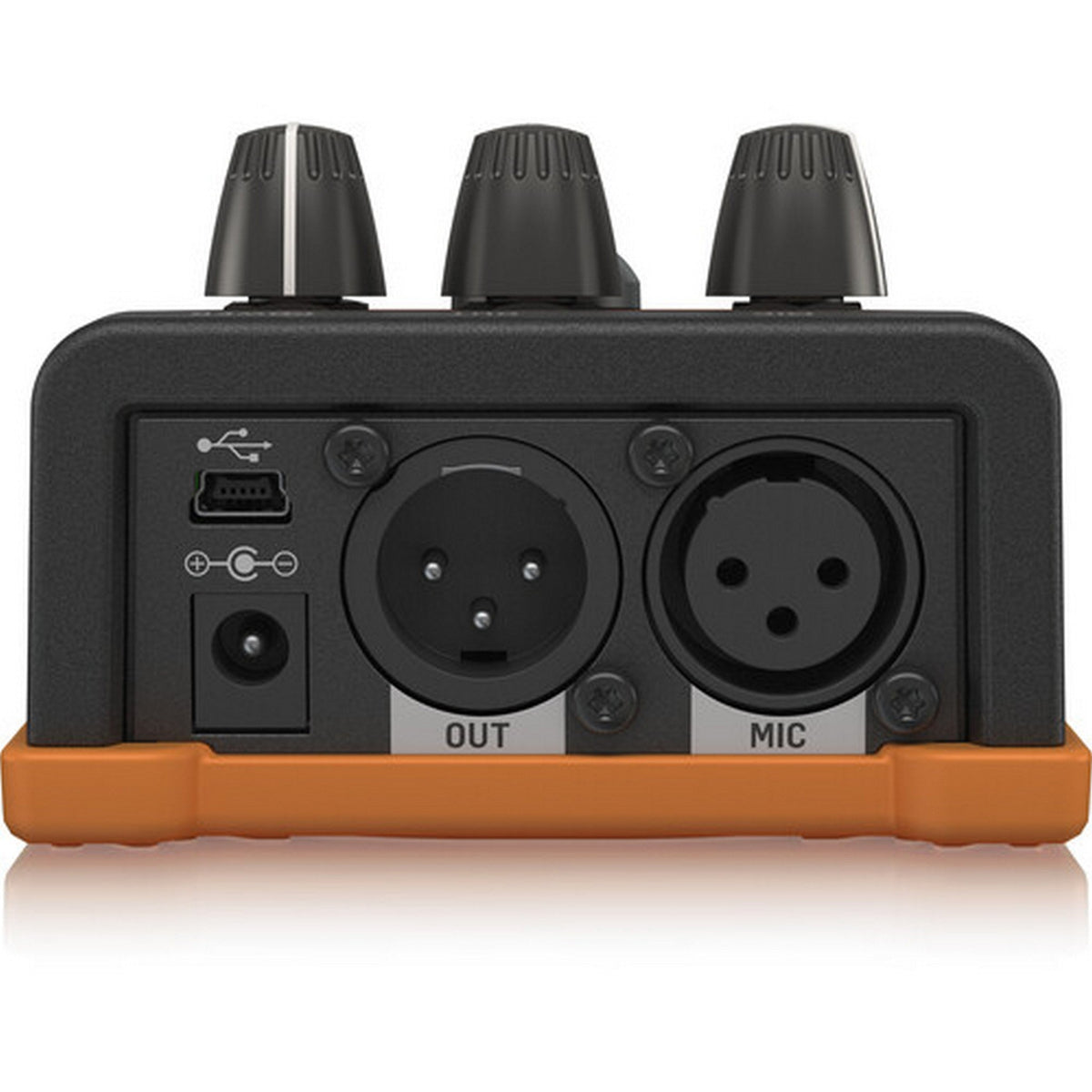

A balanced XLR microphone input feeds TC Helicon's vocal processing path, while an XLR output integrates with typical PA and recording equipment. Phantom power remains available for compatible microphones whenever the pedal is powered. Mini-USB connectivity supports computer-based product functions, and the die-cast metal enclosure with rubberized construction is built for repeated live performance use.

Key Features

• 13 Echo Styles: Provides slapback, tap-tempo, and special vocal echo options for modern and vintage-inspired effects.
• Tap Tempo Control: Lets the footswitch synchronize supported delay repeats with the tempo of the performance.
• Analog Echo Filter: Softens high-frequency content in the repeats for a warmer tape-style echo character.
• Feedback Control: Adjusts the number and duration of audible echo repeats.
• Dry/Wet Mix: Balances the unprocessed lead vocal against the generated echo effect.
• Mic Control: Supports remote effect switching from compatible TC Helicon microphones.
• Inline XLR Connection: Installs directly between a microphone and mixer, powered speaker, or compatible vocal effects chain.
• Metal Stompbox Construction: Uses a die-cast enclosure and rubberized base for stage-oriented durability.

Technical Specifications

• Manufacturer Part Number: 0726-ABK86-US1
• Product Type: Vocal Echo and Delay Effects Pedal
• Preset Echo Styles: 13
• Microphone Input: Balanced XLR
• Microphone Input Impedance: 2.68 kOhms balanced
• Microphone Input Level at 0 dBFS: -42 to +1 dBu
• EIN at Maximum Mic Gain: -126 dBu, Rg = 150 Ohms
• Microphone Input SNR: Greater than 104 dB
• Microphone Output: XLR
• Output Impedance: 200 Ohms balanced / 100 Ohms unbalanced
• Maximum Output Level: +1 dBu
• Dynamic Range: Greater than 104 dB, 20 Hz to 20 kHz
• Frequency Response: 20 Hz to 20 kHz, +0 / -0.3 dB
• USB Connection: Mini-USB
• Controls: Echo Style, Feedback, Dry/Wet Mix, Analog Echo Filter, Footswitch
• Phantom Power: Always available when powered
• Power Supply: 12 VDC, 400 mA
• Power Consumption: 5.6 W
• Operating Temperature: 32 to 122°F
• Storage Temperature: -22 to 167°F
• Maximum Humidity: 90% non-condensing
• Construction: Die-cast metal and rubber
• Color: Gray / Orange
• Dimensions: 5.4 x 3.5 x 2.3"
• Weight: 0.92 lb

What's In the Box

• TC Helicon VoiceTone E1 Vocal Echo Effects Pedal
• Power Supply
