TC Helicon VoiceTone H1 Guitar-Controlled Vocal Harmony Pedal

TC Helicon VoiceTone H1 Guitar-Controlled Vocal Harmony Pedal

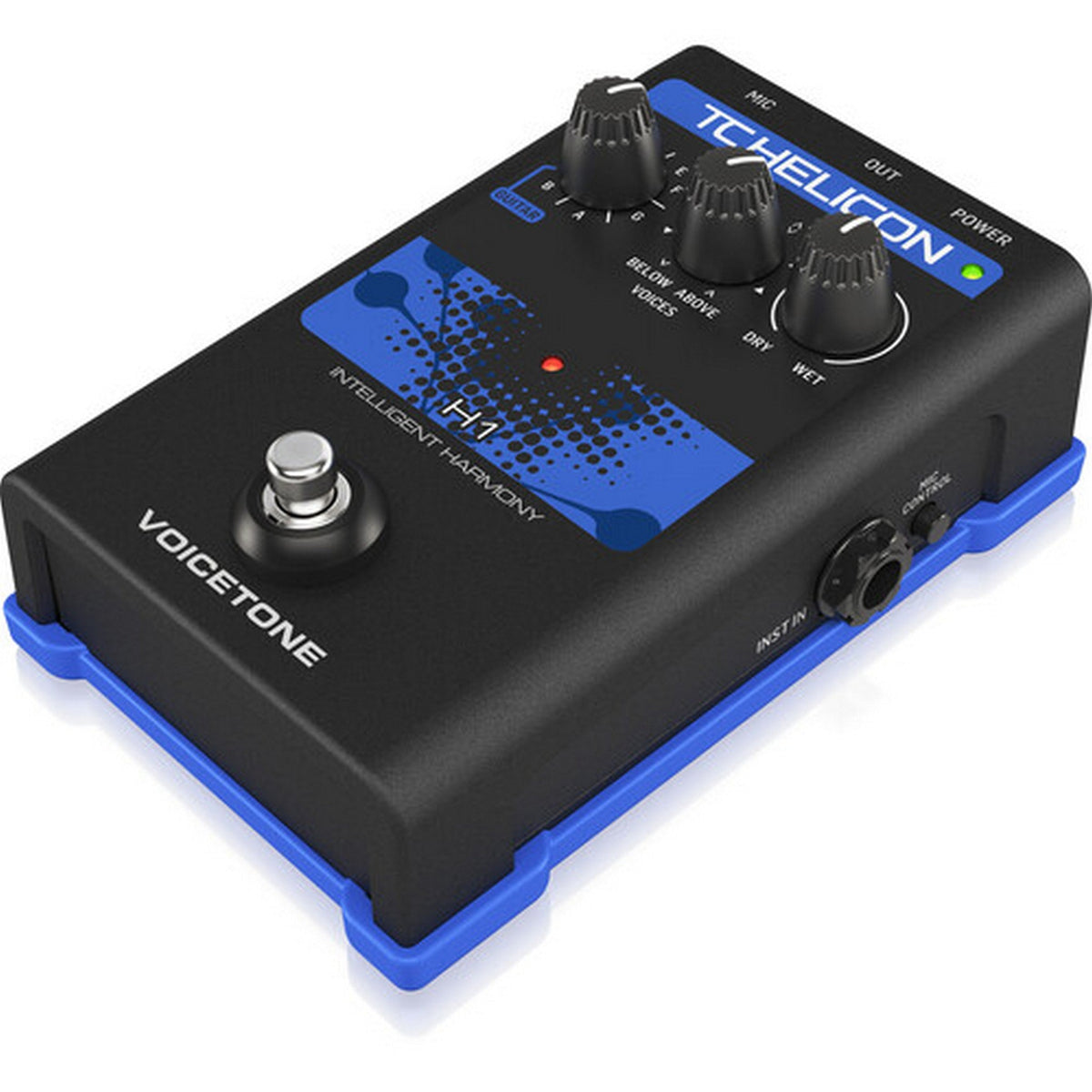

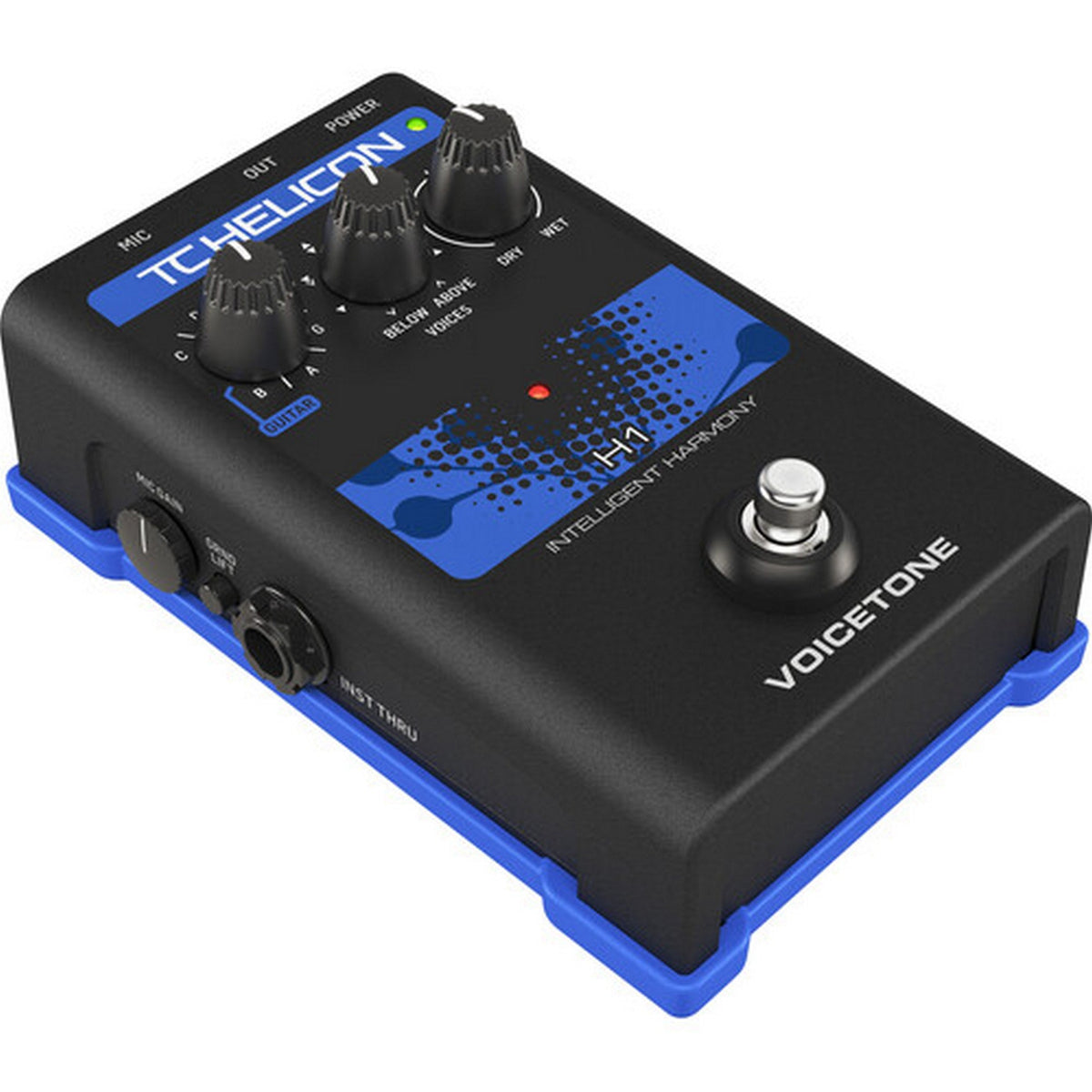

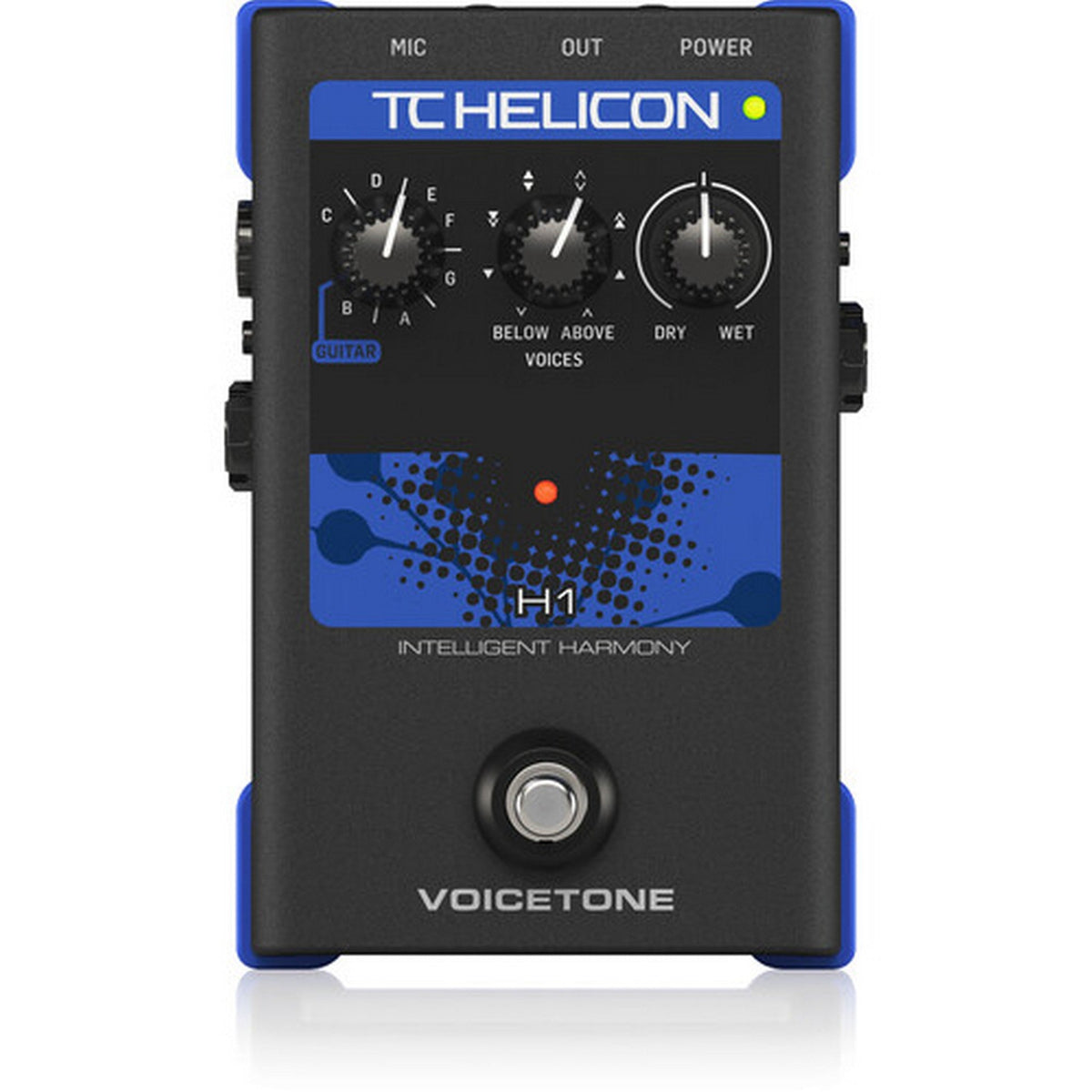

The TC Helicon VoiceTone H1 Vocal Harmony Pedal adds one or two harmony voices to a live vocal signal and can follow chords from a connected guitar or a manually selected musical key. Its single-foot-switch design, dedicated harmony controls, XLR microphone path, and compact enclosure make real-time vocal harmonizing practical for stage performance.

Singer-guitarists can route an instrument through the high-impedance input and thru connection so changing guitar chords guide the generated harmonies automatically. Vocalists can also select a song key directly when no guitar is connected. The Voices control places harmonies above or below the lead vocal with close and far interval combinations, while the Dry/Wet control balances the processed and original signals.

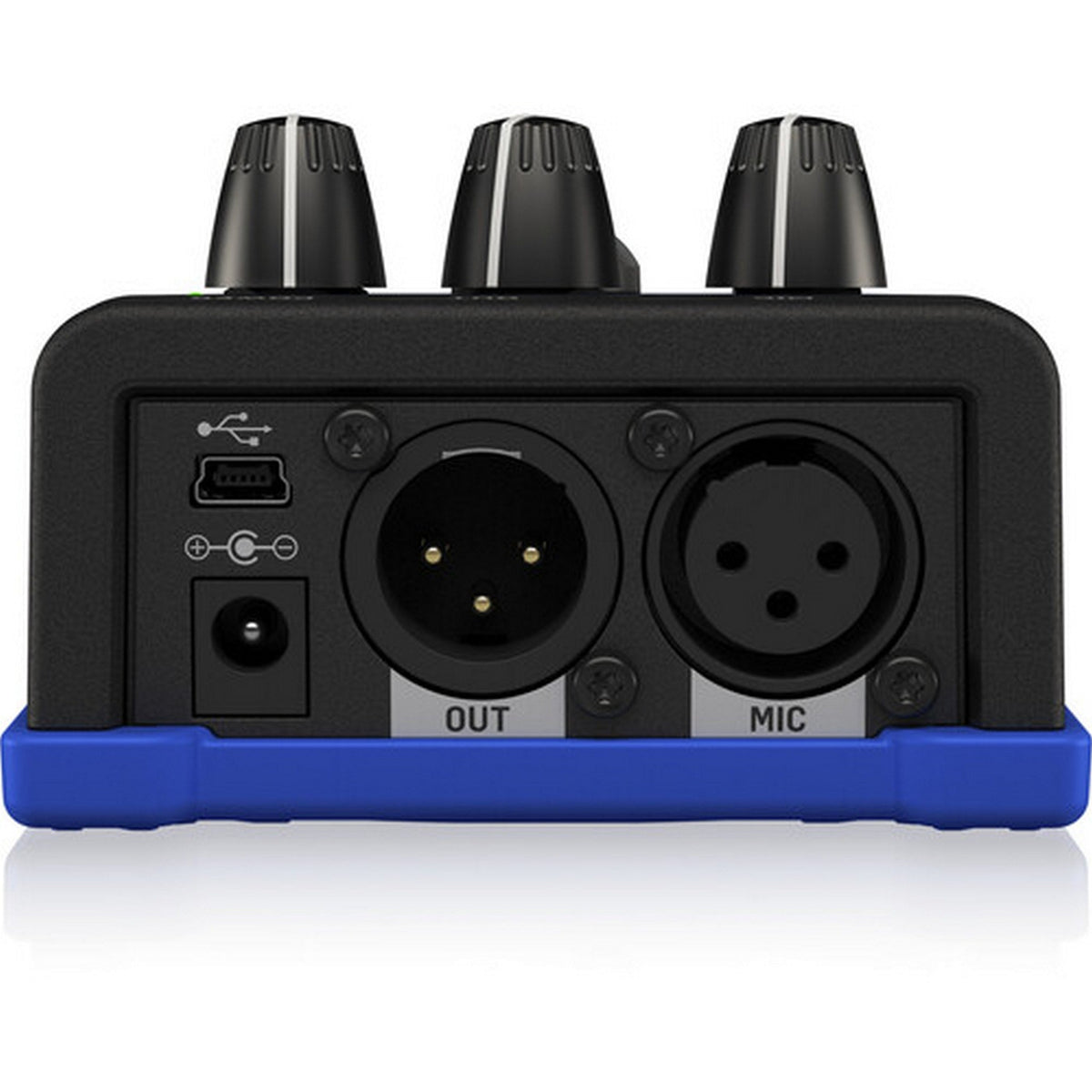

The VoiceTone H1 uses a balanced XLR microphone input and output for straightforward integration between a microphone and PA mixer. Phantom power is available whenever the processor is powered, and Mic Control supports remote effect switching with a compatible TC Helicon microphone. A Mini-USB connection provides computer access for supported firmware and product updates, while the die-cast metal chassis is designed for regular stage use.

Key Features

• One- or Two-Voice Harmony: Adds selectable harmony voices above or below the lead vocal for fuller live arrangements.
• Guitar-Guided Processing: Tracks chords from a connected guitar to adjust harmony notes as the progression changes.
• Manual Key Selection: Creates harmonies from a selected musical key when guitar control is not required.
• Voice Arrangement Control: Selects close, far, upper, lower, and combined harmony configurations from a dedicated control.
• Dry/Wet Mix: Balances the original lead vocal against the generated harmony signal directly from the pedal.
• Mic Control Support: Allows remote effect switching from a compatible TC Helicon microphone.
• Instrument Thru: Passes the connected guitar signal to an amplifier or PA while using its chords to guide harmony generation.
• Stage-Ready Construction: Combines a die-cast metal enclosure with a footswitch and compact pedal format for live use.

Technical Specifications

• Product Type: Vocal Harmony Effects Pedal
• Audio Circuit Type: Digital
• Microphone Input: 1 x XLR 3-pin balanced
• Microphone Input Impedance: 2.68 kOhms balanced
• Microphone Input Level at 0 dBFS: -42 to +1 dBu
• Microphone Input SNR: Greater than 104 dB
• EIN at Maximum Mic Gain: -126 dBu, Rg = 150 Ohms
• Phantom Power: Always available when powered
• Instrument Input: 1 x 1/4" TS high-impedance
• Instrument Input Impedance: 1 MOhm
• Instrument Input Level at 0 dBFS: -7 to +17 dBu
• Instrument Input SNR: Greater than 115 dB
• Instrument Output: 1 x 1/4" TS instrument thru
• Microphone Output: 1 x XLR 3-pin
• Output Impedance: 200 Ohms balanced / 100 Ohms unbalanced
• Maximum Output Level: +1 dBu
• Dynamic Range: Greater than 104 dB, 20 Hz to 20 kHz
• Frequency Response: 20 Hz to 20 kHz, +0 / -0.3 dB
• USB Connection: 1 x Mini-USB
• Power Supply: 12 VDC, 400 mA
• Power Consumption: 5.6 W
• Operating Temperature: 32 to 122°F
• Storage Temperature: -22 to 167°F
• Maximum Humidity: 90% non-condensing
• Construction: Die-cast metal and rubber
• Color: Black / Blue
• Dimensions: 5.4 x 3.5 x 2.3"
• Weight: 0.92 lb

What's In the Box

• TC Helicon VoiceTone H1 Vocal Harmony Pedal
• 12 VDC Power Supply
