Techart PRO TZM-02 Leica M to Nikon Z Autofocus Adapter

Techart PRO TZM-02 Leica M to Nikon Z Autofocus Adapter

The Techart PRO TZM-02 autofocus adapter mounts Leica M-mount lenses on Nikon Z-mount mirrorless cameras while adding autofocus capability to compatible manual-focus lenses. This Version II design uses four radially positioned servo motors and four-axis support to move the mounted lens for focus adjustment through the Nikon camera's phase-detection autofocus system.

The TZM-02 is designed for photographers who want to retain Leica M lenses while gaining autofocus functions on Nikon Z bodies. Techart specifies compatibility with both full-frame and APS-C Nikon Z cameras, along with AF-S, AF-C, face detection, eye detection, and video autofocus support. A compact bulge-less housing also reduces interference with tripod plates and other camera accessories.

The adapter supports Nikon in-camera three-axis image stabilization and uses an optimized 4.5 mm focusing extension to balance autofocus travel and operating speed. Its metal construction and four-motor mechanism are designed to handle heavier lenses with improved stability. Additional lens-mount adapters can also be stacked in front of the TZM-02 for broader manual-lens compatibility, although specific lens combinations require their own appropriate adapter.

Key Features

• Leica M to Nikon Z Conversion: Mounts compatible Leica M-mount lenses on Nikon Z-mount mirrorless camera bodies.
• Autofocus for Manual Lenses: Uses the camera's phase-detection autofocus system to provide motorized focusing.
• Four Servo Motors: Radially positioned motors provide four-axis mechanical support for faster, more stable focusing.
• Full-Frame and APS-C Support: Works with compatible Nikon Z cameras using either sensor format.
• Advanced AF Functions: Supports AF-S, AF-C, face detection, eye detection, and video autofocus on compatible cameras.
• In-Camera Stabilization Support: Supports Nikon three-axis in-body image stabilization with adapted manual lenses.
• Bulge-Less Housing: Compact construction reduces obstruction around tripod plates and accessories mounted beneath the camera.
• Firmware Updatable: The included USB update tool allows supported firmware updates from a computer.

Technical Specifications

• Model: TZM-02
• Version: II
• Product Type: Autofocus lens mount adapter
• Lens Mount: Leica M
• Camera Mount: Nikon Z
• Camera Compatibility: Nikon Z-mount full-frame and APS-C mirrorless cameras
• Electronic Communication: Yes
• Autofocus Support: Yes
• Autofocus Modes: AF-S and AF-C
• Detection Support: Face and eye autofocus on compatible cameras
• Video Autofocus: Supported
• Motor System: Four radially positioned servo motors
• Mechanical Support: Four-axis
• Maximum Focusing Extension: 4.5 mm
• Image Stabilization Support: In-camera three-axis stabilization
• Material: Metal
• Firmware Updating: USB update tool
• EAN: 6900527096798
• Package Weight: 0.625 lb
• Package Dimensions: 4.4 x 4 x 1.7"

Compatibility Notes

• Additional Lens Systems: Compatible secondary adapters can be stacked ahead of the TZM-02 to adapt other manual lens mounts.
• Heavy Lenses: Lenses heavier than 2.9 lb should be supported by hand or with an appropriate tripod collar.
• Infinity-Lock Limitation: Techart states that LTM or M-mount lenses equipped with an infinity-lock button are not applicable.

What's In the Box

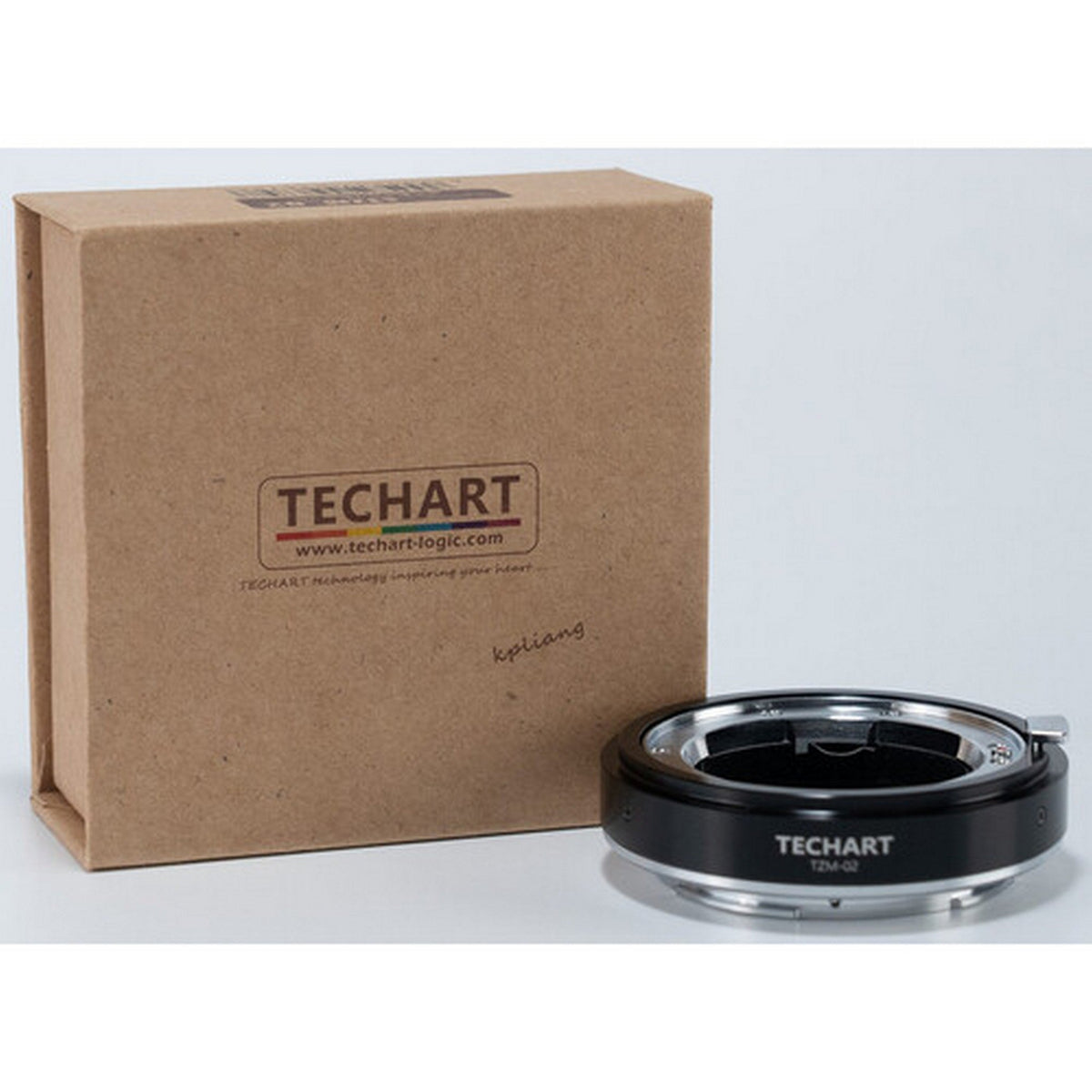

• Techart PRO TZM-02 autofocus adapter
• USB firmware update tool
